The information provided matches the specifications of the Trucool Huayi HY113YZ Compressor from the uploaded document. Below is a comparison and verification of the details:
Key Specifications:
- Model : HY113YZ (matches HYE113Y as a variant)
- Application : High Back Pressure (HBP) ✅
- Power Input : 455W ✅
- Refrigerant : R134a ✅
- Horsepower :
- 3/8 hp
- Cooling Capacity :
- 860 Kcal/Hr or 3414 Btu/Hr ✅
- EER (Energy Efficiency Ratio) : 7.50 Btu/W.Hr ✅
- Displacement : 11.3 cm³ ✅
- Voltage Range : 187-253V ✅
Additional Details:
- Motor Type : CSIR (Capacitor Start Induction Run) ✅
- Cooling Method : Fan Cooling ✅
- Electrical Accessories :
- Start Relay: QL2-9.5 B3
- Thermal Protector: B120-135/B
- Start Capacitor: 60uF/[61uF]
Weights:
- Net Weight : 11.4 kg ✅
- Gross Weight : 12.5 kg ✅
| Brand | Trucool Huayi |
| Power | 455 W |
| Compressor Technology | Reciprocating Compressor |
| Model Name/Number | HY113YZ |
| Lubrication Style | Oil |
| Voltage | 254 V |
| Refrigerant | R134a |
| Application | High Back Pressure (HBP) |
| Motor Type | CSIR |
| Cooling Method Type | Fan Cooling |
| Cooling Capacity | 860 Kcal/Hr, 3414 Btu/Hr |
| EER | 7.50 Btu/W.Hr |
| Displacement | 11.3 Cm3 |
| Oil Charge | 330 CC |
| Net Weight | 11.4 Kg |
| Gross Weight | 12.5 Kg |
| Start Relay | QL2-9.5 B3 |
| Thermal Protector | B120-135/B |
| Start Capacitor | 60 Mu F/[61 Mu F] |
| Attachment | Type | Link |
|---|---|---|
| Mbsm_dot_pro_private_PDF-trucool-huayi-hy113yz-compressor | application/pdf | Get Link |

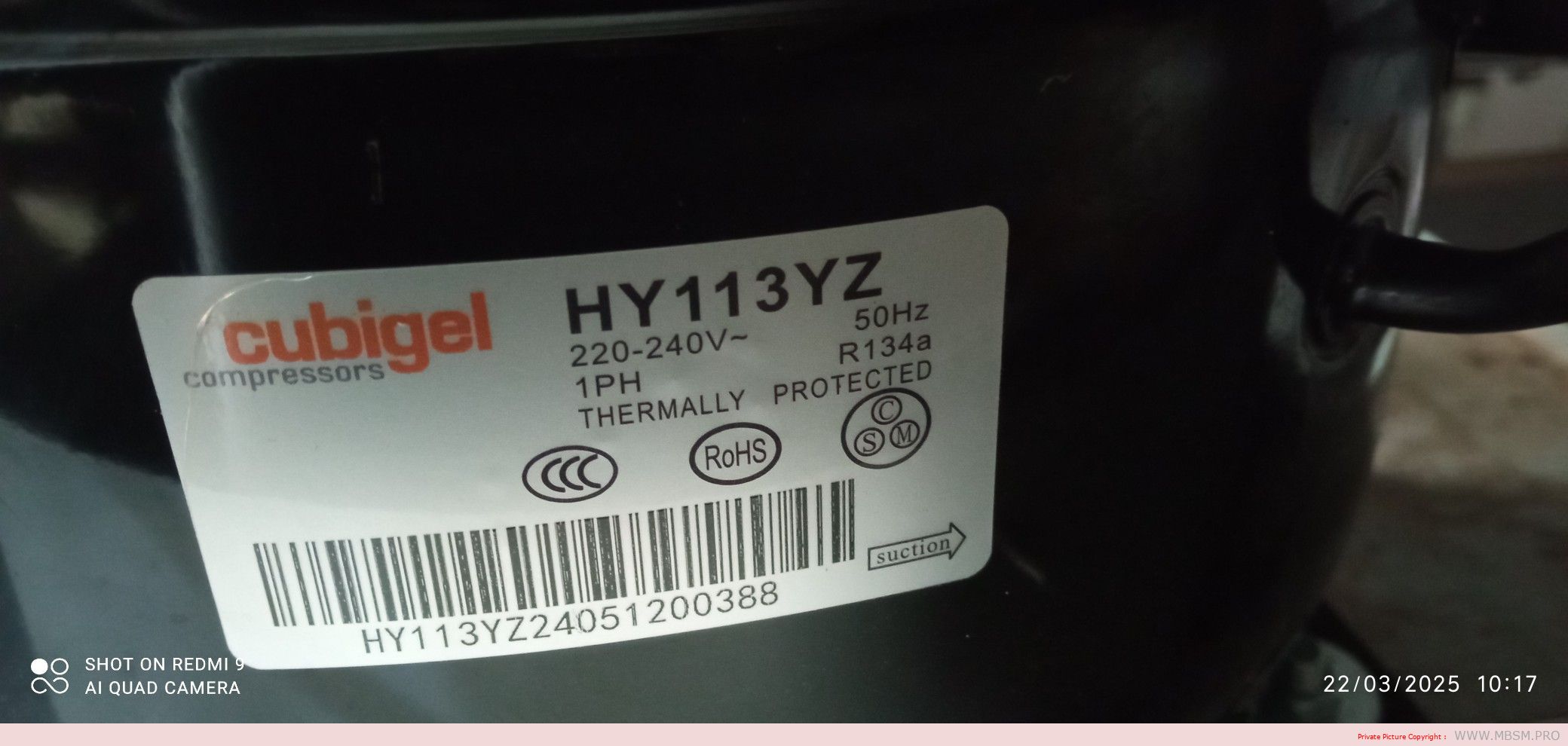

| Mbsm_dot_pro_private_picture-HY113YZ | image/jpeg | Get Link |
