Information | Value |
---|---|
Model | BLY-F (905) |
Rated Voltage | 220-240V~ |
Rated Frequency | 50/60Hz |
Heating Power | 450W |
Total Power | 550W |
Maximum Rated Wattage of Lamps | 0.5W |
Cooling Capacity | 1.5L/h |
Cooling Consumption | 0.100Kwh/H |
Rated Cooling Current | 0.8A |
Refrigerant | R134a/32g |
Climate Class | T |
Protection Class | I |
Foam | EPS |
Waterproof Degree | IPX0 |
Made in | China |

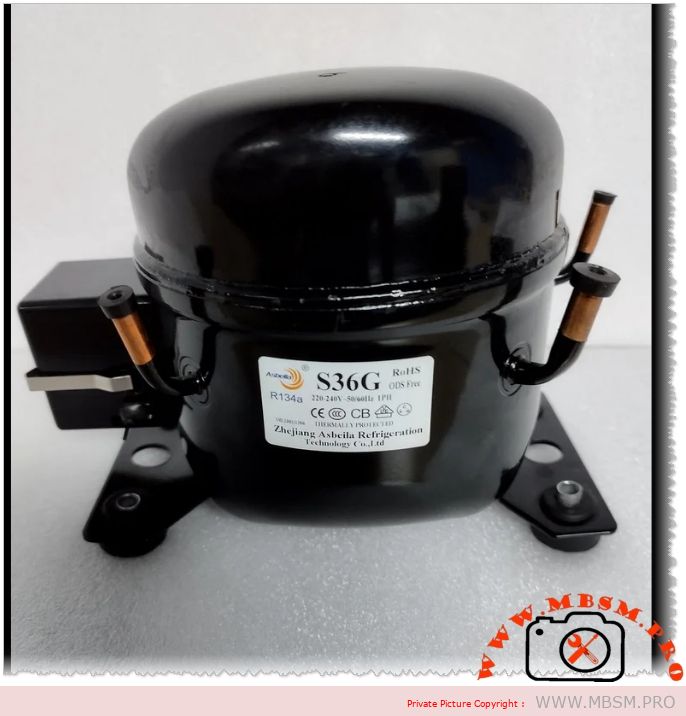

1. Compressor (Model S36G)
- Purpose: The core component for pressurizing refrigerant in a cooling cycle.
- Model S36G: Likely a specific compressor model (possibly from a brand like Secop, Danfoss, or a regional manufacturer). Verify with manufacturer documentation for exact specs.
- Application: Small-scale systems (e.g., commercial water coolers, medical devices, or compact refrigeration) due to the small refrigerant charge.
2. Refrigerant (R134a, 32g)
- R134a: A common hydrofluorocarbon (HFC) refrigerant used in medium-temperature systems (e.g., refrigerators, AC units, water coolers).
- 32g Charge: Indicates a small system, typical for portable or compact units. Ensure the charge matches manufacturer specifications to avoid inefficiency or damage.
3. Water-Cooler System
- Water-Cooled Condenser: Uses water (instead of air) to dissipate heat, improving efficiency. Requires a water supply, pump, and possibly a cooling tower.
- Applications: Often found in commercial settings (e.g., water dispensers, industrial chillers, or high-efficiency HVAC systems).
4. BLY-F/950
- Likely a component model, such as:
- Filter drier: Removes moisture/contaminants from refrigerant.
- Pressure switch: Safety device to control system pressure.
- Control board/Valve: Part of the system’s electrical or flow regulation.
- Check manufacturer manuals or suppliers for exact function.
Key Considerations
- Compatibility: Ensure the compressor (S36G) is designed for R134a and water-cooled operation.
- Refrigerant Charge: Confirm 32g is correct (undercharging/overcharging affects performance).
- Water Cooling: Check for scale buildup, water flow rate, and pump functionality.
- BLY-F/950 Replacement: Cross-reference with OEM parts or contact the system manufacturer.
Troubleshooting Tips
- Low Cooling Efficiency: Check refrigerant charge, water flow, or condenser cleanliness.
- Component Failure: Test the BLY-F/950 part (e.g., continuity for switches, clogging in filter driers).
- Noise/Leaks: Inspect the compressor and refrierant lines.
