Mbsm.pro, compressor, HUAYI, S90CL, 1/5 hp, r600a, lbp, 155 w, 9 cm3

image_pdfimage_print

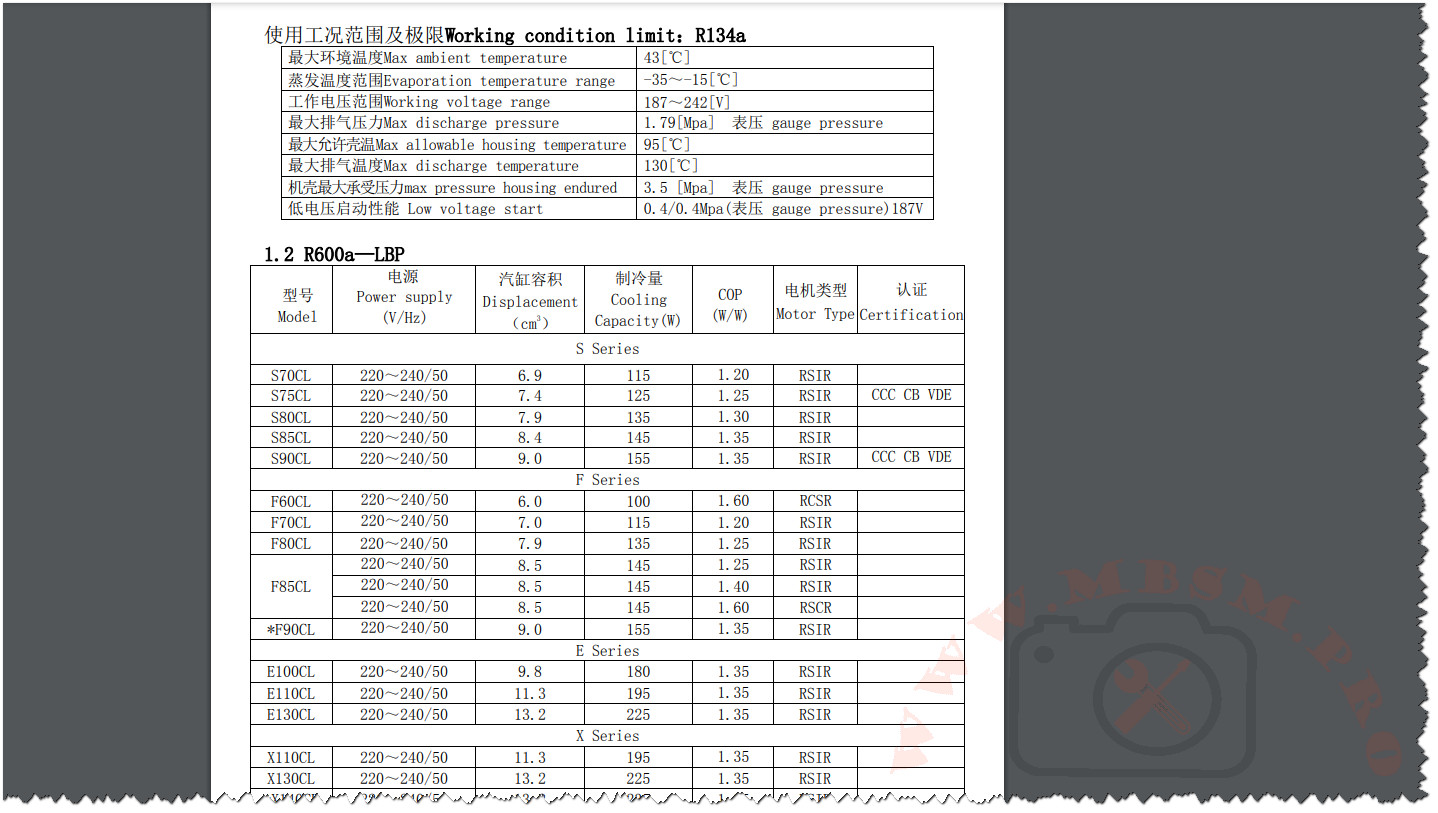

R600a-LBP COMPRESSORS – S SERIES

 Model
Power supply
(V/Hz)


 Displacement
cm3
 CoolingCapacity(W) C.O.P(W/W) Motor Type Certification
S Series
S70CL220~240/506.91151.20RSIR
S75CL220~240/507.41251.25RSIRCCC CB VDE
S80CL220~240/507.91351.30RSIR
S85CL220~240/508.41451.35RSIR
S90CL220~240/509.01551.35RSIRCCC CB VDE

* TOLERANCE: Capacity: ≥95%,  Input Power: ≤115%,  Current: ≤110%,  C.O.P≥93%;  HBP-Evaporator Temperature: -5°C~15°C
* COOLING  TYPE:  ST=Static Cooling,  FC=Fan Cooling,  OC=Oil Cooling

Note: This  datasheet  describes  certain  operational  parameters  and  conditions  for  operation  of  this  product. If  this  product  is  operated  outside  of  the  parameters  and  conditions  stated  herein,  buyer  assumes  sole  and full responsibility.

Test ConditionsLBPMHBPConversion Table
ASHRAECECOMAFASHRAECECOMAF1 Kcal/h×1.163=W
Evaporator Temp.°C-23.3 7.2 2 Kcal/h×3.968=Btu/h
 Ambience Temp.°C32.2 35.0 3 W×3.412=Btu/h
Condenser Temp.°C54.4 54.4 4 W×0.864= Kcal/h
Suction Temp.°C32.2 35.0 5 EER=COP×3.412
Subcooling Temp.°C32.2 46.1 6 Capacity(at 50Hz)×1.16=Capacity(at 60Hz)
