PH360X3C-4KTS1:

• Cooling capacity: 30,299 BTU/h. This translates to approximately 3 HP (horsepower). However, it’s important to note that HP is not a perfect conversion for cooling capacity, and the actual cooling output can vary depending on various factors like operating conditions and refrigerant type.
• Refrigerant gas: R22 (note that R22 is being phased out in some countries due to environmental concerns)
• Input power: 2090W
• Voltage: 220-240V, 50Hz, 1 Phase
• Applications: air conditioners, dryers, refrigerators, chillers, etc.

COMPRESSOR

COMPRESSOR, REFRIGERATION;TYPE ROTARY, FLOW RATE 634CFM, POTENTIAL 220-240 VAC, COOLING CAPACITY 2 TON; REF: MODEL: PA240M2CS 4KU1;FFT: REFRIGERENT USED: 410A Make: Toshiba

(cm3/rev) (±5%W) (±5% W) (±5%) (A) ±3dB(A) μF-V (ml) (kg) (kg)
1 PH108X1CY-8BG*2 10.8 1820 595 3.06 2.7 59 25/370 350 0.70 10.7
2 PH120X1CY-8BG*2 12.2 2090 675 3.10 3.1 59 25/370 350 0.70 10.7
3 PH135X1C-8DZ*2 13.6 2280 750 3.04 3.4 59 25/370 400 0.85 12.0
4 PH150X1C-8DZ*2 14.8 2500 820 3.05 3.8 60 25/370 400 0.85 12.0
5 PH150X1C-8DZ*2 14.8 2520 810 3.11 3.7 61 30/370 400 0.85 12.0
6 PH155X1C-8DZ*2 15.4 2600 850 3.06 4.0 59 25/370 400 0.85 12.0
7 PH160X1C-8DZ*2 16.1 2720 890 3.06 4.1 59 25/370 400 0.85 12.0
8 PH160X1C-8DZ*3 16.1 2720 875 3.11 4.0 61 30/370 400 0.85 12.0
9 PH165X1C-8DZ*2 16.5 2810 920 3.05 4.2 59 25/370 400 0.85 12.0
10 PH165X1C-8DZ*3 16.5 2795 895 3.12 4.1 61 30/370 400 0.85 12.0
11 PH170X1C-8DZ*2 17.1 2920 960 3.04 4.5 59 25/370 400 0.85 12.0
12 PH170X1C-8DZ*3 17.1 2920 935 3.12 4.3 61 30/370 400 0.85 12.0
13 PH180X1C-8DZ*2 17.8 3050 1025 2.98 4.8 59 25/370 400 0.85 12.0
14 PH180X1C-8DZ*3 17.8 3015 965 3.12 4.5 61 30/370 400 0.85 12.0
15 PH195X2C-8FTC 19.3 3330 1080 3.08 5.0 61 25/370 480 1.10 15.1
16 PH200X2C-8FTC 20.0 3470 1135 3.06 5.2 61 25/370 480 1.10 15.1
17 PH200X2C-8FTC1 20.0 3465 1100 3.15 5.2 64 30/370 480 1.20 15.8
18 PH215X2C-8FTC 21.6 3725 1210 3.08 5.6 61 35/370 480 1.20 15.8
19 PH225X2C-8FTC 22.4 3870 1250 3.10 5.7 61 35/370 480 1.20 15.8
20 PH225X2C-8FTC1 22.4 3870 1230 3.15 5.6 64 35/370 480 1.20 15.8
21 PH230X2C-8FTC 23.1 3990 1310 3.05 6.0 61 35/370 480 1.20 15.8
22 PH240X2C-8FTC 23.9 4140 1355 3.06 6.2 61 35/370 480 1.20 15.8
23 PH240X2C-8FTC1 23.9 4070 1285 3.17 5.8 65 35/370 480 1.20 16.5
24 PH260X2C-8FTC1 26.2 4600 1510 3.05 7.3 63 35/370 520 1.30 16.3
25 PH260X2C-8FTC3 26.2 4530 1440 3.15 6.8 63 35/400 520 1.30 17.1
26 PH280X2C-8FTC1 28.0 4900 1570 3.12 7.5 64 35/370 520 1.30 17.1
27 PH290X2C-8FTC1 29.0 5110 1650 3.10 8.0 64 35/370 520 1.30 17.1
28 PH295X2C-8FTC1 29.4 5180 1670 3.10 8.0 64 35/370 520 1.30 17.1
29 PH295XCS-8KUC1 29.4 5200 1700 3.06 8.0 65 35/370 750 1.80 17.7
30 PH310X2CS-8KUC1 30.8 5410 1815 2.98 9.5 64 40/370 750 1.80 17.7
31 PH330X2CS-8KUC3 32.8 5720 1920 2.98 10.0 64 40/370 750 1.80 17.7
32 PH340X3C-8KUC1 34.2 5950 1945 3.06 9.1 66 50/400 750 1.80 20.6
33 PH360X3C-8KUC1 35.7 6240 2045 3.05 9.6 66 50/400 750 1.80 20.6
34 PH400X3CS-8KUC1 40.2 6920 2245 3.08 10.5 66 50/400 950 2.10 23.3
35 PH420X3CS-8MUC1 42.0 7400 2370 3.12 11.1 66 50/400 950 2.10 23.3
36 PH440X3CS-8MUC1 43.5 7650 2510 3.05 12.3 66 50/400 950 2.10 23.3
37 PH460X3CS-8PUC1 45.9 8150 2590 3.15 12.4 67 55/400 1050 2.60 25.2
38 PH480X3CS-4MU1 47.9 8500 2700 3.15 12.8 67 55/400 1050 2.60 25.2

Model Name	Displ. (cm3/rev)	COOLING Capacity (±5%W)	Power (±5% W)	COP(±5%)	Current (A)	Noise±3dB(A)	Capacitor μF-V	R22 Max (kg)	Wt. (kg)
PH225X2C-8FTC1	22.4	3870	1250	3.1	5.7	61	35/370	1.2	15.8
PH290X2C-4FT1	29	5110	1650	3.1	8	64	35/370	1.3	17.1
PH295X2C-8FTC1	29.4	5180	1670	3.1	8	64	35/370	1.3	17.1
PH420X3C-8KUC1	42	7400	2370	3.12	11.1	66	50/400	2.1	23.3
PH480X3C-8KUC1	47.9	8460	2730	3.1	13	67	55/400

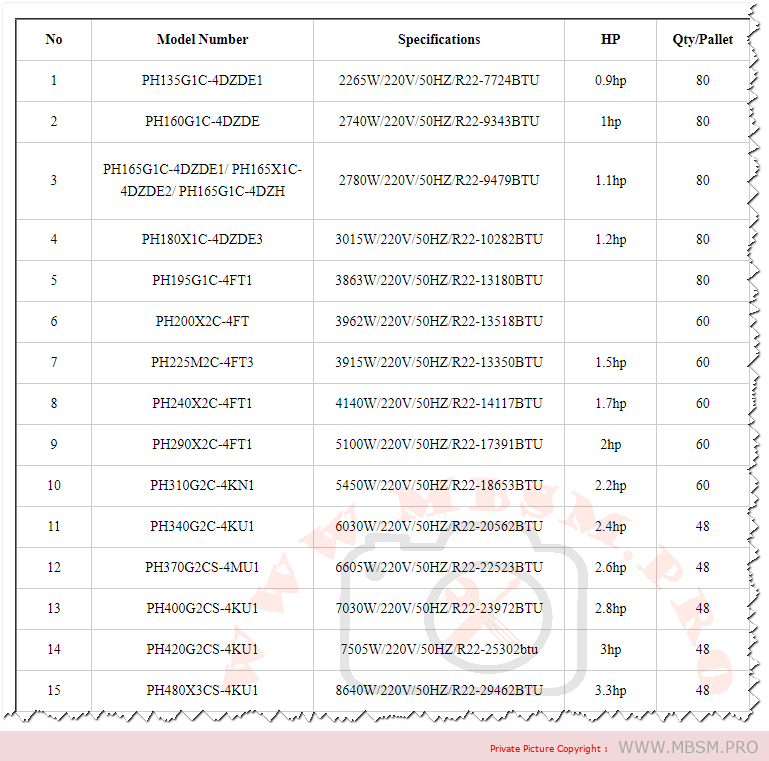

TYPE	SPECIFICATION	HP
PH135G1C-4DZDE1	2265W/220V/50HZ/R22	1HP
PH165X1C-4DZDE2	2780W/220V/50HZ/R22	1HP
PH180X1C-4DZDE3	3015W/220V/50HZ/R22	1.5HP
PH225X2C-4FT	3870W/220V/50HZ/R22	1.5HP
PH240X2C-4FT1	4140W/220V/50HZ/R22	1.5HP
PH290X2C-4FT1	5100W/220V/50HZ/R22	2HP
PH310G2C-4KN1	5450W/220V/50HZ/R22	2HP
PH340G2C-4KU1	6030W/220V/50HZ/R22	2.5HP
PH370G2CS-4KU1	6605W/220V/50HZ/R22	2.5HP
PH400G2CS-4KU1	7030W/220V/50HZ/R22	3HP
PH420G2CS-4KU1	7505W/220V/50HZ/R22	3HP
PH480X3CS-4MU1	8460W/220V/50HZ/R22	3HP
YH480X3CS-4MUC1	8350W/380V/50HZ/R22	3HP
PG180X1C-4DZDE3	3120W/220V/50HZ/R407C	1HP
PA118M1C-4FZ2	2770W/220V/50HZ/R410A	1HP
PA145G1C-4FT1	3530W/220V/50HZ/R410A	1.5HP
PA240X2CS-4KU1	5800W/220V/50HZ/R410A	2HP
PA270X3CS-4MU1	6670W/220V/50HZ/R410A	2.5HP
PA290G2CS-4MU1	7260W/220V/50HZ/R410A	3HP
PA290X3CS-4MU1	7180W/220V/50HZ/R410A	3HP
PA330X3CS-4MU1	8190W/220V/50HZ/R410A	3HP
