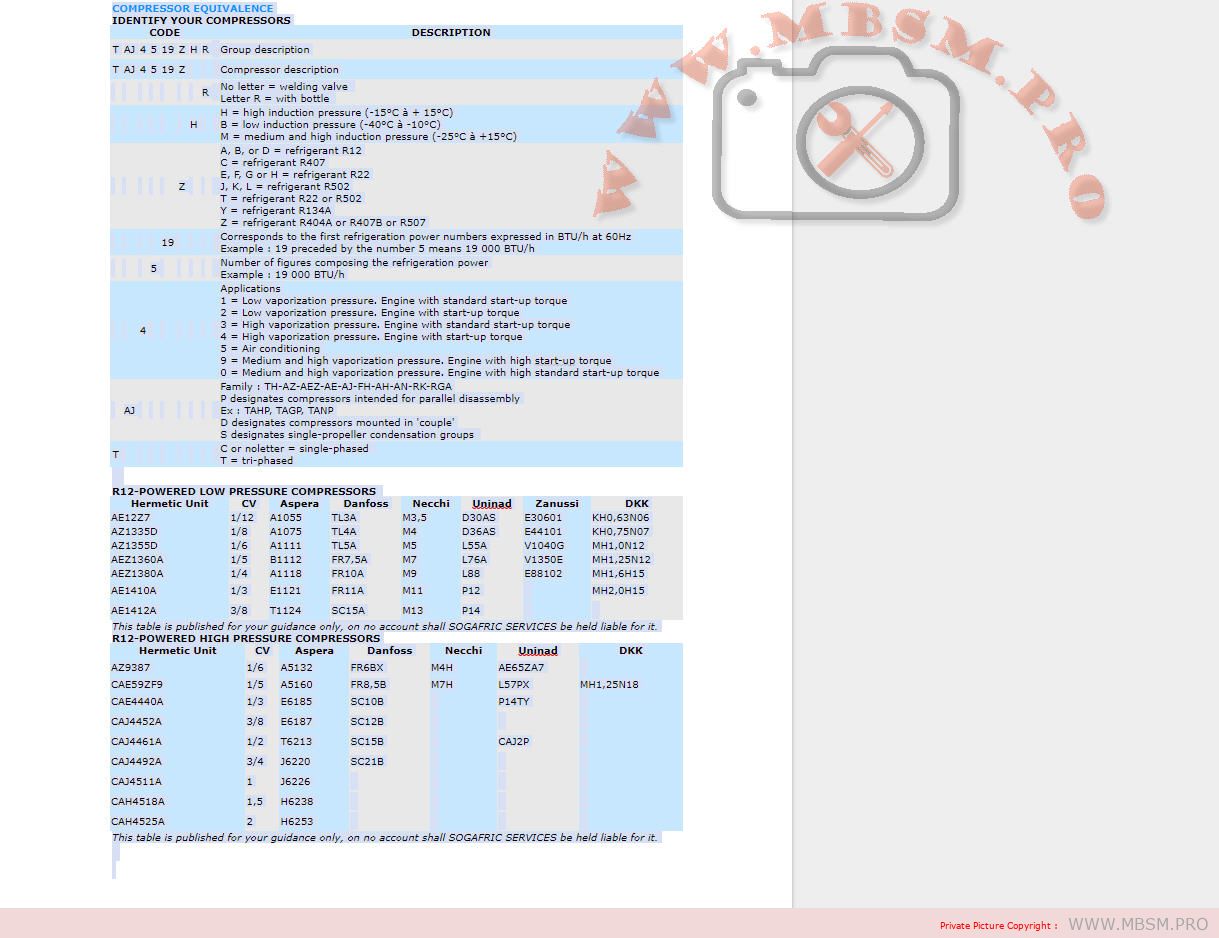

COMPRESSOR EQUIVALENCE

IDENTIFY YOUR COMPRESSORS

CODE

DESCRIPTION

T

AJ

4

5

19

Z

H

R



Group description

T

AJ

4

5

19

Z



Compressor description

R



No letter = welding valve
Letter R = with bottle

H



H = high induction pressure (-15°C à + 15°C)
B = low induction pressure (-40°C à -10°C)
M = medium and high induction pressure (-25°C à +15°C)

Z



A, B, or D = refrigerant R12
C = refrigerant R407
E, F, G or H = refrigerant R22
J, K, L = refrigerant R502
T = refrigerant R22 or R502
Y = refrigerant R134A
Z = refrigerant R404A or R407B or R507

19



Corresponds to the first refrigeration power numbers expressed in BTU/h at 60Hz
Example : 19 preceded by the number 5 means 19 000 BTU/h

5



Number of figures composing the refrigeration power
Example : 19 000 BTU/h

4



Applications
1 = Low vaporization pressure. Engine with standard start-up torque
2 = Low vaporization pressure. Engine with start-up torque
3 = High vaporization pressure. Engine with standard start-up torque
4 = High vaporization pressure. Engine with start-up torque
5 = Air conditioning
9 = Medium and high vaporization pressure. Engine with high start-up torque
0 = Medium and high vaporization pressure. Engine with high standard start-up torque

AJ



Family : TH-AZ-AEZ-AE-AJ-FH-AH-AN-RK-RGA
P designates compressors intended for parallel disassembly
Ex : TAHP, TAGP, TANP
D designates compressors mounted in ‘couple’
S designates single-propeller condensation groups

T



C or noletter = single-phased
T = tri-phased



R12-POWERED LOW PRESSURE COMPRESSORS

Hermetic Unit

CV

Aspera

Danfoss

Necchi

Uninad

Zanussi

DKK

AE12Z7

1/12

A1055

TL3A

M3,5

D30AS

E30601

KH0,63N06

AZ1335D

1/8

A1075

TL4A

M4

D36AS

E44101

KH0,75N07

AZ1355D

1/6

A1111

TL5A

M5

L55A

V1040G

MH1,0N12

AEZ1360A

1/5

B1112

FR7,5A

M7

L76A

V1350E

MH1,25N12

AEZ1380A

1/4

A1118

FR10A

M9

L88

E88102

MH1,6H15

AE1410A

1/3

E1121

FR11A

M11

P12



MH2,0H15

AE1412A

3/8

T1124

SC15A

M13

P14





This table is published for your guidance only, on no account shall SOGAFRIC SERVICES be held liable for it.

R12-POWERED HIGH PRESSURE COMPRESSORS

Hermetic Unit

CV

Aspera

Danfoss

Necchi

Uninad

DKK

AZ9387

1/6

A5132

FR6BX

M4H

AE65ZA7



CAE59ZF9

1/5

A5160

FR8,5B

M7H

L57PX

MH1,25N18

CAE4440A

1/3

E6185

SC10B



P14TY



CAJ4452A

3/8

E6187

SC12B







CAJ4461A

1/2

T6213

SC15B



CAJ2P



CAJ4492A

3/4

J6220

SC21B







CAJ4511A

1

J6226









CAH4518A

1,5

H6238









CAH4525A

2

H6253
