Specification :

Brand : Toshiba

Model : Rotary

Type : PH215X2C-4FT1

Refrigerant : R22

Voltage : 220V, 50Hz

		Specification	Capacity	Input power	COP/EER	Capacity
NO	Model No	HZ	Applicable Model	W	BTU/H	W	W/W	μF/V
12	PH185G1C-4DZ	50HZ	12000BTU	3210	10946	995	3.12	30/370
13	PH195X2C-8FTC1	50HZ	12000BTU	3330		1080	3.08	25/370
14	PH215X2C-4FT1	50HZ	12000BTU	3750	12788	1210	3.1	35/370
15	PH240X2C-4FT1	50HZ	12000BTU	4140	14117	1355	3.05	37/370
16	PH230X2C-8FT1	50HZ	12000BTU	3990		1310	3.05	35/370
17	PH340X3C-4FVS1	50HZ	T3 window type18000BTU	5952	20296	1992	2.99	50/400
18	PH340X2CS-8KUC2	50HZ	18000BTU	5850		1850	3.16	50/400
19	PH260X2C-4FT1	50HZ	18000BTU	4550	15516	1510	3.06	35/370
20	PH370G2CS-4MU1	50HZ	24000BTU	6540	22301	2045	3.2	45/400
21	PH340X2CS-4KU2	50HZ	24000BTU	5860	19983	1890	2.98	45/400
22	PH371X3CS-4MU1	50HZ	24000BTU	6540	22301	2045	3.2	45/400

GMCC A/C compressor, GMCC rotary compressor R22 220-240V/50HZ/1PH

Compressor Data

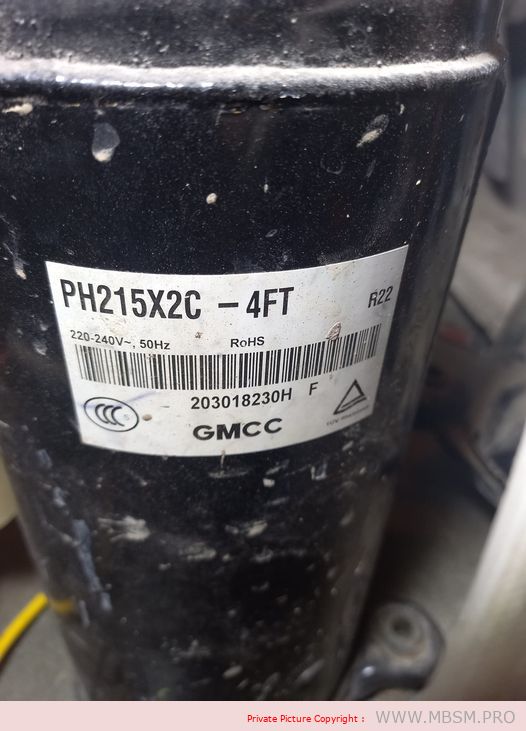

Compressor Model Name: PH215X2C-4FT
Compressor Type: Hermetic motor compressor
Compression Type: Rotary
Refrigerant: R22

Rated Performance
Voltage: At 220V/240V
Capacity: 3748W
Input: 1210W

Rating Conditions: ARI
Cond. Temp.: 54.4 Celsius ( 130 Fahrenheit )
Evap. Temp.: 7.2 Celsius ( 45 Fahrenheit )
Return Gas Temp.: 35.0 Celsius ( 95 Fahrenheit )
Liquid Temp.: 46.1 Celsius ( 115 Fahrenheit )
Ambient Temp.: 35.0 Celsius( 95 Fahrenheit )

Overload Conditions
Cond. Temp.: 65.0 Celsius ( 149 Fahrenheit )
Evap. Temp.: 13.0 Celsius ( 55.4 Fahrenheit )
Return Gas Temp.: 25.0 Celsius ( 77 Fahrenheit )
Ambient Temp.: 54.0 Celsius ( 129.2 Fahrenheit)
