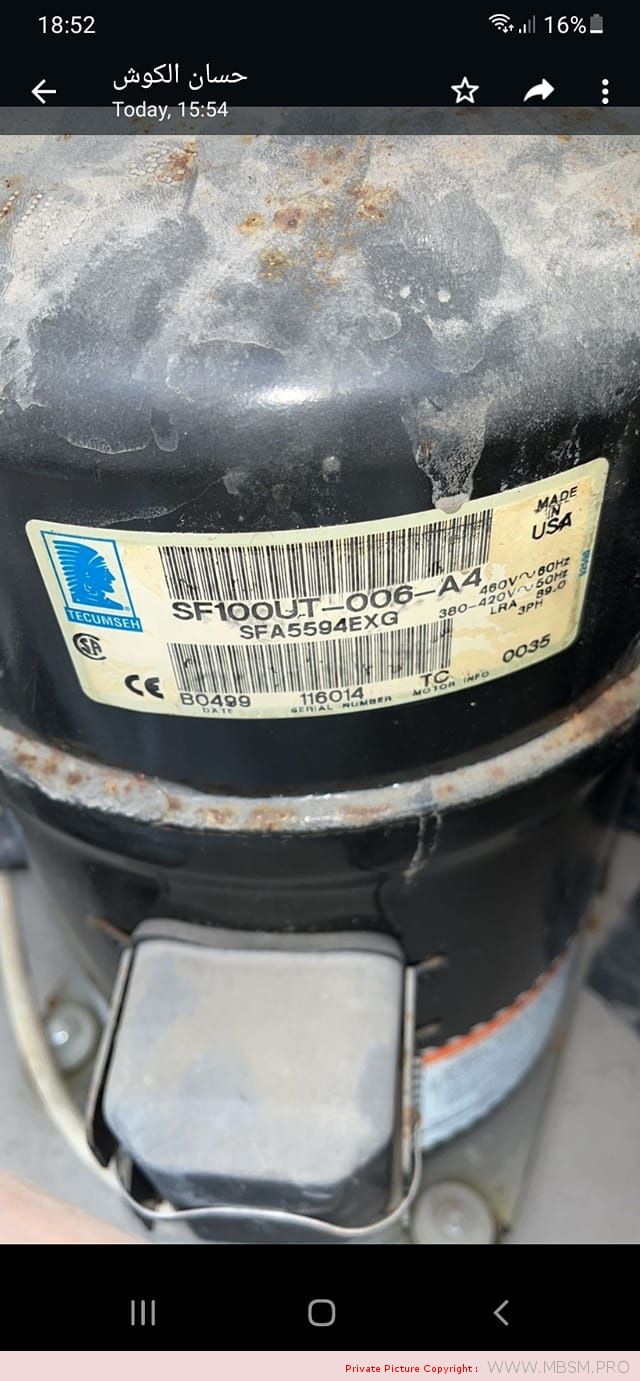

Mbsm.pro, Compressor, SFA5594EXG, SF100UT-006-A4, Taikang, 8 HP, 94000 btu/h, 460 v/60/3ph, 380 v/50/3ph, Replaces, ZR94KCE-TFD-250, ZR94KC-TFD-250, ZR94KC-TFD-950, Daikin , McQuay, 106647511 , 106647501, 50049004676, 0001222748, 30000110, Trane COM11182, r22

image_pdfimage_print

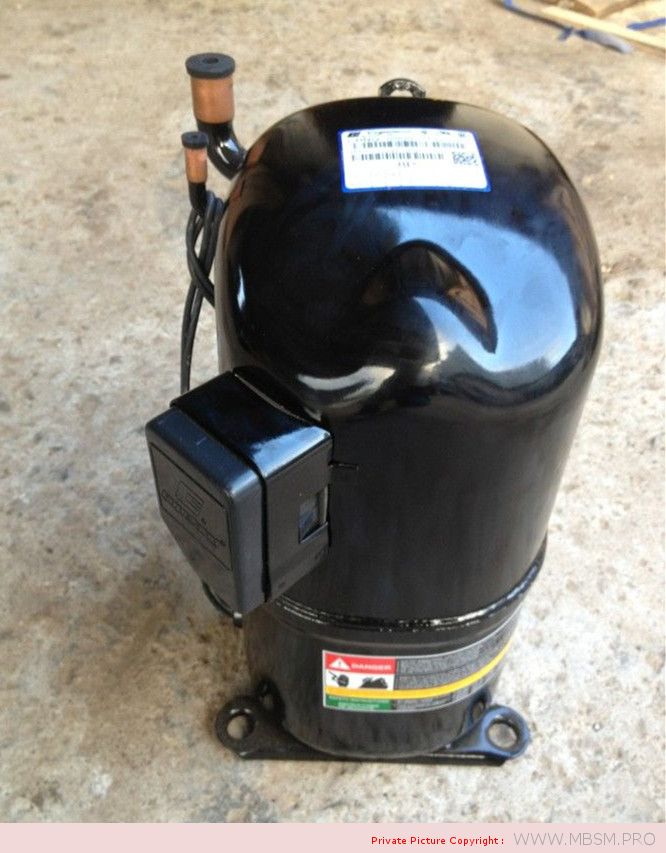

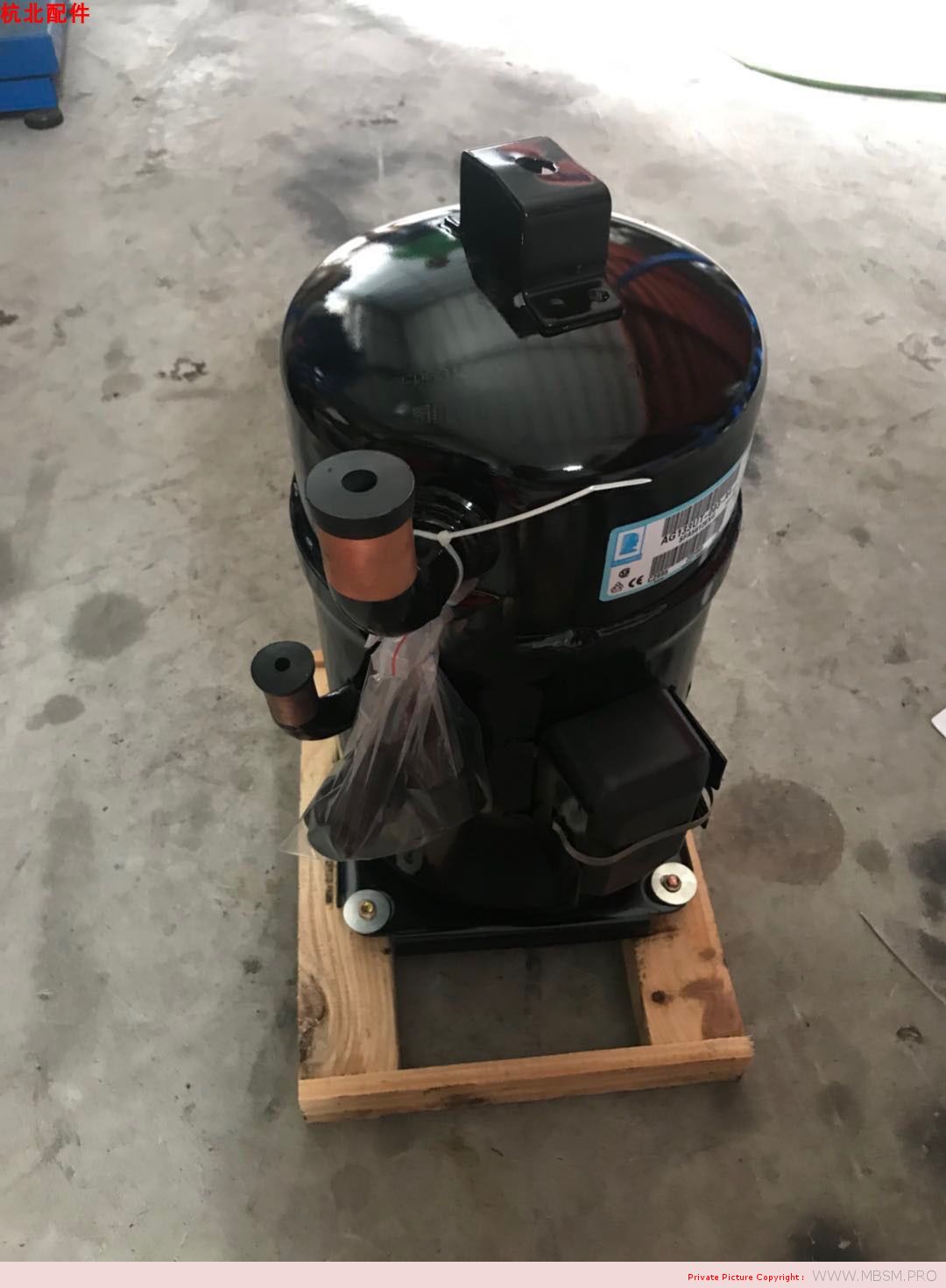

COPELAND ZR94KCE-TFD-950 SCROLL COMPRESSOR 94000BTUH 460/60/3 380/50/3 WITH STUB/SWEAT CONNECTIONS With Backwardly Compatible Mixable POE Oil for R22, R407C and R134A
7/8 IN (22.2MM) ID DISCH STRAIGHT 1 1/8 IN (28.6MM) ID SUCT STRAIGHT 4 FT MTG SERVICE W/T-COVER OIL T-BLOCK & MTG PTS W/SCHRADER VALVE & SIGHT GLASS
Factory New, OEM Copeland with 1 Year manufacturer’s Exchange warranty against defects.


Spec Drawing

REPLACES

Daikin McQuay: 106647511 ,106647501,50049004676, 0001222748, 30000110

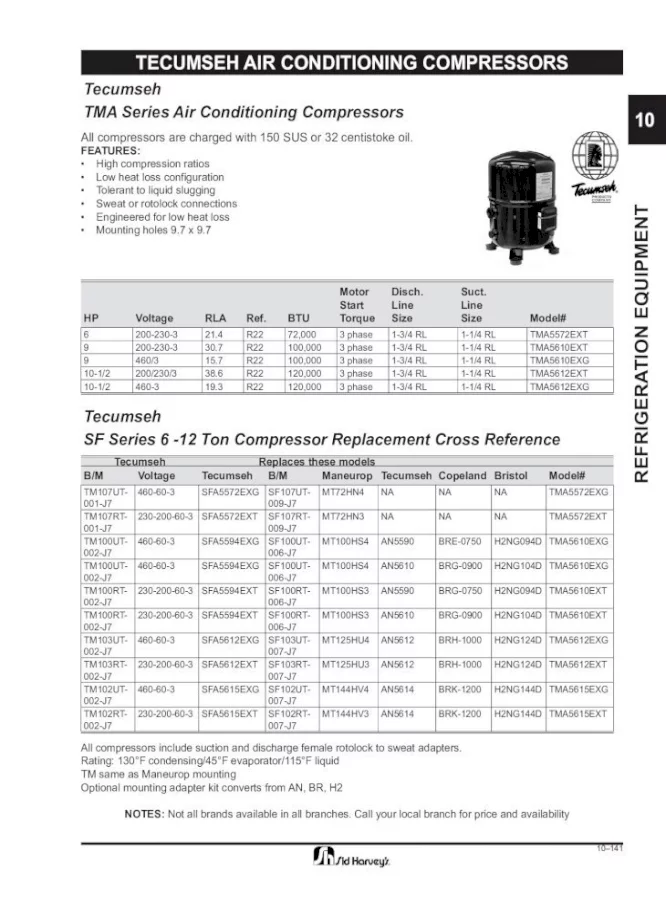

TRANE COM11182, SFA5594EXG SF100UT-006-A4 (SEE NOTE), SP65609-01,802003275,
Copeland:
BRE2-0750-TFD-90 –  IF ORDERING TO REPLACE A BR COMPRESSOR, MUST ALSO ORDER 300040611 MOUNTING PLATE
BRE2-0750-TFD902 –  IF ORDERING TO REPLACE A BR COMPRESSOR, MUST ALSO ORDER 300040611 MOUNTING PLATE
BRE2-0750-TFD903 –  IF ORDERING TO REPLACE A BR COMPRESSOR, MUST ALSO ORDER 300040611MOUNTING PLATE
BRE2-0750-TFD-95 –  IF ORDERING TO REPLACE A BR COMPRESSOR, MUST ALSO ORDER 300040611 MOUNTING PLATE.
ZR94KCE-TFD-250
ZR94KCE-TFD-422
ZR94KCE-TFD-425
ZR94KCE-TFD-450
ZR94KCE-TFD-452
ZR94KCE-TFD-455
ZR94KCE-TFD-550
ZR94KCE-TFD-625
ZR94KCE-TFD-650
ZR94KCE-TFD-655
ZR94KCE-TFD-750
ZR94KC-TFD-250
ZR94KC-TFD-421
ZR94KC-TFD-422
ZR94KC-TFD-425
ZR94KC-TFD-450
ZR94KC-TFD-452
ZR94KC-TFD-455
ZR94KC-TFD-750
ZR94KC-TFD-950
ZR94KTE-TFD-622
ZR94KT-TFD-622
