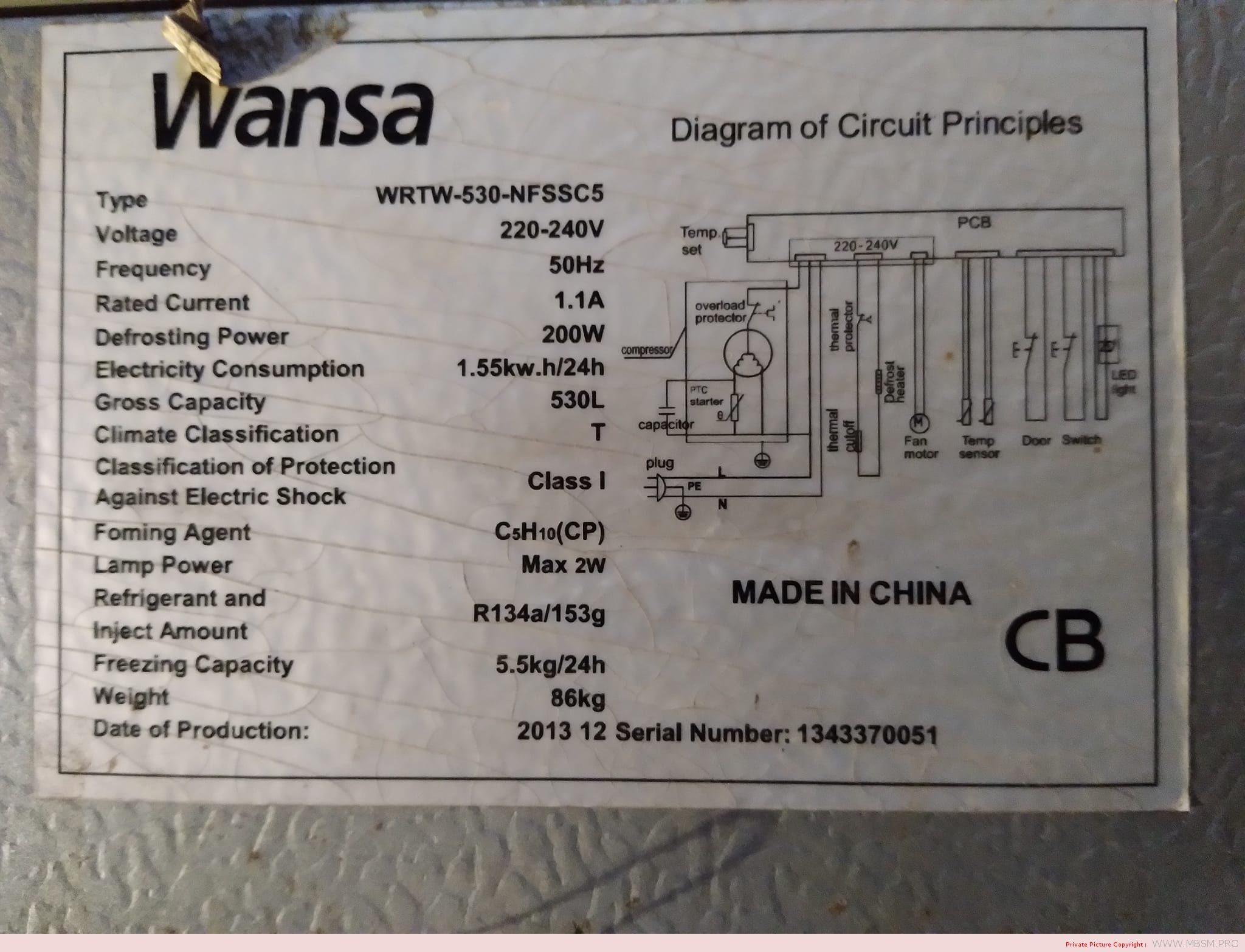

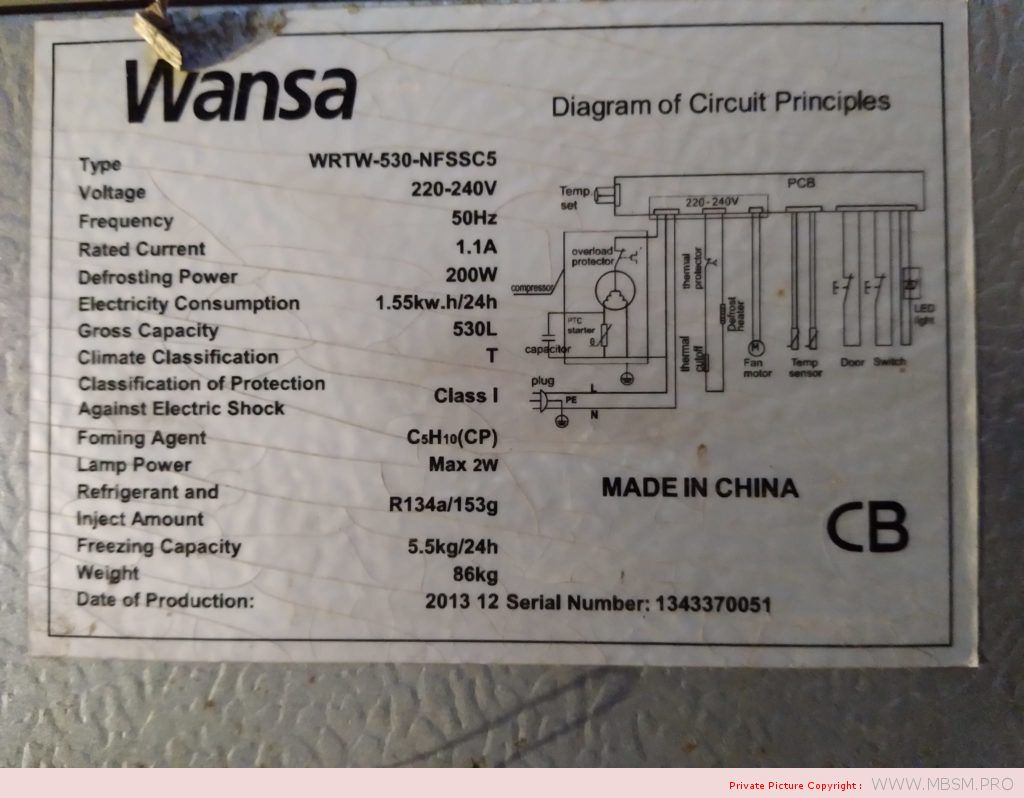

Information on Wansa Top Mount Refrigerator 19 Cft:

BrandWANSA
Article Number125822
Model NumberWRTW-530-NFSSC5

General

FeaturesReversible Door
Energy Efficiency RatingA+
Size (Cubic Feet)19 CFT
Capacity Litres / Kilograms530 Litre
No. of Wired Shelves3

Compressor LG CMA053LHEG

The LG CMA053LHEG 1 / 6HP Compressor is made of innovative, durable and highly efficient materials. The compressor uses pistons driven by a crankshaft to provide high-pressure refrigerant from the low to high side of a cooling system.

  • Manufacturer: LG
  • Model: CMA053LHEG
  • Cooling Capacity HP: 1 / 6HP
  • Cooling Capacity: 150W / 512BTU
  • Refrigerant Gas: R134A
  • Country of Manufacture: China

The package includes:

  • Compressor LG CMA053LHEG
  • PTC Relay
  • Over Load Protector (OLP)
  • Capacitor (M)
  • Plastic protective cover for PTC, OLP
  • Mounting accessories (screws, washers, nuts, rubber bands)

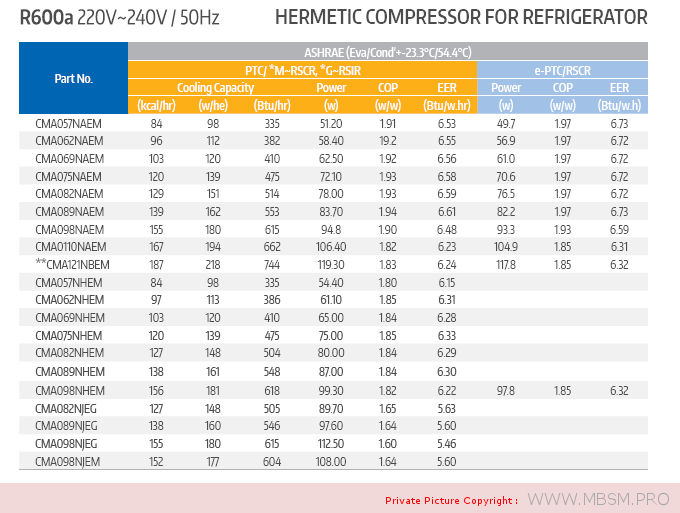

Fixed-Frequency: ★ Series CMA R600a (Test Condition : Ashrae)

Rating Series Model Eva/Cond'=23.3℃/54.4℃
PTC/*M~RSCR,*G~RSIR
Cooling Capacity Power COP EER
(kcal/hr) (W/hr) (Btu/hr)  (W) (W/W) (Btu/W.hr)
220~240V 50Hz CMA LBP CMA053LAEM 127 148 504 93 1.59  5.42
CMA057LAEM 141 163 558 102 1.61  5.50
CMA069LAEM 165 192 655 119 1.61  5.50
CMA075LAEM 188 219 746 130 1.68  5.74
CMA053LHEG 129 150 512 106 1.42  4.83
CMA053LHEM 129 150 512 102 1.48  5.05
CMA057LHEG 140 163 556 115 1.42  4.83
CMA057LHEM 138 160 548 110 1.46  4.98
CMA062LHEM 153 178 607 117 1.52  5.19
CMA062LHEG 153 178 607 122 1.46  4.98
CMA069LHEM 168 195 667 128 1.52  5.20
CMA069LBEM 168 195 667 116 1.68  5.75
115V 60Hz CMA042LHCG 111 129 441 91 1.42  4.84
CMA053LHCG 144 167 572 118 1.42  4.84
CMA042LHCM 111 129 441 88 1.47  5.01
CMA053LHCM 155 167 572 112 1.50  5.10
220~240V  50/60Hz **CMA053LKTM 120 140 486 96 1.45  4.96
**CMA057LKTM 129 150 512 102 1.47  5.02
220~240V 50Hz **CMA062LKEM 140 163 556 109 1.49  5.10
**CMA069LKTM 158 184 627 122 1.51  5.14
220v 60Hz CMA HBP CMA042HHDM 405 471 1608 183 2.58  8.80
220v 60Hz CMA053HHDM 514 598 2041 229 2.61  8.90
220v 60Hz CMA062HHDM 615 715 2442 277 2.58  8.80
220v 60Hz CMA075HADM 740 860 2938 334 2.58  8.80
Model Ref App.  Voltage Cooling Capacity Power  Wire
HP W/hr Btu/hr Input Type
CMA042LHEG R134a LBP 220V/50HZ 1/10HP 107W 365Btu 79W Al-wire
CMA053LHEG R134a LBP 220~240V/50HZ 1/6HP 150W 512Btu 102W Al-wire
CMA057LHEG R134a LBP 220~240V/50HZ 1/5HP 163W 556Btu 115W Al-wire
CMA069LHEM R134a LBP 220~240V/50HZ 1/4HP 195W 667Btu 128W Al-wire
NS36LAEG R134a LBP 220~240V/50HZ 1/10HP 77W 262Btu 89W Cu-wire
MSA43LBEG R134a LBP 220~240V/50HZ 1/8HP 116W 397Btu 106W Cu-wire
CMA053LAEM R134a LBP 220~240V/50HZ 1/6HP 148W 504Btu 93W Cu-wire
CMA057LAEM R134a LBP 220~240V/50HZ 1/5HP 163W 558Btu 102W Cu-wire
CMA069LBEM R134a LBP 220~240V/50HZ 1/4HP 195W 667Btu 116W Cu-wire
CMA075LAEM R134a LBP 220~240V/50HZ 1/3HP 219W 746Btu 130W Cu-wire
MA98LAEM R134a LBP 220~240V/50HZ 1/3HP 279W 953Btu 183W Cu-wire
LX95LHBM R134a LBP 220V/50HZ 1/3HP 267W 910Btu 173W Cu-wire
LX110LAJM R134a LBP 220~240V/50HZ 1/2HP 323W 1104Btu 232W Cu-wire
Model Ref App.  Voltage Cooling Capacity Power COP Wire
Hp W/hr  Input (W/W)  Type
CSB057NJEG R600a LBP 220V/50HZ 1/10HP 100W 77W 1.30  Al-wire
CSB069NJEG R600a LBP 220V/50HZ 1/8HP 126W 90W 1.40  Al-wire
CSB075NJEG R600a LBP 220V/50HZ 1/6HP 139W 102W 1.36  Al-wire
CSB089NJEG R600a LBP 220V/50HZ 1/5HP 160W 98W 1.64  Al-wire
CMA098NJEG R600a LBP 220V/50HZ 1/5+HP 180W 112W 1.60  Al-wire
CMA110NJEM R600a LBP 220V/50HZ 1/4HP 194W 122W 1.58  Al-wire
CMA121NBEM R600a LBP 220V/50HZ 1/4+HP 220W 119W 1.85  Al-wire
Model reference number application. energy Cooling capacity

energy

Input

wire

Type

mobile phone W/hour Btu/hr
CMA053LHEG R134a pulp 220~240V/50HZ 1/6HP 150W 512Btu 102W Al-wire
CMA057LHEG R134a pulp 220~240V/50HZ 1/5HP 163W 556Btu 115W Al-wire
CMA069LHEM R134a pulp 220~240V/50HZ 1/4HP 195W 667Btu 128W Al-wire
NS36LAEG R134a pulp 220~240V/50HZ 1/10HP 77W 262Btu 89W Cu-wire
MSA43LBEG R134a pulp 220~240V/50HZ 1/8HP 116W 397Btu 106W Cu-wire
CMA053LAEM R134a pulp 220~240V/50HZ 1/6HP 148W 504Btu 93W Cu-wire
CMA057LAEM R134a pulp 220~240V/50HZ 1/5HP 163W 558Btu 102W Cu-wire
CMA069LBEM R134a pulp 220~240V/50HZ 1/4HP 195W 667Btu 116W Cu-wire
CMA075LAEM R134a pulp 220~240V/50HZ 1/3HP 219W 746Btu 130W Cu-wire
MA98LAEM R134a pulp 220~240V/50HZ 1/3HP 279W 953Btu 183W Cu-wire
LX110LAJM R134a pulp 220~240V/50HZ 1/2 HP 323W 1104Btu 232W Cu-wire
