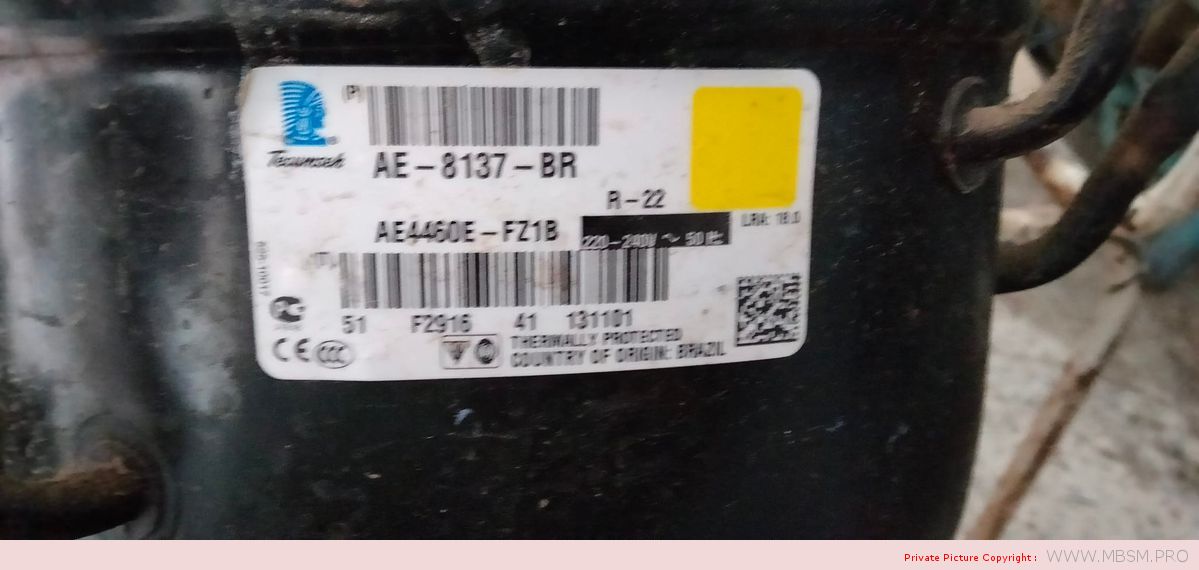

Tecumseh Compressor – Model AE4460E-FZ1B

 Horsepower: 1/2HP

 Refrigerant: R22

 Voltage/Frequency: 220-240V / 50-60Hz

 Evaporating Temp.: -5°C

 Original: France

 Manufacturer: Tecumseh

 Application: compressor for refrigeration, A/C, cold-room, chiller.

Tecumseh Reciprocating Model Compressors :

MODEL DIPLACEMENT (Cm3) CURRENT AMPS DIAMETER CONNECTION (INCH) BERAT (KG)
I NOM I MAX SUCTION DISCHARGE
AE1390Y-FZ 8.02 1.4 1.7 1/4 3/16 9.5
AE2390Y-FZ 8.02 1.3 1.7 1/4 3/16 9.5
AE2410Y-FZ 9.39 1.4 1.7 5/16 1/4 9.5
AE2413Y-FZ 12.01 1.8 2.8 5/16 1/4 11.2
AE2415Y-GH 12.48 1.8 3 5/16 1/4 12.1
AE4425Z-FZ 4.24 1.8 2.8 1/4 3/16 9.9
AE4430Z-FZ 5.16 2.1 2.9 1/4 3/16 10.2
AE4440Z-FZ 6.69 2.7 3.7 3/8 1/4 10.5
AE4450Z-FZ 8.85 3.4 5.1 3/8 1/4 10.8
AE4460Z-FZ 10.33 4.3 5.9 3/8 1/4 11.6
AE4470Z-FZ 12.01 3.7 5.3 3/8 1/4 12.4
AE4425Y-FZ 6.69 1.6 2.4 1/4 3/16 9.2
AE4430Y-FZ 8.02 2.1 3.1 1/4 3/16 9.7
AE4440Y-FZ 10.33 2.5 3.7 5/16 1/4 9.8
AE4450Y-FZ 13.24 3.1 4.6 3/8 1/4 11.5
AE4456Y-FZ 14.51 3.6 8 3/8 1/4 11.5
AE4460Y-FZ 15.09 3 4.7 3/8 1/4 12.2
AE4425E-FZ 4.24 1.7 2.7 1/4 3/16 9.6
AE4430E-FZ 5.16 2 2.8 1/4 3/16 10
AE4440E-FZ 6.69 2.4 3.4 3/8 1/4 10.2
AE4450E-FZ 8.02 3 4.7 3/8 1/4 11.2
AE4460E-FZ 10.33 3.7 5.3 3/8 1/4 11.2
AE4470E-FZ 12.01 3.8 5.4 3/8 1/4 11.1
