Mbsm.pro, Fn Series, Compressor, FN75H, Refrigerator, 1/6HP, R134A, 130W

mbsmpro-fn-series-compressor-fn75h--refrigerator-16hp-r134a-130w-mbsm-dot-pro
mbsmpro-fn-series-compressor-fn75h--refrigerator-16hp-r134a-130w-mbsm-dot-pro

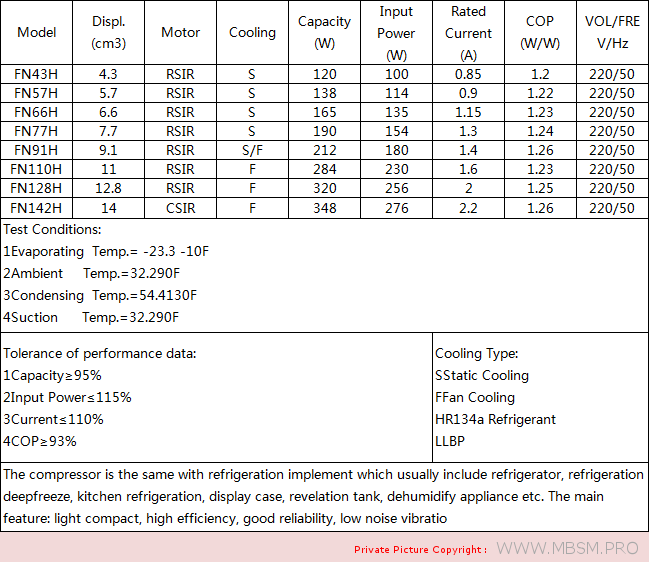

3.Specification

SeriesModelDisplace ment(cm) Capacity(w)Input power(w)C.O.PCurrent(A)Cooling TypeMotor TypeHP
FN Series 220V-50/60HZFN434.3961030.930.82STRSIR1/6-
FN515.11231151.070.85STRSIR1/6
FN575.71391271.090.97STRSIR1/6+
FN666.61571481.061.1STRSIR1/5
FN777.71851761.051.2STRSIR1/4-
FN868.61951801.081.3STRSIR1/4+
FN919.12151951.101.4ST/OCRSIR1/3
FN11011.02652401.11.6ST/OCRSIR1/2
FN Series 240V/50HZFN43M4.3981040.940.83STRSIR1/6-
FN51M5.11201091.10.84STRSIR1/6
FN57M5.71401211.110.96STRSIR1/6+
FN66M6.61581491.081.05STRSIR1/5
FN77M7.71801631.11.25STRSIR1/4-
FN86M8.61901651.151.3STRSIR1/4+
FN91M9.12101821.151.32ST/OCRSIR1/3
FN110M11.02602201.181.35ST/OCRSIR1/2
FN Series 115V/60HZFN43U64.3110961.150.8STRSIR1/6-
FN51U65.11401221.150.92STRSIR1/6
FN57U65.71541311.181.02STRSIR1/6+
FN66U66.61821521.21.15STRSIR1/5
FN77U67.72051711.21.15STRSIR1/4-
FN86U68.62161831.181.28STRSIR1/4+
FN91U69.12372011.181.3ST/OCRSIR1/3
FN110U611.02902421.21.35ST/OCRSIR1/2
FN Series 110V/60HZFN43T64.31221111.10.85STRSIR1/6-
FN51T65.11451251.160.93STRSIR1/6
FN57T65.71551311.181.03STRSIR1/6+
FN66T66.61851541.21.25STRSIR1/5
FN77T67.72101751.21.25STRSIR1/4-
FN86T68.62201861.181.3STRSIR1/4+
FN91T69.12401961.221.4ST/OCRSIR1/3
FN110T611.01932401.221.35ST/OCRSIR1/2

Product Description

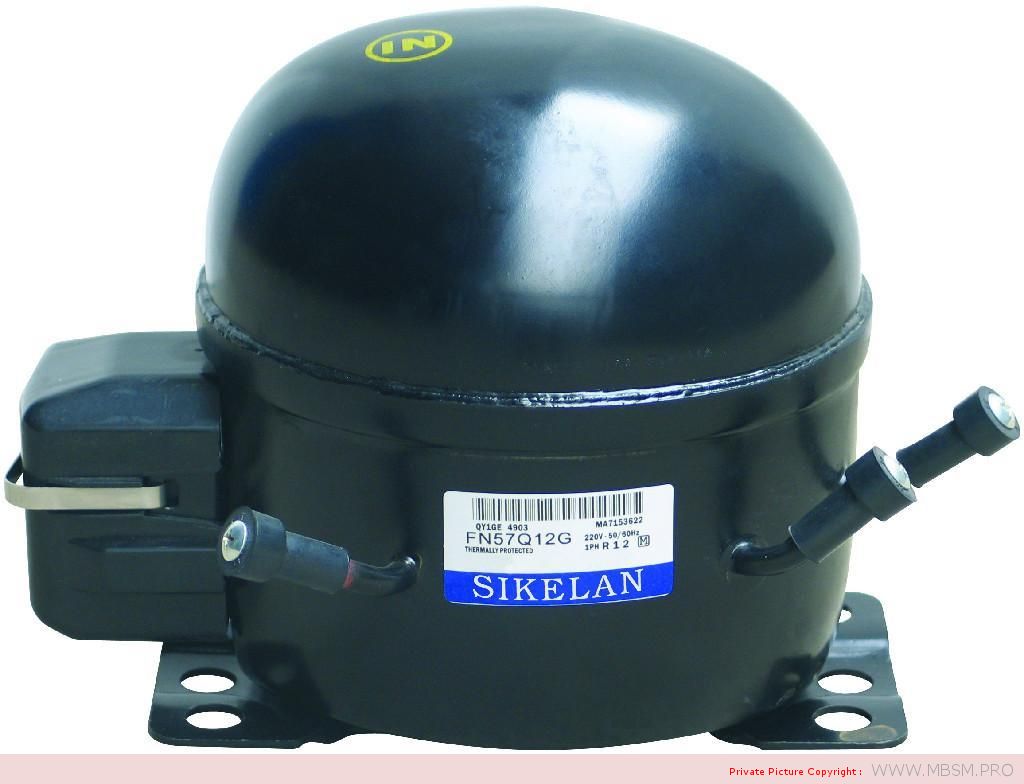

FN Series Refrigerator Compressor 1/6HP R134A 130W
AC Compressor: R134A Hermetic LBP Piston Reciprocationg Compressor
Model: FN75H
Power Supply: 220~240V/50Hz
Displacement: 5.7CC
Cooling Capacity: 133W
Rated Power: 125W
Nominal Power: 1/6HP
COP: 1.04 W/W
Motor Type: RSIR
Starting relay: PTC
Cooling Type: S
Application: LBP
Certification: CE
1X20’FCL: 1920PCS

Application:
LBP: Low back pressure; Refrigerator, Freezer, Wine cooler
MBP: Medium Back Pressure; Air-conditioner, vending machine
HBP: High Back Pressure: Air-conditioner, ice maker

LBP ASHRAE Test Condition:
Evapration Temperature: -23.3 º C
Condensing Temperature: 54.4 º C
Subcooling Temperature: 32.2 º C
Ambient Temperature: 32.2 º C

MBP ASHRAE Test condition:
Evapration Temperature: -5 º C
Condensing Temperature: 54.4 º C
Ambient Temperature: 35 º C
Subcooling Temperature: 46.1
Suction Temperature: 35 º C

HBP ASHRAETest condition:
Evapration Temperature: 7.2º C
Condensing Temperature: 54.4º C
Ambient Temperature: 35º C
Subcooling Temperature: 46.1º C
Suction Temperature: 35º C

Parameter Variation Range:
Cooling Capacity: ≥ 95%
Inpurt Power: ≤ 115%
Current: ≤ 110%
COP: ≥ 95%

Cooling Type:
S: Natural cooling
F1: Fan cooling, 200mm fan diameter, 1.5m/s air speed
F2: Fan cooling, 200mm fan diameter, 3m/s air speed
