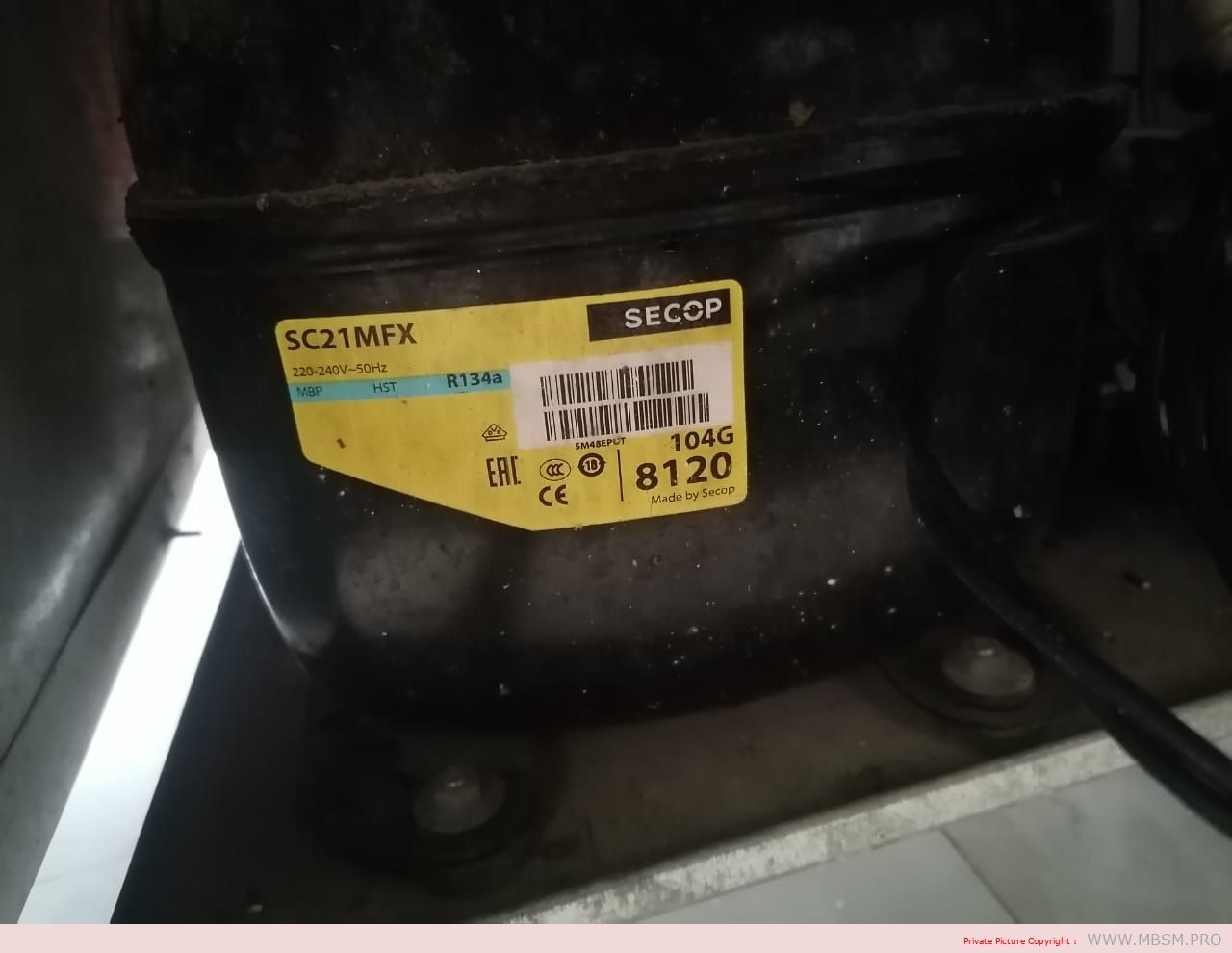

Mbsm.pro, Compressor, Danfoss, Secop, 5/8 hp++, SC21MFX, MBP, R134a, 220 V-240 V, 50 Hz, 104G8120, 8120

mbsmpro-compressor-danfoss-secop-58-hp-sc21mfx-mbp-r134a-220-v240-v-50-hz-104g8120-8120-mbsm-dot-pro
mbsmpro-compressor-danfoss-secop-58-hp-sc21mfx-mbp-r134a-220-v240-v-50-hz-104g8120-8120-mbsm-dot-pro

Product information

LRA HST 60Hz [A] 23.6 A
LRA HST[A] 23.6 A
RLA 4.00A
start capacitor capacitance 80µF
Packing option Industrial packaging
Upper voltage range value at 50 Hz [V] 264V
Upper voltage range value at 60 Hz [V] 0V
Upper value of rated voltage at 50 Hz [V] 240V
Upper value of rated voltage at 60 Hz [V] 0V
Liquid injection Not
Suction nozzle, material Copper
Suction nozzle height [mm] 183mm
Discharge pipe height [mm] 100mm
Height from support panel [mm] 203mm
Process connection height [mm] 183mm
Suction pipe diameter [mm] 10.2mm
Discharge pipe diameter [mm] 6.2mm
Process connection diameter [mm] 6.2mm
Length [mm] 255mm
Run Capacitor 10µF
Socket Notes Rubber plug
Suction nozzle notes Rubber plug
Refrigerant charge [kg] [Max] 1.3kg
Segment usage Cooling to medium temperatures
Configuration code Single
Number of packages 80
Discharge connection comments Rubber plug
Voltage, 50 Hz [V] 220V
Voltage, 50 Hz [V] [max] 240V
Lower voltage range value at 50 Hz [V] 198V
Lower value of the voltage range at 60 Hz [V] 0V
Lower value of rated voltage at 50 Hz [V] 220V
Lower value of rated voltage at 60 Hz [V] 0V
Model number SC21MFX
Areas of use MBP
Type designation Compressor
Gross weight 14 kg
Net weight 14 kg
Power failure HST [A] 23.6 A
Overall height, mm 209mm
Oil volume 600 cm3
Description SC21MFX
Described volume [cm3] 20.95 cm3
Performance Adjustment fixed speed
Free volume of gas [cm3] 1460 cm3
Rotation speed at 50 Hz [rpm] 2900 rpm
Rotational speed at 60 Hz [rpm] 0 rpm
Discharge connection, material Copper
Auxiliary winding resistance (starting winding) for single-phase compressors (var.) [Ohm] 13.6ohms
Auxiliary winding resistance (starting winding) for single-phase compressors [Ohm] 13.6ohms
Main winding resistance for single-phase compressors [Ohm] 3.3ohms
Winding temperature, short term [°C] [Max] 135°C
Winding temperature, constant [°C] [Max] 125°C
Process connector, material Copper
Technology Piston
A type SC
engine’s type CSIR
CSR
Oil type polyester oil
Carrier panel type Universal
Tradename Piston compressor
Suction angle [°] 37°
Discharge angle [°] 37°
Process Socket Angle 37°
Phase one
Phases (fan) one
Phases (compressor) one
refrigerant R134a
Color Black
Frequency Hz] fifty
Width [mm] 151mm
Economizer Not
Compressor power supply [V/ph/Hz] 220-240/1/50
Energy level for the application Standard MBP
