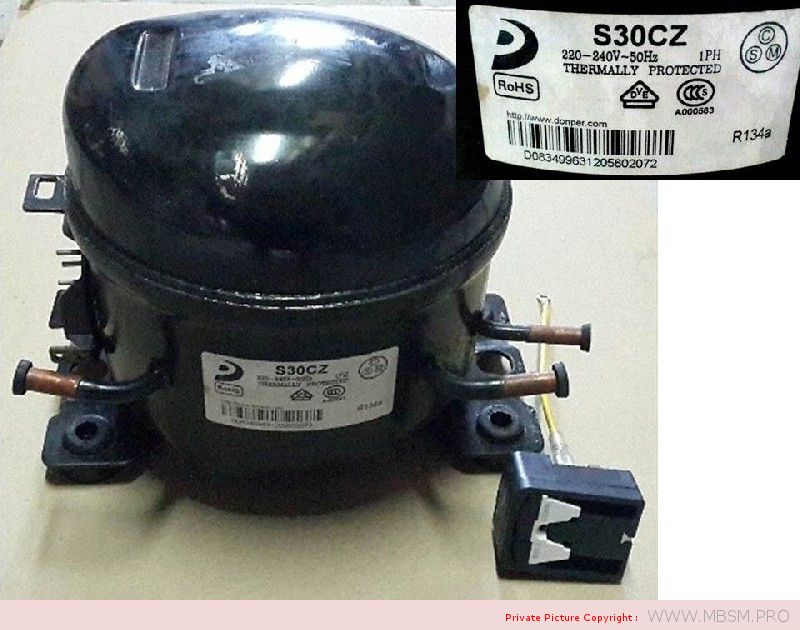

Mbsm.pro, Compressor, DONPER, Refrigeration, S30CZ, R134a, 1/12 HP, LBP, 220V-240V 50HZ, Disp. 3.0cc

image_pdfimage_print

Specifications

  • Mark: Area
  • Model: S30CZ
  • Technologies: Constant velocity
  • Tension: 220/240-1 50
  • Applications: Short
  • Heat pump: No
  • Soft drinks: R134a
  • Displacement cm3: 3.00
  • MOBILE PHONE: 1/12
  • Initial oil charge: 280ml
  • Suction pipe connection: 1/4”
  • Discharge pipe connection: 1/4”
  • Service intensity: 0,65 A
  • Starting current (locked rotor): 9,8 A
  • Maximum intensity of service: 9,8 A
  • Maximum casing temperature: 95°C
  • discharge temperature: 120°C
  • Maximum winding temperature: 130°C
  • Sound level: 40 dB
  • Weight: 6kg
  • Type of oil: POE-ester
  • Engine cooling type:   Static
  • Engine type: RSIR (PTC)
  • Motor protection type: External
  • Speed: 2920 rpm
  • Vibration: 0.65m/s2

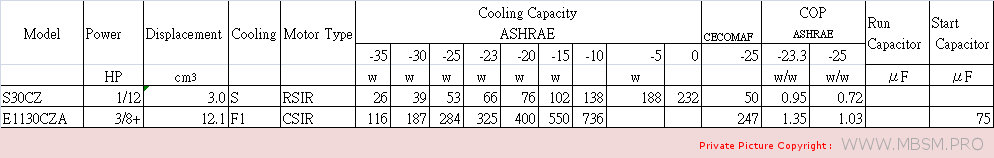

Refrigerant Application Serris Model Power Displacement Cooling Motor Type Power Supply


R134A LBP S S30CZ 1/12 3.0 S RSIR 220V/50HZ
S36CZ 1/8 3.6 S RSIR 220V/50HZ
S43CZ 1/7 4.3 S RSIR 220V/50HZ
S53CZ 1/6- 5.3 S RSIR 220V/50HZ
S30BZ 1/10 3.0 S RSIR 115V/60HZ
S36BZ 1/7 3.6 S RSIR 115V/60HZ
S43BZ 1/6- 4.3 S RSIR 115V/60HZ
S53BZ 1/6+ 5.3 S RSIR 115V/60HZ
 High Efficiency Range
SK30CZ 1/10 3.0 S RSCR 220V/50HZ
SK36CZ 1/8 3.6 S RSCR 220V/50HZ
SK43CZ 1/6- 4.3 S RSCR 220V/50HZ
SK53CZ 1/6 5.3 S RSCR 220V/50HZ
SK30BZ 1/8 3.0 S RSCR 115V/60HZ
SK36BZ 1/6- 3.6 S RSCR 115V/60HZ
SK43BZ 1/6 4.3 S RSCR 115V/60HZ
SK53BZ 1/5 5.3 S RSCR 115V/60HZ
