Description
Basic Info
- Model NO.: QD35Y11G
- Door Number: Single Door
- Door Type: Swing Door
- Temperature Control: Mechanical Thermostat
- Defrost Type: Auto Defrost
- Certification: CE, RoHS, UL, ISO, CCC, CB, ETL
- Motor Type: Rscr
- Frenquency: 50-60Hz
- Cooling Capacity: 67W
- Starting Capacitor: No
- Cooling Type: Static
- Transport Package: 1PC/CTN, 100ctns/Pallet
- Origin: China
- Capacity: 101-200L
- Type: Chest/Deep Freezer
- Power Source: Electricity
- Temperature Type: Double-temperature
- Function: Freezing
- Displacement: 3.5cm3
- Voltage: 110-120V
- Refrigerant: R600A
- Starting Device: PTC
- Running Capacitor: 6UF
- Trademark: SIKELAN
- Specification: 1/12hp
- HS Code: 8414301100
Product Description
1. Product Performance
1)QD35Y11G, L series, use R600A refrigerant;
2)Voltage application 110V to 120V;
3)Frequency for 50/60HZ;
4)Motor type: RSCR;
5)Cooling type: ST;
6)Starting device is PTC Relay;
7)Application: Low Back Pressure;
8)Nominal power is 1/12 HP;
9)COP is 1.20 with the cooling capacity 67W.
Basing on Test Condition(ASHRAE)
Evaporating Temperature: -23.3 degree
Ambient Temperature: 32.2 degree
Subcooling Temperature: 32.2 degree
Condensing Temperature: 54.4 degree
Suction Temperature: 32.2 degree
2.Compressor Specification
1)QD35Y11G, L series, use R600A refrigerant;
2)Voltage application 110V to 120V;
3)Frequency for 50/60HZ;
4)Motor type: RSCR;
5)Cooling type: ST;
6)Starting device is PTC Relay;
7)Application: Low Back Pressure;
8)Nominal power is 1/12 HP;
9)COP is 1.20 with the cooling capacity 67W.
Basing on Test Condition(ASHRAE)
Evaporating Temperature: -23.3 degree
Ambient Temperature: 32.2 degree
Subcooling Temperature: 32.2 degree
Condensing Temperature: 54.4 degree
Suction Temperature: 32.2 degree
2.Compressor Specification
| Serial | Model | HP | Voltage/ Frequency (V/Hz) | Displacement (cm3) | Cooling Capacity ASHRAE | Motor type | Starting Device | Starting capacitor (uF) | Running capacitor (uF) | Cooling Type | |||||||||||||||||||||
| -35ºC (-31F) | -30ºC(-22F) | -25ºC(-13F) | Test Conditions:-23.3ºC(-10F) | -20ºC(-4F) | -15ºC(5F) | -10ºC(10F) | -5ºC(23F) | 0ºC(32F) | |||||||||||||||||||||||
| W | Btu/h | W | Btu/h | W | Btu/h | Capacity (W) | Capacity (Btu/h) | lnput Power(W) | Current (A) | COP | EER | W | Btu/h | W | Btu/h | W | Btu/h | W | Btu/h | W | Btu/h | ||||||||||
| L | QD35Y11G | 1/12 | 110-120V/50-60Hz | 3.5 | 31 | 106 | 40 | 136 | 52 | 177 | 67 | 229 | 56 | 0.4 | 1.2 | 4.08 | 84 | 287 | 105 | 358 | 131 | 447 | 164 | 560 | 205 | 699 | RSCR | PTC Starting Relay | / | 6 | ST |

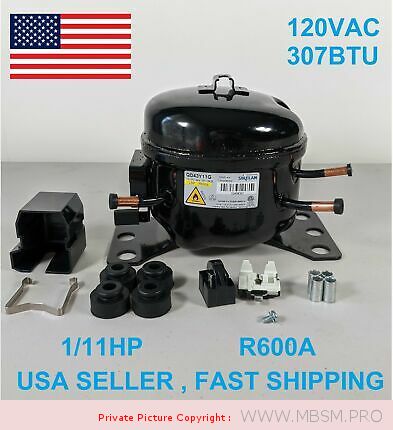

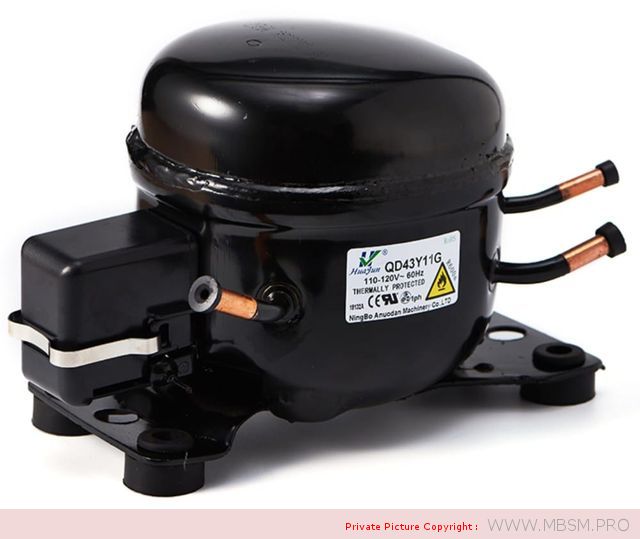

| QD43Y11G | 1/11 | 4.3 | 41 | 140 | 53 | 181 | 69 | 235 | 90 | 307 | 75 | 0.6 | 1.2 | 4.09 | 113 | 386 | 141 | 481 | 176 | 601 | 220 | 751 | 275 | 938 | RSCR | / | 6 | ST | |||
| MS | QD53Y11G | 1/9 | 5.3 | 47 | 160 | 61 | 208 | 79 | 270 | 102 | 348 | 78 | 1.1 | 1.3 | 4.46 | 128 | 437 | 159 | 543 | 199 | 679 | 249 | 850 | 311 | 1061 | RSCR | / | 6 | ST | ||
| QD65Y11G | 1/7 | 6.5 | 60 | 205 | 78 | 266 | 102 | 348 | 132 | 450 | 101 | 1.45 | 1.3 | 4.46 | 165 | 563 | 206 | 703 | 258 | 880 | 322 | 1099 | 403 | 1375 | RSCR | / | 6 | ST | |||
| QD75Y11G | 1/6- | 7.5 | 71 | 242 | 92 | 314 | 120 | 409 | 156 | 532 | 120 | 1.65 | 1.3 | 4.44 | 195 | 665 | 244 | 833 | 305 | 1041 | 381 | 1300 | 476 | 1624 | RSCR | / | 6 | ST | |||
| LM | QD43Y11G | 1/11 | 4.3 | 41 | 140 | 53 | 181 | 69 | 235 | 90 | 307 | 75 | 0.6 | 1.2 | 4.09 | 113 | 386 | 141 | 481 | 176 | 601 | 220 | 751 | 275 | 938 | RSCR | / | 6 | ST | ||
| QD53Y11G | 1/9 | 5.3 | 47 | 160 | 61 | 208 | 79 | 270 | 102 | 348 | 78 | 1.1 | 1.3 | 4.46 | 128 | 437 | 159 | 543 | 199 | 679 | 249 | 850 | 311 | 1061 | RSCR | / | 6 | ST | |||
| QD65G11G | 1/7 | 6.5 | 60 | 205 | 78 | 266 | 102 | 348 | 132 | 450 | 102 | 1.45 | 1.3 | 4.42 | 165 | 563 | 206 | 703 | 258 | 880 | 322 | 1099 | 403 | 1375 | RSCR | / | 6 | ST | |||
| QD75Y11G | 1/6- | 7.5 | 71 | 242 | 92 | 314 | 120 | 409 | 156 | 532 | 120 | 1.65 | 1.3 | 4.44 | 195 | 665 | 244 | 833 | 305 | 1041 | 381 | 1300 | 476 | 1624 | RSCR | / | 6 | ST | |||
| MK | QD75Y11G | 1/6- | 7.5 | 71 | 242 | 92 | 314 | 120 | 409 | 156 | 532 | 120 | 1.65 | 1.3 | 4.44 | 195 | 665 | 244 | 833 | 305 | 1041 | 381 | 1300 | 476 | 1624 | RSCR | / | 6 | ST | ||
| QD85Y11G | 1/6 | 8.5 | 79 | 270 | 103 | 351 | 134 | 457 | 174 | 594 | 134 | 1.68 | 1.3 | 4.43 | 218 | 744 | 272 | 928 | 340 | 1160 | 425 | 1450 | 531 | 1812 | RSCR | / | 6 | ST | |||
| QD91Y11G | 1/5 | 9.1 | 85 | 290 | 110 | 375 | 143 | 488 | 186 | 635 | 124 | 1.7 | 1.5 | 5.12 | 233 | 795 | 291 | 993 | 363 | 1239 | 454 | 1549 | 568 | 1938 | RSCR | / | 6 | ST | |||
| QD103Y11G | 1/4- | 10.3 | 92 | 314 | 119 | 406 | 155 | 529 | 201 | 686 | 134 | 1.83 | 1.5 | 5.12 | 251 | 856 | 314 | 1071 | 393 | 1341 | 491 | 1675 | 613 | 2092 | RSCR | / | 6 | ST | |||
| QD110Y11G | 1/4 | 11.0 | 100 | 341 | 130 | 444 | 169 | 577 | 220 | 751 | 147 | 1.95 | 1.5 | 5.11 | 275 | 938 | 344 | 1174 | 430 | 1467 | 537 | 1832 | 671 | 2289 | RSCR | / | 6 | ST | |||
| WQ | QD128Y11G | 1/3- | 12.8 | 120 | 409 | 156 | 532 | 203 | 693 | 264 | 901 | 182 | 2.05 | 1.45 | 4.95 | 330 | 1126 | 413 | 1409 | 516 | 1761 | 645 | 2201 | 806 | 2750 | RSCR | / | 6 | F | ||
| QD142Y11G | 1/3 | 14.2 | 130 | 444 | 169 | 577 | 219 | 747 | 285 | 972 | 197 | 2.16 | 1.45 | 4.94 | 356 | 1215 | 445 | 1518 | 557 | 1900 | 696 | 2375 | 870 | 2968 | RSCR | / | 6 | F | |||
| QD153Y11G | 1/3+ | 15.3 | 142 | 485 | 185 | 631 | 240 | 819 | 312 | 1065 | 215 | 2.25 | 1.45 | 4.95 | 390 | 1331 | 485 | 1655 | 609 | 2078 | 762 | 2600 | 952 | 3248 | RSCR | / | 6 | F | |||
