Mbsm.pro, Compressor, CRJQ-0300-PFV-593, CRJQ 0300, Copeland, 3-1/4 HP, 208-230V, 1 PH, R22, R407C, Hermetic Compressor, 3300BTU, 9170W

image_pdfimage_print

Copeland compressor Features:



Copeland Model is from 2HP-30JP with high machining accuracy and numerous advantages: small volume, light weight, high efficiency, low vibration and high reliability which will largely replace the traditional piston compressor and has been widely used in the developed countries.



1.With high and low voltage protection, relief valve, the motor overload protection device etc.



2.Easier maintenance, longer service life, design life of 15 years.



3.No internal reciprocating motion mechanism, so the simple structure, small volume, light weight.



4.Less Parts (especially vulnerable part), all parts are sealed inside the acoustic enclosure, at the bottom of the compressor is equipped with elastic damping device; Minimize the noise problem.



5.Torque changes little, high balance, little vibration, stable running, within the scope of its adaptive capacity have higher efficiency.



6.Compact structure, light weight, large capacity, power consumption province, can work continuously for a long time.





Compressor

Code

Capacity Input Current Weight Height

Norminal

Power

Power Supply
BTU W KW A kg mm HP
CR37KQ 27000 9170 3.13 9.4 31.8 376 3

220V/380V

50HZ-60HZ

CR47KQ 31500 11300 3.81 11.5 33.6 388 3.5

220V/380V

50HZ-60HZ

CR53KQ 36000 12400 4.3 12 33.6 388 4

220V/380V

50HZ-60HZ

CRGQ-0250 22500 7850 2.76 8.52 30.4 375 2.5

220V/380V

50HZ-60HZ

CRHQ-0275 24750 8200 2.89 9.38 30.4 375 2.75

220V/380V

50HZ-60HZ

CRJQ-0300 27000 9170 3.13 10.23 31.8 381 3

220V/380V

50HZ-60HZ

CRPQ-0450 40500 13400 4.56 14.6 38.1 428 4.5

380V

50HZ-60HZ

CRNQ-0500 45000 15000 5.02 13.4 38.1 409 5

380V

50HZ-60HZ

QR90K1 67500 21700 7.58 22.1 67.6 468 7.5

380V

50HZ-60HZ

QR12M1 90000 28200 10.1 29.5 69.4 468 10

380V

50HZ-60HZ

QR15M1 108000 34900 12.9 38.6 72.6 468 12

380V

50HZ-60HZ



Description

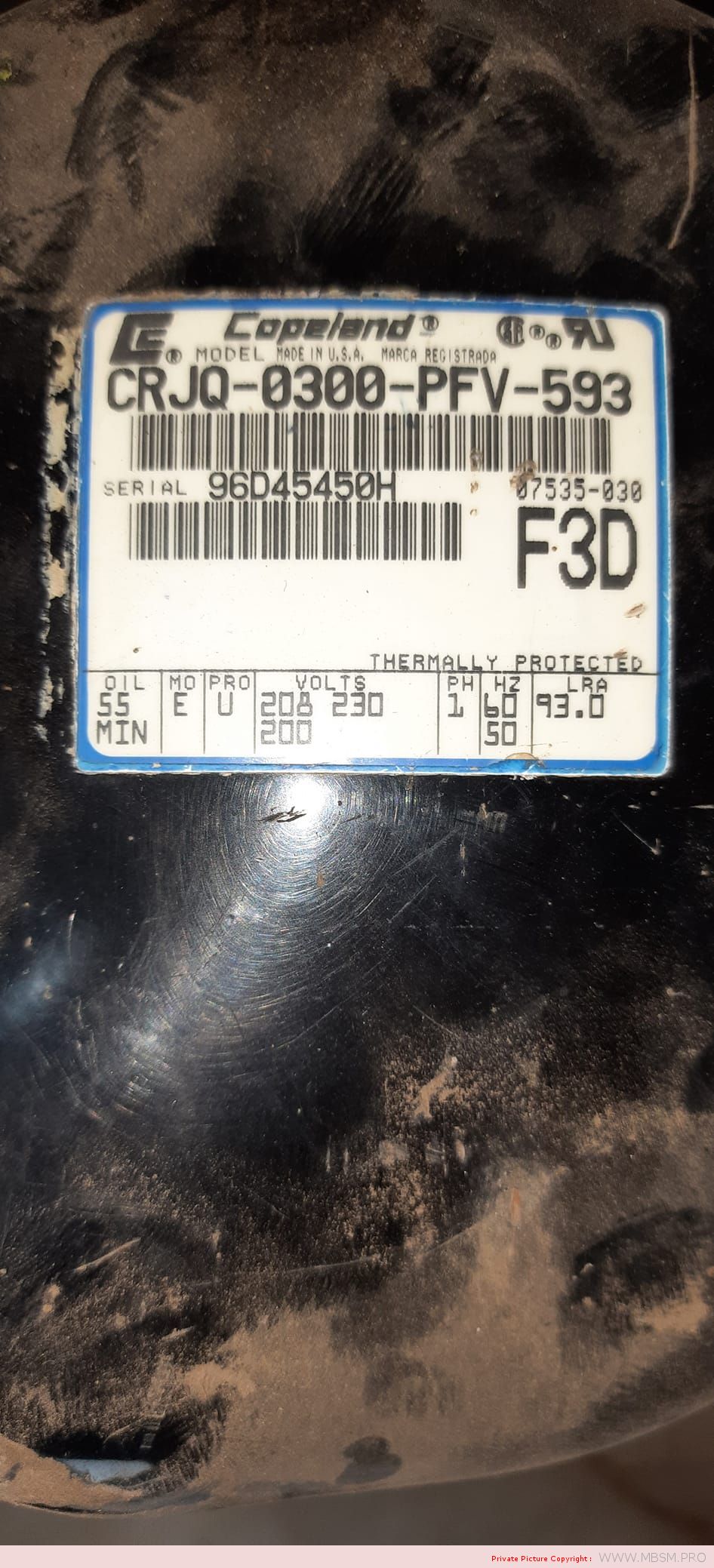

Copeland Hermetic Compressor CRJQ-0300-PFV

Note: Product image may vary and is for your reference only.

Get to know our wide range of Copeland Hermetic Compressors, Copeland Semi-Hermetic Compressors, Copeland Discus Compressors, Copeland Scroll Compressors (Tandem and trio), and Copeland Screw Compressors. We have for sale all its components, accessories and parts for their repair and replacement.

We have Repair and Remanufacturing in Semi-hermetic and Screw-type models.

Copeland Hermetic Compressor CRJQ-0300-PFV

Technical Data
CRJQ-0300-PFV

HCFC, R-22, 50 Hz, 1 -phase, 200 V

Air conditioning

Performance

Evaporator Temp(ºF) 45  45

Condensing Temp(ºF)  130   100

Return Gas (ºF) 65    65

Liquid Temp (ºF)  115   85

Capacity (Btu/hr)  31200    42300

Power (W): 3130    2600

Current (Amps): 16.9    14.2

EER (Btu/Wh): 10.0 16.3

Mass Flow (Ibs/hr): 457    545

Sound Data

Sound Power (dBA): 72 Avg  77 Max

Vibration (mils(peak-peak)): 1.8 Avg   2.8 Max

Record Date: 2004-08-19

Mechanical

Displ(in^3/Rev):  4.18

Displ(ft^3/hr): 420.47

Overall Length (in): 9.44

Overall Width (in): 9.13

Overall Height (in): 14.81

Mounting Length (in): 7.50

Mounting Width (in): 7.50

Mounting Height (in): 15.19*

Suction Size (in): 3/4 trozo

Discharge Size (In): 3/8 trozo

Initial Oil Charge (oz): 55

Oil Recharge (oz): 51

Net Weight (ibs): 69.0

Internal Free Volume (in^3): 395.0

Horse Power: NA

*Overall compressor height on Copeland Brand Product´s specified mounting grommets.

Electrical

LRA-High*: 93.0

LRA Low *: NA

LRA-Half Winding: NA

MCC (Amps): 31.5

Max Operating Current: NA

RLA(=MCC/1.4;use for contactor selection): 22.5

RLA(=MCC/1.56;use for breaker & wire size selection): 20.2

RPM: 2900

UL File No: SA-2337

UL File Date: 1984-12-28

*Low and High refer to the low and high nominal voltage ranges for which the motor is approved.

Capacitors

Type: Start Capacitor

Part No: 014-0008-65

Low MFD: 64.0

High MFD: 77.0

Volts: 330

User Description: LOW TORQUE

Type: Start Capacitor

Part No: 014-0008-71

Low MFD: 189.0

High MFD: 227.0

Volts: 220

User Description: ALTO BY

Type: Run Capacitor

Part No: 014-0037-11

Low MFD: 35.0

High MFD: 0.0

Volts: 370

User Description: NA

Alternate Applications

Refrigerant: R-22 HCFC

Voltage: 208/230

Phase 1

Freq (Hz): 60

Application: Air Conditioning

Copeland Hermetic Compressor CRJQ-0300-PFV
