Mbsm.pro, Scroll, Danfoss, HRP051T4LP6, compressors, Hermetic, 49.15 kBtu/h, R22, R407C, 4 1/4Hp, 3Ph, POE, Lra 60A

mbsmpro-scroll-danfoss-hrp051t4lp6-compressors-hermetic-4915-kbtuh-r22-r407c-4-14hp-3ph-poe-lra-60a-mbsm-dot-pro
mbsmpro-scroll-danfoss-hrp051t4lp6-compressors-hermetic-4915-kbtuh-r22-r407c-4-14hp-3ph-poe-lra-60a-mbsm-dot-pro

Product details

Gross weight39.75 kg
Hp4 1/4
Net weight37.08 kg
EAN5702428224598



Approval standardCE
UL

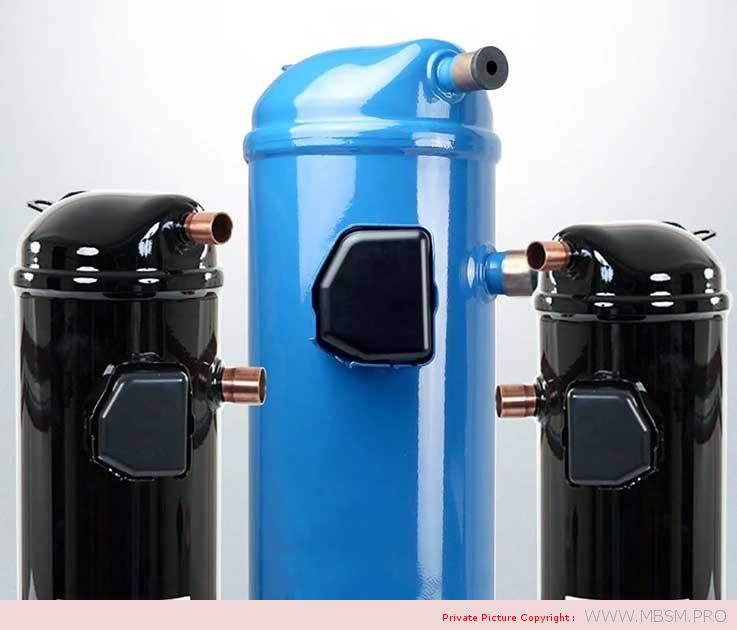

Brand techniqueScroll compressor
Capacity controlFixed speed
ColourBlack
Compressor power supply [V/Ph/Hz]380-415/3/50 460/3/60
Configuration codeSingle
Connection typeBrazed
DescriptionHRP051T4
Diameter [mm]184 mm
Discharge connection height [mm]422 mm
Discharge connection pipe size [in]1/2 in
Discharge connection size [in]1/2 in
Drawing number0XR6002B-2
EconomizerNo
Fitting standardODF
Frequency [Hz]50/60
Gauge port HPNone
Gauge port LPNone
Gaz equalizationNone
Glass mountingNone
High side max pressure (Ps)31.1 bar
High value of nominal voltage at 50Hz [V]415 V
High value of nominal voltage at 60Hz [V]460 V
High value of voltage range at 50Hz [V]457 V
High value of voltage range at 60Hz [V]506 V
IP protection classIP22
Length [mm]239 mm
Low side max pressure (Ps)26.2 bar
Low value of nominal voltage at 50Hz [V]380 V
Low value of nominal voltage at 60Hz [V]460 V
Low value of voltage range at 50Hz [V]342 V
Low value of voltage range at 60Hz [V]414 V
LRA60 A
MCC13 A

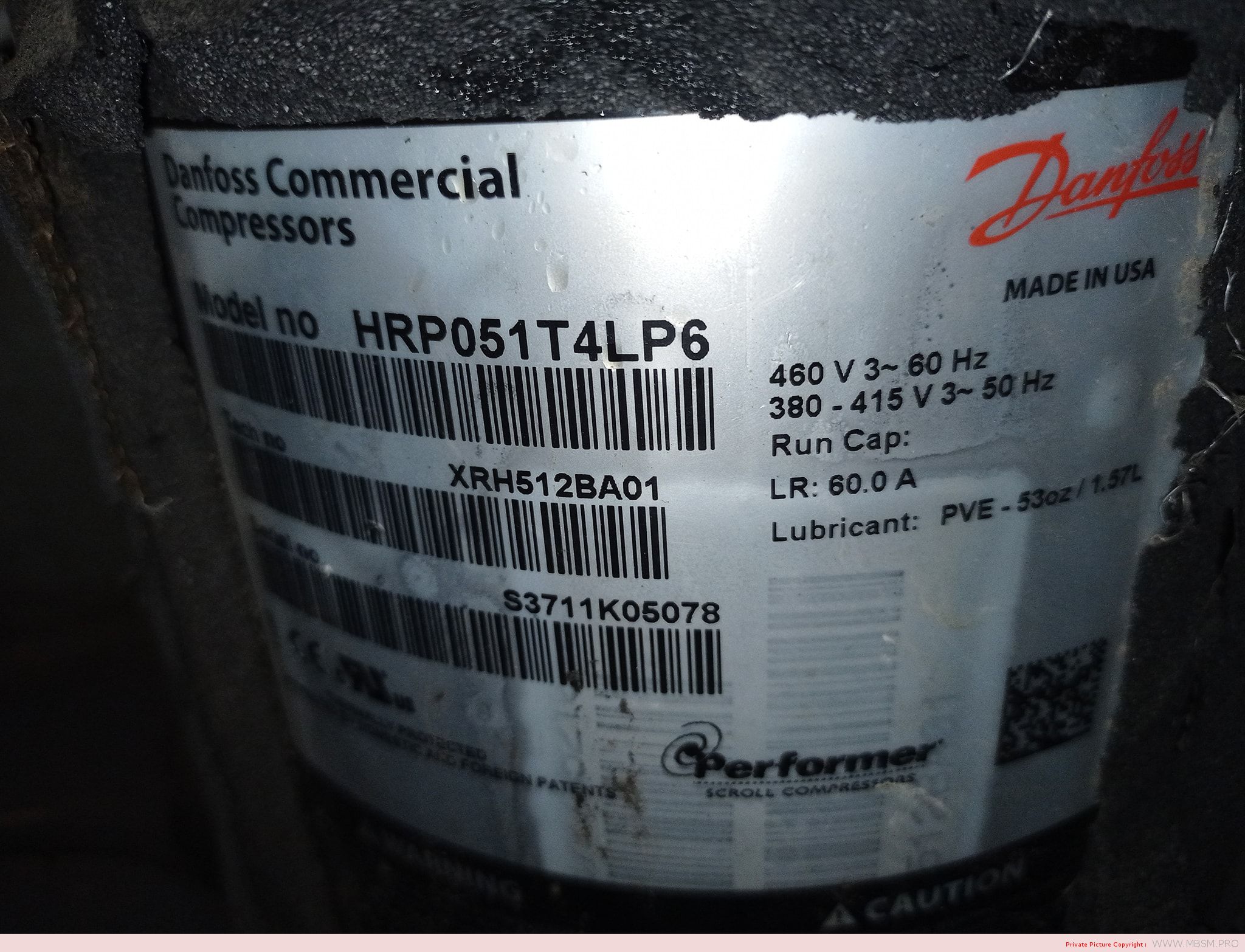

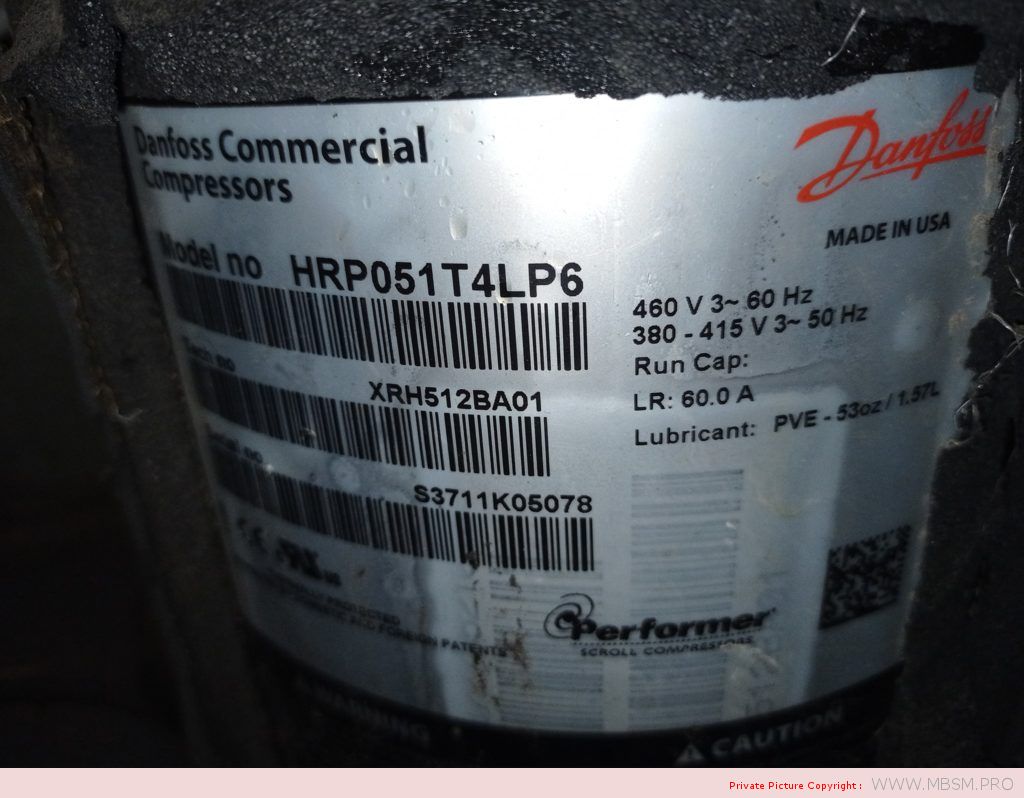

Model numberHRP051T4LP6
Motor protectionInternal overload protector
Nominal cooling capacity 60 kBTU/h49.15 kBtu/h
Nominal cooling capacity at 50Hz10.8 kW
Nominal cooling capacity at 60Hz14.4 kW
Nominal heating capacity at 50Hz7 kW
Number of starts per hour [Max]12
Oil charge [L]1.57 L
Oil drainNone
Oil equalizationNone
Oil reference320HV
Oil typePVE
Packing formatIndustrial pack
Packing quantity16
Phase3
Power connectionsSpade
RefrigerantR407C
Refrigerant charge [kg] [Max]5.44 kg
Relief valveYes
RLA8.3 A
Rotational speed at 50Hz [rpm]2900 rpm
Rotational speed at 60Hz [rpm]3500 rpm
Segment usageAir conditioning
Shipped instructionsInstallation instructions
Shipped mountingMounting kit with grommets and sleeves
Shipped oilInitial oil charge
Suction connection height [mm]280 mm
Suction connection pipe size [in]7/8 in
Suction connection size [in]7/8 in
Swept volume [cm3]68.83 cm³
TechnologyScroll
Total height [mm]455 mm
TypeHRP
Type designationCompressor
Viscosity [cP]68 cP
Width [mm]239 mm
Winding resistance 1-2 [Ohm]2.6 Ohm
Winding resistance 1-3 [Ohm]2.61 Ohm
Winding resistance 2-3 [Ohm]2.65 Ohm
