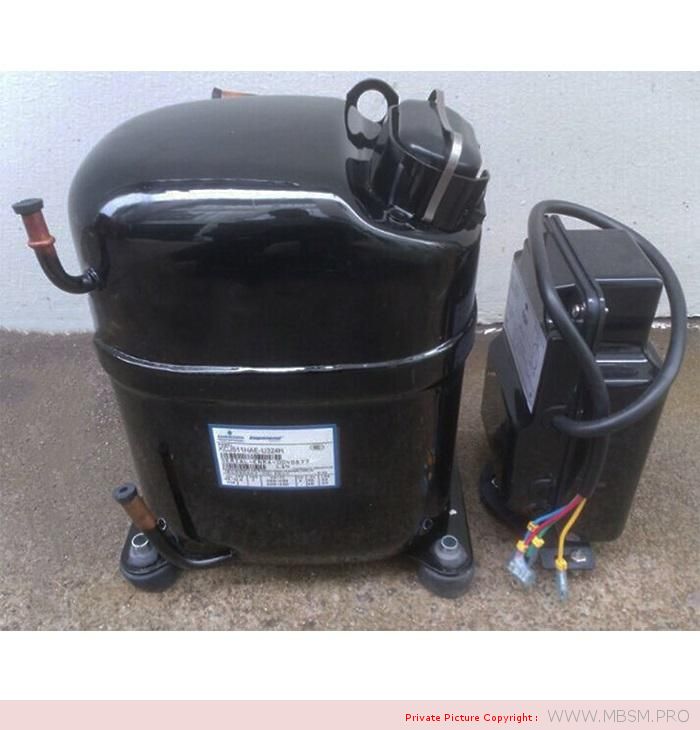

Mbsm.pro, COPLAND, Compressor, KCJ511HAE, KCJ511HAE-BXXX , HBP, 1-3/8 hp big ++, R-22 , 230 V, 50 Hz, 1PH , FAN, 350 ft3 / m

mbsmpro-copland-compressor-kcj511hae-kcj511haebxxx--hbp-138-hp-big--r22--230-v-50-hz-1ph--fan-350-ft3--m-mbsm-dot-pro
mbsmpro-copland-compressor-kcj511hae-kcj511haebxxx--hbp-138-hp-big--r22--230-v-50-hz-1ph--fan-350-ft3--m-mbsm-dot-pro
Technical Specification
Cooling Capacity (Btu/hr)11275
Cooling Capacity (w)3302
HP1-3/8
LRA54

COMPRESSOR MECHANICAL AND PHYSICAL DATA

Number of cylinders 2

Displacement @ 50 Hz, cu.m/h 3.2

Bore/Stroke, mm 3.5/1.9

Length/Width, mm 235/179

Height, mm 264

Net Weight, kg 21.5

Stub Suction, inch 5/16

Stub Discharge, inch 5/16

Oil Quantity, l 0.9

Base mounting (hole dia), mm NA (0.0)

Sound Pressure @ 1m (HT), dBA 57

Sound Power (HT), dBA 68

COMPRESSOR ELECTRICAL DATA (220/240V – 1~ – 50Hz)

Locked Rotor Current, A 25

Default Enclosure Class IP 21 (IEC 34)

ACCESSORIES OPTIONAL

Mounting Grommets Standard

Single Phase Equipment Relay, Start and Run Capacitor

mbsmpro-copland-compressor-kcj511hae-kcj511haebxxx--hbp-138-hp-big--r22--230-v-50-hz-1ph--fan-350-ft3--m-mbsm-dot-pro
Horse Power
50HZ
Brand
COPLAND
Compressor Technology
HERMETIC
Model Name/Number
KCJ511HAE
Power
220V
mbsmpro-copland-compressor-kcj511hae-kcj511haebxxx--hbp-138-hp-big--r22--230-v-50-hz-1ph--fan-350-ft3--m-mbsm-dot-pro
