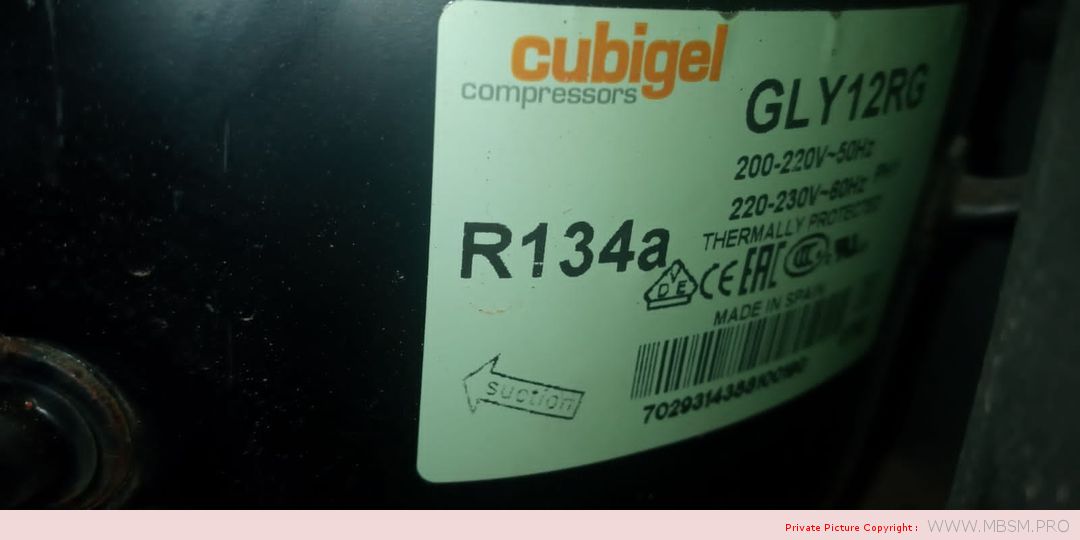

Compressor, R134A, GLY12RGA, 10,7cm³, HMBP, 230V, 3/8HP, CUBIGEL, HUAYI

compressor-r134a-gly12rga-107cm-hmbp-230v-38hp-cubigel-huayi-mbsm-dot-pro
compressor-r134a-gly12rga-107cm-hmbp-230v-38hp-cubigel-huayi-mbsm-dot-pro
ModelDisplacement (cm³)RefrigerantApplicationCompressor Cooling    Voltage/Frequency    Frequency (Hz)Motor TypeCooling (kCal/h)COP (W/W)Cooling (W)COP (W/W)Technical Data Sheet (*)
compressor-r134a-gly12rga-107cm-hmbp-230v-38hp-cubigel-huayi-mbsm-dot-proGL45MG4,56R134aHBPS230V 50/60Hz ~1    50CSIR3521,953401,67GL45MG
compressor-r134a-gly12rga-107cm-hmbp-230v-38hp-cubigel-huayi-mbsm-dot-proGL45MG4,56R134aHBPS230V 50/60Hz ~1    60CSIR4121,923981,65GL45MG
compressor-r134a-gly12rga-107cm-hmbp-230v-38hp-cubigel-huayi-mbsm-dot-proGL60MG5,98R134aHBPS230V 50/60Hz ~1    60CSIR5202,024991,73GL60MG
compressor-r134a-gly12rga-107cm-hmbp-230v-38hp-cubigel-huayi-mbsm-dot-proGL60MG5,98R134aHBPS230V 50/60Hz ~1    50CSIR4451,994271,70GL60MG
compressor-r134a-gly12rga-107cm-hmbp-230v-38hp-cubigel-huayi-mbsm-dot-proGL80MG7,57R134aHBPS230V 50/60Hz ~1    60CSIR7022,156741,84GL80MG
compressor-r134a-gly12rga-107cm-hmbp-230v-38hp-cubigel-huayi-mbsm-dot-proGL80MG7,57R134aHBPS230V 50/60Hz ~1    50CSIR6002,105761,78GL80MG
compressor-r134a-gly12rga-107cm-hmbp-230v-38hp-cubigel-huayi-mbsm-dot-proGL90MG8,85R134aHBPS230V 50/60Hz ~1    50CSIR6852,106611,79GL90MG
compressor-r134a-gly12rga-107cm-hmbp-230v-38hp-cubigel-huayi-mbsm-dot-proGL90MG8,85R134aHBPS230V 50/60Hz ~1    60CSIR8002,117721,83GL90MG
compressor-r134a-gly12rga-107cm-hmbp-230v-38hp-cubigel-huayi-mbsm-dot-proGLY12RAa10,70R134aHBPF220-240V 50Hz ~1    50CSIR9002,308671,97GLY12RAa
compressor-r134a-gly12rga-107cm-hmbp-230v-38hp-cubigel-huayi-mbsm-dot-proGLY12RAb10,70R134aHBPF220-240V 50Hz ~1    50CSR9002,578672,20GLY12RAb
compressor-r134a-gly12rga-107cm-hmbp-230v-38hp-cubigel-huayi-mbsm-dot-proGLY12RGa10,70R134aHBPF200-220/220-230V 50/60Hz ~1    50CSIR9002,198671,87GLY12RGa
compressor-r134a-gly12rga-107cm-hmbp-230v-38hp-cubigel-huayi-mbsm-dot-proGLY12RGa10,70R134aHBPF200-220/220-230V 50/60Hz ~1    60CSIR1.0382,221.0071,90GLY12RGa
compressor-r134a-gly12rga-107cm-hmbp-230v-38hp-cubigel-huayi-mbsm-dot-proGLY12RGb10,70R134aHBPF200-220/220-230V 50/60Hz ~1    50CSR9002,328671,98GLY12RGb
compressor-r134a-gly12rga-107cm-hmbp-230v-38hp-cubigel-huayi-mbsm-dot-proGLY12RGb10,70R134aHBPF200-220/220-230V 50/60Hz ~1    60CSR1.0382,401.0072,07GLY12RGb
compressor-r134a-gly12rga-107cm-hmbp-230v-38hp-cubigel-huayi-mbsm-dot-proGP14TB14,17R134aHBPF220-240V 50Hz ~1    50CSIR1.0302,039981,76GP14TB
compressor-r134a-gly12rga-107cm-hmbp-230v-38hp-cubigel-huayi-mbsm-dot-proGP16TB16,15R134aHBPF220-240V 50Hz ~1    50CSIR1.2402,091.2041,80GP16TB
compressor-r134a-gly12rga-107cm-hmbp-230v-38hp-cubigel-huayi-mbsm-dot-proGP16TE16,15R134aHBPF115V 60Hz ~1    60CSIR1.4501,961.4081,69GP16TE
compressor-r134a-gly12rga-107cm-hmbp-230v-38hp-cubigel-huayi-mbsm-dot-proGP16TG16,15R134aHBPF200-220/230V 50/60Hz ~1    50CSIR1.2402,091.2041,81GP16TG
compressor-r134a-gly12rga-107cm-hmbp-230v-38hp-cubigel-huayi-mbsm-dot-proGP16TG16,15R134aHBPF200-220/230V 50/60Hz ~1    60CSIR1.4502,001.4081,74GP16TG
compressor-r134a-gly12rga-107cm-hmbp-230v-38hp-cubigel-huayi-mbsm-dot-proGPM16RA16,15R134aHBPF220-240V 50Hz ~1    50CSIR1.3512,091.3171,79GPM16RA

(*) Under standard conditions

Additional information

Voltage (V)230Vac
Frequency (hz)50
RangeMBP
Displacement (cm3)10,7 cm³
Cooling capacity (W)608W
Conditions (°C)-10 / +45C
RefrigerantR134A
Suction line8.1mm juotettava
Liquid line6,5mm juotettava
Height (mm)198mm
Weight (kg)10,43kg
OilISO VG 32 Ester

Technical data

  • Model: GLY12RAa
  • Refrigerant Gas: R-134a
  • Pression/temperature: HBP
  • Power: 3/8 HP
  • Voltage: 230 V
  • Current Type: Single-Phase
  • Frequency: 50 Hz
  • Compressor Type: Hermetic
  • Displacement: 10.7 cm³
  • Power Cons. -10°C: 293 W
  • Power Cons. -5°C: 322 W
  • Efficiency 0°C: 351 W
  • Power Cons. +5°C: 380 W
  • Power Cons. +7,2°C: 392 W
  • T° Condensation: 40 °C
  • Cooling Cap. -15°C: 408 Kcal/h
  • Cooling Cap. -10°C: 512 Kcal/h
  • Cooling Cap. -5°C: 642 Kcal/h
  • Cooling Cap. 0°C: 797 Kcal/h
  • Cooling Cap. 5°C: 977 Kcal/h
  • Cooling Cap. 7.2°C: 1065 Kcal/h
  • Cooling Cap. 10°C: 1184 Kcal/h
  • Test Type: Ashare 46
