COMPRESSOR, ASPERA, NJ2192GK, 1.1/4 HP, 220V, 1PH, R404A, LBP, 1199w

compressor-aspera-nj2192gk-114-hp-220v-1ph-r404a-lbp-1199w-mbsm-dot-procompressor-aspera-nj2192gk-114-hp-220v-1ph-r404a-lbp-1199w-mbsm-dot-pro

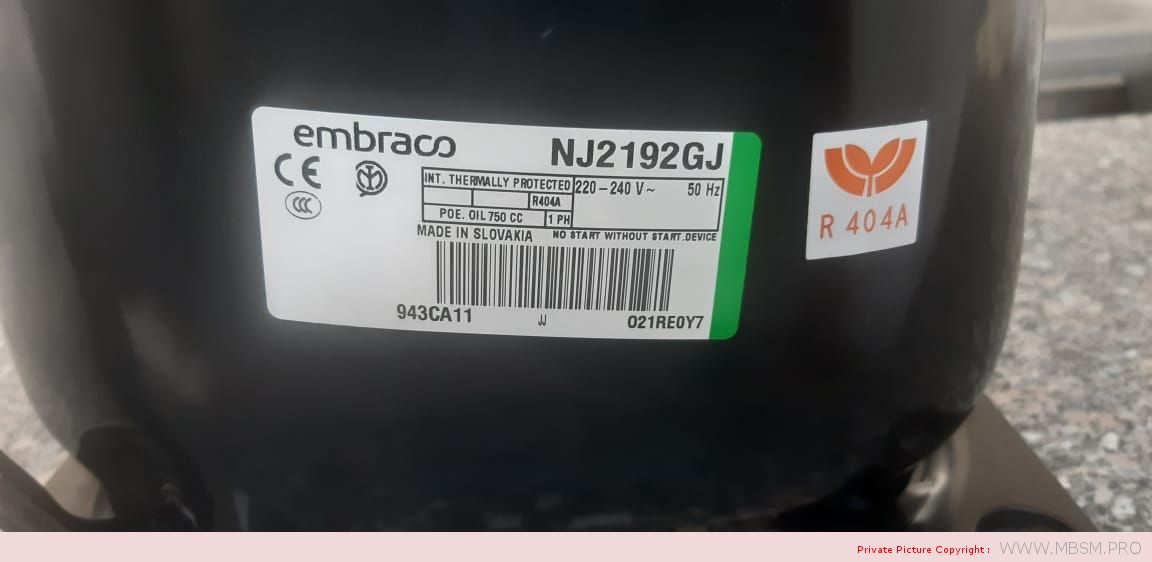

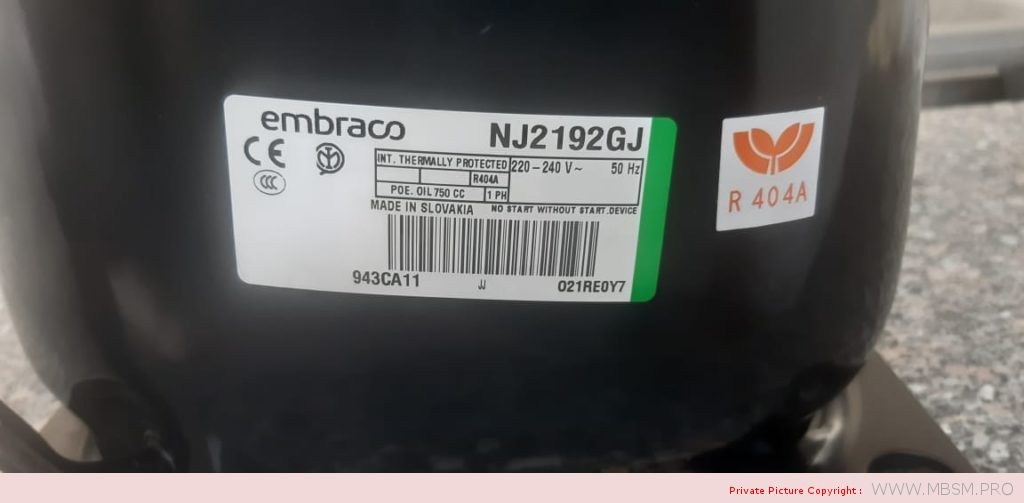

Compressor ASPERA NJ2192GJ | NJ 2192 GJ

Product replaced the old model NJ2192GK

Refigerant R404A
Working range[stC] LBP -40 do -10
Nominal capacity [W]  (evaporating temperature -23,3C, Condensing temperatur +54,4C) 1199
Power supply 220-240V 50Hz
Engine type CSR
Displacement [cm³] 26,10
Weight [kg] 22

Condensing temperature +55 C

Evaporating Temperature Cooling Capacity +/-5% Power Consumption +/-5% Current Consumption +/-5%
°C (kcal/h) (W) (Btu/h) (W) (A)
-40
-35
-30   797   773 4,37
-25   1084   908 4,92
-20   1413   1045 5,49
-15   1784   1181 6,10
-10   2196   1317 6,72
Refrigerant:
R404A
