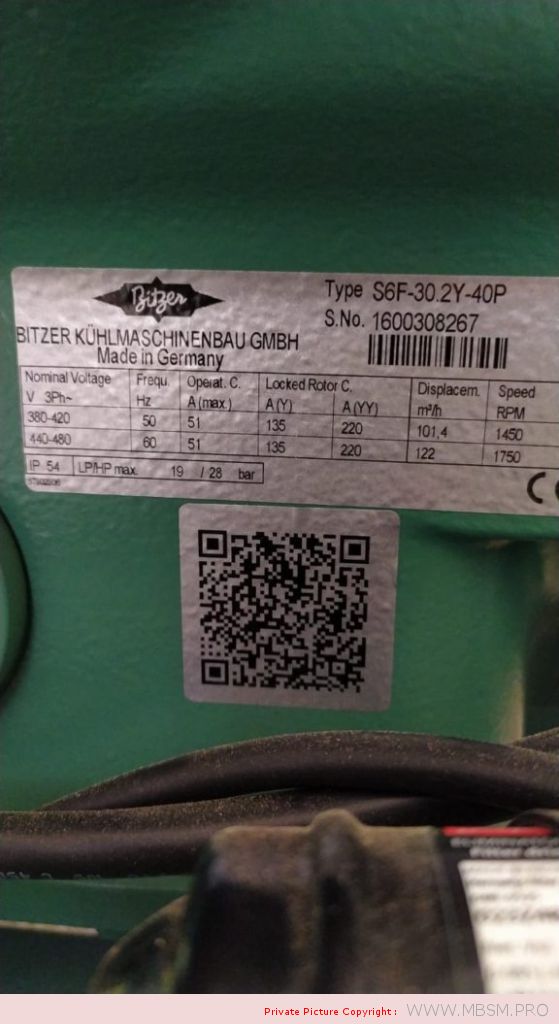

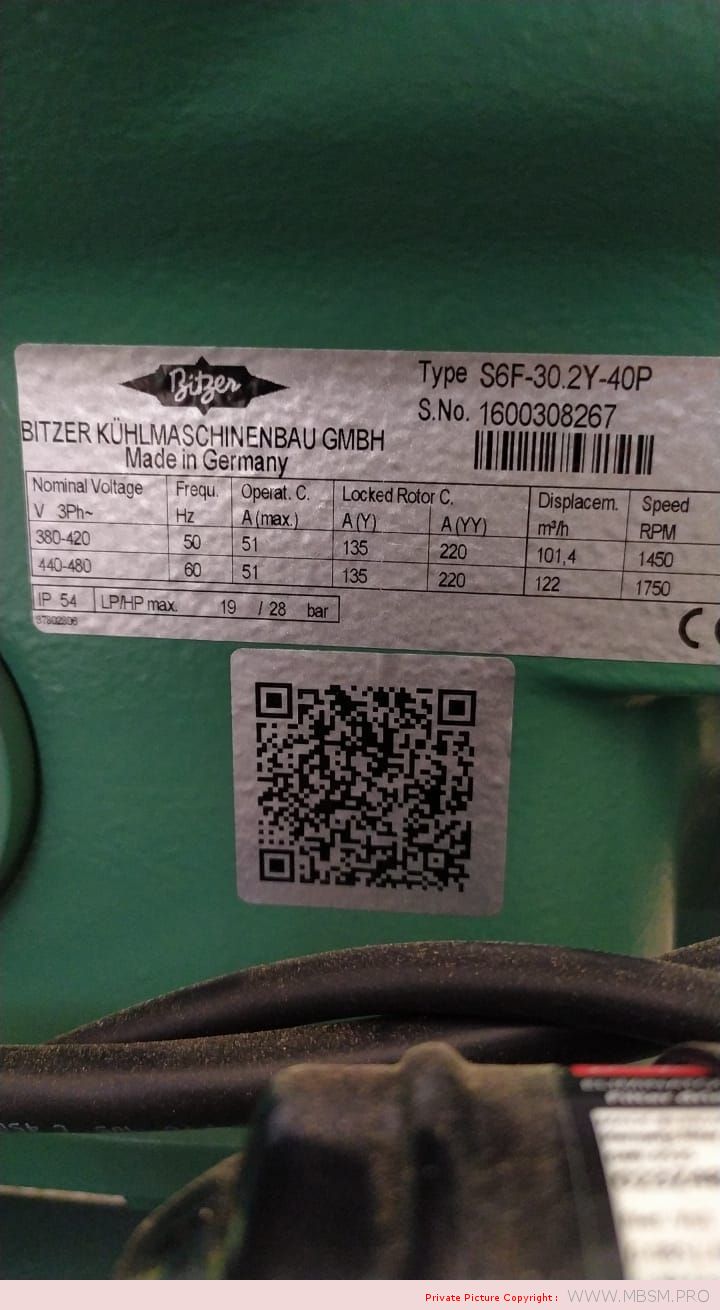

Bitzer, Compressor, S6F-30.2Y-40P, Compressor Selection, Semi-hermetic Reciprocating, 1450 min-1 , 101,1 (LP) , 30hp

bitzer-compressor-s6f302y40p-compressor-selection--semihermetic-reciprocating-1450-min1--1011-lp--30hp-mbsm-dot-probitzer-compressor-s6f302y40p-compressor-selection--semihermetic-reciprocating-1450-min1--1011-lp--30hp-mbsm-dot-pro

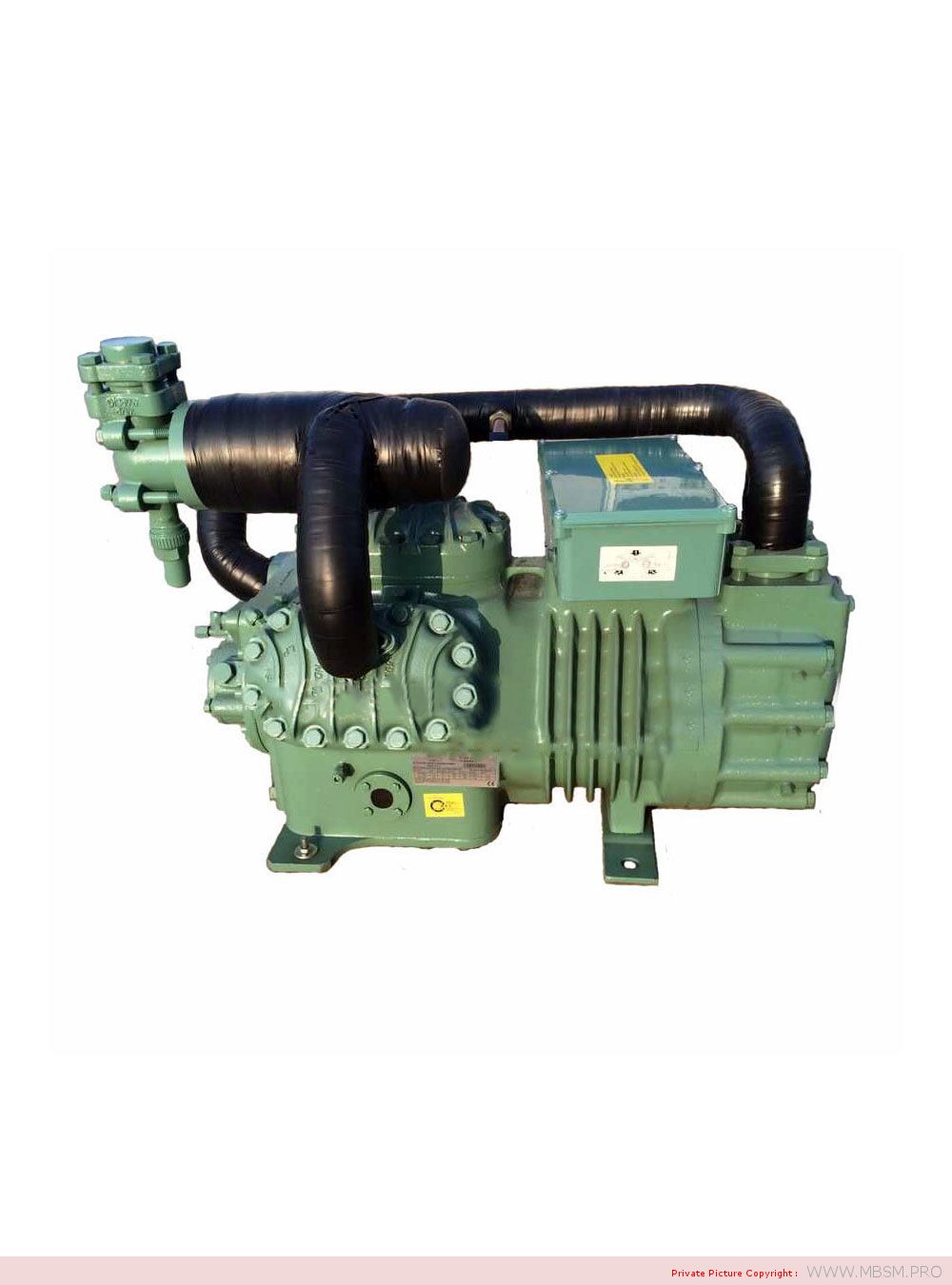

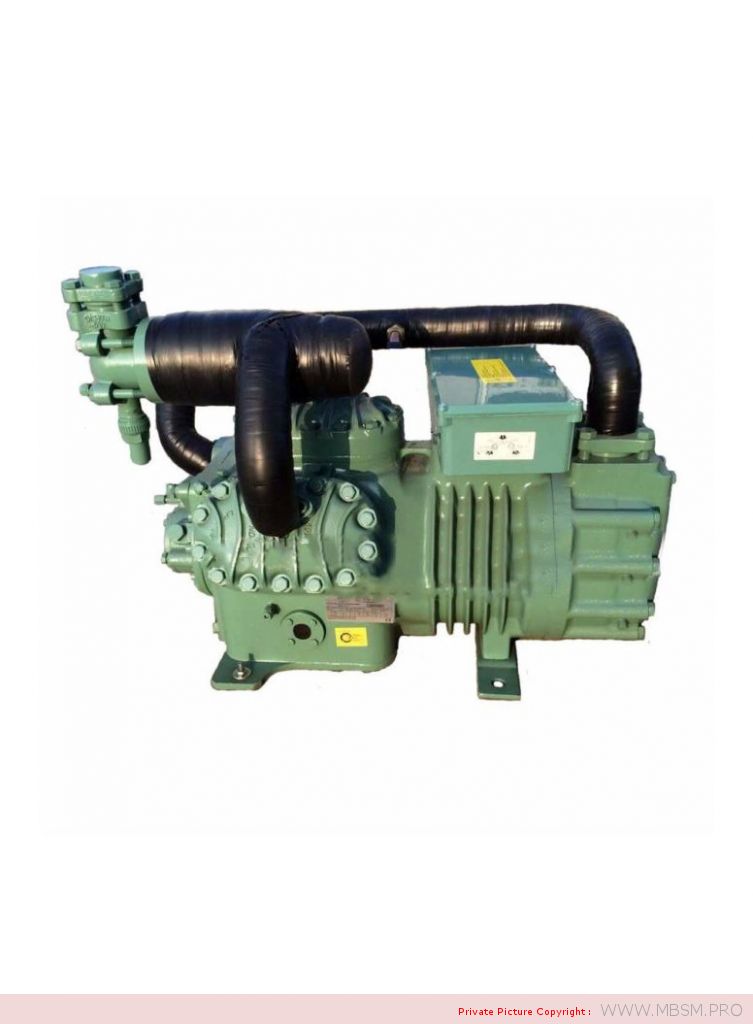

BITZER is raising the bar in terms of technology and capacity for expanded low temperature applications with the 2nd generation of 2-stage compressors. This series is the result of extensive research on the basis of years of experience in the construction of highly efficient and solid reciprocating compressors. The gas flow control and working valves are specially adapted for low temperature applications.

  • Displacement at 1450 min-1 : 101,1 (LP) 50,5 (HP)
  • Number of cylinders : 6
  • Oilcharge : 4,75 dm3

Displacement (1450 RPM 50Hz):101.10 / 50.50 m^3/h Displacement (1750 RPM 60Hz):122.02 / 60.95 m^3/h

The Bitzer Compressor is high quality!
Displacement (1450 RPM 50Hz):101.10 / 50.50 m^3/h
Displacement (1750 RPM 60Hz):122.02 / 60.95 m^3/h
No. of cylinder x bore LP/HP x stroke:6+6 x 82/ 82 mm x 55 mm
Max. pressure (LP/MP/HP):19 / 19 / 28 bar
Connection suction line:42 mm – 1 5/8 inch
Connection discharge line:35 mm – 1 3/8 inch
Oil type R404A/R507A:BSE32 (Standard)
Oil type R448A/R449A:BSE32 (Standard)
Oil type R22:B5.2 (Option) We can also provide the following models
4JTE-15K
GYD80485VAYB4
GED60235VLB332
GMD60137VBYR632
GED60485VBYR3-1
CSH7573-70Y-40P
GYD80182VLYB632
GYD60385VLYR2-2
GED80154VLR332
GYU80295VLR4-2
GSU60120VLB6-2
GED60137VAYB3-1
GUU60154VLR532
GUD80295VLR232
GSD80295VLR6-1
GTU60137VLYB3-1
GUD60137VBYR5-1
GYD80235VBYB332
GYD60421VAYR332
GMD60295VBR3-1
GED80154VBYB6
4NEH-14-40S
GMU60154VLY
GYD60154VAB4-2
GYD80182VAYR4-2
GYD80421VBR5-1
GYD60385VLYR4-1
4TE-9.F3Y-40S
GMD60182VBYB3-2
GMD80120VLR232
GUD60120VBYR5-2
GSD60154VAYR232
GMD60154VBYR632
44EES-12-40S
GMD60154VBB432
GUD80421VWR4-2
GYD80385VAYR2-2
GTD60385VLB632
GED60235VLB2
GED60154VAYR4
GSD80421VWR5-2
GUD60421VBR5
GYD80182VBYB5-1
GED60295VBB5
GED80421VAR4-1
GED60385VLYB3
GYU80421VLR2
GSD80485VBB5-1
GED60120VLB2
GUD60421VBR332
GTD60154VAB4-2
GED60421VAYB6-1
GMD60485VBB5-1
GSD60485VAYR4
GED80295VLYR6-1
GSD60235VAYB232
GTD60385VBYR3-1
GUD60154VBB3-2
GUD80295VWB6-2
GED60421VAR5
GMD80421VBR4
GED80182VLR532
GSD60154VBYB6-1
GTD80421VBYR332
GSD60182VAYB4-1
GUD80485VWYR5-2
GSU80295VLYR6-1
GSD80182VLYR2-2
GSU80385VLB432
GED80295VAY
GED80295VAB3-2
GYD60120VAR4

With liquid subcooling 50Hz (R404A/R507A)

Compressor typeCond.temp.Qo / PeEvaporating temperature °C
[°C]-25-30-35-40-45-50-55-60-65-70
S6F-30.2Y30Qo434003740031750265002170017420136901054079205800
Pe2,530,658,7816,9415,1513,4211,7710,208,747,40
35Qo425003660031050259002120017030134201034077805680
Pe3,851,869,897,946,044,2112,4510,789,237,80
40Qo41500357003030025300207001668013170101507590
Pe25,2023,1021,0118,9616,9515,0013,1411,379,72
45Qo40450348002955024700203001660129309920
Pe26,5924,3722,1619,9817,8615,8013,8311,96
50Qo39500340002885024100198701606012650
Pe28,0725,6923,3321,0118,756,5714,49
55Qo388003325028200236001949015740
Pe29,6427,0624,5122,0319,6317,32

Qo – Cooling capacity [Watt], Pe – Power consumption [kW]

Without liquid subcooling 50Hz (R404A/R507A)

Compressor typeCond.temp.Qo / PeEvaporating temperature °C
[°C]-25-30-35-40-45-50-55-60-65-70
S6F-30.2Y30Qo3805031700260502100016620128809790728053003760
Pe1,2618,8116,6114,6412,9011,3710,028,867,857,00
35Qo3600029950245001971015570120709180684049803510
Pe22,1119,6617,4115,3713,5311,8810,429,138,025,72
40Qo338002800022900183901453011280859064004620
Pe22,9520,5318,2616,1514,2012,4210,829,418,18
45Qo31450260502125017080135101050080005920
Pe23,8221,4219,1216,9414,8913,0011,269,71
50Qo289502400019590157701249097107370
Pe24,7222,3119,9817,7415,6113,6111,76
55Qo26400219001789014430114408880
Pe25,6723,1920,8018,5216,3414,27

Qo – Cooling capacity [Watt], Pe – Power consumption [kW]

bitzer-compressor-s6f302y40p-compressor-selection--semihermetic-reciprocating-1450-min1--1011-lp--30hp-mbsm-dot-pro

Compressor typeDisplacement at 1450 min-1Number of cylindersOil chargeWeightPipe connectionsMotorMax. operating currentMax. power consumptionStarting current(lockedrotor)LPHPDLSLdm3KgmmpoucemmpouceAmpkWAmp. Y/YYS6F-30.2Y101,150,567.752343513/842
5415/8
21/8380 ..420YY/3/50
440 ..480 YY/3/605131,9135/220
