Type: Hermetic scroll compressorsProducer: CopelandSeries: ZR
Model: ZR144KCE-TFD
Technical data

Displacement [m³/h]:	33,2
Sound power [dBA]:	75
Sound pressure level [dB]:	64
Net Weight [kg]:	61,2
Gross Weight [kg]:	72
Oil charge [dm³]:	3,3
Maximum high pressure [bar]:	32
Maximum standstill pressure [bar]:	20
Minimal lowside temperature [°C]:	-35
Maximum lowside temperature [°C]:	52
PED category:	2

Electrical data

Power supply [V/~/Hz]:	380-420/3/50Hz
Locked rotor current [A]:	118
Max. operating current [A]:	22,3
Winding resistance [Ω]:	1,2

Connections

		inches
Suction connection with supplied sleeve:		1 3/8″
Discharge connection with supplied sleeve:		7/8″

Compressor Copeland Scroll ZR144KCE-TFD-425, R407C, 380-420V
Type of engine: TFD
Displacement: 33.2 m3 / h (191,23 cm3)
Cooling capacity (0 ° C): 20.00 kW.
Oil quantity: 3.38 L.
Noise level: 61 dBA – 1 m.
Max. Noise level: 75 dBA.
Max. Operating current (FLA): 22.3 A.
LRA: 118.0 A.
Connectors: 1.3 / 8 “x 7/8”.
Dimensions (LxWxH): 264x285x533 mm
Net Weight: 61.2 kg

Shipping Class	Standard
Scope Of Application	HBP
Lieferzeit	Ca. 10-14 Tage
Type Of Construction	Scroll
Maker	Copeland
Manufacturer No.	ZR144KCE-TFD-425
Style	1
Refrigerants	R407C
Series	ZR
Condensing Units Compressors	Compressors
Suspense	380-420V
Weight In Kg	61

Attachment	Type	Link
Mbsm_dot_pro_private_picture_NL8.4MF-3	image/png	Get Link

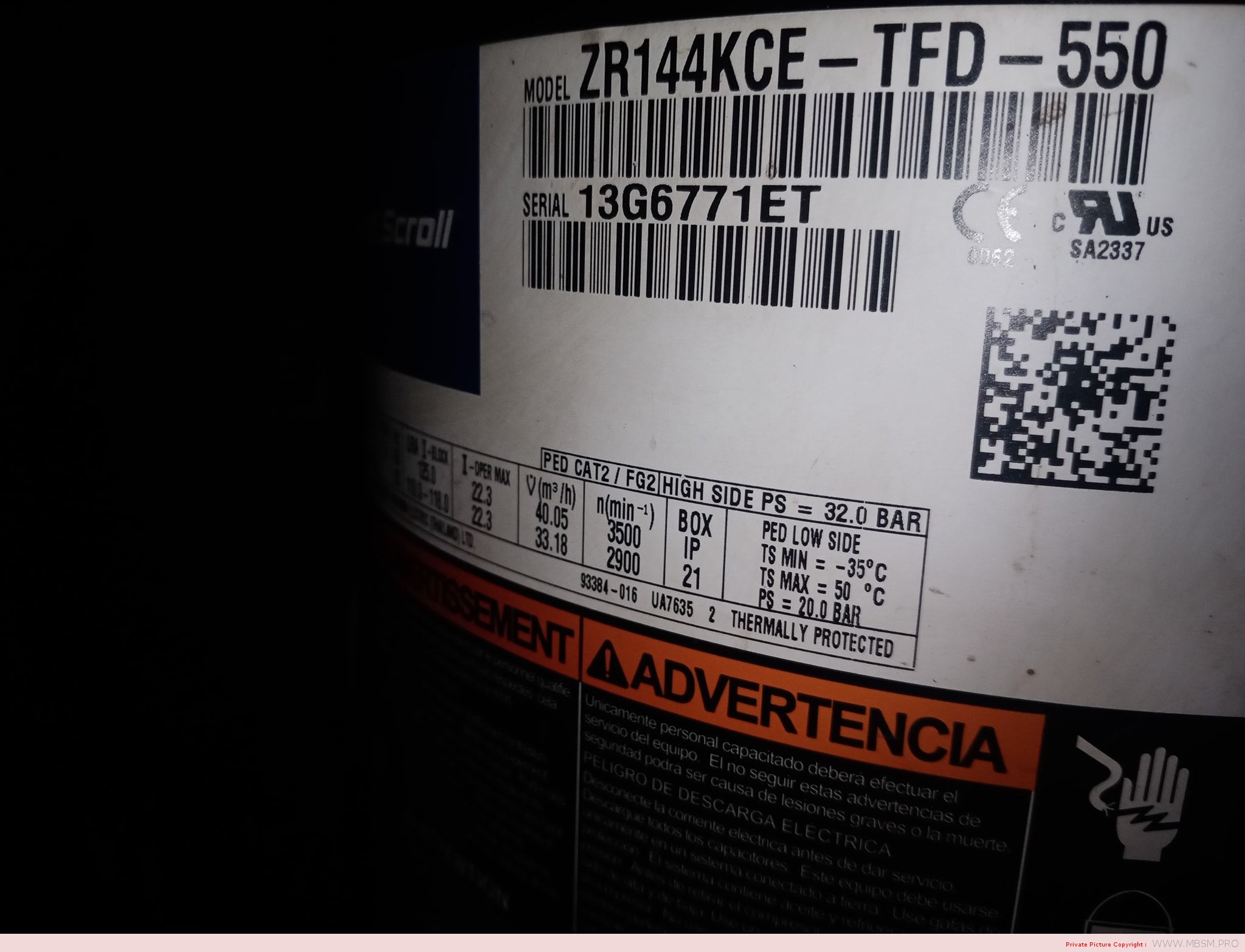

Mbsm_dot_pro_private_picture_ZR144KCE-TFD-550	image/jpeg	Get Link
