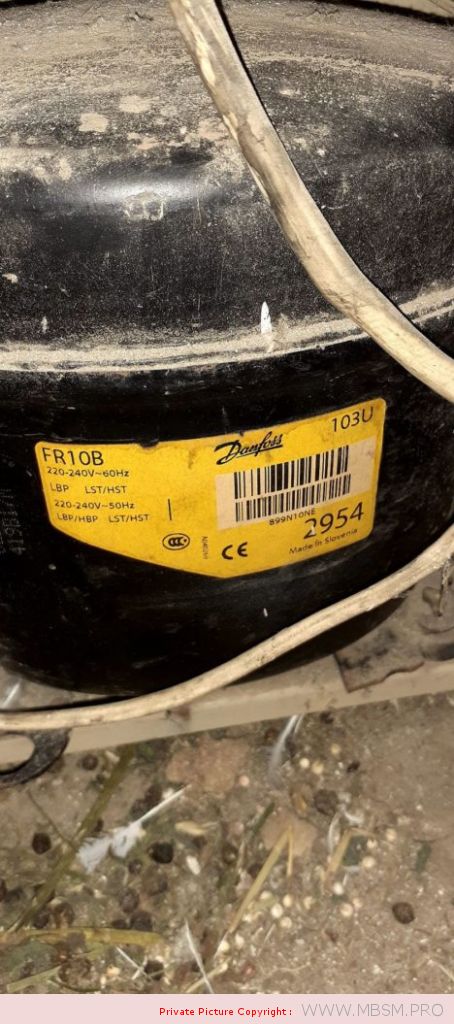

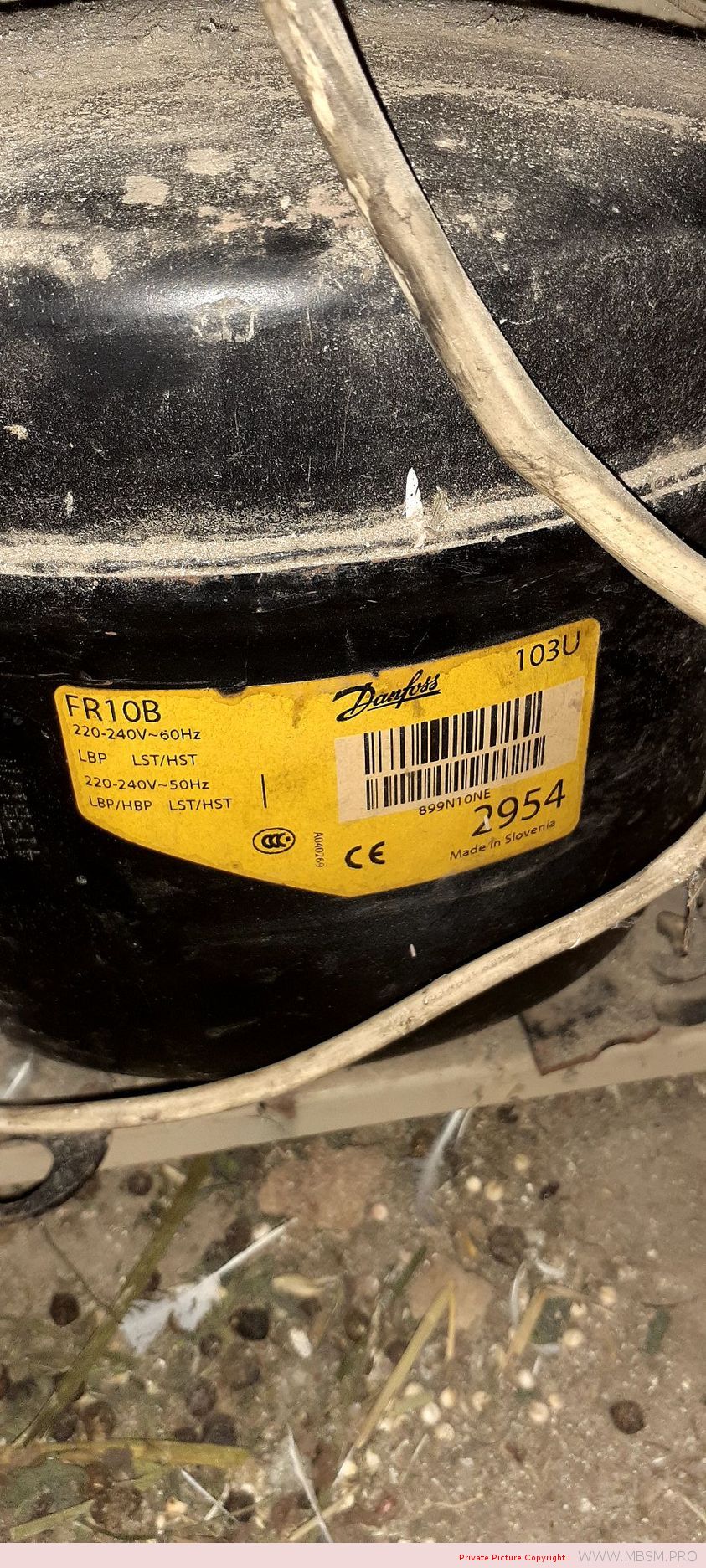

Compressor, 103U2954, Danfoss, fr10B, 103u, 2954, 1/3 HP, lbp, r12, FR10B COMPRESSOR 220V, 103U2954FR10B, FR11B Compressor R-12 3/8 HP 230V, fr21b Compressor R134a 3/4 HP++/ 1 hp–, 230V, hbp++

image_pdfimage_print

This article was edited by the director to adjust the horsepower value of the compressor. Thank you for your understanding

TL2.5B 2.61 A C-A 1-6 102U2021 20 45 80 102 126 182 248 112
TL3B 3.13 A C-A 1-6 102U2023 27 56 96 120 148 215 296 141
TL4B 3.86 A C 1-6 102U2016 39 73 116 145 182 264 364 157
FR6B 6.24 A C-A 1-6 103U2654 55 110 190 235 295 438 620 243
FR7.5B 6.93 B-A C-B 1-6 103U2754 103U2764 65 127 210 275 340 495 695 280
FR8.5B 7.95 B-A C-B 1-6 103U2854 103U2864 72 146 240 300 375 555 770 326
FR10B 9.05 B-A C-B 1-6 103U2954 103U2964 85 158 268 340 420 620 860 375
FR11B 11.15 C C 1 103U2154 110 205 340 420 520 758 1050 485
SC10B 10.3 C-B C-B 1-6 104L2510 104L2511 70 170 310 400 490 760 1080 390
SC12B 12.9 C-B C-B 1-6 104L2670 104L2671 95 230 410 520 630 950 1330 500
SC15B 15.3 C-B C-B 1-6 104L2830 104L2831 130 275 490 615 760 1090 1590 595
SC18B 17.7 C C 1-6 104L2110 170 340 575 715 870 1280 1820 720
SC21B 20.95 C C 1 104L2310 220 400 670 840 1010 1450 2080 730
SC12/12B* 2 x 12.9 C 1 104L4072 190 460 820 1040 1260 1900 2660 1000
SC15/15B* 2 x 15.3 C 1 104L4073 260 550 980 1230 1520 2180 3180 1190
SC18/18B* 2 x 17.7 C 1 104L4074 340 680 1150 1430 1740 2560 3640 1440
SC21/21B* 2 x 20.95 C 1 104L4075 440 800 1340 1680 2020 2900 4160 1460
