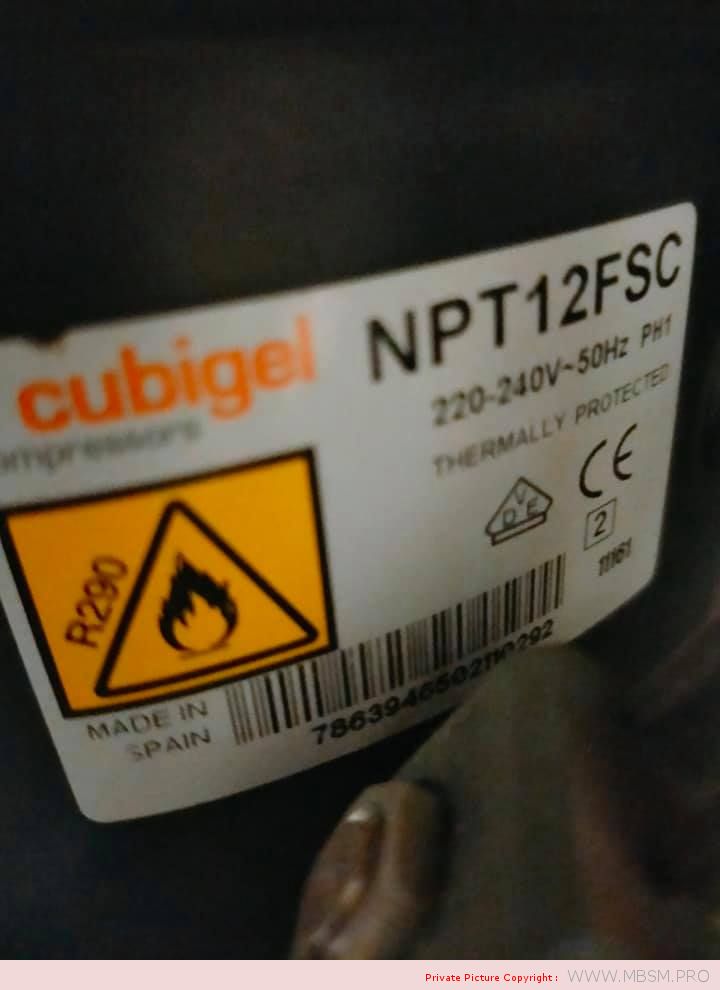

Compressor, NPT12FSC, CUBIGEL, R290, 12,10ccm, LBP, 3/8HP, 220 V 50/60 Hz

image_pdfimage_print

Technical Data Sheet
Compressor model NPT12FSC
Voltage 220-240V 50/60Hz ~1
Refrigerant R290
APPLICATION COMPRESSOR MOTOR
Application Low Back Pressure Displacement 12,10 cm³ Nominal Power 3/8 hp
Refrigerant R290 Diameter 27,00 mm Voltage/Frequency 220-240V 50/60Hz
Evaporating Temp. -40,0 ºC to -10,0 ºC Stroke 21,13 mm Voltage range 187-264 V
Expansion Capillar Net Weight 10,18 Kg Type ECM
Comp. Cooling Fan cooled Oil type ISO VG 32 ESTER Phase number 1 PH
Max. ambient temp. 43,0 ºC Oil charge 520 cm³ Locked Rotor Amps (LRA) 5,00 A
Max. Cont. Current (MCC) 3,70 A
Main W. resist. at 25ºC 6,70 Ω
Start W. resist. at 25ºC 6,70 Ω
NOMINAL PERFORMANCE – 3.000 RPM
ASHRAE CECOMAF
Cooling Capacity 585 kCal/h 508 W
COP 1,57 W/W 1,22 W/W
EER 1,35 kCal/Wh 1,06 kCal/Wh
Input Power 433 W 415 W
Current 3,43 A 3,30 A
TEST CYCLE CONDITIONS
ASHRAE CECOMAF
LBP (B) LBP (A)
Evaporating temp. -23,3 ºC -25,0 ºC
Condensing temp. 55,0 ºC 55,0 ºC
Liquid temp. 32,0 ºC 55,0 ºC
Ambient temp. 32,0 ºC 32,0 ºC
Suction temp. 32,0 ºC 32,0 ºC
Voltage/Frequency 220 V 50/60 Hz 220 V 50/60 Hz
