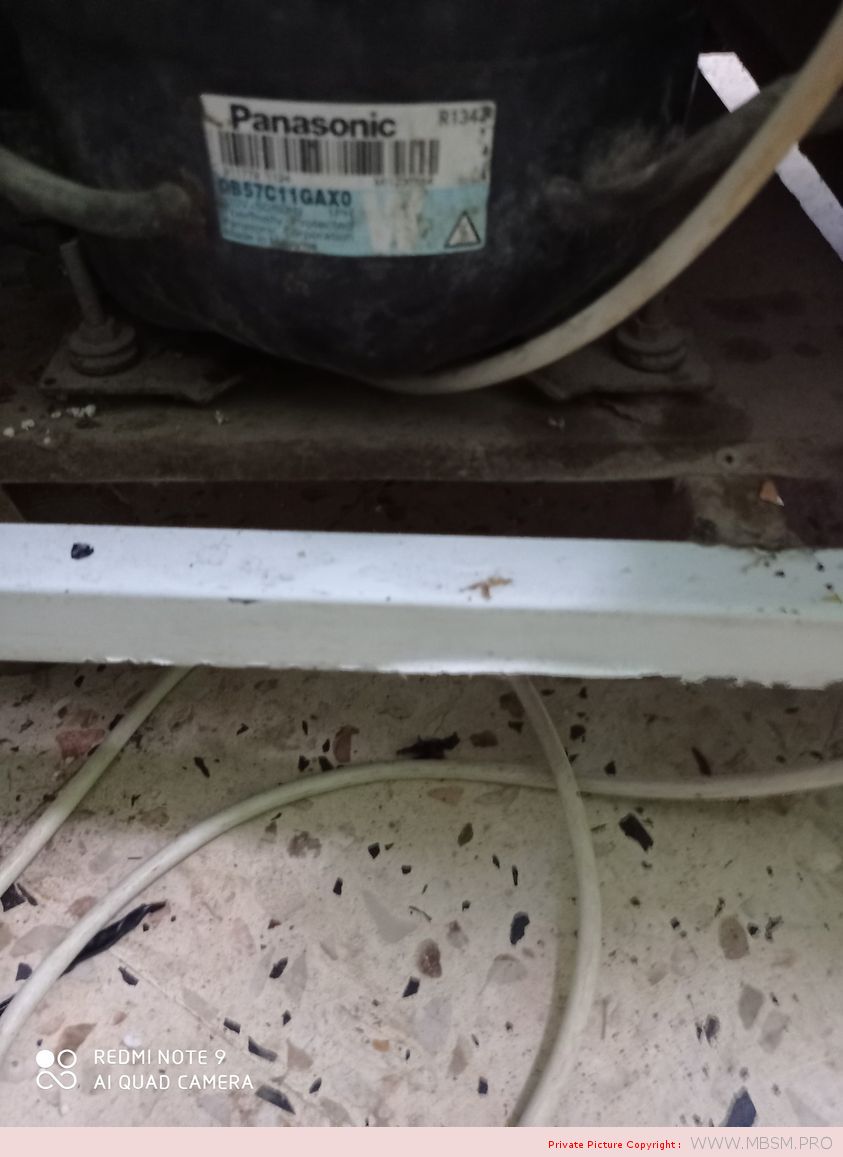

Panasonic Deeper Freezer Refrigerator Compressor Qb57c11glx5 R134a 1/6hp

mbsmpro-all-compressor-in-one-file--pdf-and-print-mbsm-dot-pro
mbsmpro-all-compressor-in-one-file--pdf-and-print-mbsm-dot-pro

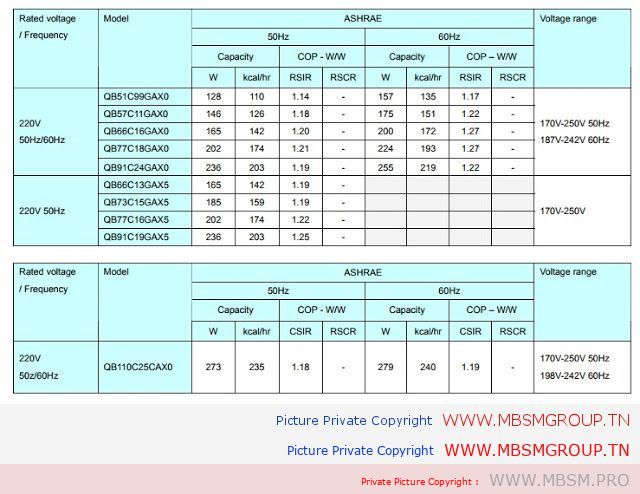

Panasonic Compressor For Fridge, Origin – Malaysia
Type – Hermetic, Volt – 220-240, Gas – R134a.
ModelH.P.WattBTU
QB-431/1075-96370
QB-511/890-123437
QB-571/6120-139498
QB-611/5135-157525
QB-661/4150-190563
QB-771/3190-220690
QB-911/2225-270806
QB-1101275-295932
mbsmpro-all-compressor-in-one-file--pdf-and-print-mbsm-dot-pro

RTC LG Compressor For Fridge – Model MA88

  • Compressor
  • Compressor For Fridge
  • LG Compressor
  • LG Compressor For Fridge
  • Brand – LG
  • Type – Hermetic
  • Size – 1/3
LG Fridge Compressors, Origin – India
Type – Hermetic, Volt – 220-240, Gas – R134a.
ModelH.P.WattBTU
MA421/1065-75365
MA531/890-115496
MA571/6115-130548
MA621/6+135-175563
MA691/5170-210671
MA721/4210-250715
MA881/3250-273933
mbsmpro-all-compressor-in-one-file--pdf-and-print-mbsm-dot-pro

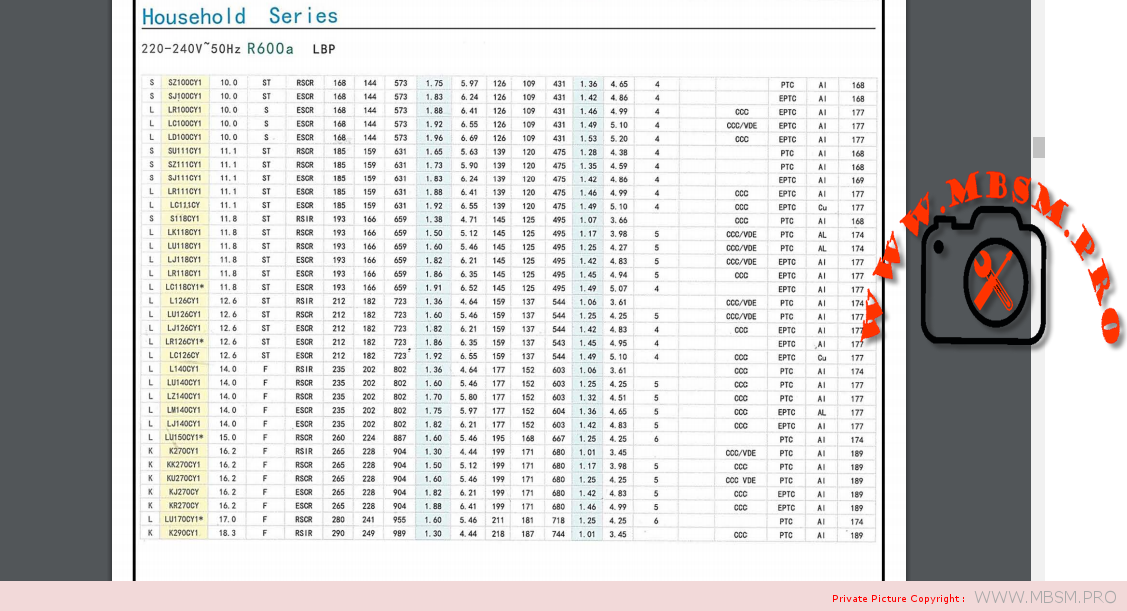

LJ118CY1 compressor donper 1/4Hp LBP

mbsmpro-all-compressor-in-one-file--pdf-and-print-mbsm-dot-pro
https://www.mbsm.pro/wp-content/uploads/2021/03/Mbsm_dot_pro_private_PDF_CatalogoDONPER2020_Lj126Cy.pdf
mbsmpro-all-compressor-in-one-file--pdf-and-print-mbsm-dot-pro

mbsmpro-all-compressor-in-one-file--pdf-and-print-mbsm-dot-pro
TEE Compressors MTS 170MT 1/4HP

Mbsmgroup_Tunisie_Private_Pictures_ntu170mtتنزيل


RTC Kulthorn Hermetic Compressor For Fridge – Capacity 175-212 Watts

  • Compressor
  • Compressor For Fridge
  • Hermetic Compressor
  • Hermetic Compressor For Fridge
  • Model – AE1380AK
  • Origin – Thailand
Kulthorn Fridge Compressors, Origin – Thailand
Type – Hermetic, Volt – 220-240, Gas – R12.
ModelsBTUH.P.Watts
AE-1332AK2661/1078-94
AE-1336AK3001/888-110
AE-1343AK3751/6110-140
AE-1360AK5631/5145-165
AE-1380AK6621/4175-212
AE-2410AK9211/3232-270
AE-2413AK1,1261/3275-330
AE-2415AK1,2971/2340-380
Gas – R404a/507.
AE-2420ZK1,6381/2390-480
AE-2425ZK2,0921/2490-613
AE-2428ZK2,3883/4620-750
AE-2432ZK2,6403/4+750-900
AW-2450ZK4,24511,244
Gas – R134a
AE-1340Y3751/888-105
AE-1350Y4611/6115-135
AE-1360Y5391/5140-160
AE-1370Y6351/4170-210
AE-1390Y8601/3210-270

RTC Hitachi Rotary Compressor – Capacity 2 Ton R410A

  • Compressor
  • Rotary Compressor
  • Origin – Japan
  • Manufacture – PRC
Hitachi Rotary Compressors (Type – Rotary)
ModelOriginBTUTonVoltPhase – HzRefrigerant
AFG125UV-A6BT3China12,0001220 – 2401 – 50R410A
ASH184TV-C7HQ1LChina18,0001.5220 – 2401 – 50R410A
ASH244MB-C7HUChina24,0002220 – 2401 – 50R410A
E404GH38D2GChina36,0003380 – 4203 – 50R410A
E604GH59D2GChina48,0004380 – 4203 – 50R410A
E654GH65D2GChina60,0005380 – 4203 – 50R410A

RTC Hitachi Fridge (Hermetic) Compressor – Watt 105-120

  • Compressor BD
  • Fridge Compressor BD
  • Hitachi Fridge (Hermetic) Compressor
  • Capacity – 105 to 120 watts
  • Origin – Thailand
Hitachi Fridge Compressors Details
Sl. No.ModelsH.P.WattTypeOriginGas
1FL07S39TAB1/1090-105HermeticThailandR134a
2FL0845-SJ1/8105-120HermeticThailandR134a
3FL11S52TAE1/6135-150HermeticThailandR134a
4FL12S57TAC1/5150-170HermeticThailandR134a
5FL18S75TAG1/4175-210HermeticThailandR134a
6FL1888-SM1/3230-260HermeticThailandR134a
7FH0634-RZ1/2320-340HermeticThailandR134a
8FH0739-RZ1370-390HermeticThailandR134a
9FH2588SY/SK907HermeticThailandR134a
10FH2711-SB1,140HermeticThailandR134a
11PH3014-SY1,450HermeticThailandR134a

RTC Gree Rotary Compressor – Capacity 2 Ton

  • Compressor BD
  • Rotary Compressor BD
  • Gree Rotary Compressor
  • Capacity – 2 ton
  • Origin – China
Gree Rotary Compressor in Dhaka, Bangladesh.
Gree Rotary Compressors, Origin – China.
Type – Rotary, Volt – 220-240, Ph – 1, Hz – 50, Gas – R22.
ModelBTUTonWatts
QX-B193T13012,00013,519
QX-D305F05018,0001.55,279
QXS-F42N05024,00027,038

RTC GMCC Rotary Compressor – Capacity 2 Ton

  • Compressor BD
  • Rotary Compressor BD
  • Origin – Japan
  • Made in China
GMCC A.C. Compressors, Origin – Japan
Type – Rotary, Volt – 220-240, Ph – 1, Hz – 50, Gas – R22.
ModelBTUTonRemarks
PH215X2C-8FTC12,0001Origin – Japan, Made in – China
 PH310M2CS-4KUH18,0001.5Origin – Japan, Made in – China
PH400X3C-8KUC124,0002Origin – Japan, Made in – China

RTC Emerson Copeland Scroll Compressor – Capacity 6 Ton

  • Compressor BD
  • Scroll Compressor BD
  • Emerson Copeland Scroll Compressor
  • Capacity – 6 Ton
  • Origin – Thailand
Emerson Copeland Compressors, Origin – Thailand
Type – Scroll, Volt – 380-420, Ph – 3, Hz – 50, Gas – R22.
ModelBTUTonLRA
ZR36-K3-TFD30,2002.546
ZR42-K3-TFD35,000336
ZR47-KC-TFD39,4003.542
ZR57-KC-TFD48,000448
ZR61-KC-TFD51,0004.554
ZR68-KC-TFD57,500560
ZR72-KC-TFD60,500565
ZR94-KC-TFD79,500672
ZR125-KC-TFD1,06,000896
ZR144-KC-TFD1,20,00010120

RTC Danfoss Scroll Compressor – Capacity 6 Ton

  • Compressor BD
  • Scroll Compressor BD
  • Refrigerant – R-22
  • Price – 60,000/-
  • Origin – France
Danfoss Scroll Compressors
Sl.DESCRIPTIONCapacityRefrigerant
1Model: SZ 090 S4VC, 3 Phase, LR 98 A, 17A, Manufacture: PRC5.8 TRR-134a/R-407C/R-404A/R-507.
2Model: SZ 110 S4VC, 3 Phase, LR 130 A, 24A, Manufacture: PRCTR. 07R-134a/R-407C/R-404A/R-507.
3Model: SZ120-4VC, 3 Phase, LR130 A, 24A, Manufacture: PRC8.5 TRR-134a/R-407C/R-404A/R-507.
4Model: SZ147A4ALB, 3Phase, LR147A, 19A, Manufacture: PRCTR 10R-134a/R-407C
5Model: SZ161T4VC, 3 Phase, LR145 A, 31A, Manufacture: PRCTR 11R-134a/R-407C/R-404A/R-507.
6Model: SZ185S4RC, 3 Phase, LR175 A, 35A, Manufacture: PRCTR 12.5R-134a/R-407C/R-404A/R-507
7Model: SY 240 A4PBE, 3 Phase, LR215A, 47A, Manufacture: PRCTR 18R-22/R-417A/407C.
8Model: SY300A4PBE, 3Phase, LR 270A, 58A, Manufacture: PRC TR 20.67R-22/407C/ 134 a.
9Model: SY380A4CBE, 3Phase, LR300A, 72.7A, Manufacture: PRCTR 26.87R-22/407C/ 134 a.
10Model: SM 148 T4VC, 3Phase, LR145A, 29A, Manufacture: PRCTR 10R-22/R-417A.
11Model: SM 161 T4VC, 3Phase, LR145A, 31A, Manufacture: PRCTR 11R-22/R-417A.
12Model: SM 185 S4RC, 3Phase, LR175A, 35A, Manufacture: PRCTR 13R-22/R-417A.
13Model: HLH 068T4LC6, 3Phase, LR87A, 19A, Manufacture: PRCTR.4.32R 410A
14Model: HLM 072 T4, 3Phase, LR82 A, 15A, Manufacture: PRCTR 5.3R22
15Model: SH 90 A4ALC, 3Phase, LR 98 A, 28A, Manufacture: PRCTR 6.5R 410A
16Model: HLJ 072 T4LC6, 3Phase, LR87A, 31A, Manufacture: PRCTR. 5.00R 410A
17Model: SH140A4ALC, 3Phase, LR147A, 28A, Manufacture: PRCTR. 10R 410A
18Model: SH161A4ALC, 3Phase, LR158A, 31A, Manufacture: PRCTR. 11R 410A

RTC Danfoss Reciprocating Compressor – Capacity 5 Ton

Compressor

Reciprocating Compressor

  • Refrigerant – R-22/407C/404A/134a
  • Origin – France.
DANFOSS RECIPROCATING COMPRESSOR
Sl.DescriptionCapacityRefrigerant
1Model: MT 32JF4DVE, 3 Phase, LR 25 A, 08A, Manufacture: France2.3 TRR-22/ 417A.
2Model: MT 36-4VI, 3 Phase, LR 25 A, 08A, Manufacture: FranceTR 3.43R-22/ 417A.
3Model: MT 64 HM4DVE, 3 Phase, LR 64 A, 14A, Manufacture: France4.5 TRR-22/ 417A.
4Model: MT 72 HN4AVE, 3 Phase, LR 80 A, 15.3A, Manufacture: France5.2 TRR-22/ 417A.
5Model: MT 144 HV4AVE, 3 Phase, LR130A, 36A, Manufacture: France10 TRR-22/ 417A.
6Model: MTZ 18 JA5AVE, Single Phase, LR 40 A, 10A, Manufacture: France with Starting kit 1.10TR.R-22/ 407C/ 404A/ 134a
7Model: MTZ 22 JC5AVE, Single Phase, LR 41 A, 15A, Manufacture: France with Starting kit1.5TR.R-22/ 407C/ 404A/ 134a
8Model: MTZ 28 JE5AVE, Single Phase, LR 51 A, 20A, Manufacture: France with Starting kit2.1 TR.R-22/ 407C/ 404A/ 134a
9Model: MTZ 32 JF5AVE, Single Phase, LR 70 A, 20A, Manufacture: France with Starting kit2.3TR.R-22/ 407C/ 404A/ 134a
10Model: MTZ 36 JG5AVE, Single Phase, LR60 A, 22A, Manufacture: France with Starting kit2.6TR.R-22/ 407C/ 404A/ 134a
11Model: MTZ 40 JH4AVE, 3 Phase, LR 38 A, 10A, Manufacture: France3 TRR-22/ 407C/ 404A/ 134a
12Model: MTZ 44 HJ4BVE, 3 Phase, LR 48.5 A, 9.5A, Manufacture: France3.1 TR.R-22/ 407C/ 404A/ 134a
13Model: MTZ 50 HK4CVE, 3 Phase, LR 48.5 A, 10A, Manufacture: France3.5 TR.R-22/ 407C/ 404A/ 134a
14Model: MTZ 64 HM4CVE, 3 Phase, LR 64 A, 14A, Manufacture: France4.5 TRR-22/ 407C/ 404A/ 134a
15Model: MTZ 72 HN4AVE, 3 Phase, LR 80 A, 15.3A, Manufacture: France5.2 TRR-22/ 407C/ 404A/ 134a
16Model: MTZ 80 HP4AVE, 3 Phase, LR 80 A, 18 A, Manufacture: France5.9 TRR-22/ 407C/ 404A/ 134a
17Model: MTZ 100 HS4AVE, 3 Phase, LR 90 A, 18 A, Manufacture: France6.9TRR-22/ 407C/ 404A/ 134a
18Model: MTZ 125 HU4VE, 3 Phase, LR 105 A, 22 A, Manufacture: France8.7TRR-22/ 407C/ 404A/ 134a
19Model: MTZ 144 HV4AVE, 3 Phase, LR 130 A, 27 A, Manufacture: France10 TRR-22/ 407C/ 404A/ 134a
20Model: MTZ 160 HW4AVE, 3 Phase, LR 130 A, 18 A, Manufacture: France11.1 TRR-22/ 407C/ 404A/ 134a
For Cold Storage (LBP)
Sl.DESCRIPTIONto-10/tc:30to-25/tc:50 Refrigerant
21Model: NTZ048A4LR1A, 3 Phase, LR 16 A, 4.8A, Manufacture: France.1.36 TR0.41 TRR-404A/R-507
22Model: NTZ068A4LR1A, 3 Phase, LR 25 A, 8.4A, Manufacture: France.2.10 TR0.69 TRR-404A/R-507
23Model: NTZ096A4LR1A, 3 Phase, LR 32 A, 10.1A, Manufacture: France.2.77 TR0.81 TRR-404A/R-507
24Model: NTZ108A4LR1A, 3 Phase, LR 45 A, 12.1A, Manufacture: France.3.21 TR1.00 TRR-404A/R-507
25Model: NTZ136A4LR1A, 3 Phase, LR 51 A, 14.3A, Manufacture: France.3.94 TR1.29 TRR-404A/R-507
26Model: NTZ215A4LR1A, 3 Phase, LR 74 A, 22.3A, Manufacture: France.5.88 TR1.96 TRR-404A/R-507
27Model: NTZ271A4LR1A, 3 Phase, LR 96 A, 27A, Manufacture: France.7.99 TR2.77 TRR-404A/R-507

RTC Daikin Scroll Compressor – Capacity 5 Ton

Compressor

Scroll Compressor

  • Daikin Scroll Compressor
  • Made in China
  • Capacity – 5 ton
  • Price – 31,000/=
  • Daikin Compressor in Dhaka, Bangladesh.
Daikin Compressors, Origin – China
Type – Scroll, Volt – 380-420, Ph – 3, Hz – 50, Gas – R22.
ModelBTUTonHP
JT95BHBY1L34,90033.5
JT150BCBY1L47,80044.5
JT170GABY1L60,10056.0
JT265D-Y1L95,70089.0
JT335D-Y1L1,23,5001012.0

RTC Daikin Scroll Compressor – Capacity 3 Ton

Compressor

Scroll Compressor

  • Daikin Scroll Compressor
  • Made in China
  • Capacity – 3 ton
  • Price – 26,500/=
  • Daikin Compressor in Dhaka, Bangladesh
Daikin Compressors, Origin – China
Type – Scroll, Volt – 380-420, Ph – 3, Hz – 50, Gas – R22.
ModelBTUTonHP
JT95BHBY1L34,90033.5
JT150BCBY1L47,80044.5
JT170GABY1L60,10056.0
JT265D-Y1L95,70089.0
JT335D-Y1L1,23,5001012.0

RTC Copeland Admiral Compressor – Capacity 5 Ton

Compressor

Admiral Compressor

  • Copeland Admiral Compressor
  • Capacity – 5 ton
  • Origin – India

Copeland Admiral Compressors (Type – Admiral)ModelOriginBTUTonVoltagePhase-HzRefr.LRACR22K6M-PF1India18,5001.5220/2401 – 50R – 2254.0CR24K6M-PFZIndia20,3001.5220/2401 – 50R – 2262.0CR30K6M-PF1India24,2502220/2401 – 50R – 2272.0CR32K6M-PFZIndia27,2002.5220/2401 – 50R – 2282.0CR36K6M-PFZIndia30,3002.5220/2401 – 50R – 2290.0CR42K6M-PFZIndia35,7003220/2401 – 50R – 22108.0CR36K6M-TFMIndia29,9002.5380/4203 – 50R – 2230.0CR42K6M-TFMIndia35,2003380/4203 – 50R – 2236.0CR53KQM-TFDIndia45,8004380/4203 – 50R – 2246.0CR57KQM-TFDIndia48,3004380/4203 – 50R – 2249.0CR62KQM-TFDIndia52,5004.5380/4203 – 50R – 2254.0CR72KQM-TFDIndia60,1005380/4203 – 50R – 2262.0


RTC Chigo Rotary Compressor – Capacity 2 Ton

Rotary Compressor

Compressor

  • Chigo Rotary Compressor
  • Capacity – 2 ton
  • Origin – China.
Chigo Rotary Compressors, Origin – China.
Type – Rotary, Volt – 220-240, Ph – 1, Hz – 50, Gas – R22.
ModelBTUTonWatts
LCH210E12,00013,519
ZAH310E18,0001.55,279
ZAH370E24,00027,038

RTC Bristol Admiral Compressor – Capacity 8 Ton

Compressor

  • Capacity 8 Ton
  • Model – H2NG124DBE
  • Origin – USA.


mbsmpro-all-compressor-in-one-file--pdf-and-print-mbsm-dot-pro

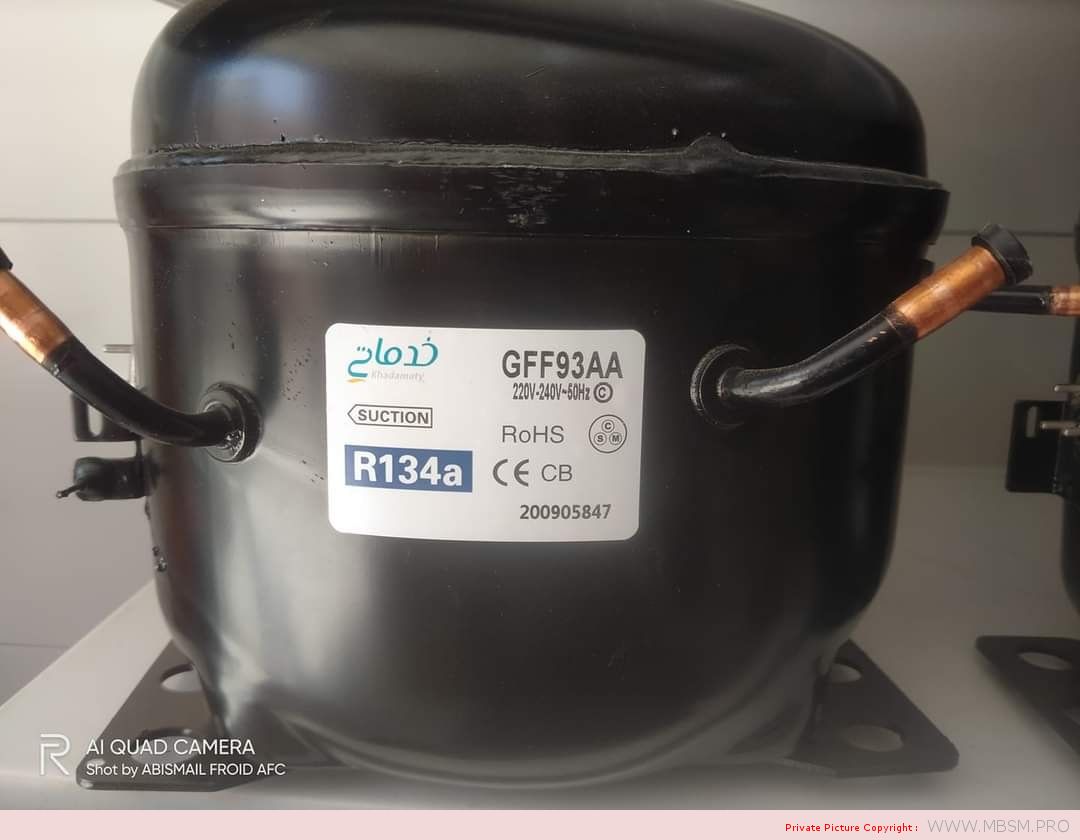

GFF93AA1/3 +9,3270RSIR / RSCR185/1751,25 / 0,951,46 / 1,54

mbsmpro-all-compressor-in-one-file--pdf-and-print-mbsm-dot-pro

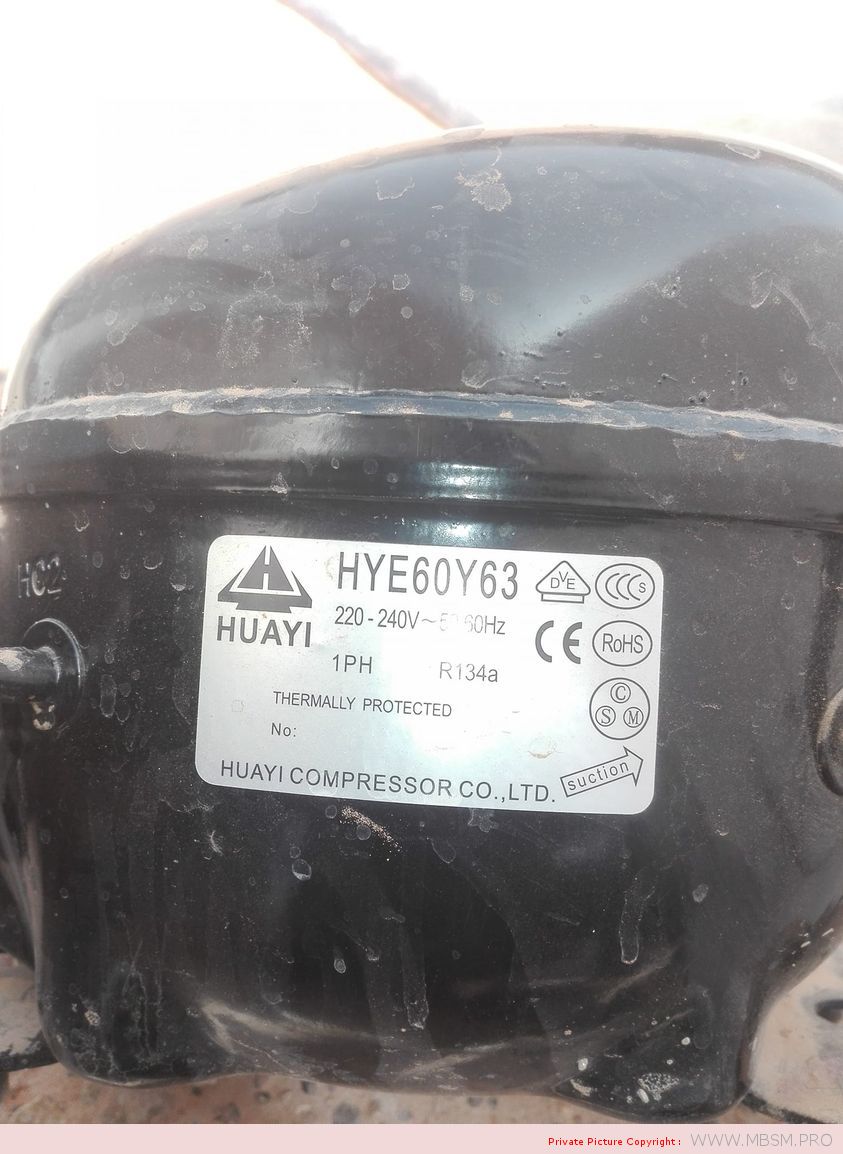

HYE60Y63 1/5HP
220-240~
50-60
ST
6.0
170
1.28
RSIR

mbsmpro-all-compressor-in-one-file--pdf-and-print-mbsm-dot-pro
mbsmpro-all-compressor-in-one-file--pdf-and-print-mbsm-dot-pro

MODEL: SBA061YBA

50.000 BTU —–MODEL: QV325PAA

19.240 BTU —-MODEL: QP442PBA

26.000 BTU —-MODEL: QP407PBA

24.050 BTU —–MODEL: QP407PAA

24.100 BTU

—-MODEL: QJ306PCB

18.300 BTU—–MODEL: QJ236PAB

13.600 BTU —-MODEL: QJ208HCA

12.000 BTU —-MODEL: QKS164HMA

9.220 BTU ——MODEL: QKS156HDA

9.020 BTU—MODEL: QK222PFA

13.250 BTU



2412
COMPRESSOR THB 1335YS 1/8 HP
1/8R134230/1/50TECUMSEH EUROPE
2416COMPRESSOR THG 1365YS 1/6 HP1/6R134230/1/50TECUMSEH EUROPE
2417COMPRESSOR AEZ 1365Y 1/5 HP1/5R134230/1/50TECUMSEH EUROPE
2423COMPRESSOR THB 4415Y 1/6 HP1/6R134230/1/50TECUMSEH EUROPE
2429COMPRESSOR THB 4419Y 1/5 HP1/5R134230/1/50TECUMSEH EUROPE
2432COMPRESSOR AEZ 4425Y 134A HP1/5R134230/1/50TECUMSEH EUROPE
2441COMPRESSOR AEZ 2380Y 1/4 HP1/4R134230/1/50TECUMSEH EUROPE
2442COMPRESSOR AE1390Y-FZ1A 1/4 HP1/4R134230/1/50TECUMSEH EUROPE
2450COMPRESSOR AE4430Y-FZ1A1/4 HP1/4R134230/1/50TECUMSEH EUROPE
2456COMPRESSOR AE1410Y 1/3 HP1/3R134230/1/50TECUMSEH EUROPE
2473COMPRESSOR AE2415Y 1/3 HP1/3R134230/1/50TECUMSEH EUROPE
2475COMPRESSOR AE4440Y-FZ1A1/3 HP1/3R134230/1/50TECUMSEH EUROPE
2479COMPRESSOR AE4450Y 3/8 HP3/8R134230/1/50TECUMSEH EUROPE
2485COMPRESSOR AE4456Y-FZ 1/2 HP1/2R134230/1/50TECUMSEH EUROPE
2487COMPRESSOR CAJ 4461Y R134 1/2 HP1/2R134230/1/50TECUMSEH EUROPE
2493COMPRESSOR CAJ 4492Y 3/4 HP3/4R134230/1/50TECUMSEH EUROPE
2497COMPRESSOR CAJ 4511Y 1 HP1R134230/1/50TECUMSEH EUROPE
2499COMPRESSOR CAJ 4511Y 1 HP solderingTECUMSEH EUROPE
3020COMPRESSOR 1/4 HP 1341/4R134TECUMSEH EUROPE
3024COMPRESSOR 1/4 HP COMMERCIAL 1341/4R134TECUMSEH EUROPE
3026COMPRESSOR 1/3 HP COMMERCIAL 1341/3R134TECUMSEH EUROPE
3028COMPRESSOR 3/8 HP COMMERCIAL 1343/8R134TECUMSEH EUROPE
3080COMPRESSOR 1/2 HP TYA-4466 YKS COMMERCIAL 1341/2R134TECUMSEH EUROPE
3084COMPRESSOR 3/4 HP TYA-4489 YKS COMMERCIAL 1343/4R134TECUMSEH EUROPE
7050COMPRESSOR AE1360YS 1/5 HP1/5R134230/1/50TECUMSEH EUROPE
7052COMPRESSOR AE1370YS 1/4 HP1/4R134230/1/50TECUMSEH EUROPE
7053COMPRESSOR AE1390YS 1/3 HP1/3R134230/1/50TECUMSEH EUROPE
7054COMPRESSOR TDB AE1410YS 1/3 HP1/3R134230/1/50TECUMSEH EUROPE
7056COMPRESSOR TDB AE 2410YS /3 HP1/3R134230/1/50TECUMSEH EUROPE
7058COMPRESSOR AE 4430YS BRAZIL 1/4 HP1/4R134230/1/50TECUMSEH EUROPE
7060COMPRESSOR AE-4440YS /3 HP1/3R134230/1/50TECUMSEH EUROPE
7062COMPRESSOR TDB AE 4448YS 3/8 HP3/8R134230/1/50TECUMSEH EUROPE
7070COMPRESSOR DANFOSS PL20F R-134 1/12 HP 1/1 HP1/12R134230/1/50DANFOSS
7073COMPRESSOR TL4G HST 134 1/6 HP1/6R134230/1/50DANFOSS
7075COMPRESSOR TL5F 1/6 HP1/6R134230/1/50DANFOSS
7076COMPRESSOR TL 5G 1/5 HP1/5R134230/1/50DANFOSS
7077COMPRESSOR NL 7F 1/5 HP1/5R134230/1/50DANFOSS
7079COMPRESSOR TL 5G HST 1/5 HPR134230/1/50רדיון חברה להנדסה בעמ
7080COMPRESSOR FR 7.5 G HST 1/5 HP1/5R134230/1/50DANFOSS
7083COMPRESSOR FR 8.5 G 1/4 HP1/4R134230/1/50DANFOSS
7084COMPRESSOR FR 8.5 G 1/4 HP1/4R134230/1/50DANFOSS
7091COMPRESSOR NL 8.4FT 1/4 HP1/4R134230/1/50DANFOSS
7093COMPRESSOR NL 11 F 1/3 HP1/3R134230/1/50DANFOSS
7095COMPRESSOR FR 10 G 1/4 HP1/4R134230/1/50DANFOSS
7096COMPRESSOR FR 11 G 1/3 HP1/3R134230/1/50DANFOSS
7097COMPRESSOR NL 10FT 1/3 HP1/3R134230/1/50DANFOSS
7128COMPRESSOR SC12 G 1/3 HP1/3R134230/1/50DANFOSS
7130COMPRESSOR SC15 G HST 134A 3/8 HP3/8R134230/1/50DANFOSS
7132COMPRESSOR SC18 G 134A 1/2 HP1/2R134230/1/50DANFOSS
7136COMPRESSOR SC21G 134A 3/4 HP3/4R134230/1/50DANFOSS
7138COMPRESSOR BD 50F1/12R13424DCDANFOSS


mbsmpro-all-compressor-in-one-file--pdf-and-print-mbsm-dot-pro

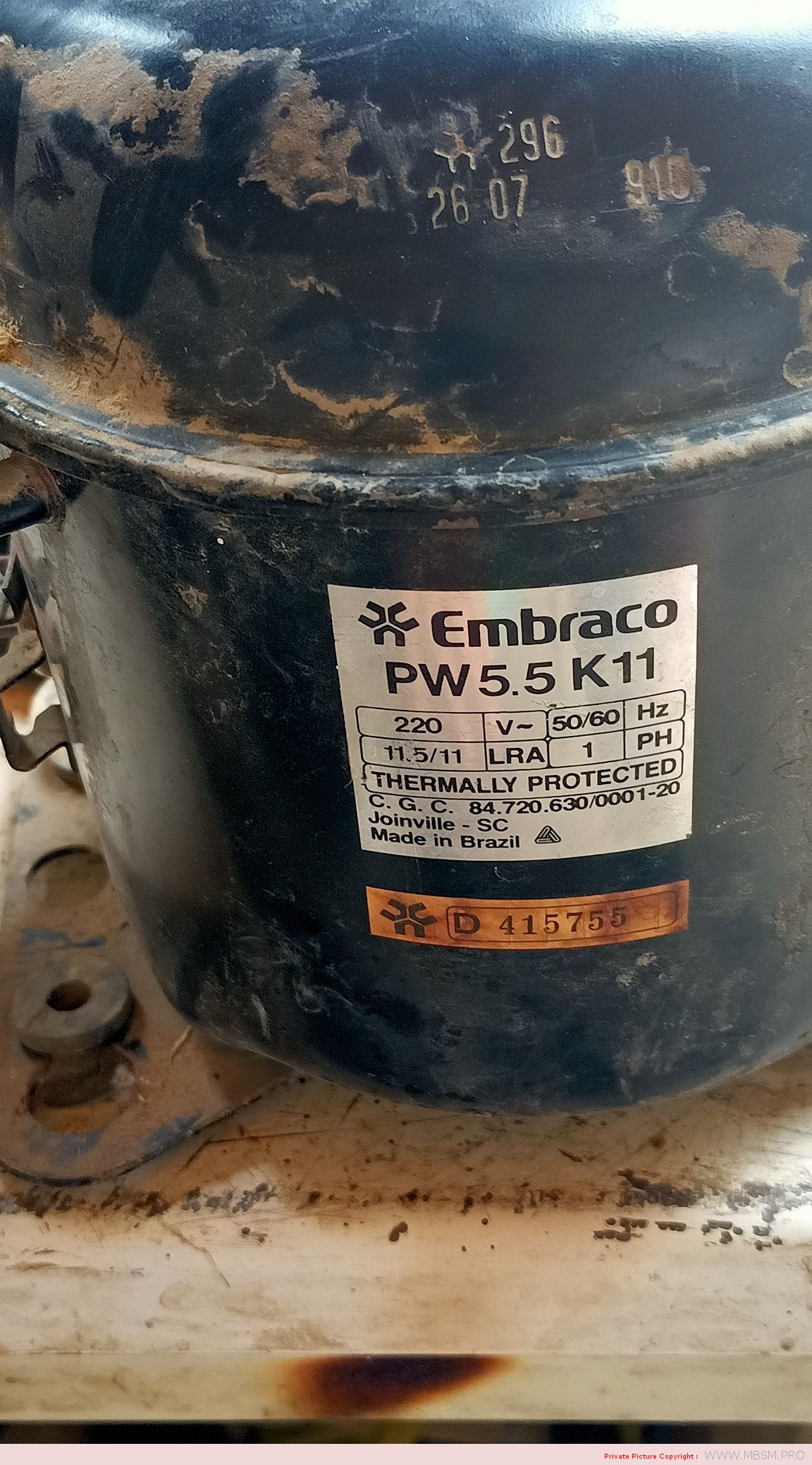

original refrigerator compressor pw5.5k11 R12A btu 515 hp 1/6

Laisser un commentaire

Votre adresse e-mail ne sera pas publiée.
