HERMETIC, Freezer, COMPRESSOR, ZEL, GTH86AA, R134A, 1/4 Hp, Lbp, 230W, 8.6CC

image_pdfimage_print

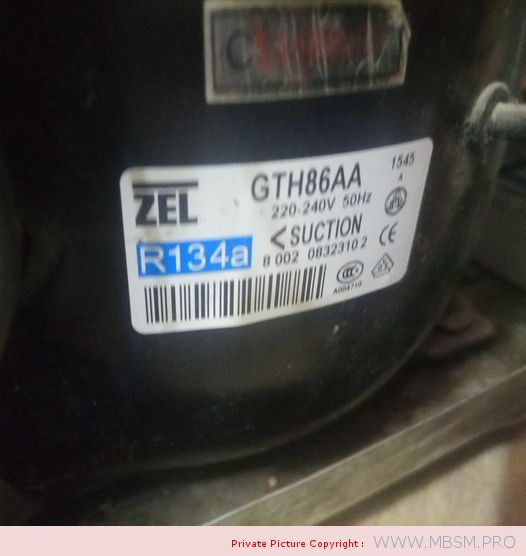

COMPRESSOR ZEL GTH86AA

APPLICATION: LBP

FREON: R134A

DISPLACEMENT: 8.6CC

POWER SUPPLY: 220V

POWER: 1 / 4HP – 230W

APPLICATION: UNIVERSAL

Specifications

Description

Detailed Product Description

1.Low levels of noise and vibration
2.Standard,medium,high and very high levels of efficiency

R134a 220-240V/50HZ
Model Displ.(cm3) Motor Type Cooling capacity(w) Input Power COP Run Capacltor Start Capacltor Height(mm)
without    RC(w) with RC(w) without RC(w/w) with RC(w/w)
Standard Efficiency Range
OF789 4.4 RSIR 110 102   1.08       174
OF1033A 5.7 RSIR 141 118   1.19       174
OF1350A 7.5 RSIR 178 158   1.13       183
GTH86AA 8.6 RSIR/RSCR 230 161 153 1.43 1.50 5   174
GTH93AA 9.3 RSIR/RSCR 260 182 173 1.43 1.50 5   183
Medium Efficiency Range
GTM40AT 4.0 RSIR 102 91   1.12       163
GTM57AT 5.7 RSIR 156 128   1.21       183
GTM60AT 6.0 RSIR 165 136   1.27       163
GVY75AT 7.5 RSIR/RSCR 200 149 139 1.34 1.44 5   183
GTM75AA 7.5 RSIR 200 166   1.20     50 183
GTM93AA 9.3 RSIR 270 220   1.35       183
GTM10AA 11.0 RSIR/RSCR 300 222   1.35     50 183
GTM12AA 12.0 RSIR/RSCR 330 241   1.37     50 183
