Specifications

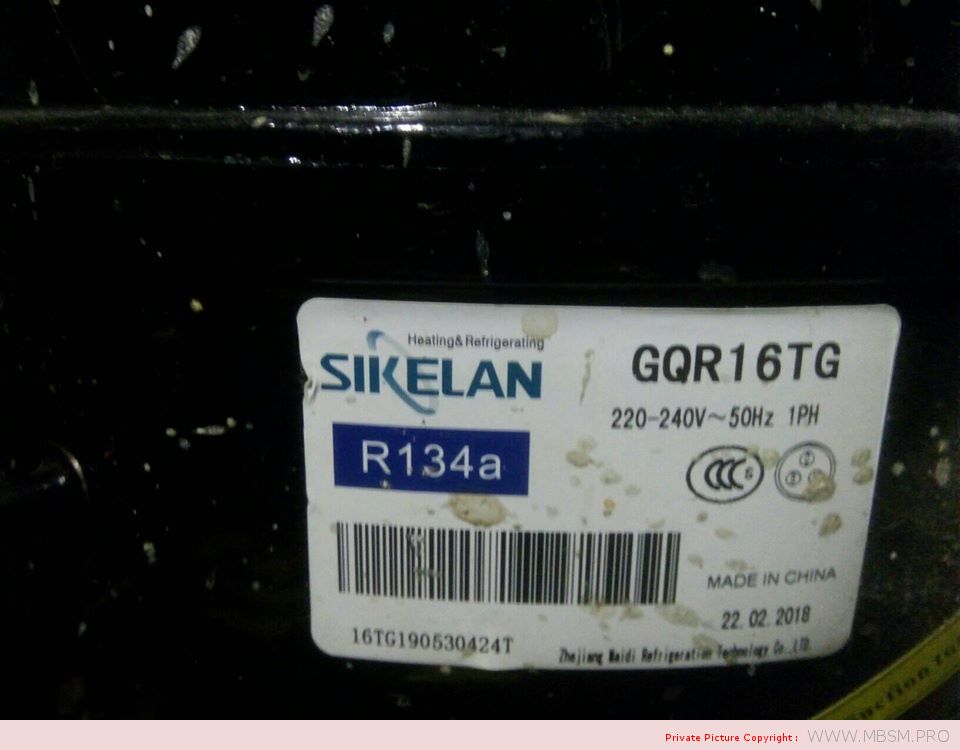

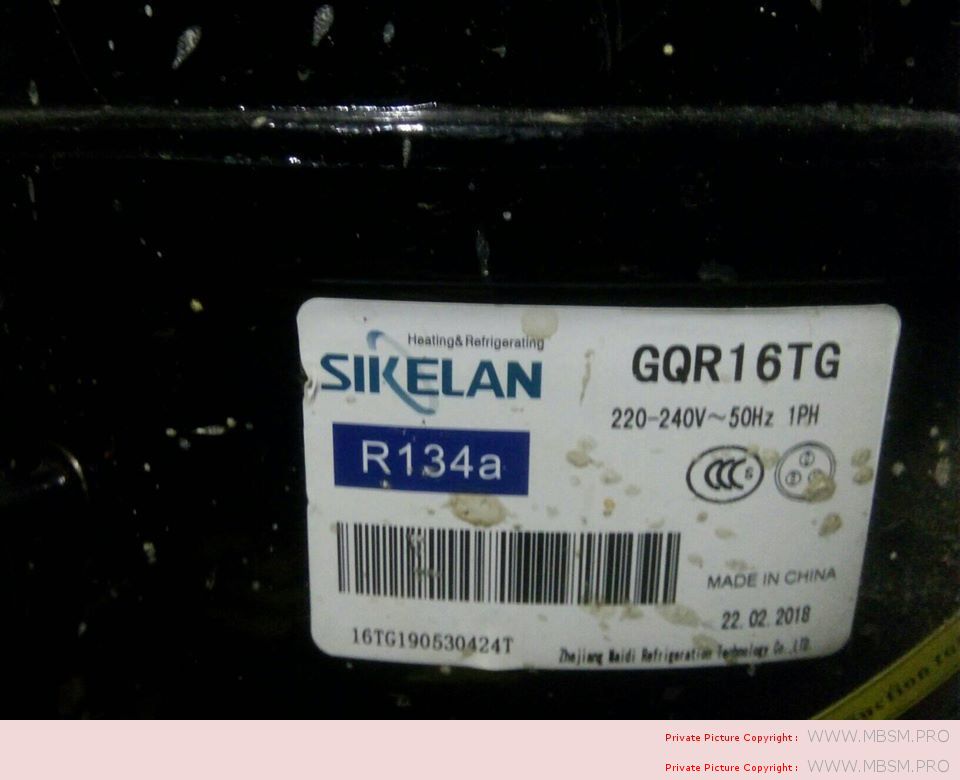

GQR16TG light commercial refrigeration compressor

1.Product Specification
1)GQR16TG ,WZ series, use R134A refrigerant;
2)Voltage application 220V to 240V;
3)Frequency for 50/60HZ;
4)Motor type: CSIR;
5)Cooling type: ST;
6)Starting device is starting Relay;
7)Application: Middle & High Back Pressure;
8)Nominal power is 1 / 2+ HP;
9)COP is 2.3. with the cooling capacity 1492W.

Compressor Specification

Serial	Model	HP	(V/Hz)	Displacement (cm3)	Cooling Capacity ASHRAE	Motor type	Starting Device	Starting capacitor (uF)	Running capacitor (uF)	Cooling
Test Conditions:+7.2℃(45F)
Capacity (W)	Capacity (Btu/h)	lnput Power(w)	Current  (A)	COP    (W/W)	COP  (Btu/Wh)
WZ	GQR80TG	1/4+	220V/50Hz	8.0	810	2764	370	2.0	2.2	7.47	CSIR	Current Starting   Relay	80	/	F
GQR90TG	1/3-	220V/50Hz	9.1	910	3105	420	2.2	2.2	7.39	CSIR	80	/	F
GQR11TG	3/8	220V/50Hz	11.0	1034	3528	450	2.7	2.3	7.84	CSIR	80	/	F
GQR12TG	3/8+	220V/50Hz	12.8	1168	3985	530	3.2	2.2	7.52	CSIR	80	/	F
GQR14TG	1/2	220V/50Hz	14.2	1320	4504	580	3.4	2.3	7.77	CSIR	80	/	F
GQR16TG	1/2+	220V/50Hz	15.3	1492	5091	640	3.8	2.3	7.95	CSIR	80	/	F
GQR19TG	3/4	220V/50Hz	19.0	1850	6312	804	4.5	2.3	7.85	CSIR	80	/	F

1. Product Performance
 1)GQR16TG, WZ series, use R134A refrigerant;
 2)Voltage application 220V to 240V;
 3)Frequency for 50/60HZ;
 4)Motor type: CSIR;
 5)Cooling type: Fan;
 6)Starting device is Current Starting Relay;
 7)Application: Middle/Hight Back Pressure;
 8)Nominal power is 1/2+HP;
 9)COP is 2.3 with the cooling capacity 1492W.

Basing on Test Condition(ASHRAE)
 Evaporating Temperature: -23.3 degree
 Ambient Temperature: 35 degree
 Subcooling Temperature: 46.1 degree
 Condensing Temperature: 54.4 degree
 Suction Temperature: 35 degree

2.Compressor Specification

Serial	Model	HP	(V/Hz)	Displacement (cm3)	Cooling Capacity  -ASHRAE	Motor type	Starting Device	Starting capacitor (uF)	Running capacitor (uF)	Cooling
-15ºC(5F)	-10ºC(10F)	-5ºC(23F)	0ºC(32F)	Test Conditions:+7.2ºC(45F)	10ºC(50F)
W	Btu/h	W	Btu/h	W	Btu/h	W	Btu/h	Capacity (W)	Capacity (Btu/h)	lnput Power(w)	Current  (A)	COP    (W/W)	COP  (Btu/Wh)	W	Btu/h
L	GQR30TG	1/10	220V/50Hz	3.0	115	392	145	495	185	631	230	785	310	1058	140	0.9	2.2	7.56	365	1245	RSIR	PTC/Current Starting Relay	/	/	F
GQR35TG	1/9	220V/50Hz	3.5	135	461	175	597	195	665	285	972	430	1467	195	1.1	2.2	7.52	475	1621	RSIR	/	/	F
MS	GQR45TG	1/6	220V/50Hz	4.5	176	601	230	785	280	955	350	1194	480	1638	220	1.2	2.2	7.44	525	1791	RSIR	PTC/Current Starting Relay	/	/	F
GQR55TG	1/6+	220V/50Hz	5.5	188	641	245	836	310	1058	390	1331	525	1791	250	1.3	2.1	7.17	575	1962	RSIR	/	/	F
MK	GQR60TG	1/4	220V/50Hz	6.5	258	880	335	1143	435	1484	545	1860	665	2269	290	1.7	2.3	7.82	705	2405	RSIR	PTC/Current Starting Relay	/	/	F
GQR70TG	1/4	220V/50Hz	7.0	285	972	370	1262	480	1638	595	2030	720	2457	340	1.9	2.1	7.23	765	2610	RSIR	/	/	F
GQR80TG	1/4+	220V/50Hz	8.0	324	1105	420	1433	550	1877	680	2320	810	2764	370	2.0	2.2	7.47	855	2917	RSIR	/	/	F

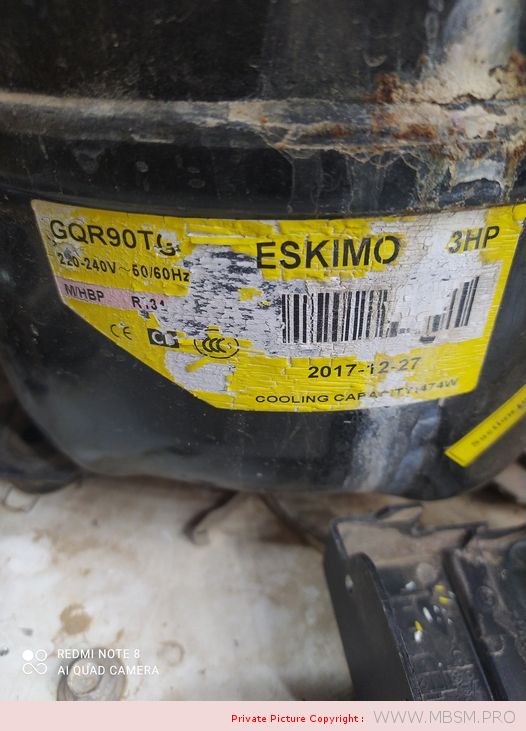

GQR90TG	1/3-	220V/50Hz	9.1	365	1245	474	1617	621	2119	768	2620	910	3105	420	2.2	2.2	7.39	955	3258	RSIR	/	/	F
WZ	GQR80TG	1/4+	220V/50Hz	8.0	324	1105	420	1433	550	1877	680	2320	810	2764	370	2.0	2.2	7.47	855	2917	CSIR	Current Starting   Relay	80	/	F
GQR90TG	1/3-	220V/50Hz	9.1	365	1245	474	1617	621	2119	768	2620	910	3105	420	2.2	2.2	7.39	955	3258	CSIR	80	/	F
GQR11TG	3/8	220V/50Hz	11.0	412	1406	536	1829	702	2395	868	2962	1034	3528	450	2.7	2.3	7.84	1079	3682	CSIR	80	/	F
GQR12TG	3/8+	220V/50Hz	12.8	467	1593	606	2068	793	2706	981	3347	1168	3985	530	3.2	2.2	7.52	1208	4122	CSIR	80	/	F
GQR14TG	1/2	220V/50Hz	14.2	527	1798	685	2337	896	3057	1108	3780	1320	4504	580	3.4	2.3	7.77	1365	4657	CSIR	80	/	F
GQR16TG	1/2+	220V/50Hz	15.3	580	1979	754	2573	1012	3453	1252	4272	1492	5091	640	3.8	2.3	7.95	1535	5237	CSIR	80	/	F
GQR19TG	3/4	220V/50Hz	19.0	755	2576	940	3207	1175	4009	1255	4282	1850	6312	804	4.5	2.3	7.85	1895	6466	CSIR	80	/	F
