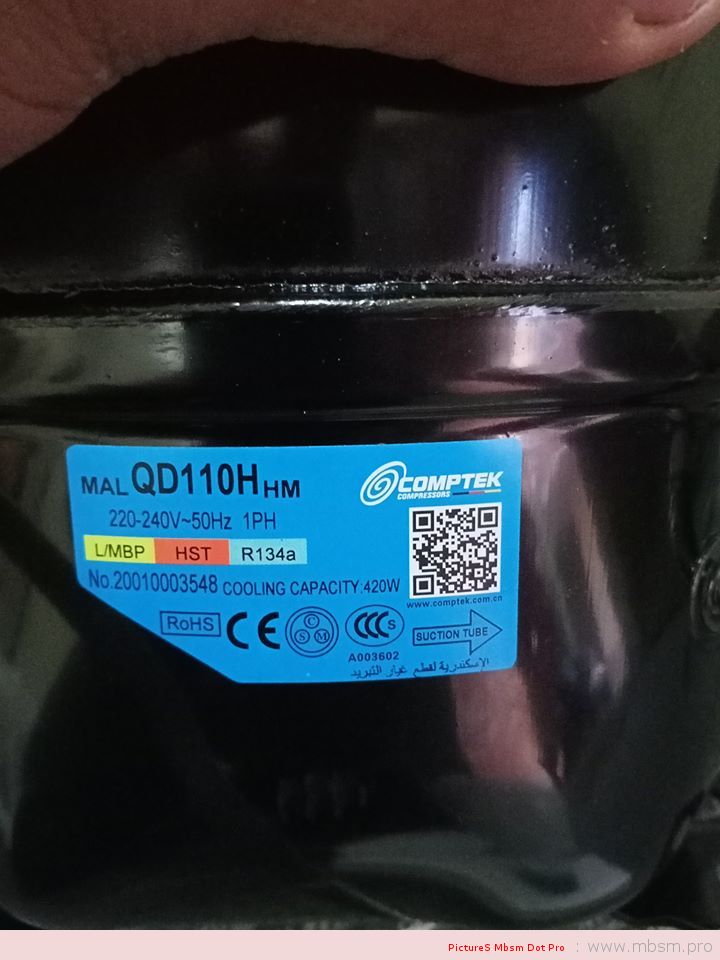

QD110H , Chest Freezer Compressor ,1/3HP ,220V/50Hz ,R134A

1/3HP Refrigeration Compressor 220V/50Hz R134A
AC Compressor: R134A Hermetic LBP Piston Reciprocationg Compressor
Model: WQ110H
Power Supply: 220-240/50-60V/Hz
Displacement: 11CC
Nominal Power: 1/3HP
Rated Power: 233W
Cooling Capacity: 280W
COP: 1.20W/W
Motor Type: RSIR
Starting relay: Starting Relay/PTC
Starting Capacitor: /μ F
Running Capacitor: /μ F
Cooling Type: F
Application: LBP
Certificate: 3C
1X20’FCL: 1600PCS

qd110h--chest-freezer-compressor-13hp-220v50hz-r134a-mbsm-dot-pro

Application:
LBP: Low back pressure; Refrigerator, Freezer, Wine cooler
MBP: Medium Back Pressure; Air-conditioner, vending machine
HBP: High Back Pressure: Air-conditioner, ice maker

LBP ASHRAE Test Condition:
Evapration Temperature: -23.3 ºC
Condensing Temperature: 54.4 ºC
Subcooling Temperature: 32.2 ºC
Ambient Temperature: 32.2 ºC

MBP ASHRAE Test condition:
Evapration Temperature: -5 ºC
Condensing Temperature: 54.4 ºC
Ambient Temperature: 35 ºC
Subcooling Temperature: 46.1
Suction Temperature: 35 ºC

HBP ASHRAETest condition:
Evapration Temperature: 7.2ºC
Condensing Temperature: 54.4ºC
Ambient Temperature: 35ºC
Subcooling Temperature: 46.1ºC
Suction Temperature: 35ºC

Parameter Variation Range:
Cooling Capacity: ≥ 95%
Inpurt Power: ≤ 115%
Current: ≤ 110%
COP: ≥ 95%

Cooling Type:
S: Natural cooling
F1: Fan cooling, 200mm fan diameter, 1.5m/s air speed
F2: Fan cooling, 200mm fan diameter, 3m/s air speed
