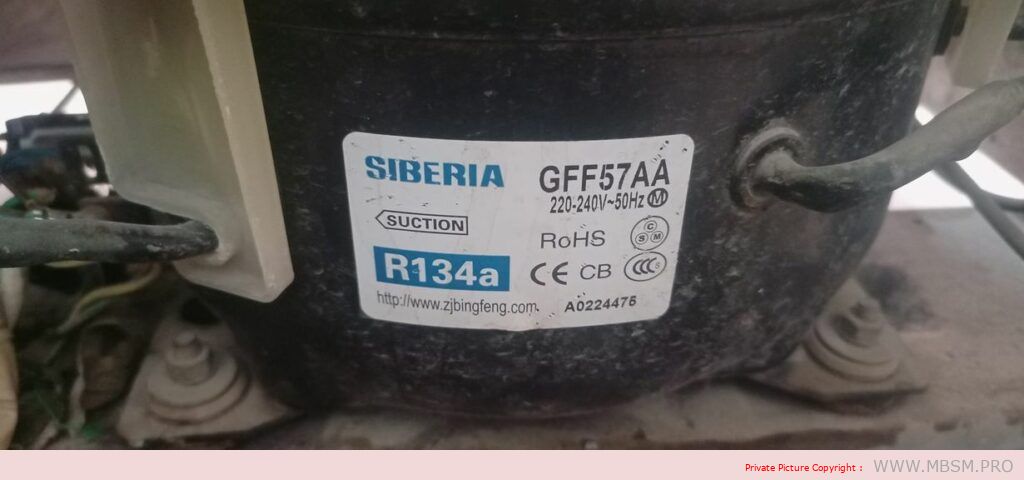

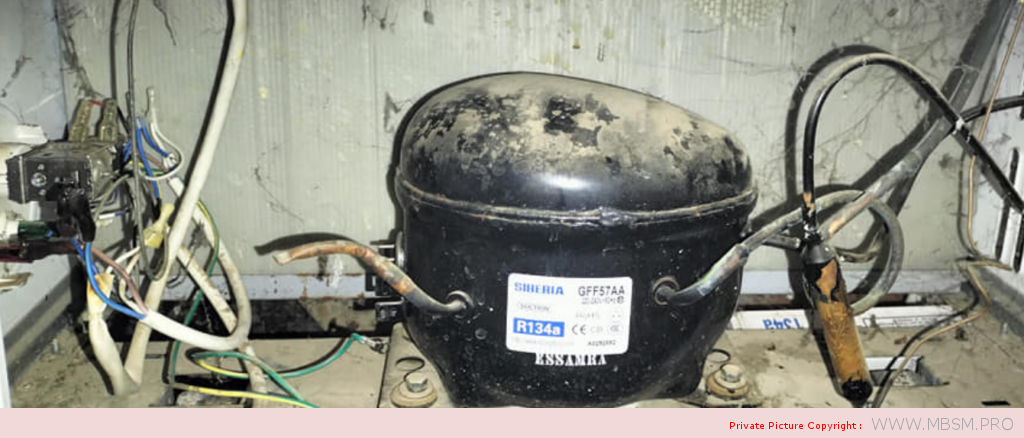

SEBERIA Hermetic Compressor GFF57AA  LBP  R134a  Disp.5.7cc 1/5HP

#mbsmpro

Description

Detailed Product Description

1.low noise,low power consumption
2.reliable security,high efficiency
3.excellent start performance
4.pass 3C,CE,CB,RoHS
Specifications

Refrigeration Compressor main features: light, compact, high efficiency,good reliability, low noise,light vibration.

Certificate

3C,CE,CB,RoHS


Attractive Function

R134a compressor, evaporating temperature -35 ºC to -15 ºC is suitable for LBP, MBP. With strong overloading ability, good performance ,rapid-speed and strong cooling in low temperature.

Widely use in commercial freezer, commercial ice cream machine, commercial kitchen refrigerator.

Performance Data for GFF Series Refrigeration Compressor

Model	Displ. (cm3)	Power    HP	Motor Type	Volt.- Frequency	Cooling Capacity	Input   Power	Rated Current  (A)	COP	Oil Charge Volume
GFF57AA	5.7	1/5	RSIR/RSCR	220-240V~50HZ	166	122/112	0.86/0.62	1.36/1.48	200
GFF66AA	6.6	1/4	RSIR/RSCR	220-240V~50HZ	195	143/132	0.92/0.74	1.36/1.48	200
GFF75AA	7.5	+ 1/4	RSIR/RSCR	220-240V~50HZ	215	156/147	1.15/0.83	1.38/1.46	200
GFF86AA	8.6	1/3	RSIR/RSCR	220-240V~50HZ	250	156/148	1.24/0.90	1.40/1.52	200
GFF93AA	9.3	1/3	RSIR/RSCR	220-240V~50HZ	270	156/149	1.25/0.95	1.46/1.54	230

Model	Power Hp	Displacement	Cooling Capacity	Motor Type	Input Power	Rated Current	COP
GFM44AA	1/6	4.6	120	RSIR	100	0.70	1.20
GFM53AA	1/6+	5.3	145	RSIR	114	0.88	1.27
GFM57AA	1/5	5.7	165	RSIR	132	0.97	1.25
GFM75AA	1/4+	7.5	215	RSIR	159	1.20	1.35
GFM10AA	1/3+	10.0	295	RSIR	220	1.55	1.34
GFM12AA	1/2-	12.0	330	RSIR	235	1.85	1.40
GFM12AA_S	1/2-	12.0	330	RSIR	235	1.85	1.40

F(F) Series 220-240V/50Hz

GFF44AA	1/6	4.6	130	RSIR/RSCR	99/93	0.65/0.53	1.31/1.40
GFF57AA	1/5	5.7	165	RSIR/RSCR	115/110	0.77/0.57	1.43/1.50
GFF66AA	1/4	6.6	195	RSIR/RSCR	143/129	0.92/0.74	1.36/1.51
GFF75AA	1/4+	7.5	215	RSIR/RSCR	156/147	1.15/0.83	1.38/1.46
GFF86AA	1/3	8.6	250	RSIR/RSCR	179/164	1.24/0.90	1.40/1.52
GFF93AA	1/3+	9.3	270	RSIR/RSCR	185/175	1.25/0.95	1.46/1.54

F(T)Series High Efficiency Compressor 220-240V/50Hz

GFT36AA	1/7	3.6	110	RSCR	68	0.32	1.62
GFT44AA	1/6	4.4	130	RSCR	81	0.43	1.60
GFT53AA	1/5-	5.3	145	RSCR	96	0.53	1.50
GFT57AA	1/5	5.7	165/168	RSCR	104/98	0.55/0.49	1.60/1.70
GFT61AA	1/5+	6.1	182	RSCR	107	0.53	1.70
GFT66AA	1/4	6.6	195	RSCR	115/113	0.58/0.55	1.68/1.72
GFT75AA	1/4+	7.5	220	RSCR	129	0.69	1.70
GFT86AA	1/3	8.6	250	RSCR	148	0.73	1.70
GFT93AA	1/3+	9.3	270	RSCR	166	0.84	1.65

F Series 115V/60Hz

GFM44AD	1/6+	4.6	145	RSIR	111	1.62	1.30
GFM53AD	1/4	5.3	185	RSIR	131	1.75	1.30
GFM57AD	1/4	5.7	195	RSIR	138	1.85	1.30
GFM61AD	1/4+	6.1	210	RSIR	168/150	2.75/1.90	1.25/1.40
GFR40AD	1/6	3.6	120	RSCR	84.6	7/8	1.42
GFR57AD	1/4	5.7	195	RSCR	116	1.2/7	1.55
GFM93AD	1/4	9.3	305	RSIR	218	3.2	1.40

F Series 200-220V/50Hz

GFF53AT	1/6+	5.3	150	RSCR	106	0.67	1.42
GFF57AT	1/5	5.7	165	RSCR	118	0.86	1.40
GFF66AT	1/4	6.6	196	RSCR	138	1.02	1.42
GFF75AT	1/4+	7.5	218	RSCR	147	1.07	1.48
GFF86AT	1/3	8.6	250	RSCR	168	1.14	1.49
GFF93AT	1/3+	9.3	275	RSCR	185	1.23	1.49

F Series 100V-50/60Hz

GFF66AJ	1/4	6.6	195/233	RSCR	135/152	2.15/1.95	1.44/1.53
GFF93AJ	1/3	9.3	270/305	RSCR	190/205	2.95/2.58	1.42/1.49

F Series Compressor M/HBP R134a

220-240V 50/60Hz

GFL60AG_AL	3/4	5.3	550/650	CSIR	245/265	1.88/1.69	2.24/2.45

220-240V 50Hz

GFL80AA	1	7.5	720	CSIR	317	1.96	2.27
GFL10AA	1.2	9.3	880	CSIR	430	2.50	2.0

F Series Compressor LBP R600a

F(M/F) Series 220-240V/50Hz

BFM86AA	1/6+	8.6	142	RSIR	101	0.82	1.40
BFF86AA	1/6	8.6	142	RSIR/RSCR	93/90	0.65/0.51	1.53/1.58
BFM93AA	1/5	9.3	155	RSIR	108	0.85	1.43
BFF93AA	1/5	9.3	160	RSIR/RSCR	103/98	0.73/0.58	1.55/1.63
BFM10AA	1/5+	10.0	168	RSIR	122	1.01	1.38
BFF11AA	1/4	10.5	185	RSIR	121	0.70	1.45
BFM12AA	1/4+	12.0	202	RSIR	144	1.10	1.40
BFF12AA	1/4+	12.0	202	RSIR/RSCR	130/123	1.04/0.75	1.55/1.64

F(T) Series High Efficiency Compressor 220-240V/50Hz

BFT57AA	1/7-	5.7	95	RSCR	53/50	0.28/0.24	1.80/1.90
BFT75AA	1/6	7.5	130	RSCR	75/72	0.35	1.73/1.80
BFT86AA	1/5	8.6	142	RSCR	82/74	0.43/0.36	1.73/1.92
BFT93AA	1/5	9.3	155	RSCR	82	0.50	1.90
BFT10AA	1/5+	10.0	175	RSCR	100/92	0.60/0.43	1.72/1.90
BFT11AA	1/4	10.0	180	RSCR	100	0.54	1.80
BFT12AA	1/4-	11.5	200/210	RSCR	116/114	0.54/0.52	1.72/1.86

F Series 200-220V/50Hz

BFF75AT	1/6	7.5	130	RSCR	80	0.46	1.63
BFF86AT	1/5	8.6	142	RSCR	91.5	0.65	1.55
BFM93AT	1/5	9.3	158	RSIR	112	0.93	1.41
BFF93AT	1/5	9.3	160	RSCR	100	0.66	1.60
BFF11AT	1/4	11	175	RSCR	110	0.76	1.60
BFT12AT	1/4	11.5	200	RSCR	130	1.0	1.50

F Series 115/60Hz

BFR57AD	1/6	5.7	120	RSCR	75	0.73	1.60
BFR75AD	1/5-	7.5	156	RSCR	92	0.90	1.70
BFM10AD	2/7	10.0	200	RSCR	133	1.55	1.50
BFR10AD	2/7	10.0	195	RSCR	116	1.32	1.65
BFM12AD	1/3	11.0	230	RSCR	153	1.65	1.50

F Series Compressor LBP R290a

220-240V/50Hz

PFT61AA	3/8	6.1	285	RSCR	183	1.55
PFT66AA	3/8	6.6	310	RSCR	200	1.56
PFT66AA©	3/8	6.6	310	RSCR	190	1.65
PFT75AA	1/2-	7.5	350	RSCR	216	1.62
PFT75AA©	1/2-	7.5	350	RSCR	206	1.70
PFT86AA	1/2	8.6	388	RSCR	258	1.50
PFT86AA©	1/2	8.6	421	RSCR	263	1.60
PFT93AA©	3/5	9.3	455	RSCR	284	1.60

F Series Compressor L/MBP R290

220-240V/50Hz

PFL57AA	1/3	5.7	255/490	CSIR	170/235	1.50/2.09
PFL75AA	1/2-	7.5	350/657	CSIR	248/324	1.41/2.03

R134aOil-less Refrigeration Compressor Series,LBP

Model	Displ. (cm3)	Power HP	Motor Type	Voltage	Cooling Capacity	Input Power	Rated Current(A)	COP	Oil Charge Volume
GFF57AA	5.7	1/5	RSIR/RSCR	220-240V~50HZ	166	122/112	0.86/0.62	1.36/1.48	200

Test Conditions(ASHRAE)

Evaporating temperature -23.3ºC

Condensing temperature 54.4ºC

Subcooling temperature 32.2ºC

Suction temperature 32.2ºC

Ambient temperature 32.2ºC

Attractive Specifications

1.light, compact structure

2.low noise,light vibration

3. adoptable lowtemperature

4. high efficiency,good reliability

Usages

freezing equipment,family ice cream machine,drinking founation etc.

Product Notes

1. Compressor doesn’t be allowed to skew more than 5 degrees while working.

2. The rubber cypriots is allowed be uprooted only when the compressor is in use. Once the rubber cypriots uprooted, compressor must be used immediately not allowing to be stored in the air.

3. The stocking period must be less than half year after the date of production, if longer, you have to recheck and if qualified, it could be shipped.

4. Compressor should install thermal protection, not allowing to change the thermal protection.

5. R134a refrigerant R134a system should be used in line with the dry filter.

6. Compressor should be stored at water proof and aeration warehouse, and it shouldn’t have the rust air.

Compressor Tecumseh L` Unite AEZ4430Y/AE4430Y, HBP – R134a, 220 – 240V, 50 Hz, 1 phase *Warning – equivalent goods: AE4430Y will be delivered

---

Refrigerant:	R134a
Power range(W):	701 – 1000 W
Connecting size:	3/16″
Suction:	1/4″
Working area:	HBP
Design type:	Hermetic
Model series:	AE
Use with:	Expansion/Capillary
Power supply:	230 V
Oil type:	POE
Engine type:	CSIR
Article condition:	New
Info:	Oil filled
Shipping weight:	12,20 Kg
Contents:	1,00 Pieces
Dimensions ( height ):	19,90 cm
customs tariff number:	84143081
Manufacturer:	Tecumseh L` Unite
Model:	AEZ4430Y
Stroke volume (cm3):	8,8
Performance condition:	+5 / +50 °C
Power (W):	768
Engine type:	CSIR
dbA @ 1m:	50
Note:	Fan cooling necessary
Equipment:	Start-Capacitor 50 uF / 250V
Oil quantity (l):	0,35
Compressor type:	Piston
Suction (inch):	1/4
Discharge (inch):	3/16
Alternative:	AE4430Y

Compressor Tecumseh L` Unite AE4430Y/AEZ4430Y, HBP – R134a, 220 – 240V, 50 Hz, 1 phase, discharge: 8.02 cm3, oil type: POE, oil charge: 280 cm3, electrical equipment CSIR, cooling power: 702 W at +5 / +50 °C, connection: suction: 1/4 inch, discharge: 3/16 inch, sound level: 56 dBA, start capacitor: 50uF/250V, expansion device: capillary or with expansion valve, cooling: forced, height: 200 mm, weight: 9.7 kg

Embraco Universal EM45HHR R134a Refrigeration Compressor. Low, Medium & High Back Pressure. 1/8 Nominal Motor HP. For use with refrigerators, ice makers, frozen food cabinets, frozen food display cases, display windows, etc.

Replaces Embraco EMI40HNR and EM45HNR and Tecumseh AEA3417YXA.

Motor: Resistive Start Inductive Run & Captive Start Inductive Run (RSIR/CSIR)
Evaporating Temperatures: -10°F to 45°F

Product Specifications

BTU Capacity HBP:	1775
BTU Capacity LBP & MBP:	420
Horsepower (HP):	1/8
Locked Rotor Amps (LRA):	17.0
Motor Type:	RSIR/CSIR
Required Refrigerant :	R134a
Skill Level:
Starting Torque:	Normal
Volts (V):	115

Type: Hermetic piston compressorsProducer: ACCSeries: HMBP
Model: P12FW
General data

Refrigerant:	R12
Discharge element:	C-V
Cooling:	F
Maximum ambient temperature [ºC]:	43

Compressor’s data

Cylinder capacity [cm³]:	12
Displacement [m³/h]:	2,1
Weight [kg]:	11,5
Oil charge [cm³]:	530
Oil type:	ISO VG 46 MINERAL

Engine’s data

Engine type:	CSIR
Power [KM]:	1/3
Starting element:	HST
Power supply:	220V 50Hz
Voltage range:	198-264
Locked rotor current [A]:	13,8
Running winding resistance (25ºC) [Ω]:	6,88
Starting winding resistance (25ºC) [Ω]:	26,97

Electrical data

Relays:	9660 A 145, MTRP 46
Shielding element:	MRT38AMK, T0168
Starting capacitor volume [μF]:

Connections

	milimeters	inches
Suction/service tube:	8,1
Service/suction tube:	8,2
Discharge tube:	6,5

Product Description

https://www.mbsm.pro/wp-content/uploads/2021/03/Mbsm_dot_pro_private_PDF_CatalogoDONPER2020_Lj126Cy.pdf

If your appliance is not getting to the correct temperature leaving all your food items no longer fresh, then you may have a faulty compressor. The purpose of the compressor is to compress refrigerant and pump it through the cooling system.

With this great replacement you can help bring your appliance back to life!

This is a generic compressor that is suitable for most models, but please check the horse power, gas type and equivalent compressor number of your current compressor to ensure this part is suitable for your model.

• R600a Gas
• Type: LJ126CY
