Compressor Embraco Aspera NEK6210GK, MBP – R404A, R507, 220 – 240V/1/50Hz, 1/2 HP, discharge 8.77 cm3, motor type CSIR, lubricant type POE 22, lubricant charge 350 ml.1318 W at +7.2 / +54.4 °, expansion device: capillary or valve, cooling: fan cooling, weight 11 kg

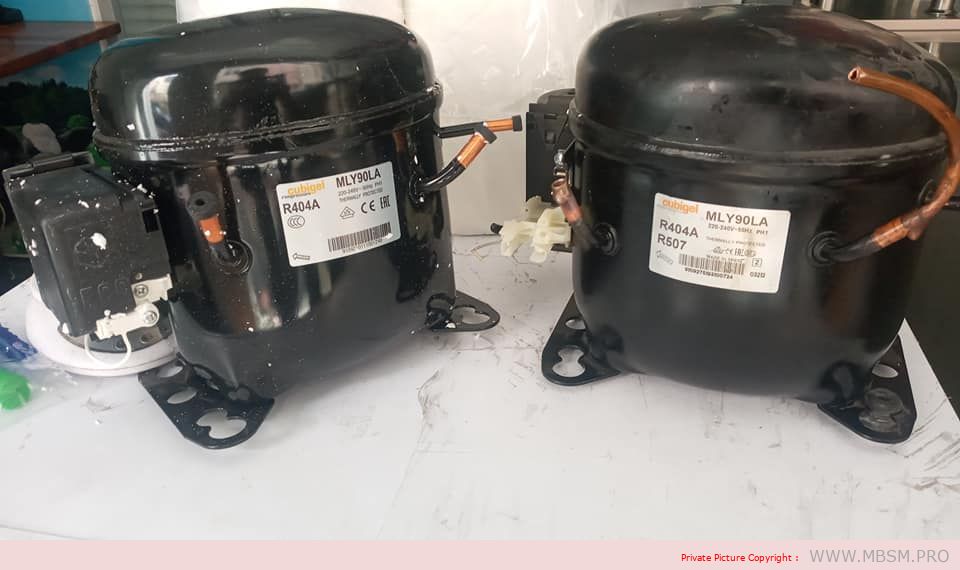

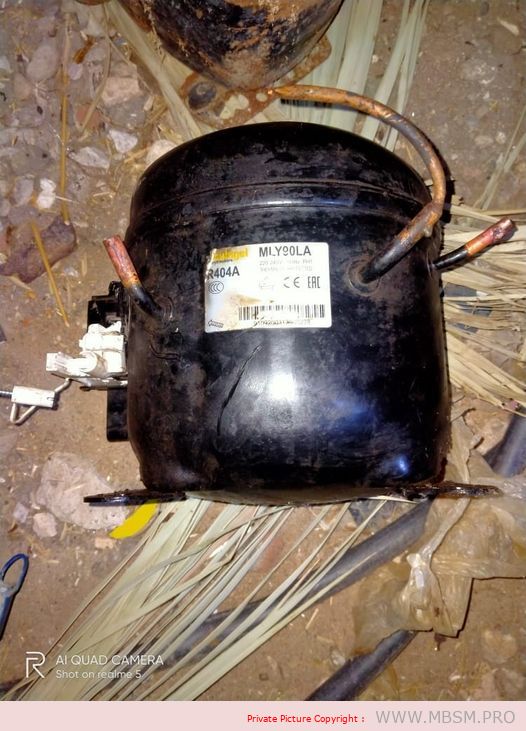

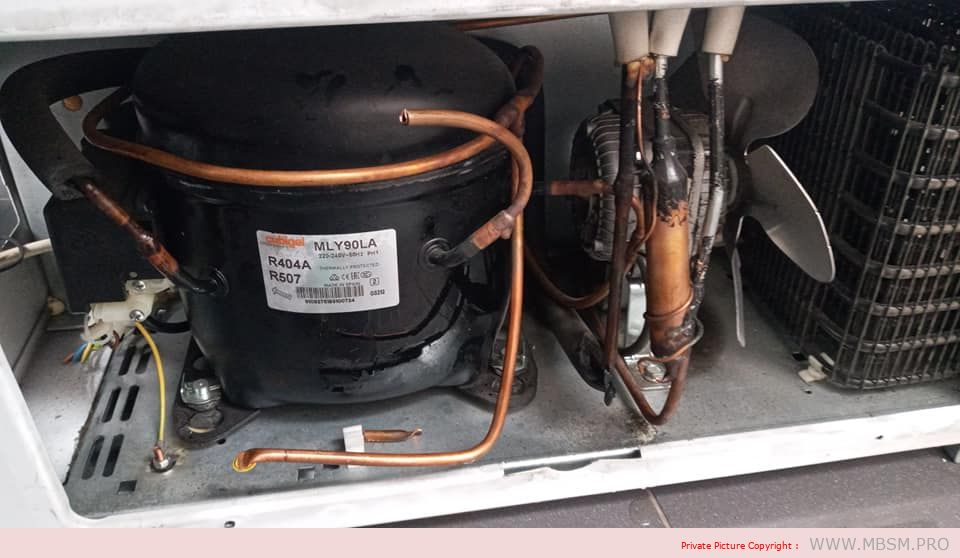

COMPRESSOR:	MLY90LA
Refrigerant	R404A/R507A
Power supply	220 – 240V 1~ 50 Hz

Mbsm.pro, COMPRESSOR, Tecumseh, 1/2 hp ++, 7/16 HP, CAE4456Y, CSIR, HMBP, ++Big, R134A, 1396 W, 1201 KCal, 4760 Btu, P.frigorifique 436 W -25

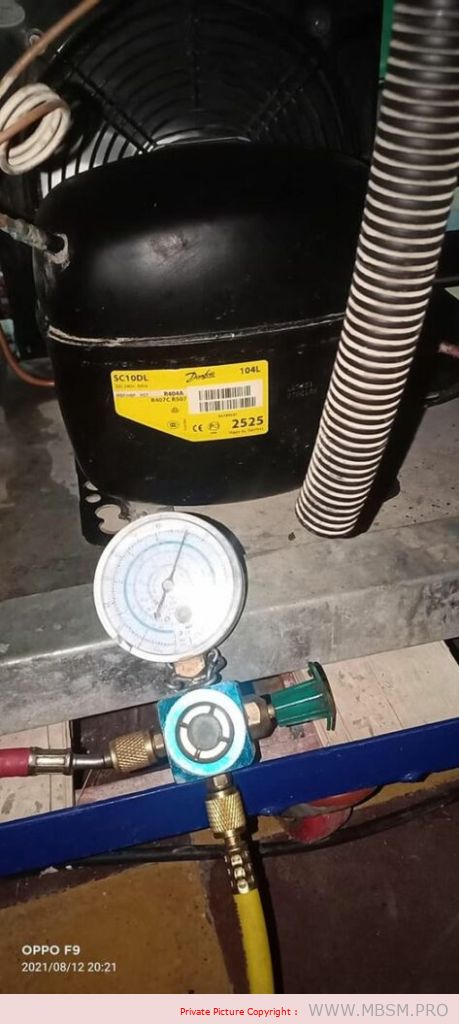

Mbsm.pro, SC10DL, Compressor, R-404A, R-507A, 3/8 HP++, 1/2 hp–, MHBP

Characteristics

• Cylinder volume9.09 cm³
• The weight10.3 kg
• Suction line connection6.5 mm
• Pressure line connection4.9 mm
• Power consumption V/Hz/ph200-230V / 50 / 1
• Starting current11.5 A
• Oil filling0.40 dm3
• Application typelow temperature
• Compressor SeriesL
• RefrigerantR404A/R507A
• Maximum operating current3.2 A

Cooling capacity [W]
t c  \ t e	-40	-35	-30	-25	-20	-15	-10
40	180	263	358	465	585	716	860
45	160	233	317	414	523	644	777
50	141	202	276	363	461	527	595
55	121	172	236	311	399	500	612
60	101	142	195	260	338	427	529
Operating conditions: CECOMAF
t c  – Condensing temperature [ºC]
t e  – Boiling point [ºC]

Technical data

• Model: SC10DL
• Refrigerant Gas: R407C / R-404A /R-507
• Pression/temperature: MHBP
• Power: 3/8 HP
• Voltage: 230 V
• Current Type: Single-Phase
• Frequency: 50 Hz
• Compressor Type: Hermetic
• Displacement: 10.29 cm³
• Power Cons. -10°C: 479 W
• Power Cons. -5°C: 522 W
• Efficiency 0°C: 559 W
• Power Cons. +5°C: 590 W
• Power Cons. +7,2°C: 601 W
• Power Cons. -10°C G1: 394 W
• Power Cons. -5°C G1: 437 W
• T° Condensation: 45 °C
• Cooling Cap. -20°C: 470 Kcal/h
• Cooling Cap. -15°C: 610 Kcal/h
• Cooling Cap. -10°C: 776 Kcal/h
• Cooling Cap. -5°C: 970 Kcal/h
• Cooling Cap. 0°C: 1196 Kcal/h
• Cooling Cap. 5°C: 1458 Kcal/h
• Cooling Cap. 7.2°C: 1586 Kcal/h
• Cooling Cap. 10°C: 1761 Kcal/h
• Test Type: Ashare 32
