Mbsm.pro, compressor, Sanyo, Rotary, Split system air conditioner, Compressors, C-R221H5S, S6231526791, 24000 btu, R22, 3 hp, 2 ton

written by Lilianne | 22 January 2024
Compressor Type Refrigerant Type Typical HP Range
Scroll R-410A 1.5 – 2.5 HP
Reciprocating R-410A 2 – 3 HP
Rotary R-22 2.5 – 3.5 HP

drive_spreadsheetExport to Sheets

Power supply Ph-V-Hz 220-240V/50HZ
Cooling Capacity BTU 24000
Capacity  tolerance %
Input W 3100 3500
Rated current A 15 17
 EER 2,30 1,7
Heating Capacity BTU 24000
Capacity  tolerance %
 Input W 2900
Rated current A 14
COP 2,6
Max. input consumption W 4500
Max. current A 23
Starting current A 74
Compressor Model C-R221H5S
Type Rotary
Brand SANYO SANYO
Indoor unit Indoor fan motor Model GAL8P60A-KND
Brand GALANZ
Output Power W 60
Capacitor uF 4
Speed  (Hi/Mi/Lo) r/min 600/550/420
Indoor coil a.Number of row 2
Indoor air flow (Hi/Mi/Lo) m3/h 1000
Rated input Power(cooling/heating) W 140
Rated current  (cooling/heating) A 0,6
Moisture Removal (L/h) 3,2 0,8
Noise level(Hi/Mi/Lo) dB(A) 48/43
Unit dimension (W*H*D) mm 480x1680x255
Packing (W*H*D) mm 1795x585x345
Net weight Kg 37
Gross weight Kg 46
Outdoor unit  Outdoor fan motor Model GAL075H61225-K01/  YDK-075S62520-06 GAL075H61225-K01/ YDK-075S62520-06
Brand
Output Power W 75 75
Capacitor uF 4.0 4.0
Speed r/min 830±30 830±30
Outdoor coil a.Number of row 2
Noise level dB(A) 57
Unit dimension (W*H*D) mm 845x680x310
Packing   (W*H*D) mm 1010x765x430
Net weight Kg 51
Gross weight Kg 56
Refrigerant type R22
Refrigerant charge g 2130
Design pressure MPa 2,8
Refrigerant pipe Liquid side mm 9,52
Gas side mm 15,88
Max. refrigerant pipe length m 15
Max. difference in level m 8
Operation temperature range ℃ -7~51
Ambient temperature range ℃ -8~53
Application area m2 22~43
Qty’per 20’& 40’&40HQ Set 42/88/95


Mbsm.pro, Toshiba, Rotary, refrigerator ,compressor, PH360X3C-4KTS1, 1.5T++, 2,5 hp, 1 ph, r22

written by Lilianne | 22 January 2024

PH360X3C-4KTS1:

  • Cooling capacity: 30,299 BTU/h. This translates to approximately 3 HP (horsepower). However, it’s important to note that HP is not a perfect conversion for cooling capacity, and the actual cooling output can vary depending on various factors like operating conditions and refrigerant type.
  • Refrigerant gas: R22 (note that R22 is being phased out in some countries due to environmental concerns)
  • Input power: 2090W
  • Voltage: 220-240V, 50Hz, 1 Phase
  • Applications: air conditioners, dryers, refrigerators, chillers, etc.

Model Number    BTU      Ton      Voltage

      PH165X1C      9582        7.5 Ton       220
      PH195X2C      11355         1 Ton       220
      PH225X2C      13196         1 Ton       220
      PH260X2C      15686        1+Ton       220
      PH290X2C      17425      1.5 Ton       220
      PH295X2C      17663      1.5 Ton       220
      PH310X2C      18448      1.5 Ton       220
      PH330X2C      19505      1.5 Ton       220
      PH360X3C      21210    1.5+ Ton       220
      PH420X3C      25234          2 Ton      220
      PH440X3C      26086          2 Ton      220
COMPRESSOR COMPRESSOR, REFRIGERATION;TYPE ROTARY, FLOW RATE 634CFM, POTENTIAL 220-240 VAC, COOLING CAPACITY 2 TON; REF: MODEL: PA240M2CS 4KU1;FFT: REFRIGERENT USED: 410A Make: Toshiba

(cm3/rev) (±5%W) (±5% W) (±5%) (A) ±3dB(A) μF-V (ml) (kg) (kg)
1 PH108X1CY-8BG*2 10.8 1820 595 3.06 2.7 59 25/370 350 0.70 10.7
2 PH120X1CY-8BG*2 12.2 2090 675 3.10 3.1 59 25/370 350 0.70 10.7
3 PH135X1C-8DZ*2 13.6 2280 750 3.04 3.4 59 25/370 400 0.85 12.0
4 PH150X1C-8DZ*2 14.8 2500 820 3.05 3.8 60 25/370 400 0.85 12.0
5 PH150X1C-8DZ*2 14.8 2520 810 3.11 3.7 61 30/370 400 0.85 12.0
6 PH155X1C-8DZ*2 15.4 2600 850 3.06 4.0 59 25/370 400 0.85 12.0
7 PH160X1C-8DZ*2 16.1 2720 890 3.06 4.1 59 25/370 400 0.85 12.0
8 PH160X1C-8DZ*3 16.1 2720 875 3.11 4.0 61 30/370 400 0.85 12.0
9 PH165X1C-8DZ*2 16.5 2810 920 3.05 4.2 59 25/370 400 0.85 12.0
10 PH165X1C-8DZ*3 16.5 2795 895 3.12 4.1 61 30/370 400 0.85 12.0
11 PH170X1C-8DZ*2 17.1 2920 960 3.04 4.5 59 25/370 400 0.85 12.0
12 PH170X1C-8DZ*3 17.1 2920 935 3.12 4.3 61 30/370 400 0.85 12.0
13 PH180X1C-8DZ*2 17.8 3050 1025 2.98 4.8 59 25/370 400 0.85 12.0
14 PH180X1C-8DZ*3 17.8 3015 965 3.12 4.5 61 30/370 400 0.85 12.0
15 PH195X2C-8FTC 19.3 3330 1080 3.08 5.0 61 25/370 480 1.10 15.1
16 PH200X2C-8FTC 20.0 3470 1135 3.06 5.2 61 25/370 480 1.10 15.1
17 PH200X2C-8FTC1 20.0 3465 1100 3.15 5.2 64 30/370 480 1.20 15.8
18 PH215X2C-8FTC 21.6 3725 1210 3.08 5.6 61 35/370 480 1.20 15.8
19 PH225X2C-8FTC 22.4 3870 1250 3.10 5.7 61 35/370 480 1.20 15.8
20 PH225X2C-8FTC1 22.4 3870 1230 3.15 5.6 64 35/370 480 1.20 15.8
21 PH230X2C-8FTC 23.1 3990 1310 3.05 6.0 61 35/370 480 1.20 15.8
22 PH240X2C-8FTC 23.9 4140 1355 3.06 6.2 61 35/370 480 1.20 15.8
23 PH240X2C-8FTC1 23.9 4070 1285 3.17 5.8 65 35/370 480 1.20 16.5
24 PH260X2C-8FTC1 26.2 4600 1510 3.05 7.3 63 35/370 520 1.30 16.3
25 PH260X2C-8FTC3 26.2 4530 1440 3.15 6.8 63 35/400 520 1.30 17.1
26 PH280X2C-8FTC1 28.0 4900 1570 3.12 7.5 64 35/370 520 1.30 17.1
27 PH290X2C-8FTC1 29.0 5110 1650 3.10 8.0 64 35/370 520 1.30 17.1
28 PH295X2C-8FTC1 29.4 5180 1670 3.10 8.0 64 35/370 520 1.30 17.1
29 PH295XCS-8KUC1 29.4 5200 1700 3.06 8.0 65 35/370 750 1.80 17.7
30 PH310X2CS-8KUC1 30.8 5410 1815 2.98 9.5 64 40/370 750 1.80 17.7
31 PH330X2CS-8KUC3 32.8 5720 1920 2.98 10.0 64 40/370 750 1.80 17.7
32 PH340X3C-8KUC1 34.2 5950 1945 3.06 9.1 66 50/400 750 1.80 20.6
33 PH360X3C-8KUC1 35.7 6240 2045 3.05 9.6 66 50/400 750 1.80 20.6
34 PH400X3CS-8KUC1 40.2 6920 2245 3.08 10.5 66 50/400 950 2.10 23.3
35 PH420X3CS-8MUC1 42.0 7400 2370 3.12 11.1 66 50/400 950 2.10 23.3
36 PH440X3CS-8MUC1 43.5 7650 2510 3.05 12.3 66 50/400 950 2.10 23.3
37 PH460X3CS-8PUC1 45.9 8150 2590 3.15 12.4 67 55/400 1050 2.60 25.2
38 PH480X3CS-4MU1 47.9 8500 2700 3.15 12.8 67 55/400 1050 2.60 25.2

Model Name Displ. (cm3/rev) COOLING Capacity (±5%W) Power (±5% W) COP(±5%) Current (A) Noise±3dB(A) Capacitor μF-V R22 Max (kg) Wt. (kg)
PH225X2C-8FTC1 22.4 3870 1250 3.1 5.7 61 35/370 1.2 15.8
PH290X2C-4FT1 29 5110 1650 3.1 8 64 35/370 1.3 17.1
PH295X2C-8FTC1 29.4 5180 1670 3.1 8 64 35/370 1.3 17.1
PH420X3C-8KUC1 42 7400 2370 3.12 11.1 66 50/400 2.1 23.3
PH480X3C-8KUC1 47.9 8460 2730 3.1 13 67 55/400

TYPE SPECIFICATION HP
PH135G1C-4DZDE1 2265W/220V/50HZ/R22 1HP
PH165X1C-4DZDE2 2780W/220V/50HZ/R22 1HP
PH180X1C-4DZDE3 3015W/220V/50HZ/R22 1.5HP
PH225X2C-4FT 3870W/220V/50HZ/R22 1.5HP
PH240X2C-4FT1 4140W/220V/50HZ/R22 1.5HP
PH290X2C-4FT1 5100W/220V/50HZ/R22 2HP
PH310G2C-4KN1 5450W/220V/50HZ/R22 2HP
PH340G2C-4KU1 6030W/220V/50HZ/R22 2.5HP
PH370G2CS-4KU1 6605W/220V/50HZ/R22 2.5HP
PH400G2CS-4KU1 7030W/220V/50HZ/R22 3HP
PH420G2CS-4KU1 7505W/220V/50HZ/R22 3HP
PH480X3CS-4MU1 8460W/220V/50HZ/R22 3HP
YH480X3CS-4MUC1 8350W/380V/50HZ/R22 3HP
PG180X1C-4DZDE3 3120W/220V/50HZ/R407C 1HP
PA118M1C-4FZ2 2770W/220V/50HZ/R410A 1HP
PA145G1C-4FT1 3530W/220V/50HZ/R410A 1.5HP
PA240X2CS-4KU1 5800W/220V/50HZ/R410A 2HP
PA270X3CS-4MU1 6670W/220V/50HZ/R410A 2.5HP
PA290G2CS-4MU1 7260W/220V/50HZ/R410A 3HP
PA290X3CS-4MU1 7180W/220V/50HZ/R410A 3HP
PA330X3CS-4MU1 8190W/220V/50HZ/R410A 3HP



Mitsubishi, Electric, fixed frequency, NH41VNHT 2.55HP, single-phase, 220V, rotary, air condition, 26000 btu/h

written by Amina | 22 January 2024

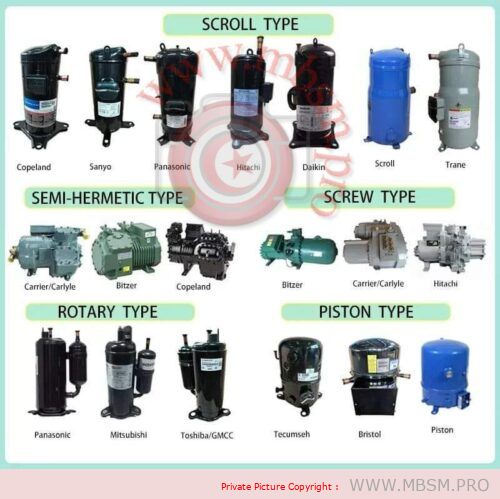

أنواع ضواغط مغلقة ونصف مغلقة

written by Lilianne | 22 January 2024
أنواع ضواغط مغلقة ونصف مغلقة:
سكرول مغلق scroll
سكرو نصف مغلق Semi-hermetic screw
نصف مغلق ترددي Semi-hermetic reciprocating
ترددي مغلق Piston
روتاري مغلق Rotary

Mbsm_dot_pro_private_PDF_compresso

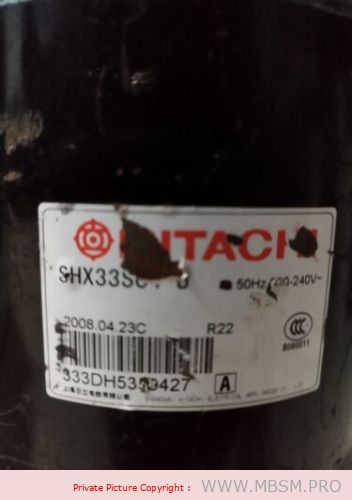

Mbsm.pro, compressor, Highly, hitachi, rotary, SHX33 , 2 hp, 17750 btu, R22

written by Jamila | 22 January 2024
Essential details
Type:
COMPRESSOR
Place of Origin:
Shanghai, China
Brand Name:
Hitachi
Certification:
ce, CCC
After-sales Service Provided:
No overseas service provided
key words:
Highly hitachi rotary compressor SHX33 made in China
cooling capacity(w):
5200
cooling capacity(btu):
refrigerant:
R22
voltage:
220V-240V 50HZ
condition:
used
horse power:
2hp
Capacitor:
50/420
Dis.(cc):
33.6
COP.:
3

Packaging & delivery

Selling Units:
Multiple of 50
Package size per batch:
115X110X92 cm
Gross weight per batch:
940.000 kg
Package Type:
packing with carton,1 unit(pcs) in a carton;

packing with wood pallet,50 cartons in a pallet.
Quantity(units) 1 – 250 >250
Lead time (days) 5 To be negotiated

Highly hitachi rotary compressor SHX33 made in China

Specifications

 1.Higher efficiency ;

2.Lower sound levels;

3.Superior durability

Models Availability



Hitachi compressor
Model Cooling capacity Dis.(cc) COP. Capacitor Height Diameter
SHX33 2 5200 17740 33.6 3 50/420 293.4 139.1
SHY33 2 5200 17740 30.7 3.15 50/400 307.8 139.1
SL222 1.5 3740 12761 22.2 3.05 35/450 264 129.1
500DH(scroll) 5 16000 54560



Product Description

Highly hitachi rotary compressor SHX33 made in China

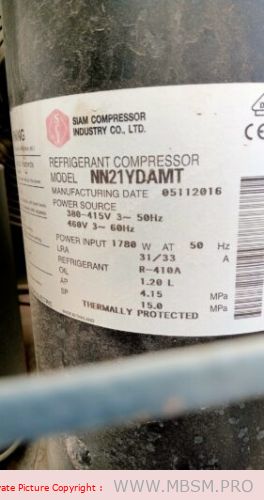

Mbsm.pro, R-410A, Fixed Speed, Rotary, Compressor, Mitsubishi, NN21YDAMT, 1.74 hp, 18000 btu, 3 Ph, 380 v

written by Jamila | 22 January 2024

Basis Info.

Nn21ydamt Mitsubishi Origin Japan

Product Description

Mitsubishi Refrigeration Compressor  Nn21ydamt

Brand Mitsubishi
model Nn21ydamt
Horse power 1.74HP
power (kw) 4.85
Refrigeration capacity (kw) 6.5
 Refrigeration capacity (kcal/h) 17.1
MOQ 1 piece
color black
place of orignal japan
package wooden case
certificate THIS
frequency 50hz
Weight 29,9 kg
Dimensions 28 × 28 × 38 cm
Voltage 380/415 V / 50 hz / 3 ph
Power 5.5 kW
Refrigerant R410A
BTU 18772
Horse power 1.74 hp
Displacement 21 cm3
COP 3.09
Current 3 A
Tecnology On/Off

R-410A Fixed Speed Rotary Compressor

Models Capacity Input Norminal Output COP EER Run Cap Weight Oil
W Kcl/hr Btu/hr Watt Amps HP kW W/W Btu/hr* w mF/VAC kgs cc
NN21YDAMT 5200 4471 17742 1840 3.00 1.7 1.30 2.83 9.64 – 20.4 1200

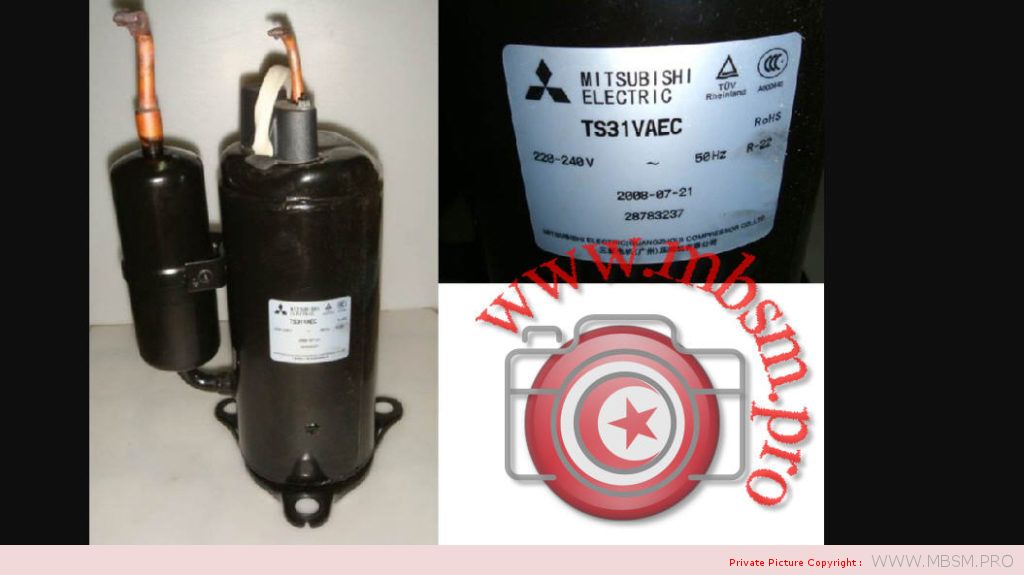

Mbsm.pro, Compressor, Mitsubish, Mitsubishi, Rotary, TS31VAEC, R22, 1.5 Ton, 18000BTU, 1 PH, 220 v

written by Lilianne | 22 January 2024

Product Specification

Horse Power 1.5 Ton
Brand Mitsubish
Compressor Technology Rotary Compressor
Model Name/Number TS31VAEC
Rental Available No
Spares Available No
Is It Portable Yes
Installation/After Sales Service Available No
btu 18000 btu
Phase Single
No. Of Cylinder 1
Cylinder Type Round
Voltage 220 V
Material Copper
Accessories No
Usage/Application AC
Color Black
Horse Power 1.5 Ton
Brand Mitsubish
Compressor Technology Rotary Compressor
Model Name/Number TS31VAEC

Air conditioner

Power supply 1Ph / 220-240V/50HZ
Cooling Capacity 4800
Capacity tolerance
Input 2020
Rated current 8.8
EER 2.38
Heating Capacity 5300
Capacity tolerance
Input 1880
Rated current 8.5
COP 2.82
Max. input consumption 2500
13
Starting current 37 .6
Compressor Model TS31VAEC
Type Rotary
Brand mitsubishi
Capacity 5340
Input 1728
Rated current(RLA) 7.8
Locked rotor Amp(LRA) 37.6
Thermal protector INTERNAL
Capacitor 50
Refrigerant oil 1160
Indoor unit Indoor fan motor Model YFNPG25-4
Brand BAOLI
Output Power 25
Capacitor 1.5
Speed ​​(Hi/Mi/Lo) 1300/1150/1000
Indoor coil a.Number of row 2
b.Tube pitch(a )x row pitch(b) 21×12.7
c.Fin spacing 1.5
d.Fin material Hydrophilic
e.Tube outside dia.and material ?7?inner Grooved
f.Coil length x height x width 680*336*25.4
Indoor air flow (Hi/Mi/Lo) 850/700/650
Rated input Power(cooling/heating) 50
Rated current (cooling/heating) 0.25
Moisture Removal 1.8
Noise level(Hi/Mi/Lo) 43/40/ 37
Unit dimension (W*H*D) 860x292x205
Packing (W*H*D) 930X365X280
Net weight 12
Gross weight 14
Outdoor unit Outdoor fan motor Model GAL6P38A-KWD
Brand GALANZ
Output Power 38
Capacitor 2.5
Speed ​​830±30
Outdoor coil a .Number of row 2
b.Tube pitch(a)x row pitch(b) 21×12.7
c.Fin spacing 1.5mm
d.Fin material Hydrophilic
e.Tube outside dia.and material ?7/24U?inner Grooved
f.Coil length x height x width 680(730)*508*44
Noise level 56dB(A)
Unit dimension (W*H*D) 770x520x280
Packing (W*H*D) 910X620X380
Net weight 41
Gross weight 44.5
Refrigerant type R22
Refrigerant charge 1140
Design pressure 2.7
Refrigerant pipe Liquid side 6.35
Gas side 12.7
Max. refrigerant pipe length 10
Max. difference in level 5
Operation temperature range 16?43
Ambient temperature range -7~48
Application area 20-32



Mbsm.pro, Compressor, Hitachi, High Quality, Rotary, Sh356mv-C7nu, Air Conditioner, 2.4 HP, 19283 BTU, R22, 220 V, 1 PH, 5655 w

written by Lilianne | 22 January 2024

Color: Black
Voltage: 220V 1p
Frequency: 50Hz
Horse Power: 2.8HP
Oil Charge: 1L
N.W.: 37kg
Product Description
 hitachi air conditioner compressor r22 refrigerant SH356MV-C7NU

Brand name Hitachi
Place of origin Japan
Model name SH356MV-C7NU
Application T3 Working Condition
Refrigerant R-22
Displacement 41.7ml/rev
Power 220-240v
Frequency 50Hz
Phase 1ph
Related capacity(w) 5655
BTU 19283
Description air conditioner compressor r22 refrigerant
Product Description

Model no Application Refrig-erant Displacem-ent Power supply Related capacity(w) HP BTU
SH286DG-C7HU T3 Working Condition R-22 28.6ml/rev 220V/60Hz/1PH 5895 2.5 20101
SH307MV-C7HU T3 Working Condition R-22 30.7ml/rev 220-240V/50Hz/1PH 5200 2 17732
SH307RV-C8LU T1 Working Condition R-22 30.7ml/rev 220-240V/50Hz/1PH 5200 2 17732
SH336DG-C8LU T3 Working Condition R-22 33.6ml/rev 220V/60Hz/1PH 5200 2 17732
SH336MV-C8LU T3 Working Condition R-22 33.6ml/rev 220-240V/50Hz/1PH 5655 2.3 19283
SH356DG-C8LU T3 Working Condition R-22 35.6ml/rev 220V/60Hz/1PH 5655 2.3 19283
SH356MV-C7NU T3 Working Condition R-22 35.6ml/rev 220-240V/50Hz/1PH 5655 2.3 19283
SH356MV-C8LU T3 Working Condition R-22 35.6ml/rev 220-240V/50Hz/1PH 6010 2.5 20494
SHV33YC1-E T3 Working Condition R-22 41.7ml/rev 220-240V/50Hz/1PH 6950 2.8 23699
SHV33YC6-G T1 Working Condition R-22 41.7ml/rev 220V/50Hz/1PH 7100 3 24211
SHV33YC6-S T1 Working Condition R-22 41.7ml/rev 220V/50Hz/1PH 7020 2.8 23938
SHV33YC6-U T1 Working Condition R-22 41.7ml/rev 220-240V/50Hz/1PH 7100 3 24211
SHV33ZC1-S T1 Working Condition R-22 40.0ml/rev 220V/50Hz/1PH 6770 2.7 23085
SHV33ZC1-U T1 Working Condition R-22 40.0ml/rev 220V/50Hz/1PH 6740 2.7 22983
SHV73YC1-E T3 Working Condition R-22 41.7ml/rev 208-230V/60Hz/1PH 8520 3.5 29053
SHV73YC1-U T1 Working Condition R-22 41.7ml/rev 208-230V/60Hz/1PH 8520 3.5 29053
SHW33TC4-E T3 Working Condition R-22 35.6ml/rev 220-240V/50Hz/1PH 6090 2.5 20766
SHW33TC4-S T1 Working Condition R-22 35.6ml/rev 220V/50Hz/1PH 6058 2.5 20657

Catalogue Hitachi DH serie Compressor

Type Model Refrigerant Colling Capacity Test Condition Motor Input Current COP Oil Charge
      BTU/H WATTS   WATTS RLA W/W L
STANDRAD TYPE 303DH-47C2 R22 29500 8650 380V 3~50Hz 2700 5 3.2 1.2
303DH-50C2 32220 9450 2900 5.4 3.2 1.2
353DH-56C2 35460 10400 3200 6.2 3.25 1.2
403DH-64C2 40240 11800 3600 6.8 3.25 1.2
453DH-72C2 46040 13500 4000 7.6 3.4 1.4
503DH-80C2 50800 14900 4400 8.1 3.4 1.4
503DH-83C2 52510 15400 4550 8.6 3.4 1.4
603DH-90C2 57290 16800 5100 9.5 3.3 1.4
603DH-95C2 60020 17600 5300 10 3.3 1.4
PARALLEL TYPE 303DH-47C2Y 29500 8650 2700 5 3.2 1.8
403DH-50C2Y 32220 9450 2900 5.4 3.2 1.8
353DH-56C2Y 35460 10400 3200 6.2 3.25 1.8
403DH-64C2Y 40240 11800 3600 6.8 3.25 1.8
453DH-72C2Y 46040 13500 4000 7.6 3.4 1.8
503DH-80C2Y 50800 14900 4400 8.1 3.4 1.8
503DH-83C2Y 52510 15400 4550 8.6 3.4 1.8
603DH-90C2Y 57290 16800 5100 9.5 3.3 1.8
603DH-95C2Y 60020 17600 5300 10 3.3 1.8

Hitachi series such as SD,SH are supplied.

Model name Power(w) HP Displacement Capacitance Cooling capacity (w) COP Capacitor μF / v Current A
SD074CV 415 0.55 0.74 220~240V/50Hz 1210 2.9 13 2
SD086CV 480 0.64 0.86 220~240V/50Hz 1410 2.94 15 2.3
SD091CV 520 0.69 0.91 220~240V/50Hz 1490 2.94 13 2.4
SD104CV 575 0.77 1.04 220~240V/50Hz 1740 3.03 15 2.75
SD122CV 690 0.92 1.22 220~240V/50Hz 2040 2.96 17 3.3
SD127CV 720 0.96 1.27 220~240V/50Hz 2050 2.92 17 3.5
SD134CV 750 1 1.34 220~240V/50Hz 2260 3.01 17 3.55
SD145CV 815 1.09 1.45 220~240V/50Hz 2480 3.04 20 3.9
SD156CV 870 1.16 1.56 220~240V/50Hz 2650 3.05 25
Model no Application Refrigerant Displacement  Power Supply Related capacity(w) BTU
SH286DG-C7HU T3 Working Condition R-22 28.6ml/rev 220V/60Hz/1PH 5895 20101
SH307MV-C7HU T3 Working Condition R-22 30.7ml/rev 220-240V/50Hz/1PH 5200 17732
SH307RV-C8LU T1 Working Condition R-22 30.7ml/rev 220-240V/50Hz/1PH 5200 17732
SH336DG-C8LU T3 Working Condition R-22 33.6ml/rev 220V/60Hz/1PH 5200 17732
SH336MV-C8LU T3 Working Condition R-22 33.6ml/rev 220-240V/50Hz/1PH 5655 19283
SH356DG-C8LU T3 Working Condition R-22 35.6ml/rev 220V/60Hz/1PH 5655 19283
SH356MV-C7NU T3 Working Condition R-22 35.6ml/rev 220-240V/50Hz/1PH 5655 19283
SH356MV-C8LU T3 Working Condition R-22 35.6ml/rev 220-240V/50Hz/1PH 6010 20494
SHV33YC1-E T3 Working Condition R-22 41.7ml/rev 220-240V/50Hz/1PH 6950 23699
SHV33YC6-G T1 Working Condition R-22 41.7ml/rev 220V/50Hz/1PH 7100 24211
SHV33YC6-S T1 Working Condition R-22 41.7ml/rev 220V/50Hz/1PH 7020 23938
SHV33YC6-U T1 Working Condition R-22 41.7ml/rev 220-240V/50Hz/1PH 7100 24211
SHV33ZC1-S T1 Working Condition R-22 40.0ml/rev 220V/50Hz/1PH 6770 23085
SHV33ZC1-U T1 Working Condition R-22 40.0ml/rev 220V/50Hz/1PH 6740 22983
SHV73YC1-E T3 Working Condition R-22 41.7ml/rev 208-230V/60Hz/1PH 8520 29053
SHV73YC1-U T1 Working Condition R-22 41.7ml/rev 208-230V/60Hz/1PH 8520 29053
SHW33TC4-E T3 Working Condition R-22 35.6ml/rev 220-240V/50Hz/1PH 6090 20766
SHW33TC4-S T1 Working Condition R-22 35.6ml/rev 220V/50Hz/1PH 6058 20657


Constant-Speed/India/R22 230V 50Hz
Series Model Displacement (cc/rev) Cooling capacity (w) Cooling capacity (btu/h) Cop Capacitor (Hf/v) Height (mm) Test condition
H SH286RY-C7PU1A 28.6 4900 16719 3.27 45/450 307.8 ASHRAE/T
SH295RY-C7PUA 29.5 5060 17265 3.24 35/450 293.4 ASHRAE/T
SH295RY-C7PU1A 29.5 5035 17179 3.25 45/450 307.8 ASHRAE/T
SH307RY-C8DUA 30.7 5250 17913 3.26 45/450 307.8 ASHRAE/T
SH370RY-C8LU 37 6400 21837 3.25 65/450 320.9 ASHRAE/T
SH380RY-C8DU 38 6555 22366 3.24 50/450 320.9 ASHRAE/T
SH417RY-C8DU 41.7 7160 24430 3.21 45/450 330.9 ASHRAE/T
SH280UY-C7HUA 28 4810 16412 16412 45/450 307.8 ASHRAE/T
SH286UY-C7PUA 28.6 4930 16821 3.36 45/450 307.8 ASHRAE/T
SH300UY-C7HUA 30 5100 17401 3.36 45/450 307.8 ASHRAE/T
SH370UY-C8LU 37 6400 21837 3.3 60/450 330.9 ASHRAE/T
Constant-Speed/India/R22/Tropical 230V 50Hz
Series Model Displacement (cc/rev) Cooling capacity (w) Cooling capacity (btu/h) Cop Capacitor (Hf/v) Height (mm) Test condition Test condition
H SH307MV*1 30.7 5250 17913 3.2 45/450 293.4 ASHRAE/T
SH336MV-1 33.6 5750 19619 3.18 55/450 307.8 ASHRAE/T
SH356MVM 35.6 6130 20916 3.11 50/450 307.8 ASHRAE/T
SH417MV-1 41.7 7170 24464 3.17 65/450 330.9 ASHRAE/T
Constant-Speed/R32 220V/240V 50Hz
Series Model Displacement (cc/rev) Cooling capacity (w) Cooling capacity (btu/h) Cop Capacitor (Hf/v) Height (mm) Test condition Test condition
H GSH190TV 19.0 4954 16903 3.00 40/450 293.5 ASHRAE/T
GSH232SV 23.2 5896 20117 2.91 60/400 298.5 ASHRAE/T
Constant-Speed/India/R41 OA 230V 50Hz
Series Model Displacement (cc/rev) Cooling capacity (w) Cooling capacity (btu/h) Cop Capacitor (Hf/v) Height (mm) Test condition Test condition
H ASH184TV 18.4 4440 15149 2.96 40/450 293.5 ASHRAE/T
ASH193TV 19.3 4575 15610 2.96 40/450 293.5 ASHRAE/T
ASH201RY 20.1 4845 16531 2.95 40/450 293.5 ASHRAE/T
ASH210RY 21.0 5120 17469 2.98 40/450 293.5 ASHRAE/T
ASH244RY 24.4 5770 19687 2.95 55/450 301.1 ASHRAE/T
Constant-Speed/R290 220V/240V 50Hz
Series Model Displacement (cc/rev) Cooling capacity (w) Cooling capacity (btu/h) Cop Capacitor (Hf/v) Height (mm) Test condition Test condition
H PSH307CV-C7HU 30.7 4566 15579 3.22 60/450 307.8 ASHRAE/T
PSH307HV-C8DU 30.7 4565 15576 3.45 45/450 307.8 ASHRAE/T
Constant-Speed/Middle East/R22 230V 60Hz
Series Model Displacement (cc/rev) Cooling capacity (w) Cooling capacity (btu/h) Cop Capacitor (Hf/v) Height (mm) Test condition Test condition
H SH264DG*2 26.4 5550 18937 3.2 40/450 288.4 ASHRAE/T
SH307DG*1 30.7 6580 22451 3.22 55/450 307.8 ASHRAE/T
SH325DG 32.5 6860 23406 3.22 55/450 307.8 ASHRAE/T
SH356DG-3 35.6 7450 25419 3.24 50/450 317.8 ASHRAE/T

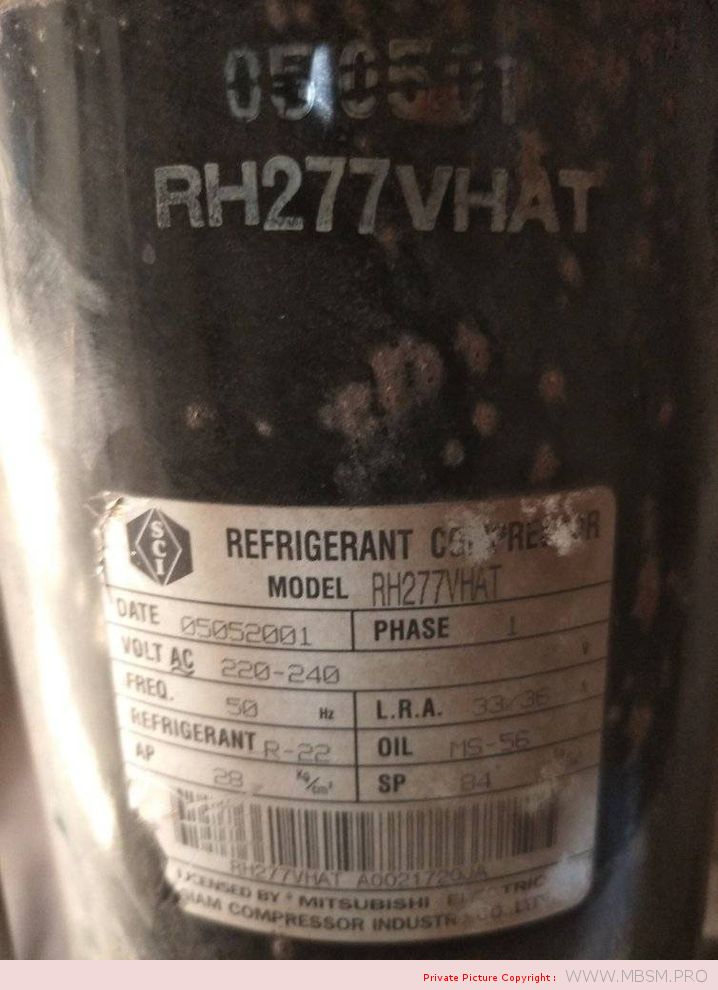

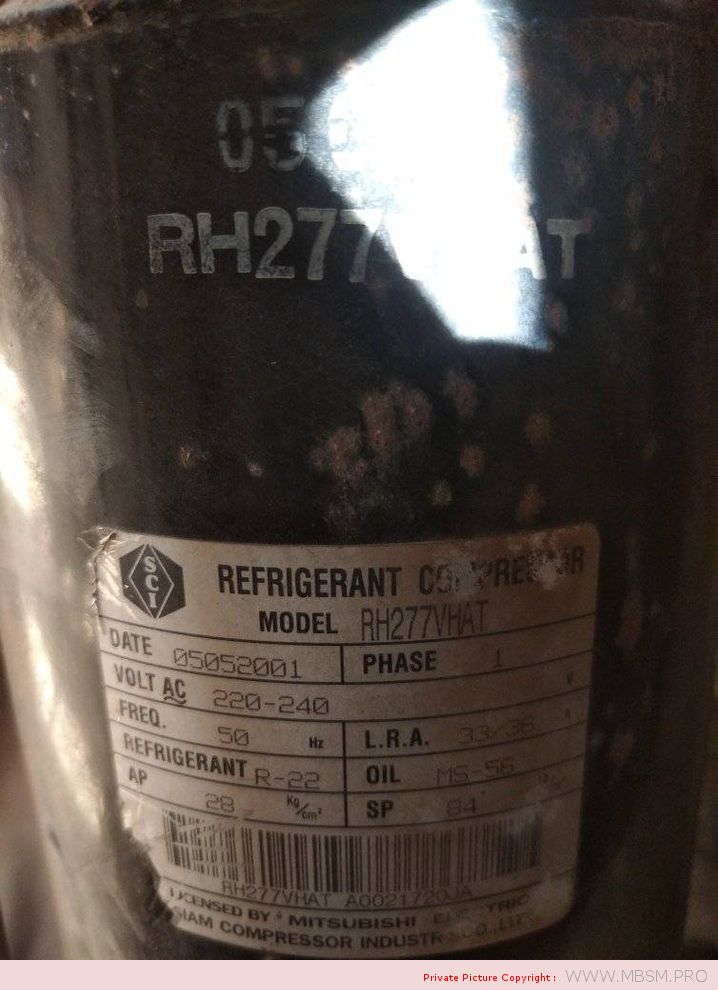

Mbsm.pro, Siam, Rotary, Compressor, R22, RH277-VHAT, RH277VHAT, 1.74 HP, 220v, 2040w

written by Lilianne | 22 January 2024



Model  Voltage phase Legs Capacity Input Normal Output COP. EER. Run Cap Weight
Cooling Watts Kcal/hr Btu/hr Watt Amps HP KW W/W Btu/hr*w Uf/vac
RH130VHST 220 1   2255 1939 7694 700 3.22 0.87 0.64 3.22 10.99 25/370 13.3
RH145VHST 220 1   1945 2139 8489 770 3.56 0.94 0.7 3.32 11.02 25/370 13.3
RH154VHST 220 1   2662 2289 9083 820 3.79 1.01 0.75 3.25 11.08 25/370 13.3
RH197VHRT 220 1   3610 3104 12317 1060 5.12 1.34 1 3.41 11.62 30/370 15.1
RH207VHRT 220 1   3712 3192 12665 1097 5.21 1.34 1 3.38 11.55 30/370 15.1
RH207VHST 220 1   3670 3156 12522 1140 5.3 1.34 1 3.22 10.98 30/370 15.4
RH207VRFT 220 1   3600 3095 12283 1150 5.3 1.34 1 3.13 10.68 40/400 12.4
RH220VHST 220 1   3906 3359 13327 1210 5.65 1.41 1.05 3.23 11.01 30/370 15.4
RH277VHRT 220 1   4930 4239 16821 1507 7.16 1.74 1.3 3.27 11.16 40/370 15.4
RH277VHST 220 1   4848 4169 16541 1530 7.1 1.74 1.3 3.17 10.81 40/370 15.4
RH277VRNT 220 1   4780 4110 16309 1480 6.85 1.7 1.3 3.23 11.02 40/370 15.3
RH313VAGT 220 1   5640 4850 19244 1746 8.43 1.74 1.3 3.23 11.02 45/370 15.7
PH33VPET 220 1 4 5978 5140 20397 1850 8.6 2.01 1.5 3.23 11.03 50/370 22.3
PH36VPET 220 1 4 6466 5560 22062 2015 9.3 2.15 1.6 3.21 10.95 55/400 22.3
PH39VPET 220 1 4 6885 5920 23492 2150 10 2.28 1.7 3.2 10.93 60/400 22.3
PH41VPJT 220 1 4 7519 6465 25612 1812 11 2.55 1.9 3.19 10.89 60/400 22.3
PH36VTET 220 1 3 6466 5560 22062 2015 9.3 2.15 1.6 3.21 10.95 55/400 22.3
PH39VTET 220 1 3 6885 5920 23492 2150 10 2.28 1.7 3.2 10.93 60/400 22.3
PH36VPTT 220 1 4 6685 5748 22809 1970 9 2.15 1.6 3.39 11.58 60/400 22.5
PH36VPXT 220 1 4 6685 5748 22809 2000 9.3 2.15 1.6 3.34 11.4 55/400 22.4
PH39VPXT 220 1 4 7170 6165 24464 2145 10 2.3 1.7 3.34 11.41 60/400 22.8
NH41VNWT 220 1   7529 6475 25689 2216 10.2 2.55 1.9 3.4 11.59 45/420 30.2
NH44VNWT 220 1   8270 7111 28217 1932 11.6 2.8 2.1 3.34 11.4 50/420 30.7
NH47VNWT 220 1   8800 7568 30026 2634 12.2 2.95 2.2 3.34 11.4 55/400 30.7
NH52VNWT 220 1   9850 5471 33608 3000 13.9 3.35 2.5 3.28 11.2 55/400 30.7
NH41VXBT 220 1   7570 6510 25829 2410 10.9 2.55 1.9 3.14 10.72 45/420 31.3
NH44VXBT 220 1   8100 6966 27637 2007 11.8 2.68 2 3.18 10.84 50/420 31.2
NH47VXBT 220 1   8650 7439 29514 2750 12.6 2.95 2.2 3.15 10.73 50/420 31.3
NH52VXBT 220 1   9674 8320 33008 3100 14.2 3.35 2.5 3.12 10.65 50/450 31.2
NH56VXBT 220 1   10572 9092 36072 3450 15.8 3.62 2.7 3.06 10.47 60/450 31.2
NH44VDTT 380 3   8100 6966 27637 1967 4.3 2.68 2 3.23 11.01   29.3
NH41YXCT 380 3   7450 6407 25419 2310 3.95 2.55 1.9 3.23 11   30.3
NH47YXCT 380 3   8650 7439 29514 2680 4.6 2.95 2.2 3.23 11.01   29.3
NH52YXCT 380 3   9710 8351 33131 3010 5.3 3.35 2.5 3.23 11.01   30.6
NH56YXCT 380 3   10650 9159 36338 3300 5.85 3.62 2.7 3.23 11.01   31.3

View the Range


Product Code Model Number Refrigerant Type Compressor Horsepower Compressor Displacement Capacity (Power) Power Supply Amps Run Capacity (UF/VAC) Connection Size (Suction)
2707445 RH135-VHAT R22 0.87 HP 13.5 cm3/rev 2279 W 240V 3.45 A 25/370 3/8″ N/A
2707446 RH165-VHST R22 1.07 HP 16.5 cm3/rev 2814 W 240V 4.2 A 25/370 3/8″ N/A
2707447 RH197-VHRT R22 1.34 HP 19.7 cm3/rev 3610 W 240V 5.12 A 30/370 1/2″ N/A
2707448 RH207-VHST R22 1.34 HP 20.7 cm3/rev 3670 W 240V 5.3 A 30/370 1/2″ N/A
2707449 RH231-VHAT R22 1.47 HP 23.1 cm3/rev 4011 W 240V 6.2 A 30/400 1/2″ N/A
2707450 RH247-VHAT R22 1.61 HP 24.7 cm3/rev 4407 W 240V 6 A 35/400 1/2″ N/A
2707451 RH277-VHAT R22 1.74 HP 27.7 cm3/rev 4826 W 240V 7.4 A 35/400 1/2″ N/A
2707452 PH28-VNET R22 1.68 HP 28.1 cm3/rev 4895 W 240V 7.2 A 40/370 5/8″ N/A
2707453 PH33-VPET R22 2 HP 33.8 cm3/rev 5977 W 240V 8.6 A 50/370 5/8″ N/A
2707454 PH39-VPET R22 2.28 HP 39 cm3/rev 6884 W 240V 10 A 60/400 5/8″ N/A
2707409 NH47-YDET R22 2.9 HP 47.4 cm3/rev 8379 W 415V 5 A N/A 5/8″ N/A
2707410 NH52-YDTT R22 3.4 HP 52.4 cm3/rev 9442 W 415V 5.5 A N/A 3/4″ N/A
  • Rating Basis:
  • 54.4 deg C Condensing
  • 7.2 deg C Evaporating
  • 35 deg C Suction Gas
  • 46.1 deg C Liquid Temperature
  • 35 deg C Ambient


Product Specifications

Size and Dimensions

Connection Size (Liquid) 5/16″
Connection Size (Suction) 1/2″
Run Capacity (UF/VAC) 35/400

General Information

Model Number RH277-VHAT
Product Range SCI RH, PH & NH Series

Technical Information

Refrigerant Type R22
Compressor Horsepower 1.74 HP
Compressor Displacement 27.7 cm3/rev
Phase 1
VBIS Tag RE-Co-Ro

Power Information

Amps 7.4 A
Capacity (Power) 4826 W
Power Supply 240V

1. Copeland compressor have Ultra high energy efficiency.
2. High Heat Pump Capacity Due to Nearly 100% Volumetric Efficiency.
3. Wide Selection Range
50 Hertz 18200 to 68000 BTUH
4590 to 17100 KCALH
5330 to 19900 WATTS .
4. Fewer Moving Parts
5.The motor can effectively protect the motor from the damage of high temperature and high voltage current, low noise low exhaust impulse noise value is lower than piston compressor 5 dB.
6. Rugged Design and Proven Durability.
7. Unloaded Start Feature Requires No Start Capacitors
8. Straight Suction Tube Allows For Low Profile Application
9. Performance Improves as Scroll Sets Wear-In
10. Internal Motor Protection with Start Winding Protection on Single Phase Models

Product Name ompresseur pour mitsubishi portable compressor RH277VHAT model for sale
Material stainless steel
Cooling capacity 16460Btu/hr
Voltage 380/420V ,50Hz, 3phase
Refrigerant R22
power 2040w
Dimension 0.025 cbm/pc
Leading time about 10 days once the order is confirmed


Specification for r-22 Compressor, Ph Rotary Models Specification, PH41VPJT, 2 Ton, Mitsubishi Rotary Compressor, 24000BTu

written by Lilianne | 22 January 2024

Product Specification

Horse Power 2 Ton
Brand Mitsubishi
Compressor Technology Rotary Compressor
Rental Available No
Spares Available No
Is It Portable Yes
Installation/After Sales Service Available No
Cylinder 1
Warranty 1 Year
Phase Single
Weight 28 Kg
No. Of Cylinder 1
Cylinder Type Round
Voltage 220 V
Material Copper
Accessories No
Application AC
Color Black
Mbsm_dot_pro_private_PDF_Rotary-CatalogueTélécharger

Mbsm_dot_pro_private_PDF_SCI_Rotary_Compressor-PHTélécharger
