Mbsm.pro, Compressor, ASF852HG, ROHS, 850 w, R134a, 1/4 hp++, 1/3 hp–, Hbp, relative, Aspera NEK6170Z

written by Lilianne | 11 March 2024

Compressor / Compressor ASF852HG HBP – R134a 208 – 230 V, 1Ph, 50 Hz.
Type of engine: CSIR.
displacement: 8.4 cm3.
Temperature range: HBP.
Suction pipe connection size: 8.10 mm.
Connection size pressure line: 6.10 mm. Weight: 10.4 kg.
Maximum height: 187.0 mm.
Power: 1/4 + hp. Efficiency: 2.07kcal / Wh.
Oil Type: ISO22.
Oil quantity: 350ml.
Starting torque: HST.

Compressor type:	Reciprocating piston
Cooling capacity (W):	850
Design:	Hermetic
Dimensions ( length × width × height ):	24.20 × 17.80 × 20.00 cm
Displacement (cm3):	8,39
Engine type:	CSIR
Info:	Oil prefilled
Manufacturer:
Max. Starting current (A):	12,4
Model series:	ROHS
Oil quantity (l):	0,35
Oil type:	ISO22, POE22
Power range (W):	852 w
Power range (hp):	0-2
Power supply:	400 V
Rated power (hp):	0.25++/0.3–
Refrigerant:	R134a
Scope of application:	HBP
Start-up torque:	Start-up torque
To be used with:	Capillary/Expansion
Type / Series:	ASF852HG
Voltage:	230V/50Hz

High, Efficiency, R134a, Hermetic, Compressor, GPY16AF, RoHS, 3/8hp, csir, lbp, 220v, 380w

written by Lilianne | 11 March 2024

R134a GPY16AF series sealed refrigeration compressor 220-240v/50Hz

The main feature:

strong loading capacity,
high efficiency,
low noise,
light vibration,
good reliability.

suitable for mid-size refrigerators, freezers, displayers, beer displayers and other mid-size refrigeration appliances. The structure form is hermetical crank connecting-rod reciprocating piston type.

They are the best selling high-tech compressors sold in the world. They are ideal for domestic refrigeration and also for small commercial applications. They are small, have low noise and vibration levels, they achieve the highest levels of efficiency available in the market for this category.

KONOR	Displ.	power	Motor type	V/Hz	Cooling capacity W	Net Weight KG
GQR60AA	6	1/6	RSIR	220-240V/50Hz	140	9.4
GQR70AA	6.6	1/5	RSIR	220-240V/50Hz	165	9.4
GQR80AA	8.1	1/4	RSIR	220-240V/50Hz	198	9.4
GQR90AA	9.1	1/4	RSIR	220-240V/50Hz	220	10.1
GQY99AA	9.9	1/4	RSIR	220-240V/50Hz	270	10.9
GQY12AF	11.8	1/3	CSIR	220-240V/50Hz	325	10.56
GQY16AF	16.2	3/8	CSIR	220-240V/50Hz	380	12.1
GP16MG	16.2	5/8	CSIR	220-240V/50Hz	870	12.5
GP12MG	11.8	5/8	CSIR	220-240V/50Hz	656	10.9
GP12TG	11.8	3/8	CSIR	220-240V/50Hz	1140	11.8
GQR80TG	8.1	1/4	CSIR	220-240V/50Hz	730	9.8
GQR90TG	9.1	1/4	CSIR	220-240V/50Hz	830	10.5
GQR60TG	6	1/5	CSIR	220-240V/50Hz	520	9.8

Specification

Hermetic motor driven the piston connecting rod type compressor. With relay start-up of hammer type, and equipped with overload protector.

Application

Widely used in homeand commercial refrigerator,air-curtain cabinet, display showcase, ice maker, chiller freezer, dehumidifier, etc.

R134a LBP Fan Cooling Compressor

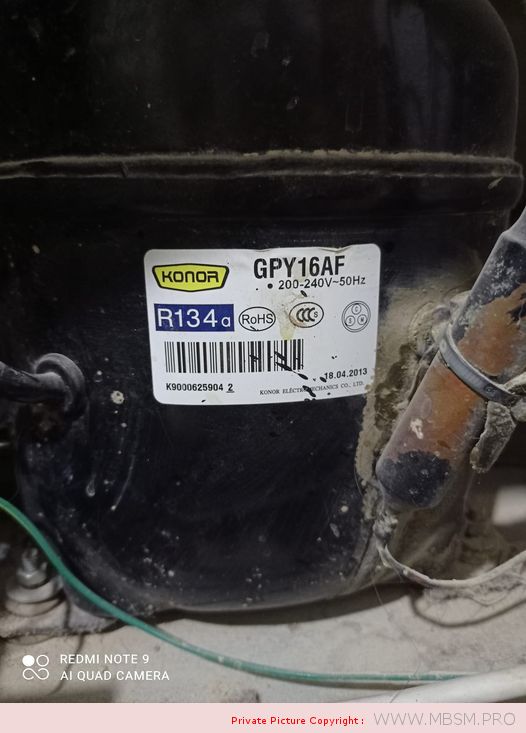

Model:GPY16AF

Power:3/8HP

Displacement:16.2cm3

Capacity:380w

COP:1.3W

Voltage:200-240V/50HZ

Motor Way:CSIR

Application:LBP

Cooling Type:Fan Cooling

Height:210mm

Net Weight:12.9kg

Dimension:210*162*237.2(mm)

Test Conditions(ASHRAE)

Evaporating temperature -23.3ºC

Condensing temperature 54.4ºC

Subcooling temperature 32.2ºC

Suction temperature 32.2ºC

Ambient temperature 32.2ºC

Conversion:
1watt=3.41Btu/h=0.86kcal/h

Mbsm_dot_pro_private_PDF_gpy16f Télécharger

Compressor, ROHS, 1/3HP, R134A, Tecumseh, CAE4448Y, HBP, 208V/50HZ 230V/60HZ

written by Lilianne | 11 March 2024

Basic Info.

Model NO.

CAE4448Y

Refrigerant Type

Ammonia

Refrigerant

R134A

Voltage

208V/50Hz 230V/60Hz

Horsepower

1/3HP

Capacity(W)

519W

Input Power(Kw)

400W

Oil Charge (Cm3)

450

Net Weight(Kg)

12kg

Cop(W/W)

1.64

Trademark

tecumseh

Transport Package

Wooden Box

Specification

208V/50HZ 230V/60HZ

Origin

France

HS Code

8414309010

1/3HP HBP Original Made in France R134A Tecumseh Compressor CAE4448Y Refrigerator Compressor For Refrigerator/Showcase/Cold Room
Product Description

Model: CAE4448Y

Brand : Tecumseh

Type: hermetic

Refrigerant: R134A

Voltage: 208V/50HZ 230V/60HZ

Cooling capacity: 519W

Input Power Watts: 400 W

Power: 1/3 HP

Mbsm_dot_pro_private_PDF_cae4448y Télécharger

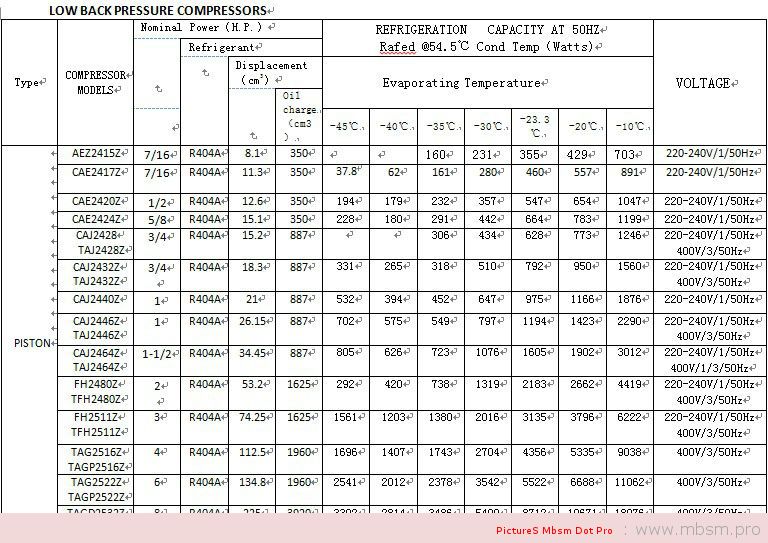

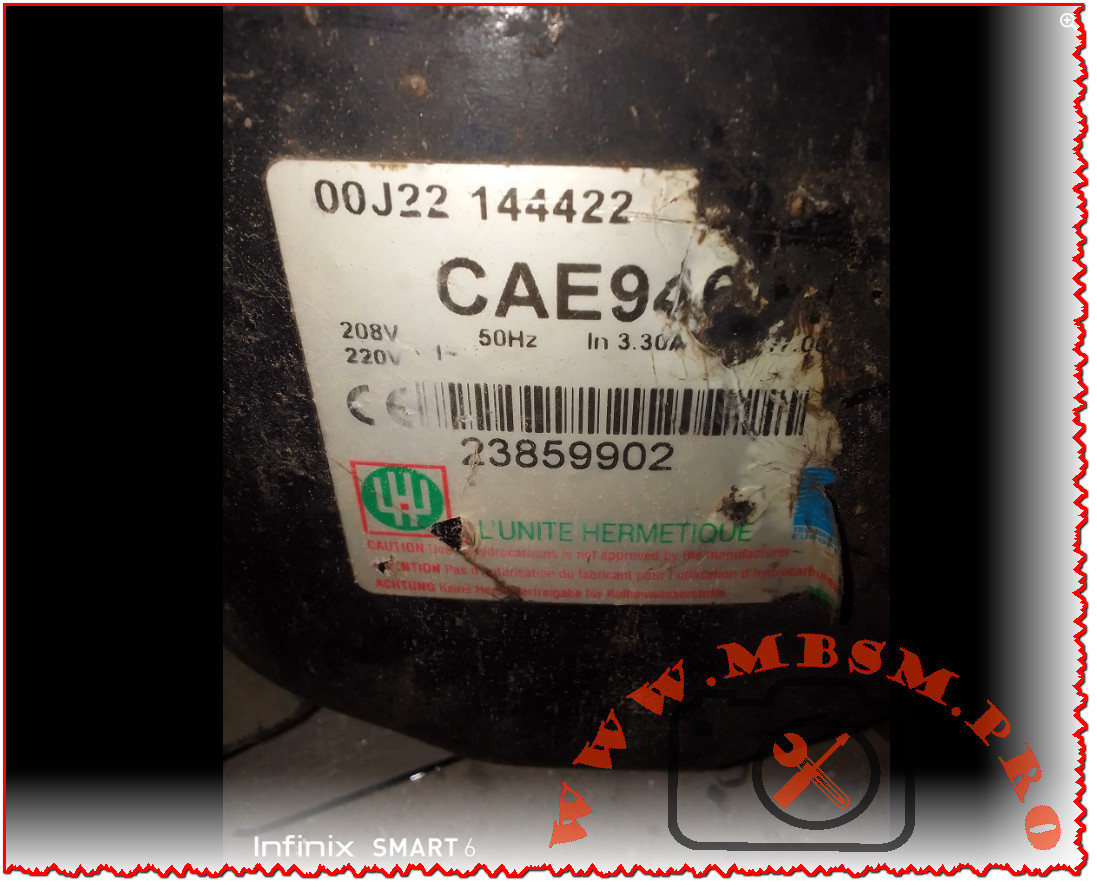

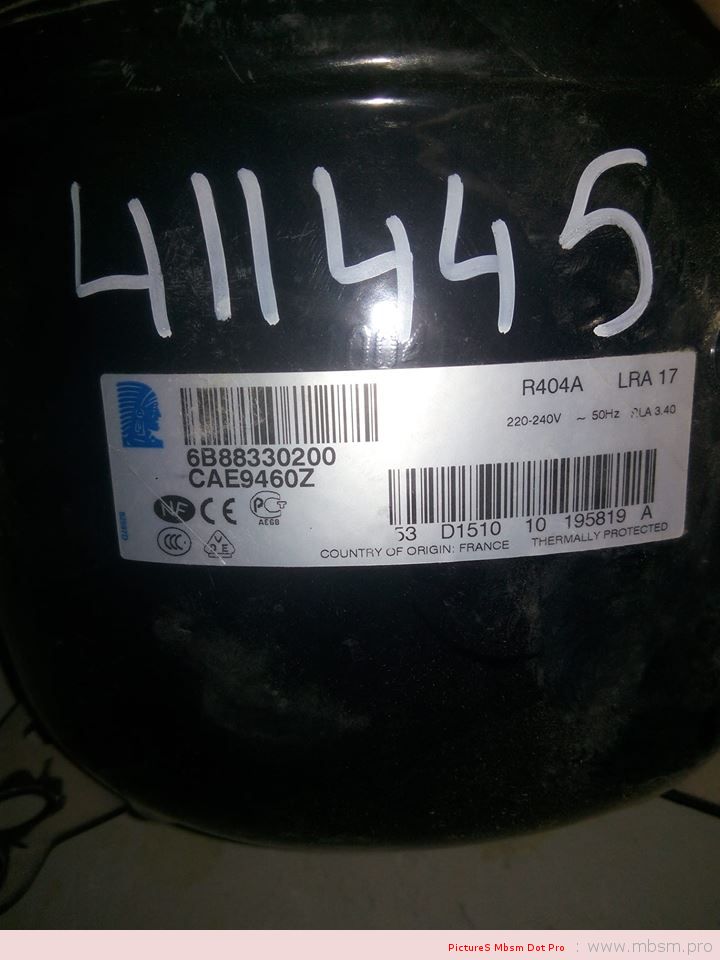

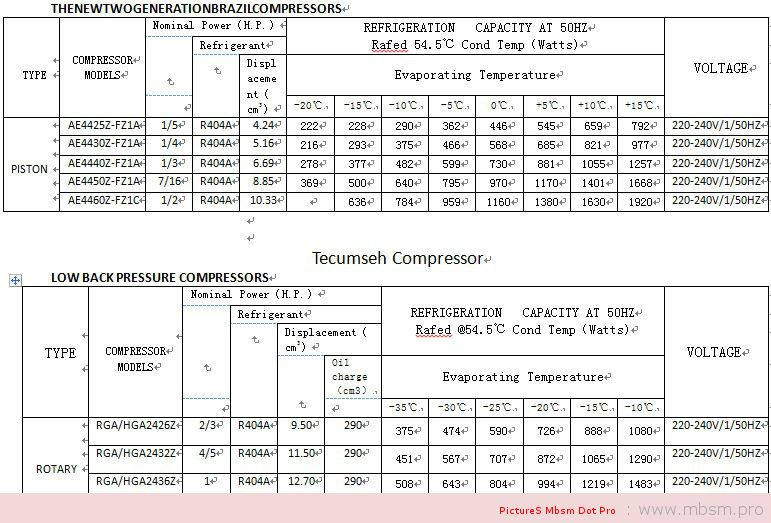

Mbsm.Pro , Tecumseh Refrigeration Compressor, CAE9460Z ,R404A refrigerant ,3/8 hp, mhbp, 1/2HP ,1PH(phase) , 220V to 240V

written by Jamila | 11 March 2024

Mbsm.Pro , Tecumseh Refrigeration Compressor ,R404A refrigerant ,1/2HP ,1PH(phase) , 220V to 240V

Brand Name:Tecumseh
Certification:RoHS
Application:Refrigeration Parts
Type:Refrigeration Compressor

Mbsm.pro, ZEL GTM93AG, 1/3 Hp , Compressor for wine coolers ,200-220V/50Hz 220-230V/60Hz, R134A

written by Jamila | 11 March 2024

Mbsm.pro, ZEL GTM93AG, 1/3 Hp , Compressor for wine coolers ,200-220V/50Hz 220-230V/60Hz, R134A

Place of Origin: China

Product Description

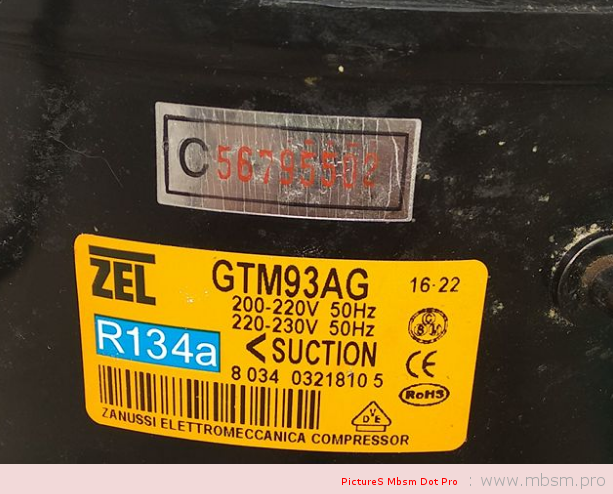

ZEL GTM93AG Compressor for wine coolers 200-220V/50Hz 220-230V/60Hz R134A

Specifications

Refrigeration Compressor
Refrigerator, freezer, drinking fountains and home ice cream,
Refrigeration Compressor
Application: Refrigerator, freezer, drinking fountains and home ice cream, ice-making machines and other products
Production Standard: CCC, DVE, RoHS, UL certificate
Packing: Carton

Household Applications

– Freezers
– Refrigerators
– Wine Coolers

Commercial Applications

– Horzontal Freezers
– Merchandisers
– Equipment for professional kitchens
– Dispenser
– Water Coolers
– Wine Coolers
– Ice makers
– Vending Machines
– Minibar

They are the best selling high-tech compressors sold in the world. They are ideal for domestic refrigeration and also for small commercial applications. They are small, have low noise and vibration levels, they achieve the highest levels of efficiency available in the market for this category.
For more details of the refrigeration compressor, please contact us.

Model	Displacement	Height	Motor Type	Cooling capacity	COP	Power Supply
	cm3	MM		W	W/W	V/Hz
GTM93AG	9.3	183	CSIR	248	1.15	200-220/50
		183	CSIR	290	1.30	220-230/60
