Yes, this compressor (ZMC EGM66AF) is an excellent fit for a 10-foot refrigerator. It is rated at approximately 1/6 HP, which is the industry standard for domestic fridges in the 10 to 12-foot range.

---

Mbsmpro.com, Compressor, EGM66AF, 1/6 hp, ZMC, Cooling, R134a, 150 W, 1.1 A, 1Ph 220-240V 50Hz, LBP

Feature	Specification
Model	ZMC EGM66AF
Utilization	LBP (Low Back Pressure)
Domaine	Freezing / Cooling (Domestic)
Oil Type and Quantity	POE / Ester Oil – ~180ml
Horsepower (HP)	1/6 HP
Refrigerant Type	R134a
Power Supply	220-240V ~ 50Hz
Cooling Capacity BTU	~512 BTU/h (at -23.3°C)
Motor Type	RSIR (Resistive Start – Induction Run)
Displacement	6.66 cm³
Winding Material	High-Grade Copper
Pression Charge	Low side: 0 – 10 PSI (typical)
Capillary	0.031″ ID
Model Fridge	10 – 12 Feet (Kiriazi, Olympic, etc.)
Temperature Function	-35°C to -10°C
With Fan or No	No (Static Cooling)
Commercial or No	No (Residential/Domestic)
Amperage in Function	0.8A to 1.1A
LRA	9.0A
Type of Relay	PTC (Positive Temperature Coefficient)
Capacitor	Generally not required (None)

---

Compressor Replacement Options

5 Replacements (Same Gas – R134a):

1. Embraco: EMY65HLC / EMI 70HER
2. Danfoss/Secop: TLS6F
3. Panasonic: QB66C13GAX5
4. Tecumseh: THG1352YGS
5. Huayi: HYE69MTU

5 Replacements (Other Gas – R600a):

Note: Requires full system flush and oil change consideration.

1. ZMC: EGM66AA
2. Embraco: EMX55CLC
3. Secop: TLES6.5KK.3
4. Donper: L72CZ1
5. Jiaxipera: T1114Y

---

The Engineering Guide to ZMC EGM66AF Performance

In the demanding world of residential cooling, the compressor serves as the mechanical heart of the appliance. The ZMC EGM66AF stands out as a robust 1/6 HP unit, specifically engineered for Low Back Pressure (LBP) applications. This model is a favorite among field engineers due to its Egyptian-made reliability, combining European design standards with local durability.

Technical Efficiency & Motor Design

The EGM66AF utilizes an RSIR motor (Resistive Start, Induction Run). Unlike many modern low-power compressors that use aluminum windings to shave weight, ZMC continues to utilize high-purity copper. This ensures better heat dissipation and reduces the risk of winding burnout during high-ambient-temperature summers.

Comparative Value Analysis

When compared to its peers, the EGM66AF offers a balanced displacement-to-power ratio:

Feature	ZMC EGM66AF	Danfoss TLS6F	Embraco EMY65HLC
Displacement	6.66 cc	5.70 cc	5.96 cc
Cooling Power	150 W	145 W	158 W
Winding Type	Copper	Mixed/Copper	Copper

Professional Field Advice & Benefits

• Optimal Environment: This compressor is designed for static cooling. Do not install it in commercial cabinets that require forced-air fan cooling unless the airflow is specifically directed at the compressor body to prevent overheating.
• Vacuum Protocol: R134a systems use POE oil, which is highly sensitive to moisture. A minimum vacuum of 500 microns is essential to prevent “acid” formation inside the capillary tube.
• Filter Drier: Always replace the filter drier when installing a new EGM66AF. A 15g or 20g drier is sufficient for a 10-foot refrigerator setup.

SEO Metadata

• Focus Keyphrase: ZMC EGM66AF Refrigerator Compressor 1/6 HP
• SEO Title: Mbsmpro.com | ZMC EGM66AF Compressor Specs | 1/6 HP R134a Technical Data
• Meta Description: Detailed technical specifications for the ZMC EGM66AF compressor. Ideal for 10-12 feet refrigerators using R134a. Find HP, cooling capacity, and 10 cross-replacement models.
• Slug: zmc-egm66af-1-6-hp-compressor-specs
• Tags: Mbsmgroup, Mbsm.pro, mbsmpro.com, mbsm, ZMC, EGM66AF, R134a, 1/6 HP, Refrigerator Repair, Compressor Replacement, Danfoss TLS6F, Embraco EMY65HLC, Panasonic QB66C, Cooling Technology.

Excerpt

The ZMC EGM66AF is a high-reliability 1/6 HP compressor designed for Low Back Pressure (LBP) applications in domestic refrigerators ranging from 10 to 12 feet. Utilizing R134a refrigerant and a 6.66cc displacement, this unit features durable copper windings and an RSIR motor, making it a preferred choice for technicians seeking longevity and efficiency.

Yes, this compressor (ZMC EGM66AF) is an excellent fit for a 10-foot refrigerator. It is rated at approximately 1/6 HP, which is the industry standard for domestic fridges in the 10 to 12-foot range.

---

Mbsmpro.com, Compressor, EGM66AF, 1/6 hp, ZMC, Cooling, R134a, 150 W, 1.1 A, 1Ph 220-240V 50Hz, LBP

Feature	Specification
Model	ZMC EGM66AF
Utilization	LBP (Low Back Pressure)
Domaine	Freezing / Cooling (Domestic)
Oil Type and Quantity	POE / Ester Oil – ~180ml
Horsepower (HP)	1/6 HP
Refrigerant Type	R134a
Power Supply	220-240V ~ 50Hz
Cooling Capacity BTU	~512 BTU/h (at -23.3°C)
Motor Type	RSIR (Resistive Start – Induction Run)
Displacement	6.66 cm³
Winding Material	High-Grade Copper
Pression Charge	Low side: 0 – 10 PSI (typical)
Capillary	0.031″ ID
Model Fridge	10 – 12 Feet (Kiriazi, Olympic, etc.)
Temperature Function	-35°C to -10°C
With Fan or No	No (Static Cooling)
Commercial or No	No (Residential/Domestic)
Amperage in Function	0.8A to 1.1A
LRA	9.0A
Type of Relay	PTC (Positive Temperature Coefficient)
Capacitor	Generally not required (None)

---

Compressor Replacement Options

5 Replacements (Same Gas – R134a):

1. Embraco: EMY65HLC / EMI 70HER
2. Danfoss/Secop: TLS6F
3. Panasonic: QB66C13GAX5
4. Tecumseh: THG1352YGS
5. Huayi: HYE69MTU

5 Replacements (Other Gas – R600a):

Note: Requires full system flush and oil change consideration.

1. ZMC: EGM66AA
2. Embraco: EMX55CLC
3. Secop: TLES6.5KK.3
4. Donper: L72CZ1
5. Jiaxipera: T1114Y

---

The Engineering Guide to ZMC EGM66AF Performance

In the demanding world of residential cooling, the compressor serves as the mechanical heart of the appliance. The ZMC EGM66AF stands out as a robust 1/6 HP unit, specifically engineered for Low Back Pressure (LBP) applications. This model is a favorite among field engineers due to its Egyptian-made reliability, combining European design standards with local durability.

Technical Efficiency & Motor Design

The EGM66AF utilizes an RSIR motor (Resistive Start, Induction Run). Unlike many modern low-power compressors that use aluminum windings to shave weight, ZMC continues to utilize high-purity copper. This ensures better heat dissipation and reduces the risk of winding burnout during high-ambient-temperature summers.

Comparative Value Analysis

When compared to its peers, the EGM66AF offers a balanced displacement-to-power ratio:

Feature	ZMC EGM66AF	Danfoss TLS6F	Embraco EMY65HLC
Displacement	6.66 cc	5.70 cc	5.96 cc
Cooling Power	150 W	145 W	158 W
Winding Type	Copper	Mixed/Copper	Copper

Professional Field Advice & Benefits

• Optimal Environment: This compressor is designed for static cooling. Do not install it in commercial cabinets that require forced-air fan cooling unless the airflow is specifically directed at the compressor body to prevent overheating.
• Vacuum Protocol: R134a systems use POE oil, which is highly sensitive to moisture. A minimum vacuum of 500 microns is essential to prevent “acid” formation inside the capillary tube.
• Filter Drier: Always replace the filter drier when installing a new EGM66AF. A 15g or 20g drier is sufficient for a 10-foot refrigerator setup.

SEO Metadata

• Focus Keyphrase: ZMC EGM66AF Refrigerator Compressor 1/6 HP
• SEO Title: Mbsmpro.com | ZMC EGM66AF Compressor Specs | 1/6 HP R134a Technical Data
• Meta Description: Detailed technical specifications for the ZMC EGM66AF compressor. Ideal for 10-12 feet refrigerators using R134a. Find HP, cooling capacity, and 10 cross-replacement models.
• Slug: zmc-egm66af-1-6-hp-compressor-specs
• Tags: Mbsmgroup, Mbsm.pro, mbsmpro.com, mbsm, ZMC, EGM66AF, R134a, 1/6 HP, Refrigerator Repair, Compressor Replacement, Danfoss TLS6F, Embraco EMY65HLC, Panasonic QB66C, Cooling Technology.

Excerpt

The ZMC EGM66AF is a high-reliability 1/6 HP compressor designed for Low Back Pressure (LBP) applications in domestic refrigerators ranging from 10 to 12 feet. Utilizing R134a refrigerant and a 6.66cc displacement, this unit features durable copper windings and an RSIR motor, making it a preferred choice for technicians seeking longevity and efficiency.

Mbsmpro.com, Compressor, MAQ QD168H, 1/4 HP, R134a, 195W, 220-240V 50Hz, LBP, Hermetic Refrigerator Compressor

The MAQ QD168H is a high-efficiency hermetic reciprocating compressor specifically engineered for low back pressure (LBP) applications. As an industry-standard power unit for domestic refrigeration, it is the ideal choice for large double-door refrigerators and deep freezers. Its design prioritizes thermal stability and energy conservation, making it a reliable workhorse for technicians and manufacturers alike.

Technical Specifications Data Sheet

Model	MAQ QD168H
Utilization	LBP (Low Back Pressure)
Domaine	Freezing / Cooling
Oil Type and Quantity	POE / Mineral – 220ml
Horsepower (HP)	1/4 HP
Refrigerant Type	R134a
Power Supply	220-240V / 50Hz
Cooling Capacity	665 BTU/h (Approx. 195W)
Motor Type	RSIR (Remote Start Induction Run)
Displacement	6.8 cm³
Winding Material	Copper
Pression Charge (Suction)	0.5 to 1.2 Bar
Capillary Recommendation	0.031″ to 0.036″
Compatible Appliance	Double door fridge (1.5m) / Chest Freezer
Temperature Function	-35°C to -15°C
Cooling Method	Static (Natural Convection)
Commercial Use	Light Commercial / Domestic
Amperage (RLA)	1.1A – 1.3A
LRA (Locked Rotor Amps)	7.5A
Type of Relay	PTC Relay
Capacitor	N/A (Optional 4-5µF for RSCR conversion)

---

Engineering Insights: Performance and Application

From a field perspective, the QD168H is recognized for its robust starting torque. When installed in a 1.5-meter double-door refrigerator, it provides sufficient mass flow to ensure the evaporator reaches sub-zero temperatures quickly. Because it uses Copper Windings, it handles the heat of continuous operation much better than cheaper aluminum-clad alternatives, leading to a significantly longer lifespan.

Comparative Performance Analysis

Below is a comparison of the MAQ QD168H against other global standards in the 1/4 HP category.

Brand/Model	Refrigerant	HP	Cooling Power (W)	COP (W/W)
MAQ QD168H	R134a	1/4 HP	195 W	1.25
Embraco FFI 7.5HAK	R134a	1/4 HP	202 W	1.29
Huayi QD75H	R134a	1/4 HP	190 W	1.22
Samsung SD162	R134a	1/5+ HP	175 W	1.20

---

Professional Replacement Guide

If you cannot find the MAQ QD168H, use these cross-references. Ensure you verify the physical dimensions and mounting base before installation.

5 Compressor Replacements (Same Gas – R134a):

1. Embraco: FFI 7.5HAK / EMI 70HER
2. Secop: TLES7.5FT.3
3. Huayi: QD75H
4. ZEL: GQD75Y
5. Jiaxipera: N1113GZ

5 Compressor Replacements (Other Gas – R600a):

Note: R600a requires a complete vacuum, different oil compatibility checks, and a specific charging scale.

1. Embraco: EMX70CLC
2. Wanbao: HMK95AA
3. Donper: KKL70CY
4. Secop: TLES7.5KK.3
5. Jiaxipera: NT1114Y

---

Installation Notice and Benefits

• Optimal Performance: Always replace the Filter Drier when installing this compressor.
• System Integrity: Use a vacuum pump for at least 20 minutes to eliminate non-condensables.
• Voltage Guard: It is highly recommended to use a voltage protector to shield the PTC relay and motor from spikes.

Focus Keyphrase: MAQ QD168H Compressor 1/4 HP R134a Specifications

SEO Title: Mbsmpro.com | MAQ QD168H Compressor 1/4 HP R134a LBP Technical Review

Meta Description: Detailed technical specifications for the MAQ QD168H 1/4 HP compressor. Learn about its cooling capacity, R134a compatibility, and 1.5m refrigerator suitability. Includes cross-reference guides and pro installation tips.

Slug: maq-qd168h-compressor-1-4-hp-r134a-specifications

Tags: Mbsmgroup, Mbsm.pro, mbsmpro.com, mbsm, MAQ QD168H, 1/4 HP Compressor, R134a, LBP Compressor, Refrigerator Repair, QD168H Replacement, Embraco FFI 7.5HAK, Secop TLES7.5FT, Huayi QD75H, ZEL GQD75Y, Samsung SD162, Cooling Capacity.

Excerpt: The MAQ QD168H is a high-performance 1/4 HP hermetic compressor designed for R134a refrigerant systems. Ideal for domestic refrigerators and freezers, it offers a cooling capacity of approximately 195W. This article provides a deep dive into its electrical characteristics, displacement, and compatible replacements to ensure a professional and efficient cooling system repair or build.

Mbsmpro.com, Compressor, MAQ QD168H, 1/4 HP, R134a, 195W, 220-240V 50Hz, LBP, Hermetic Refrigerator Compressor

The MAQ QD168H is a high-efficiency hermetic reciprocating compressor specifically engineered for low back pressure (LBP) applications. As an industry-standard power unit for domestic refrigeration, it is the ideal choice for large double-door refrigerators and deep freezers. Its design prioritizes thermal stability and energy conservation, making it a reliable workhorse for technicians and manufacturers alike.

Technical Specifications Data Sheet

Model	MAQ QD168H
Utilization	LBP (Low Back Pressure)
Domaine	Freezing / Cooling
Oil Type and Quantity	POE / Mineral – 220ml
Horsepower (HP)	1/4 HP
Refrigerant Type	R134a
Power Supply	220-240V / 50Hz
Cooling Capacity	665 BTU/h (Approx. 195W)
Motor Type	RSIR (Remote Start Induction Run)
Displacement	6.8 cm³
Winding Material	Copper
Pression Charge (Suction)	0.5 to 1.2 Bar
Capillary Recommendation	0.031″ to 0.036″
Compatible Appliance	Double door fridge (1.5m) / Chest Freezer
Temperature Function	-35°C to -15°C
Cooling Method	Static (Natural Convection)
Commercial Use	Light Commercial / Domestic
Amperage (RLA)	1.1A – 1.3A
LRA (Locked Rotor Amps)	7.5A
Type of Relay	PTC Relay
Capacitor	N/A (Optional 4-5µF for RSCR conversion)

---

Engineering Insights: Performance and Application

From a field perspective, the QD168H is recognized for its robust starting torque. When installed in a 1.5-meter double-door refrigerator, it provides sufficient mass flow to ensure the evaporator reaches sub-zero temperatures quickly. Because it uses Copper Windings, it handles the heat of continuous operation much better than cheaper aluminum-clad alternatives, leading to a significantly longer lifespan.

Comparative Performance Analysis

Below is a comparison of the MAQ QD168H against other global standards in the 1/4 HP category.

Brand/Model	Refrigerant	HP	Cooling Power (W)	COP (W/W)
MAQ QD168H	R134a	1/4 HP	195 W	1.25
Embraco FFI 7.5HAK	R134a	1/4 HP	202 W	1.29
Huayi QD75H	R134a	1/4 HP	190 W	1.22
Samsung SD162	R134a	1/5+ HP	175 W	1.20

---

Professional Replacement Guide

If you cannot find the MAQ QD168H, use these cross-references. Ensure you verify the physical dimensions and mounting base before installation.

5 Compressor Replacements (Same Gas – R134a):

1. Embraco: FFI 7.5HAK / EMI 70HER
2. Secop: TLES7.5FT.3
3. Huayi: QD75H
4. ZEL: GQD75Y
5. Jiaxipera: N1113GZ

5 Compressor Replacements (Other Gas – R600a):

Note: R600a requires a complete vacuum, different oil compatibility checks, and a specific charging scale.

1. Embraco: EMX70CLC
2. Wanbao: HMK95AA
3. Donper: KKL70CY
4. Secop: TLES7.5KK.3
5. Jiaxipera: NT1114Y

---

Installation Notice and Benefits

• Optimal Performance: Always replace the Filter Drier when installing this compressor.
• System Integrity: Use a vacuum pump for at least 20 minutes to eliminate non-condensables.
• Voltage Guard: It is highly recommended to use a voltage protector to shield the PTC relay and motor from spikes.

Focus Keyphrase: MAQ QD168H Compressor 1/4 HP R134a Specifications

SEO Title: Mbsmpro.com | MAQ QD168H Compressor 1/4 HP R134a LBP Technical Review

Meta Description: Detailed technical specifications for the MAQ QD168H 1/4 HP compressor. Learn about its cooling capacity, R134a compatibility, and 1.5m refrigerator suitability. Includes cross-reference guides and pro installation tips.

Slug: maq-qd168h-compressor-1-4-hp-r134a-specifications

Tags: Mbsmgroup, Mbsm.pro, mbsmpro.com, mbsm, MAQ QD168H, 1/4 HP Compressor, R134a, LBP Compressor, Refrigerator Repair, QD168H Replacement, Embraco FFI 7.5HAK, Secop TLES7.5FT, Huayi QD75H, ZEL GQD75Y, Samsung SD162, Cooling Capacity.

Excerpt: The MAQ QD168H is a high-performance 1/4 HP hermetic compressor designed for R134a refrigerant systems. Ideal for domestic refrigerators and freezers, it offers a cooling capacity of approximately 195W. This article provides a deep dive into its electrical characteristics, displacement, and compatible replacements to ensure a professional and efficient cooling system repair or build.

Focus Keyphrase: Matsushita Panasonic QA77C17GAX5 Refrigerator Compressor 1/4 HP R134a Specs and Cross-Reference

SEO Title: Mbsm.pro, Compressor, QA77C17GAX5, 1/4 hp, Matsushita, Cooling, R134a, 180 W, 1.2 A, 1Ph 220-240V 50Hz, LBP, RSIR

Meta Description: Full technical breakdown of the Matsushita QA77C17GAX5 compressor. Learn about its 1/4 HP capacity, R134a requirements, and the best replacement models for fridge repairs.

Slug: matsushita-qa77c17gax5-compressor-specifications-guide

Tags: Mbsmgroup, Mbsm.pro, mbsmpro.com, mbsm, Matsushita, Panasonic, QA77C17GAX5, R134a, 1/4 HP, LBP, Refrigerator Repair, Compressor Replacement, Embraco, Secop, Danfoss, LG, Tecumseh, Fridge Parts

Excerpt: The Matsushita QA77C17GAX5 is a workhorse in the refrigeration world. This 1/4 HP R134a compressor is a go-to for many household fridges and freezers. In this guide, we break down the technical specs, electrical wiring, and the most reliable replacement options to help you get your cooling system back up and running fast.

---

The Technician’s Take on the Matsushita QA77C17GAX5

When you spend enough time in the field, you start to recognize certain parts that just don’t quit. The Matsushita QA77C17GAX5 is one of those units. Produced by Panasonic, this compressor has been a standard in residential cooling for years. It’s a 1/4 HP unit designed for Low Back Pressure (LBP) applications, meaning it’s built to reach and hold those deep-freeze temperatures.

What makes this model interesting is its balance. It has a 7.7cc displacement, which is a sweet spot for R134a systems. It’s powerful enough for a full-sized family refrigerator but efficient enough that it doesn’t hammer the electric bill. From an engineering perspective, the RSIR motor is simple and reliable—fewer components like capacitors mean fewer things to fail in the heat of summer.

Real-World Performance

I’ve noticed that these compressors handle voltage dips better than many modern counterparts. While some high-efficiency units are sensitive to “dirty” power, the QA77 series is built like a tank. It delivers about 180 Watts of cooling power at standard ASHRAE conditions, making it a versatile choice for a wide range of kitchen appliances.

---

Complete Technical Data Table

Data Point	Technical Specification
Model	QA77C17GAX5
Utilisation	LBP (Low Back Pressure)
Domaine	Freezing / Cooling
Oil Type and Quantity	POE (Polyolester) / 230ml
Horsepower (HP)	1/4 HP
Refrigerant Type	R134a
Power Supply	220V – 240V / 50Hz / 1 Phase
Cooling Capacity	614 BTU/h (180 Watts)
Motor Type	RSIR
Displacement	7.7 cm³
Winding Material	Copper
Typical Pressure	Suction: ~1 PSI / Discharge: ~140 PSI
Capillary Tube	0.031″ Internal Diameter
Common Usage	Household Fridges, Chest Freezers
Temp Range	-35°C to -10°C
Fan Requirement	Static Cooling (Natural Convection)
Type	Domestic / Light Commercial
Amperage	1.1A to 1.3A
LRA (Locked Rotor)	14.5 Amps
Relay Type	PTC
Capacitor	None (Standard configuration)

---

Wiring and Electrical Logic

Working with the electrics on this unit is straightforward. It uses a three-pin terminal setup.

• Top Pin (Common): This is where your Overload Protector (OLP) sits. It’s the safety gate that shuts the compressor down if it gets too hot.
• Bottom Left/Right (Start & Run): The PTC relay slides onto these. When you power it up, the relay gives a quick “kick” to the Start winding and then lets the Run winding take over once the motor is spinning.

Pro Tip: If the compressor won’t start but it’s humming, check the PTC relay first. They often burn out before the motor does. Shake it—if it rattles like broken glass, it’s shot.

---

How it Compares to Other Brands

Manufacturer	Competitor Model	Refrigerant	Capacity (Watts)
Matsushita	QA77C17GAX5	R134a	180 W
Embraco	FFI7.5HAK	R134a	193 W
Danfoss/Secop	TLS7FT	R134a	175 W
LG	MA72LCEP	R134a	185 W

Compared to the Embraco FFI7.5HAK, the Matsushita is slightly quieter but offers almost the same cooling torque. The Embraco might pull a vacuum a bit faster, but the Matsushita generally has a longer lifespan in high-ambient environments.

---

Expert Maintenance Notice

1. Vacuum is Non-Negotiable: Because this unit uses POE oil, moisture is the enemy. POE oil absorbs water from the air, which creates acid inside the system. You must pull a deep vacuum before charging.
2. Filter Drier: Don’t be lazy—always swap the filter drier when you open the system. It’s the cheapest insurance policy you can buy for a new compressor.
3. Oil Warning: Never add mineral oil to this system. It will not mix with R134a and will eventually cause a blockage or mechanical failure.

---

Recommended Replacements

If you can’t find the exact QA77C17GAX5, these models are the closest matches in terms of performance and fit.

Top 5 R134a Replacements:

1. Embraco: EGAS80HLR (Very common, easy to find)
2. Secop: NLE7.5FT.4 (Solid European alternative)
3. Jiaxipera: ND1112Y (Found in many newer fridges)
4. Huayi: HYE69YG (Budget-friendly and reliable)
5. Tecumseh: AE1380Y (Standard heavy-duty replacement)

5 Replacements for Other Gases (Retrofit):

Note: These require a full system flush and oil check.

1. R600a (Isobutane): Panasonic QB77C16GAX5
2. R290 (Propane): Embraco EMX40CLC
3. R404A: Secop SC10MLX (Only for commercial setups)
4. R12 (Old standard): PW7.5K14 (Hard to find now)
5. R1234yf: Secop YF7.5FT (New eco-friendly standard)

The Bottom Line: The Matsushita QA77C17GAX5 is a reliable, “old-school” quality compressor. Whether you are repairing an existing fridge or designing a small cooling system, it’s a solid choice that has proven itself in the field for decades. Keep it clean, keep the system dry, and it’ll run for years.

Focus Keyphrase: Matsushita Panasonic QA77C17GAX5 Refrigerator Compressor 1/4 HP R134a Specs and Cross-Reference

SEO Title: Mbsm.pro, Compressor, QA77C17GAX5, 1/4 hp, Matsushita, Cooling, R134a, 180 W, 1.2 A, 1Ph 220-240V 50Hz, LBP, RSIR

Meta Description: Full technical breakdown of the Matsushita QA77C17GAX5 compressor. Learn about its 1/4 HP capacity, R134a requirements, and the best replacement models for fridge repairs.

Slug: matsushita-qa77c17gax5-compressor-specifications-guide

Tags: Mbsmgroup, Mbsm.pro, mbsmpro.com, mbsm, Matsushita, Panasonic, QA77C17GAX5, R134a, 1/4 HP, LBP, Refrigerator Repair, Compressor Replacement, Embraco, Secop, Danfoss, LG, Tecumseh, Fridge Parts

Excerpt: The Matsushita QA77C17GAX5 is a workhorse in the refrigeration world. This 1/4 HP R134a compressor is a go-to for many household fridges and freezers. In this guide, we break down the technical specs, electrical wiring, and the most reliable replacement options to help you get your cooling system back up and running fast.

---

The Technician’s Take on the Matsushita QA77C17GAX5

When you spend enough time in the field, you start to recognize certain parts that just don’t quit. The Matsushita QA77C17GAX5 is one of those units. Produced by Panasonic, this compressor has been a standard in residential cooling for years. It’s a 1/4 HP unit designed for Low Back Pressure (LBP) applications, meaning it’s built to reach and hold those deep-freeze temperatures.

What makes this model interesting is its balance. It has a 7.7cc displacement, which is a sweet spot for R134a systems. It’s powerful enough for a full-sized family refrigerator but efficient enough that it doesn’t hammer the electric bill. From an engineering perspective, the RSIR motor is simple and reliable—fewer components like capacitors mean fewer things to fail in the heat of summer.

Real-World Performance

I’ve noticed that these compressors handle voltage dips better than many modern counterparts. While some high-efficiency units are sensitive to “dirty” power, the QA77 series is built like a tank. It delivers about 180 Watts of cooling power at standard ASHRAE conditions, making it a versatile choice for a wide range of kitchen appliances.

---

Complete Technical Data Table

Data Point	Technical Specification
Model	QA77C17GAX5
Utilisation	LBP (Low Back Pressure)
Domaine	Freezing / Cooling
Oil Type and Quantity	POE (Polyolester) / 230ml
Horsepower (HP)	1/4 HP
Refrigerant Type	R134a
Power Supply	220V – 240V / 50Hz / 1 Phase
Cooling Capacity	614 BTU/h (180 Watts)
Motor Type	RSIR
Displacement	7.7 cm³
Winding Material	Copper
Typical Pressure	Suction: ~1 PSI / Discharge: ~140 PSI
Capillary Tube	0.031″ Internal Diameter
Common Usage	Household Fridges, Chest Freezers
Temp Range	-35°C to -10°C
Fan Requirement	Static Cooling (Natural Convection)
Type	Domestic / Light Commercial
Amperage	1.1A to 1.3A
LRA (Locked Rotor)	14.5 Amps
Relay Type	PTC
Capacitor	None (Standard configuration)

---

Wiring and Electrical Logic

Working with the electrics on this unit is straightforward. It uses a three-pin terminal setup.

• Top Pin (Common): This is where your Overload Protector (OLP) sits. It’s the safety gate that shuts the compressor down if it gets too hot.
• Bottom Left/Right (Start & Run): The PTC relay slides onto these. When you power it up, the relay gives a quick “kick” to the Start winding and then lets the Run winding take over once the motor is spinning.

Pro Tip: If the compressor won’t start but it’s humming, check the PTC relay first. They often burn out before the motor does. Shake it—if it rattles like broken glass, it’s shot.

---

How it Compares to Other Brands

Manufacturer	Competitor Model	Refrigerant	Capacity (Watts)
Matsushita	QA77C17GAX5	R134a	180 W
Embraco	FFI7.5HAK	R134a	193 W
Danfoss/Secop	TLS7FT	R134a	175 W
LG	MA72LCEP	R134a	185 W

Compared to the Embraco FFI7.5HAK, the Matsushita is slightly quieter but offers almost the same cooling torque. The Embraco might pull a vacuum a bit faster, but the Matsushita generally has a longer lifespan in high-ambient environments.

---

Expert Maintenance Notice

1. Vacuum is Non-Negotiable: Because this unit uses POE oil, moisture is the enemy. POE oil absorbs water from the air, which creates acid inside the system. You must pull a deep vacuum before charging.
2. Filter Drier: Don’t be lazy—always swap the filter drier when you open the system. It’s the cheapest insurance policy you can buy for a new compressor.
3. Oil Warning: Never add mineral oil to this system. It will not mix with R134a and will eventually cause a blockage or mechanical failure.

---

Recommended Replacements

If you can’t find the exact QA77C17GAX5, these models are the closest matches in terms of performance and fit.

Top 5 R134a Replacements:

1. Embraco: EGAS80HLR (Very common, easy to find)
2. Secop: NLE7.5FT.4 (Solid European alternative)
3. Jiaxipera: ND1112Y (Found in many newer fridges)
4. Huayi: HYE69YG (Budget-friendly and reliable)
5. Tecumseh: AE1380Y (Standard heavy-duty replacement)

5 Replacements for Other Gases (Retrofit):

Note: These require a full system flush and oil check.

1. R600a (Isobutane): Panasonic QB77C16GAX5
2. R290 (Propane): Embraco EMX40CLC
3. R404A: Secop SC10MLX (Only for commercial setups)
4. R12 (Old standard): PW7.5K14 (Hard to find now)
5. R1234yf: Secop YF7.5FT (New eco-friendly standard)

The Bottom Line: The Matsushita QA77C17GAX5 is a reliable, “old-school” quality compressor. Whether you are repairing an existing fridge or designing a small cooling system, it’s a solid choice that has proven itself in the field for decades. Keep it clean, keep the system dry, and it’ll run for years.

Focus Keyphrase: Samsung MSV4A1A-L1B Inverter Compressor Specs, Troubleshooting, and Replacements

SEO Title: Mbsmpro.com, Compressor, MSV4A1A-L1B, 1/4 HP, Samsung, R600a, Inverter, 160-260V, LBP, Korea

Meta Description: If you’re working on a modern Samsung fridge, you’ve likely run into the MSV4A1A-L1B. Here is the real-world technical breakdown of this R600a inverter compressor, including direct replacements and the specs you need on the job.

Slug: samsung-msv4a1a-l1b-inverter-compressor-guide

Tags: Mbsmgroup, Mbsm.pro, mbsmpro.com, mbsm, Samsung MSV4A1A-L1B, MSV4A1A-L1B, R600a Compressor, Inverter Compressor, LBP Refrigeration, Samsung Korea Compressor, NC4AV71ALR, FMXA9C, NLE11KK, BSA075NHMV, VNX1113Y, MSA172Q, VCC3, BMG110NHMV, QB77C16GPX5, EMY70HLC

Excerpt: The Samsung MSV4A1A-L1B is a high-efficiency inverter compressor designed for modern residential refrigeration. Operating on R600a refrigerant, this South Korean-made power unit features a variable frequency range from 54Hz to 216Hz. It offers superior thermal protection and energy modulation, making it a cornerstone for Low Back Pressure (LBP) applications requiring precise temperature control and durability.

---

Working with the Samsung MSV4A1A-L1B: A Field Tech’s Guide

If you’ve spent any time opening up modern Samsung side-by-sides, you’ve probably seen this black pot staring back at you. The MSV4A1A-L1B isn’t your grandfather’s compressor. As an inverter-driven unit, it’s smarter, quieter, but—let’s be honest—a bit more temperamental when things go wrong.

The heart of this beast is a BLDC motor that doesn’t just “kick on.” It ramps up. Using a frequency range between 54Hz and 216Hz, it adjusts to how many times the kids have left the fridge door open. From an engineering perspective, it’s a masterpiece of efficiency; from a repair perspective, it requires a bit more than just checking for 220V at the terminals.

The “Cheat Sheet” Specification Table

When you’re out in the field, you don’t want fluff. You want the numbers. Here is the technical breakdown for the MSV4A1A-L1B.

Feature	Technical Data
Model	MSV4A1A-L1B (TB3)
Utilisation	LBP (Low Back Pressure)
Domaine	Freezing / Cooling
Oil Type and Quantity	POE (Polyolester) / ~220cc
Horsepower (HP)	1/5 to 1/4 HP (Variable Capacity)
Refrigerant Type	R600a (Isobutane)
Power Supply	160-260V ~ 54-216Hz
Cooling Capacity (BTU/h)	~300 – 950 BTU/h (Modulating)
Motor Type	BLDC (Brushless DC Inverter)
Displacement	10.0 cc
Winding Material	High-Grade Copper
Temperature Function	-35°C to -10°C
With Fan or No	Forced air cooling recommended
Amperage (Running)	0.8A – 1.6A (Load dependent)
Type of Relay	Electronic Inverter Board
Capacitor	Built into the controller

---

Inverter vs. Standard: Why the Difference Matters

We often get asked why we can’t just “slap a standard compressor” in place of an inverter. Aside from the control board logic, the efficiency gap is massive. A standard RSIR (Resistive Start, Induction Run) compressor is like a light switch—either on or off. The MSV4A1A-L1B is like a dimmer switch.

Technology Comparison

Feature	Conventional Compressor	Samsung MSV4A1A-L1B
Drive	AC Induction	BLDC (Variable Frequency)
Start-up	Hard Start (High Amps)	Soft Start (Low Amps)
Refrigerant	Often R134a/R12	R600a (Isobutane)
Noise	42-45 dB	35-38 dB

---

Troubleshooting the Controller Pins

When testing this unit, you aren’t looking for a “start” and “run” winding in the traditional sense. You have three terminals (U, V, W). You should see nearly identical resistance between all three. If one is open or significantly different, the internal windings are toast.

Finding a Replacement

Sometimes, the original Samsung part isn’t available, or you need a workaround. Here’s what will get the job done.

5 Direct Replacements (R600a)

• Samsung NC4AV71ALR: The closest cousin; usually a drop-in fit.
• Embraco FMXA9C: A solid inverter choice if you can map the control signal.
• Secop NLE11KK: Reliable, though check your baseplate mounting.
• LG BSA075NHMV: Found in many similar French-door models.
• Jiaxipera VNX1113Y: Often used as an OEM alternative.

5 Cross-Gas Replacements (R134a)

Note: This is a “last resort” move. You’ll need to change the dryer and flush the system completely.

• Samsung MSA172Q: The R134a inverter equivalent.
• Embraco VCC3: Excellent variable-speed performance.
• LG BMG110NHMV: A heavy hitter for larger cabinets.
• Panasonic QB77C16GPX5: Durable and common in Asian markets.
• Secop BD50F: Highly versatile, though often requires its own driver.

---

Engineering Insights & Field Notes

• The R600a Factor: Remember, R600a is isobutane. It’s efficient, but it’s flammable. Don’t go near it with a torch until you’ve cleared the lines. Use Lokring fittings if you want to play it safe.
• The Board is Often the Culprit: If the compressor isn’t humming, check the LED on the inverter board. A blinking light usually tells you if it’s a “Locked Rotor” or a “Communication Error.”
• Heat is the Enemy: These units run hot because they are compact. Ensure the condenser fan is actually moving air, or you’ll be back in six months replacing it again.

Focus Keyphrase: Samsung MSV4A1A-L1B Inverter Compressor Specs, Troubleshooting, and Replacements

SEO Title: Mbsmpro.com, Compressor, MSV4A1A-L1B, 1/4 HP, Samsung, R600a, Inverter, 160-260V, LBP, Korea

Meta Description: If you’re working on a modern Samsung fridge, you’ve likely run into the MSV4A1A-L1B. Here is the real-world technical breakdown of this R600a inverter compressor, including direct replacements and the specs you need on the job.

Slug: samsung-msv4a1a-l1b-inverter-compressor-guide

Tags: Mbsmgroup, Mbsm.pro, mbsmpro.com, mbsm, Samsung MSV4A1A-L1B, MSV4A1A-L1B, R600a Compressor, Inverter Compressor, LBP Refrigeration, Samsung Korea Compressor, NC4AV71ALR, FMXA9C, NLE11KK, BSA075NHMV, VNX1113Y, MSA172Q, VCC3, BMG110NHMV, QB77C16GPX5, EMY70HLC

Excerpt: The Samsung MSV4A1A-L1B is a high-efficiency inverter compressor designed for modern residential refrigeration. Operating on R600a refrigerant, this South Korean-made power unit features a variable frequency range from 54Hz to 216Hz. It offers superior thermal protection and energy modulation, making it a cornerstone for Low Back Pressure (LBP) applications requiring precise temperature control and durability.

---

Working with the Samsung MSV4A1A-L1B: A Field Tech’s Guide

If you’ve spent any time opening up modern Samsung side-by-sides, you’ve probably seen this black pot staring back at you. The MSV4A1A-L1B isn’t your grandfather’s compressor. As an inverter-driven unit, it’s smarter, quieter, but—let’s be honest—a bit more temperamental when things go wrong.

The heart of this beast is a BLDC motor that doesn’t just “kick on.” It ramps up. Using a frequency range between 54Hz and 216Hz, it adjusts to how many times the kids have left the fridge door open. From an engineering perspective, it’s a masterpiece of efficiency; from a repair perspective, it requires a bit more than just checking for 220V at the terminals.

The “Cheat Sheet” Specification Table

When you’re out in the field, you don’t want fluff. You want the numbers. Here is the technical breakdown for the MSV4A1A-L1B.

Feature	Technical Data
Model	MSV4A1A-L1B (TB3)
Utilisation	LBP (Low Back Pressure)
Domaine	Freezing / Cooling
Oil Type and Quantity	POE (Polyolester) / ~220cc
Horsepower (HP)	1/5 to 1/4 HP (Variable Capacity)
Refrigerant Type	R600a (Isobutane)
Power Supply	160-260V ~ 54-216Hz
Cooling Capacity (BTU/h)	~300 – 950 BTU/h (Modulating)
Motor Type	BLDC (Brushless DC Inverter)
Displacement	10.0 cc
Winding Material	High-Grade Copper
Temperature Function	-35°C to -10°C
With Fan or No	Forced air cooling recommended
Amperage (Running)	0.8A – 1.6A (Load dependent)
Type of Relay	Electronic Inverter Board
Capacitor	Built into the controller

---

Inverter vs. Standard: Why the Difference Matters

We often get asked why we can’t just “slap a standard compressor” in place of an inverter. Aside from the control board logic, the efficiency gap is massive. A standard RSIR (Resistive Start, Induction Run) compressor is like a light switch—either on or off. The MSV4A1A-L1B is like a dimmer switch.

Technology Comparison

Feature	Conventional Compressor	Samsung MSV4A1A-L1B
Drive	AC Induction	BLDC (Variable Frequency)
Start-up	Hard Start (High Amps)	Soft Start (Low Amps)
Refrigerant	Often R134a/R12	R600a (Isobutane)
Noise	42-45 dB	35-38 dB

---

Troubleshooting the Controller Pins

When testing this unit, you aren’t looking for a “start” and “run” winding in the traditional sense. You have three terminals (U, V, W). You should see nearly identical resistance between all three. If one is open or significantly different, the internal windings are toast.

Finding a Replacement

Sometimes, the original Samsung part isn’t available, or you need a workaround. Here’s what will get the job done.

5 Direct Replacements (R600a)

• Samsung NC4AV71ALR: The closest cousin; usually a drop-in fit.
• Embraco FMXA9C: A solid inverter choice if you can map the control signal.
• Secop NLE11KK: Reliable, though check your baseplate mounting.
• LG BSA075NHMV: Found in many similar French-door models.
• Jiaxipera VNX1113Y: Often used as an OEM alternative.

5 Cross-Gas Replacements (R134a)

Note: This is a “last resort” move. You’ll need to change the dryer and flush the system completely.

• Samsung MSA172Q: The R134a inverter equivalent.
• Embraco VCC3: Excellent variable-speed performance.
• LG BMG110NHMV: A heavy hitter for larger cabinets.
• Panasonic QB77C16GPX5: Durable and common in Asian markets.
• Secop BD50F: Highly versatile, though often requires its own driver.

---

Engineering Insights & Field Notes

• The R600a Factor: Remember, R600a is isobutane. It’s efficient, but it’s flammable. Don’t go near it with a torch until you’ve cleared the lines. Use Lokring fittings if you want to play it safe.
• The Board is Often the Culprit: If the compressor isn’t humming, check the LED on the inverter board. A blinking light usually tells you if it’s a “Locked Rotor” or a “Communication Error.”
• Heat is the Enemy: These units run hot because they are compact. Ensure the condenser fan is actually moving air, or you’ll be back in six months replacing it again.

Over my decades in the refrigeration trenches, I have seen the industry shift from robust, “clunky” fixed-speed pumps to the sophisticated whispering of variable-capacity units. When I walk up to a modern high-end residential refrigerator and hear that signature high-pitched ramp-up, I know I am likely dealing with an Embraco FMXY9C. These “Fullmotion” inverter compressors are the gold standard for energy efficiency today, but for many technicians, they remain a “black box” of mystery. If the cabinet is warm and you don’t hear that specific harmonic hum, you are likely looking at a complex dance between the inverter control board and the compressor windings.

Mastering the FMXY9C: The Engineer’s Technical Breakdown

The FMXY9C is not your grandfather’s compressor. As a Senior Engineer, I categorize this as a Variable Capacity Compressor (VCC). Unlike standard units that are either “On” or “Off,” this unit varies its speed between 43Hz and 134Hz. This allows the refrigerator to maintain a near-constant temperature without the massive energy spikes associated with traditional startup cycles.

Feature	Technical Specification
Model	FMXY9C
Utilisation (MBP/HBP/LBP)	LBP (Low Back Pressure)
Domaine (Freezing/Cooling)	Domestic Freezing & Cooling
Oil Type and Quantity	Alkylbenzene (AB) / 180 ml
Horsepower (HP)	1/5 HP (Equivalent at 3000 RPM)
Refrigerant Type	R600a (Isobutane)
Power Supply	230V (3-Phase output from Inverter)
Frequency Range	43 Hz to 134 Hz
Cooling Capacity (BTU/h)	280 – 850 BTU/h (Variable)
Motor Type	BPM (Brushless Permanent Magnet)
Displacement	8.74 cm³
Winding Material	Copper
Pressure Charge (Low Side)	0.5 to 1.5 psi (Running)
Capillary Tube Size	0.026″ or 0.031″ (Application dependent)
Refrigerator Compatibility	High-end Samsung, LG, Whirlpool, Bosch
Temperature Function	-35°C to -10°C (-31°F to 14°F)
Fan Requirement	No (Static) or Yes (Enclosed cabinet)
Commercial Application	No (Domestic Only)
Amperage (Running)	0.4A to 1.5A (Varies by speed)
LRA (Locked Rotor Amps)	N/A (Electronically limited)
Relay Type	None (Direct Inverter Control)
Capacitor	None (Handled by Inverter Board)

---

The Engineer’s Secret: Diagnostic Logic for Inverter Systems

In my experience, the most common mistake field workers make is trying to “jump-start” this compressor directly from a wall outlet. Do not do this. You will instantly destroy the permanent magnet motor.

To diagnose a suspected FMXY9C failure, I follow this non-negotiable protocol:

1. The Resistance Equilibrium: Disconnect the three-pin plug. Measure the resistance between all three pins (U, V, W). You should find near-identical readings (typically between 10 to 16 ohms depending on ambient temp). If one leg is “open” or significantly higher, the compressor is dead.
2. The Inverter Signal Test: If the windings are balanced, the fault usually lies in the Embraco Control Unit. Check for the DC signal from the main logic board to the inverter. If the control board isn’t sending the “frequency command,” the compressor will never ramp up.
3. The R600a Warning: This unit uses Isobutane. I always use a “No-Flame” approach (Locring or high-quality compression fittings) unless I have a fully purged environment. Isobutane is highly flammable, and safety is paramount when opening these systems.

Comparison: FMXY9C vs. Standard Fixed-Speed Compressors

Feature	FMXY9C (Inverter)	EMY70CLP (Fixed Speed)
Energy Efficiency	Up to 40% Higher	Baseline
Temperature Swing	±0.5°C	±2.0°C
Noise Levels	32-34 dBA	38-42 dBA
Start-up Stress	Soft-start (Low stress)	High Torque (High stress)
Repair Complexity	High (Requires Electronics expertise)	Low (Mechanical/Relay focus)

---

Professional Replacement Guide

When replacing an FMXY9C, you must stay within the inverter family. You cannot replace this with a standard R134a or R600a fixed-speed motor without replacing the entire control system of the refrigerator.

5 Direct Replacements (R600a Inverter Series)

1. Embraco VEMZ 9C: The high-efficiency sibling, often a drop-in replacement.
2. Secop (Danfoss) DLX7.0KK: A robust European alternative with similar displacement.
3. Jiaxipera VNT1113Y: Frequently found in Chinese-manufactured high-end units.
4. LG BSA075NHMV: Excellent reliability if mounting brackets align.
5. Panasonic CBE series (Inverter): High-end Japanese alternative, very quiet.

5 Technical Alternatives (Different Gas/Type – Major Retrofit Required)

Warning: These require changing the control board and refrigerant circuit.

1. Embraco VEGY 8H (R134a Inverter)
2. Secop NLE15KTK (R290 – High efficiency but different pressure)
3. Embraco FFI 10HBK (Fixed Speed R134a – Requires “Hardwire” hack)
4. Tecumseh AE4440Y (Fixed Speed – Commercial grade)
5. Danfoss FR10G (Heavy duty domestic)

---

Installation Masterclass & Pro Tips

• Vacuum Depth: Because R600a systems use very small charges (often less than 60g), moisture is a system-killer. I never stop until my micron gauge hits 250 microns.
• Filter Drier: Always use a drier specifically rated for R600a. Standard R134a driers may have desiccant that reacts poorly with isobutane over long periods.
• Charging Precision: Do not charge by pressure. You must use a digital scale accurate to 1 gram. A 5-gram error is enough to cause evaporator flood-back or poor cooling performance.

---

Question: Can I use a regular start relay on the FMXY9C for testing?
Answer: Absolutely not. This compressor requires a pulsed 3-phase signal generated by the inverter control unit. Applying 230V AC directly to the pins will result in permanent internal damage to the windings and the magnetic rotor.

---

Focus Keyphrase: Embraco FMXY9C Inverter Compressor Technical Guide

SEO Title: Mbsmpro.com, Compressor, FMXY9C, 1/5 hp, Inverter, R600a, 230V 43-134Hz

Meta Description: Expert guide for the Embraco FMXY9C Inverter Compressor. Technical specs, R600a safety, 1/5 HP equivalent, LBP diagnostic tips, and professional replacement options for HVAC technicians.

Slug: mbsmpro-embraco-fmxy9c-inverter-compressor-guide

Tags: Mbsmgroup, Mbsm.pro, mbsmpro.com, mbsm, FMXY9C, Embraco Fullmotion, R600a Inverter Compressor, 1/5 HP Compressor, VCC Troubleshooting, Refrigerator Repair, Secop DLX7.0KK, Jiaxipera VNT1113Y, LG BSA075NHMV, Inverter Board Diagnosis, HVAC Engineering, Refrigeration Pro Tips.

Excerpt: The Embraco FMXY9C is a high-efficiency inverter compressor designed for modern R600a refrigeration systems. Operating at variable speeds between 43Hz and 134Hz, this unit offers superior energy savings. This guide provides technical specifications, diagnostic protocols for technicians, and a list of compatible replacements to ensure a professional-grade repair every single time.

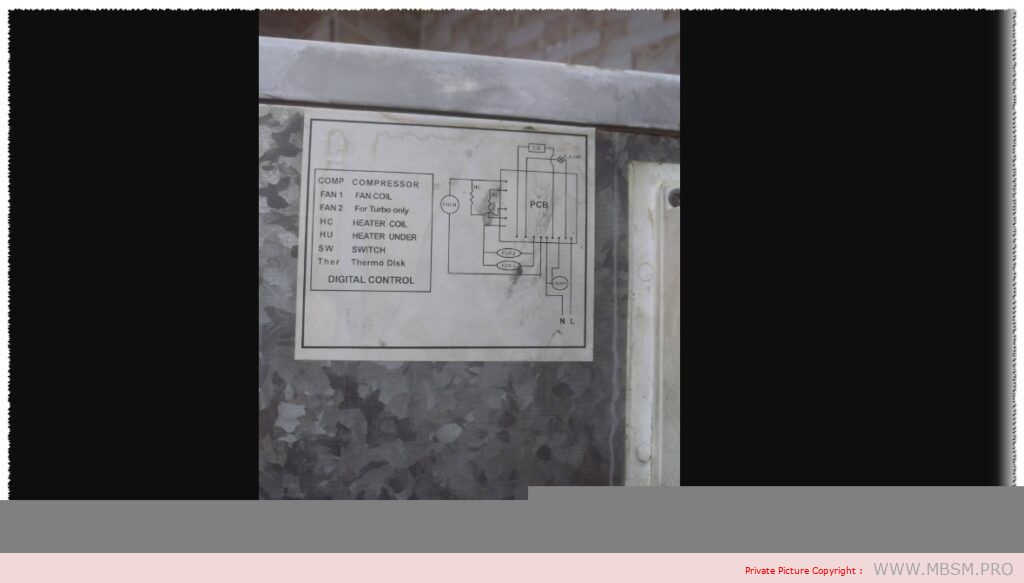

Mbsmpro.com, Compressor, HYE55YL63, EGM60AF, 1/5 hp, Huayi, ZMC, Cooling, R134a, 220-240V 50Hz, Kiriazi 14 Feet

In the demanding world of domestic refrigeration, the choice of a compressor determines the longevity and efficiency of the appliance. Two of the most prominent contenders for the 14-foot Kiriazi and similar medium-sized refrigerators are the Huayi HYE55YL63 and the ZMC EGM60AF. Both are engineered for Low Back Pressure (LBP) applications using R134a gas, but they offer distinct technical nuances that every field technician and engineer should understand.

The Huayi HYE55YL63 is a compact powerhouse with a 5.5cc displacement, optimized for balanced energy consumption. In contrast, the ZMC EGM60AF is often viewed as a slightly more robust alternative, providing a higher cooling capacity and a larger oil reservoir, which can be advantageous in high-ambient temperature environments. Understanding the intersection of these two models is essential for achieving “first-time-right” repairs.

---

Comprehensive Technical Comparison Table

Feature	Huayi HYE55YL63	ZMC EGM60AF
Model	HYE55YL63	EGM60AF
Utilisation (LBP)	LBP (Low Back Pressure)	LBP (Low Back Pressure)
Horsepower (HP)	1/5 HP	1/5 HP (High Efficiency)
Refrigerant Type	R134a	R134a
Cooling Capacity (-23.3°C)	155 W (529 BTU/h)	182 W (621 BTU/h)
Displacement	5.5 cm³	6.0 cm³
Oil Type and Quantity	POE / 200 cm³	Ester / 270 cm³
Motor Type	RSCR	RSIR / RSCR
Power Supply	220-240V / 50Hz	220-240V / 50Hz
LRA (Locked Rotor Amps)	6.5 A	11.72 A
Weight	7.9 kg	8.58 kg
Winding Material	Copper	Copper

---

Performance Dynamics: Why the EGM60AF Packs a Punch

While both compressors are rated at 1/5 HP, the ZMC EGM60AF features a larger cylinder volume of 6.0cc compared to the 5.5cc of the Huayi model. This translates directly into a higher mass flow of refrigerant.

Key Differences in Field Performance:

1. Pull-Down Time: The EGM60AF typically achieves the set-point temperature faster in a 14-foot cabinet due to its higher BTU/h output.
2. Thermal Stability: With a 270 cm³ oil charge, the ZMC model offers superior lubrication and cooling for the internal mechanical parts, making it more resilient during long run cycles in summer.
3. Efficiency: The Huayi HYE55YL63 often runs at a lower amperage (approx. 0.7A) compared to the EGM60AF, making it the preferred choice for energy-sensitive applications where a lighter load is sufficient.

---

Compressor Cross-Reference & Replacement Guide

For professionals looking to swap these units, the following models provide compatible cooling curves and physical footprints.

Top 5 Replacements (R134a Gas)

1. Embraco: EMT55HLP (1/5 HP – Standard)
2. Secop / Danfoss: TLES5.7FT.3 (High efficiency)
3. Jiaxipera: N1112GZ (Standard Chinese replacement)
4. Cubigel: GL60AA (Direct equivalent to EGM60AF)
5. Tecumseh: THB1350YS (Reliable performance)

Top 5 Replacements (Alternative R600a Gas)

Important: Only use these if converting the entire system including capillary and dryer.

1. Huayi: HYE60MT
2. Embraco: EMX55CLC
3. ZMC: EGL60AF (R600a version)
4. Secop: TLES5.7KK.3
5. Donper: S65CY

---

Expert Recommendations for the Field

As a field engineer who has handled hundreds of Kiriazi 14-foot units, I strongly advise the following during installation:

• Capillary Matching: If upgrading from a 5.5cc to a 6.0cc compressor, ensure your capillary tube is not restricted. A slight increase in capacity may lead to higher discharge pressures if the condenser is not kept clean.
• Capacitor Utility: The Huayi model performs best with a 3µF to 5µF run capacitor. This stabilizes the motor torque and protects the windings from “stalling” during hot restarts.
• The Vacuum Rule: R134a systems are highly sensitive to moisture. Always pull a vacuum below 500 microns to prevent the POE/Ester oil from turning acidic, which will eventually eat through the copper windings.

Focus Keyphrase: Huayi HYE55YL63 vs ZMC EGM60AF Compressor Review

SEO Title: Huayi HYE55YL63 vs ZMC EGM60AF: 1/5 HP Compressor Technical Battle

Meta Description: Compare technical specs of Huayi HYE55YL63 and ZMC EGM60AF compressors. Find cooling capacity, displacement, and the best choice for Kiriazi 14-foot refrigerators.

Slug: hye55yl63-vs-egm60af-compressor-comparison

Tags: Mbsmgroup, Mbsm.pro, mbsmpro.com, mbsm, Huayi, HYE55YL63, ZMC, EGM60AF, Compressor, R134a, 1/5 HP, Kiriazi 14ft, Embraco EMT55HLP, Secop TLES5.7FT.3, Jiaxipera N1112GZ, Refrigerator Repair, LBP.

Excerpt: The Huayi HYE55YL63 and ZMC EGM60AF are two industry-standard 1/5 HP compressors used in domestic refrigerators. While both utilize R134a refrigerant, they differ in displacement and oil capacity. This technical review compares their performance curves and cooling capacities to help technicians select the ideal replacement for Kiriazi and other 14-foot refrigerators.
