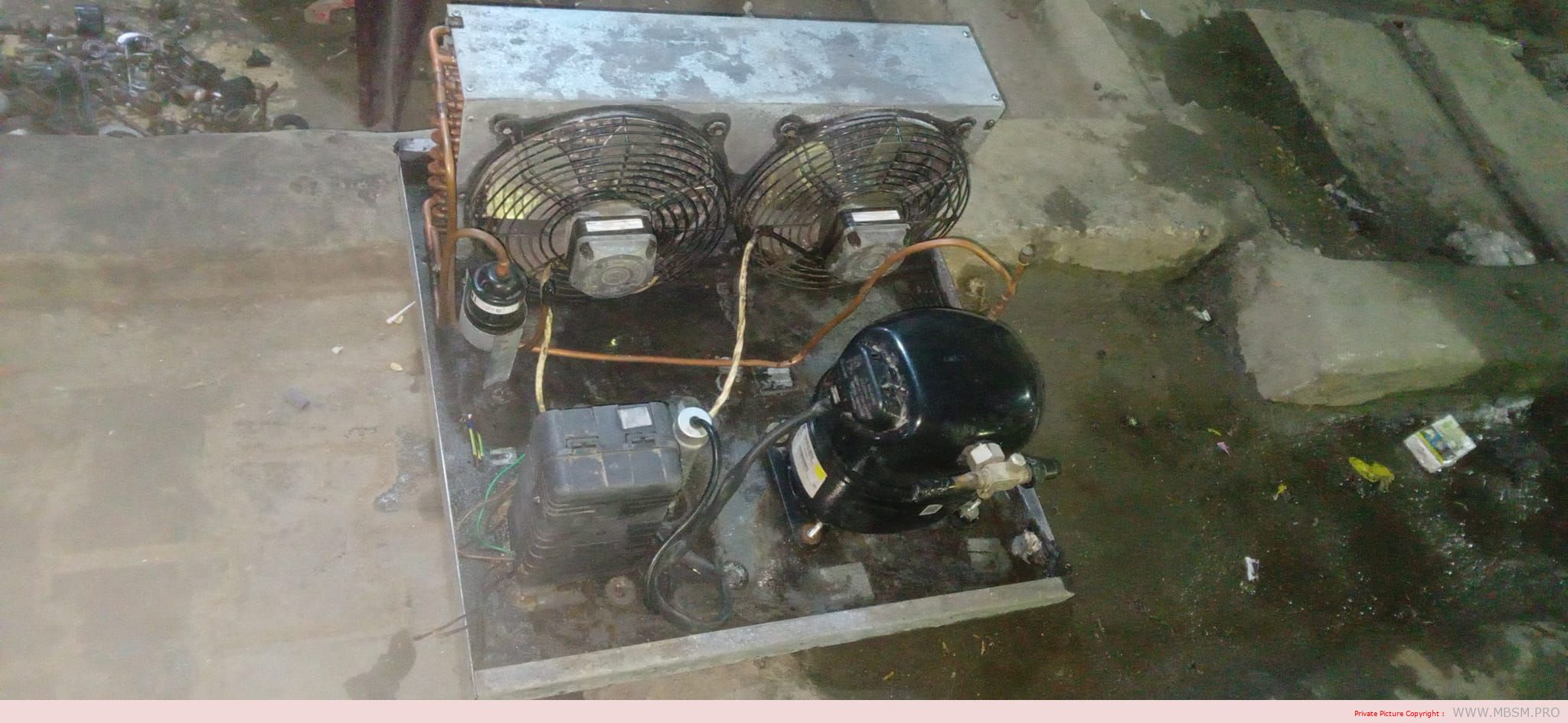

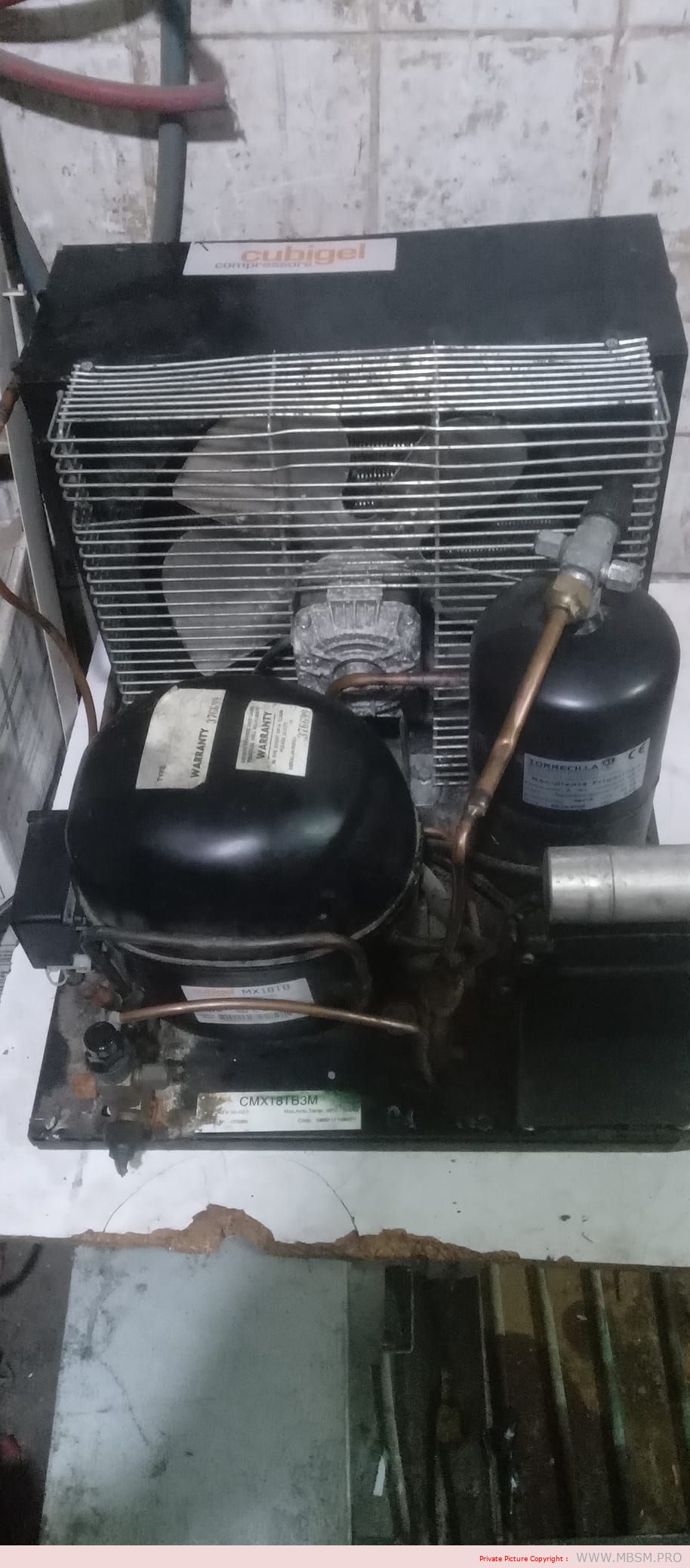

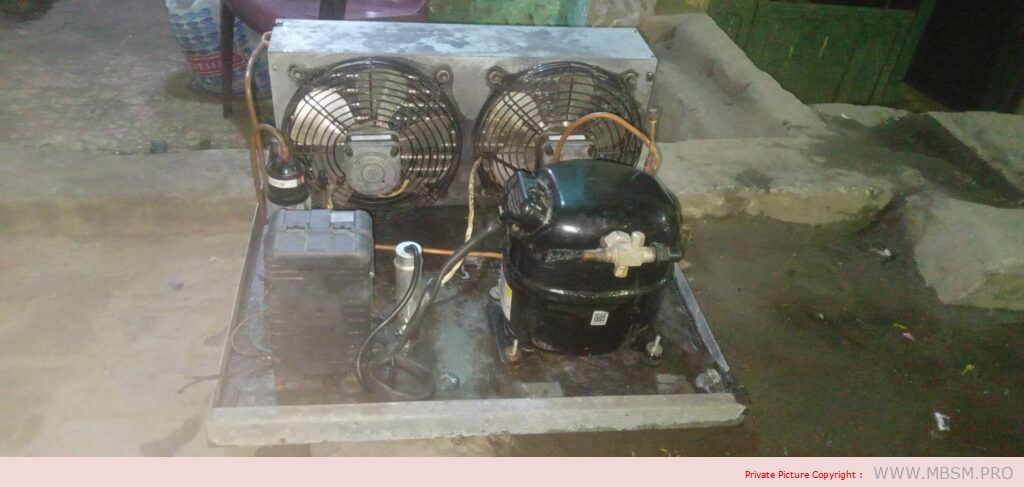

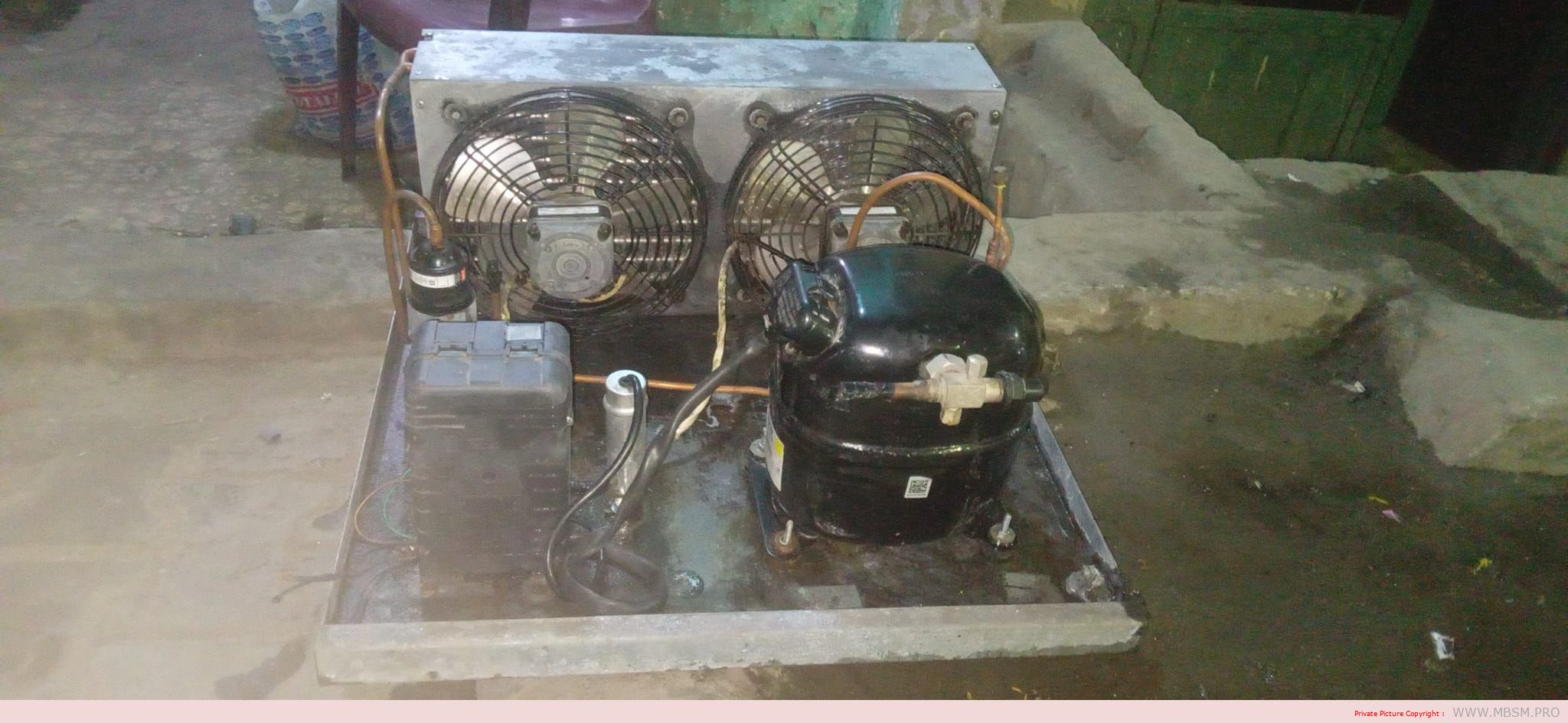

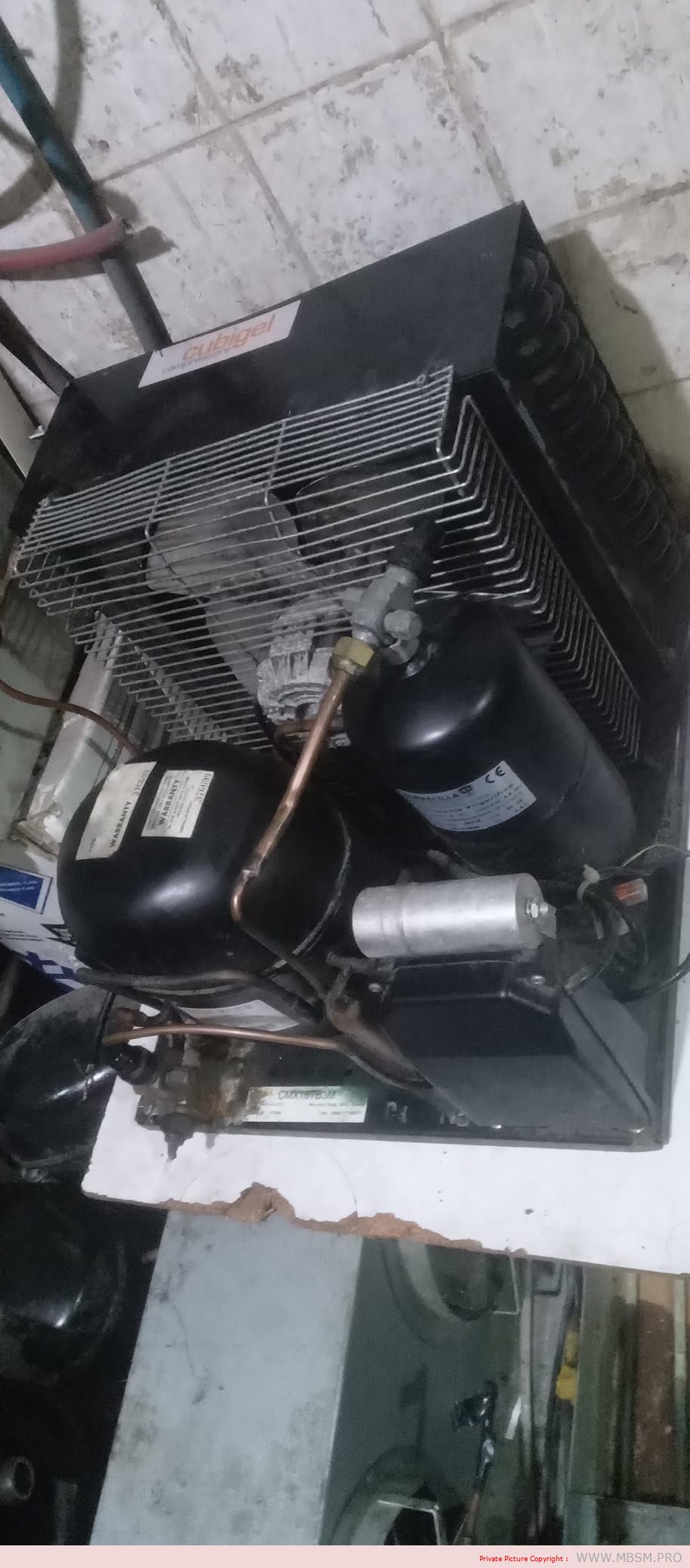

Mbsm.pro, Compressor, MX18TB, Cubigel, ACC, hermetic compressor, R404A / R507, 3/4 hp++, 7/8 hp++, 1hp, HMBP
Product information “Compressor ACC – MX18TB, HMBP – R404A, 7/8HP, 220-240V/1/50Hz”
Compressor ACC Cubigel / Huayi – MX18TB, HMBP – R404A, 220-240/50Hz Injection: capillary tube / expansion valve Power: 7/8 HP Refrigerating capacity at -25 / +55°C: 1199 W, power consumption: 2157 W Max Ambient temperature: 43 ºC Displacement: 18.4 cm3 Engine type: CSR Start element: HST Voltage range: 187-264 V Starting current: 29.5 A Oil filling: 500 cm3 Oil type: ISO VG 46 ESTER Weight: 17.2 kg Connections: 9.7 x 6.5 mm Main winding resistance: 2.09 (25ºC) Ohm Winding resistance: 7.95 (25ºC) Ohm. cooling capacity measured for condensation temperature of: 50°C, measuring conditions: ASHRAE
| COP: | 1,78 |
|---|---|
| Compressor type: | Reciprocating piston |
| Condensation temperature: | 50 °C |
| Condensing units Compressors: | Compressor |
| Connection Size: | Connection Size |
| Cooling capacity (W): | 2157 |
| Cooling capacity (W) at To -5°C: | 2400 |
| Cooling capacity (W) at To -25°C: | 640 |
| Cooling capacity (W) at To 5°C: | 1663 |
| Design: | Design, Design |
| Dimensions ( length × width × height ): | 25,00 × 17,40 × 22,10 cm |
| Displacement (cm3): | 18,4 |
| Engine type: | CSR |
| Info: | Oil prefilled |
| Manufacturer: | ACC, ACC Cubigel Huayi Electrolux ZEM |
| Max. Operating current (A): | 6,28 |
| Max. Starting current (A): | 29,5 |
| Measuring conditions: | ASHRAE |
| Modellreihe: | MX |
| Oil quantity (l): | 0,5 |
| Oil type: | ISO VG 46 Ester |
| Power range (C): | -25 C to +10 C |
| Power range (W): | 2 – 3 kW |
| Power range (hp): | 0-2 |
| Power supply: | 230 V |
| Pressure line (mm): | 6,5 |
| Rated power (hp): | 0,9 |
| Refrigerant: | R404A, R404a, R507A |
| Scope of application: | HMBP, MBP/HBP |
| Series: | MX |
| Suction line (mm): | 9,7 |
| Suction side: | 9.7 mm |
| To be used with: | Capillary/Expansion |
| Typ / Serie: | MX18TB |
| Voltage: | 220-240V |
| cooling capacity (W) at To -10°C: | 1350 |
| cooling capacity (W) at To -15°C: | 1076 |
| cooling capacity (W) at To -20°C: | 839 |
| cooling capacity (W) at To 0°C: | 2013 |
| cooling capacity (W) at To 10°C: | 2826 |
Mbsm.pro, Compressor, Cubigel, MP12FB, MPT12LA, SC12CL, 3/8 hp, R404A / R507, lbp
Compressor coolant R404a/R507 type MP12FB 220-240V 50Hz refrigeration 12kg 3/8HP power input 431W
Compressor ACC Cubigel Huayi Electrolux ZEM MP12FB / MPT12LA, LBP – R404A, R507, 220 – 240V/1/50Hz, 3/8 HP, discharge 12.05 cm3, motor type CSIR, oil type ISO VG 46 ester, oil charge 400 cm3, 351 W at -25 / +55 °, input power, current 429 W, 2.67 A, expansion device: capillar or valve, cooling: fan, weight 12 kg
MP12FB Cubigel Compressor 3/8 Hp
3/8 HP R404 LBP Compressor
- Height: 216 mm
- Width: 240 mm
- Depth: 170 mm
- Weight: 13.2 Kg
- Weight: 13.2 kg
- Application: R404A LBP
- Displacement 12 cc
- Suction Connector 3/8
- Discharge Connector 1/4
- Capacitor 47-56 mfd
- Displacement : 12 cc
