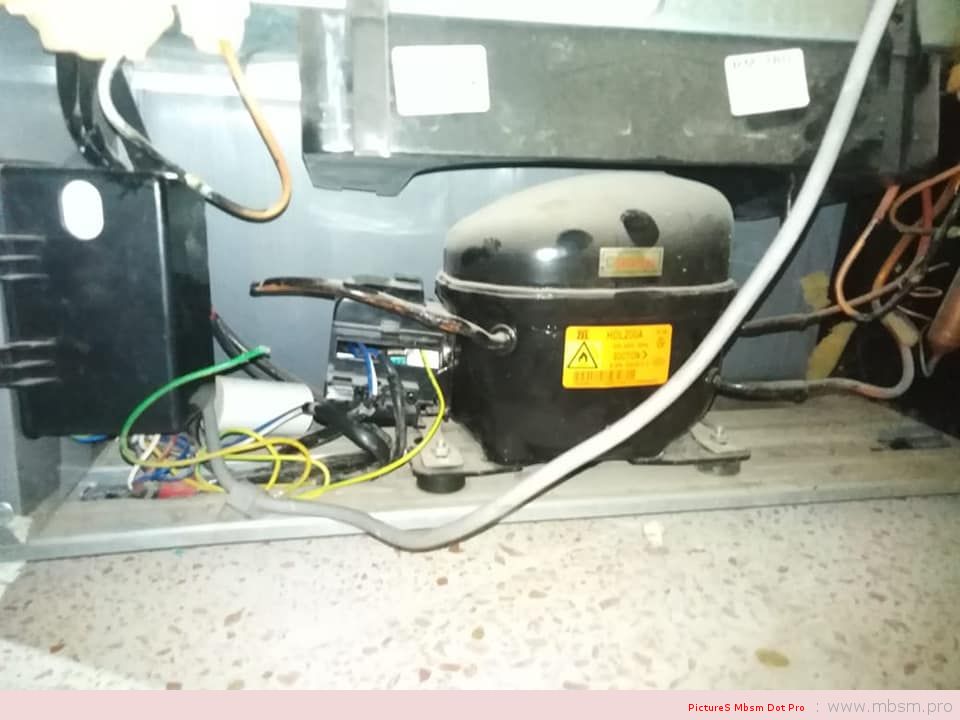

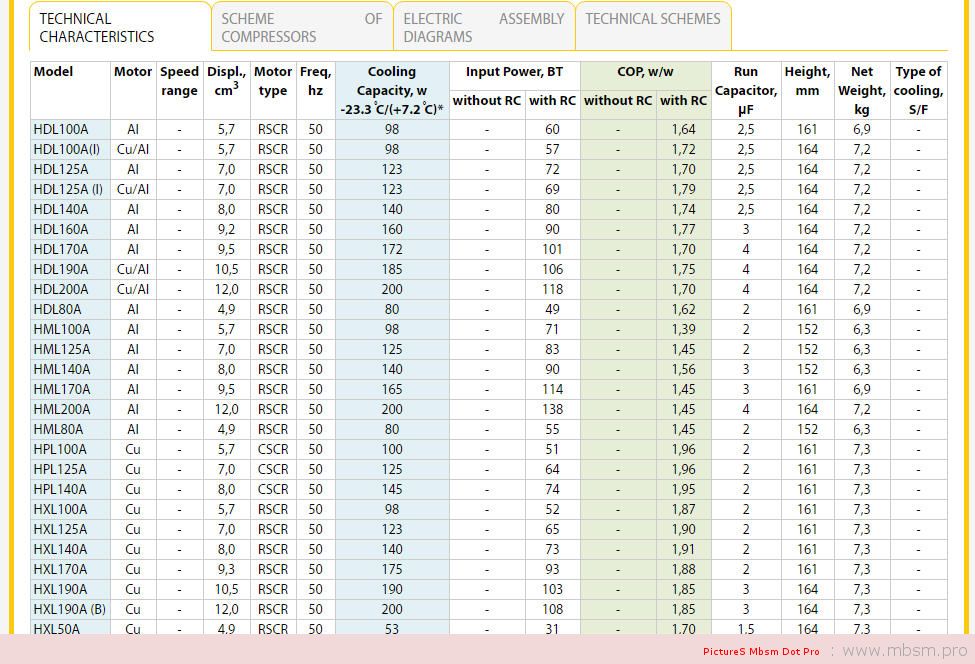

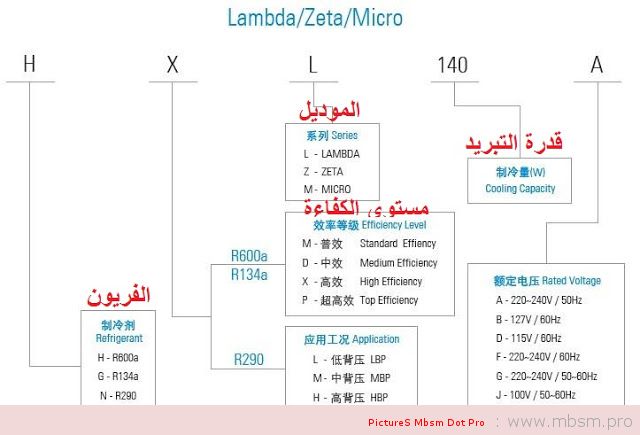

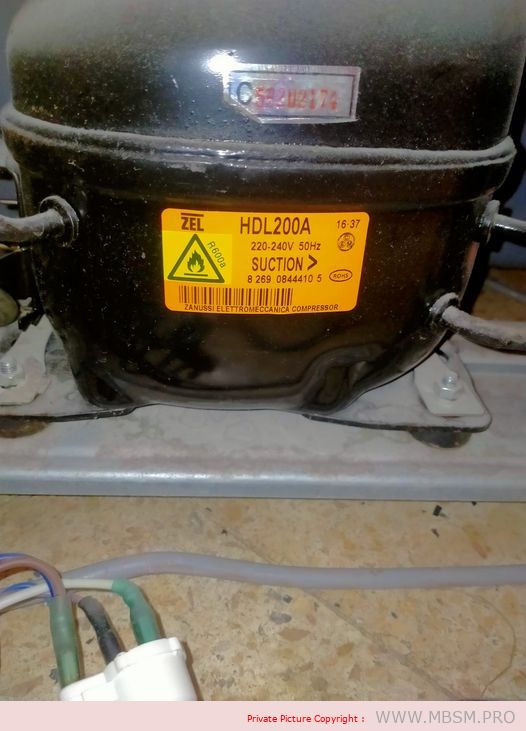

COMPRESSEUR ZEL , 200w ,HDL200A, R600a, LBP ,1/4 hp

Category: Technologie,Tester ok
written by www.mbsm.pro | 1 April 2020

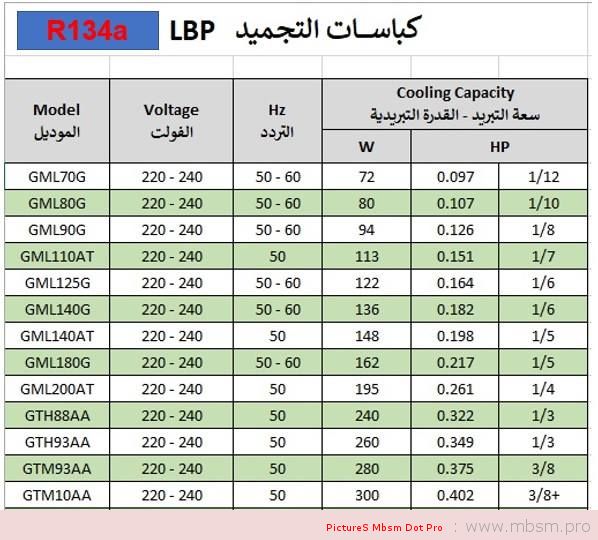

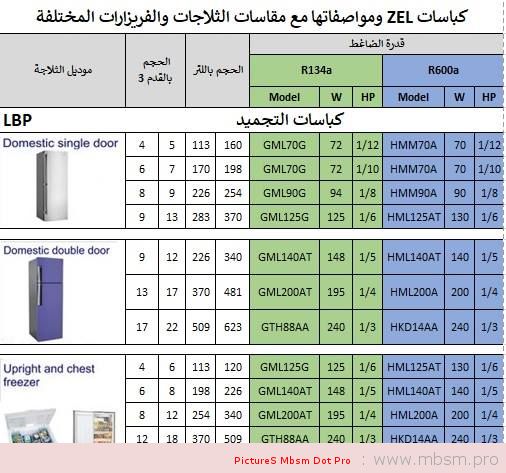

GML70G,
GML90G,
GML125G,

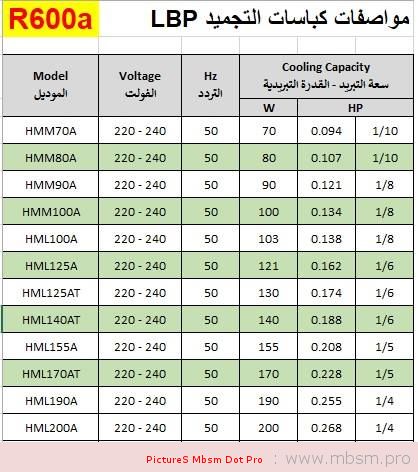

HMM70A,
HMM90A,
HML125AT,
GML140AT
GML200AT,

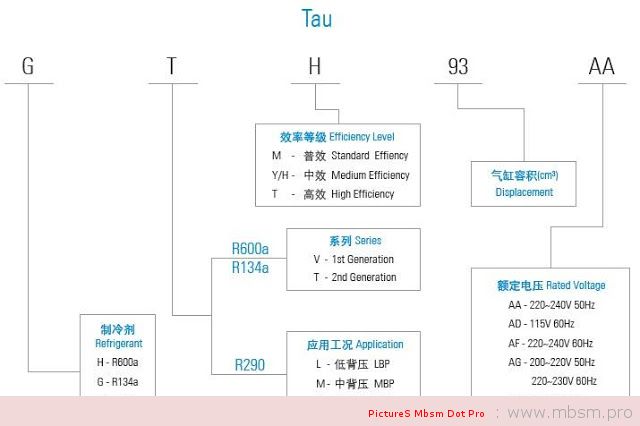

GTH88AA,
HML140AT,
HML200A,
HKD14AA,
GML125G,
GTH88AA,

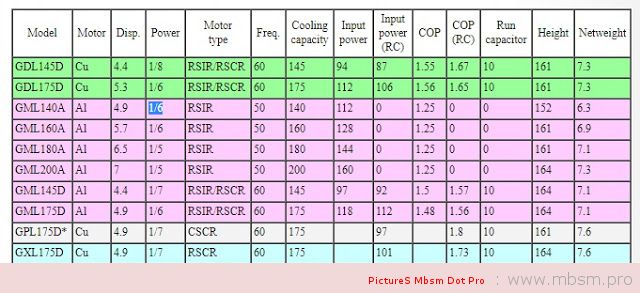

GDL145D,
GDL175D,
GML140A,
GML160A,
GML180A,
GML200A,
GML145D,
GML175D,
GPL175D*,
GXL175D,

GXL200D,

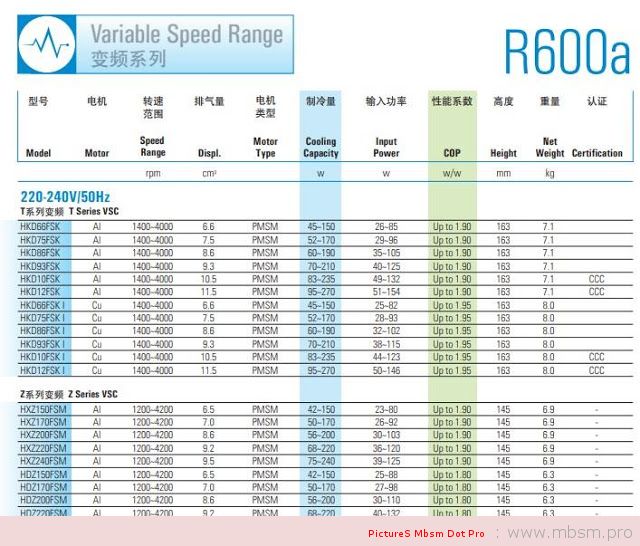

Mbsm_dot_pro_private_PDF_catalog_zelTélécharger

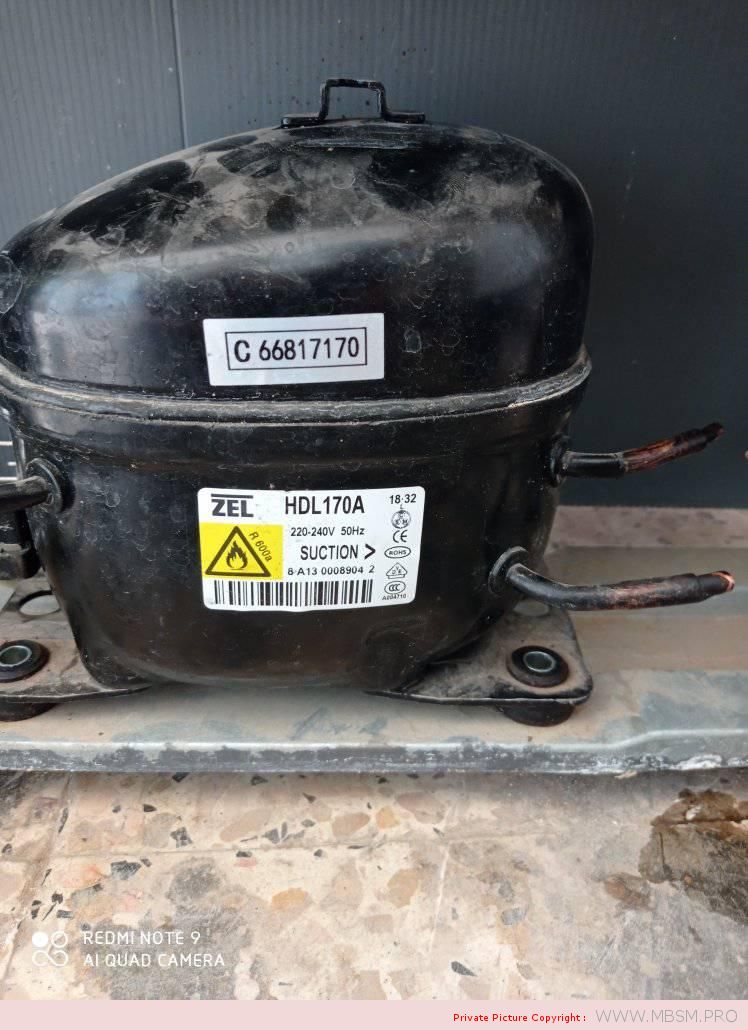

COMPRESSEUR ZEL HML170A AU R600A LBP 1/6HP 9.5CM3

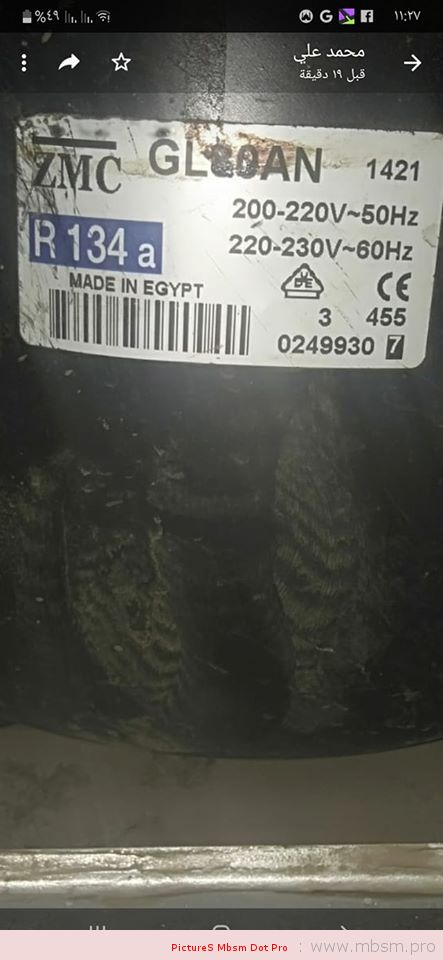

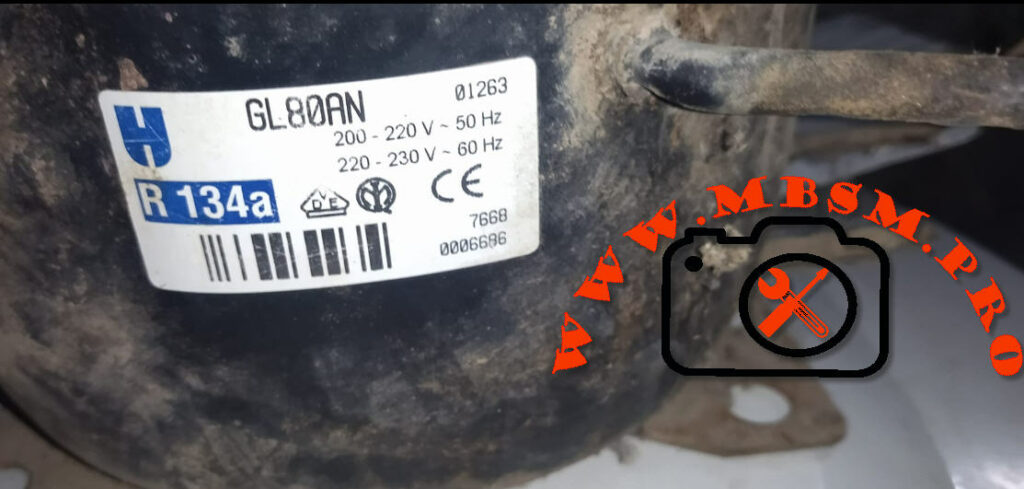

COMPRESOR ACC GL80AN R134 1/5, Cubigel Compressors LBP , Hermetic, Freezing, Tb/Cooling/hmbp

Category: Technologie,Tester ok
written by www.mbsm.pro | 1 April 2020
Type: Hermetic piston compressors
Producer: ACC
Series: HMBP/tb

Model: GL80AN

General data

Refrigerant: R134a
Discharge element: C
Cooling: S
Maximum ambient temperature [ºC]: 43

Compressor’s data

Cylinder capacity [cm³]: 8,1
Displacement [m³/h]: 1,4
Weight [kg]: 10,6
Oil charge [cm³]: 445
Oil type: ISO VG 19 ESTER

Engine’s data

Engine type: RSIR
Power [KM]: 1/5
Starting element: LST
Power supply: 220V 50Hz
Voltage range: 170-242
Locked rotor current [A]: 18
Running winding resistance (25ºC) [Ω]: 5,81
Starting winding resistance (25ºC) [Ω]: 11,01

Electrical data

Relays: 3003
Shielding element: MRP321LZ, T0683, AF11FI
Starting capacitor volume [μF]:

Connections
  milimeters inches
Suction tube: 6,5
Service tube: 6,5
Discharge tube: 4,9
GL80AN (1)Download


www.mbsm.pro, cOMPRESsOR A/A , R22 ,124MBTU, 220V/380v, 3HP, H25G124DBDE, BRISTOL

Category: Solutions,Tester ok
written by Jamila | 1 April 2020

www.mbsm.pro, cOMPRESsOR A/A ,124MBTU, 220V/380v, 3HP, H25G124DBDE, BRISTOL

1 RT  (Ton) = 12000 BTU/hr

124M BTU/hr = 10 Ton





www.mbsm.pro, Branchement de Contacteur ,De Réponse Carte mère, Climatiseur ,Sharp

Category: Solutions,Tester ok
written by Jamila | 1 April 2020

www.mbsm.pro, Branchement de Contacteur ,De Réponse Carte mère, Climatiseur ,Sharp

A1 = Entrée Courant de réponse carte mère Neutre (N) Noir 1.5mm2

A2 = Entrée Courant de réponse carte mère Phase (1) Rouge 2.5mm2

A1/a2 = C’est la Bobine 220v 50H

L1 /L3 = Entrée Courant de La Ligne De Curant  Direct Phase Rouge 2.5mm2

T1/T3 = Retour Du Compresseur Fil Rouge 2.5mm2



www.mbsm.pro , compressor, R134a ,ff16hak ,170 watt ,1/4 HP ,1PH

Category: Solutions,Tester ok
written by Jamila | 1 April 2020

www.mbsm.pro , compressor, R134a ,ff16hak ,170 watt ,1/4 HP ,1PH
