Compressor, NPT12FSC, CUBIGEL, R290, 12,10ccm, LBP, 3/8HP, 220 V 50/60 Hz

Technical Data Sheet
Compressor model NPT12FSC
Voltage 220-240V 50/60Hz ~1
Refrigerant R290
APPLICATION COMPRESSOR MOTOR
Application Low Back Pressure Displacement 12,10 cm³ Nominal Power 3/8 hp
Refrigerant R290 Diameter 27,00 mm Voltage/Frequency 220-240V 50/60Hz
Evaporating Temp. -40,0 ºC to -10,0 ºC Stroke 21,13 mm Voltage range 187-264 V
Expansion Capillar Net Weight 10,18 Kg Type ECM
Comp. Cooling Fan cooled Oil type ISO VG 32 ESTER Phase number 1 PH
Max. ambient temp. 43,0 ºC Oil charge 520 cm³ Locked Rotor Amps (LRA) 5,00 A
Max. Cont. Current (MCC) 3,70 A
Main W. resist. at 25ºC 6,70 Ω
Start W. resist. at 25ºC 6,70 Ω
NOMINAL PERFORMANCE – 3.000 RPM
ASHRAE CECOMAF
Cooling Capacity 585 kCal/h 508 W
COP 1,57 W/W 1,22 W/W
EER 1,35 kCal/Wh 1,06 kCal/Wh
Input Power 433 W 415 W
Current 3,43 A 3,30 A
TEST CYCLE CONDITIONS
ASHRAE CECOMAF
LBP (B) LBP (A)
Evaporating temp. -23,3 ºC -25,0 ºC
Condensing temp. 55,0 ºC 55,0 ºC
Liquid temp. 32,0 ºC 55,0 ºC
Ambient temp. 32,0 ºC 32,0 ºC
Suction temp. 32,0 ºC 32,0 ºC
Voltage/Frequency 220 V 50/60 Hz 220 V 50/60 Hz




Types of Electrical Motors, RSIR, CSIR, RSCR, CSR, PTC, NTC, LST, HST, MBP, HBP, LBP

Types of Electrical Motors
RSIR (Resistance Start-Induction Run)
LST motor. No capacitors. Auxiliary winding is disconnected after start
up. Standard energy efficiency.
CSIR (Capacitor Start-Induction Run)
HST motor. With starting capacitor.
Auxiliary winding is disconnected after start up. Standard efficiency.
RSCR (Resistance Start-Capacitor Run)
LST motor. With running capacitor. Auxiliary winding remains
connected after start up.
Used for high efficiency in small capacity compressors (particularly in
household refrigeration)
CSR (Capacitor Start and Run)
HST motor. Two capacitors (starting and running).
Auxiliary winding remains connected after start up.
Used for high efficiency in small compressors and for size reduced
size motors in compressors with comparatively large displacements

Type of starting device
Current relay – (electromechanical). RSIR/CSIR motors and CSR low/
medium-power motors with NTC (the NTC is connected in series with
the starting capacitor and the main purpose is to reduce the current
peaks in the relay contacts)
Potential relay – (electromechanical). CSR high-power motors.
PTC – (Positive Temperature Coefficient), the resistance increases
with the temperature. Device only with RSIR or RSCR motors in the
(Small L, B), L and P ranges.
NTC – (Negative Temperature Coefficient), the resistance decreases
with the temperature. Used in some CSR in order to reduce
dimensions and components.

Type of torque
LST – Low Starting Torque – Systems with capillary tube or balanced
pressures at start up.
HST – High Starting Torque – Systems with expansion valve or
capillary tube, with unbalanced pressures at start up.




Refrigerator, compressor, E1134CZA, 1/2 hp, E1130CZA, E1121CZA, 3/8HP, commercial, freezer, R134a

Refrigerator Compressor mainly has the following three components: box, refrigeration system and control system. The most critical of these is the refrigeration system.

Specific process–After the power is turned on, the compressor works, and the low-pressure and low-temperature gaseous refrigerant that has absorbed heat in the evaporator is sucked in. After being compressed, the temperature is 55°C-58°C and the high pressure steam, enter the condenser. Due to throttling of the capillary, the pressure is drastically reduced. Since the pressure in the evaporator is lower than the pressure in the condenser, the liquid refrigerant boils and evaporates immediately, and the heat in the absorption box becomes low pressure and low temperature vapor. It is again inhaled by the compressor.

   With this constant circulation, the internal heat of the refrigerator is continuously transferred to the outside of the box.

    Compressor (compression)—condenser (heat dissipation)—capillary (throttle)—evaporator (cold cooling)

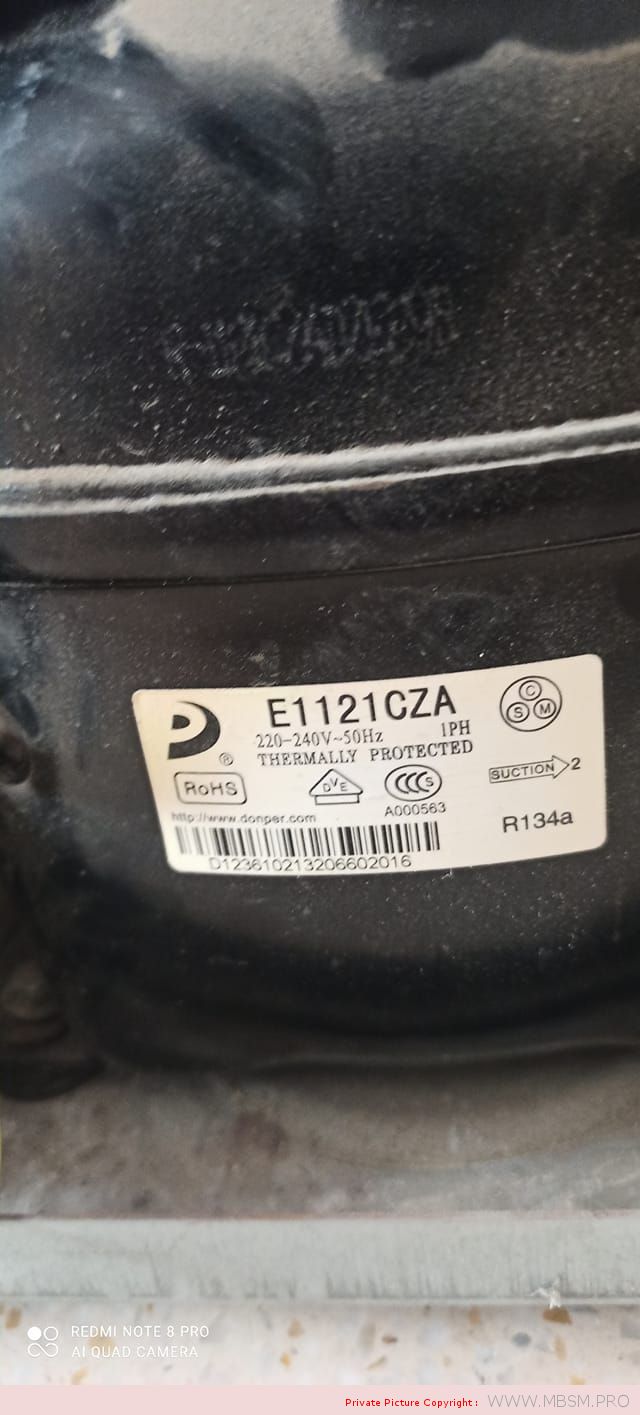

                                  Refrigerator Compressor  Model   E1121CZA
Application Refrigerator/ Freezer(320L~480L) Power 3/8 HP
Voltage 220V~240V/50HZ Pumping capacity 8.8 Cm3
Cooling capacity 270 W  COP 1.25W/W

E1134CZA R134A 1/2HP Refrigerator Compressor




Tecumseh compressor model AE4448YS,refrigeration compressor (AVEC Condensateur), R134a , Lra 19.5A , 220 V 50Hz , 3/8 H ,CSIR , Medium/High Back Pressure

Tecumseh compressor model AE4448YS,refrigeration compressor (AVEC Condensateur), R134a , Lra 19.5A , 220 V 50Hz , 3/8 H ,CSIR , Medium/High Back Pressure




3HP , 2CC-3.2 , Bitzer ,Semi hermetic ,Refrigeration ,Compressor ,for cold storage

Quick Details
Guangzhou zhigao refrigeration equipment CO.,LTD.is a professional production and sale of various domestic household air conditioners, refrigerators, freezers, cold storage of spare parts, the main varieties are compressors, refrigerant, various types of motors, refrigeration parts and all refrigeration service tool, you can achieve one-stop procurement. Our done by integrity of life, and common development business philosophy to quality first, service first for the purpose of continuous improvement and innovation, to achieve zero defect, zero complaints of goals, so that customers be assured that satisfaction!

  • Brand Name: BitzerModel Number:2CC-3.2Place of Origin: Zhejiang, China (Mainland)
  • Type:Semi hermetic Voltage:380V-420V/50HzPower Source:AC Power
  • Dimension(L*W*H):693x417x453mmQuick Details Condition: NewLubrication Style:Lubricated
  • Mute:YesConfiguration: Stationary Certification:CE
Technical Data
Displacement (1450 RPM 50Hz)  16,24 m3/h
Displacement (1750 RPM 60Hz)  19,60 m3/h
No. of cylinder x bore x stroke  2 x 55 mm x 39,3 mm
Motor voltage (more on request)  380..420V Y/3/50Hz
Max operating current  8.5A
Winding ratio
Starting current (Rotor locked)  35.0A Y
Weight  70 kg
Max. pressure (LP/HP)  19 / 28 bar
Connection suction line  22 mm – 7/8”
Connection discharge line  16 mm – 5/8”
Connection cooling water  —
Oil type R134a/R407C/R404A/R507A  tc<55°C: BSE32 / tc>55°C: BSE55 (Option)
Oil type R410A  —
Oil type R22 (R12/R502)  B5.2 (Standard)
Oil type R744 (CO2)  —
Oil charge  1,50 dm³
Crankcase heater  0..120 W PTC (Option)
Oil pressure monitoring  —
Oil level monitoring  —
Oil service valve  —
Discharge gas temperature sensor  —
Motor protection  SE-B1
Enclosure class  IP65
Start unloading  —
Capacity control  —
Additional fan  Option
Water-cooled cylinder heads  —
CIC System  —
Vibration dampers  Standard
Sound power level (+5°C / 50°C)  —
Sound power level (-10°C / 45°C)  67,0 dB(A) @ 50Hz
Sound power level (-35°C / 40°C)  70,0 dB(A) @ 50Hz
Sound pressure level @ 1m (+5°C / 50°C)  —
Sound pressure level @ 1m (-10°C / 45°C)  59,0 dB(A) @ 50Hz

We can supply more Bitzer Semi-hermetic compressor models as below:

Model Horse power Displacemet(50hz)m3/h Qty of cylinder*Diameter*Stoke(mm)
2DC-2.2 2 13.5 2*50*39.3
2DC-3.2 3 13.5 2*50*39.3
2CC-3.2 3 16.2 2*55*39.3
2CC-4.2 4 16.2 2*55*39.3
4DC-5.2 5 26.84 4*50*39.3
4DC-7.2 7 26.84 4*50*39.3
4CC-6.2 6 32.48 4*55*39.3
4CC-9.2 9 32.48 4*55*39.3
4TCS-8.2 8 41.33 4*60*42
4TCS-12.2 12 41.33 4*60*42
4PCS-10.2 10 48.5 4*65*42
4PCS-15.2 15 48.5 4*65*42
4NCS-12.2 12 56.25 4*70*42
4NCS-20.2 20 56.25 4*70*42
4H-15.2 15 73.6 4*70*55
4H-25.2 25 73.6 4*70*55
4G-20.2 20 84.5 4*75*55
4G-30.2 30 84.5 4*75*55
6H-25.2 25 110.5 6*70*55
6H-35.2 35 110.5 6*70*55
6G-30.2 30 126.8 6*75*55
6G-40.2 40 126.8 6*75*55
6F-40.2 40 151.6 6*82*55
6F-50.2 50 151.6 6*82*55
S6H-20.2 20 36.8 6*70*55
S6G-25.2 25 42.3 6*75*55
S6F-30.2 30 50.5 6*82*55



LOW BACK PRESSURE ,HITACHI , Compressor FL1257-SR , 1/5HP , R134a ,135 W , BTU/Hr 512 ,Curcuit RSIR

LOW BACK PRESSURE ,HITACHI , Compressor FL1257-SR , 1/5HP , R134a ,135 W , BTU/Hr 512 ,Curcuit RSIR



www.mbsm.pro, AEZ1360A, Kirby, Tecumseh, Compressors ,low back, pressure, models, 240v/50HT , 1PH , 1/5Hp , Gaz 12A

AEZ1360A, Kirby, Tecumseh, Compressors ,low back, pressure, models, 240v/50HT , 1PH , 1/5Hp , Gaz 12A

www.mbsm.pro, AEZ1360A, Kirby, Tecumseh, Compressors ,low back, pressure, models, 240v/50HT , 1PH , 1/5Hp , Gaz 12A

Points forts : Compresseur aez1360a pour réfrigérateur fagor FAGOR MA-10CA562COMP-QZQAZ

Modèles d’appareils concernés: – CAV999GTH – CAV999GTHF – CFG24 – CFG24 – CFV265 – CFV265F – CFV275 – CFV275A – CFV275 – CFV275H – CFV275 – CFV275I – CFV275 – CFV275J – CFV275 – CFV275K – CRISTAL27 – CRISTAL27F – CRISTAL278 – CRISTAL278F – CRISTAL28 – CRISTAL28F – CRISTAL32 – CRISTAL32A – CRISTAL32 – CRISTAL32B – CRISTAL32 – CRISTAL32F – CVH21 – CVH21A – CVH21 – CVH21F – CVH21 – CVH21G – CVL215 – CVL215F – CVL215 – CVL215S – CVL215 – CVL215T – CVL215 – CVL215U – CVL26 – CVL26A – CVL26 – CVL26F – CVL265 – CVL265F – CVL265 – CVL265R – CVL265 – CVL265S – CVL265 – CVL265T – CVL265 – CVL265U – CVL265 – CVL265V – CVL265 – CVL265W – CVT280 – CVT280H – CVT280 – CVT280J – CVT280 – CVT280K – DF1275 – DF1275F – DF24 – DF24F – DF24 – DF24G – DF246 – DF246F – DF246 – DF246R – DF246 – DF246T – DF246 – DF246U – DF246 – DF246V – DF27 – DF27F – DF27 – DF27G – DF275 – DF275F – DF275 – DF275R – DF275 – DF275T – DF275 – DF275U – DF277 – DF277F – DF277 – DF277G – DF2775 – DF2775F – DF2775 – DF2775G – DF2800 – DF2800 – DF2800 – DF2800F – DF2800 – DF2800R – DF2800 – DF2800S – DF2800 – DF2800T – DF2800 – DF2800U – DF29 – DF29F – DF29 – DF29G – DF32 – DF32 – DF32 – DF32F – DF32 – DF32L – DF325 – DF325F – DF325 – DF325L – DF7275 – DF7275 – DF7275 – DF7275F – DF7275 – DF7275R – DF7275 – DF7275T – DF7275 – DF7275U – DF7275 – DF7275V – DF8275 – DF8275F – DF8275 – DF8275G – DF8275 – DF8275H – DP4922 – DP4922 – DP4922 – DP49221 – DP4922 – DP49221J – DP4922 – DP49221K – DP4922 – DP49221UM – DP4922 – DP4922H – DP4922 – DP4922UM – DS3000 – DS3000F – DU315 – DU315F – DU315 – DU315R – DU315 – DU315S – DU315 – DU315T – DU315 – DU315U – DU3175 – DU3175F – DU3175 – DU3175G – DU32 – DU32A – DU32 – DU32B – DU32 – DU32F – DU35 – DU35A – DU35 – DU35B – DU35 – DU35F – DU35 – DU35G – DU350 – DU350F – DU350 – DU350R – DU350 – DU350S – DU350 – DU350T – DU350 – DU350U – DU355 – DU355F – DU355 – DU355R – DU355 – DU355S – DU355 – DU355T – DU355 – DU355U – DU355 – DU355V – DU357 – DU357A – DU357 – DU357B – DU357 – DU357F – DU357 – DU357G – DU3570 – DU3570F – DU3575 – DU3575F – DU3575 – DU3575G – DU36 – DU36A – DU36 – DU36B – DU36 – DU36F – DU36 – DU36G – DU367 – DU367A – DU367 – DU367B – DU367 – DU367F – DU367 – DU367G – DUO330E – DUO330EF – DUO330E – DUO330EG – DUO352E – DUO365ES – DUO365E – DUO365E – DUO365E – DUO365EF – DUO365E – DUO365EG – DUO365E – DUO365EH – DUO365E – DUO365EI – DUO365E – DUO365ER – DUO366T – DUO366TF – DUO36X – DU36XF – DUO430LX – DUO430LXF – DUO465LX – DUO465LXF – DV33 – DV33A – DV33 – DV33B – DV33 – DV33F – DV33 – DV33G – DV337 – DV337A – DV337 – DV337B – DV337 – DV337F – DV337 – DV337G – DV3378 – DV3378F – DV338 – DV338F – DV338 – DV338R – DV338 – DV338S – DV338 – DV338T – DV338 – DV338U – FA1325 – FA1325G – FCD330 – FCD330F – FCD330 – FCD330G – FCD370 – FCD370F – FCD370 – FCD370G – FDT260 – FDT260F – FDT290 – FDT290F – GS210 – GS210B – GS210 – GS210F – K150 – K150 – K150 – K150A – K150 – K150B – K150 – K150F – K150 – K150G – RHONE300 – RHONE300G – RHONE300 – RHONE300H – SF306EV – SF306EVF – SFV350 – SFV350F – SI2010 – SI2010 – SI2010 – SI2010A – SI2010 – SI2010F – SI2010 – SI2010H – SI2011 – SI2011 – SI2011 – SI2011F – SI2011 – SI2011G – SI2011WG – SI2011 – SI3010 – SI3010 – SI3010 – SI3010A – SI3010 – SI3010F – SI3010 – SI3010H – SI3010N – SI3010NF – SI3010N – SI3010NG – SI3011 – SI3011 – SI3011 – SI3011F – SI3011 – SI3011G – SI3011WG – SI3011 – SI3090 – SI3090G – SI3090 – SI3090H – SI3810 – SI3810 – SI3810 – SI3810A – SI3810 – SI3810F – SI3810 – SI3810G – SI3810 – SI3810H – SI3810N – SI3810NF – SI3810N – SI3810NG – SI3811 – SI3811 – SI3811 – SI3811F – SI3811 – SI3811G – SI3890 – SI3890G – SI3890 – SI3890H – SI4610 – SI4610 – SI4610 – SI4610A – SI4610 – SI4610F – SI4610 – SI4610H – SI4610N – SI4610NF – SI4610N – SI4610NG – SI4611 – SI4611 – SI4611

Référence : MA-10CA562COMP-QZQAZ
