Mbsm.pro, DL25YE-4, 1/4 hp , 1Ph, DAEWOO,COMPRESSOR R12, CSR, compressor, LBp, 220V 60hz

Category: compressor
written by www.mbsm.pro | 9 January 2022

Mbsm.pro, DL25YE-4, 1/4 hp , 1Ph, DAEWOO,COMPRESSOR, R12, CSR, compressor, LBp, 220V 60hz

Mbsm_dot_pro_private_PDF_PDF_DAEWOO-COMPRESSOR-catalogTélécharger
R134a 220V 60H



Model

Cooling Capacity

Efficiency

Motor Type

Cooling Type

Net Weight
[kg]

Oil Qty
[cc]

Kcal/h

Watt

Btu/h

EFF

COP

EER

Kcal/Wh

W/W

Btu/Wh

HSL21YE-4

180

209

714

0.98

1.14

3.88

RSIR

ST/OC/FC

9

290

HPL21YE-4

180

209

714

1.08

1.26

4.30

RSCR

ST/OC/FC

9

290

HKL23YE-4

196

228

778

1.03

1.2

4.09

CSIR

ST/OC/FC

9.3

290

HPL25YE-4

214

249

849

1.11

1.30

4.42

RSCR

ST/OC/FC

9.3

290

HKL25YE-4

214

249

849

1.05

1.22

4.16

CSIR

ST/OC/FC

9.5

290

HSL25YE-4

214

249

849

1.08

1.26

4.29

RSIR

ST/OC/FC

9.5

290

HDH25YE-4

750

872

2976

2.04

2.38

8.11

CSR

ST/OC/FC

9.5

290

HSH28YE-4

820

954

3254

1.77

2.06

7.01

RSIR

ST/OC/FC

9.5

290

HKL27YE-4

236

274

937

1.02

1.18

4.04

CSIR

ST/OC/FC

9.5

290

HDL27YE-4-K

236

274

937

1.00

1.16

3.97

CSIR

ST/OC/FC

9.5

290

HKL27YE-4-K

236

274

937

1.02

1.19

4.05

CSIR

ST/OC/FC

9.5

290

HKL27YE-4-KD

236

274

937

0.91

1.06

3.63

CSIR

ST/OC/FC

9.5

290

HPL27YE-4

236

274

937

1.03

1.20

4.09

CSIR

ST/OC/FC

9.5

290

HKL30YE-4

266

309

1056

1.03

1.20

4.09

RSCR

ST/OC/FC

9.5

290

HGH30YE-4

951

1106

3774

1.77

2.05

7.01

CSIR

ST/OC/FC

9.5

290

HKH30YE-4

951

1106

3774

1.75

2.04

6.94

CSIR

ST/OC/FC

9.5

290
  •


Mbsm.pro, Compressor, Embraco, Aspera, EMY26CLC, LBP, R600a, 220 – 240V/1/50Hz, 1/12 HP, RSIR, LRA 7.8 A, 83 Wat

Category: compressor
written by www.mbsm.pro | 9 January 2022
Mbsm_dot_pro_private_PDF_EMZ26CLCTélécharger

Compressor Embraco Aspera EMY26CLC, LBP – R600a, 220 – 240V/1/50Hz, 1/12 HP, discharge 5.19 cm3, engine type RSIR, oil type AB 5, oil volume 180 ml, LRA 7.8 A, 83 W at -23.3 / +54.4 , static cooling, capillary use, weight 7.1 kg

Refrigerant: R600a
Power range(W): 0 – 100 W
Working area: LBP
Design type: Hermetic
Model series: EMY
Use with: Capillary
Power range(HP): 0-2
Power supply: 230 V
Oil type: AB5
Engine type: RSIR
Article condition: New
Info: Oil filled
Shipping weight: 8,10 Kg
Dimensions ( length × width × height ): 22,80 × 15,50 × 16,50 cm
customs tariff number: 84143081
Cooling capacity condition: -23,3 / +54,4
Manufacturer: Embraco Aspera
Model: EMY26CLC
Modelname: EMT26CLP
Stroke volume (cm3): 5,19
Cooling capacity (W): 83
Power (HP): 0,1
Max. Starting current (A): 7,8
Engine type: RSIR
Oil quantity (l): 0,18
Compressor type: Piston



Mbsm.pro, Scroll, Danfoss, HRP051T4LP6, compressors, Hermetic, 49.15 kBtu/h, R22, R407C, 4 1/4Hp, 3Ph, POE, Lra 60A

Category: compressor
written by www.mbsm.pro | 9 January 2022

Product details

Gross weight 39.75 kg
Hp 4 1/4
Net weight 37.08 kg
EAN 5702428224598



Approval standard CE
UL
Brand technique Scroll compressor
Capacity control Fixed speed
Colour Black
Compressor power supply [V/Ph/Hz] 380-415/3/50 460/3/60
Configuration code Single
Connection type Brazed
Description HRP051T4
Diameter [mm] 184 mm
Discharge connection height [mm] 422 mm
Discharge connection pipe size [in] 1/2 in
Discharge connection size [in] 1/2 in
Drawing number 0XR6002B-2
Economizer No
Fitting standard ODF
Frequency [Hz] 50/60
Gauge port HP None
Gauge port LP None
Gaz equalization None
Glass mounting None
High side max pressure (Ps) 31.1 bar
High value of nominal voltage at 50Hz [V] 415 V
High value of nominal voltage at 60Hz [V] 460 V
High value of voltage range at 50Hz [V] 457 V
High value of voltage range at 60Hz [V] 506 V
IP protection class IP22
Length [mm] 239 mm
Low side max pressure (Ps) 26.2 bar
Low value of nominal voltage at 50Hz [V] 380 V
Low value of nominal voltage at 60Hz [V] 460 V
Low value of voltage range at 50Hz [V] 342 V
Low value of voltage range at 60Hz [V] 414 V
LRA 60 A
MCC 13 A
Model number HRP051T4LP6
Motor protection Internal overload protector
Nominal cooling capacity 60 kBTU/h 49.15 kBtu/h
Nominal cooling capacity at 50Hz 10.8 kW
Nominal cooling capacity at 60Hz 14.4 kW
Nominal heating capacity at 50Hz 7 kW
Number of starts per hour [Max] 12
Oil charge [L] 1.57 L
Oil drain None
Oil equalization None
Oil reference 320HV
Oil type PVE
Packing format Industrial pack
Packing quantity 16
Phase 3
Power connections Spade
Refrigerant R407C
Refrigerant charge [kg] [Max] 5.44 kg
Relief valve Yes
RLA 8.3 A
Rotational speed at 50Hz [rpm] 2900 rpm
Rotational speed at 60Hz [rpm] 3500 rpm
Segment usage Air conditioning
Shipped instructions Installation instructions
Shipped mounting Mounting kit with grommets and sleeves
Shipped oil Initial oil charge
Suction connection height [mm] 280 mm
Suction connection pipe size [in] 7/8 in
Suction connection size [in] 7/8 in
Swept volume [cm3] 68.83 cm³
Technology Scroll
Total height [mm] 455 mm
Type HRP
Type designation Compressor
Viscosity [cP] 68 cP
Width [mm] 239 mm
Winding resistance 1-2 [Ohm] 2.6 Ohm
Winding resistance 1-3 [Ohm] 2.61 Ohm
Winding resistance 2-3 [Ohm] 2.65 Ohm
Mbsm_dot_pro_private_PDF_HRP051T4LP6-OM-Danfoss-H-Series-1Télécharger
Mbsm_dot_pro_private_PDF_HRP051T4LP6-OM-Danfoss-H-SeriesTélécharger


Mbsm.pro, Motor, compressor, type, RSIR, RSCR, CSIR, CSCR, PSC

Category: compressor
written by www.mbsm.pro | 9 January 2022


Mbsm.pro, COMPRESSOR, ZEL, Zanussi, refrigerator, CUBIGEL/ ACC , HML140A, HDL140A, LBP, R600A, 220-240V, 1 /8hp, 140w

Category: compressor
written by www.mbsm.pro | 9 January 2022

Compressor ZEL HDL140A, LBP – R600a, 220-240V, 8.1 cm3.
R600, LBP. 220 / 240V, 1 /8hp, 50Hz. Stroke volume: 8.10 cm3. Cooling capacity according to Ashrae (-23.3C °): 136kcal / h, Cecomaf (-25 ° C): 102W. Operation with expansion valve / capillary tube ..

Compresseur de liquide de refroidissement R600A ZEL HML140A HS-384

Model HML140A 1/8
Voltage/Frequence 220~240V/50Hz
Refrigerant R600a
Type RSIR/RSCR
Capacitance 3μF
Refrigeration oil mineral oil
Weight 7.1kg±0.4kg
Starting performance 187V (0.3MPa,abs,surrounding temperature 43℃)
Starting electric current 8.46A
Cylinder capacity (cm3)8.0cc
Refrigerating capacity (W)145
Input power (W)97
Working electric current (A)0,5
COP1,51

Shipping Class Standard
Scope Of Application LBP
Lieferzeit 3 Wochen
Maker ZEL
Manufacturer No. HDL140A
Displacement In Cm3 8.1
Style 1
Refrigerants R600a
Condensing Units Compressors Compressors
Suspense 220-240V
Weight In Kg 832

Compresseur de liquide de refroidissement R600A ZEL HML140A HS-384

Voltage/Frequence 220~240V/50Hz
Refrigerant R600a
Type RSIR/RSCR
Capacitance 3μF
Refrigeration oil mineral oil
Weight 7.1kg±0.4kg
Starting performance 187V (0.3MPa,abs,surrounding temperature 43℃)
Starting electric current 8.46A
Cylinder capacity (cm3)8.0cc
Refrigerating capacity (W)145
Input power (W)97
Working electric current (A)0,5
COP1,51

Mbsm_dot_pro_private_PDF_catalogo-compresores-ZEL-pdfTélécharger


Thermostat d’ambiance ,Thermostat de sécurité,Marque IMIT,Italie

Category: Pictures
written by www.mbsm.pro | 9 January 2022


SCHNEIDER N:ATV32H075M2 variable speed drive ATV32 – 0,75 kw – 200 V – 1 phase – with heat sink

Category: Pictures
written by www.mbsm.pro | 9 January 2022


PINCE EMBOITURE VIRAX 12-32MM SERTISSAGE AXIAL PER-PEX 12-16MM

Category: Pictures
written by www.mbsm.pro | 9 January 2022


Machine a laver lg 11kg

Category: Pictures
written by www.mbsm.pro | 9 January 2022

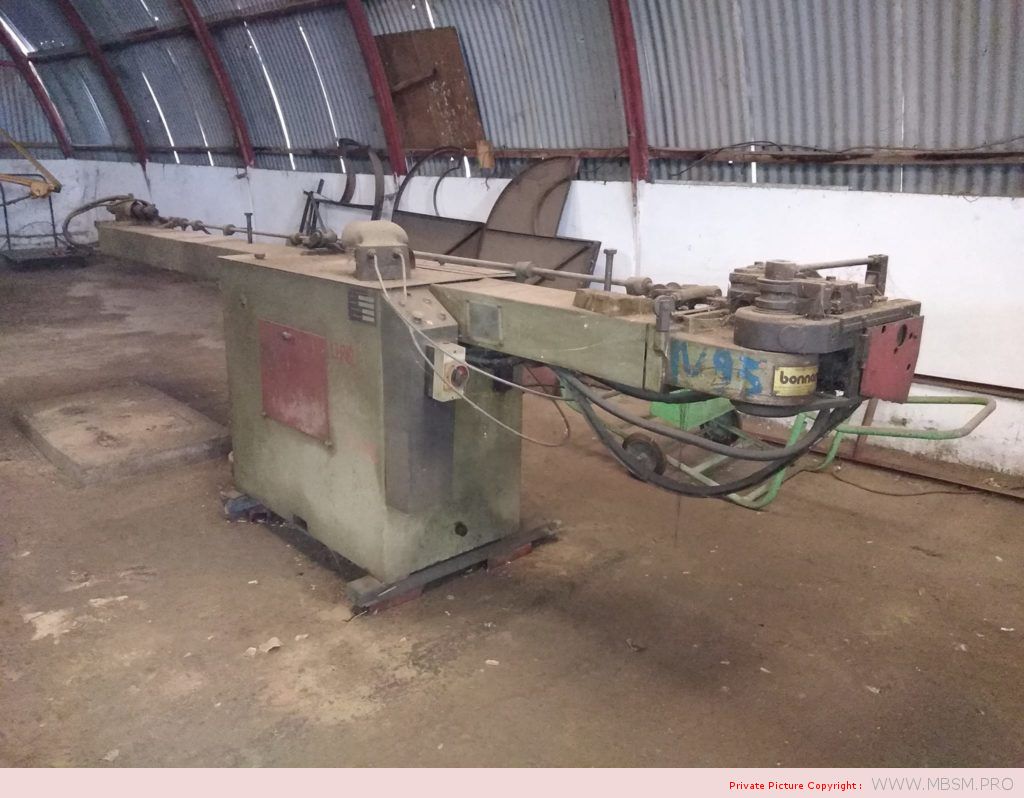

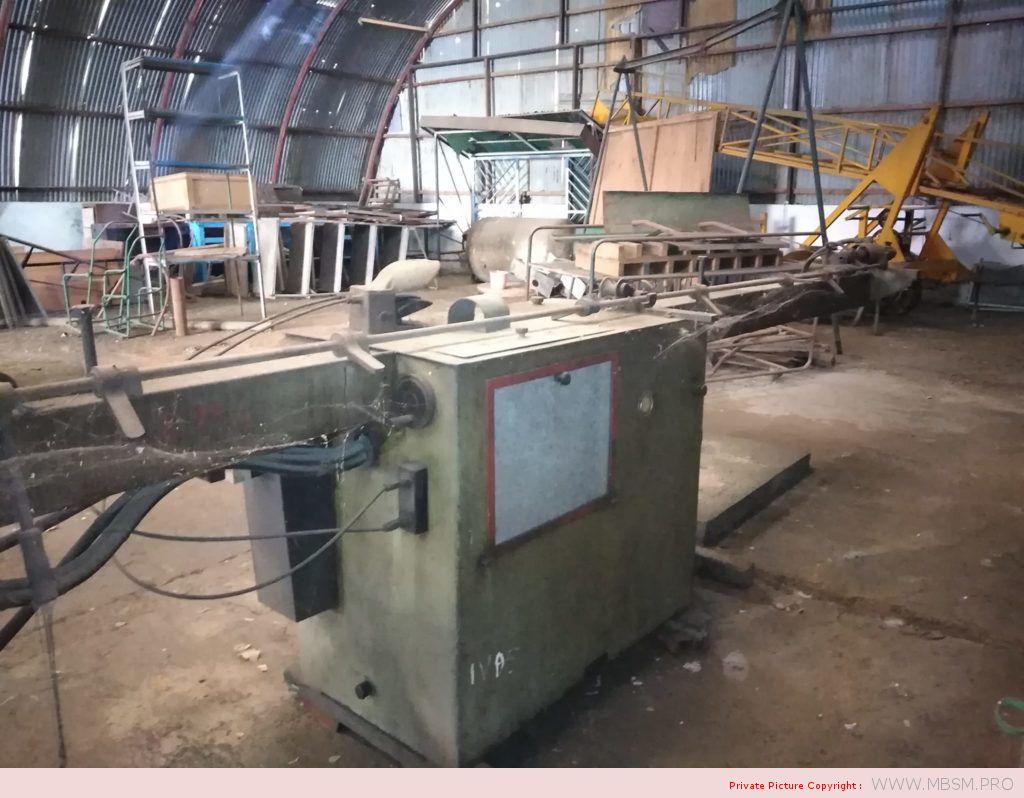

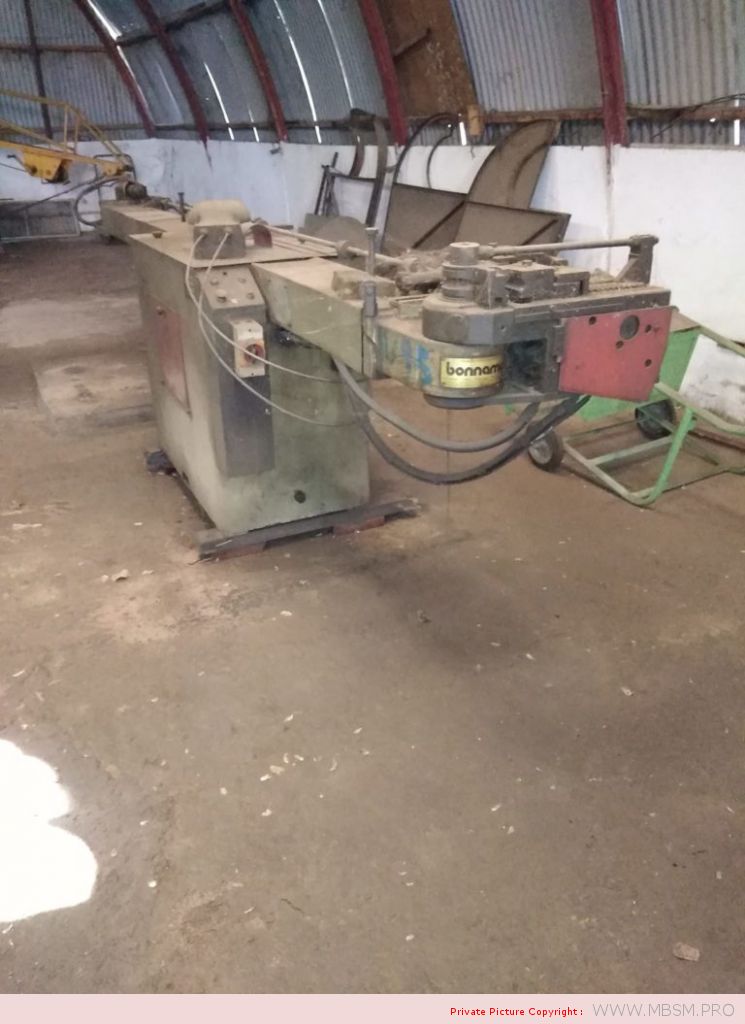

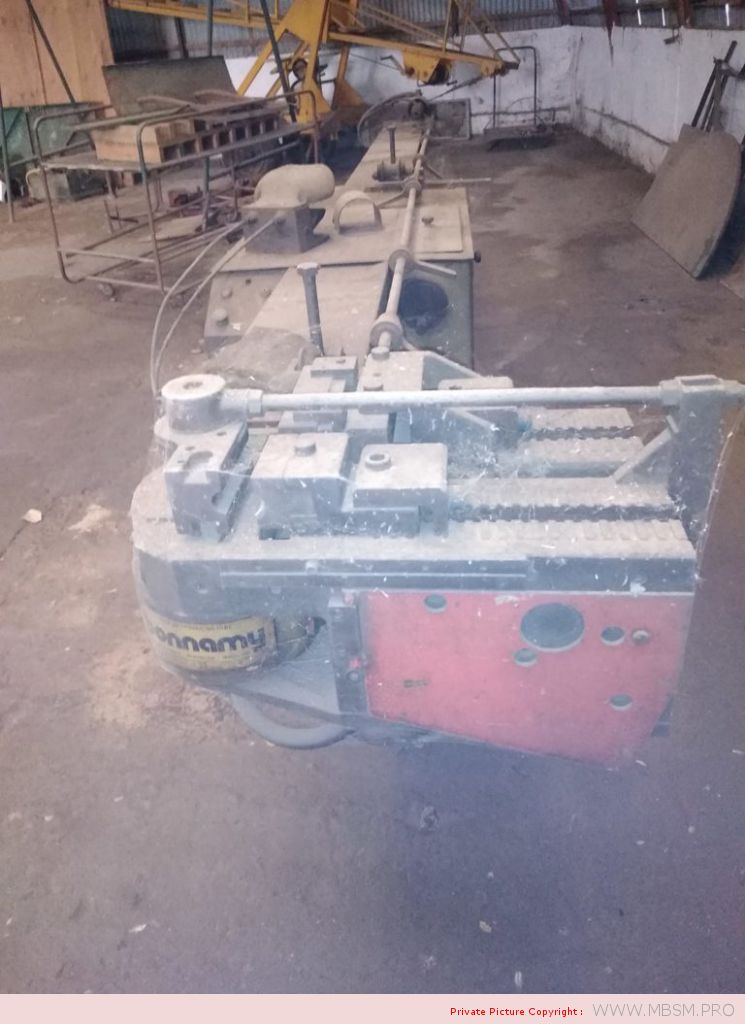

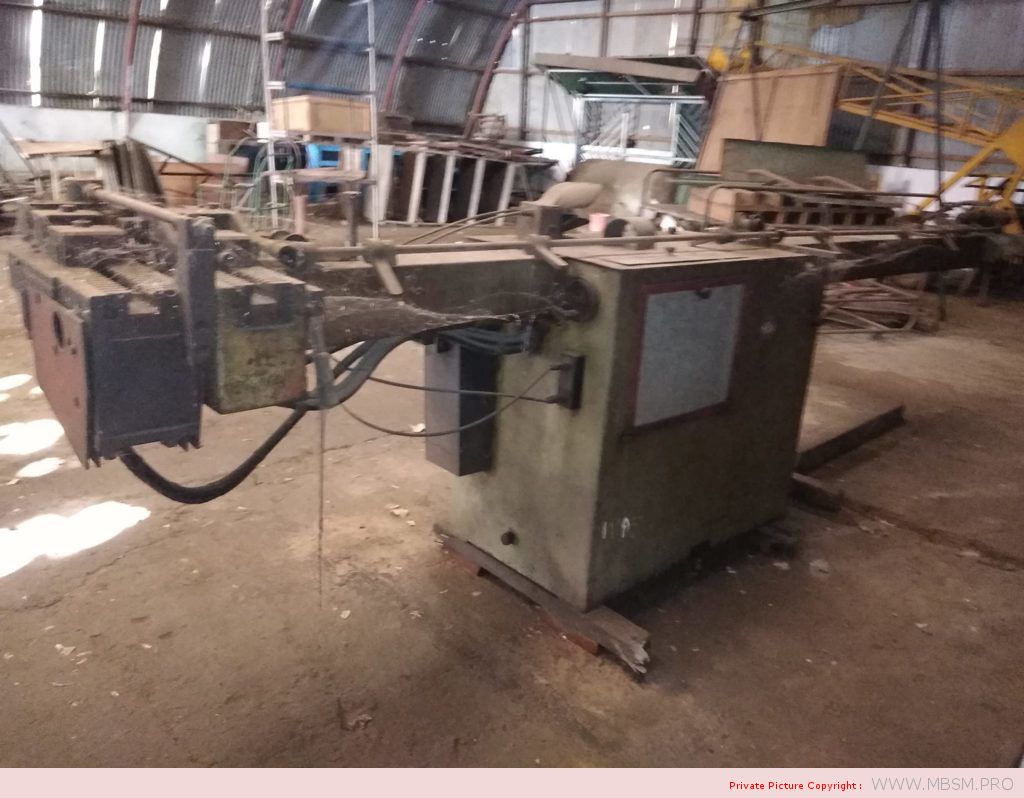

BONNAMY AUTOMATIC TUBE BENDER
