Mbsm.pro, LBP, S series, compressors, HuaJun, QD65, 1/6 hp++, 1/5 hp–, R134a

Category: compressor

written by mahdi miled | 15 January 2023

Mbsm.pro, Compressor, Donper, s72cz1, 1/4 hp, LBP, r134a,195 w

LBP S series compressors

Application: mainly used for refrigerator , freezer, showcase, etc.

Model	Power source V/Hz	horse power HP	Cooling capacity THE	Power THE	FLIC W/W	Type of engine	Refrigerant
QD43	220-240/50-60	1/7	110	104	1.06	RSIR	R134a
QD43	110-115/60	1/6	125	108	1.16
QD52	220-240/50-60	1/6	128	106	1.16
QD52	110-115/60	1/5	154	128	1.20
QD59	220-240/50-60	1/5	148	126	1.17
QD59	110-115/60	1/4	186	151	1.23
QD65	220-240/50-60	1/5	168	134	1.25
QD65	110-115/60	1/4	195	152	1.28
QD76	220-240/50-60	1/4	180	143	1.26
QD76	110-115/60	1/4	210	164	1.28
QD88	220-240/50-60	1/3-	235	188	1.25
QD88	110-115/60	1/3	260	213	1.22

Mbsm.pro, Compressor, Donper, s72cz1, 1/4 hp, LBP, r134a,195 w

Category: compressor

written by mahdi miled | 15 January 2023

R134a Low & Medium Back Pressure Series (Suitable for both Chiller & Freezer)

Refrigeration Compressor

L72CZ1

Vol./Freq.：	160-260V / 50Hz
Cooling Capacity：	195W
C.O.P：	1.30
Horse Power：	1/4-
Refrigerant：	R134A
Application：	LBP
The Evaporating Temperature (W)：	-23.3°C

QD52Y-ML (1/7HP) 5.5cc 350W/136W
QD59Y-ML (1/6HP) 6.2cc 390W/165W
QD65Y-ML (1/6HP+) 6.6cc 430W/185W
QD75Y-ML (1/5HP) 7.6cc 495W/210W
QD91Y-ML (1/4HP) 8.8cc 520W/230W
QD110Y-ML (1/3HP) 10.0cc 650W/300W
QD128Y-ML (3/8HP) 12.3cc 925W/360W
QD142Y-ML (3/8HP+) 13.5cc 1000W/390W
QD158Y-ML (1/2HP) 15.3cc 1120W/430W
QD168Y-ML (1/2HP+) 16.3cc 1220W/460W

R600a Low Back Pressure Series

QD85M-L (1/8HP) 8.5cc 145W
QD91M-L (1/7HP) 9.1cc 158W
QD110M-L (1/6HP) 11.1cc 188W
QD128M-L (1/6HP+) 12.8cc 218W

Mbsm.pro, AJA4461AXA, Tecumseh, Compressors, AJ311AT-141-J7, 115V, 1/2HP, R12, high temperature, 6100 BTU,

Category: compressor

written by Jamila | 15 January 2023

Tecumseh® Reciprocating Compressor, Series: AJ, Model: AJA4461AXA, 6100 BTU/hr, 115 VAC, 9.1 Amp, 60 Hz, 1 PH, 1/2 hp, 900 Watt, R-12 Refrigerant, Synthetic Alkylate Oil, 3/4 inch suction, 5/16 inch discharge, 45 degree F evaporator, 130 degree F condensing, 95 degree F return gas, ambient temperature, 115 degree F liquid, 11.774 inch length x 6.594 inches x 10.219 inches tall

Mbsm.pro, Compressor, TOSHIBA GMCC ROTARY COMPRESSOR, TOSHIBA COMPRESSOR

Category: compressor

written by Jamila | 15 January 2023

Toshiba GMCC Rotary Compressor (R22) (PH SERIES)

Toshiba GMCC Rotary Compressor PH120X1C-4DHDE2 (1.0HP / 1PH) ; [R22]

Toshiba GMCC Rotary Compressor PH165G1C-4DZDE1 (1.0HP / 1PH) ; [R22]

Toshiba GMCC Rotary Compressor PH170X1C-4DZDE2 (1.0HP / 1PH) ; [R22]

Toshiba GMCC Rotary Compressor PH225X2C-4FT (1.5HP / 1PH) ; [R22]

Toshiba GMCC Rotary Compressor PH290X2C-4FT1 (2.0HP / 1PH) ; [R22]

Toshiba GMCC Rotary Compressor PH310G2C-4KT1 (2.0HP / 1PH) ; [R22]

Toshiba GMCC Rotary Compressor PH340X3C-4KT1 (2.0HP / 1PH) ; [R22]

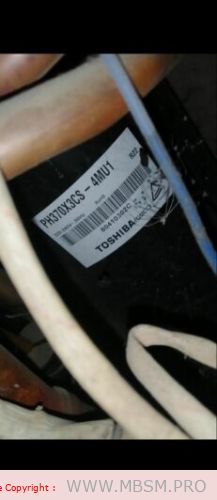

Toshiba GMCC Rotary Compressor PH370X3C-4MU1 (2.0HP / 1PH) ; [R22]

Toshiba GMCC Rotary Compressor PH420X3CS-4KU1 (3.0HP / 1PH) ; [R22]
Toshiba GMCC Rotary Compressor PH440M3CS-4MUL1 (3.0HP / 1PH) ; [R22]
Toshiba GMCC Rotary Compressor PH480X3CS-8MUC1 (3.5HP / 1PH) ; [R22]

Toshiba GMCC Rotary Compressor (R410a) (PA SERIES)

Toshiba GMCC Rotary Compressor PA130F1C-4FT (1.5HP / 1PH) ; [R410A]
Toshiba GMCC Rotary Compressor PA215M2CS-4KT2 (2.0HP / 1PH) ; [R410A]
Toshiba GMCC Rotary Compressor PA225M2CS-4KU2 (2.0HP / 1PH) ; [R410A]
Toshiba GMCC Rotary Compressor PA240M2C-4FT1 (2.5HP / 1PH) ; [R410A]
Toshiba GMCC Rotary Compressor PA290G2CS-4MU1 (2.5HP / 1PH) ; [R410A]
Toshiba GMCC Rotary Compressor PA291X3CS-4MTM1 (2.5HP / 1PH) ; [R410A]

Toshiba GMCC Inverter Rotary Compressor (R410a , R407c)

Toshiba GMCC Inverter Rotary Compressor RA421A3TB-20MD (70-380V / 30-240Hz) ; [R410A]
Toshiba GMCC Inverter Rotary Compressor DA420A3F-20M (187V± / 120Hz±) ; [R410A , R407C]

Mbsm.pro, Compressor, Copeland, CI20KQ-PFV, 240v/ 230/PH1/60hz , 1.5 hp, R-22 , 18,300, A/C

Category: compressor

written by www.mbsm.pro | 15 January 2023

CI20KQ-PFV, 240v/ 230/PH1/60hz , 1.5 hp, R-22 , 18,300, A/C

Mbsm.pro, Compressor, v75, 1/4 hp, 190 w, lbp, r12

Category: compressor

written by Jamila | 15 January 2023

Mbsm.pro, Compressor, v75, 1/4 hp, 190 w, lbp, r12

Mbsm.pro, Compressor, r12, 1/6 hp, 125 w, FNE125W, fne125ws7ad, fne125ws, 230V/50HZ

Mbsm.pro, Compressor, Samsung, r134a, lbp, CD124Q, L1Z2CD130Q, S1ZACD130Q, L1Z2MSA143Q, S1ZMSA151Q, L1AMSA162Q, L1GMSS162Q, L1UMSA170Q, L1BMSA170Q, L1GMSA170Q, L1HMSA182Q, L2HMSS182Q, L2UNC1A37QLB

Category: compressor

written by mahdi miled | 15 January 2023

AC R134a LBP

SPÉCIFICATION

AC200-240V~50Hz

CD124Q, L1Z2CD130Q, S1ZACD130Q, L1Z2MSA143Q, S1ZMSA151Q, L1AMSA162Q, L1GMSS162Q, L1UMSA170Q, L1BMSA170Q, L1GMSA170Q, L1HMSA182Q, L2HMSS182Q, L2UNC1A37QLB

Mbsm.pro, Danfoss, compressors, R134a, medium, temperature, HMBP

Category: compressor

written by Jamila | 15 January 2023

NL	Compressor type
8,4	Compressor size
MF	Refrigerant type GX, FX, MF = R134a CL, DL = R404A/R50

Condensing temperature = +55°C R134a

Code	Type	Power (hp)	Cooling capacity (Watt)					Height (mm)
Code	Type	Power (hp)	-15	-10	-5	0	7,2	Height (mm)
R134a
7096103	TL4G	1/10	107	140	180	226	306	173
7096104	TL5G	1/8	139	178	224	278	372	173
7096141	NL6.1MF	1/6	189	245	312	390	527	190
7096142	NL7.3MF	1/5	236	304	385	480	645	197
7096143	NL8.4MF	1/4	277	353	445	553	735	197
7096145	NL10MF	1/3	346	441	554	687	919	203
7096110	SC12G	1/3	348	464	603	768	1054	209
7096111	SC15G	3/8	424	568	728	908	1207	209
7096112	SC18G	1/2	526	684	870	1087	1459	219
7096113	SC21G	5/8	606	793	1013	1269	1700	219

Mbsm.pro, Subcool, compressor, commercial display fridge, gqr90tg, 1/3 hp–, 480 w, R134a, 220V, mbp

Category: compressor

written by mahdi miled | 15 January 2023

Essential details

Type:: Water Dispenser Parts

Place of Origin:: Zhejiang, China

Brand Name:: SIKELAN

Model Number:: GQR90TG

Displacement:: 9.0cm3

Refrigerant:: R134a

Application:: MBP

Voltage/frequency:: 220-240V/50-60HZ

Horse power:: 1/3-HP

Input power:: 480W

Motor type:: RSIR

Starting device:: PTC/Current relay

Starting capacitor:: NO

Running capacitor:: NO

1.Product Performance
1)GQR90TG, MK series, use R134a refrigerant;
2)Voltage application 220V to 240V;
3)Frequency for 50/60HZ;
4)Motor type: RSIR;
5)Cooling type: FAN;
6)Starting device is PTC / CURRENT Relay;
7)Application: MIDDILE Back Pressure;
8)Nominal power is 1/3-HP;
9)COP is 2.20 with the cooling capacity 910W.

Basing on Test Condition(ASHRAE)
Evaporating Temperature: 7.2 degree
Ambient Temperature: 35 degree
Subcooling Temperature: 46.1 degree
Condensing Temperature: 54.4 degree
Suction Temperature: 35 degree
