CML45FB3N, CML60FB3N, CML80FB3N, CML90FB3N, CMP12FB3N, CMP14FB3N, CMX18FB3N, CMR22FB3N, CMS26FB3N, CMS3OFB3N, CML40TB3N, CML45TB3N, CML60TB3N, CML80TB3N, CML90TB3N, CMP12TB3N, CMP14TB3N, CMX16TB3N, CMX18TB3N, CMR22TB3N, CMS26TB3N, CGL40TB3NR, CGL45TB3NR, CGL60TB3NR, CGL90TB3NR, CGP10RB3N, CGP12TB3NR, CGP14TB3NR, CGX18TB3N, CGX21TB3N, CGS26TB3N, CGS30TB3N, CGS34TB3N

https://mbsm.pro/wp-content/uploads/uploads/Mbsm-tn-media-Electrolux-Compressor-Data.pdf



1. Table of Contents:

• Page 1: Compressors and condensing units for low-temperature applications using R404a refrigerant.
• Page 2: Compressors and condensing units for medium/high-temperature applications using R404a refrigerant.
• Page 3: Compressors and condensing units for medium/high-temperature applications using R134a refrigerant.

2. Key Technical Data:

• Compressor Type: Compressors are classified based on displacement (cm³/rev) and motor power (HP).
• Motor Type: CSIR (Capacitor Start Induction Run).
• Electrical Power: Measured in watts (Watts) and electrical current (FLA) in amperes.
• Cooling Capacity: Measured in watts (Watts) and varies based on ambient temperature and evaporating temperature.
• Dimensions and Weight: Dimensions (length, width, height) are provided in millimeters, and weight is given in kilograms.

3. Illustrative Tables:

Table 1: Compressors for Low-Temperature Applications (R404a)

Model	Displacement (cm³/rev)	Motor Power (HP)	Motor Type	Electrical Power (Watts)	Electrical Current (Amps)	Ambient Temp. (°C)	Cooling Capacity (Watts)	Dimensions (mm)	Weight (kg)
CM1A5FB3N	4.6	1/6	CSIR	226	1.6	40	95 – 370	425x325x220	14.5
CM1B0FB3N	6.0	1/5	CSIR	270	1.8	38	122 – 454	425x325x220	16.5
CM1B0FB3N	8.1	1/4	CSIR	345	2.2	38	159 – 548	425x325x220	17.2
CM1B0FB3N	8.6	1/3	CSIR	358	2.2	38	195 – 679	425x335x245	19.2
CM1P12FB3N	12.0	3/8	CSIR	219	2.9	32	263 – 965	425x335x245	22.3
CM1P14FB3N	14.0	1/2	CSIR	572	3.4	32	264 – 999	425x335x245	22.3
CMX13RF3N	18.4	5/8	CSIR	718	3.6	32	358 – 1351	510x350x275	28.0
CM1B22FB3N	21.8	2/3	CSIR	754	3.8	32	355 – 1712	540x385x300	34.0
CMS26FB3N	26.2	3/4	CSIR	890	4.7	32	369 – 2218	525x425x355	39.0
CM53GFB3N	30.0	7/8	CSIR	1130	5.6	32	618 – 2385	545x425x350	39.0

Table 2: Compressors for Medium/High-Temperature Applications (R404a)

Model	Displacement (cm³/rev)	Motor Power (HP)	Motor Type	Electrical Power (Watts)	Electrical Current (Amps)	Ambient Temp. (°C)	Cooling Capacity (Watts)	Dimensions (mm)	Weight (kg)
CM140TB3N	4.0	1/5	CSR	348	2.0	32	205 – 687	425x325x235	14.6
CM145TB3N	4.5	1/4	CSR	385	2.2	32	221 – 728	425x325x235	14.7
CM160TB3N	5.7	1/3	CSR	477	2.8	32	274 – 907	425x330x245	22.7
CM180TB3N	7.6	3/8	CSR	570	3.3	32	420 – 1300	450x355x270	23.5
CM190TB3N	8.9	1/2	CSR	700	4.0	32	434 – 1433	425x335x270	23.9
CMIP12TB3N	12.0	1/2	CSR	860	4.1	32	598 – 2023	450x355x350	29.8
CMIP14TB3N	14.0	5/8	CSR	1000	4.9	32	631 – 2172	450x355x350	29.9
CMX16TB3N	16.0	1	CSR	1163	5.8	32	751 – 2385	450x355x350	30.0
CMX18TB3N	18.4	11/8	CSR	1370	7.0	32	812 – 2425	450x355x350	30.0
CMR22TB3N	21.2	11/4	CSR	1228	6.3	32	885 – 3213	450x355x350	30.0
CM52BTB3N	25.9	11/2	CSR	1772	9.0	32	1218 – 4023	450x355x350	30.0

Table 3: Compressors for Medium/High-Temperature Applications (R134a)

Model	Displacement (cm³/rev)	Motor Power (HP)	Motor Type	Electrical Power (Watts)	Electrical Current (Amps)	Ambient Temp. (°C)	Cooling Capacity (Watts)	Dimensions (mm)	Weight (kg)
CG1401r83NR	4.0	1/8	CSIR	219	1.4	32	87 – 455	425x325x210	14.5
CG1451r83NR	4.5	1/6	CSIR	237	1.4	32	111 – 503	425x325x210	14.5
CG1601r83NR	5.7	1/5	CSIR	270	1.7	32	154 – 623	425x325x235	17.0
CG1301r83NR	8.8	1/4	CSIR	385	2.3	32	717 – 945	425x340x245	18.5
CGP10RB3N	10.2	1/3	CSIR	452	2.7	32	502 – 1123	425x350x270	19.5
CGP12T83NR	12.1	3/8	CSIR	602	3.6	32	529 – 1229	425x350x270	20.0
CGP14T83NR	14.0	3/8	CSIR	665	4.0	32	301 – 1354	425x350x270	21.5
CGX18T83N	18.4	1/2	CSIR	845	5.1	32	394 – 1811	510x361x297	26.0
CGX21T83N	20.7	5/8	CSIR	1001	5.8	32	454 – 2057	480x450x312	29.0
CGS26T83N	25.9	3/4	CSIR	1120	6.85	32	541 – 3182	525x425x355	36.0
CGS30T83N	30.0	7/8	CSIR	1170	6.4	32	627 – 3340	545x425x350	39.0
CGS34T83N	34.4	1	CSIR	1352	7.0	32	707 – 3340	545x425x350	39.0

4. Explanations and Analysis:

A. Compressor Applications:

• Low-Temperature Applications: These compressors are used in refrigeration systems that require low temperatures, such as refrigerators and freezers. The refrigerant used is R404a.
• Medium/High-Temperature Applications: These compressors are used in air conditioning and refrigeration systems that operate at higher temperatures, such as air conditioners and commercial refrigeration systems. The refrigerants used are R404a and R134a.

B. Cooling Capacity:

• Cooling capacity varies based on ambient temperature and evaporating temperature. The lower the evaporating temperature, the lower the cooling capacity of the compressor.
• Larger compressors (with higher displacement) provide higher cooling capacity.

C. Dimensions and Weight:

• Larger compressors weigh more and take up more space, requiring appropriate system design for installation.

D. Compatibility with Other Refrigerants:

• All models are suitable for use with R507 and R407B refrigerants, providing flexibility in refrigerant selection based on application and local regulations.

5. Conclusion:

• Electrolux offers a wide range of compressors and condensing units to meet various cooling needs, whether for low-temperature or medium/high-temperature applications.
• The provided technical data helps in selecting the appropriate compressor based on required cooling capacity, environmental conditions, and available installation space.



1/12 HP Compressors

• CONGEL 1/12
• TL2.5A
• DS36AS
• PW3.5K7
• AZ1320A
• FN24N45
• M2.5J
• B5A15
• BP1058A
• V612
• AS14
• S33601
• LK31.2
• TL2.5B
• DS33AU
• PW3K6
• AE1277
• FN25N40
• M3J
• B5A36
• S36101

1/10 HP Compressors

• AE29N60
• FN29N60
• E30101
• TL3A
• L40AW
• PW3.5K6
• AZ1328A
• LF14
• M3.5J
• PB6AF87
• A1055B
• E30101
• TL3B
• L40AS
• PW3.5K7
• AEZ1332A
• 12L264
• ESM3
• PB6AF86
• BP1058A
• AS12
• E30601
• L40AU
• AE8ZA7
• B8A43
• E36101
• 302030
• 200L
• 160L
• 120L
• AEZ1336A
• B8A39
• AE1027

1/8 HP Compressors

• TL4A
• L45AU
• PW4.5K9
• AZ1335A
• 8L300
• FN43F67S
• M4J
• B8A10
• A1075A
• V792
• AS8
• E36601
• LK39.0
• TL4B
• L45AW
• AZ1340A
• FNE75WS5A
• ESM4
• PB9AF88
• A1085A
• E44101A
• LK45.0
• TL4A
• AEZ1336A
• BP1072A
• 302038
• 220L
• 240L
• 200L
• BP1084A

1/6 HP Compressors

• TL5A
• L55AT
• PW5.5K9
• AZ1345
• 6L377
• FN51F88S
• M5
• B9A19
• A1090A
• V1040
• AS6
• E59101
• LK55.2
• L55AU
• PW5.5K11
• AZ1355
• FNE100WS5
• M5J
• B9A27
• A1111A
• AS66
• E59301
• LK55.4
• TL5A
• AE6ZDZ
• ESM5
• B9A30
• A2111
• 400L
• 325L
• 270L
• AZ66ZDZ
• PB12AF90
• A1112A
• 302036
• AEZ1343A

1/5 HP Compressors

• • FR7.5A
  • L76BW
  • PW7.5K14

AZ1355D

• 5L476
• FN66F11S
• M7
• L13A17
• BX1112A
• V1350
• AM5ZF
• E80101A
• NL6A
• L76AW
• FF7.5BK
• AEZ1360A
• FN73F13S
• M7J
• L13A26
• avec RH
• L13A47



1/4 HP Compressors

• FR8.5
• L88BW
• PW9K18
• AEZ1380A
• 5L476
• M9
• L16A01
• A1116A
• V1450
• AM4C
• E80801
• NL7A
• L88AV
• PW11K22
• AE4ZF11
• M9J
• L16A25
• A1117A
• E88101
• FR8.5B
• L88FW
• FF8.5BK
• M9K
• L16B25
• A2116A
• E88601
• FR10A
• M9KJ
• L16B22
• BX1116A
• 302034
• M9SJ
• L17A34
• B1116A
• A9
• BY1116A
• FR10A
• RH
• 600L
• 480L
• 400L
• A9V
• B3119A
• 302044
• A9K
• B1118B
• avec RH
• ESM8
• B2118B
• FR10A
• ESM9
• QM43
• 800L
• 600L
• 500L

1/3 HP Compressors

• SC12A
• P12BW
• AE1410A
• 4L690
• FN91F17S
• M11
• E1130B
• AM43
• P12FW
• CAE2410A
• 3/4L766
• FN110F22S
• M11K
• E3130B
• CAM43
• AE1410B
• 3L831
• A11
• E2130B
• SC12A
• AE1412A/B
• A11V
• E4130B
• 302043
• 1200L
• 800L
• 600L
• CAE2412A
• ESM11
• avec RH
• AEZ1410D
• AE1410A

– **DANFOSS**
– R12
– TL2.5A
– TL3A
– TL4A
– TL5A
– FR7.5A
– FR8.5
– FR10A

– **ELECTROLUX**
– AE1277
– AE29N60
– AEZ1332A
– AEZ1336A
– AEZ1343A
– AEZ1360A
– AEZ1380A
– AE1410A
– AE1410B

– **EMBRACO**
– M2.5J
– M3J
– M4J
– M5
– M7
– M9
– M11

– **UH France**
– BP1058A
– BP1072A
– BP1084A
– BP1111A

– **LEC**
– S33601
– S36101
– S36601

– **MATSUSHITA**
– B5A15
– B5A36
– B9A19
– B9A27

– **NECCHI**
– FN24N45
– FN25N40
– FN29N60
– FN43F67S

– **IRE**
– E30101
– E30601
– E59101

– **ASPRA**
– AZ1320A
– AZ1328A
– AZ1335A
– AZ1340A
– AZ1345
– AZ1355
– AZ1355D

– **BOSH**
– V612
– V792
– V1040
– V1350

– **PRESTCOLD**
– E80101A
– E80601
– E80801

– **ZEN**
– E59101
– E59301

– **AEG**
– AE8ZA7
– AE1027
– AE1410A

– **COPIDEN**
– AEZ1410D

https://mbsm.pro/wp-content/uploads/uploads/Mbsm-tn-media-Compresoor-1-8-hp-r12-1ph-220v-50hz-AEZ1336A-B8A39-AE1027-TL4A-L45AU-PW4.5K9-AZ1335A-8L300-FN43F67S-M4J-B8A10-A1075A-V792-V792E-AS8-E36601-LK39.0-TL4B-L45AW-AZ1340A-FNE75WS5-ESM4-PB9AF88-A1085A-E44101A-LK45.0-T.pdf

Compresseur NJ9232GK R-404a 1 1/4HP 230V

Compresseur NJ9232GK R-404a 1 1/4HP 230V

• Référence eunasa: 21077
• Gamme: Froid Commercial / Industriel
• Type de machine: Divers
• Type de produit: Compresseur
• Sous-type de produit: Compresseur
• Marque: Aspera
• Original

• Modèle: NJ9232GK
• Gaz: R-404a
• Température/Pression: Moyenne / Haute
• Puissance: 1 1/4 HP
• Voltage: 230 V
• Type De Courant: Monophasé
• Fréquence: 50 Hz
• Type De Compresseur: Hermétique
• Décalage: 26.11 cm³
• Cons.Énergie -10ºC: 1089 W
• Cons.Énergie -5ºC: 1191 W
• Cons.Énergie 0ºC: 1289 W
• Cons.Énergie +5ºC: 1383 W
• Cons.Énergie +10ºC: 1472 W
• T° De Condensation: 45 °C
• Capacidad Frigorífica -20°C: 1224 Kcal/h
• Capacidad Frigorífica -15°C: 1587 Kcal/h
• Capacidad Frigorífica -10°C: 2030 Kcal/h
• Capacidad Frigorífica -5°C: 2551 Kcal/h
• Capacidad Frigorífica 0°C: 3151 Kcal/h
• Capacidad Frigorífica 5°C: 3830 Kcal/h
• Capacidad Frigorífica 10°C: 4589 Kcal/h
• Tipo Test: Ashare 46



Visit Link for more informations; https://www.mbsm.pro/c-bzn175l5z

https://mbsm.pro/wp-content/uploads/uploads/Mbsm-tn-media-Compressor-C-BZ120-1-6-hp-120w-Mhbp-r12-C-BZ-C-BZN-KULTHORN-KULTHORN.pdf

The C-BZ120 is a model of compressor manufactured by Kulthorn Kirby, a well-known company in the refrigeration and air conditioning industry. Here’s a breakdown of the details you provided:

1. Model: C-BZ120
2. Power: 1/6 horsepower (HP)
3. Wattage: 120W
4. Refrigerant: R12 (a chlorofluorocarbon refrigerant, now largely phased out due to environmental concerns)
5. Series: C-BZ or C-BZN (likely indicating variations or specific configurations of the compressor)
6. Brand: Kulthorn Kirby

Key Features:

• 1/6 HP: This indicates the motor’s power output, suitable for small refrigeration systems.
• 120W: The electrical power consumption of the compressor.
• R12 Refrigerant: This compressor was designed for use with R12, which was commonly used in older refrigeration systems. Due to its ozone-depleting properties, R12 has been replaced by more environmentally friendly refrigerants like R134a or R600a.
• MHBP: This likely stands for “Medium High Back Pressure,” indicating the compressor is designed for medium-temperature applications, such as commercial refrigeration or air conditioning systems.

Applications:

The C-BZ120 compressor is typically used in small refrigeration units, such as:

• Domestic refrigerators
• Small commercial coolers
• Beverage dispensers
• Ice machines

Notes:

https://mbsm.pro/wp-content/uploads/uploads/Mbsm-tn-media-__Compressor-C-BZ120-1-6-hp-120w-Mhbp-r12-C-BZ-C-BZN-KULTHORN-KULTHORN.pdf

• Since R12 is no longer widely used, retrofitting may be required if you plan to use this compressor with modern refrigerants.
• Ensure compatibility with your system’s specifications before installation.

1. Compressor (Model S36G)

• Purpose: The core component for pressurizing refrigerant in a cooling cycle.
• Model S36G: Likely a specific compressor model (possibly from a brand like Secop, Danfoss, or a regional manufacturer). Verify with manufacturer documentation for exact specs.
• Application: Small-scale systems (e.g., commercial water coolers, medical devices, or compact refrigeration) due to the small refrigerant charge.

---

2. Refrigerant (R134a, 32g)

• R134a: A common hydrofluorocarbon (HFC) refrigerant used in medium-temperature systems (e.g., refrigerators, AC units, water coolers).
• 32g Charge: Indicates a small system, typical for portable or compact units. Ensure the charge matches manufacturer specifications to avoid inefficiency or damage.

---

3. Water-Cooler System

• Water-Cooled Condenser: Uses water (instead of air) to dissipate heat, improving efficiency. Requires a water supply, pump, and possibly a cooling tower.
• Applications: Often found in commercial settings (e.g., water dispensers, industrial chillers, or high-efficiency HVAC systems).

---

4. BLY-F/950

• Likely a component model, such as:
  • Filter drier: Removes moisture/contaminants from refrigerant.
  • Pressure switch: Safety device to control system pressure.
  • Control board/Valve: Part of the system’s electrical or flow regulation.
  • Check manufacturer manuals or suppliers for exact function.

---

Key Considerations

1. Compatibility: Ensure the compressor (S36G) is designed for R134a and water-cooled operation.
2. Refrigerant Charge: Confirm 32g is correct (undercharging/overcharging affects performance).
3. Water Cooling: Check for scale buildup, water flow rate, and pump functionality.
4. BLY-F/950 Replacement: Cross-reference with OEM parts or contact the system manufacturer.

---

Troubleshooting Tips

• Low Cooling Efficiency: Check refrigerant charge, water flow, or condenser cleanliness.
• Component Failure: Test the BLY-F/950 part (e.g., continuity for switches, clogging in filter driers).
• Noise/Leaks: Inspect the compressor and refrierant lines.
•

• File uploaded successfully: Open file in a new window

  File Information:
  File Name: Mbsm-tn-media-_Compressor-s36G-R134a-32g-water-cooler-BLY-F-950.jpg
  File Type: image/jpeg
  File Size: 436.6 KB
  File Extension: jpg

  File uploaded successfully: Open file in a new window

  File Information:
  File Name: Mbsm-tn-media-Compressor-s36G-R134a-32g-water-cooler-BLY-F-950.jpg
  File Type: image/jpeg
  File Size: 435.14 KB
  File Extension: jpg

  File uploaded successfully: Open file in a new window

  File Information:
  File Name: Mbsm-tn-media-Compressor-s36G-R134a-32g-water-cooler-BLY-F-950.jpg
  File Type: image/jpeg
  File Size: 549.08 KB
  File Extension: jpg

  File uploaded successfully: Open file in a new window

  File Information:
  File Name: Mbsm-tn-media-Compressor-s36G-R134a-32g-water-cooler-BLY-F-950.pdf
  File Type: application/pdf
  File Size: 296.7 KB
  File Extension: pdf

Compressor BPM1084Z, B1085A, AE8ZA7: A Comprehensive Overview

In the world of refrigeration and air conditioning systems, compressors play a pivotal role in ensuring efficient operation. One such compressor that has gained significant attention for its reliability and performance is the BPM1084Z/B1085A/AE8ZA7 , which is widely used in applications requiring precise temperature control. This article delves into the specifications, features, and applications of this compressor, making it easier to understand why it’s a popular choice for various industries.

---

Key Specifications

Below is a summary of the key specifications of the BPM1084Z/B1085A/AE8ZA7 compressor:

---

1. Model Identification

The BPM1084Z, B1085A, and AE8ZA7 are essentially different model numbers for the same compressor, often used interchangeably depending on the manufacturer or supplier. These models belong to the rotary compressor family, known for their compact design and high efficiency.

2. Refrigerant Compatibility

This compressor is designed to work with R134a , a widely-used refrigerant renowned for its environmental friendliness compared to older alternatives like R12. R134a is non-flammable, ozone-friendly, and suitable for low-temperature applications such as freezing systems.

3. Power and Efficiency

With a nominal power consumption of 102 watts and a displacement of 4.15 cubic centimeters , this compressor strikes an excellent balance between energy efficiency and cooling capacity. Its 1/8 HP rating makes it ideal for small-scale applications where space and power usage are critical considerations.

4. RSIR Design

The “RSIR” designation refers to the internal configuration of the compressor. It stands for Rotary Scroll Internal Reversing , indicating that the compressor uses a rotary mechanism combined with scroll technology for smooth and quiet operation. The internal reversing feature enhances versatility by allowing the compressor to handle both cooling and heating cycles when paired with appropriate systems.

Applications

The BPM1084Z/B1085A/AE8ZA7 compressor is particularly well-suited for applications involving freezing systems due to its ability to maintain consistent temperatures at lower levels. Some common use cases include:

• Commercial Refrigeration: Used in small walk-in coolers, beverage chillers, and display cases.
• Home Appliances: Integrated into compact freezers, wine coolers, and mini-split air conditioners.
• Automotive Air Conditioning: Suitable for smaller vehicles or auxiliary cooling systems.
• Laboratory Equipment: Employed in precision cooling systems for sensitive instruments and samples.

Advantages

1. Compact Size: The compressor’s small footprint makes it easy to install in confined spaces without compromising performance.
2. Low Noise Levels: Thanks to its rotary-scroll design, the BPM1084Z operates quietly, making it suitable for environments where noise reduction is essential.
3. Energy Efficiency: With only 102 watts of power consumption, it offers significant savings over time while maintaining effective cooling.
4. Reliability: Built with robust materials and advanced engineering, this compressor ensures long-term durability and minimal maintenance requirements.
5. Compatibility: Designed to work seamlessly with R134a refrigerant, it aligns with modern standards for environmentally safe systems.

Maintenance Tips

To ensure optimal performance and longevity of the BPM1084Z/B1085A/AE8ZA7 compressor, consider the following maintenance practices:

• Regular Cleaning: Keep the compressor clean and free from dust or debris to prevent overheating.
• Oil Checks: Ensure the compressor is adequately lubricated using the recommended oil type specified by the manufacturer.
• System Inspections: Periodically inspect the refrigerant charge and piping for leaks or blockages.
• Operational Monitoring: Monitor the system’s pressure and temperature readings to detect potential issues early.

Conclusion

The BPM1084Z/B1085A/AE8ZA7 compressor exemplifies the perfect blend of efficiency, reliability, and adaptability. Whether you’re looking to equip a commercial freezer, a home appliance, or specialized laboratory equipment, this compressor delivers dependable performance tailored to meet your needs. By understanding its specifications and adhering to proper maintenance guidelines, users can maximize its lifespan and enjoy consistent results across various applications.

https://mbsm.pro/wp-content/uploads/uploads/Mbsm-tn-media-Compressor-BPM1084Z-B1085A-AE8ZA7-1-8-hp-r134a-freezing-102w-4.15-cc-RSIR.pdf

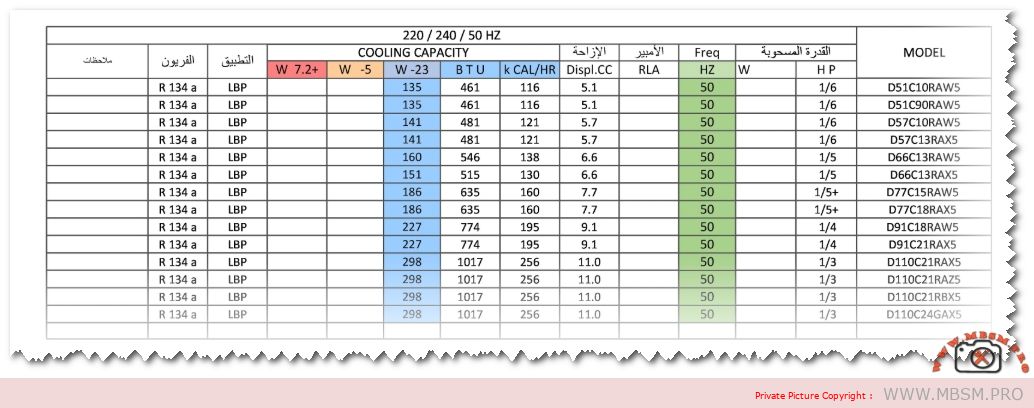

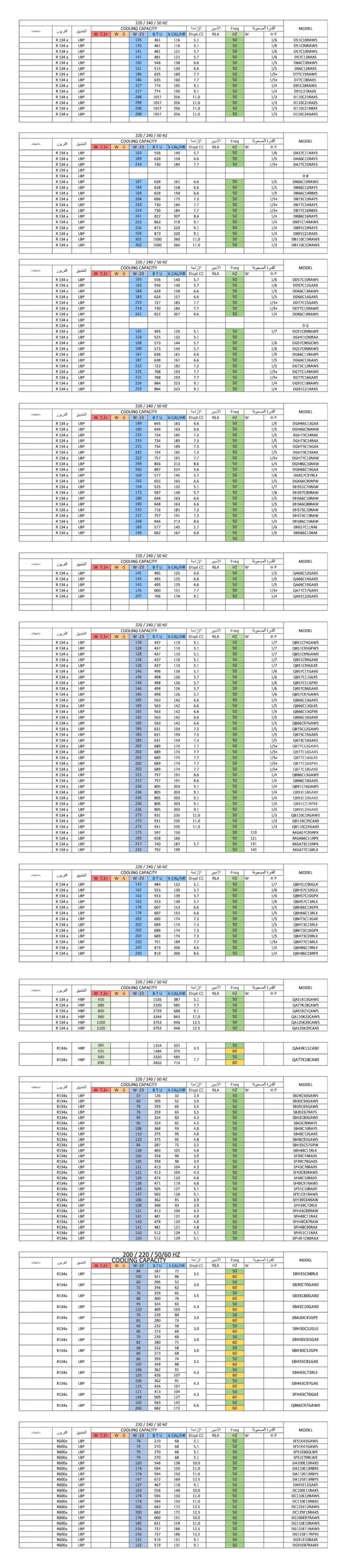

D51C10RAW5, D51C90RAW5, D57C10RAW5, D57C13RAX5, D66C13RAW5, D66C13RAX5, D77C15RAW5, , D77C18RAX5, , D91C18RAW5, , D91C21RAX5, , D110C21RAX5, D110C21RAZ5, D110C21RBX5, D110C24GAX5,  DA57C11RAY5, DA66C12RAY5, DA77C15RAY5, , D, B, DB66C10RAW5, DB66C12RAY5, DB66C14RBX5, DB73C13RAY5, DB77C14RAY5, DB77C16RBX5, DB86C16RAY5, DB91C14RAW5, DB91C19RAY5, DB91C21RAX5, DB110C19RAW5, DB110C22RAW5, DD57C10RAW5, DD57C12GAX5, DD66C13RAW5, DD66C14GAX5, DD77C15GAX5, DD77C15RAW5, DD86C18RAW5,  DG51C89RAW5, DGH51C90RAX, DG57C90GCW5, DG57C96RAW5, DG66C11RAW5, DG66C13GAX5, DG73C12RAW5, DG77C14RAW5, DG77C16GAX5, DG91C18RAW5, DG91C21RAX5 , DGH66C13GAX, DGH66C96RAW, DGH73C14RAE, DGH73C14RAX, DGH73C15GAX, DGH73C15RAX, DGH77C13RAW, DGH86C16RAW, DGH86C19GAX, DGK57C97RLX, DGK66C90RPW, DHS51C74RAW, DHS57C80RAW, DHS66C10RAW, DHS66C88RAW, DHS73C10RAW, DHS73C13RAW, DHS86C15RAW, DKK57C11RAE, DKK66C13RAE , QA66C12GAX5, QA66C14GAX5, QA66C15GAX5, QA77C17GAX5, QA91C22GAX5 , QB51C74GAW5, QB51C95GPW5, QB51C99GAW0, QB51C99GAX0, QB51C99GLX5, QB57C11GAX0, QB57C11GLX5, QB57C11GPX5, QB57C86GAX0, QB57C87GAW5, QB66C13GAX5, QB66C13GLX5, QB66C13GPX5, QB66C16GAX0, QB66C97GAW5, QB73C12GAW5, QB73C15GAX5, QB73C16GAX5, QB77C13GAW5, QB77C16GAX5, QB77C16GLX5, QB77C16GPX5, QB77C18GAX0, QB86C13GAW5, QB86C18GAX5, QB91C16GAW5, QB91C18GAX0, QB91C19GAX5, QB91C21RPX5, QB91C24GAX0, QB110C19GAW5, QB110C25CAX0, QB110C25GAX5, MGA57C95RPX, MGA66C11RPX, MGA73C15RPX, MGA77C16RLX , QBH51C90GLX, QBH57C10GLX, QBH57C10GPX, QBH57C15RLX, QBH66C13GPX, QBH66C13RLX, QBH73C13GAE, QBH73C15RLX, QBH73C16GPX, QBH73C20RLX, QBH77C16RLX, QBH86C19RLX, QBH86C19RPX, QA51K13GAW5, QA77K18CAW5, QA91K21CAW5, QA110K23CAW5, QA125K26CAW5, QA125K29CAX5, , , QA43K11CAS0, , QA77K18CAX0 , SB24C50GAW5, SB30C50GAW5, SB35C65GAW5, SB35C67RAY5, , SB43C80GAW5, SB43C90RAY5, SB48C10RAY5, SB48C12GAX5, SB48C95GAW5, SBH35C57GPW, SBH48C11RLX, , SF39C74RAX5, SF39C78GAX5, SF43C76RAX5, SF43C83RAW5, SF48C10RAX5, SF48C91RAW5, SF51C10RAX5, SF51C91RAW5, SFH39C64RAW, SFH39C73RLX, SFH43C80RAW, SFH48C11RAX, SFH48C87RAW, SFH48C99RAX, SFH51C11RAX, SFH51C99RAX,  SBH35C68RLE, , SB30C70GAX0, , SB35C80GAX0

Grouping by Prefix

To better understand the codes, we can group them by their prefixes:

D-Series

These are likely standard Panasonic compressors:

• D51C10RAW5
• D51C90RAW5
• D57C10RAW5
• D57C13RAX5
• D66C13RAW5
• D66C13RAX5
• D77C15RAW5
• D77C18RAX5
• D91C18RAW5
• D91C21RAX5
• D110C21RAX5
• D110C21RAZ5
• D110C21RBX5
• D110C24GAX5

DA-Series

These may represent advanced or upgraded versions:

• DA57C11RAY5
• DA66C12RAY5
• DA77C15RAY5

DB-Series

These could be specialized or commercial-grade compressors:

• DB66C10RAW5
• DB66C12RAY5
• DB66C14RBX5
• DB73C13RAY5
• DB77C14RAY5
• DB77C16RBX5
• DB86C16RAY5
• DB91C14RAW5
• DB91C19RAY5
• DB91C21RAX5
• DB110C19RAW5
• DB110C22RAW5

DD-Series

Possibly high-efficiency or dual-stage compressors:

• DD57C10RAW5
• DD57C12GAX5
• DD66C13RAW5
• DD66C14GAX5
• DD77C15GAX5
• DD77C15RAW5
• DD86C18RAW5

DG-Series

May represent gas-cooled or hermetic compressors:

• DG51C89RAW5
• DGH51C90RAX
• DG57C90GCW5
• DG57C96RAW5
• DG66C11RAW5
• DG66C13GAX5
• DG73C12RAW5
• DG77C14RAW5
• DG77C16GAX5
• DG91C18RAW5
• DG91C21RAX5

QA-Series

Could be for air conditioning or heat pump applications:

• QA66C12GAX5
• QA66C14GAX5
• QA66C15GAX5
• QA77C17GAX5
• QA91C22GAX5

QB-Series

Likely for higher-capacity or industrial use:

• QB51C74GAW5
• QB51C95GPW5
• QB51C99GAW0
• QB51C99GAX0
• QB51C99GLX5
• QB57C11GAX0
• QB57C11GLX5
• QB57C11GPX5
• QB57C86GAX0
• QB57C87GAW5
• QB66C13GAX5
• QB66C13GLX5
• QB66C13GPX5
• QB66C16GAX0
• QB66C97GAW5
• QB73C12GAW5
• QB73C15GAX5
• QB73C16GAX5
• QB77C13GAW5
• QB77C16GAX5
• QB77C16GLX5
• QB77C16GPX5
• QB77C18GAX0
• QB86C13GAW5
• QB86C18GAX5
• QB91C16GAW5
• QB91C18GAX0
• QB91C19GAX5
• QB91C21RPX5
• QB91C24GAX0
• QB110C19GAW5
• QB110C25CAX0
• QB110C25GAX5

MGA-Series

May represent modular or customizable compressors:

• MGA57C95RPX
• MGA66C11RPX
• MGA73C15RPX
• MGA77C16RLX

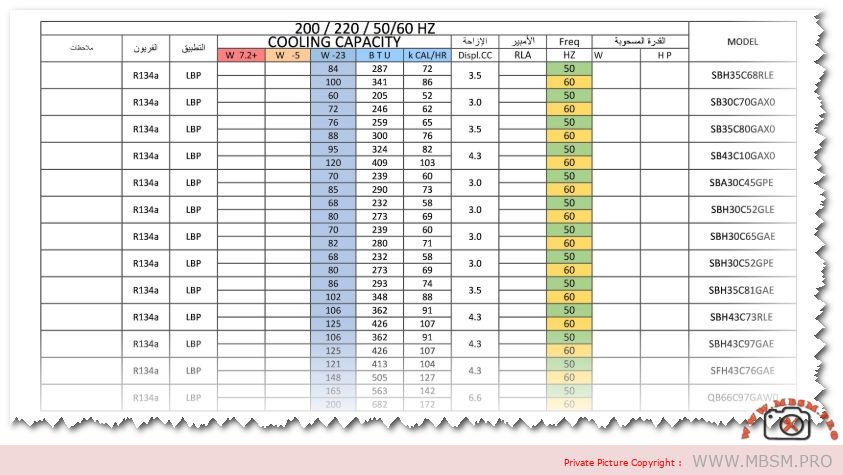

SB-Series

Could be scroll-type or semi-hermetic compressors:

• SB24C50GAW5
• SB30C50GAW5
• SB35C65GAW5
• SB35C67RAY5
• SB43C80GAW5
• SB43C90RAY5
• SB48C10RAY5
• SB48C12GAX5
• SB48C95GAW5

SF-Series

Possibly for fractional horsepower or small-scale applications:

• SF39C74RAX5
• SF39C78GAX5
• SF43C76RAX5
• SF43C83RAW5
• SF48C10RAX5
• SF48C91RAW5
• SF51C10RAX5
• SF51C91RAW5

Other Codes

Some codes have unique prefixes like QBH, DHS, DKK, etc., which may correspond to specialized or regional product lines.

Panasonic compressors are widely recognized for their reliability, efficiency, and durability. They are commonly used in a variety of applications, including air conditioning systems, refrigeration units, heat pumps, and more. Below is an overview of Panasonic compressors, their types, features, and how they are classified.

---

1. Types of Panasonic Compressors

a. Rotary Compressors

• Description : These compressors use a rotating mechanism to compress refrigerant gas. They are known for their compact size, low noise, and high efficiency.
• Applications : Ideal for small to medium-sized air conditioners, refrigerators, and freezers.
• Examples :
  • D51C10RAW5
  • DB66C10RAW5

b. Scroll Compressors

• Description : Scroll compressors use two spiral-shaped scrolls to compress refrigerant. They are highly efficient and quiet, making them suitable for residential and commercial HVAC systems.
• Applications : Used in air conditioners, heat pumps, and large refrigeration systems.
• Examples :
  • SB24C50GAW5
  • SB35C65GAW5

c. Reciprocating Compressors

• Description : These compressors use pistons to compress refrigerant. They are robust and reliable but generally less efficient than rotary or scroll compressors.
• Applications : Commonly used in industrial refrigeration systems.
• Examples :
  • DGH51C90RAX
  • DG57C90GCW5

d. Variable-Speed Compressors

• Description : These compressors can adjust their speed based on the cooling or heating demand, improving energy efficiency and comfort.
• Applications : Suitable for advanced air conditioning and heat pump systems.
• Examples :
  • QB77C16GAX5
  • QB91C21RPX5

e. Hermetic Compressors

• Description : Hermetically sealed compressors are fully enclosed to prevent leaks and contamination. They are maintenance-free and highly reliable.
• Applications : Used in household appliances like refrigerators and freezers.
• Examples :
  • QA66C12GAX5
  • QA91C22GAX5

---

2. Features of Panasonic Compressors

a. High Efficiency

• Panasonic compressors are designed to minimize energy consumption while maintaining optimal performance. Many models meet or exceed global energy efficiency standards.

b. Durability

• Built with high-quality materials and advanced engineering, Panasonic compressors are built to last. They undergo rigorous testing to ensure reliability under various operating conditions.

c. Low Noise

• Panasonic uses advanced technologies to reduce noise levels, making their compressors ideal for residential and commercial environments where quiet operation is essential.

d. Compatibility

• Panasonic compressors are compatible with a wide range of refrigerants, including eco-friendly options like R32 and R410A.

e. Smart Control

• Many Panasonic compressors come with built-in sensors and control systems that optimize performance based on real-time conditions.

---

3. Code Breakdown for Panasonic Compressors

The alphanumeric codes used by Panasonic provide detailed information about each compressor. Here’s how they can be interpreted:

General Structure

• Prefix : Indicates the series or type of compressor (e.g., D, DB, DG, QA, QB).
• Number Segment 1 (XX) : Represents the capacity or size of the compressor.
• Separator (C) : A delimiter separating different parts of the code.
• Number Segment 2 (YY) : Specifies the version, design, or feature level.
• Suffix (ZZZ) : Describes the configuration, application, or technology.

Examples

• D51C10RAW5 :
  • Prefix: D (Standard compressor)
  • Capacity: 51 (indicative of size or power)
  • Separator: C
  • Version: 10
  • Suffix: RAW5 (Air-cooled, standard model)
• QB77C16GAX5 :
  • Prefix: QB (High-performance compressor)
  • Capacity: 77
  • Separator: C
  • Version: 16
  • Suffix: GAX5 (Gas-cooled, enhanced efficiency)

---

4. Applications of Panasonic Compressors

a. Air Conditioning Systems

• Panasonic compressors are widely used in both split-type and central air conditioning systems. Their variable-speed and inverter technologies ensure precise temperature control and energy savings.

b. Refrigeration Units

• From small household refrigerators to large commercial chillers, Panasonic compressors offer reliable performance across a wide range of applications.

c. Heat Pumps

• Panasonic compressors are integral components of heat pump systems, providing efficient heating and cooling in a single unit.

d. Industrial Applications

• In industrial settings, Panasonic compressors are used for process cooling, cold storage, and other demanding applications.

---

5. Popular Models

Here are some popular Panasonic compressor models and their typical applications:

---

6. Advantages of Panasonic Compressors

• Energy Efficiency : Panasonic compressors are designed to reduce electricity consumption without compromising performance.
• Quiet Operation : Advanced noise reduction technologies make Panasonic compressors ideal for residential and office environments.
• Reliability : Built to withstand harsh conditions, Panasonic compressors offer long service life with minimal maintenance.
• Eco-Friendly : Many Panasonic compressors use environmentally friendly refrigerants, contributing to sustainability.

---

7. Conclusion

Panasonic compressors are trusted globally for their exceptional performance, efficiency, and reliability. Whether you’re looking for a compact rotary compressor for a home refrigerator or a high-capacity scroll compressor for a commercial HVAC system, Panasonic offers a wide range of solutions tailored to your needs.

Specifications of Sharp Refrigerator:

1. Rated Voltage:

   • 220-240 volts (suitable for use in most Arab countries).

2. Rated Frequency:

   • 50 Hz (the standard frequency in the Arab region).

3. Rated Input (Power Consumption):

   • 170-190 watts (this indicates power consumption during normal operation).

4. Rated Input of Heating Elements:

   • 138-164 watts (used during the defrosting process).

5. Defrosting Input:

   • 137-163 watts.

6. Total Gross Volume:

   • 610 liters (this includes the entire internal space of the refrigerator and freezer).

7. Total Storage Volume:

   • 577 liters (this refers to the actual usable space).

8. Climate Class:

   • T (this means the refrigerator is designed to operate in ambient temperatures up to 43°C, making it suitable for hot regions).

9. Refrigerant Type:

   • HFC-134a (a commonly used and environmentally friendly refrigerant).

10. Mass of Refrigerant:

    • 130 grams.

11. Net Weight:

    • 88 kilograms.

12. Serial Number:

    • 009,V (used for identification when contacting customer service).

---

Important Notes:

• Energy Efficiency: The power consumption ranges between 170-190 watts, making this refrigerator relatively energy-efficient.
• Large Capacity: The large storage capacity (577 liters) makes it suitable for large families.
• Suitable for Hot Climates: The T climate class means it operates efficiently in high-temperature regions.
• Environmentally Friendly: The use of HFC-134a refrigerant reduces environmental impact compared to traditional refrigerants.

---

Tips for Optimal Use:

Regularly clean the condenser (located at the back of the refrigerator) to ensure cooling efficiency.

Ensure adequate space around the refrigerator for proper ventilation.

Set the temperature to 4°C for the refrigerator and -18°C for the freezer to keep food fresh while saving energy.
