Mbsm.pro, Replaced, Jiaxipera, NS1121Y, 1/4 hp++, 1/3 hp–, 214Kcal, R600a, 220V, with, Compressor, hys69yq, 1/4 hp, lbp, r134a, HiTech, refrigerator, HSA 47542/1, SN-T, C467 – HC, Beko, 451 L, R600a, 64G

written by Lilianne | 19 November 2023

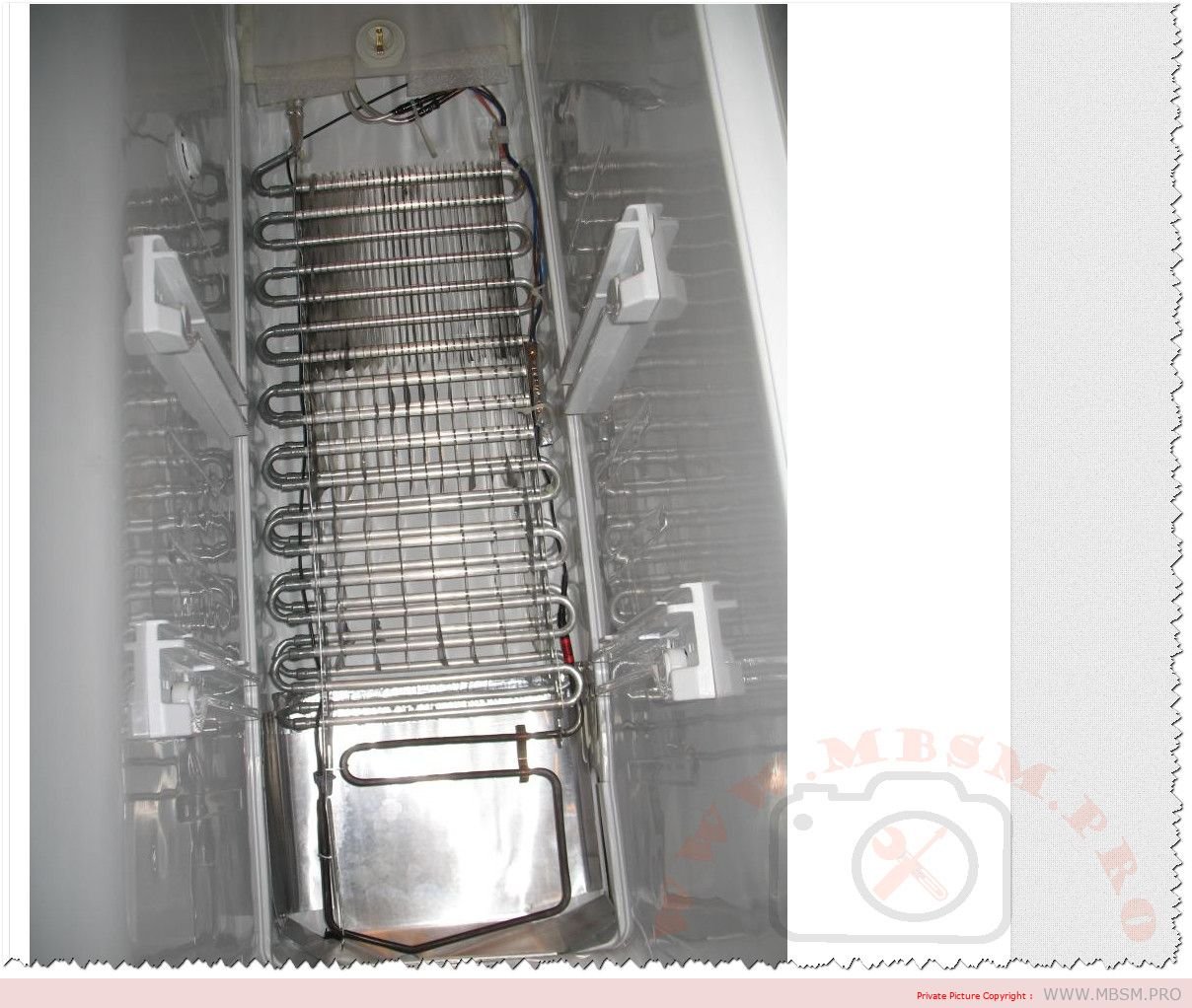

Frozen Beko. 1/4″ compressor replacement..NS1121y R600a gas
With another compressor 1/4 HYS69CA..cubigel..operates with R134a gas.

Mbsm.pro, Jiaxipera, NS1121Y, 1/4 hp++, 1/3 hp–, 214Kcal, R600a, 220V

Mbsm.pro, Compressor, hys69yq, 1/4 hp, lbp, HiTech, r134a



Mbsm.pro, Samsung, SK183B-L2W, Compressor, 1/3 hp, Lbp, r134a, 236 W, 806 btu, 203 kcal/h, 220 v 50 hzt, lra 9.4 a

written by Lilianne | 19 November 2023


Mbsm.pro, Original, Huaguang, refrigerator, compressor, ETA95, EHK95, EHT95, EKA95, ETY95, EHB95, r600a, lbp, 1/5 hp

written by Lilianne | 19 November 2023



Mbsm.pro, Refrigeration, compressor, CSB Series, freezer, 100W, R600a, 5.7cm3, 1PH, Beko, Candy, LG, CSB057NJEG (1/10HP), CSB069NJEG (1/8HP), Lbp, small compressor, Water Purifier Commercial Refrigeration, SMTB-150, 105 L, r600a/25 g, T class, 0.5 A

written by Lilianne | 19 November 2023

Parameter

Product type Reciprocating Compressor
Series CSB Series
Speed type Fixed speed
Size Small
Displacement 5.7 cc/rev
Refrigerants R600a
Improvement order Al Wire
Rated voltage 220-240 V
Frequency 50 Hz
Operating type RSIR
Cooling Capacity 100 W
Application LBP, Water Purifier Commercial Refrigeration
Test condition ASHRAE
Evaporating temperature -23.3°C
Condensing temperature 54.4°C
Ambient temperature 32.2°C

Shipping cost is not included



Mbsm.pro, Compressor, GFR57AG, 1/5 hp, Lbp, 5.7 cm3, 166 w

written by Lilianne | 19 November 2023
Model Power Hp Displacement Cooling Capacity Motor Type Input Power Rated Current COP
GFM44AA 1/6 4.6 120 RSIR 100 0.70 1.20
GFM53AA 1/6+ 5.3 145 RSIR 114 0.88 1.27
GFM57AA 1/5 5.7 165 RSIR 132 0.97 1.25
GFM75AA 1/4+ 7.5 215 RSIR 159 1.20 1.35
GFM10AA 1/3+ 10.0 295 RSIR 220 1.55 1.34
GFM12AA 1/2- 12.0 330 RSIR 235 1.85 1.40
GFM12AA_S 1/2- 12.0 330 RSIR 235 1.85 1.40

F(F) Series 220-240V/50Hz

GFF44AA 1/6 4.6 130 RSIR/RSCR 99/93 0.65/0.53 1.31/1.40
GFF57AA 1/5 5.7 165 RSIR/RSCR 115/110 0.77/0.57 1.43/1.50
GFF66AA 1/4 6.6 195 RSIR/RSCR 143/129 0.92/0.74 1.36/1.51
GFF75AA 1/4+ 7.5 215 RSIR/RSCR 156/147 1.15/0.83 1.38/1.46
GFF86AA 1/3 8.6 250 RSIR/RSCR 179/164 1.24/0.90 1.40/1.52
GFF93AA 1/3+ 9.3 270 RSIR/RSCR 185/175 1.25/0.95 1.46/1.54

F(T)Series High Efficiency Compressor 220-240V/50Hz

GFT36AA 1/7 3.6 110 RSCR 68 0.32 1.62
GFT44AA 1/6 4.4 130 RSCR 81 0.43 1.60
GFT53AA 1/5- 5.3 145 RSCR 96 0.53 1.50
GFT57AA 1/5 5.7 165/168 RSCR 104/98 0.55/0.49 1.60/1.70
GFT61AA 1/5+ 6.1 182 RSCR 107 0.53 1.70
GFT66AA 1/4 6.6 195 RSCR 115/113 0.58/0.55 1.68/1.72
GFT75AA 1/4+ 7.5 220 RSCR 129 0.69 1.70
GFT86AA 1/3 8.6 250 RSCR 148 0.73 1.70
GFT93AA 1/3+ 9.3 270 RSCR 166 0.84 1.65

F Series 115V/60Hz

GFM44AD 1/6+ 4.6 145 RSIR 111 1.62 1.30
GFM53AD 1/4 5.3 185 RSIR 131 1.75 1.30
GFM57AD 1/4 5.7 195 RSIR 138 1.85 1.30
GFM61AD 1/4+ 6.1 210 RSIR 168/150 2.75/1.90 1.25/1.40
GFR40AD 1/6 3.6 120 RSCR 84.6 7/8 1.42
GFR57AD 1/4 5.7 195 RSCR 116 1.2/7 1.55
GFM93AD 1/4 9.3 305 RSIR 218 3.2 1.40

F Series 200-220V/50Hz

GFF53AT 1/6+ 5.3 150 RSCR 106 0.67 1.42
GFF57AT 1/5 5.7 165 RSCR 118 0.86 1.40
GFF66AT 1/4 6.6 196 RSCR 138 1.02 1.42
GFF75AT 1/4+ 7.5 218 RSCR 147 1.07 1.48
GFF86AT 1/3 8.6 250 RSCR 168 1.14 1.49
GFF93AT 1/3+ 9.3 275 RSCR 185 1.23 1.49

F Series 100V-50/60Hz

GFF66AJ 1/4 6.6 195/233 RSCR 135/152 2.15/1.95 1.44/1.53
GFF93AJ 1/3 9.3 270/305 RSCR 190/205 2.95/2.58 1.42/1.49

F Series Compressor M/HBP R134a

220-240V 50/60Hz

GFL60AG_AL 3/4 5.3 550/650 CSIR 245/265 1.88/1.69 2.24/2.45

220-240V 50Hz

GFL80AA 1 7.5 720 CSIR 317 1.96 2.27
GFL10AA 1.2 9.3 880 CSIR 430 2.50 2.0


F Series Compressor LBP R600a

F(M/F) Series 220-240V/50Hz

BFM86AA 1/6+ 8.6 142 RSIR 101 0.82 1.40
BFF86AA 1/6 8.6 142 RSIR/RSCR 93/90 0.65/0.51 1.53/1.58
BFM93AA 1/5 9.3 155 RSIR 108 0.85 1.43
BFF93AA 1/5 9.3 160 RSIR/RSCR 103/98 0.73/0.58 1.55/1.63
BFM10AA 1/5+ 10.0 168 RSIR 122 1.01 1.38
BFF11AA 1/4 10.5 185 RSIR 121 0.70 1.45
BFM12AA 1/4+ 12.0 202 RSIR 144 1.10 1.40
BFF12AA 1/4+ 12.0 202 RSIR/RSCR 130/123 1.04/0.75 1.55/1.64

F(T) Series High Efficiency Compressor 220-240V/50Hz

BFT57AA 1/7- 5.7 95 RSCR 53/50 0.28/0.24 1.80/1.90
BFT75AA 1/6 7.5 130 RSCR 75/72 0.35 1.73/1.80
BFT86AA 1/5 8.6 142 RSCR 82/74 0.43/0.36 1.73/1.92
BFT93AA 1/5 9.3 155 RSCR 82 0.50 1.90
BFT10AA 1/5+ 10.0 175 RSCR 100/92 0.60/0.43 1.72/1.90
BFT11AA 1/4 10.0 180 RSCR 100 0.54 1.80
BFT12AA 1/4- 11.5 200/210 RSCR 116/114 0.54/0.52 1.72/1.86

F Series 200-220V/50Hz

BFF75AT 1/6 7.5 130 RSCR 80 0.46 1.63
BFF86AT 1/5 8.6 142 RSCR 91.5 0.65 1.55
BFM93AT 1/5 9.3 158 RSIR 112 0.93 1.41
BFF93AT 1/5 9.3 160 RSCR 100 0.66 1.60
BFF11AT 1/4 11 175 RSCR 110 0.76 1.60
BFT12AT 1/4 11.5 200 RSCR 130 1.0 1.50

F Series 115/60Hz

BFR57AD 1/6 5.7 120 RSCR 75 0.73 1.60
BFR75AD 1/5- 7.5 156 RSCR 92 0.90 1.70
BFM10AD 2/7 10.0 200 RSCR 133 1.55 1.50
BFR10AD 2/7 10.0 195 RSCR 116 1.32 1.65
BFM12AD 1/3 11.0 230 RSCR 153 1.65 1.50

F Series Compressor LBP R290a

220-240V/50Hz

PFT61AA 3/8 6.1 285 RSCR 183 1.55
PFT66AA 3/8 6.6 310 RSCR 200 1.56
PFT66AA© 3/8 6.6 310 RSCR 190 1.65
PFT75AA 1/2- 7.5 350 RSCR 216 1.62
PFT75AA© 1/2- 7.5 350 RSCR 206 1.70
PFT86AA 1/2 8.6 388 RSCR 258 1.50
PFT86AA© 1/2 8.6 421 RSCR 263 1.60
PFT93AA© 3/5 9.3 455 RSCR 284 1.60


F Series Compressor L/MBP R290

220-240V/50Hz

PFL57AA 1/3 5.7 255/490 CSIR 170/235 1.50/2.09
PFL75AA 1/2- 7.5 350/657 CSIR 248/324 1.41/2.03

S1 Series Compressor LBP R600a

220-240V~50Hz
Model Power Hp Displacement Cooling Type Cooling Capacity Motor Type Input Power COP
BSE60AA 1/8 6 ST 100 RSIR 83 1.2
BSM60AA 1/8 6 ST 100 RSIR 74 1.35
BSE67AA 1/7+ 6.7 ST 115 RSIR 96 1.2
BSE72AA 1/6 7.2 ST 123 RSIR 103 1.2
BSM67AA 1/7+ 6.7 ST 115 RSIR 85 1.35
BSM72AA 1/6 7.2 ST 123 RSIR 91 1.35
BSM80AA 1/5- 8.1 ST 140 RSIR 104 1.35
BSF60AA 1/7- 6 ST 102 RSIR 70 1.45
BSR60AA 1/7- 6 ST 102 RSCR 66 1.55
BSR67AA 1/7+ 6.7 ST 115 RSCR 74 1.55
BSR72AA 1/6 7.2 ST 123 RSCR 82 1.5
BSR80AA 1/5- 8 ST 140 RSCR 93 1.5
200-220V~50Hz
BSE80AT 1/5- 8.1 ST 140 RSIR 117 1.2
BSR60AT 1/7 6 ST 102 RSCR 68 1.5
115V~60Hz
BSM50AD 1/8 5 ST 96 RSIR 74 1.3
BSM60AD 1/6- 6 ST 120 RSIR 92 1.3
BSF50AD 1/8 5 ST 96 RSIR 68 1.42
BSS60AD 1/6- 6 ST 120 RSCR 75 1.6

S1 Series Compressor LBP R134a

220-240V~50Hz
Model Power Hp Displacement Cooling Type Cooling Capacity Motor Type Input Power COP
GSD25AA 1/12- 2.5 ST 58 RSIR 61 0.95
GSD30AA 1/10 3 ST 75 RSIR 75 1
GSC35AA 1/8 3.5 ST 93 RSIR 103 0.9
GSE30AA 1/10 3 ST 75 RSIR 63 1.2
220-240V~50/60Hz
GSC25AG 1/12- 2.5 ST 58 RSIR 71 0.82
ST 68 68 1
GSC30AG 1/10 3 ST 75 RSIR 83 0.9
ST 87 79 1.1
115V~60Hz
GSC25AD 1/11 2.5 ST 67 RSIR 61 1.1
GSC30AD 1/9 3 ST 88 RSIR 80 1.1
GSE32AD 1/8 3.2 ST 95 RSIR 79 1.2
100V~50/60Hz
GSC25AJ 1/12- 2.5 ST 58 RSIR 64 0.9
67 61 1.1
GSC30AJ 1/10 3.0 ST 75 RSIR 79 0.95
88 73 1.2

S2 Series Compressor LBP R600a

220-240V~50Hz
Model Power Hp Displacement Cooling Type Cooling Capacity Motor Type Input Power COP
BSM88AA 1/5 8.8 ST 155 RSIR 119 1.3
BSF88AA 1/5 8.8 ST 155 RSIR 111 1.4
BSF92AA 1/5 9.2 ST 162 RSIR 116 1.4
BSR67AA 1/7+ 6.7 ST 115 RSCR 74 1.55
BSR80AA 1/5- 8 ST 140 RSCR 93 1.5
BSS60AA 1/7- 6 ST 102 RSCR 61 1.66
200-220V~50Hz
BSE80AT 1/5- 8.1 ST 140 RSIR 117 1.2
BSR88AT 1/5 8.8 ST 155 RSCR 103 1.5
BSR60AT 1/7- 6 ST 102 RSCR 66 1.55
BSS60AT 1/7- 6 ST 102 RSCR 63 1.62
115V~60Hz
BSS55AD 1/7+ 5.5 ST 110 RSIR 69 1.6
BSS60AD 1/6- 6 ST 120 RSCR 76 1.57

S2 Series Compressor LBP R134a

220-240V~50Hz
Model Power Hp Displacement Cooling Type Cooling Capacity Motor Type Input Power COP
GSM57AA 1/5 5.7 ST 165 RSIR 122 1.35
GSF57AA 1/5 5.7 ST 165 RSIR 114 1.45
200-220V~50Hz
GSF45AT 1/6 4.5 ST 125 RSIR 93 1.35
GSF57AT 1/5 5.7 ST 165 RSCR 116 1.42

AT Series Compressor LBP R600a

220-240V~50Hz
Model Power Hp Displacement Cooling Type Cooling Capacity Motor Type Input Power COP
BATS80AA 1/5- 8 ST 142 RSCR 84 1.70
BATS96AA 1/5 9.6 ST 166 RSCR 98 1.70
BATU60AA 1/7- 6 ST 102 RSCR+EPTC 57 1.78
BATU67AA 1/7+ 6.7 ST 115 RSCR+EPTC 65 1.78
BATF96AA 1/5 9.6 ST 166 RSIR 119 1.4
BATR96AG 1/5 9.6 ST 166 RSIR 107 1.55
BATK60AA 1/7- 6 ST 102 RSCR+EPTC 57 1.8
BATK67AA 1/7+ 6.7 ST 115 RSCR+EPTC 64 1.8
BATK105AA 1/4 10.5 ST 184 RSCR+EPTC 102 1.8
BATS115AA 1/4 11.5 ST 198 RSCR 118 1.68
BATF115AA 1/4 11.5 ST 198 RSIR 141 1.4
BATK96AA 1/5 9.6 ST 166 RSCR+EPTC 91 1.83
BATR88AY 1/5 8.8 ST 155 RSIR 100 1.55
155 RSCR 94 1.65
BATF96AY 1/5 9.6 ST 166 RSIR 109 1.52
166 RSCR 104 1.6

AT Series Compressor LBP R134a

220-240V~50Hz
Model Power Hp Displacement Cooling Type Cooling Capacity Motor Type Input Power COP
GATF57AA 1/5 5.7 ST 165 RSCR 118 1.40
GATF66AA 1/4 6.6 ST 196 RSCR 138 1.42
GATF75AA 1/4+ 7.5 ST 218 RSCR 147 1.48
GATF86AA 1/3 8.6 ST 250 RSCR 168 1.49

V Series Compressor LBP R134a

220-240V~50Hz
Model Power Hp Displacement CoolingType Cooling Capacity Motor Type Input Power COP
GVC20AA 1/11 2.0 ST 65 RSIR 68 0.95
GVC25AA 1/10 2.5 ST 75 RSIR 79 0.95
GVC30AA 1/8- 3.0 ST 90 RSIR 95 0.95
GVC35AA 1/8 3.5 ST 98 RSIR 103 0.95
220-240V~50/60Hz
GVC20AG 1/11 2 ST 65 RSIR 68 0.95
78 65 1.2
GVC20AG 1/10 2.5 ST 75 RSIR 79 0.95
90 75 1.2
GVC20AG 1/8- 3 ST 90 RSIR 95 0.95
106 88 1.2

V Series DC Compressor

12/24V Inverter
Model Power Hp Displacement CoolingType RPM Cooling Capacity Motor Type Input Power COP
GVM25DC 1/11 2.5 ST 2000 45  BLDC 34 1.32
2500 56 42 1.32
3000 69 51 1.35
3500 75 57 1.31
GVM30DC 1/9 3 ST 2000 69  BLDC 51 1.35
2500 75 57 1.31
3000 81 62 1.31
3500 96 73 1.32
GVM35DC 1/8 3.5 ST 2000 65  BLDC 50 1.31
2500 81 62 1.31
3000 96 73 1.32
3500 110 85 1.29
BVM43DC 1/11 4.3 ST 2000 43  BLDC 32 1.35
2500 54 40 1.36
3000 68 50 1.36
3500 72 55 1.32

L Series Compressor LBP R600a

220-240V~50Hz
Model Power Hp Displacement Cooling Type Cooling Capacity Motor Type Input Power COP
BLC30AA 1/15 3.0 ST 48 RSIR 48 1.00
BLC35AA 1/14 3.5 ST 52 RSIR 52 1.00
BLC43AA 1/11+ 4.3 ST 64 RSIR 61 1.05
BLC52AA 1/10+ 5.2 ST 78 RSIR 74 1.05
BLC60AA 1/8 6.0 ST 95 RSIR 95 1.00
115V~60Hz
BLC32AD 1/13 3.2 ST 57 RSIR 52 1.10
BLC35AD 1/11+ 3.5 ST 64 RSIR 58 1.10
BLC43AD 1/10+ 4.3 ST 78 RSIR 71 1.10
BLC48AD 1/9+ 4.8 ST 86 RSIR 78 1.10

L Series Compressor LBP R134a
220-240V~50Hz
Model Power Hp Displacement Cooling Type Cooling Capacity Motor Type Input Power COP
GLC20AA 1/13- 2.2 55 ST RSIR 55 1.00
GLC25AA 1/11- 2.5 65 ST RSIR 65 1.00
Freon Model The volume of the cylinder -23 C W Email The question
R-134a GVM 25 AA 2.5 59 220~240V-50Hz
R-134a GVM 28 AA 2.8 68 220~240V-50Hz
R-134a GVM 30 AA 3.0 75 220~240V-50Hz
R-134a GVM 35 AA 3.5 92 220~240V-50Hz
R-134a GTM 45 AA 4.5 120 220~240V-50Hz
R-134a GTF 52 AA 5.2 150 220~240V-50Hz
R-134a GFM 44 AA 4.6 120 220~240V-50Hz
R-134a GFF 44 AA 4.6 130 220~240V-50Hz
R-134a GFM 53 AA 5.3 145 220~240V-50Hz
R-134a GFF 57 AA 5.7 166 220~240V-50Hz
R-134a GFF 66 AA 6.6 195 220~240V-50Hz
R-134a GFR 66 AA 6.6 195 220~240V-50Hz
R-134a GFF 75 AA 7.5 215 220~240V-50Hz
R-134a GFF 86 AA 8.6 250 220~240V-50Hz
R-134a GFF 93 AA 9.3 270 220~240V-50Hz
R-134a GFM 10 AA 10.0 290 220~240V-50Hz
R-134a GFM 12 AA 12.0 330 220~240V-50Hz
R-134a GFR 57 AG 5.7 166/195 220~240V-50Hz
R-134a GFR 66 AG 6.6 195/220 220~240V-50Hz
R-134a GFR 57 AT 5.7 166 200~220V-50Hz
R-134a GVM 25 AD 2.5 68 115V -60Hz
R-134a GVM 30 AD 3.0 84 115V -60Hz
R-134a GFM 44 AD 4.6 145 115V -60Hz
R-134a GFM 53 AD 5.3 180 115V -60Hz
R-134a GFM 57 AD 5.7 195 115V -60Hz
R-134a GFM 61 AD 6.1 210 115V -60Hz
R-134a GFR 40 AD 3.6 125 115V -60Hz
R-134a GFR 44 AD 4.0 145 115V -60Hz
R-134a GFR 53 AD 5.3 180 115V -60Hz
R-134a GFR 57 AD 5.7 195 115V -60Hz
R-134a GFR 66 AD 6.6 225 115V -60Hz

Performance table of SIBERIA R-600 compressors

Freon Model The volume of the cylinder -23 C W Email The question
R-600 BVM 35 AA 3.5 55 220~240V-50Hz
R-600 BVM 43 AA 4.3 68 220~240V-50Hz
R-600 BTF 60 AA 6.0 100 220~240V-50Hz
R-600 BTF 65 AA 6.5 110 220~240V-50Hz
R-600 BTF 70 AA 7.0 120 220~240V-50Hz
R-600 BFM 67 AA 6.7 120 220~240V-50Hz
R-600 BFM 80 AA 7.5 130 220~240V-50Hz
R-600 BFM 86 AA 8.6 142 220~240V-50Hz
R-600 BFM 93 AA 9.3 155 220~240V-50Hz
R-600 BFM 10 AA 10.0 168 220~240V-50Hz
R-600 BFF 75 AA 7.5 130 220~240V-50Hz
R-600 BFF 86 AA 8.6 142 220~240V-50Hz
R-600 BFF 93 AA 9.3 155 220~240V-50Hz
R-600 BFF 10 AA 10.0 168 220~240V-50Hz
R-600 BFF 12 AA 12.0 202 220~240V-50Hz
R-600 BFR 67 AA 6.7 120 220~240V-50Hz
R-600 BFR 75 AA 7.5 130 220~240V-50Hz
R-600 BFR 86 AA 8.6 142 220~240V-50Hz
R-600 BFR 93 AA 9.3 155 220~240V-50Hz
R-600 BFR 10 AA 10.0 168 220~240V-50Hz


UGINE, refregerator, WBr-100, 90 L, r134a, 40 g, 220 v, 60 hz, 75 W, Class T, Compressor, Daewoo, WX24LHS4T, 62 W, 1/12 hp, lra 2.5 a, 186 btu, lbp

written by Lilianne | 19 November 2023


Danfoss, r12, r22, r502, Compressor, ff7.5at, 103u 2750, 103u2750, 1/5 hp, lbp, 147 w

written by Lilianne | 19 November 2023


SECOP, DANFOSS, 1/2 hp, lbp, SC15CL, compressor, 104L2853, 15.28 cm³, R404a/R507, 104L 2853

written by Lilianne | 19 November 2023

Refrigerants: R404A; R507
Gross weight 13.48 Kg
Net weight 13.48 Kg
Oil POE
Height total [mm] 219 mm
Applications LBP
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] 13.7 Ohm
Amount of oil 550 cm3
Capacity of capacitor B 80 uF
Capacity control Fixed speed
Refrigerant charge [kg] [Max] 1.3 kg
Color Black
Comments on the suction connection Cover of The
Comments on the discharge connection Cover of The
Comments on the process connection Cover of The
Current connection HST [A] 20.4 To
Configuration code Individual
Description SC15CL
Description SC
Discharge connection height [mm] 110 mm
Diameter of the suction connection [mm] 10.2 mm
Diameter discharge connection [mm] 6.2 mm
Economizer Not
Packaging format Industrial package
Frequency [Hz] Fifty
Height from baseplate [mm] 213 mm
LRA HST [A] 20.4 To
Material of the discharge connection Steel-plated Cu
Material of the process connection Steel-plated Cu
Merged Approval standard and CE en 60335-2-34 with Annex AA
N. º of phases (compressor) One
N. º of phases (fan) One
Energy level of the application Compressor LBP standard
Number of scheme Eight thousand two hundred fifty eight
Model number SC15CL
Oil charge [L] 550 L
Phase One
Process connection diameter [mm] 6.2 mm
Refrigerants R404A
R507
Resistance of the primary winding for compressors in single-phase [Ohm] 3.7 Ohm
RLA 3.9 To
Start capacitor capacitance 80 µF
Suction connection height [mm] 193 mm
Swept volume [cm3] 15.28 cm3
Technology Alternative
Temperature of the winding, the short-term [°C] [Max] 135 °C
Winding temperature, stable [°C] [Max] 125 °C
Voltage, 50 Hz [V] 220 V
Voltage, 50 Hz [V] [max.] 240 V
Engine type CSIR
Type of motherboard Universal
Type designation Compressor
Technique of the brand Reciprocating compressors, type
Units of packing Eighty
Use of segment Refrigeration LT
High value of nominal voltage at 50 Hz [V] 230 V
High value of the nominal voltage at 60 Hz [V] 0 V
High value of voltage range at 50hz [V] 254 V
High value of the voltage range at 60 Hz [V] 0 V
Low value of the rated voltage at 50 Hz [V] 220 V
Low value of the nominal voltage at 60 Hz [V] 0 V
Low value of voltage range at 50hz [V] 198 V
Low value of the voltage range at 60 Hz [V] 0 V
Rotation speed at 50 Hz [rpm] 2900 rpm
Rotation speed at 60 Hz [rpm] 0 rpm
Volume of free gas [cm3] 1510 cm3
Angle of the connection suction [°] 37 °
Angle of the discharge connection [°] 37 °
Angle of the connection process 37 °
Application: Refrigerator
Cooling table
Warming display cabinet
rapid chiller
Fridge/freezer
Freezer
Freezer table
Design type: fully hermetic
CODE: 104L2853
Type of use: LBP
Frequency: 50Hz
Displacement: 15.28 cm³
Height: 219mm
Refrigerant: R404a/R507
Perfomance: 1/2 HP
Performance at -10°C: 1,251W
Performance at -15°C: 1,017W
Performance at -20°C: 813W
Performance at -25°C: 637W
Performance at -30°C: 486W
Performance at -35°C: 358W
Performance at -40°C: 175W
Performance at -5°C: 1,699W
Engine system: CSIR
Tension: 220-240V
Test procedure: ASHRAE

Application:

  • laboratory and medical equipment
  • compressed air dryers
  • glass door merchandisers
  • display cabinets
  • freezers and fridge
  • ice cream cabinets
  • vending machines
  • drinks dispensers
  • ice making machines
  • bottle coolers
  • heat pumps
  • milk cooling tanks
  • wine cellars

Description:

hermetic, piston, refrigeration compressor type LBP / MBP, for R404A / R507 refrigerant p>

Specification:

  • application: LBP/MBP compressor
  • refrigerants: R404A, R507
  • power: 220-240V, 50Hz
  • displacement: 15.28 cm3
  • oil quantity: 550 ml
  • oil type: polyolester
  • winding resistance (main): 3.7 Ohm
  • winding resistance (start): 14.4 Ohm
  • evaporating temperature: -40°C to -5°C
  • cooling capacity range: 151 – 1458 W
  • cooling capacity depending on the evaporation temperature (EN 12900, 50Hz):

    • -40°C: 151 W
    • -35°C: 299 W
    • -30°C: 452 W
    • -25°C: 615 W
    • -23.3°C: 673 W
    • -20°C: 792 W
    • -15°C: 988 W
    • -10°C: 1208 W
    • -6.7°C: 1370 W
    • -5°C: 1458 W

  • compressor weight: 13.8 kg
  • singlepack kit weight: 14.4 kg

Additional information:

kit includes:

  • compressor: [104L2853]
  • starting device: [117U6019]
  • cover: [103N2009]
  • run capacitor: 80μF [117U5017]
  • cord relief: [103N1004]
  • mounting accessories: [118-1917]

NL10FT 105G6829 105G6839 3/8 113 158 213 235 281 361 455 217 327 10.10

SC12FT 104G8205 104G8215 3/8 103 163 233 259 314 408 517 645 265 380 12.87

SC15FT 104G8505 1/2 126 197 280 311 376 489 620 772 311 451 15.28

SC18FTX 104G8805 5/8 144 229 325 361 437 567 719 896 365 517 17.68

SC21FTX 104G8105 3/4 192 296 415 460 553 713 901 1119 428 613 20.95

60 Hz

PL35G 101G0250 1/16 34 39 48 64 82 104 52 79 2.00

TL2.5G 102G4251 1/16 14 27 42 48 60 80 105 134 67 96 2.61

TL3G 102G4350 1/12 30 47 54 69 95 125 70 111 3.13

TL4G 102G4452 1/10 48 70 78 96 127 166 87 135 3.86

TL5G 102G4550 1/8 65 92 102 123 162 207 106 170 5.08

FR6G 103G6660 1/6 51 93 108 141 199 266 119 197 6.23

FR7.5G 103G6680 103G6690 1/5 67 112 130 166 228 300 138 229 6.93

FR8.5G 103G6780 103G6790 1/4 92 138 156 195 263 345 164 273 7.95

FR10G 103G6880 103G6890 1/3 99 153 173 217 292 381 194 314 9.05

SC12FT 104G8205 104G8215 1/2 125 192 272 302 366 477 608 761 298 458 12.87

SC15FT 104G8505 5/8 154 235 330 365 441 571 724 904 356 537 15.28

SC18FTX 104G8805 3/4 187 280 390 432 520 675 857 1071 420 622 17.68

SC21FTX 104G8106 7/8 240 345 470 518 620 800 1012 1262 475 707 20.95

R404A/R507

50 Hz

TL4CL 102U2071 1/8 52 65 84 110 142 155 182 230 286 352 140 198 3.86

FR6CL 103U2670 1/6 77 108 145 189 243 263 307 383 473 578 242 353 6.23

FR7.5CL 103U2790 1/5 86 114 154 202 262 285 333 418 515 630 267 395 6.93

FR8.5CL 103U2890 1/4 99 126 168 222 290 317 372 468 577 315 472 7.95

NL7CLX 105F3710 1/3 102 146 199 263 340 369 430 536 657 796 274 381 7.27

SC10CLX 104L2533 1/3 166 255 360 400 483 625 789 977 352 508 10.29

SC12CL 104L2623 3/8 58 140 237 353 490 541 650 835 1048 1292 445 654 12.87

SC12CLX.2 104L2697 1/2 130 205 294 399 522 569 666 834 1026 475 659 12.87

SC15CL 104L2853 1/2 151 299 452 615 673 792 988 1208 1458 560 790 15.28

SC15CLX.2 104L2896 1/2 159 250 358 486 637 694 813 1017 1251 1519 565 783 15.28

SC18CL 104L2123 5/8 167 271 395 542 715 781 918 1154 1425 1735 615 894 17.68

SC18CLX.2 104L2197 3/4 194 306 439 595 780 849 995 1245 1532 680 949 17.68

SC21CL 104L2322 7/8 226 325 455 617 813 887 1042 1306 1606 702 989 20.95

GS26CLX 107B0500 1 325 497 703 949 1240 1348 1580 1974 2427 888 1285 26.30

GS34CLX 107B0501 1 1/4 729 1003 1330 1715 1857 2165 2687 3289 1196 1721 33.80

60 Hz

SC10CLX 104L2533 3/8 224 335 455 499 588 738 906 1096 430 623 10.29

SC12CLX 104L2695 1/2 146 282 429 590 649 770 972 1200 540 748 12.87

SC12CLX.2 104L2697 1/2 155 233 343 473 626 683 804 1011 1248 541 777 12.87

SC15CLX 104L2854 5/8 179 351 530 720 788 928 1158 1417 610 864 15.28

SC15CLX.2 104L2897 5/8 194 305 437 593 776 846 991 1239 1525 611 848 15.28

SC18CLX.2 104L2195 7/8 113 338 542 737 938 1010 1157 1410 1708 752 990 17.68

GS21CLX  107B0506 1 475 674 905 1172 1270 1480 1873 2246 868 1180 21.20

R290

50 Hz

TL3CN  102H4380 1/10 106 200 106 140 3.13

TL4CN  102H4490 1/8 56 126 255 128 155 3.86

TL5CN 102H4590 1/6 81 109 143 183 198 230 283 345 416 162 211 5.08

NL7CN 105H6756 1/4 118 166 223 290 315 368 458 561 679 221 291 7.27

NL9CN 105H6856 1/3 138 194 259 335 364 423 526 643 778 250 334 8.35

SC10CNX 104H8065 1/3 126 179 245 325 355 420 531 660 809 274 362 10.29

SC12CNX 104H8265 3/8 178 250 331 426 462 540 678 846 1050 344 456 12.87

SC12CNX.2 104H8266 3/8 186 258 346 453 493 578 725 895 379 502 12.87

SC15CNX 104H8565 1/2 195 297 415 550 601 707 887 1093 1328 420 560 15.28

SC15CNX.2 104H8566 1/2 252 332 434 560 609 714 900 1120 445 610 15.28



JIAXIPERA, NT1117Y, refrigerator, compressor ,198 W, R600, LBP

written by Lilianne | 19 November 2023

Mbsm.pro, refrigerator, RD-73WS4S, Hisense, 597 L, R600a, 58 g, 230 w, Compressor, Nt1117y, 1/4 hp



Compressor, HPL21YE-5, HsL21YE-5, 1/5 hp, DAEWOO, 176 w, lbp, r134a

written by Lilianne | 19 November 2023
