Mbsm.pro, Compresseur, Secop, GTK70AT, 204W, R134, LBP, 1/4 HP, RSIR, 699 BTU

written by Lilianne | 11 November 2023

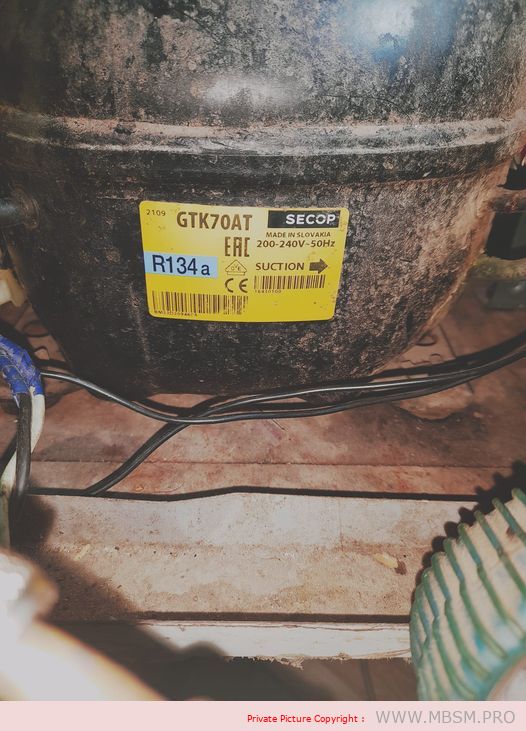

Mbsm.info, Compresseur, Secop, GTK70AT, 204W, R134, LBP, 1/4 HP, RSIR, 699 BTU

Technical Features

BRAND SECOP
COMPRESSOR TYPE HERMETIC RECIPROCATING
APPLICATION LBP (-23,3°C / +54,4°C)
POWER SUPPLY 200-240V/50HZ 1~
REFRIGERANT R134A
FREQUENCY (HZ) 50
OIL TYPE POLYOLESTER
OIL VISCOSITY 15CST
OIL QUANTITY 156CM³ / 5,3FL.OZ
FREE GAS VOLUME COMP. 1560CM³ / 52,7FL.OZ
WEIGHT 8,6KG / 19LBS
MOTOR PROTECTION EXTERNAL
WINDING RESISTANCE MAIN 11,9Ω (AT 25°C)
WINDING RESISTANCE AUX 11,8Ω (AT 25°C)
MAX. WINDING TEMP. 130°C / 266°F
MAX. DISCHARGE TEMP. 1 130°C / 266°F
DISPLACEMENT 6,64CM³ / 0,41CU.IN
COMPRESSORS ON PALLET 100

Mbsm_dot_pro_private_PDF_GTK70AT



Mbsm.pro, COMPRESSEUR, CUBIGEL, L45TN, R22, HMBP, 1/5HP, 220/240V 50HZ, ORIGINE 4.56CM3

written by Lilianne | 11 November 2023

FICHE TECHNIQUE COMPRESSEUR CUBIGEL L45TN R22 HMBP 1/5HP 220/240V 50HZ ORIGINE

Puissance HP 1/5
Tension (V) 220/240
Fréquence (Hz) 50
Marque pie CUBIGEL
Cylindré 4.56
Référence marque L45TN

Mbsm_dot_pro_private_PDF_53-L45TN_techTélécharger


Mbsm.pro, TECUMSEH, Compressor, Condensing, Units, AHC4540EFZ, FH4540F, FH4524F, FH4528F, FH4531F, FH4540F, R22, 3-1/2 HP, hbp, CSR, 220V ~ 50HZ

written by Lilianne | 11 November 2023

Performance

Condition Test Voltage (R) Btu/h (R) kcal/h (R) W (I) W (E) Btu/Wh (E) kcal/Wh W/W EVAP TEMP COND TEMP AMBIENT TEMP RETURN GAS LIQUID TEMP
EN12900 220V ~ 50HZ 31460 7927 9217 3580 8.78 2.21 2.57 5°C (41°F) 50°C (122°F) 32°C (90°F) 20°C (68°F) 50°C (122°F)

General

Evaporating Temp. Range: -6.7°C to 12.8°C (20°F to 55°F)
Motor Torque: High Start Torque (HST)
Compressor Cooling: Fan

Mechanical

Weight: 37
Weight Unit of Measure: KG
Displacement (cc): 74.25
Oil Type: Polyolester
Viscosity (cSt): 32
Oil Charge (cc): 1480

Electrical

Voltage Range (50 Hz): 198-253
Voltage Range (60 Hz): N/A
Locked Rotor Amps (LRA): 94
Rated Load Amps (RLA 50 Hz): 18.6
Rated Load Amps (RLA 60 Hz): 0
Max. Continuous Current (MCC in Amps): 30.5
Motor Resistance (Ohm) – Main: .6
Motor Resistance (Ohm) – Start: 3
MotorType: CSR
Overload Type: N/A
Relay Type: N/A

Agency Approval

R134a, Room Temperature -25℃~10℃

Unit Model  Compressor  Condenser
Model Capacity (HP) Power  Qty*Dia  Air Flow (m³/h) Fan Power (W)  Fan Voltage
CE-THB4410Y THB4410Y 1/8 220-240V/1/50HZ 1*φ200 560 38 220V
CE-THB4413Y THB4413Y 1/4 220-240V/1/50HZ 1*φ200 560 38 220V
CE-THB4415Y THB4415Y 1/6 220-240V/1/50HZ 1*φ200 560 38 220V
CE-THB4419Y THB4419Y 1/5 220-240V/1/50HZ 1*φ200 560 38 220V
CE-THB4422Y THB4422Y 1/5 220-240V/1/50HZ 1*φ200 560 38 220V
CE-AE4425Y AE4425Y 1/5 220-240V/1/50HZ 1*φ200 560 38 220V
CE-AE4430Y AE4430Y 1/4 220-240V/1/50HZ 1*φ200 560 38 220V
CE-AE4440Y AE4440Y 1/3 220-240V/1/50HZ 1*φ200 560 38 220V
CE-AE4450Y AE4450Y 3/8 220-240V/1/50HZ 1*φ200 560 38 220V
CE-AE4456Y AE4456Y 7/16 220-240V/1/50HZ 1*φ200 560 38 220V
CE-AE4460Y AE4460Y 1/2 220-240V/1/50HZ 1*φ200 560 38 220V
CE-CAJ4452Y CAJ4452Y 3/7 220-240V/1/50HZ 1*φ200 560 38 220V
CE-CAJ4461Y CAJ4461Y 1/2 220-240V/1/50HZ 1*φ250 1150 65 220V
CE-TAJ4461Y CTAJ4461Y 1/2 400V/3/50HZ 1*φ250 1150 70 380V
CE-CAJ4476Y CAJ4476Y 5/8 220-240V/1/50HZ 1*φ300 2100 115 220V
CE-CAJ4492Y CAJ4492Y 3/4 220-240V/1/50HZ 1*φ300 2100 115 220V
CE-TAJ4492Y TAJ4492Y 3/4 400V/3/50HZ 1*φ300 2150 120 380V
CE-CAJ4511Y CAJ4511Y 1 220-240V/1/50HZ 1*φ350 2980 138 220V
CE-TAJ4511Y TAJ4511Y 1 400V/3/50HZ 1*φ350 2980 138 380V
CE-CAJ4513Y CAJ4513Y 1-1/8 220-240V/1/50HZ 1*φ350 2980 138 220V
CE-FH4518Y FH4518Y 1-1/2 220-240V/1/50HZ 1*φ350 2980 138 220V
CE-TFH4518Y TFH4518 1-1/2 400V/3/50HZ 1*φ350 3110 145 380V
CE-FH4525Y FH4525Y 2 220-240V/1/50HZ 1*φ350 2980 138 220V
CE-TFH4525Y TFH4525Y 2 400V/3/50HZ 1*φ350 3110 145 380V
CE-TAG4528Y TAG4528Y 2-1/2 400V/3/50HZ 1*φ400 3900 190 380V
CE-TAG4534Y TAG4534Y 2-1/2 400V/3/50HZ 1*φ400 3900 190 380V
CE-TAG4537Y TAG4537Y 3-1/4 400V/3/50HZ 1*φ400 3900 190 380V
CE-TAH4543Y TAG4543Y 3-1/2 400V/3/50HZ 2*φ350 6220 290 380V

R404A, Room Temperature -25℃~10℃

Unit Model  Compressor  Condenser
Model Capacity (HP) Power  Qty*Dia  Air Flow (m³/h) Fan Power (W)  Fan Voltage
CE-FH4522Z FH4522Z 2 220-240V/1/50HZ 1*φ350 2980 138 220V
CE-TFH4522Z TFH4522Z 2 400V/3/50HZ 1*φ350 2980 138 380V
CE-FH4524Z FH4524Z 2 220-240V/1/50HZ 1*φ350 2980 138 220V
CE-TFH4524Z TFH4524Z 2 400V/3/50HZ 1*φ350 2980 138 380V
CE-FH4531Z FH4531Z 2-3/4 220-240V/1/50HZ 2*φ350 5960 276 220V
CE-TFH4531Z TFH4531Z 2-3/4 400V/3/50HZ 2*φ350 5960 276 380V
CE-FH4540Z FH4540Z 3-1/2 220-240V/1/50HZ 2*φ350 5960 276 220V
CE-TFH4540Z TFH4540Z 3-1/2 400V/3/50HZ 2*φ350 5960 276 380V
CE-TAG4546Z TAG4546Z 4 400V/3/50HZ 2*φ350 5960 276 380V
CE-TAG4553Z TAG4553Z 4-1/2 400V/3/50HZ 2*φ400 7800 380 380V
CE-TAG4561Z TAG4561Z 5 400V/3/50HZ 2*φ400 7800 380 380V
CE-TAG4568Z TAG4568Z 6 400V/3/50HZ 2*φ400 7800 380 380V
CE-TAG4573Z TAG4573Z 6 400V/3/50HZ 2*φ400 7800 380 380V
CE-TAG4581Z TAG4581Z 6-3/4 400V/3/50HZ 2*φ400 7800 380 380V

R404A, Room Temperature -30℃~ -10℃

Unit Model  Compressor  Condenser
Model Capacity (HP) Power  Qty*Dia  Air Flow (m³/h) Fan Power (W)  Fan Voltage
CE-THB2360Z THB2360Z 1/5 220-240V/1/50HZ 1*φ350 2980 138 220V
CE-THB2378Z THB2378Z 1/5 220-240V/1/50HZ 1*φ200 455 29 220V
CE-THB2396Z THB2396Z 1/5 220-240V/1/50HZ 1*φ200 455 29 220V
CE-AE2410Z AE2410Z 1/4 220-240V/1/50HZ 1*φ200 455 29 220V
CE-AE2415Z AE2415Z 3/8 220-240V/1/50HZ 1*φ200 455 29 220V
CE-AE2420Z AE2420Z 1/2 220-240V/1/50HZ 1*φ250 1000 70 220V
CE-AE2425Z AE2425Z 5/8 220-240V/1/50HZ 1*φ300 1664 85 220V
CE-TYA2431ZKS TYA2431ZKS 1 220-240V/1/50HZ 1*φ300 1664 85 220V
CE-TYA2438ZKS TYA2438ZKS 1-1/4 220-240V/1/50HZ 1*φ350 2980 138 220V
CE-TYA2431ZKS TYA2431ZKS 1-1/3 220-240V/1/50HZ 1*φ350 2980 138 220V
CE-CAJ2428Z CAJ2428Z 3/4 220-240V/1/50HZ 1*φ300 2100 115 220V
CE-TAJ2428Z TAJ2428Z 3/4 400V/3/50HZ 1*φ300 2150 120 380V
CE-CAJ2432Z CAJ2432Z 3/4 220-240V/1/50HZ 1*φ300 2100 115 220V
CE-TAJ2432Z TAJ2432Z 3/4 400V/3/50HZ 1*φ300 2150 120 380V
CE-CAJ2440Z CAJ2440Z 1 220-240V/1/50HZ 1*φ300 2100 115 220V
CE-CAJ2446Z CAJ2446Z 1 220-240V/1/50HZ 1*φ300 2100 115 380V
CE-TAJ2446Z TAJ2446Z 1 400V/3/50HZ 1*φ300 2150 120 220V
CE-CAJ2464Z CAJ2464Z 1-1/2 220-240V/1/50HZ 1*φ350 2980 138 380V
CE-TAJ2464Z TAJ2464Z 1-1/2 400V/3/50HZ 1*φ350 3110 145 220V
CE-FH2480Z FH2480Z 2 220-240V/1/50HZ 1*φ350 2980 138 220V
CE-TFH2480Z TFH2480Z 2 400V/3/50HZ 1*φ350 3110 145 380V
CE-FH2511Z FH2511Z 3 220-240V/1/50HZ 2*φ350 5960 276 220V
CE-TFH2511Z TFH2511Z 3 400V/3/50HZ 2*φ350 6220 290 380V
CE-TAG2513Z TAG2513Z 3-1/4 400V/3/50HZ 2*φ350 6220 290 380V
CE-TAG2516Z TAG2516Z 4 400V/3/50HZ 2*φ350 6220 290 380V
CE-TAG2522Z TAG2522Z 6 400V/3/50HZ 2*φ400 7800 380 380V
CE-TAG2525Z TAG2525Z 6-1/4 400V/3/50HZ 2*φ400 7800 380 380V

R22, Room Temperature -25℃~10℃

Unit Model  Compressor  Condenser
Model Capacity (HP) Power  Qty*Dia  Air Flow (m³/h) Fan Power (W)  Fan Voltage
CE-AE4425E AE4425E 1/5 220-240V/1/50HZ 1*φ200 455 29 220V
CE-AE4430E AE4430E 1/4 220-240V/1/50HZ 1*φ200 455 29 220V
CE-AEZ4440E AEZ4440E 1/3 220-240V/1/50HZ 1*φ200 455 29 220V
CE-CAE4450E CAE4450E 7/16 220-240V/1/50HZ 1*φ250 1000 70 220V
CE-CAE4460E CAE4460E 1/2 220-240V/1/50HZ 1*φ250 1000 70 220V
CE-CAJ9480T CAJ9480T 5/8 220-240V/1/50HZ 1*φ300 2100 115 220V
CE-TAJ9480T TAJ9480T 5/8 400V/3/50HZ 1*φ300 2150 120 380V
CE-CAJ9510T CAJ9510T 1 220-240V/1/50HZ 1*φ300 2100 115 220V
CE-TAJ9510T TAJ9510T 1 400V/3/50HZ 1*φ300 2150 120 380V
CE-CAJ9513T CAJ9513T 1-1/8 220-240V/1/50HZ 1*φ350 2980 138 220V
CE-TAJ9513T TAJ9513T 1-1/8 400V/3/50HZ 1*φ350 3110 145 380V
CE-CAJ4517E CAJ4517E 1-1/4 220-240V/1/50HZ 1*φ350 2980 138 220V
CE-TAJ4517T TAJ4517T 1-1/4 400V/3/50HZ 1*φ350 3110 145 380V
CE-CAJ4519T CAJ4519T 1-3/4 220-240/1/50HZ 1*φ350 2980 138 220V
CE-TAJ4519T TAJ4519T 1-3/4 400V/3/50HZ 1*φ350 3110 145 380V
CE-FH4522F FH4522F 2 220-240V/1/50HZ 1*φ400 3900 180 220V
CE-TFH4522F TFH4522F 2 400V/3/50HZ 1*φ400 3900 190 380V
CE-FH4524F FH4524F 2 220-240V/1/50HZ 1*φ400 3900 180 220V
CE-TFH4524F TFH4524F 2 400V/3/50HZ 1*φ400 3900 190 380V
CE-FH4531F FH4531F 2-3/4 220-240V/1/50HZ 1*φ400 3900 180 220V
CE-TFH4531F TFH4531F 2-3/4 400V/3/50HZ 1*φ400 3900 190 380V
CE-FH4540F FH4540F 3-1/2 220-240V/1/50HZ 2*φ350 5960 276 220V
CE-TFH4540F TFH4540F 3-1/2 400V/3/50HZ 2*φ350 6220 290 380V
CE-TAG4546T TAF4546T 4 400V/3/50HZ 2*φ400 7800 380 380V
CE-TAG4553T TAF4553T 4-1/2 400V/3/50HZ 2*φ400 7800 380 380V
CE-TAG4561T TAG4561T 5 400V/3/50HZ 2*φ400 7800 380 380V
CE-TAG4568T TAG4568T 6 400V/3/50HZ 2*φ400 7800 380 380V
CE-TAG4573T TAF4573T 6 400V/3/50HZ 2*φ400 7800 380 380V
CE-AJ5512E AJ5512E 1 220-240V/1/50HZ 1*φ300 1664 85 220V
CE-AJ5515E AJ5515E 1-1/4 220-240V/1/50HZ 1*φ350 2980 138 220V
CE-TAJ5515E TAJ5515E 1-1/4 400V/3/50HZ 1*φ350 3110 145 380V
CE-AJ5519E AJ5519E 1-1/2 220-240V/1/50HZ 1*φ350 2980 138 220V
CE-TAJ5519E TAJ5519E 1-1/2 400V/3/50HZ 1*φ350 3110 145 380V
CE-FH5524E FH5524E 2 220-240V/1/50HZ 1*φ400 3900 180 220V
CE-TFH5524E TFH5524E 2 400V/3/50HZ 1*φ400 3900 190 380V
CE-FH5531E FH5531E 2-3/4 220-240V/1/50HZ 1*φ400 3900 180 220V
CE-TFH5531E TFH5531E 2-3/4 400V/3/50HZ 1*φ400 3900 190 380V
CE-FH5540E FH5540E 3-1/3 220-240V/1/50HZ 2*φ350 5960 276 220V
CE-TFH5540E TFH5540E 3-1/3 400V/3/50HZ 2*φ350 6220 290 380V
CE-TAG5546E TAG5546E 3-5/6 400V/3/50HZ 2*φ400 7800 380 380V
CE-TAG5553E TAG5553E 4-1/2 400V/3/50HZ 2*φ400 7800 380 380V
CE-TAG5561E TAG5561E 5 400V/3/50HZ 2*φ400 7800 380 380V
CE-TAG5568E TAG5568E 5-2/3 400V/3/50HZ 2*φ400 7800 380 380V
CE-TAG5573E TAG5573E 6 400V/3/50HZ 2*φ400 7800 380 380V

　　

Mbsm_dot_pro_private_PDF_fh4540fTélécharger
Mbsm_dot_pro_private_PDF_fh4540f-1Télécharger
Mbsm_dot_pro_private_PDF_fh4540f-2-1Télécharger


Mbsm.pro, Panasonic, rotary, compressor, rotary compressor, R22, 220-240V 50HZ, 2jd550D3AA03, 2JD550D, 35.000 BTU, Rla 5.65 A, Lra 21.0 A, 4.375 Hp, 2.91 Ton

written by Lilianne | 11 November 2023
https://www.mbsmgroup.tn/441.htm
Mbsm_dot_pro_private_PDF_2jd550D3AA03Télécharger

Panasonic rotary compressor R-22, the world’s number one sales. High performance, durable, quiet, compact size Available from 9,000 to 35,000 BTU models.




MODEL

BTU.

VOLTAGE

RUNNING

RLA

LRA

LIST PRICE

2PS164D

9,000

220/1/50

30/370

4.1

18.0

3,370

2PS206D

12,000

220/1/50

30/440

5.65

21.0

3,070

2KS210D

12,500

220/1/50

35/370

5.4

27.0

3,370

2KS282D

16,000

220/1/50

45/370

8.0

37.0

5,340

2JS318D

18,000

220/1/50

45/370

8.3

38.0

5,540

2JS330D

20,000

220/1/50

45/370

8.7

41.0

5,800

2JS386D

24,000

220/1/50

60/370

9.75

45.0

6,940

2JS438D

26,000

220/1/50

50/370

12.9

51.0

7,085

2JS464D

28,900

220/1/50

50/370

13.3

64.0

7,840

2JD514D

33,000

220/1/50

60/440

14.2

76.0

8,270

2JD550D

35,000

220/1/50

60/440

14.7

68.0

8,785


Fast data
place of origin :
Malaysia
brand name :
panasonic
model number :
2JD550D3AA03.
type :
Refrigeration Compressor
application :
Refrigeration Parts
certification :
THIS
Description :
Matsushita compressor 2JD550D3AA03
Model:
2JD550D3AA03.
BTU:
35,000
Voltage:
220v
Phase :
1ph
Frequency:
50Hz
Running:
30/440
RLA :
5.65
LRA:
21.0
Packing:
wooden

Hot koop 220 V 1 Fase 50Hz Matsushita compressor 2JD550D3AA03

brand name panasonic compressor
place of origin Malaysia
Model 2JD550D3AA03
BTU 35,000
VOLTAGE 220
PHASE 1ph
frequency 50 hz
Running 30/440
RLA 5.65
LRA 21.0
refrigerant r22
description airconditioner compressor

1. High-efficiency, Energy-saving
In order to decrease loss of machine and gas circulation in the process of design and increase high efficiency of the motor and the compressor, optimal matching clearance between dynamic and static parts is adopted. Accordingly, high-efficient compressor can also make room air-conditioner high efficient;

2. Compact, Light
Comparing with traditional compressors, there are comparably less mechanical parts in the compressor and the motor is directly fitted on the shell, so Matsushita compressor is compact and light, which makes room air-conditioner much more compact.

3. High-quality, Reliable performance
Materials for Panasonic rotary compressor are chosen through careful-research, thus made into finished components, finally assembled with computer-aided under strict conditions (temperature \ humidity and dustiness). Therefore, Panasonic rotary compressor has high-quality and reliable performance.

Models for option:

Series Model Capacity Input Power COP Run Capacitor N.W.(KG)
W BTU/H W W/W μF/V
R 2R11B225ASE 1745 5954 585 2.983 12.5/460 8.2
P 2P14S225ANE 2220 7574 705 3.149 30/370 12.0
2P17S225ANQ 2770 9451 885 3.130 30/370 12.0
2P20C225BNG 3245 11071 1080 3.005 30/370 12.6
2P21T225AZB  3510 11975 1130 3.106 30/370 12.4
K 2K22S225BUA 3838 13095 1230 3.120 35/370 17.0
2K25S225BUA  4245 14483 1380 3.076 40/370 17.1
2K28C225DUA 4660 15899 1550 3.006 45/370 17.5
2K32S225AUD 5310 18117 1725 3.078 50/400 18.0
V 2V32S225AUA 5375 18338 1700 3.162 60/370 19.6
2V34S225AUA 5820 19857 1880 3.096 50/370 19.6
2V36S225BUA 6140 20948 1980 3.101 50/400 19.5
2V40S225BUA  6780 23132 2255 3.007 60/440 21.5
2V42S225AUA 7200 24565 2340 3.077 50/370 21.


Mbsm.pro, Danfoss, Compressor, MT100HS4D, 8.3HP, R22, 380V, 3PH

written by Lilianne | 11 November 2023

Model: MT100HS4D

Brand technique: Reciprocating compressor

Refrigerant: R22

Swept volume [cm3]: 171.26

Nominal cooling capacity 60 [kBTU/h]: 95.9

Nominal cooling capacity at 50Hz[kw]: 21.3

Nominal cooling capacity at 60Hz[kw]: 28.1

Voltage & frequency : 400V 3P 50Hz 460V 3P 60Hz

Mbsm_dot_pro_private_PDF_MT100HS4DTélécharger

MT100 > MT100HS4D > 8 HP > Displacement: 171.26cm3/rev > Motor Power: 8.3HP
MT100 > MT100HS4DVE > 8 HP > Displacement: 171.26cm3/rev > Motor Power: 8.3HP
MT125 > MT125HU4D > 10 HP > Displacement: 215.44cm3/rev > Motor power: 10.4HPModel MODEL: MT18 MT18JA4BVE 1.5 HP Displacement: 30.23cm3/rev Motor Power:
1.5HP MT22 MT22JC4AVE 1.8 HP Displacement: 38.12cm3/ rev Motor Power: 1.8HP
MT28 MT28JE4AVE 2 HP Displacement: 48.06cm3/rev Motor Power: 2.3HP
MT32 MT32JF4DVE 2.5 HP Displacement: 53.86cm3/rev Motor Power: 2.7HP
MT36 MT36JG4EVE 3 HP Displacement: 60.47cm3/rev Motor Power: 3.0HP
MT40 MT40JH4EVE 3 HP Displacement: 67.89cm3/rev Motor Power: 3.3HP MT44
MT44HJ4AVE 3.5 HP Displacement: 76.22cm3/rev Motor Power: 3.7HP
MT45 MT45HJ4AVE 4 HP Displacement: 76.22cm3/rev Motor Power: 3.8HP
MT50 MT50HK4BVE 4 HP Displacement: 85.64cm3/rev Motor Power: 4.2HP
MT51 MT51HK4AVE 4 HP Displacement: 85.64cm3/rev Motor Power: 4.3HP
MT56 MT56HL4AVE 4.5 HP Displacement: 96.13cm3/rev Motor Power: 4.7HP
MT57 MT57HL4AVE 4.5 HP Displacement: 96.13cm3/rev Motor Power: 4.8HP
MT64 MT64HM4CVE 5 HP Displacement: 107.71cm3/rev Motor Power: 5.3HP
MT65 MT65HM4AVE 5.5 HP Displacement: 107.71cm3/rev Motor Power: 5.4HP
MT72 MT72HN4AVE 6 HP Displacement: 120.94cm3/rev Motor Power: 6.0HP
MT73 MT73HN4AVE 6 HP Displacement: 120.94cm3/rev Motor Power: 6.1HP
MT80 MT80HP4AVE 6.5 HP Displacement: 135.78cm3/rev Motor Power: 6.7HP
MT81 MT81HP4AVE 6.5 HP Displacement: 135.78cm3/rev Motor Power: 6.8HP
MT100 MT100HS4D 8
HP Displacement: 171.26cm3/rev Motor power: 8.3HP
MT125 MT125HU4D 10 HP Displacement: 215.44cm3/rev Motor power: 10.4HP
MT125 MT125HU4DVE 10
HP : 241.87cm3/rev Motor power: 12.0HP
MT160 MT160HW4D 13 HP Displacement: 271.55cm3/rev Motor power: 13.3HP MT160
MT160HW4DVE 13 HP

Gross weight 66.38 kg
Net weight 61.8 kg
EAN 5702428839921



Approval standard CE
UL
Brand technique Reciprocating compressor
Capacity control Fixed speed
Colour Blue
Compressor power supply [V/Ph/Hz] 400/3/50 460/3/60
Configuration code Single
Connection type Rotolock
Cylinder 4
Description MT100-4
Diameter [mm] 352 mm
Discharge connection height [mm] 125 mm
Discharge connection mounting torque [Nm] 90 Nm
Discharge connection pipe size [in] 3/4 in
Discharge connection rotolock size [in] 1 1/4 in
Discharge connection size [in] 1 1/4 in
Discharge connection sleeve pipe size [in] 3/4 in
Drawing number 8504010f
Economizer No
Factory HP [bar] 25 bar
Factory LP [bar] 25 bar
Fitting remark (shipped with rotolock version only)
Fitting sleeve ODF
Fitting standard Rotolock
Frequency [Hz] 50/60
Gauge port HP None
Gauge port LP Schrader
Generation code D
Glass mounting Threaded
Glass torque [Nm] 50 Nm
GP LP torque [Nm] 15 Nm
High side max pressure (Ps) 27.8 bar
High Side TS Max 150 °C
High Side TS Min -35 °C
High Side Volume 1.2 L
High value of nominal voltage at 50Hz [V] 400 V
High value of nominal voltage at 60Hz [V] 460 V
High value of voltage range at 50Hz [V] 460 V
High value of voltage range at 60Hz [V] 506 V
IP protection class IP54 (with cable gland)
Low side max pressure (Ps) 18.4 bar
Low Side TS Max 50 °C
Low Side TS Min -35 °C
Low Side Volume 31 L
Low value of nominal voltage at 50Hz [V] 380 V
Low value of nominal voltage at 60Hz [V] 460 V
Low value of voltage range at 50Hz [V] 340 V
Low value of voltage range at 60Hz [V] 414 V
LRA 90 A
MCC 22 A
Model number MT100HS4EVE
Motor protection Internal overload protector
Mounting torque [Nm] 50 Nm
Nominal cooling capacity 60 kBTU/h 95.9 kBtu/h
Nominal cooling capacity at 50Hz 21.3 kW
Nominal cooling capacity at 60Hz 28.1 kW
Number of starts per hour [Max] 12
Oil charge [L] 3.9 L
Oil equalization 3/8” flare SAE
Oil equalization torque [Nm] 30 Nm
Oil reference 160P
Packaging height [mm] 720 mm
Packaging length [mm] 570 mm
Packaging weight [Kg] 70 kg
Packaging width [mm] 400 mm
Packing format Single pack
Packing quantity 1
Phase 3
Power connections Screw connectors 10-32 UNF x 9.5
Refrigerant R22
Refrigerant charge [kg] [Max] 10 kg
Relief valve 30 bar/8 bar
Rotational speed at 50Hz [rpm] 2900 rpm
Rotational speed at 60Hz [rpm] 3500 rpm
Segment usage Air conditioning
Refrigeration MT
Shipped fittings Suction and discharge solder sleeves, rotolock nuts and gaskets
Shipped instructions Installation instructions
Shipped mounting Mounting kit with grommets, bolts, nuts, sleeves and washers
Shipped oil Initial oil charge
Suction connection height [mm] 233 mm
Suction connection mounting torque [Nm] 110 Nm
Suction connection pipe size [in] 1 1/8 in
Suction connection rotolock size [in] 1 3/4 in
Suction connection size [in] 1 3/4 in
Suction connection sleeve pipe size [in] 1 1/8 in
Swept volume [cm3] 171.26 cm³
Technology Reciprocating
Test dif [bar] [Max] 30 bar
Test HP [bar] [Max] 30 bar
Test LP [bar] [Max] 25 bar
Torque earth [Nm] 3 Nm
Torque power [Nm] 3 Nm
Total height [mm] 519 mm
Type MT
Type designation Compressor
Viscosity [cP] 32 cP
Winding resistance for three-phase compressors with identical windings [Ohm] 2.12 Ohm


Mbsm.pro, Compressor, Embraco, Aspera, EMY26CLC, LBP, R600a, 220 – 240V/1/50Hz, 1/12 HP, RSIR, LRA 7.8 A, 83 Wat

written by Lilianne | 11 November 2023
Mbsm_dot_pro_private_PDF_EMZ26CLCTélécharger

Compressor Embraco Aspera EMY26CLC, LBP – R600a, 220 – 240V/1/50Hz, 1/12 HP, discharge 5.19 cm3, engine type RSIR, oil type AB 5, oil volume 180 ml, LRA 7.8 A, 83 W at -23.3 / +54.4 , static cooling, capillary use, weight 7.1 kg

Refrigerant: R600a
Power range(W): 0 – 100 W
Working area: LBP
Design type: Hermetic
Model series: EMY
Use with: Capillary
Power range(HP): 0-2
Power supply: 230 V
Oil type: AB5
Engine type: RSIR
Article condition: New
Info: Oil filled
Shipping weight: 8,10 Kg
Dimensions ( length × width × height ): 22,80 × 15,50 × 16,50 cm
customs tariff number: 84143081
Cooling capacity condition: -23,3 / +54,4
Manufacturer: Embraco Aspera
Model: EMY26CLC
Modelname: EMT26CLP
Stroke volume (cm3): 5,19
Cooling capacity (W): 83
Power (HP): 0,1
Max. Starting current (A): 7,8
Engine type: RSIR
Oil quantity (l): 0,18
Compressor type: Piston



Mbsm.pro, Compressor, Hermetic, Tecumseh, AEZ9440T, R22, 1/3 hp++, MHBP

written by Lilianne | 11 November 2023

Basic Info.

Model NO.AEZ9440TLubrication StyleLubricatedCooling SystemAir CoolingCylinder ArrangementBalanced Opposed ArrangementCylinder PositionHorizontalStructure TypeClosed TypeCompress LevelSingle-StageRefrigerant TypeFreonTypeReciprocatingPerformanceLow NoiseDrive ModeElectricPower SourceAC PowerConfigurationStationaryMaterialCopperPiston TypeClosedTrademarkTecumseh HermetiqueTransport PackagePalletSpecificationCE / RoHsOriginChinaHS Code8414301900

Product Description

Tecumseh Hermetique R134a / R404a/ R22 reciprocating compressor

Hermetique R22 HBP
For Air Conditioning Applications.
Features:
Anti Vibration mounts supplied
Charged with mineral oil and dry nitrogen
Crankcase heater on TAG models
Fan cooling required on all models
Specifications:
Capacity Rating Basis: 35°C Ambient, 11K Return Gas Superheat, 54.5°C Condensing, 46.2°C Liquid entering Expansion Valve.
Current FLA are given at nominal voltage, rated conditions and 7.2°C Evaporating Temperature.
Motor Types:
PSC = Permanent Split Capacitor, 1 Phase, 50 Hz. 220-240 Volt
3Ø: 3 Phase, 50 Hz, 400 Volt
Expansion Device:
C = Capillary Tube
C/V = Capillary Tube or Expansion Valve
R22 Hermetic
Model No. Nominal HP Displ. cm³/rev Motor Type Nominal Current FLA Exp. Device Oil Charge cm³ Connections: inches
cm³ Discharge Proc.
AE 5465E 1/2 12.05 PSC 3.2 C 450 3/8 Tube 1/4 Tube 3/8 Tube
AJ 5510F 3/4 18.6 PSC 5.2 C 887 3/8 Tube 1/4 Tube 1/4 Tube
AJ 5512E 1 21.75 PSC 5.9 C 887 3/8 Tube 1/4 Tube 1/4 Tube
AJ 5513E 1 24.2 PSC 6 C 887 3/8 Tube 1/4 Tube 1/4 Tube
AJ 5515E 1 1/4 25.95 PSC 7.2 C 887 1/2 Tube 5/16 Tube 1/4 Tube
AJ 5518E 1 1/2 32.7 PSC 9.3 C 887 1/2 Tube 5/16 Tube 1/4 Tube
AJ 5519E 1 1/2 34.45 PSC 9.96 C 887 1/2 Tube 5/16 Tube 1/4 Tube
FH 5522E 1 3/4 39.95 PSC 9 C 1330 5/8 Tube 3/8 Tube 5/16 Tube
TFH 5522E 1 3/4 39.95 3Ø 3.8 C/V 1330 5/8 Tube 3/8 Tube 5/16 Tube
FH 5524E 2 43.5 PSC 10 C 1330 5/8 Tube 3/8 Tube 5/16 Tube
TFH 5524E 2 43.5 3Ø 4 C/V 1330 5/8 Tube 3/8 Tube 5/16 Tube
FH 5527E 2 1/4 49.1 PSC 12 C 1330 5/8 Tube 3/8 Tube 5/16 Tube
TFH 5527E 2 1/4 49.1 3Ø 4.2 C/V 1330 5/8 Tube 3/8 Tube 5/16 Tube
FH 5531E 2 1/2 56.65 PSC 14.1 C 1330 3/4 Tube 3/8 Tube 5/16 Tube
TFH 5531E 2 1/2 56.65 3Ø 8 C/V 1330 3/4 Tube 3/8 Tube 5/16 Tube
FH5540E 3 74.25 PSC 18.6 C 1330 3/4 Tube 3/8 Tube 5/16 Tube
TFH 5540E 3 74.25 3Ø 6 C/V 1330 3/4 Tube 3/8 Tube 5/16 Tube
TFH 5540E 3 74.25 3Ø 6 C/V 1330 78 1/2 Valve 5/16 Tube
TAG 5546E 3 3/4 90.2 3Ø 6.6 C/V 1960 7/8 Tube 1/2 Tube 3/8 Tube
TAG 5553E 4 100.7 3Ø 7.4 C/V 1960 7/8 Tube 1/2 Tube 3/8 Tube
TAG 5561E 5 112.5 3Ø 9 C/V 1960 7/8 Tube 1/2 Tube 3/8 Tube
TAG 5568E 6 124.4 3Ø 9.6 C/V 1960 7/8 Tube 1/2 Tube 3/8 Tube
TAG 5573E 6 1/2 134.8 3Ø 11 C/V 1960 7/8 Tube 1/2 Tube 3/8 Tube

Hermetique R22 M/HBP
For Medium / High Temperature Applications
Features:
Anti-Vibration mounts supplied
Charged with mineral oil and dry nitrogen
Rotalock suction valve on CAJ/TAJ models
Crankcase heater on FH/TFH and TAG models
Oil sight glass on FH/TFH and TAG models
Fan cooling required on all models
All models suit capillary tube or expansion valve operation
Rotalock suction and discharge valves on FH/TFH and TAG models
Specifications:
Capacity Rating Basis: 35°C Ambient, 11K Return Gas Superheat, 54.5°C Condensing, 46°C Liquid entering Expansion Valve.
Current FLA are given at nominal voltage, rated conditions and 7.2°C evaporating temperature.
Motor Types:
CSIR: Capacitor start, Induction run } 1 Phase, 50 Hz, 220-240 Volt
CSR: Capacitor start and run
3Ø: 3 Phase, 50 Hz, 400 Volt
Conversion: Watts x 3.412 = BTU/Hr BTU/Hr x 0.293 = Watts
R22 Hermetic
Model No. Nominal HP Displ. cm³/rev Motor Type Nominal Current FLA Oil Charge cm³ Connections: inches
Suction Discharge
AEZ 4425E 1/5 4.5 CSIR 1.75 450 1/4 Tube 3/16 Tube
AEZ 4430E 1/4 5.7 CSIR 2.2 450 1/4 Tube 3/16 Tube
AEZ 4440E 1/3 7.55 CSIR 2.6 450 1/4 Tube 3/16 Tube
AEZ 9440T 1/3 7.55 CSR 2.03 450 3/8 Tube 1/4 Tube
CAE 4450E 3/8 9.4 CSIR 3.3 450 3/8 Tube 1/4 Tube
CAE 9450T 3/8 9.5 CSR 2.6 450 3/8 Tube 1/4 Tube
CAE 9460T 1/2 11.3 CSR 3.2 450 3/8 Tube 1/4 Tube
CAJ 9408T 5/8 15.2 CSR 3.68 887 1/2 Valve 5/16 Tube
CAJ 9510T 1 18.3 CSR 4.8 887 5/8 Valve 5/16 Tube
CAJ 9513T 1 1/8 24.2 CSR 5.9 887 5/8 Valve 5/16 Tube
CAJ 4517E 1 1/4 25.95 CSR 6.1 887 5/8 Valve 3/8 Tube
TAJ 4517T 1 1/2 25.95 3Ø 2.5 887 5/8 Valve 3/8 Tube
TAJ 4519T 1 1/2 34.45 3Ø 3.5 887 5/8 Valve 1/2 Valve
FH 4524F 2 43.5 CSR 9.55 1480 5/8 Valve 1/2 Valve
TFH 4524F 2 4.35 3Ø 3.9 1480 7/8 Valve 1/2 Valve
FH 4531F 2 1/2 56.65 CSR 12.6 1480 7/8 Valve 1/2 Valve
TFH4531F 2 1/2 56.65 3Ø 4.75 1480 7/8 Valve 1/2 Valve
TFH 4540F 3 74.25 3Ø 6.08 1480 7/8 Valve 1/2 Valve
TAG 4546T 4 90.2 3Ø 6.6 1960 7/8 Valve 5/8 Valve
TAG 4553T 4 1/2 100.7 3Ø 7.4 1960 7/8 Valve 5/8 Valve
TAG 4561T 5 112.5 3Ø 9 1960 1 7/8 Valve 5/8 Valve
TAG 4568T 6 124.4 3Ø 9.6 1960 1 7/8 Valve 5/8 Valve
TAG 4573T 6 1/2 134.8 3Ø 11 1960 1 7/8 Valve 5/8 Valve


Tecumseh Hermetique R134a
The world renowned L’Unite Hermetique compressors are manufactured by Tecumseh.
Features:
Charged with polyolester oil and dry nitrogen
Crankcase heater on FH/TFH and TAG models
Oil sight glass on FH/TFH and TAG models
Rotalock valves are included for all valve connection compressors
Anti-vibration mounts supplied
Single Phase – Medium High SST
Model No. Nominal HP Displacement: cm3/rev Cooling Oil Charge: ml
CAJ4476Y 5/8 21.75 Fan 887
CAJ4492Y 3/9 25.95 Fan 887
CAJ4511Y 1 32.7 Fan 887
FH4518Y 1 1/2 53.2 Fan 1480
FH4525Y 2 74.25 Fan 1480

Three Phase – Medium High SST
Model No. Nominal HP Displacement: cm3/rev Cooling Oil Charge: ml
TAJ4511Y 1 32.7 Fan 887
TFH4518Y 1 1/2 53.2 Fan 1480
TFH4525Y 2 74.25 Fan 1480
TAG4528Y 2 1/2 90.2 Fan 1960
TAG4534Y 2 3/4 100.7 Fan 1960
TAG4537Y 3 112.5 Fan 1960
TAG4543Y 3 1/2 124.4 Fan 1960

Superceded Models
Model No. Nominal HP Displacement: cm3/rev Cooling Oil Charge: ml
AEZ4425Y 1/5 7.55 Fan 450
AEZ4430Y 1/4 8.85 Fan 450
CAE4440Y 3/8 12.05 Fan 450
CAE4448Y 1/3 14.15 Fan 450
CAJ4452Y 1/3 15.2 Fan 887
CAE4456Y 1/2 16 Fan 450
CAJ4461Y 1/2 18.3 Fan 887

Tecumseh Hermetique R404A
The world renowned L’Unite Hermetique compressors are manufactured by Tecumseh.
Features:

Charged with polyolester oil and dry nitrogen
Crankcase heater on FH/TFH and TAG models
Oil sight glass on FH/TFH and TAG models
Rotalock valves are included for all valve connection compressors
Anti-vibration mounts supplied

Specifications:
Capacity Rating Basis: 35°C Ambient, 11K Return Gas Superheat, 54.5°C Condensing, 46°C Liquid entering Expansion Valve.
Current FLA are given at nominal voltage, rated conditions and 7.2°C Evaporating Temperature.
Motor Types:
CSIR: Capacitor Start, Induction Run 1 Phase, 50 Hz, 220-240 Volt
CSR: Capacitor Start and Run
3Ø: 3 Phase, 50 Hz, 400 Volt
All models are also suitable for operation with R507
Single Phase – Medium High SST
Model No. Nominal HP Displacement: cm3/rev Cooling Oil Charge: ml
CAJ9480Z 5/8 15.2 Fan 887
CAJ9510Z 1 18.3 Fan 887
CAJ9513Z 1 1/8 24.2 Fan 887
CAJ4517Z 1 1/4 25.95 Fan 887
CAJ4519Z 1 1/2 34.45 Fan 887
FH4522Z 1 3/4 39.95 Fan 1480
FH4524Z 2 43.5 Fan 1480
FH4531Z 2 1/2 56.65 Fan 1480
FH4540Z 3 74.25 Fan 1480


Three Phase – Medium High SST
Model No. Nominal HP Displacement: cm3/rev Cooling Oil Charge: ml
TAJ9480Z 5/8 15.2 Fan 887
TAJ9510Z 1 18.3 Fan 887
TAJ9513Z 1 1/8 24.2 Fan 887
TAJ4517Z 1 1/4 25.95 Fan 887
TAJ4519Z 1 1/2 34.45 Fan 887
TFH4522Z 1 3/4 39.95 Fan 1480
TFH4524Z 2 43.5 Fan 1480
TFH4531Z 2 1/2 56.65 Fan 1480
TFH4540Z 3 74.25 Fan 1480
TAG4546Z 4 90.2 Fan 1960
TAG4553Z 4 1/2 100.7 Fan 1960
TAG4561Z 5 112.5 Fan 1960
TAG4568Z 6 124.4 Fan 1960
TAG4573Z 6 1/2 134.8 Fan 1960

Single Phase – Low SST
Model No. Nominal HP Displacement: cm3/rev Cooling Oil Charge: ml
CAE2417Z 1/3 11.3 Fan 450
CAE2420Z 1/2 12.54 Fan 450
CAE2424Z 5/8 15 Fan 450
CAJ2428Z 1/2 15.2 Fan 887
CAJ2432Z 5/8 18.3 Fan 887
CAJ2446Z 3/4 26.15 Fan 887
CAJ2464Z 1 1/2 34.45 Fan 887
FH2480Z 2 53.2 Fan 1625
FH2511Z 2 1/2 74.25 Fan 1625

Three Phase – Low SST
Model No. Nominal HP Displacement: cm3/rev Cooling Oil Charge: ml
TAJ2464Z 1 1/2 34.45 Fan 887
TFH2480Z 2 53.2 Fan 1625
TFH2511Z 2 1/2 74.25 Fan 1625
TAG2516Z 4 112.5 Fan 1960
TAG2522Z 5 1/2 134.8 Fan 1960

Three Phase – Parallel Applications
Model No. Nominal HP Displacement: cm3/rev Application: SST Cooling Oil Charge: ml
TAGP4546Z 4 90.2 Medium Fan 1960
TAGP4553Z 4 1/2 100.7 Medium Fan 1960
TAGP4561Z 5 112.5 Medium Fan 1960
TAGP4568Z 6 124.4 Medium Fan 1960
TAGP4573Z 6 1/2 134.8 Medium Fan 1960
TAGP2516Z 4 112.5 Low Fan 1960
TAGP2522Z 5 1/2 134.8 Low Fan 1960
Mbsm_dot_pro_private_PDF_AEZ9440TTélécharger


Mbsm.pro, Motor, compressor, type, RSIR, RSCR, CSIR, CSCR, PSC

written by Lilianne | 11 November 2023


Mbsm.pro, COMPRESSOR, ZEL, Zanussi, refrigerator, CUBIGEL/ ACC , HML140A, HDL140A, LBP, R600A, 220-240V, 1 /8hp, 140w

written by Lilianne | 11 November 2023

Compressor ZEL HDL140A, LBP – R600a, 220-240V, 8.1 cm3.
R600, LBP. 220 / 240V, 1 /8hp, 50Hz. Stroke volume: 8.10 cm3. Cooling capacity according to Ashrae (-23.3C °): 136kcal / h, Cecomaf (-25 ° C): 102W. Operation with expansion valve / capillary tube ..

Compresseur de liquide de refroidissement R600A ZEL HML140A HS-384

Model HML140A 1/8
Voltage/Frequence 220~240V/50Hz
Refrigerant R600a
Type RSIR/RSCR
Capacitance 3μF
Refrigeration oil mineral oil
Weight 7.1kg±0.4kg
Starting performance 187V (0.3MPa,abs,surrounding temperature 43℃)
Starting electric current 8.46A
Cylinder capacity (cm3)8.0cc
Refrigerating capacity (W)145
Input power (W)97
Working electric current (A)0,5
COP1,51

Shipping Class Standard
Scope Of Application LBP
Lieferzeit 3 Wochen
Maker ZEL
Manufacturer No. HDL140A
Displacement In Cm3 8.1
Style 1
Refrigerants R600a
Condensing Units Compressors Compressors
Suspense 220-240V
Weight In Kg 832

Compresseur de liquide de refroidissement R600A ZEL HML140A HS-384

Voltage/Frequence 220~240V/50Hz
Refrigerant R600a
Type RSIR/RSCR
Capacitance 3μF
Refrigeration oil mineral oil
Weight 7.1kg±0.4kg
Starting performance 187V (0.3MPa,abs,surrounding temperature 43℃)
Starting electric current 8.46A
Cylinder capacity (cm3)8.0cc
Refrigerating capacity (W)145
Input power (W)97
Working electric current (A)0,5
COP1,51

Mbsm_dot_pro_private_PDF_catalogo-compresores-ZEL-pdfTélécharger
