Mbsm.pro, Compressor , Copeland, CRFQ-0250-PFV-501, 2.5 hp, CRDQ-0200-PFJ-501, 2 hp, r22

Category: expertise
written by www.mbsm.pro | 12 December 2024

Copeland CRDQ-0200-TFD/PFJ-522 refrigeration compressor:

Technical Specifications

Specification Details
Branch Refrigeration
Trademark Copeland
Machine Type Refrigeration Compressor
Compressor Type Piston
Model CRDQ-0200-TFD/PFJ-522
Capacity 2 HP
Height 550 mm
Weight 29.8 kg
Source China
Voltage 380V/220V/1ph
Refrigerant Gas R22
Input Current 28 A

COPELAND 2.5 HP REFRIGERATION COMPRESSOR – CRFQ-0250-TFD-522

Specification Details
Branch Copeland
Trademark Copeland
Machine Type Refrigeration Compressor
Compressor Type Piston
Model CRFQ-0250-TFD-522
Capacity 2.5 HP
Height 550 mm
Weight 29.8 kg
Source China
Voltage 380/220V/1ph
Gas Type R22
Input Current 27 A



Mbsm.pro, Compressor, AW703ET-094-A4, Tecumseh, 2 hp, R-22, R-407C, hbp, 1ph

Category: compressor
written by www.mbsm.pro | 12 December 2024

The AW703ET-094-A4 is a model of compressor produced by Tecumseh, specifically designed for air conditioning and high back pressure (HBP) applications. Here are the key specifications:

Specifications

  • Type: Reciprocating Compressor
  • Application: Suitable for air conditioning (AC) and high back pressure (HBP) systems.
  • Refrigerants: Compatible with R-22 and R-407C.
  • Power:

    • Horsepower: 2 HP
    • Voltage:

      • 200-220V at 50Hz
      • 208-230V at 60Hz

  • Cooling Capacity: Approximately 18,800 BTU.
  • Design: Hermetic type, meaning it is sealed to prevent refrigerant leakage.

_AW703ET-094-A4Download



Mbsm.pro, Compressor, QX-34F050, 2 hp, r22, GREE, Rotary Compressor, 20185Btu

Category: compressor
written by www.mbsm.pro | 12 December 2024

QX-34F050 is a model number for a rotary compressor, specifically the Gree Landa Compressor QX-34F050gA.

Key Features:

  • Refrigerant: R22
  • Input Power: 1810W
  • Cooling Capacity: 20185 BTU/H
  • Voltage: 220-240V, 50Hz
  • Applications: Air conditioning, dryers, refrigeration, chillers, etc.



Mbsm.pro, AB114JT, compressor, Tecumseh, 2 HP, 208-230V, 1 PH, 24200 BTU, R22

Category: compressor
written by www.mbsm.pro | 12 December 2024

The AB114JT compressor is a Tecumseh 2 HP, 208-230V, 1 PH, 24200 BTU, R22, Hermetic (Reciprocating) Compressor Replacement. It is available for purchase from AC Parts Distributors[1][2]. It is also listed in a compressor substitution guide[5]. However, it is not clear what the specific application of the compressor is or what equipment it is compatible with.

Citations:
[1] https://acpartsdistributors.com/products/ab114jt-004
[2] https://acpartsdistributors.com/products/ab114jt
[3] https://www.repairclinic.com/ProductDetail/1175862
[4] https://genemco.com/products/tecumseh-air-cooled-condensing-unit-3hp
[5] https://www.scribd.com/document/428623967/Source1CompressorSubstitutionGuide-0814

What is the difference between AB114JT and AB114JT-004
According to the search results, both AB114JT and AB114JT-004 are Tecumseh 2 HP, 208-230V, 1 PH, 24200 BTU, R22, Hermetic (Reciprocating) Compressor Replacements. The only difference between the two is the part number. AB114JT-004 is listed as an OEM upgraded Tecumseh compressor on the AC Parts Distributors website[1]. It is possible that the difference in part number is due to a minor revision or update to the compressor model. However, without further information, it is difficult to determine the exact difference between the two part numbers.

Citations:
[1] https://acpartsdistributors.com/products/ab114jt-004



Mbsm.pro, compressor, 2DC-2.2Y-40S, Bitzer, semi-hermetic, h8-lsg-40x-ewl-b, 2 hp, 400 v

Category: compressor
written by rober us | 12 December 2024

B itzer Semi-Hermetic Refrigeration Compressor 2DC-2.2Y-40S/2DES-2

Based on one technical concept, our semi-hermetic reciprocating compressors cover the entire spectrum of applications of conventional, chlorine-free HFC as well as natural refrigerants.They distinguish themselves by a robust valve plate design, a high quality and wear resistant drive gear, are easy-to-service and offer good speed control at minimum energy requirements as well as extremely smooth running. In addition, they incorporate an efficient, suction gas cooled integrated motor.

The OCTAGON series of compressors additionally excels by extremely compact dimensions and even further increased smooth running.

Model Cond temp. The Evaporation Temperature (R404/50HZ)
7.5 5 0 -5 -10 -15 -20 -25 -30 -35 -40 -45
2KC-05.2Y 40 3850 3520 2920 2390 1940 1540 1200 900 650 435 255 1000
2JC-07.2Y 40 5180 4740 3950 3260 2660 2130 1680 1290 960 675 440 240
2HC-1.2Y 40 4090 3340 2700 2140 1650 1240 890 595 345
2HC-2.2Y 40 6620 6070 5060 4190 3430 2760 2190 1700 1270 915 610
2GC-2.2Y 40 7540 6910 5780 4790 3930 3190 2450 1990 1520 1110 775 490
2FC-2.2Y 40 5950 4900 3980 3190 2500 1920 1420 1000 650
2FC-3.2Y 40 9450 8670 7250 6020 4950 4010 3210 2520 1930 1420 1000
2EC-2.2Y 40 7270 5980 4860 3900 3060 2350 1750 1240 810
2EC-3.2Y 40 11620 10660 8930 7420 6100 4960 3970 3120 2390 1770 1250
2DC-2.2Y 40 8490 6980 5670 4530 3560 2720 2020 1420 920
2DC-3.2Y 40 13510 12390 10380 8610 7080 5750 4600 3610 2760 2040 1430
2CC-3.2Y 40 10510 8650 7040 5640 4440 3420 2550 1810 1200
2CC-4.2Y 40 16470 15110 12660 10520 8660 7050 5650 4450 3420 2540 1810
4FC-3.2Y 40 11560 9520 7740 6200 4880 3750 2790 1980 1310
4FC-5.2Y 40 18240 16740 14026 11650 9580 7790 6240 4900 3760 2790 1970
4EC-4.2Y 40 1440 11870 9650 7720 6070 4650 3450 2440 1590
4EC-6.2Y 40 23150 21250 17780 14750 12120 9840 7860 5160 4700 3470 2420
4DC-5.2Y 40 17650 14520 11810 9460 7440 5720 4250 3010 1980
4DC-7.2Y 40 27500 25200 21100 14790 14350 11630 9270 7250 5510 4040 2800
4CC-6.2Y 40 21100 17420 14200 11420 9030 6930 5240 3770 2540
4CC-9.2Y 40 32850 30150 25300 21100 17410 14210 11440 9050 7000 5250 3700
4VCS-6.2Y 40 22750 18670 15140 12090 9470 7230 5320 3720 2380
4VCS-10.2Y 40 36100 33100 27600 22850 18680 15070 11950 9260 6960 5000 3350
4TCS-8.2Y 40 27750 22800 18480 14760 11560 8830 3520 4580 2960
4TCS-12.2Y 40 43500 39580 33300 27550 22600 18260 14530 11320 8590 6270 4320
4PCS-10.2Y 40 32300 26500 21500 17130 13400 10220 7520 5240 3350
4PCS-15.2Y 40 52200 47850 39950 33050 27050 21850 17360 13490 10190 7390 5020
4NCS-12.2Y 40 37300 30600 24800 19810 15510 11840 8740 6120 3950
4NCS-20.2Y 40 60500 55400 46250 38200 31250 25200 20000 15530 11730 8510 5820
4J-13.2Y 40 42800 35250 28700 23000 18150 14000 10470 7500 5020
4J-22.2Y 40 67100 61500 51500 42700 35100 25800 22800 17870 13670 10110 7120
4H-15.2Y 40 49850 41150 33600 27100 21500 16730 12660 9420 6380
4H-25.2Y 40 77400 71000 59500 49400 409650 33000 26450 20800 19530 11800 8320
4G-20.2Y 40 57200 47300 38700 31200 24800 19250 14540 10540 7160
4G-30.2Y 40 98100 81800 68600 57000 47000 38250 30700 24200 18610 13860 9850
6J-22.2Y 40 63800 52600 42800 34350 27100 20900 15640 11210 7510
6J-33.2Y 40 101500 93000 77700 64300 52700 42600 33900 26400 20050 14640 10110
6H-25.2Y 40 74000 61600 50200 40400 31900 24700 18590 13440 9130
6H-35.2Y 40 116300 1E+06 89300 74100 60900 49450 39600 31100 23800 17670 12480
6G-30.2Y 40 84000 69300 56600 45500 36050 27900 21000 15130 10210
6G-40.2Y 40 133440 122400 102700 85400 70300 57300 46000 36300 28000 20900 14940
6F-40.2Y 40 100900 83100 67600 54300 42800 32950 24600 17570 11680
6F-50.2Y 40 157900 145000 121700 101300 83600 68300 55000 43600 3850 25600 18620
8GC-60.2Y 40 188400 173100 145400 121200 10000 81500 65400
8FC-70.2Y 40 223000 204900 172100 143500 118400 96500 77400



Mbsm.pro, Compressor, AHA4525AFZ, CAH4525A, 2 hp, r12

Category: compressor
written by www.mbsm.pro | 12 December 2024

COMPRESSOR EQUIVALENCE

IDENTIFY YOUR COMPRESSORS

CODE

DESCRIPTION

T

AJ

4

5

19

Z

H

R



Group description

T

AJ

4

5

19

Z



Compressor description

R



No letter = welding valve
Letter R = with bottle

H



H = high induction pressure (-15°C à + 15°C)
B = low induction pressure (-40°C à -10°C)
M = medium and high induction pressure (-25°C à +15°C)

Z



A, B, or D = refrigerant R12
C = refrigerant R407
E, F, G or H = refrigerant R22
J, K, L = refrigerant R502
T = refrigerant R22 or R502
Y = refrigerant R134A
Z = refrigerant R404A or R407B or R507

19



Corresponds to the first refrigeration power numbers expressed in BTU/h at 60Hz
Example : 19 preceded by the number 5 means 19 000 BTU/h

5



Number of figures composing the refrigeration power
Example : 19 000 BTU/h

4



Applications
1 = Low vaporization pressure. Engine with standard start-up torque
2 = Low vaporization pressure. Engine with start-up torque
3 = High vaporization pressure. Engine with standard start-up torque
4 = High vaporization pressure. Engine with start-up torque
5 = Air conditioning
9 = Medium and high vaporization pressure. Engine with high start-up torque
0 = Medium and high vaporization pressure. Engine with high standard start-up torque

AJ



Family : TH-AZ-AEZ-AE-AJ-FH-AH-AN-RK-RGA
P designates compressors intended for parallel disassembly
Ex : TAHP, TAGP, TANP
D designates compressors mounted in ‘couple’
S designates single-propeller condensation groups

T



C or noletter = single-phased
T = tri-phased



R12-POWERED LOW PRESSURE COMPRESSORS

Hermetic Unit

CV

Aspera

Danfoss

Necchi

Uninad

Zanussi

DKK

AE12Z7

1/12

A1055

TL3A

M3,5

D30AS

E30601

KH0,63N06

AZ1335D

1/8

A1075

TL4A

M4

D36AS

E44101

KH0,75N07

AZ1355D

1/6

A1111

TL5A

M5

L55A

V1040G

MH1,0N12

AEZ1360A

1/5

B1112

FR7,5A

M7

L76A

V1350E

MH1,25N12

AEZ1380A

1/4

A1118

FR10A

M9

L88

E88102

MH1,6H15

AE1410A

1/3

E1121

FR11A

M11

P12



MH2,0H15

AE1412A

3/8

T1124

SC15A

M13

P14





This table is published for your guidance only, on no account shall SOGAFRIC SERVICES be held liable for it.

R12-POWERED HIGH PRESSURE COMPRESSORS

Hermetic Unit

CV

Aspera

Danfoss

Necchi

Uninad

DKK

AZ9387

1/6

A5132

FR6BX

M4H

AE65ZA7



CAE59ZF9

1/5

A5160

FR8,5B

M7H

L57PX

MH1,25N18

CAE4440A

1/3

E6185

SC10B



P14TY



CAJ4452A

3/8

E6187

SC12B







CAJ4461A

1/2

T6213

SC15B



CAJ2P



CAJ4492A

3/4

J6220

SC21B







CAJ4511A

1

J6226









CAH4518A

1,5

H6238









CAH4525A

2











Mbsm.pro, compressor, Highly, hitachi, rotary, SHX33 , shx33sc4-u, 2.5 hp, 17750 btu, R22

Category: compressor
written by Jamila | 12 December 2024
Essential details
Type:
COMPRESSOR
Place of Origin:
Shanghai, China
Brand Name:
Hitachi
Certification:
ce, CCC
After-sales Service Provided:
No overseas service provided
key words:
Highly hitachi rotary compressor SHX33 made in China
cooling capacity(w):
5200
cooling capacity(btu):
refrigerant:
R22
voltage:
220V-240V 50HZ
condition:
used
horse power:
2hp
Capacitor:
50/420
Dis.(cc):
33.6
COP.:
3

Packaging & delivery

Selling Units:
Multiple of 50
Package size per batch:
115X110X92 cm
Gross weight per batch:
940.000 kg
Package Type:
packing with carton,1 unit(pcs) in a carton;

packing with wood pallet,50 cartons in a pallet.
Quantity(units) 1 – 250 >250
Lead time (days) 5 To be negotiated

Highly hitachi rotary compressor SHX33 made in China

Specifications

 1.Higher efficiency ;

2.Lower sound levels;

3.Superior durability

Models Availability
Model Horsepower (HP) Power (W) Cooling Capacity (Ton) Cooling Capacity (W) Cooling Capacity (BTU/h) Cooling Capacity (kcal/h) Refrigerant Voltage Notes
SHX33SC4-U 2.5 HP ~1865 W ~1.6 Ton ~5660 W ~19300 BTU/h ~4870 kcal/h R22 220-240V, 50Hz Variant in some suppliers



Application Refrigerant Displacement Power

Supply

 Rated

capacity

(W)

 Cooling

capacity

 BTU/h
SH Series SHV33YC6-G T1 Working Condition R-22 41.7ml/rev 220V/50Hz/1PH 7100 24211
SHV33YC6-U T1 Working Condition R-22 41.7ml/rev 220V-240V/50Hz/1PH 7100 24211
SHW33TC4-E T3 Working Condition R-22 35.6ml/rev 220V-240V/50Hz/1PH 6090 20766
SHW33TC4-U T1 Working Condition R-22 35.69ml/rev 220V-240V/50Hz/1PH 5990 20425
SHX33SC4-U T1 Working Condition R-22 33.6ml/rev 220V-240V/50Hz/1PH 5630 19198
SHY33MC2-E T3 Working Condition R-22 30.7ml/rev 220V-240V/50Hz/1PH 5200 17732
SHY33MC4-G T1 Working Condition R-22 30.7ml/rev 220V-240V/50Hz/1PH 5185 17680
SHY33MC4-U T1 Working Condition R-22 30.7ml/rev 220V-240V/50Hz/1PH 5165 17612
SHZ33LC2-U T1 Working Condition R-22 28.6ml/rev 220V-240V/50Hz/1PH 4820 16436
SG Series SG433FB3-C T1 Working Condition R-22 15.1ml/rev 220V-240V/50Hz/1PH 2470 8422
SG533FB3-C T1 Working Condition R-22 15.1ml/rev 220V-240V/50Hz/1PH 2470 8422
SG533QB3-C T1 Working Condition R-22 16.2ml/rev 220V-240V/50Hz/1PH 2650 9036
SG633GA1UW1 T1 Working Condition R-22 16.7ml/rev 220V/50Hz/1PH 2790 9513
TH Series THU33WC6-U T1 Working Condition R-22 48.8ml/rev 220V-240V/50Hz/1PH 8350 28473
THU40WC6-U T1 Working Condition R-22 48.8ml/rev 380V/50Hz/3PH 8200 27962





Notes:

Product Description

Highly hitachi rotary compressor SHX33 made in China





Mbsm.pro, compressor, qp325pba, 2 hp, 1856 w, r22, 20000 btu/h, 1PH, 220-240V, 50Hz , QJ series LG compressor

Category: compressor
written by www.mbsm.pro | 12 December 2024

More QJ series LG compressor model as follow:

Power Source Model Cooling Capacity Motor Input EER COP c
[Btu/hr] [Watts] [Watts] [Btu/W.hr] [W/W] [cc]
1PH, 220-240V, 50Hz QP325P 19200 19300 5626 5656 1778 1856 10.8 10.4 3.16 3.05 700
QP348P 20500 20600 6007 6037 1884 1967 10.9 10.5 3.19 3.07 700
QP376P 22600 22700 6623 6652 2112 2183 10.7 10.4 3.14 3.05 700
QP390P 23000 23200 6740 6799 2130 2188 10.8 10.6 3.16 3.11 700
QP407P 24050 24300 7048 7121 2227 2314 10.8 10.5 3.16 3.08 700
QP425P 25000 25100 7326 7355 2336 2346 10.7 10.7 3.14 3.14 700
QP442P 26000 26100 7619 7648 2430 2534 10.7 10.3 3.14 3.02 700
QP464P 27600 27700 8088 8117 2654 2885 10.4 9.6 3.05 2.81 700
1PH, 200-220V, 50Hz QP325J 19200 5626 1829 10.5 3.08 700
QP376J 22500 6594 2102 10.7 3.14 700
QP407J 24700 7239 2287 10.8 3.17 700
QP425J 25860 7579 2370 10.9 3.19 700
QP442J 26860 7872 2633 10.2 2.99 700
3PH, 380-420V QP325Y 19200 19400 5626 5685 1778 1796 10.8 10.8 3.16 3.17 700
QP425Y 25000 25400 7326 7443 2380 2419 10.5 10.5 3.08 3.08 700
QP442Y 26000 26300 7619 7707 2430 2500 10.7 10.5 3.14 3.08 700
Power Source Model Cooling Capacity Motor Input EER COP c
[Btu/hr] [Watts] [Watts] [Btu/W.hr] [W/W] [cc]
1PH, 220-240V, 50Hz QP325P 19200 19300 5626 5656 1778 1856 10.8 10.4 3.16 3.05 700
QP348P 20500 20600 6007 6037 1884 1967 10.9 10.5 3.19 3.07 700
QP376P 22600 22700 6623 6652 2112 2183 10.7 10.4 3.14 3.05 700
QP390P 23000 23200 6740 6799 2130 2188 10.8 10.6 3.16 3.11 700
QP407P 24050 24300 7048 7121 2227 2314 10.8 10.5 3.16 3.08 700
QP425P 25000 25100 7326 7355 2336 2346 10.7 10.7 3.14 3.14 700
QP442P 26000 26100 7619 7648 2430 2534 10.7 10.3 3.14 3.02 700
QP464P 27600 27700 8088 8117 2654 2885 10.4 9.6 3.05 2.81 700
1PH, 200-220V, 50Hz QP325J 19200 5626 1829 10.5 3.08 700
QP376J 22500 6594 2102 10.7 3.14 700
QP407J 24700 7239 2287 10.8 3.17 700
QP425J 25860 7579 2370 10.9 3.19 700
QP442J 26860 7872 2633 10.2 2.99 700
3PH, 380-420V QP325Y 19200 19400 5626 5685 1778 1796 10.8 10.8 3.16 3.17 700
QP425Y 25000 25400 7326 7443 2380 2419 10.5 10.5 3.08 3.08 700
QP442Y 26000 26300 7619 7707 2430 2500 10.7 10.5 3.14 3.08 700



Mbsm.pro, compressor, Hermetic, Tecumseh, 2 HP, Tecumseh Refrigeration Compressor, Fh4524f, r22, MHBP, ++big

Category: compressor
written by www.mbsm.pro | 12 December 2024

Size and Dimensions

Connection Size (Liquid) 1/2″ Valve
Connection Size (Suction) 5/8″ Valve

Inclusions and Exclusions

Inclusions Anti-Vibration mounts supplied
Crankcase Heater
Oil Sight Glass
Suction and Discharge Rotalock Valves

Features

Anti-Vibration mounts supplied
Charged with mineral oil and dry nitrogen
Crankcase heater on FH/TFH and TAG models
Oil sight glass on FH/TFH and TAG models
Fan cooling required on all models
All models suit capillary tube or expansion valve operation
Rotalock suction and discharge valves on FH/TFH and TAG models
Model Number FH4524F
Compressor Model FH4524F
Product Range FH Series

Technical Information

General Information

Refrigerant Type R417A, R422B
Application MHBP
Motor Type CSR
Compressor Horsepower 2 HP
Compressor Displacement 43.5 cm3/rev
Oil Charge 1330 ml
Specifications Capacity Rating Basis: 35 deg C Ambient, 11K Return Gas Superheat, 54.5 deg C Condensing, 46 deg C Liquid entering Expansion Valve. Current FLA are given at nominal voltage, rated conditions and 7.2 deg C evaporating temperature.
VBIS Tag RE-Co-He

Power Information

Compressor Phase 1
Compressor Electrical Supply 240V
Compressor Hertz 50Hz
Compressor MOC 15.9 A
Power Supply 240V

R22 Capacity Data

-15 Deg C 1841 W
-10 Deg C 2456 W
-5 Deg C 3219 W
0 Deg C 4131 W
15 Deg C 7759 W

Mbsm_dot_pro_private_PDF_fh4524f-1Télécharger


Mbsm.pro, Compressor, awa5520exd, Tecumseh, 2 HP, 208-230V, 1 PH, 18,800 BTU, R22, Hermetic (Reciprocating) Compressor Replacement

Category: compressor
written by www.mbsm.pro | 12 December 2024

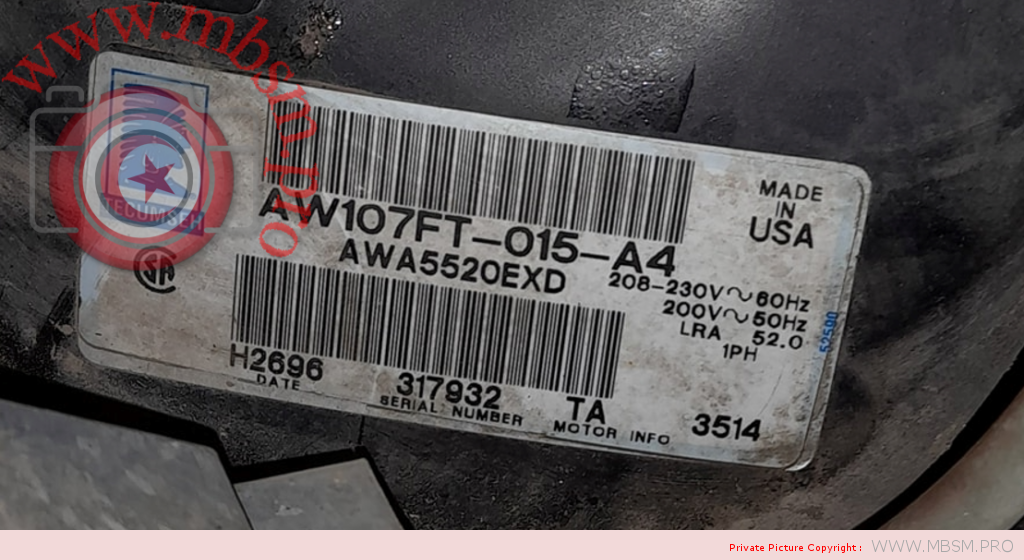

Mbsm_dot_pro_private_picture_awa5520exd-38306118

Mbsm.pro, Compressor, awa5520exd, Tecumseh, 2 HP, 208-230V, 1 PH, 18,800 BTU, R22, Hermetic (Reciprocating) Compressor Replacement

Tecumseh 2 HP, 208-230V, 1 PH, 18,800 BTU, R22, Hermetic (Reciprocating) Compressor Replacement
• OEM Upgraded Tecumseh Compressor
  • Model: AWA5520EXD
  • Manufactured by: Tecumseh
Mbsm_dot_pro_private_PDF_tecumseh_to_tecumseh_cross_refTélécharger
