Mbsm.pro, Compressor, Tecumseh, TAJ4519T, 16157 Btu/h, 1 1/2 hp, 1.5 hp, big++, MHBP, 34.45m3, 380V/50Hz, R22, 3 PH
DESCRIPTION 220V
Engine type: 1 1/2 CV , 3 ph
Type of ventilation: Fan
Voltage code: KZ
Displacement: 34.4
Oil type: Mineral
Viscosity: 68
Oil load: 475 ml
Application: HBP
Voltage: 220V3_60HZ
LRA: 38
DESCRIPTION 440V
Engine type: 1 1/2 CV, 3 ph
Type of ventilation: Fan
Voltage code: TZ
Displacement: 34.4
Oil type: Mineral
Viscosity: 68
Oil load: 475 ml
Application: HBP
Voltage: 440V3_60HZ
LRA: 23
Size and Dimensions
| Connection Size (Discharge) | 1/2″ Valve |
|---|---|
| Connection Size (Suction) | 5/8″ Valve |
| R22 Capacity @ -15 Deg C | 1780 W |
|---|---|
| R22 Capacity @ -10 Deg C | 2304 W |
| R22 Capacity @ -5 Deg C | 2911 W |
| R22 Capacity @ 0 Deg C | 3601 W |
| R22 Capacity @ 7.2 Deg C | 4738 W |
| R22 Capacity @ 15 Deg C | 6162 W |

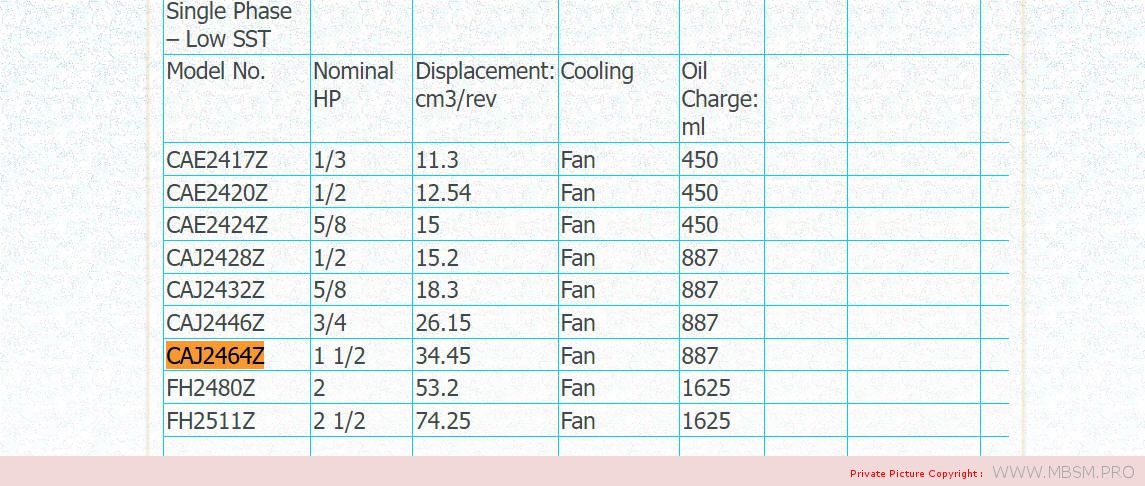

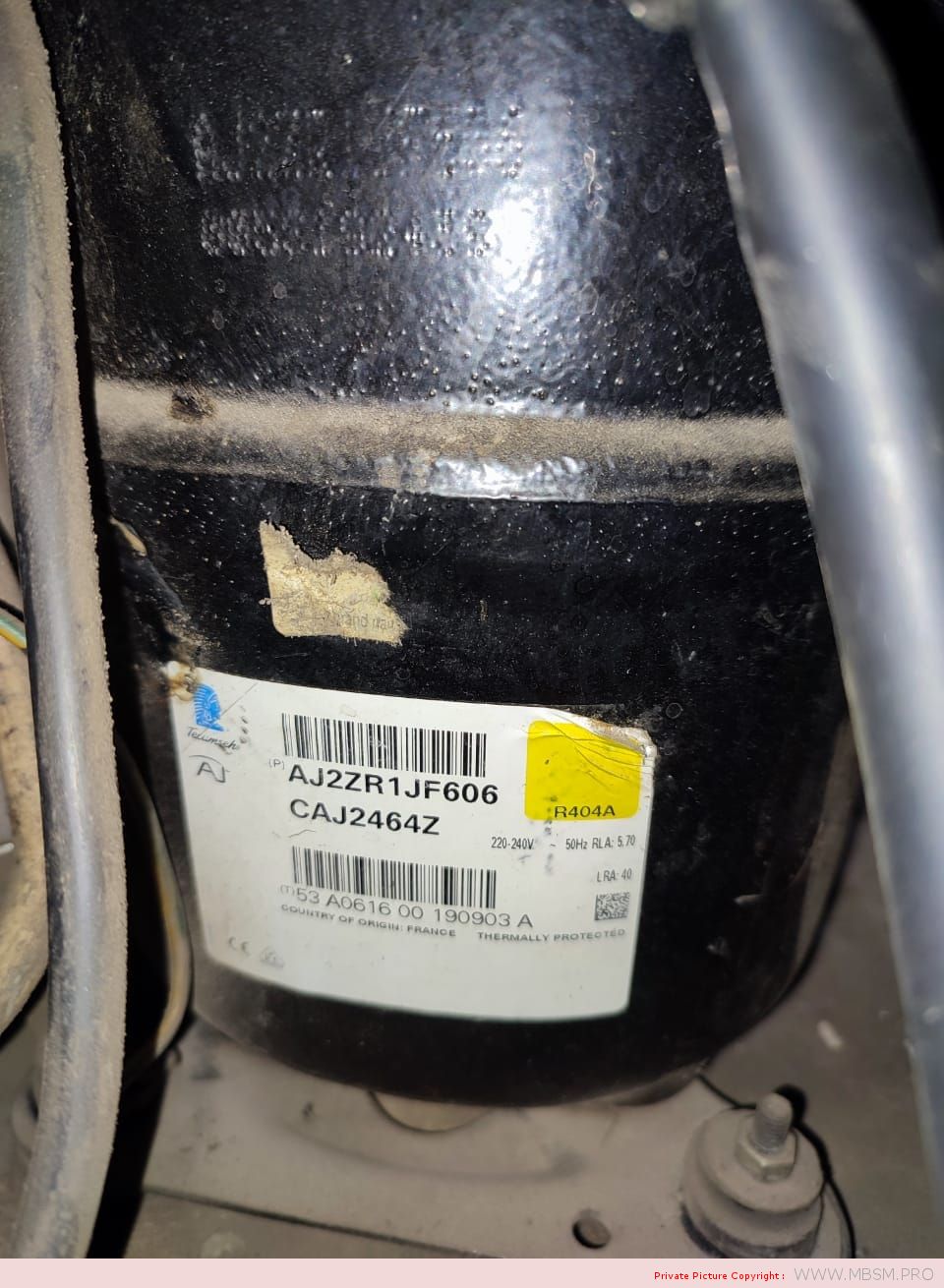

Mbsm.pro, Compressor, Hermetic, Tecumseh, CAJ2464Z, LBP, R404A, R507A, 220-240/1/50, CSR, 34.4 cm³, 1.5 Hp, 1 1/2 Hp
- Nominal cooling capacity 1565 W
- Power 1.5 HP
- Displacement 34.4 cc
- CSR engine system
- Power at -30°C 1096 W
- Power at -25°C 1439 W
- Power at -20°C 1844 W
- Power at -15°C 2317 W
- Power at -10°C 2864 W
- Power supply 220-240V 50Hz
- R404A gas
- Weak and low pressure
- Complete with starter, capacitor, box and fixing system
- A value (for diagram): 282 mm
- Weight 20.60 Kg
Compatible with:
- FOSTER 16260210
- MTH 151.14
Mbsm.pro, Compressor, Tecumseh, TAH4518A, 1.5 Hp, HBp, R12, 440V 3~ 60Hz 400V 3~ 50Hz, 1684 W, 14048 btu
Product Description
| Type: | Reciprocating Compressors |
| Application: | HBP – High Back Pressure |
| ProductDescription: | R-12 |
| Voltage/Frequency: | 440V 3~ 60Hz 400V 3~ 50Hz |
| Version: | N/A |
Performance
| Condition | Test Voltage | (R) Btu/h | (R) kcal/h | (R) W | (I) W | (E) Btu/Wh | (E) kcal/Wh | W/W | EVAP TEMP | COND TEMP | AMBIENT TEMP | RETURN GAS | LIQUID TEMP |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EN12900 | 440V 3~ 60HZ | 16536 | 4167 | 4845 | 2107 | 7.85 | 1.98 | 2.3 | 5°C (41°F) | 45°C (113°F) | 32°C (90°F) | 15°C (59°F) | 45°C (113°F) |
| EN12900 | 400V 3~ 50HZ | 14048 | 3540 | 4116 | 1677 | 8.38 | 2.11 | 2.45 | 5°C (41°F) | 45°C (113°F) | 32°C (90°F) | 15°C (59°F) | 45°C (113°F) |
General
| Evaporating Temp. Range: | -15°C to 15°C (5°F to 59°F) |
| Motor Torque: | High Start Torque (HST) |
| Compressor Cooling: | Fan |
Mechanical
| Weight: | 30 |
| Weight Unit of Measure: | KG |
| Displacement (cc): | 53.2 |
| Oil Type: | Mineral |
| Viscosity (cSt): | 68 |
| Oil Charge (cc): | 1330 |
Electrical
| Voltage Range (50 Hz): | 340-440 |
| Voltage Range (60 Hz): | 396-499 |
| Locked Rotor Amps (LRA): | 25 |
| Rated Load Amps (RLA 50 Hz): | 3.5 |
| Rated Load Amps (RLA 60 Hz): | 3.4 |
| Max. Continuous Current (MCC in Amps): | 5 |
| Motor Resistance (Ohm) – Main: | 6.3 |
| Motor Resistance (Ohm) – Start: | 6.3 |
| MotorType: | 3PH |
| Overload Type: | N/A |
| Relay Type: | N/A |
