Mbsm.pro, Danfoss, Compressor, 1/4hp++, hbp, 1/3 hp–, Fr10g, 134a, 103g6880,103g6890, 220v/1ph/50-60h

Category: compressor
written by www.mbsm.pro | 17 January 2024

Refrigerants: R134a, Compressor power supply [V]: 220/1/50 220/1/60

Product details

Gross weight 10.6 Kg
Net weight 10.6 Kg
Gross weight 10.6 Kg
Net weight 10.6 Kg

Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] 11.9
Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm] 11.9
Brand technique Reciprocating compressor
Capacity control Fixed speed
Colour Black
Compressor power supply [V] 220/1/50 220/1/60
Configuration code Single
Cut in current HST [A] 10.9 A
Cut in current LST [A] 15.1 A
Description FR10G
Discharge connection angle [°] 25 °
Discharge connection comments Al-cap
Discharge connection diameter [mm] 6.2 mm
Discharge connection material Cu-plated steel
Economizer No
Family FR
Free gas volume [cm3] 1350 cm³
Frequency [Hz] 50/60
Height from baseplate [mm] 191 mm
High value of nominal voltage at 50Hz [V] 230 V
High value of nominal voltage at 60Hz [V] 230 V
High value of voltage range at 50Hz [V] 254 V
High value of voltage range at 60Hz [V] 254 V
In scope of WEEE and contain batteries No
Length [mm] 243 mm
Liquid injection No
Low value of nominal voltage at 50Hz [V] 220 V
Low value of nominal voltage at 60Hz [V] 220 V
Low value of voltage range at 50Hz [V] 198 V
Low value of voltage range at 60Hz [V] 198 V
LRA HST 60Hz [A] 10.9 A
LRA HST [A] 10.9 A
LRA LST [A] 10.5 A
Main winding resistance for single-phase compressors [Ohm] 7.1
Model number FR10G
Motor type CSIR
RSIR
No. of phases (compressor) 1
No. of phases (fan) 1
Oil cooler connection comments Rubber cap
Oil cooler connection diameter [mm] 6.2 mm
Oil cooler connection material Copper
Oil quantity [cm3] 450 cm³
Oil type POE
Packing format Industrial pack
Phase 1
Process connection angle [°] 30 °
Process connection comments Al-cap
Process connection diameter [mm] 6.2 mm
Process connection material Cu-plated steel
Product group Hermetic compressors
Product Name Description Reciprocating compressor FR
Refrigerant charge [kg] [Max] 0.9 kg
RLA 2.20 A
Rotational speed at 50Hz [rpm] 2900 rpm
Rotational speed at 60Hz [rpm] 3500 rpm
Suction connection angle [°] 30 °
Suction connection diameter [mm] 8.2 mm
Suction connection material Cu-plated steel
Swept volume [cm3] 9.05 cm³
Technology Reciprocating
Total height [mm] 196 mm
Type FR10
Voltage 50Hz [V] 220 V
Voltage 50Hz [V] [Max] 240 V
Voltage 60Hz [V] 220 V
Voltage 60Hz [V] [Max] 240 V
Width [mm] 156 mm
Winding temperature short term [°C] [Max] 135 °C
Winding temperature stat [°C] [Max] 125 °C
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] 11.9
Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm] 11.9
Brand technique Reciprocating compressor
Capacity control Fixed speed
Colour Black
Compressor power supply [V] 220/1/50 220/1/60
Configuration code Single
Cut in current HST [A] 10.9 A
Cut in current LST [A] 15.1 A
Description FR10G
Discharge connection angle [°] 25 °
Discharge connection comments Al-cap
Discharge connection diameter [mm] 6.2 mm
Discharge connection material Cu-plated steel
Economizer No
Family FR
Free gas volume [cm3] 1350 cm³
Frequency [Hz] 50/60
Height from baseplate [mm] 191 mm
High value of nominal voltage at 50Hz [V] 230 V
High value of nominal voltage at 60Hz [V] 230 V
High value of voltage range at 50Hz [V] 254 V
High value of voltage range at 60Hz [V] 254 V
In scope of WEEE and contain batteries No
Length [mm] 243 mm
Liquid injection No
Low value of nominal voltage at 50Hz [V] 220 V
Low value of nominal voltage at 60Hz [V] 220 V
Low value of voltage range at 50Hz [V] 198 V
Low value of voltage range at 60Hz [V] 198 V
LRA HST 60Hz [A] 10.9 A
LRA HST [A] 10.9 A
LRA LST [A] 10.5 A
Main winding resistance for single-phase compressors [Ohm] 7.1
Model number FR10G
Motor type CSIR
RSIR
No. of phases (compressor) 1
No. of phases (fan) 1
Oil cooler connection comments Rubber cap
Oil cooler connection diameter [mm] 6.2 mm
Oil cooler connection material Copper
Oil quantity [cm3] 450 cm³
Oil type POE
Packing format Industrial pack
Phase 1
Process connection angle [°] 30 °
Process connection comments Al-cap
Process connection diameter [mm] 6.2 mm
Process connection material Cu-plated steel
Product group Hermetic compressors
Product Name Description Reciprocating compressor FR
Refrigerant charge [kg] [Max] 0.9 kg
RLA 2.20 A
Rotational speed at 50Hz [rpm] 2900 rpm
Rotational speed at 60Hz [rpm] 3500 rpm
Suction connection angle [°] 30 °
Suction connection diameter [mm] 8.2 mm
Suction connection material Cu-plated steel
Swept volume [cm3] 9.05 cm³
Technology Reciprocating
Total height [mm] 196 mm
Type FR10
Voltage 50Hz [V] 220 V
Voltage 50Hz [V] [Max] 240 V
Voltage 60Hz [V] 220 V
Voltage 60Hz [V] [Max] 240 V
Width [mm] 156 mm
Winding temperature short term [°C] [Max] 135 °C
Winding temperature stat [°C] [Max] 125 °C



Mbsm.pro, Panasonic, QB91C24GAX0, 1/4HP, Refrigerator, Compressor, 220 w, Lbp, r134a

Category: compressor
written by www.mbsm.pro | 17 January 2024

Original Made In Panasonic Malaysia Model Number: QB91C24GAX0 Horse Power: 1/4HP Refrigerant: R134a

QB91C24GAX0



Mbsm.pro, Beko, Refrigerator, Compressor, TU1114Y, 1/4HP, R600A

Category: compressor
written by www.mbsm.pro | 17 January 2024

Model Number: T1114Y

Refrigerant Oil: R600a

Displacement: 9.6cc

Cooling Capacity: 168W

COP(W/W): 1.11-1.42

Type: LBP

Use for  Refrigerator



Mbsm.pro, Compressor, Lennox, 1/3HP, QD120, 1/4HP, QD 90, 1/5HP, QD 70 , 1/6HP, QD 59

Category: air conditioner
written by www.mbsm.pro | 17 January 2024

Mbsm.pro, Compressor, Lennox, 1/3HP, QD120, 1/4HP, QD 90, 1/5HP, QD 70 , 1/6HP, QD 59





Mbsm.pro, Compressor, KONOR, GQR90AA, ERU280HSP, R134a, 220-240V 50Hz, 10,1kg, 1/4HP, Refrigerator, Condor, 420 L

Category: compressor
written by www.mbsm.pro | 17 January 2024

Mbsm.pro, Embraco, ERU280HSP, hermetic reciprocating, low temperature, refrigeration, compressor, 1/4 hp, Lbp, R134 a

Description

Producer KONOR
Type GQR90AA
Refrigerant R134a
Voltage 220-240 V
Frequency 50 Hz
Weight 10,1 kg
Power 1/4 HP
Power input 220 W
Cylinder capacity 9,1 cm³
Motor system RSIR
Height 186 mm

Product Details

Power1/4 CVCompresorCompresor Gas R134a



Mbsm.pro, Compressor, Reciprocating Compressoor, LG, r134a, 1/4HP, MA69LBJG, 195W, 667BTU

Category: compressor
written by www.mbsm.pro | 17 January 2024
Mbsm_dot_pro_private_picture_MA69LBJG-60dfede9

Mbsm.pro, Compressor, Reciprocating Compressoor, LG, r134a, 1/4HP, MA69LBJG, 195W, 667BTU

Mbsm_dot_pro_private_PDF_MA69LBJGTélécharger

Mbsm_dot_pro_private_picture_MA69LBJG-e20fa60b



Mbsm.pro, Compressor, 105g 6728, NL7FT, 1/4hp, 105g6728, Danfoss, R134A, 220-240V, lbp

Category: Archivation,compressor
written by www.mbsm.pro | 17 January 2024

NL10FT 105G6829 105G6839 3/8 113 158 213 235 281 361 455 217 327 10.10

SC12FT 104G8205 104G8215 3/8 103 163 233 259 314 408 517 645 265 380 12.87

SC15FT 104G8505 1/2 126 197 280 311 376 489 620 772 311 451 15.28

SC18FTX 104G8805 5/8 144 229 325 361 437 567 719 896 365 517 17.68

SC21FTX 104G8105 3/4 192 296 415 460 553 713 901 1119 428 613 20.95

60 Hz

PL35G 101G0250 1/16 34 39 48 64 82 104 52 79 2.00

TL2.5G 102G4251 1/16 14 27 42 48 60 80 105 134 67 96 2.61

TL3G 102G4350 1/12 30 47 54 69 95 125 70 111 3.13

TL4G 102G4452 1/10 48 70 78 96 127 166 87 135 3.86

TL5G 102G4550 1/8 65 92 102 123 162 207 106 170 5.08

FR6G 103G6660 1/6 51 93 108 141 199 266 119 197 6.23

FR7.5G 103G6680 103G6690 1/5 67 112 130 166 228 300 138 229 6.93

FR8.5G 103G6780 103G6790 1/4 92 138 156 195 263 345 164 273 7.95

FR10G 103G6880 103G6890 1/3 99 153 173 217 292 381 194 314 9.05

SC12FT 104G8205 104G8215 1/2 125 192 272 302 366 477 608 761 298 458 12.87

SC15FT 104G8505 5/8 154 235 330 365 441 571 724 904 356 537 15.28

SC18FTX 104G8805 3/4 187 280 390 432 520 675 857 1071 420 622 17.68

SC21FTX 104G8106 7/8 240 345 470 518 620 800 1012 1262 475 707 20.95

R404A/R507

50 Hz

TL4CL 102U2071 1/8 52 65 84 110 142 155 182 230 286 352 140 198 3.86

FR6CL 103U2670 1/6 77 108 145 189 243 263 307 383 473 578 242 353 6.23

FR7.5CL 103U2790 1/5 86 114 154 202 262 285 333 418 515 630 267 395 6.93

FR8.5CL 103U2890 1/4 99 126 168 222 290 317 372 468 577 315 472 7.95

NL7CLX 105F3710 1/3 102 146 199 263 340 369 430 536 657 796 274 381 7.27

SC10CLX 104L2533 1/3 166 255 360 400 483 625 789 977 352 508 10.29

SC12CL 104L2623 3/8 58 140 237 353 490 541 650 835 1048 1292 445 654 12.87

SC12CLX.2 104L2697 1/2 130 205 294 399 522 569 666 834 1026 475 659 12.87

SC15CL 104L2853 1/2 151 299 452 615 673 792 988 1208 1458 560 790 15.28

SC15CLX.2 104L2896 1/2 159 250 358 486 637 694 813 1017 1251 1519 565 783 15.28

SC18CL 104L2123 5/8 167 271 395 542 715 781 918 1154 1425 1735 615 894 17.68

SC18CLX.2 104L2197 3/4 194 306 439 595 780 849 995 1245 1532 680 949 17.68

SC21CL 104L2322 7/8 226 325 455 617 813 887 1042 1306 1606 702 989 20.95

GS26CLX 107B0500 1 325 497 703 949 1240 1348 1580 1974 2427 888 1285 26.30

GS34CLX 107B0501 1 1/4 729 1003 1330 1715 1857 2165 2687 3289 1196 1721 33.80

60 Hz

SC10CLX 104L2533 3/8 224 335 455 499 588 738 906 1096 430 623 10.29

SC12CLX 104L2695 1/2 146 282 429 590 649 770 972 1200 540 748 12.87

SC12CLX.2 104L2697 1/2 155 233 343 473 626 683 804 1011 1248 541 777 12.87

SC15CLX 104L2854 5/8 179 351 530 720 788 928 1158 1417 610 864 15.28

SC15CLX.2 104L2897 5/8 194 305 437 593 776 846 991 1239 1525 611 848 15.28

SC18CLX.2 104L2195 7/8 113 338 542 737 938 1010 1157 1410 1708 752 990 17.68

GS21CLX  107B0506 1 475 674 905 1172 1270 1480 1873 2246 868 1180 21.20

R290

50 Hz

TL3CN  102H4380 1/10 106 200 106 140 3.13

TL4CN  102H4490 1/8 56 126 255 128 155 3.86

TL5CN 102H4590 1/6 81 109 143 183 198 230 283 345 416 162 211 5.08

NL7CN 105H6756 1/4 118 166 223 290 315 368 458 561 679 221 291 7.27

NL9CN 105H6856 1/3 138 194 259 335 364 423 526 643 778 250 334 8.35

SC10CNX 104H8065 1/3 126 179 245 325 355 420 531 660 809 274 362 10.29

SC12CNX 104H8265 3/8 178 250 331 426 462 540 678 846 1050 344 456 12.87

SC12CNX.2 104H8266 3/8 186 258 346 453 493 578 725 895 379 502 12.87

SC15CNX 104H8565 1/2 195 297 415 550 601 707 887 1093 1328 420 560 15.28

SC15CNX.2 104H8566 1/2 252 332 434 560 609 714 900 1120 445 610 15.28

SC18CNX 104H8865 5/8 219 341 480 640 700 824 1033 1272 1543 500 707 17.68

SC18CNX.2 104H8866 5/8 244 384 531 689 747 863 1057 1273 541 682 17.68

SC21CNX.2

Mbsm_dot_pro_private_PDF_danfoss_com_sg_en_Climate_Solutions_for_cooling_CompreTélécharger
Mbsm_dot_pro_private_PDF_CATALOG_SECOPTélécharger
Mbsm_dot_pro_private_PDF_105g 6728 compressorTélécharger


Mbsm.pro, Compressor, Donper, Refrigerator, Lu72CZ1, 1/4HP, R134A, 195 W, LBP

Category: compressor
written by www.mbsm.pro | 17 January 2024

LU72CZ1

Refrigerant Type
Freon
Refrigerant
R134A
Displacement
7.2 Cm3/Rev
Voltage
220-240V, 50Hz, 1pH
Application
Low Temperature Commercial Refrigeration
Back Pressure
Lbp
Transport Package
Wooden Packing
Specification
195W
Trademark
Donper







Mbsm.pro, compressor, 1/4HP, Refrigeration, R134A , Refrigerator, freezer, QD91H, LBP

Category: compressor
written by www.mbsm.pro | 17 January 2024

Product Description

Test Conditions
Evap. Temp.: -23.3º C
Cond. Temp.: 54.4º C
Amb. Temp.: 32.2º C
Suction. Temp.: 32.2º C
Subcooling Temp.: 32.2º C
LBP ASHRAE

Model: QD91H
Power Supply: 220-240V/50Hz
Displacement (cm³ ): 9.1
Cooling Capacity (W): 208
Rated Power (W): 183
Nominal power (HP): 1/4
COP (W/W): 1.13
Rated Current (A): 1.55
Motor Type: RSIR
Capacitor (μ F): /
Starting Relay: Applying Relay
Cooling Type: S
Packing (PCS/pallet): 100
1× 20’FCL (PCS): 2000

Characteristics
1. Small size,
2. High efficiency & reliability
3. Reliable starting performance
4. Low sound & vibration

Application
LBP, used for drinking fountain, refrigerator, freezer, liquor cabinet, ice-making machine and other medium and small sized refrigeration machines.

1. use R134a refrigerant
2. 220V/50-60Hz,applicated LBP
3. used for display cabinets and other medium-sized,large refrigeration equipment
4. with CCC/CE certification

220V/50-60HZ Compressors: WS Series are in fully enclosed crank and connecting rod structure and with reciprocating piston in the semi-direct suction mode

The main feature: good startup performance,low noise and good reliability

R134a-LBP COMPRESSOR PERFORMANCE PARAMETER
Wansheng R134a low back pressure(LBP) compressor Test Conditions Evap. Temp.: -23.3°C Cond. Temp.: 54.4°C
Amb. Temp.: 32.2°C Suction. Temp.: 32.2°C
Subcooling Temp.: 32.2°C LBP ASHRAE
Model Displacement (cm³)              Cooling Capacity  (W)          Rated Power   (W)         Nominal power     (HP)   COP  (W/W) Motor Type Capacitor (μF) Starting Relay Cooling Type
WS series    220V/50Hz
QD91H 9.1 208/235 173/181 1/4 1.2/1.3 RSIR / PTC S
Mbsm_dot_pro_private_PDF_qd91h-refrigeratioTélécharger

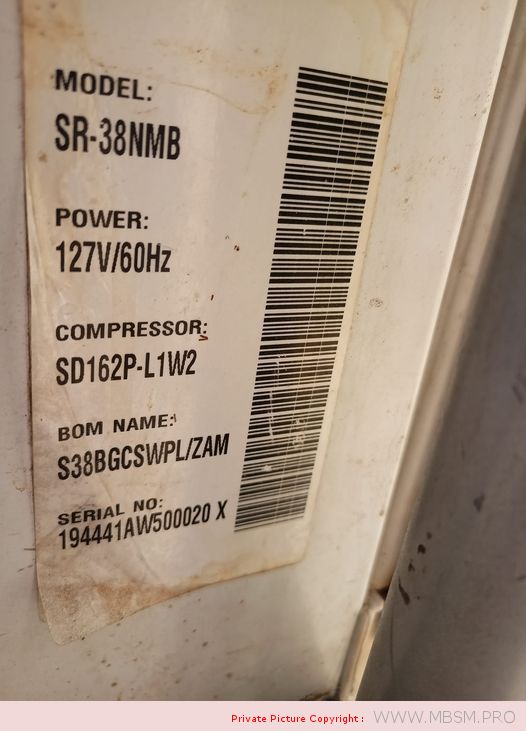

    REFRIGERATOR, Samsung refrigerator, CoolTech, Model, SR-38NMB, Capacity: 13 cubic feet, Compressor, SD162P-L1W2 , 1/5 Hp, Lbp, R134A, 198W, input 145 w

    Category: compressor,Freezer
    written by www.mbsm.pro | 17 January 2024

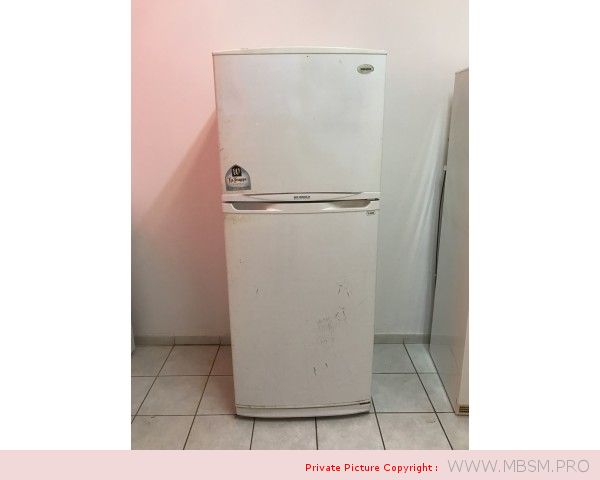

    Samsung 2 door Fridge, SR-38NMB,67*63*167cm

    Motor: 1/5 HP, 10.6 cc/rev, 220-240 V/50 Hz, copper coil

    the SD162P-L1W2 is a Chinese compressor manufactured by Samsung. Samsung has manufacturing facilities in several countries, including China, and some of their compressor models are made there. The “L1W2” suffix likely indicates specific manufacturing details or variations within the SD162P model line.

    While it’s made in China, the SD162P-L1W2 is generally considered a reliable and efficient compressor. It’s commonly used in refrigerators and freezers.

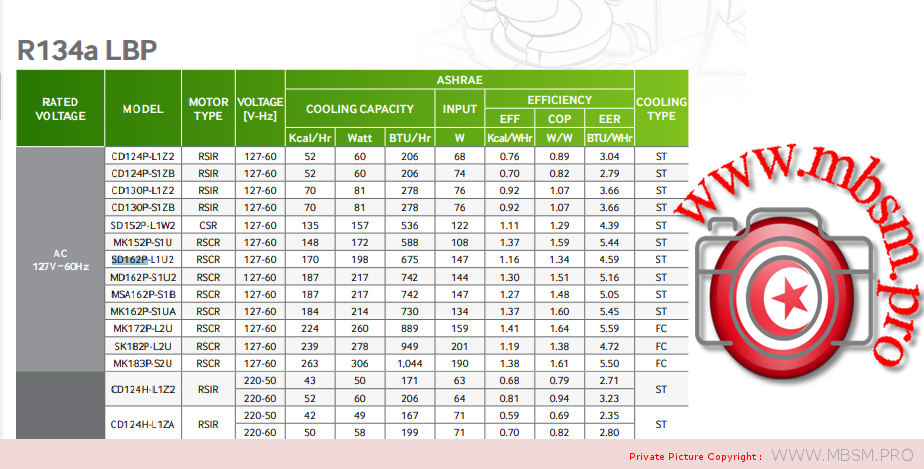

    Here are some of the key specifications of the SD162P-L1W2 compressor:

    • Type: Reciprocating
    • Refrigerant: R404A or R600a
    • Horsepower (HP): 1/5
    • Displacement: 10.6 cc/rev
    • Voltage/Frequency: 220-240V/50Hz

    If you’re looking for a replacement compressor for your refrigerator or freezer, the SD162P-L1W2 could be a good option. However, it’s always important to check the specifications of your old compressor to make sure that the new one is compatible.

    Mbsm_dot_pro_private_PDF_SD162P-L1W2-1Télécharger
    Mbsm_dot_pro_private_PDF_SD162P-L1U2-2Télécharger
    Mbsm_dot_pro_private_PDF_compressor-catalogue-2015Télécharger
