Mbsm.pro, Cubigel, Compressor, B43CB, R600a, LBP, 1/12 HP, 4.3cc, B SERIES

written by Lilianne | 24 March 2024

R600a-LBP COMPRESSORS – B SERIES

 Model
Power supply
(V/Hz)

 		  Displacement
（cm3）		  CoolingCapacity(W)  C.O.P(W/W)  Motor Type  Certification
B Series
B30C 220～240/5050 3.1 50 1.05 RSIR
220～240/60  58 1.15 RSIR
B35C 220～240/5050 3.5 56 1.05 RSIR CCC VDE CB
220～240/60  63 1.20 RSIR
220～240/5050 56 1.25 RSIR
220～240/60  63 1.35 RSIR
220～240/50  56 1.35 RSCR
B35CA 220～240/50  3.5 56 1.35 RSCR CCC VDE CB
B35C5B 110～115/60 3.5 65 1.25 RSIR UL CUL
65 1.35 RSIR
B35C5BL 110～120/60 3.5 65 1.45 RSCR UL CUL
B43CB 220～240/50  4.3 68 1.05 RSIR CCC VDE CB
220～240/60  78 1.15 RSIR
220～240/50  68 1.25 RSCR
220～240/60  78 1.35 RSCR
220～240/50/  68 1.40 RSCR
B43C0 100/50～60 4.3 78 1.25 RSIR
B43C5B    110～115/60 4.3 78 1.25 RSIR UL CUL
78 1.35 RSIR
B43C5B 127/60 4.3 78 1.30 RSIR CB
B43C5BL    110～120/60 4.3 78 1.45 RSCR UL CUL
B52C 220～240/50 5.2 78 1.10 RSIR CCC VDE CB
78 1.25 RSIR
78 1.40 RSCR
B52CL 220～240/50 5.2 78 1.25 RSIR CCC VDE CB
220～240/60  95 1.25 RSIR
B52C5BL 110～120/60 5.2 95 1.40 RSCR UL CUL
B52C0 100/50～60 5.2 95 1.25 RSIR
B60CB 220～240/50 6.0 95 1.15 RSIR CCC VDE CB
95 1.25 RSIR
95 1.35 RSIR
95 1.45 RSCR
B60CBL 220～240/50 6.0 95 1.30 RSIR CCC VDE CB
95 1.40 RSCR
95 1.55 RSCR
220～240/60 110 1.40 RSIR CCC VDE
B60C5BL 110～120/60 6.0 110 1.30 RSIR UL CUL
110～120/60 110 1.40 RSCR
B65CL 220～240/50 6.5 100 1.25 RSIR

* TOLERANCE: Capacity: ≥95%,  Input Power: ≤115%,  Current: ≤110%,  C.O.P≥93%;  HBP-Evaporator Temperature: -5℃~15℃
* COOLING  TYPE:  ST=Static Cooling,  FC=Fan Cooling,  OC=Oil Cooling

Note: This  datasheet  describes  certain  operational  parameters  and  conditions  for  operation  of  this  product. If  this  product  is  operated  outside  of  the  parameters  and  conditions  stated  herein,  buyer  assumes  sole  and full responsibility.

Test Conditions LBP MHBP Conversion Table
ASHRAE CECOMAF ASHRAE CECOMAF 1 Kcal/h×1.163=W
Evaporator Temp.℃ -23.3 7.2 2 Kcal/h×3.968=Btu/h
 Ambience Temp.℃ 32.2 35.0 3 W×3.412=Btu/h
Condenser Temp.℃ 54.4 54.4 4 W×0.864= Kcal/h
Suction Temp.℃ 32.2 35.0 5 EER=COP×3.412
Subcooling Temp.℃ 32.2 46.1 6 Capacity(at 50Hz)×1.16=Capacity(at 60Hz)


Mbsm.pro, compressor, C-BF75L52, 1/12 hp, C-bf, Kulthorn, Group – HERMETIC, 80 w, 3.63 cm3, lbp, r134a

written by Lilianne | 24 March 2024
Mbsm_dot_pro_private_PDF_C-BF75L52Télécharger


Refrigerator, Embraco, Compressor, 1/4 hp, FF17.5HAK, FF18.5HAK , FFU70HAK, 1/3 hp, FG95HAK, FEU100HAK, 1/6 hp, EM65HNR, EMI50HEP, 1/5 hp, FG65HAK, FF165HAK, EMI70, EM20HHR, 1/12 hp, EM3OHHR, 1/10 hp, EM40HEP, EM45HNR

written by Lilianne | 24 March 2024

Refrigerator, Embraco, Compressor, 1/4 hp, FF17.5HAK, FF18.5HAK , FFUZOHAK, 1/3 hp, FG95HAK
FEU100HAK, 1/6 hp, EM65HNR, EMI50HEP, 1/5 hp, FG65HAK, FF165HAK, EMI70, EM20HHR, 1/12 hp,
EM3OHHR, 1/10 hp, EM40HEP, EM45HNR



UGINE, refregerator, WBr-100, 90 L, r134a, 40 g, 220 v, 60 hz, 75 W, Class T, Compressor, Daewoo, WX24LHS4T, 62 W, 1/12 hp, lra 2.5 a, 186 btu, lbp

written by Lilianne | 24 March 2024


TFS4AT, 102u 2081, 102u2081, 1/12 hp, r12, Lbp, 80 w / -25 °С, -10/-40 °С, Danfoss, r12, r22, r502, Compressor, PDF

written by Amina | 24 March 2024



Mbsm.pro, Embraco, Aspera, EMX26CLC, EMX 26 CLC, 1/12 hp, single-phase, Compresor, freezing (LBP), 52 crn3, r600a

written by Lilianne | 24 March 2024

Mbsm_dot_pro_private_PDF_emx26clc

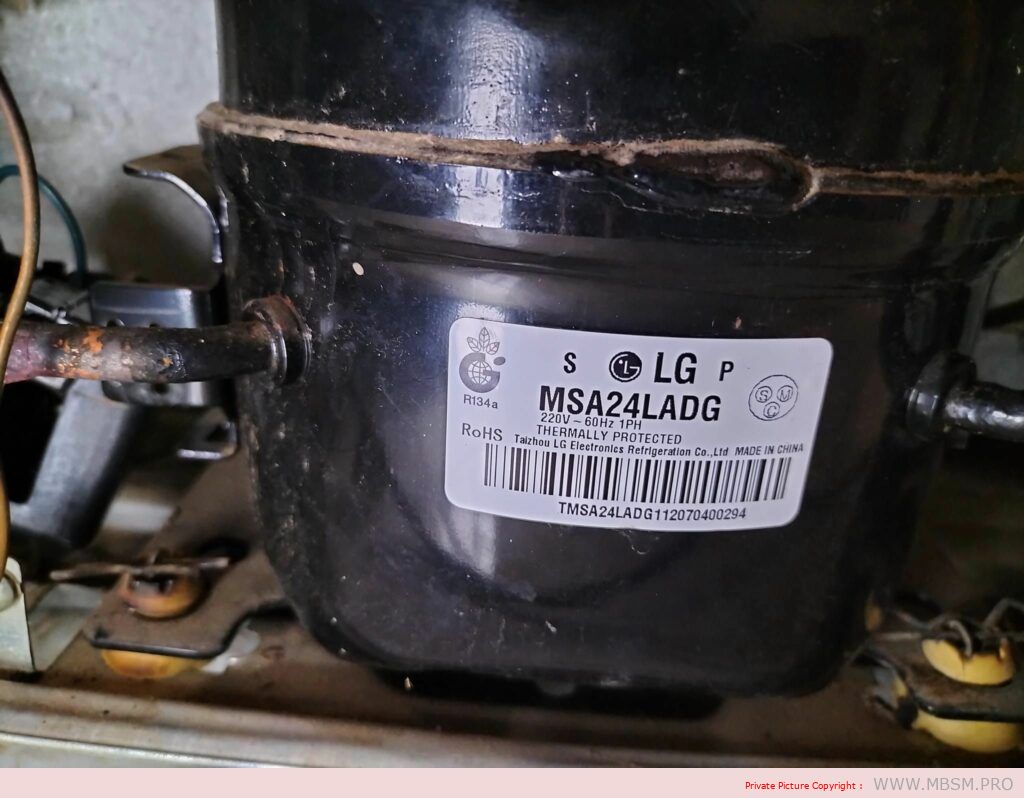

Mbsm.pro, Compressor, Lg, msa24Ladg, Serie MSA, 1/12 hp, r134a, Small and medium size refrigerator, Freezer Water dispenser, 220 v , 1ph

written by Lilianne | 24 March 2024

Mbsm.pro, Compressor, Lg, msa24Ladg, Serie MSA, 1/12 hp, r134a, Small and medium size refrigerator, Freezer Water dispenser

The outlet Freq. Series pattern Dis. Eva/Cond’ = -23.3 ℃ / 54.4 ℃
50 HZ
The ability to cool Power COP HONOR
IN HZ cc kcal / h In Btu/h In w/w btu/w
220 50 MSA MSA 30 LAJG 3.0 67 78 266 80 0.97 a 3.30 He
MSA 43 LBJG 4.3 100 116 397 a 106 1.11 3.78 a
LX LX110 LAJ 11.0 Him 278 323 1104 a 232 1.39 a 4.76 a
220 50/60 each NS NS 24 LAB 2.4 38 44 151 58 0.76 a 2.60 He
NS 30 LAB 3.0 50 58 199 79 0.74 a 2.51 a
NS36 LAB 3.6 64 74 254 96 0.78 a 2.65 each
220-240: I 50 NS NS24 LAYER 2.4 38 44 151 76 0.58 a 1.99 each
NS 24 LBEG 2.4 36 42 143 64 0.65 a 2.23
NS30 LAW 3.0 54 63 214 84 0.78 a 2.65 each
NS36LAEG 3.6 66 77 262 89 0.86 a 2.94 a
MSA MSA 30 LAEG 3.0 67 78 266 80 0.97 a 3.30 He
MSA43LBEG 4.3 100 116 397 a 106 1.11 3.78 a
MSA43 LAEG 4.3 100 116 397 a 94 1.23 4.20 one
AND MA98 LAW 9.8 a 240 279 a 953 183 1.52 a 5.20 a
MA53 LHEM 5.3 129 150 512 106 1.42 a 4.83 a
MA57 LHEM 5.7 138 160 548 a 113 1.42 a 4.85 each
MA62 LHEM 6.2 150 174 596 a 137 1.27 4.35 He
MA69 OTHERS 6.9 172 200 683 do 146 1.38 a 4.70 each
220-240: I 50 NS NS36HAEG 3.6 275 320 1092 a 178 1.79 each 6.12
LX LX110 LAWD 11.0 Him 9 10 1058 a a 3613 515 2.05 Him 7.01 Him

Product Features

1. Con-rod
2.Hi-efficiency
3. Low noise & vibration
4.Hi-reliability

Fréquence Tension Modèle Déplacement Capacité de refroidissement Saisir FLIC EER
kcal/h O Btu/h HP
50Hz 220 MA42LFJM 4.2 92 107 365 0,144 97 1.1 3,77
50Hz 220 MA42LBJG 4.2 96 112 381 0,150 96 1.2 3,97
50Hz 220 MA42LJJG 4.2 92 107 365 0,144 96 1.1 3,80
50Hz 220 MA42LMJG 4.2 92 107 365 0,144 96 1.1 3,80
50Hz 220 MA42LKJG 4.2 99 115 393 0,154 99 1.2 3,97
50Hz 220 MA42LHJM 4.2 92 107 365 0,144 97 1.1 3,77
50Hz 220 MA45LDJG 4.5 99 115 393 0,154 104 1.1 3,78
50Hz 220 MA45LCJM 4.5 99 115 393 0,154 99 1.2 3,97
50Hz 220 MA45LCJG 4.5 99 115 393 0,154 104 1.1 3,78
50Hz 220 MA45LDJM 4.5 99 115 393 0,154 99 1.2 3,97
50Hz 220 MA45LFJM 4.5 102 119 405 0,159 94 1.3 4.31
50Hz 220 MA45LHJM 4.5 102 119 405 0,159 94 1.3 4.31
50Hz 220 MA45LAJM 5.3 125 145 496 0,195 118 1.2 4.21
50Hz 220 MA45LIJG 5.3 125 145 496 0,195 118 1.2 4.21
50Hz 220 MA53LBJG 5.3 125 145 496 0,195 118 1.2 4.10
50Hz 220 MA53LHJG 5.3 125 145 496 0,195 118 1.2 4.21
50Hz 220 MA57LBJG 5.7 138 160 548 0,215 130 1.2 4.21
50Hz 220 MA57LAJM 5.7 138 160 548 0,215 130 1.2 4.21
50Hz 220 MA57LIJG 5.7 138 160 548 0,215 130 1.2 4.21
50Hz 220 MA57LHJG 5.7 138 160 548 0,215 130 1.2 4.21
50Hz 220 MA57LDJM 5.7 145 169 576 0,226 125 1.3 4.61
50Hz 220 MA62LBJG 6.2 150 174 596 0,234 134 1.3 4.44
50Hz 220 MA62LIJG 6.2 150 174 596 0,234 134 1.3 4.44
50Hz 220 MA62LDJM 6.2 150 174 596 0,234 122 1.4 4,88
50Hz 220-240 MA62LBEG 6.2 150 174 596 0,234 127 1.4 4,69
50Hz 220 MA62LHJG 6.2 150 174 596 0,234 134 1.3 4.44
50Hz 220-240 MA62LCEG 6.2 150 174 596 0,234 127 1.4 4,69
50Hz 220-240 MA69LAEM 6.9 172 200 683 0,268 148 1.4 4.61
50Hz 220-240 MA69LHEP 6.9 170 198 675 0,265 159 1.2 4.24
50Hz 220-240 MA69LAEP 6.9 170 198 675 0,265 159 1.2 4.24
50Hz 220 MA69LCJM 6.9 172 200 683 0,268 145 1.4 4.71
50Hz 220-240 MA69LHEG 6.9 169 197 671 0,264 152 1.3 4.41
50Hz 220 MA72LBJG 7.2 180 209 715 0,281 162 1.3 4.41
50Hz 220 MA72LHEG 7.2 180 209 715 0,281 162 1.3 4.41
50Hz 220 MA88LAEP 8.8 235 173 933 0,367 227 1.2 4.11
50Hz / 60Hz 220 MA53LATG 5.3 124 144 492 0,193 123 1.2 4.00
50Hz / 60Hz 220 MA57LATG 5.7 138 160 548 0,215 134 1.2 4.09
50Hz / 60Hz 220 MA62LATG 6.2 150 174 596 0,234 150 1.2 3,97
50Hz / 60Hz 220 MA69LATG 6.9 172 200 683 0,268 163 1.2 4.19
50Hz / 60Hz 220 MA88LATP 8.8 235 273 933 0,367 241 1.1 3,87
60Hz 127 MA53LBFH 5.3
50Hz 220-240 MA53LAEM 5.3 140 163 556 0,218 104 1.6 5.34
50Hz 220-240 MA53LHEM 5.3 140 163 556 0,218 104 1.6 5.34
50Hz 220 MA57LBJM 5.7 145 169 576 0,226 109 1.5 5.28
50Hz 220-240 MA42HAEG 4.2 355 413 1409 0,554 188 2.2 7,50
50Hz 220-240 MA53HAEF 5.3 440 512 1747 0,686 233 2.2 7,50
50Hz 220-240 MA53HAEG 5.3 440 512 1747 0,687 233 2.2 7,50
50Hz 220-240 MA62HAEG 6.2 520 605 2064 0,811 275 2.2 7.51
50Hz 220-240 MA62HAEF 6.2 520 605 2064 0,811 275 2.2 7.51
50Hz 220-240 MA72HAEP 7.2 630 733 2501 0,983 355 2.1 7.05


Mbsm.pro, Compressor, Hdz100a, Zel, R600a, 90 w, 1/12 hp, lbp

written by Lilianne | 24 March 2024


Mbsm.pro, water dispenser, compressor, S30G, 1/12 hp, Lbp, r134a

written by Lilianne | 24 March 2024

Compressor Specifications

Specifications



R134a refrigeration compressor for water dispenser:
New smaller design is good quality with lower cost,and it has the following characteristics:

1. Compact size;

2. Hi-reliability;

3. Low Noise&vibration;

4. Motor efficiency;

5. Design for quality;

6.Compressor Type:reciprocating,single cylinder;

The technical data is as follows:

1.Model:ASV20H;

2.Displacement:2.0 cc;

3.Voltage:220-240V/50Hz;

4.Motor Type:RSIR;

5.Cooling Capacity:50W;

6.Input power:55W;

7.Running Current:0.88A;

8.COP:0.94;

9.Cooling: ST;

10.Oil Charge:140 ml;

11.Certificate:CCC,CE,CB,ROHS;

12.Packing:150pcs/Pallet,3600pcs/20’ft container;

13.Payment:30% T/T in advance,the balance T/T paid before the shipment;

14.Delivery: Shipment within 10 days on receipt of your payment;

Components: Overload Protector,PTC Starting Relay,Cover, Cover Clip,Rubber Grommethexagon Bolt,Hexagon Nut,Washer,Sleeve,Earth Screw;

– Application:
Small size refrigerator/Water cooler/Water dispenser/Ice maker;

Voltage / frequency(V/Hz)

Horsepower

(hp)

Model

Displacement

Motor type

Cooling capacity+/-5%

ASHRAE(-23.3℃)

Input Power

+/-5%

COP+/-7%

ASHRAE(-23.3℃)

Cooling

(cc/rev)

(kcal/h)

(W)

(Btu/h)

w

(kcal/h)

(W)

(Btu/h)
220-240V～
50/60Hz
 1/14hp TGV20H 2.0cc RSIR 41 48 164.00 56.00 0.73 0.85 2.9 ST
1/13hp TGV25H 2.5cc RSIR 50 58 198.00 68.00 0.73 0.85 2.9 ST
1/12hp TGV30H 3.0cc RSIR 60 70 239.00 82.00 0.73 0.85 2.9 ST
1/12hp S30G 3.0cc RSIR 56 65 222.00 72.00 0.77 0.9 3.07 ST
1/10hp S36G 3.6cc RSIR 69 80 273.00 89.00 0.77 0.9 3.07 ST
1/8hp TGW43H 4.3cc RSIR 106 123 420.00 98.00 1.08 1.25 4.27 ST
1/6hp TGW53H 5.3cc RSIR 120 140 478.00 112.00 1.08 1.25 4.27 ST
1/5hp TGW65H 6.5cc RSIR 143 165 566.00 132.00 1.08 1.25 4.27 ST
1/4hp TGW75H 7.5cc RSIR 168 190 665.00 152.00 1.08 1.25 4.27 ST
1/4+hp TGQ91H 9.1cc RSIR 189 220 751.00 176.00 1.08 1.25 4.27 ST
1/3hp TGQ110H 11.0cc RSIR 241 280 955.00 215.00 1.11 1.3 4.43 ST
1/3+hp TGQ128H 12.8cc RSIR 280 326 1112.00 251.00 1.11 1.3 4.43 ST
115-127V/60Hz 1/14hp TGV20HD 2.0cc RSIR 47 55 188.00 65.00 0.73 0.85 2.9 ST
1/10hp TGV25HD 2.5cc RSIR 56 65 222.00 78.00 0.77 0.9 3.07 ST
1/12hp TGV30HD 3.0cc RSIR 69 80 273.00 100.00 0.77 0.9 3.07 ST
1/8hp TGW43HD 4.3cc RSIR 116 135 460.00 108.00 1.08 1.25 4.27 ST
1/6hp TGW53HD 5.3cc RSIR 138 160 546.00 128.00 1.08 1.25 4.27 ST
1/5hp TGW65HD 6.5cc RSIR 167 194 662.00 147.00 1.14 1.32 4.5 ST
1/4hp TGW75HD 7.5cc RSIR 196 228 777.00 173.00 1.14 1.32 4.5 ST
FC:Fancooling RSIR:ResistanceStartInductionRun EvaporatingTemp.:-23.3℃(-10℉) 1watt=3.41Btu/Hr
OC:Oilcooling RSCR:ResistanceStartCapacitorRun CondensingTemp.:54.4℃(130℉) 1watt=0.86Kcal/Hr
ST:Static CSIR:CapacitorStartInductionRun GasSuperheatedto:32.2℃(90℉) 1Kcal/Hr=3.97Btu/Hr
  CSR:CapacitorStartCapacitorRun Liquidsub-cooledto:32.2℃(90℉)
    AmbientTemp.:32.2℃(90℉)
As a result of Asbeila policy of constant development,technical specifications may bes ubject to change.



Mbsm.pro, Compressor, DONPER, Refrigeration, S30CZ, R134a, 1/12 HP, LBP, 220V-240V 50HZ, Disp. 3.0cc

written by Lilianne | 24 March 2024

Specifications

  • Mark: Area
  • Model: S30CZ
  • Technologies: Constant velocity
  • Tension: 220/240-1 50
  • Applications: Short
  • Heat pump: No
  • Soft drinks: R134a
  • Displacement cm3: 3.00
  • MOBILE PHONE: 1/12
  • Initial oil charge: 280ml
  • Suction pipe connection: 1/4”
  • Discharge pipe connection: 1/4”
  • Service intensity: 0,65 A
  • Starting current (locked rotor): 9,8 A
  • Maximum intensity of service: 9,8 A
  • Maximum casing temperature: 95°C
  • discharge temperature: 120°C
  • Maximum winding temperature: 130°C
  • Sound level: 40 dB
  • Weight: 6kg
  • Type of oil: POE-ester
  • Engine cooling type:   Static
  • Engine type: RSIR (PTC)
  • Motor protection type: External
  • Speed: 2920 rpm
  • Vibration: 0.65m/s2
Refrigerant Application Serris Model Power Displacement Cooling Motor Type Power Supply


R134A LBP S S30CZ 1/12 3.0 S RSIR 220V/50HZ
S36CZ 1/8 3.6 S RSIR 220V/50HZ
S43CZ 1/7 4.3 S RSIR 220V/50HZ
S53CZ 1/6- 5.3 S RSIR 220V/50HZ
S30BZ 1/10 3.0 S RSIR 115V/60HZ
S36BZ 1/7 3.6 S RSIR 115V/60HZ
S43BZ 1/6- 4.3 S RSIR 115V/60HZ
S53BZ 1/6+ 5.3 S RSIR 115V/60HZ
 High Efficiency Range
SK30CZ 1/10 3.0 S RSCR 220V/50HZ
SK36CZ 1/8 3.6 S RSCR 220V/50HZ
SK43CZ 1/6- 4.3 S RSCR 220V/50HZ
SK53CZ 1/6 5.3 S RSCR 220V/50HZ
SK30BZ 1/8 3.0 S RSCR 115V/60HZ
SK36BZ 1/6- 3.6 S RSCR 115V/60HZ
SK43BZ 1/6 4.3 S RSCR 115V/60HZ
SK53BZ 1/5 5.3 S RSCR 115V/60HZ

Mbsm_dot_pro_private_PDF_S30CZTélécharger
