Mbsm.pro, Compressor, Ph310M2A-4FTS2, T3, R22, Toshiba, Gmcc, Rotary Compressor, for Air Conditioner, 1765 w, 19000 btu/h, 50HZ-220/240V, 2.3 hp

Category: Archivation,compressor
written by www.mbsm.pro | 29 April 2022

GMCC Rotary Compressor


R410A

              1φ-50Hz-220/240V

Model Displ. capacity Power
(W)		 COP
(W/W)		 Capacitor
(uF/V)		 Height
(mm)		 Discharge
Pipe ID
(mm)		 Suction
Pipe ID
(mm)
(cm3/rev) w Btu/h
ASN46V1VAZ1 4.6  1250 4265 320 3.90  15/370 238 8.1 9.8
ASN58V1VZZ1 5.8  1625 5545 411 3.95  20/370 238 8.1 9.8
ASM89V1VFZ 8.9  2485 8479 592 4.20  20/370 290 8.1 12.9
ASM93V11VDZ 9.3  2570 8769 615 4.18  25/370 290 8.1 9.8
ASM99V1VFZ 9.8  2780 9485 650 4.28  25/370 292 8.1 12.9
ASM103V11VDZ 10.3  2900 9895 675 4.30  25/370 292 8.1 9.8
ASM106V1VFT 10.6  3040 10372 710 4.28  25/370 292 8.1 12.9
ASM113V1VDZ 11.3  3215 10970 745 4.32  30/370 292 8.1 9.8
ASM120V1VFT 12.0  3445 11754 805 4.28  30/370 292 8.1 12.9
ASM125V1VFT 12.5  3610 12317 845 4.27  35/370 292 8.1 12.9
ASM130V1VDZ 13.0  3760 12829 885 4.25  35/370 292 8.1 9.8
ASM135V1VFT 13.3  3870 13204 900 4.30  35/370 295 8.1 12.9
ASM140V1VFT 13.9  4060 13853 945 4.30  35/370 292 8.1 12.9
PA150M2A-4FTL 15.0  4300 14672 1025 4.20  35/370 300 8.1 12.9
PA190M2AS-4KUL1 18.9  5460 18630 1270 4.30  45/370 340 8.1 12.9
PA190M2A-4EUL1 18.9  5480 18698 1290 4.25  45/370 325 8.1 12.9
PA200M2A-4EUL 19.9  5760 19653 1405 4.10  50/370 325 8.1 12.9
PA205M2AS-4MUL 20.4  5965 20353 1420 4.20  50/370 345 9.8 16.2
PA196G2C-4MUL 19.6  5665 19329 1335 4.24  55/400 310 9.8 16.2
PA206G2C-4KUL 20.8  5990 20438 1410 4.25  55/400 310 9.8 12.9
PA216G2C-4FTL 21.6  6165 21035 1440 4.28  55/400 310 9.8 12.9
PA231G2C-4MUL 23.1  6760 23065 1565 4.32  50/400 345 9.8 16.2
PA250G2CS-4MUL 25.1  7315 24959 1695 4.32  50/400 345 9.8 16.2
PA270G2CS-4MUL1 27.0  7845 26767 1805 4.35  60/400 345 9.8 16.2
PA280G2CS-4MUL 27.9  8165 27859 1898 4.30  60/400 345 9.8 16.2
PA290G2CS-4MUL 28.7  8485 28951 1975 4.30  60/400 345 9.8 16.2
ASG195V1VMU 19.6  5700 19448 1310 4.35  40/400 310 9.8 16.2
ASK40V11UAZ 4.0  930 3173 365 2.55  15/370 230 8.1 9.8
ASK60V1UAZ 6.0  1475 5033 542 2.72  25/370 230 8.1 9.8
ASN68V1UZZ1 6.8  1695 5783 585 2.90  20/370 250 8.1 9.8
ASN71V1UDD1 7.1  1735 5920 582 2.98  20/370 250 8.1 9.8
ASN76V1UDZ1 7.6  1890 6449 630 3.00  25/370 250 8.1 9.8
ASN82V1UDZ 8.2  2035 6943 690 2.95  25/370 250 8.1 9.8
ASN86V1UDZ 8.6  2140 7302 725 2.95  25/370 250 8.1 9.8
ASN89V1UDZ 8.9  2260 7711 765 2.95  25/370 250 8.1 9.8
ASM99V2UDZ 9.8  2395 8172 788 3.04  25/370 292 8.1 9.8
PA170M2C-4ET2 17.1  4190 14296 1385 3.03  35/400 300 8.1 12.9
PA185M2C-4FT2 18.5  4495 15337 1500 3.00  35/400 300 8.1 12.9
PA200M2A-4ET2 20.0  5000 17060 1695 2.95  40/370 314 9.8 12.9
PA215M2AS-4KU 21.5  5355 18271 1845 2.90  50/400 314 9.8 12.9
PA225M2CS-4KU2 22.4  5500 18766 1835 3.00  50/370 340 8.1 12.9
PA240M2CS-4KU1 23.9  5840 19926 1980 2.95  50/370 340 8.1 12.9
PA260G2C-4FU 26.0  6500 22178 2130 3.05  65/400 310 9.8 12.9
PA270G2CS-4MU1 27.0  6825 23287 2235 3.05  60/400 345 9.8 16.2
PA290G2CS-4MU1 28.7  7295 24891 2410 3.03  50/400 345 9.8 16.2
ATQ375V1UMU 37.7  9615 32806 3255 3.05  75/400 405 9.8 16.2
ATQ390V1UMT 38.9  9825 33523 3190 3.08  70/400 405 9.8 16.2




R410A

             1φ-60Hz-208~230V

Model Displ. Capacity Power
(W)		 COP
(W/W)		 Capacitor
(uF/V)		 Height
(mm)		 Discharge
Pipe ID
(mm)		 Suction
Pipe ID
(mm)
(cm3/rev) w Btu/h
ASN53N1UAJ3 5.3  1570 5357 520 3.02  15/370 230 8.1 9.8
ASN58N11VDZ1 5.8  1965 6705 510 3.85  15/370 250 8.1 9.8
ASN68N1UDZ 6.8  2060 7029 676 3.05  20/370 250 8.1 9.8
ASN68N2VDZB1 6.8  2320 7916 568 4.08  20/370 250 8.1 9.8
ASN76N1VDZ1 7.6  2600 8871 650 4.00  20/370 250 8.1 9.8
ASN82N1UDZ 8.2  2515 8581 853 2.95  25/370 250 8.1 9.8
ASN82N2VDZ1 8.2  2815 9605 690 4.08  20/370 250 8.1 9.8
ASN84N1VBZB1 8.3  2865 9775 695 4.12  20/370 250 8.1 9.8
ASN89N1UDZ 8.9  2730 9315 895 3.05  25/370 250 8.1 9.8
ASM103N11UFZ 10.3  3075 10492 975 3.15  35/370 297 8.1 12.9
ASM103N11VEZ 10.3  3565 12164 838 4.25  35/370 290 8.1 12.9
ASM106N1UFT 10.6  3200 10918 1015 3.15  35/370 297 8.1 12.9
ASM106N1VEZ 10.6  3680 12556 860 4.28  35/370 297 8.1 12.9
ASM113N1UFZ 11.3  3380 11533 1073 3.15  40/370 292 8.1 12.9
ASM120N1VDZ 12.0  4160 14194 990 4.20  40/370 292 8.1 9.8
ASM130N1UDZ 13.0  3870 13204 1270 3.05  40/370 292 8.1 9.8
ASM135N1UEZ 13.3  4060 13853 1290 3.15  40/370 297 8.1 12.9
ASM140N1UFT 13.9  4175 14245 1355 3.08  40/370 292 8.1 12.9
PA140M2A-3ET 13.9  4155 14177 1375 3.02  45/400 299 8.1 12.9
PA150M2AS-3KU 15.0  4500 15354 1450 3.10  45/370 321 8.1 12.9
ASF155N1VKP 15.5  5420 18493 1260 4.30  45/400 340 8.1 12.9
PA155M2A-3ETL1 15.7  5395 18408 1250 4.32  45/370 303 9.8 12.9
ASF160N1UEP 16.0  4865 16599 1530 3.18  55/400 314 9.8 12.9
PA160M2A-3ETL 16.0  5630 19210 1325 4.25  45/400 303 9.8 12.9
ASF165N02UFT 16.5  5000 17060 1670 3.00  40/370 340 9.8 12.9
PA165M2A-3ETL 16.5  5760 19653 1355 4.25  45/400 303 9.8 12.9
PA170M2A-3FT1 17.1  5155 17589 1662 3.10  45/370 303 9.8 12.9
ASF200N1UKP 19.9  5930 20233 1900 3.12  55/400 340 9.8 12.9
PA216G2C-3KU 21.5  6620 22587 2150 3.08  60/400 310 9.8 12.9
PA226G2C-3MT 22.3  6790 23167 2220 3.06  60/400 310 9.8 16.2
PA225M2A-3MTU1 22.4  6715 22912 2240 3.00  55/370 322 9.8 16.2
ASG235N1VMT 23.5  8350 28490 1920 4.35  40/400 310 9.8 16.2
PA240M2A-3MTU2 24.0  7220 24635 2475 2.92  55/370 322 9.8 16.2
PA241G2C-3MT3 24.0  7300 24908 2315 3.15  60/400 310 9.8 16.2
PA290G2CS-3MU 28.7  8870 30264 2880 3.08  60/400 344 9.8 16.2
ATG330N1UMU 32.7  10080 34393 3365 3.00  65/400 400 9.8 16.2
ASQ330N1UMU 33.1  9950 33949 3230 3.08  60/400 380 9.8 16.2



R22

                        1φ-60Hz-208~230V

Model Displ. Capacity Power
(W)		 COP
(W/W)		 Capacitor
(uF/V)		 Height
(mm)		 Discharge
Pipe ID
(mm)		 Suction
Pipe ID
(mm)
(cm3/rev) w Btu/h
HSN76N1UZJ1 7.6  1645 5613 530 3.10  15/370 240 8.1 9.8
HSM130N12UEZ 13.0  2750 9383 846 3.25  30/370 292 8.1 12.9
HSM165N11UEZ 16.5  3500 11942 1060 3.30  40/370 292 8.1 12.9
HSM170N2UFZ 16.9  3540 12078 1115 3.17  40/370 292 8.1 12.9
PH210M2A-3FT 20.9  4610 15729 1365 3.38  45/370 292 8.2 12.9
PH250M2A-3FTU2 24.8  5285 18032 1625 3.25  40/370 292 8.2 12.9
PH260M2AS-3KUU1 26.1  5625 19193 1815 3.10  40/370 333 9.8 12.9
PH300G2C-3KU 29.8  6465 22059 1900 3.40  55/400 310 9.8 12.9
PH310G2C-3KUU 30.8  6780 23133 2085 3.25  55/400 310 9.8 12.9
PH340G2C-3MUU 33.8  7400 25249 2275 3.25  55/400 310 9.8 16.2
PH360G2C-3KUU1 36.0  7775 26528 2550 3.05  55/400 310 9.8 12.9
PH370G2C-3MUU1 37.0  8110 27671 2655 3.05  55/400 310 9.8 16.2
HSN98N2VBZ1 9.8  2305 7865 560 4.12  20/370 250 8.1 9.8
HSN102N1VDZ 10.2  2415 8240 575 4.20  15/370 255 8.1 9.8
HSM145N2VDT 14.6  3480 11874 830 4.19  35/370 292 8.1 9.8



R22

                         1φ-50Hz-220/240V

Model Displ. capacity Power
(W)		 COP
(W/W)		 Capacitor
(uF/V)		 Height
(mm)		 Discharge
Pipe ID
(mm)		 Suction
Pipe ID
(mm)
(cm3/rev) w Btu/h
HSM135V1UDZ 13.3  2335 7967 708 3.30  25/370 292 8.1 9.8
HSM145V1UFZ 14.6  2568 8762 783 3.28  25/370 292 8.1 12.9
HSM150V5UFZ 15.1  2640 9008 800 3.30  25/370 292 8.1 12.9
HSM155V1UFZ 15.3  2665 9093 815 3.27  25/370 292 8.1 12.9
HSM160V5UFZ 15.8  2755 9400 840 3.28  25/370 292 8.1 12.9
HSM165V1UFZ 16.4  2845 9707 870 3.27  30/370 292 8.1 12.9
HSM165V3UDZ 16.4  2855 9741 915 3.12  30/370 292 8.1 9.8
HSM170V1UFZ 16.9  2920 9963 885 3.30  30/370 292 8.1 12.9
HSM190V1UFT 19.2  3340 11396 1010 3.31  35/370 300 8.1 12.9
HSM195V1UFT 19.7  3400 11601 1045 3.25  35/370 300 8.1 12.9
HSM200V1UFT 20.1  3480 11874 1070 3.25  35/370 300 8.1 12.9
HSM205V1UFT 20.5  3510 11976 1090 3.22  35/370 300 8.1 12.9
HSM210V2UFT 20.9  3650 12454 1170 3.12  35/370 300 8.1 12.9
HSM215V3UFT 21.4  3710 12659 1195 3.10  35/370 300 8.1 12.9
HSM220V3UFT 22.3  3880 13239 1220 3.18  40/370 300 8.1 12.9
PH300G2C-4KU1 29.8  5340 18220 1645 3.25  55/400 297 9.8 12.9
PH310G2C-4KUA 30.8  5440 18561 1635 3.33  55/400 310 9.8 12.9
PH330G2C-4KU 32.8  5845 19943 1745 3.35  60/400 324 9.8 12.9
PH340G2C-4KU 33.7  6050 20643 1805 3.35  60/400 324 9.8 12.9
PH360G2C-4MU1 36.0  6475 22093 2005 3.23  50/400 324 9.8 16.2
PH370G2CS-4MU1 37.0  6650 22690 2065 3.22  50/400 324 9.8 16.2
PH400G2CS-4MU1 39.8  7100 24225 2255 3.15  50/400 354 9.8 16.2
PH420G2CS-4KU1 42.3  7420 25317 2390 3.10  50/400 354 9.8 12.9
PH440G2CS-4MU 43.5  7810 26648 2390 3.27  50/400 354 9.8 16.2




T3-Tropical Condition


R22

                1φ-50Hz-220/240V

Model Displ
(cm3/rev)		 capacity Power
(W)		 COP
(W/W)		 Capacitor
(uF/V)		 Height
(mm)		 Discharge
Pipe ID
(mm)		 Suction
Pipe ID
(mm)
w Btu/h
PH200M2A-4FTS1 19.9  3555 12130 1095 3.25  35/370 292 8.2 12.9
PH210M2A-4FTS2 20.9  3765 12846 1160 3.25  35/370 292 8.2 12.9
PH310M2AS-4KTS1 31.0  5620 19175 1755 3.20  50/370 348 9.8 12.9
HSG290V1TKT 29.0  5200 17742 1520 3.42  50/400 310 9.8 12.9
HSG310V1TKT 30.9  5540 18902 1630 3.40  45/400 324 9.8 12.9
PH400G2CS-4KTS1 39.8  7080 24157 2250 3.15  60/400 354 9.8 12.9
PH420G2CS-4KTS1 42.3  7540 25726 2370 3.18  60/400 354 9.8 12.9



R22

                                1φ-60Hz-230V

Model Displ
(cm3/rev)		 capacity Power
(W)		 COP
(W/W)		 Capacitor
(uF/V)		 Height
(mm)		 Discharge
Pipe ID
(mm)		 Suction
Pipe ID
(mm)
w Btu/h
PH185M2A-3FTS1 18.5  4050 13819 1245 3.25  40/370 292 8.2 12.9
PH240M2A-3FTS1 24.0  5260 17947 1740 3.02  40/370 292 8.2 12.9
PH260M2AS-3KTS2 26.1  5680 19380 1765 3.22  40/400 333 9.8 12.9
PH280M2AS-3KTS1 27.9  6085 20762 2025 3.00  40/400 333 9.8 12.9



DC Inverter Single Cylinder

R410A

Model Displ
(cm3/rev)		 capacity Power
(W)		 COP
(W/W)		 Height
(mm)		 Discharge
Pipe ID
(mm)		 Suction
Pipe ID
(mm)
w Btu/h
ASK75D43UEZ 7.5  2225 7592 582 3.82  238 8.1 9.8
ASK89D53UEZ 8.9  2670 9110 688 3.88  258 8.1 9.8
ASK98D50UFZ 9.8  2930 9997 768 3.82  260 8.1 9.8
ASK103D53UFZ 10.3  3120 10645 805 3.88  258 8.1 12.9
ASK103D59UFZ 10.3  3120 10645 790 3.95  260 8.1 12.9
ASK103D33UEZ3 10.3  3130 10679 786 3.98  260 8.1 12.9
ASK103D43UEZ3 10.3  3130 10679 779 4.02  260 8.1 12.9




T3 Compressor 50HZ-220/240V

Series



Representative model



Displacement

(cm3/rev)

Refrigerating capacity

（W）

Refrigerating capacity

（Btu/h）

Power

（W）

Performance Ratio

（W/W）

Capacitor

（μF/V）

Height Of Compressor

（mm）

Inside diameter of exhaust pipe（mm）



Inside diameter of suction pipe（mm）



Remarks



50HZ-220/240V

M2

PH200M2A-4FTS1

19.9

3555

12130

1095

3.25

35/370

292

8.2

12.9

—-

M2

PH210M2A-4FTS2

20.9

3765

12846

1160

3.25

35/370

292

8.2

12.9

—-

M2

PH310M2AS-4KTS1

31.0

5560

18971

1765

3.15

50/370

348

9.8

12.9

—-

G2

PH340G2C-4KTS1

33.7

6050

20643

1915

3.16

60/400

310

9.8

12.9

—-

G2

PH360G2C-4FTS1

36.0

6455

22024

2015

3.20

60/400

324

9.8

16.2

—-

G2

PH400G2CS-4KTS1

39.8

7115

24276

2235

3.18

60/400

354

9.8

12.9

—-

G2

PH420G2CS-4KTS1

42.3

7540

25726

2370

3.18

60/400

354

9.8

12.9

—-

G2

PH440G2CS-4KTS1

43.5

7685

26221

2500

3.07

60/400

354

9.8

12.9

—-

TQ

HTQ540V1TMT

54.0

9720

33165

3240

3.00

70/400

406

9.8

16.2

▲

TQ

HTQ610V1TMT

61.0

11040

37668

3742

2.95

70/400

406

9.8

16.2

▲

M2

G2

TQ







R22

                                                1φ-50Hz-220/240V


Model
Displ

(cm3/rev)
capacity
Power

(W)
COP

(W/W)
Capacitor

(uF/V)
Height

(mm)
Discharge

Pipe ID

(mm)
Suction

Pipe ID

(mm)

w
Btu/h

PH200M2A-4FTS1
19.9
3555
12130
1095
3.25
35/370
292
8.2
12.9

PH210M2A-4FTS2
20.9
3765
12846
1160
3.25
35/370
292
8.2
12.9

PH310M2AS-4KTS1
31.0
5620
19175
1755
3.20
50/370
348
9.8
12.9

HSG290V1TKT
29.0
5200
17742
1520
3.42
50/400
310
9.8
12.9

HSG310V1TKT
30.9
5540
18902
1630
3.40
45/400
324
9.8
12.9

PH400G2CS-4KTS1
39.8
7080
24157
2250
3.15
60/400
354
9.8
12.9

PH420G2CS-4KTS1
42.3
7540
25726
2370
3.18
60/400
354
9.8
12.9






R22

                1φ-60Hz-230V


Model
Displ

(cm3/rev)
capacity
Power

(W)
COP

(W/W)
Capacitor

(uF/V)
Height

(mm)
Discharge

Pipe ID

(mm)
Suction

Pipe ID

(mm)

w
Btu/h

PH185M2A-3FTS1
18.5
4050
13819
1245
3.25
40/370
292
8.2
12.9

PH240M2A-3FTS1
24.0
5260
17947
1740
3.02
40/370
292
8.2
12.9

PH260M2AS-3KTS2
26.1
5680
19380
1765
3.22
40/400
333
9.8
12.9

PH280M2AS-3KTS1
27.9
6085
20762
2025
3.00
40/400
333
9.8
12.9

Mbsm_dot_pro_private_PDF_Ph310M2A-4FTS2Télécharger


Mbsm.pro, compressor, Toshiba compressor, GMCC, Air Conditioner Rotary ,Toshiba, rotary compressor, PH420G2CS, PH420G2CS-4KU1, 1 PH – 50Hz – 220/240V, 25317 Btu/h, 7420w, 3 Hp++, r22 / 410A, MHBP, Fixed speed

Category: air conditioner,compressor
written by www.mbsm.pro | 29 April 2022

Voltage: 1Φ – 50Hz – 220/240V

Model Displ.(cm3/rev) Cooling capacity Power (W) COP (W/W) Capacitor
W Btu/h
PH420G2CS-4KU1 42.3 7420 25317 2390 3.10 50/400


Data Sheet

Power supply 220/240 V-50 Hz-1 Ph
Displacement 42,3 cm3
Cooling capacity at ASHRAE HT conditions, R22 7,42 kW
Refrigerant R22
Suction pipe 1/2″
Discharge pipe 3/8″
Weight 20,2 kg
Rated current 11,8 A
LRA 65 A
MCC 17,12 A
Type of oil SUNISO 4GSD / NM56EP
Sound level ≤72 dB
Application MHBP
Technology Fixed speed
Maximum discharge temperature 125 ºC
Maximum shell bottom temperature 115 ºC
Resistance of coils Main:1,24 Ω/ Aux:2,77 Ω
Type of motor cooling Suction gas
Motor type 1-Ph Induction motor (PSC)
Motor protection type UP3-68 / HPA754
Speed 2900 rpm
Vibration 3,8 m/s2

PH420G2CS-4KU1 Air Conditional Compressor

Product Introduction:

Model PH420G2CS-4KU1
Voltage 220/240V/1ph/50Hz
Refrigerant gas R22
Displ. 30.8
Cooling capacity(Btu/h) 20370
COP(W/W) 4.52
Capacitor(μF/V) 55/400
Compressor Height(mm) 310
Dischargr Pipe ID (mm) 9.8
Sucition Pipe ID(mm) 12.9
Weight 23.3kg
Package 48sets/pallet

Application:
This compressor is mainly used in household air conditional.
Characteristics:
(A)Turbine anxial and redial flexibility techonology ensures reliability and efficiency of compressors.
(B)Wide range of rpoduct capacity.
(C)Lower cycle oil rate.
(D)Lower noise and vibration levels.

Mbsm_dot_pro_private_PDF_ph420G2CSTélécharger


Mbsm.pro, Air conditioner, Tac-36ch5a, 36000 Btu, 17 a, Compressor, ATH420MV, ATH420MV-C9EU, Hitachi Compressor, 4hp, R410a, 2.5 kg, 10060 W, 220V 220-240, 50Hz, 1 PH

Category: air conditioner,compressor
written by www.mbsm.pro | 29 April 2022

Hitachi Compressor ATH420MV-C9EU

ATH420MV-C9EU R410A refrigerant shanghai compressors manufacturers ac refrigeration compressors

R410A Constant-speed  220-240V 50Hz compressor

HIGHLY Highly ATH420MV compressor is a R410A refrigerant fixed speed light commercial refrigeration compressor produced by Shanghai Highly Electric Co., Ltd., power supply: 1Φ, 220-240V, 50Hz, displacement is 41.8 (cc/rev), cooling capacity is 10100 (W)/34461 (Btu/h), energy efficiency ratio COP is 2.95 (W/W)

Model Disp. Cooling Capacity COP Height
  cc/rev W Btu/h W/W mm
ATH420MV 41.8 10060 34334 2.90 375.8

型号

用途

冷媒

排气量

电源

制冷能力

备注

W

BTU/h

ATH356SM3C9EUC

T3工况

R-410A

35.6ml/rev

380-415V/60Hz/3PH

10450

35634

认证中

ATH420SM3C9EUC

T3工况

R-410A

41.8ml/rev

380-415V/60Hz/3PH

12250

41772

认证中

ATH290MV-C8FUH

T3工况

R-410A

29.0ml/rev

220-240V/50Hz/1PH

7020

23938

认证中

ASH201MV-C7HU1L

T3工况

R-410A

20.1ml/rev

220-240V/50Hz/1PH

4875

16623

认证中

ATH290GV-C8FQ

T1工况

R-410A

29.0ml/rev

220-240V/50Hz/1PH

7060

24074

认证中

ASH210GV-C7HQL

T1工况

R-410A

21.0ml/rev

220-240V/50Hz/1PH

5200

17732

认证中

ASH197UV-C7HQL

T1工况

R-410A

19.7ml/rev

220-240V/50Hz/1PH

4770

16265

认证中

ASH232DN-C8EU

T3工况

R-410A

23.2ml/rev

208-230V/60Hz/1PH

6810

23222

认证中

ASH222DN-C8DU

T3工况

R-410A

22.2ml/rev

208-230V/60Hz/1PH

6515

22216

认证中

ASH264DG-C8DG

T3工况

R-410A

26.4ml/rev

230V/60Hz/1PH

7830

26700

认证中

ATH265MV-C8FQ

T3工况

R-410A

26.5ml/rev

220-240V/50Hz/1PH

6510

22199

认证中

ATH420UC-C9EU1

T3工况

R-410A

41.8ml/rev

380-415V/50Hz/3PH

9880

33690

认证中

ASH201GV-C7HUL

T1工况

R-410A

20.1ml/rev

220-240V/50Hz/1PH

4970

16947

认证中

ATH307UC3C9EU

T3工况

R-410A

30.7ml/rev

380-415V/50Hz/3PH

7400

25234

认证中

ATH307MV-C9EU

T3工况

R-410A

30.7ml/rev

220-240V/50Hz/1PH

7435

25353

认证中

ATH250DG-C9EU

T3工况

R-410A

25.0ml/rev

230V/60Hz/1PH

7400

25234

认证中

ASH184TV-C7HU1L

T1工况

R-410A

18.4ml/rev

220-240V/50Hz/1PH

4470

15242

认证中

WHP16000AEG3C9EQ

热泵工况

R-410A

41.8ml/rev

null

12100

41261

认证中

WHP16000AEM3C9EQ

热泵工况

R-410A

41.8ml/rev

380V/60Hz/3PH

12100

41261

认证中

ASH232DG-C8DQ

T3工况

R-410A

23.2ml/rev

230V/60Hz/1PH

6850

23358

认证中

ATH280DG-C9EU

T3工况

R-410A

28.0ml/rev

230V/60Hz/1PH

8100

27621

认证中

WHP13500AEV-C9EQ

热泵工况

R-410A

41.8ml/rev

220V/50Hz/1PH

9890

33724

认证中

ATH265DG-C8FU

T3工况

R-410A

26.5ml/rev

230V/60Hz/1PH

7800

26598

认证中

ASH187TV-C7HQL

T1工况

R-410A

18.7ml/rev

220-240V/50Hz/1PH

4580

15617

认证中

ATH290MV-C8FU

T3工况

R-410A

29.0ml/rev

220-240V/50Hz/1PH

7020

23938

认证中

ASH264DG-C8DQ

T3工况

R-410A

26.4ml/rev

230V/60Hz/1PH

7830

26700

认证中

ASH232GV-C8DQ

T1工况

R-410A

23.2ml/rev

220-240V/50Hz/1PH

5625

19181

认证中

WHP06900AEV-C7HUL

热泵工况

R-410A

21.0ml/rev

220-240V/50Hz/1PH

4470

15242

认证中

WHP10100AEV-C9EQ

热泵工况

R-410A

30.7ml/rev

220-240V/50Hz/1PH

7480

25506

认证中

ASH272UV-C8DU

T1工况

R-410A

27.2ml/rev

220-240V/50Hz/1PH

6900

23529

认证中

ATH345MV-C9EU

T3工况

R-410A

34.5ml/rev

220-240V/50Hz/1PH

8400

28644

认证中

ASH215DG-C8DU

T3工况

R-410A

21.5ml/rev

230V/60Hz/1PH

6400

21824

认证中

ASH264UV-C8DU

T1工况

R-410A

26.4ml/rev

220-240V/50Hz/1PH

6440

21960

认证中

ATH307RV-C8FU

T1工况

R-410A

30.7ml/rev

220-240V/50Hz/1PH

7300

24893

认证中

ASH210MV-C7HQL

T3工况

R-410A

21.0ml/rev

220-240V/50Hz/1PH

5200

17732

认证中

ATH356UN-C9EU A

T1工况

R-410A

34.5ml/rev

208-230V/60Hz/1PH

10170

34679

认证中

ASH205DG-C7AQL

T3工况

R-410A

20.5ml/rev

230V/60Hz/1PH

6150

20971

认证中

ASH244UV-C8DU2

T1工况

R-410A

24.4ml/rev

220-240V/50Hz/1PH

5945

20272

认证中

ASH187TV-C7HUL

T1工况

R-410A

18.7ml/rev

220-240V/50Hz/1PH

4580

15617

认证中

ATH410UG-C9EU

T1工况

R-410A

40.8ml/rev

220-230V/60Hz/1PH

11900

40579

认证中

ATH410UG3C9EU

T1工况

R-410A

40.8ml/rev

220-230V/60Hz/3PH

11900

40579

认证中

ASH255UX3C8DU

T1工况

R-410A

25.5ml/rev

220V /50-60Hz /3PH

6300

21483

认证中

ASH244UV-C8DU1

T1工况

R-410A

24.4ml/rev

220-240V/50Hz/1PH

5800

19778

认证中

ASH232MV-C7HQ1

T3工况

R-410A

23.2ml/rev

220-240V/50Hz/1PH

5580

19027

认证中

ASH218UN-C7AQ1

T1工况

R-410A

21.8ml/rev

208-230V/60Hz/1PH

6450

21994

认证中

ASH264MV-C8DQ

T3工况

R-410A

26.4ml/rev

220-240V/50Hz/1PH

6485

22113

认证中

ASH205DG-C8DUL

T3工况

R-410A

20.5ml/rev

230V/60Hz/1PH

6150

20971

认证中

ATH356UN-C9EU

T1工况

R-410A

35.6ml/rev

208-230V/60Hz/1PH

10500

35805

认证中

ASH295UV-C8DU

T1工况

R-410A

29.5ml/rev

220-240V/50Hz/1PH

7200

24552

认证中

ATH325MV-C9EU

T3工况

R-410A

32.5ml/rev

220-240V/50Hz/1PH

7860

26802

认证中

ATH420MV-C9EU

T3工况

R-410A

41.8ml/rev

220-240V/50Hz/1PH

10060

34304

认证中

ASH232MV-C7EU1

T3工况

R-410A

23.2ml/rev

220-240V/50Hz/1PH

5580

19027

认证中

ASH244MV-C7HQ

T3工况

R-410A

24.4ml/rev

220-240V/50Hz/1PH

5940

20255

认证中

ASH201RV-C8DQ

T1工况

R-410A

20.1ml/rev

220-240V/50Hz/1PH

4770

16265

认证中

ASH286UV-C8DU

T1工况

R-410A

28.6ml/rev

220-240V/50Hz/1PH

6980

23801

认证中

ATH356MV-C9EUA

T3工况

R-410A

35.6ml/rev

220-240V/50Hz/1PH

8550

29155

认证中

ASH264MV-C8DU

T3工况

R-410A

26.4ml/rev

220-240V/50Hz/1PH

6485

22113

认证中

ASH255UV-C8DU

T1工况

R-410A

25.5ml/rev

220-240V/50Hz/1PH

6210

21176

认证中

ASH264DG-C8DU

T3工况

R-410A

26.4ml/rev

230V/60Hz/1PH

7830

26700

认证中

ASH201DG-C8LU1L

T3工况

R-410A

20.1ml/rev

230V/60Hz/1PH

5970

20357

认证中

ASH187DG-C8LUL

T3工况

R-410A

18.7ml/rev

230V/60Hz/1PH

5480

18686

认证中

ATH290DG-C9EU

T3工况

R-410A

29.0ml/rev

230V/60Hz/1PH

8550

29155

认证中

ATH290TV-C8FU

T1工况

R-410A

29.0ml/rev

220-240V/50Hz/1PH

6950

23699

认证中

ASH201DG-C8LUL IN

T3工况

R410A

20.1ml/rev

230V/60Hz/1PH

5950

20289

认证中

ASH250UV-C8DU

T1工况

R-410A

25ml/rev

220-240V/50Hz/1PH

6035

20579

认证中

ASH250DG-C8DU

T3工况

R-410A

25.0ml/rev

230V/60Hz/1PH

7400

25234

认证中

ASH239DG-C8DU

T3工况

R-410A

23.9ml/rev

230V/60Hz/1PH

7055

24057

认证中

ASH255DG-C8DQ

T3工况

R-410A

25.5ml/rev

230V/60Hz/1PH

7500

25575

认证中

ATH307DG-C9EU

T3工况

R-410A

30.7ml/rev

230V/60Hz/1PH

9050

30860

认证中

ASH184DG-C8LU1L

T3工况

R-410A

18.4ml/rev

230V/60Hz/1PH

5350

18243

认证中

ASH232MV-C7HQH

T3工况

R-410A

23.2ml/rev

220-240V/50Hz/1PH

5650

19266

认证中

ASH280MV-C8DU

T3工况

R-410A

28.0ml/rev

220-240V/50Hz/1PH

6870

23426

认证中

ASH193DG-C7HQLH

T3工况

R-410A

19.3ml/rev

230V/60Hz/1PH

5630

19198

认证中

ASH222UN-C7HQ

T1工况

R-410A

22.2ml/rev

208-230V/60Hz/1PH

6550

22335

认证中

ASH201DG-C8DU1L

T3工况

R-410A

20.1ml/rev

230V/60Hz/1PH

5970

20357

认证中

ATH356MV-C9LU

T3工况

R-410A

35.6ml/rev

220-240V/50Hz/1PH

8700

29667

认证中

ASH201MV-C7HUL

T3工况

R-410A

20.1ml/rev

220-240V/50Hz/1PH

4960

16913

认证中

ASH218GN-C8LU

T1工况

R-410A

21.8ml/rev

208-230V/60Hz/1PH

6500

22165

认证中

ASH280DG-C8DU

T3工况

R-410A

28.0ml/rev

230V/60Hz/1PH

8260

28166

认证中

ASH232DG-C8DU

T3工况

R-410A

23.2ml/rev

230V/60Hz/1PH

6800

23188

认证中

ASH232UN-C7PU

T1工况

R-410A

23.2ml/rev

208-230V/60Hz/1PH

6800

23188

认证中

ASH197TV-C7HUL

T1工况

R-410A

19.7ml/rev

220-240V/50Hz/1PH

4720

16095

认证中

ASH184DG-C8LUL

T3工况

R-410A

18.4ml/rev

230V/60Hz/1PH

5430

18516

认证中

ASH255DG-C8DU

T3工况

R-410A

25.5ml/rev

230V/60Hz/1PH

7530

25677

认证中

ASH175DG-C8LQ1L

T3工况

R-410A

17.5ml/rev

230V/60Hz/1PH

5080

17322

认证中

ASH193DG-C8LU1L

T3工况

R-410A

19.3ml/rev

230V/60Hz/1PH

5630

19198

认证中

ASH193DG-C8LUL

T3工况

R-410A

19.3ml/rev

230V/60Hz/1PH

5630

19198

认证中

ASH218DG-C8LQ

T3工况

R-410A

21.8ml/rev

230V/60Hz/1PH

6480

22096

认证中

ASH201DG-C8LUL

T3工况

R-410A

20.1ml/rev

230V/60Hz/1PH

5950

20289

认证中

ASH175DG-C7HQGL

T1工况

R-410A

17.5ml/rev

230V/60Hz/1PH

5080

17322

认证中

ASH184TV-C7HUL

T1工况

R-410A

18.4ml/rev

220-240V/50Hz/1PH

4380

14935

认证中

ASH244GV-C8LU

T1工况

R-410A

24.4ml/rev

220-240V/50Hz/1PH

5760

19641

认证中

ASH232SV-C7HQ

T1工况

R-410A

23.2ml/rev

220-240V/50Hz/1PH

5510

18789

认证中

ASH255GV-C8LU

T1工况

R-410A

25.5ml/rev

220-240V/50Hz/1PH

6150

20971

认证中

ASH232SN-C7HQ1

T1工况

R-410A

23.2ml/rev

208-230V/60Hz/1PH

6800

23188

认证中

ATH356CV-C9LU

T1工况

R-410A

35.6ml/rev

220-240V/50Hz/1PH

8440

28780

认证中

ASH218SN-C8LU

T1工况

R-410A

21.8ml/rev

208-230V/60Hz/1PH

6410

21858

认证中

ATH356SN-C9LU

T1工况

R-410A

35.6ml/rev

208-230V/60Hz/1PH

10350

35293

认证中

ASH193TV-C7HQL

T1工况

R-410A

19.3ml/rev

220-240V/50Hz/1PH

4575

15600

认证中

ASH244RY-C8DU

T1工况

R-410A

24.4ml/rev

230V/50Hz/1PH

5750

19607

认证中

ASH210RY-C7HUL

T1工况

R-410A

21.2ml/rev

230V/50Hz/1PH

5120

17459

认证中

ASH201RY-C7HUL

T1工况

R-410A

20.3ml/rev

230V/50Hz/1PH

4845

16521

认证中

ASH232SN-C7HG1

T1工况

R-410A

23.2ml/rev

208-230V/60Hz/1PH

6800

23188

认证中

ASH201RN-C8LU

T1工况

R-410A

20.1ml/rev

208-230V/60Hz/1PH

6800

23188

认证中

ASH201SN-C8LU

T1工况

R-410A

20.1ml/rev

208-230V/60Hz/1PH

5860

19982

认证中

ASH264SN-C8LU

T1工况

R-410A

26.44CC

208-230V/60Hz/1PH

5860

19982

认证中

ASH232SV-C8LU

T1工况

R-410A

23.29ml/rev

220-240V/50Hz/1PH

5510

18789

认证中

ASH201SV-C8LU

T1工况

R-410A

20.1ml/rev

220-240V/50Hz/1PH

4820

16436

认证中

ASH264SV-C8LU

T1工况

R-410A

26.44ml/rev

220-240V/50Hz/1PH

6310

21517

认证中

ASH210SV-C8LU

T1工况

R-410A

20.1ml/rev

220-240V/50Hz/1PH

4995

17032

认证中

ASH218SV-C8LU



 ——————-

Constant-Speed/India/R22 230V 50Hz

Series

Model

Displacement (cc/rev)

Cooling capacity (w)

Cooling capacity (btu/h)

Cop

Capacitor (Hf/v)

Height (mm)

Test condition

H

SH286RY-C7PU1A

28.6

4900

16719

3.27

45/450

307.8

ASHRAE/T

SH295RY-C7PUA

29.5

5060

17265

3.24

35/450

293.4

ASHRAE/T

SH295RY-C7PU1A

29.5

5035

17179

3.25

45/450

307.8

ASHRAE/T

SH307RY-C8DUA

30.7

5250

17913

3.26

45/450

307.8

ASHRAE/T

SH370RY-C8LU

37

6400

21837

3.25

65/450

320.9

ASHRAE/T

SH380RY-C8DU

38

6555

22366

3.24

50/450

320.9

ASHRAE/T

SH417RY-C8DU

41.7

7160

24430

3.21

45/450

330.9

ASHRAE/T

SH280UY-C7HUA

28

4810

16412

16412

45/450

307.8

ASHRAE/T

SH286UY-C7PUA

28.6

4930

16821

3.36

45/450

307.8

ASHRAE/T

SH300UY-C7HUA

30

5100

17401

3.36

45/450

307.8

ASHRAE/T

SH370UY-C8LU

37

6400

21837

3.3

60/450

330.9

ASHRAE/T

Constant-Speed/India/R22/Tropical 230V 50Hz

Series

Model

Displacement (cc/rev)

Cooling capacity (w)

Cooling capacity (btu/h)

Cop

Capacitor (Hf/v)

Height (mm) Test condition

Test condition

H

SH307MV*1

30.7

5250

17913

3.2

45/450

293.4

ASHRAE/T

SH336MV-1

33.6

5750

19619

3.18

55/450

307.8

ASHRAE/T

SH356MVM

35.6

6130

20916

3.11

50/450

307.8

ASHRAE/T

SH417MV-1

41.7

7170

24464

3.17

65/450

330.9

ASHRAE/T

Constant-Speed/R32 220V/240V 50Hz

Series

Model

Displacement (cc/rev)

Cooling capacity (w)

Cooling capacity (btu/h)

Cop

Capacitor (Hf/v)

Height (mm) Test condition

Test condition

H

GSH190TV

19.0

4954

16903

3.00

40/450

293.5

ASHRAE/T

GSH232SV

23.2

5896

20117

2.91

60/400

298.5

ASHRAE/T

Constant-Speed/India/R41 OA 230V 50Hz

Series

Model

Displacement (cc/rev)

Cooling capacity (w)

Cooling capacity (btu/h)

Cop

Capacitor (Hf/v)

Height (mm) Test condition

Test condition

H

ASH184TV

18.4

4440

15149

2.96

40/450

293.5

ASHRAE/T

ASH193TV

19.3

4575

15610

2.96

40/450

293.5

ASHRAE/T

ASH201RY

20.1

4845

16531

2.95

40/450

293.5

ASHRAE/T

ASH210RY

21.0

5120

17469

2.98

40/450

293.5

ASHRAE/T

ASH244RY

24.4

5770

19687

2.95

55/450

301.1

ASHRAE/T

Constant-Speed/R290 220V/240V 50Hz

Series

Model

Displacement (cc/rev)

Cooling capacity (w)

Cooling capacity (btu/h)

Cop

Capacitor (Hf/v)

Height (mm) Test condition

Test condition

H

PSH307CV-C7HU

30.7

4566

15579

3.22

60/450

307.8

ASHRAE/T

PSH307HV-C8DU

30.7

4565

15576

3.45

45/450

307.8

ASHRAE/T

Constant-Speed/Middle East/R22 230V 60Hz

Series

Model

Displacement (cc/rev)

Cooling capacity (w)

Cooling capacity (btu/h)

Cop

Capacitor (Hf/v)

Height (mm) Test condition

Test condition

H

SH264DG*2

26.4

5550

18937

3.2

40/450

288.4

ASHRAE/T

SH307DG*1

30.7

6580

22451

3.22

55/450

307.8

ASHRAE/T

SH325DG

32.5

6860

23406

3.22

55/450

307.8

ASHRAE/T

SH356DG-3

35.6

7450

25419

3.24

50/450

317.8

ASHRAE/T
Brand : Hitachi
Model : ATH420MV-C9EU
Refrigerant/use : R410A
Number of Cylinder : T
Series : H
Displacement : 420m³/rev
Compressor performance scale : none injection tropical models
Power : 220V 220-240, 50Hz
Starting method : KP (1 ᴓ)
Compressor base type : C
Dimension accumulator : 9E
Angle φ of Triangle Base &Accumulator : U
Special Specification : N/A
Color : Black
After service : no
Place of origin : China

Applications:

+ Industrial cabinets

+ Dehumidification

+ Medical technology

+ Compressed air technology

+ Dehumidification units

+ Vending machine

+ Heat pump

+ Air conditioners

+ Laboratory and testing equipment

Feature:

High Efficiency

Large capacity range

Low-vibration, smooth running

Low noise level

Low-priced

Mbsm_dot_pro_private_PDF_ATH420MV-C9ETélécharger
Mbsm_dot_pro_private_PDF_ATH420MVTélécharger


Mbsm.pro, GRee, air conditioner, GWHD(14)NK6LO(LC)(LH), GWHD(14)NK6LO, CB228W08401, CB228W08400, 14000 btu, Inverter Rotary, Compressor, QXA-B141zF030A, 2 hp-, 1440 w, lra 25 A, DC block controller, r410a, 220 v, 50 hz, 900 to 7200 RPM

Category: air conditioner,compressor
written by www.mbsm.pro | 29 April 2022

Mbsm.pro, GRee, air conditioner, GWHD(14)NK6LO(LC)(LH), GWHD(14)NK6LO, CB228W08401, CB228W08400, 14000 btu, Inverter Rotary, Compressor, QXA-B141zF030A, 2 hp, 1440 w, lra 25 A, DC block controller, r410a, 220 v, 50 hz, 900 to 7200 RPM

Mbsm_dot_pro_private_PDF_qxa-b141zf030eTélécharger



Mbsm.pro, Compressor, Hitachi, High Quality, Rotary, Sh356mv-C7nu, Air Conditioner, 2.4 HP, 19283 BTU, R22, 220 V, 1 PH, 5655 w

Category: compressor
written by www.mbsm.pro | 29 April 2022

Color: Black
Voltage: 220V 1p
Frequency: 50Hz
Horse Power: 2.8HP
Oil Charge: 1L
N.W.: 37kg
Product Description

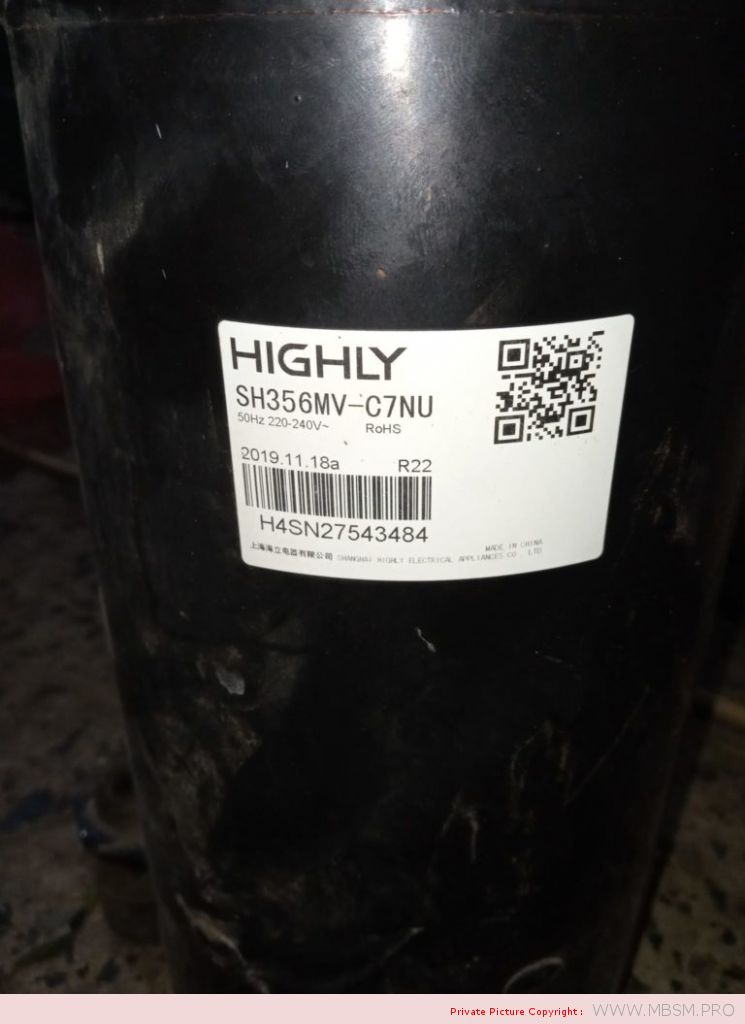

 hitachi air conditioner compressor r22 refrigerant SH356MV-C7NU

Brand name Hitachi
Place of origin Japan
Model name SH356MV-C7NU
Application T3 Working Condition
Refrigerant R-22
Displacement 41.7ml/rev
Power 220-240v
Frequency 50Hz
Phase 1ph
Related capacity(w) 5655
BTU 19283
Description air conditioner compressor r22 refrigerant
Product Description

Model no Application Refrig-erant Displacem-ent Power supply Related capacity(w) HP BTU
SH286DG-C7HU T3 Working Condition R-22 28.6ml/rev 220V/60Hz/1PH 5895 2.5 20101
SH307MV-C7HU T3 Working Condition R-22 30.7ml/rev 220-240V/50Hz/1PH 5200 2 17732
SH307RV-C8LU T1 Working Condition R-22 30.7ml/rev 220-240V/50Hz/1PH 5200 2 17732
SH336DG-C8LU T3 Working Condition R-22 33.6ml/rev 220V/60Hz/1PH 5200 2 17732
SH336MV-C8LU T3 Working Condition R-22 33.6ml/rev 220-240V/50Hz/1PH 5655 2.3 19283
SH356DG-C8LU T3 Working Condition R-22 35.6ml/rev 220V/60Hz/1PH 5655 2.3 19283
SH356MV-C7NU T3 Working Condition R-22 35.6ml/rev 220-240V/50Hz/1PH 5655 2.3 19283
SH356MV-C8LU T3 Working Condition R-22 35.6ml/rev 220-240V/50Hz/1PH 6010 2.5 20494
SHV33YC1-E T3 Working Condition R-22 41.7ml/rev 220-240V/50Hz/1PH 6950 2.8 23699
SHV33YC6-G T1 Working Condition R-22 41.7ml/rev 220V/50Hz/1PH 7100 3 24211
SHV33YC6-S T1 Working Condition R-22 41.7ml/rev 220V/50Hz/1PH 7020 2.8 23938
SHV33YC6-U T1 Working Condition R-22 41.7ml/rev 220-240V/50Hz/1PH 7100 3 24211
SHV33ZC1-S T1 Working Condition R-22 40.0ml/rev 220V/50Hz/1PH 6770 2.7 23085
SHV33ZC1-U T1 Working Condition R-22 40.0ml/rev 220V/50Hz/1PH 6740 2.7 22983
SHV73YC1-E T3 Working Condition R-22 41.7ml/rev 208-230V/60Hz/1PH 8520 3.5 29053
SHV73YC1-U T1 Working Condition R-22 41.7ml/rev 208-230V/60Hz/1PH 8520 3.5 29053
SHW33TC4-E T3 Working Condition R-22 35.6ml/rev 220-240V/50Hz/1PH 6090 2.5 20766
SHW33TC4-S T1 Working Condition R-22 35.6ml/rev 220V/50Hz/1PH 6058 2.5 20657

Catalogue Hitachi DH serie Compressor

Type Model Refrigerant Colling Capacity Test Condition Motor Input Current COP Oil Charge
      BTU/H WATTS   WATTS RLA W/W L
STANDRAD TYPE 303DH-47C2 R22 29500 8650 380V 3~50Hz 2700 5 3.2 1.2
303DH-50C2 32220 9450 2900 5.4 3.2 1.2
353DH-56C2 35460 10400 3200 6.2 3.25 1.2
403DH-64C2 40240 11800 3600 6.8 3.25 1.2
453DH-72C2 46040 13500 4000 7.6 3.4 1.4
503DH-80C2 50800 14900 4400 8.1 3.4 1.4
503DH-83C2 52510 15400 4550 8.6 3.4 1.4
603DH-90C2 57290 16800 5100 9.5 3.3 1.4
603DH-95C2 60020 17600 5300 10 3.3 1.4
PARALLEL TYPE 303DH-47C2Y 29500 8650 2700 5 3.2 1.8
403DH-50C2Y 32220 9450 2900 5.4 3.2 1.8
353DH-56C2Y 35460 10400 3200 6.2 3.25 1.8
403DH-64C2Y 40240 11800 3600 6.8 3.25 1.8
453DH-72C2Y 46040 13500 4000 7.6 3.4 1.8
503DH-80C2Y 50800 14900 4400 8.1 3.4 1.8
503DH-83C2Y 52510 15400 4550 8.6 3.4 1.8
603DH-90C2Y 57290 16800 5100 9.5 3.3 1.8
603DH-95C2Y 60020 17600 5300 10 3.3 1.8

Hitachi series such as SD,SH are supplied.

Model name Power(w) HP Displacement Capacitance Cooling capacity (w) COP Capacitor μF / v Current A
SD074CV 415 0.55 0.74 220~240V/50Hz 1210 2.9 13 2
SD086CV 480 0.64 0.86 220~240V/50Hz 1410 2.94 15 2.3
SD091CV 520 0.69 0.91 220~240V/50Hz 1490 2.94 13 2.4
SD104CV 575 0.77 1.04 220~240V/50Hz 1740 3.03 15 2.75
SD122CV 690 0.92 1.22 220~240V/50Hz 2040 2.96 17 3.3
SD127CV 720 0.96 1.27 220~240V/50Hz 2050 2.92 17 3.5
SD134CV 750 1 1.34 220~240V/50Hz 2260 3.01 17 3.55
SD145CV 815 1.09 1.45 220~240V/50Hz 2480 3.04 20 3.9
SD156CV 870 1.16 1.56 220~240V/50Hz 2650 3.05 25
Model no Application Refrigerant Displacement  Power Supply Related capacity(w) BTU
SH286DG-C7HU T3 Working Condition R-22 28.6ml/rev 220V/60Hz/1PH 5895 20101
SH307MV-C7HU T3 Working Condition R-22 30.7ml/rev 220-240V/50Hz/1PH 5200 17732
SH307RV-C8LU T1 Working Condition R-22 30.7ml/rev 220-240V/50Hz/1PH 5200 17732
SH336DG-C8LU T3 Working Condition R-22 33.6ml/rev 220V/60Hz/1PH 5200 17732
SH336MV-C8LU T3 Working Condition R-22 33.6ml/rev 220-240V/50Hz/1PH 5655 19283
SH356DG-C8LU T3 Working Condition R-22 35.6ml/rev 220V/60Hz/1PH 5655 19283
SH356MV-C7NU T3 Working Condition R-22 35.6ml/rev 220-240V/50Hz/1PH 5655 19283
SH356MV-C8LU T3 Working Condition R-22 35.6ml/rev 220-240V/50Hz/1PH 6010 20494
SHV33YC1-E T3 Working Condition R-22 41.7ml/rev 220-240V/50Hz/1PH 6950 23699
SHV33YC6-G T1 Working Condition R-22 41.7ml/rev 220V/50Hz/1PH 7100 24211
SHV33YC6-S T1 Working Condition R-22 41.7ml/rev 220V/50Hz/1PH 7020 23938
SHV33YC6-U T1 Working Condition R-22 41.7ml/rev 220-240V/50Hz/1PH 7100 24211
SHV33ZC1-S T1 Working Condition R-22 40.0ml/rev 220V/50Hz/1PH 6770 23085
SHV33ZC1-U T1 Working Condition R-22 40.0ml/rev 220V/50Hz/1PH 6740 22983
SHV73YC1-E T3 Working Condition R-22 41.7ml/rev 208-230V/60Hz/1PH 8520 29053
SHV73YC1-U T1 Working Condition R-22 41.7ml/rev 208-230V/60Hz/1PH 8520 29053
SHW33TC4-E T3 Working Condition R-22 35.6ml/rev 220-240V/50Hz/1PH 6090 20766
SHW33TC4-S T1 Working Condition R-22 35.6ml/rev 220V/50Hz/1PH 6058 20657


Constant-Speed/India/R22 230V 50Hz
Series Model Displacement (cc/rev) Cooling capacity (w) Cooling capacity (btu/h) Cop Capacitor (Hf/v) Height (mm) Test condition
H SH286RY-C7PU1A 28.6 4900 16719 3.27 45/450 307.8 ASHRAE/T
SH295RY-C7PUA 29.5 5060 17265 3.24 35/450 293.4 ASHRAE/T
SH295RY-C7PU1A 29.5 5035 17179 3.25 45/450 307.8 ASHRAE/T
SH307RY-C8DUA 30.7 5250 17913 3.26 45/450 307.8 ASHRAE/T
SH370RY-C8LU 37 6400 21837 3.25 65/450 320.9 ASHRAE/T
SH380RY-C8DU 38 6555 22366 3.24 50/450 320.9 ASHRAE/T
SH417RY-C8DU 41.7 7160 24430 3.21 45/450 330.9 ASHRAE/T
SH280UY-C7HUA 28 4810 16412 16412 45/450 307.8 ASHRAE/T
SH286UY-C7PUA 28.6 4930 16821 3.36 45/450 307.8 ASHRAE/T
SH300UY-C7HUA 30 5100 17401 3.36 45/450 307.8 ASHRAE/T
SH370UY-C8LU 37 6400 21837 3.3 60/450 330.9 ASHRAE/T
Constant-Speed/India/R22/Tropical 230V 50Hz
Series Model Displacement (cc/rev) Cooling capacity (w) Cooling capacity (btu/h) Cop Capacitor (Hf/v) Height (mm) Test condition Test condition
H SH307MV*1 30.7 5250 17913 3.2 45/450 293.4 ASHRAE/T
SH336MV-1 33.6 5750 19619 3.18 55/450 307.8 ASHRAE/T
SH356MVM 35.6 6130 20916 3.11 50/450 307.8 ASHRAE/T
SH417MV-1 41.7 7170 24464 3.17 65/450 330.9 ASHRAE/T
Constant-Speed/R32 220V/240V 50Hz
Series Model Displacement (cc/rev) Cooling capacity (w) Cooling capacity (btu/h) Cop Capacitor (Hf/v) Height (mm) Test condition Test condition
H GSH190TV 19.0 4954 16903 3.00 40/450 293.5 ASHRAE/T
GSH232SV 23.2 5896 20117 2.91 60/400 298.5 ASHRAE/T
Constant-Speed/India/R41 OA 230V 50Hz
Series Model Displacement (cc/rev) Cooling capacity (w) Cooling capacity (btu/h) Cop Capacitor (Hf/v) Height (mm) Test condition Test condition
H ASH184TV 18.4 4440 15149 2.96 40/450 293.5 ASHRAE/T
ASH193TV 19.3 4575 15610 2.96 40/450 293.5 ASHRAE/T
ASH201RY 20.1 4845 16531 2.95 40/450 293.5 ASHRAE/T
ASH210RY 21.0 5120 17469 2.98 40/450 293.5 ASHRAE/T
ASH244RY 24.4 5770 19687 2.95 55/450 301.1 ASHRAE/T
Constant-Speed/R290 220V/240V 50Hz
Series Model Displacement (cc/rev) Cooling capacity (w) Cooling capacity (btu/h) Cop Capacitor (Hf/v) Height (mm) Test condition Test condition
H PSH307CV-C7HU 30.7 4566 15579 3.22 60/450 307.8 ASHRAE/T
PSH307HV-C8DU 30.7 4565 15576 3.45 45/450 307.8 ASHRAE/T
Constant-Speed/Middle East/R22 230V 60Hz
Series Model Displacement (cc/rev) Cooling capacity (w) Cooling capacity (btu/h) Cop Capacitor (Hf/v) Height (mm) Test condition Test condition
H SH264DG*2 26.4 5550 18937 3.2 40/450 288.4 ASHRAE/T
SH307DG*1 30.7 6580 22451 3.22 55/450 307.8 ASHRAE/T
SH325DG 32.5 6860 23406 3.22 55/450 307.8 ASHRAE/T
SH356DG-3 35.6 7450 25419 3.24 50/450 317.8 ASHRAE/T





LG rotary, compressor, model, QJS222PMA, 12700BTU 5.6Amps, EER = 10.7, air conditioner

Category: compressor
written by www.mbsm.pro | 29 April 2022

Product details LG rotary compressor model QJS222PMA size 12700BTU (5.6Amps, EER = 10.7)

LG rotary compressor model QJS222PMA size 12700BTU (5.6Amps, EER = 10.7)

generation Equivalent to BTU Running still (MFD) electricity
QJS222PMA RH-207 (TOPTECH) 12700 40 / 440V 220V / 1PH / 50Hz


PH360G2C-4FTS1, 22000BTU, GMCC, Compressor rotary, 2 Ton, air conditioner, R22, refrigeration compressor , 50HZ 220V / 240V

Category: compressor
written by www.mbsm.pro | 29 April 2022

product description

Product Specification

Air Tank Capacity 2 Ton
Brand BLUESTAR
Refrigerant 1.8 kg
Capacity 24840 Btu/Hr
Color Black
I deal in New Only
BSL CODE CMROS220K1100
COMPRESSOR OPERATE ON 220-240V
COP 4.52 (w/w)
Capillary Size 1 way x 2.03mm x 508mm
Nominal Power input 2.15 HP & 1.6 KW
Oil Qty 700 cc
Run Cap 55/400 mF/VAC
Minimum Order Quantity 10

Copeland compressor related parameters

model Volt support: V/phase Replacement
effect: cc/rev		 Horsepower: HP Cooling capacity: Btu Input power: W Rated load amplifier: A Locked
rotor
ampere:		 Oil change: L
ZR61KC-TFD-522 380V/460V50Hz/60Hz; 3P 82.6 5 61880 5400 11 63 1.95
ZR72KC-TFD-522 380V/460V50Hz/60Hz; 3P 98.1 6 73500 6250 13 75 1.77
ZR81KC-TFD-522 380V/460V50Hz/60Hz; 3P 107.8 6.8 82000 6950 15 100 1.77
ZR84KC-TFD-522 380V/460V50Hz/60Hz; 3P 113.6 7 85500 7300 15 100 2.51
ZR94KC-TFD-522 380V/460V50Hz/60Hz; 3P 127.2 7.8 96500 8200 16 95 2.51
ZR108KC-TFD-522 380V/460V50-60Hz; 3P 142.9 9 109000 9200 17 114 3.25
ZR125KC-TFD-522 380V/460V50Hz/60Hz; 3P 167.2 10 128000 10900 19 125 3.25
ZR144KC-TFD-522 380V/460V50Hz/60Hz; 3P 190.9 12 146000 12300 twenty two 125 3.25
ZR160KC-TFD-522 380V/460V50Hz/60Hz; 3P 209.1 13 160000 13,900 28 138 3.25
ZR190KC-TFD-522 380V/460V50Hz/60Hz; 3P 249.2 16 190000 16,800 34 173 3.25
ZR250KC-TWD-522 380V/460V50Hz/60Hz; 3P 325.2 20 249900 21700 30 225 4.67
ZR310KC-TWD-522 380V/460V50Hz/60Hz; 3P 410.6 25 306000 27100 38 272 6.80
ZR380KC-TWD-522 380V/460V50Hz/60Hz; 3P 502.7 32 379000 32700 45 310 6.30



GMCC rotary compressor
1. Higher energy efficiency
The compressor COP is 395% under the conditions of WEER6O
2. Higher heating capacity
Relative improvement of heating capacity at an ambient temperature of -15℃ by 20%-50%
3. Improved low temperature adaptabilityHigh outlet air temperatures at anambient temperature of -20℃
4. Strong power
Sub-Class-2 compression technology thatprovides strong power
5. High level of serialization
Gas injection technology applied to thewhole lineup of 1HP-5HP

GMCC Compressor 220/240V 50Hz
Model Displacement Cooling Capacity Power Cop Compressor
Height
W Btu/h W W/W mm
PH300G2C-4KU1 29.8 5340 18220 1645 3.25 297
PH310G2C-4KU1 30.8 5515 18817 1695 3.25 310
PH340G2C-4KU1 33.7 6030 20575 1865 3.23 310
PH340G2C-4KU 33.7 6050 20643 1805 3.35 310
PH360G2C-4KU1 36 6475 22093 2005 3.23 324
PH370G2CS-4KU1 37 6650 22690 2065 3.22 324
PH370G2C-4KU 37 6660 22724 2020 3.3 324
PH400G2CS-4KU1 39.8 7100 24226 2255 3.15 354
PH400G2C-4KU 39.8 7095 24209 2215 3.2 354
PH420G2CS-4KU1 42.3 7420 25318 2390 3.1 354
PH420G2C-4KU 42.3 7555 25778 2365 3.2 354
PH440G2C-4KU 43.5 7810 26648 2390 3.27 354
PH460X3CS-4MU1 45.9 8080 27569 2600 3.1 396.5
PH480X3CS-4MU1 47.9 8460 28866 2730 3.1 396.5

Factory directly supply GMCC R22 T3 Air Conditioner Rotary Compressor 50HZ 220V/240V to Colombia Factories

Product Detail

Series Typical model Displ. Cooling Capacity Power COP Capacitor Compressor Height Discharge Pipe ID Sucition Pipe ID Remark
    (cc) (w) (Btu/h) (w) (W/W) (μF/V) (mm) (mm) (mm)
1Φ-50HZ-220/240V
M2 PH200M2A-4FTS1 19.9 3555 12130 1095 3.25 35/370 292 8.2 12.9
PH210M2A-4FTS2 20.9 3765 12846 1160 3.25 35/370 292 8.2 12.9
PH310M2AS-4KTS1 31.0 5620 19175 1755 3.20 50/370 348 9.8 12.9
G2 PH340G2C-4KTS1 33.7 6050 20643 1890 3.20 60/400 310 9.8 12.9
PH360G2C-4FTS1 36.0 6455 22024 2015 3.20 60/400 324 9.8 16.2
PH400G2C-4KTS1 39.8 7080 24157 2250 3.15 60/400 354 9.8 12.9
PH420G2C-4KTS1 42.3 7540 25726 2370 3.18 60/400 354 9.8 12.9
PH440G2C-4KTS1 43.5 7685 26221 2500 3.07 60/400 354 9.8 12.9

Products Feature

1.Full range of product models with a wide application field

2.Covering the 1~3HP constant-voltage variable-frequency product series

3.Environment friendly, safe, efficient and economical



Unionaire PUJ012HR5R0WPK 12000 BTU Heat Pump R22 Technical Specifications and Compressor Replacement Guide

Category: air conditioner,Mbsmpro
written by www.mbsm.pro | 29 April 2022

Mbsm.pro, Unionaire, PUJ012HR5R0WPK, 12000 BTU, 1.5 HP, Heat Pump, R22, 220V, Cooling and Heating

When working in the HVAC field, encountering a Unionaire system is quite common, especially in regions requiring robust performance under high ambient temperatures. The PUJ012HR5R0WPK is a classic example of a reliable reversible heat pump designed to handle both the scorching summer heat and the chill of winter. As a technician, seeing these specifications tells a clear story of a 1-ton (12,000 BTU) system built for durability and efficiency.

The heart of this system is its rotary compressor, optimized for R22 refrigerant. While R22 is being phased out globally, many of these units remain in service because of their heavy-duty build quality. With a cooling and heating capacity of 3.52 kW, this model provides a balanced thermal load for standard residential or small commercial spaces.

Technical Performance and Engineering Insight

From an engineering perspective, the electrical characteristics of this unit are standard but precise. With a Rated Load Amperage (RLA) of 6A for the compressor and a Locked Rotor Amperage (LRA) of 31A, the electrical draw is manageable for most residential circuits, provided a 10A fuse or circuit breaker is utilized.

The design pressures are particularly noteworthy. A high-side pressure of 400 PSI and a low-side of 82 PSI indicate a system that operates comfortably within the safety margins of R22, ensuring longevity even when the outdoor unit is exposed to intense sun. The 0.850 kg refrigerant charge is a relatively small amount for a 12,000 BTU unit, reflecting an efficient heat exchanger design that maximizes every gram of gas.

Efficiency Metrics (COP)

Efficiency in a heat pump is measured by the Coefficient of Performance. Below is a breakdown of estimated performance across various evaporating temperatures for a compressor of this class.

Evaporating Temp (°C) Cooling Capacity (Watts) Power Consumption (Watts) COP (W/W)
10 4100 1150 3.56
7.2 (Standard Rating) 3520 1080 3.26
5 3200 1020 3.13
0 2650 950 2.78
-5 2150 880 2.44
-10 1700 820 2.07

Technical Specification Table: Unionaire PUJ012HR5R0WPK

Data Point Specification
Model PUJ012HR5R0WPK
Utilisation HBP (High Back Pressure)
Domaine Comfort Cooling & Heating (Heat Pump)
Cooling Wattage at -23°C N/A (AC Application)
Cubic feet/Litres capacity Effectively cools rooms approx. 150-250 sq. ft.
Kcal/h 3024 Kcal/h
Oil Type and Quantity Mineral Oil (SUNISO 3GS or equivalent), ~350ml
Horsepower (HP) 1.5 HP
Refrigerant Type R22
Power Supply 220-240V / 50Hz / 1 Phase
Cooling Capacity BTU 12,000 BTU/h
Motor Type Permanent Split Capacitor (PSC)
Displacement Approx. 16.0 to 18.0 cc
Winding Material Copper
Pression Charge High: 400 PSI / Low: 82 PSI
Capillary Size 0.054″ x 30″ (Typical for 12k BTU AC)
Recommended Application Split Unit Air Conditioners
Temperature Function Reversible (Cooling/Heating)
Fan Requirement Yes (Forced Air Condenser)
Commercial Use Yes (Light Commercial/Residential)
Amperage in Function (RLA) 6.0 A
Locked Rotor Amps (LRA) 31.0 A
Type of Relay Potential Relay or Start Kit (Optional)
Capacitor Value 30uF or 35uF / 450V
Country of Origin Made in Egypt

Compressor Replacement Guide

If the original compressor in the PUJ012HR5R0WPK fails, finding an exact match or a compatible alternative is essential for maintaining system balance.

5 Direct Replacements (R22 Gas)

  1. GMCC – PH215X2C-4FT1 (Highly reliable rotary)
  2. Highly (Hitachi) – ASD102SK
  3. LG – QJ222P
  4. Panasonic – 2K22C225A
  5. Samsung – UR4D124

5 Replacements (Alternative Refrigerant / Conversion)

Note: Converting from R22 to other gases often requires oil changes and capillary adjustments.

  1. GMCC (R410A) – PA145X2C-4FZ1 (Requires system modification)
  2. Tecumseh (R404A) – AE4440Z (For MBP applications)
  3. Danfoss (R407C) – HRP034T4
  4. Copeland (R134a) – ARE37C3E (Only for specific low-pressure setups)
  5. Bristol (R22/R407C) – H23A153DBEA

Technician’s Advice and Maintenance Notice

  1. Refrigerant Charge: Always use a scale. The nameplate specifies exactly 0.850 kg. Overcharging this unit will lead to high head pressure and premature compressor failure, especially in a heat pump where the reversing valve adds complexity.
  2. Electrical Protection: Ensure the 10A breaker is dedicated. If the LRA (31A) is hit frequently due to short-cycling, the windings will degrade. Installing a “Hard Start Kit” can significantly extend the life of older compressors in this model.
  3. Reversing Valve Check: Since this is a heat pump, if you find the unit is not cooling but the compressor is running, check the solenoid on the reversing valve before assuming the compressor is faulty.
  4. Clean Coils: A 12,000 BTU unit relies heavily on airflow. Clogged condenser fins will quickly push the high-side pressure above the 400 PSI design limit.

Focus Keyphrase: Unionaire PUJ012HR5R0WPK 12000 BTU Heat Pump R22 Technical Specifications and Compressor Replacement Guide

SEO Title: Mbsm.pro, Unionaire, PUJ012HR5R0WPK, 12000 BTU, 1.5 HP, Heat Pump, R22, 220V, Cooling and Heating

Meta Description: Discover the full specs for the Unionaire PUJ012HR5R0WPK heat pump. Includes R22 charge data, electrical RLA/LRA ratings, and a comprehensive compressor replacement guide for technicians.

Slug: unionaire-puj012hr5r0wpk-12000-btu-heat-pump-specs

Tags: Unionaire, PUJ012HR5R0WPK, 12000 BTU, 1.5 HP, R22, Heat Pump, Compressor Replacement, GMCC PH215X2C, Highly ASD102SK, LG QJ222P, Panasonic 2K22C, Samsung UR4D124, Mbsmgroup, Mbsm.pro, mbsmpro.com, mbsm

Excerpt: The Unionaire PUJ012HR5R0WPK is a robust 12,000 BTU (1.5 HP) heat pump system designed for efficient cooling and heating. Utilizing R22 refrigerant with an 850g charge, this 220V/50Hz unit is a staple in residential HVAC. Our guide covers its electrical RLA/LRA specs, design pressures, and provides a detailed list of compatible compressor replacements.

Unionaire PUJ012HR5R0WPK 12000 BTU Heat Pump R22 Technical Specifications and Compressor Replacement Guide mbsmpro
Unionaire PUJ012HR5R0WPK 12000 BTU Heat Pump R22 Technical Specifications and Compressor Replacement Guide mbsmpro
mbsmpro.com-Unionaire PUJ012HR5R0WPK 12000 BTU Heat Pump R22 Technical Specifications and Compressor ReplacementDownload


Unionaire G+ ITWG 022 R5 Air Conditioner Specifications, 21500 BTU Cooling Capacity, Technical Manual and Installation Guide

Category: air conditioner,Mbsmpro
written by www.mbsm.pro | 29 April 2022

Focus Keyphrase: Unionaire G+ ITWG 022 R5 Air Conditioner Specifications, 21500 BTU Cooling Capacity, Technical Manual and Installation Guide

SEO Title: Mbsmpro.com, Unionaire, G+ ITWG 022 R5, 21500 BTU/Hr, 6.30 KW, 12.5 Kg, Indoor Unit, 220-240V 50Hz, Split System

Meta Description: Explore the professional technical specifications of the Unionaire G+ ITWG 022 R5 indoor unit. Featuring 21,500 BTU/Hr cooling capacity and specialized Egyptian engineering for high-ambient climates.

Slug: unionaire-g-plus-itwg-022-r5-technical-specs

Tags: Unionaire, G+ ITWG 022 R5, Air Conditioning, 21500 BTU, HVAC Egypt, Cooling Capacity, Split System, Mbsmgroup, Mbsm.pro, mbsmpro.com, mbsm

Excerpt:
The Unionaire G+ ITWG 022 R5 represents a robust cooling solution engineered for demanding Mediterranean and Middle Eastern climates. Delivering a potent 21,500 BTU/Hr cooling capacity, this Egyptian-manufactured indoor unit balances high-volume airflow with structural durability. Designed for 220-240V/50Hz systems, it features an IPX4 rating and a compact 12.5 kg chassis for versatile wall-mounted installation.

Mbsmpro.com, Unionaire, G+ ITWG 022 R5, 21,500 BTU/Hr, 6.30 KW, High-Efficiency Indoor Unit, Made in Egypt

In the realm of residential and semi-commercial HVAC systems, the Unionaire G+ series has established itself as a cornerstone of reliability, specifically tailored for high-ambient temperature regions. The G+ ITWG 022 R5 indoor unit is a high-capacity component designed to provide rapid thermal exchange while maintaining a compact footprint. This article provides an engineering-grade breakdown of its performance metrics, electrical requirements, and installation nuances.

Technical Analysis of the G+ ITWG 022 R5

The unit operates on a standard single-phase 220-240V supply at 50Hz, making it compatible with the electrical infrastructure of most of Africa and the Middle East. With a cooling output of 21,500 BTU/Hr (equivalent to 6.30 KW), this model sits comfortably in the 2.5 HP to 3.0 HP category, capable of cooling large living spaces or office environments efficiently.

Core Specifications Table

Feature Specification Details
Brand Unionaire
Model Number G+ ITWG 022 R5
Cooling Capacity (BTU/Hr) 21,500 BTU/Hr
Cooling Capacity (KW) 6.30 KW
Electrical Power Supply 220-240V / 1 Ph / 50 Hz
Net Weight 12.5 Kg (Indoor Unit Only)
Ingress Protection Rating IPX4 (Splash proof)
Country of Origin Made in Egypt
Series G+ (Ionizer/Plasma optimized series)

Comparative Value Analysis

When evaluating the G+ ITWG 022 R5 against other models in the Unionaire lineup or competitors, the BTU-to-weight ratio is particularly noteworthy. At only 12.5 kg, the indoor unit is relatively lightweight for its cooling class, reducing stress on wall mounts while housing a large-diameter cross-flow fan for quiet operation.

Performance Comparison: 1.5 HP vs. 2.5 HP vs. 3.0 HP

Model Class BTU Range Suitable Area (Avg) Cooling Speed
Unionaire 1.5 HP 12,000 BTU 12 – 15 m² Standard
G+ ITWG 022 R5 (2.5 HP) 21,500 BTU 22 – 30 m² High Velocity
Unionaire 3.0 HP 24,000 – 28,000 BTU 30 – 40 m² Ultra High

Electrical Schematic and Wiring Overview

The G+ ITWG 022 R5 follows a standard control logic for split systems. For field technicians, understanding the terminal block configuration is essential for safe integration with the outdoor condenser.

  • Terminal L (Brown): Main Power Phase.
  • Terminal N (Blue): Neutral Return.
  • Terminal S (Signal/Communication): Data line between indoor and outdoor units (vital for compressor cycling).
  • Terminal E (Yellow/Green): Earth Grounding.

Engineering Note: Ensure that the communication cable is shielded or properly separated from high-voltage lines to prevent electromagnetic interference (EMI), which can lead to sensor errors or erratic fan speeds.

Engineering Advice and Installation Notices

  1. Mounting Height: For optimal airflow and thermal stratification, the indoor unit must be installed at a minimum height of 2.3 meters from the floor. This ensures that the cold air plume has sufficient distance to mix with room air before reaching occupants.
  2. IPX4 Compliance: The IPX4 rating indicates protection against water splashes from any direction. However, this unit is strictly for indoor use. Avoid installation in high-humidity zones like laundry rooms without adequate ventilation.
  3. Condensate Management: Given the 6.30 KW cooling capacity, significant condensation will occur. Ensure the drain pipe has a minimum downward slope of 1:50 to prevent water backup and microbial growth in the pan.
  4. Air Filter Maintenance: The G+ series often includes high-density filters. These should be inspected every 15 days in dusty environments to maintain the rated 21,500 BTU/Hr efficiency.

Benefits of the G+ ITWG 022 R5 Model

  • Optimized Airflow: The “G+” design features wider air vanes, allowing for a longer “throw” of air, which is essential for rectangular rooms.
  • Tropicalized Design: Specifically engineered to handle the high head pressures associated with Egyptian and Gulf climates.
  • Serviceability: As a widely distributed model, spare parts such as fan motors and PCB controllers are readily available throughout the region.

Trillionaire G.+ITWG 022 R5 21500 BTU Compressor Technical Specifications and Replacements mbsmpro

mbsmpro.com-Unionaire G ITWG 022 R5 Air Conditioner Specifications 21500 BTU Cooling Capacity Technical Manual anDownload

Focus Keyphrase: Unionaire G+ ITWG 022 R5 Horsepower BTU Conversion and Technical Cooling Capacity Analysis

SEO Title: Mbsmpro.com, Unionaire, G+ ITWG 022 R5, 2.5 HP, 21500 BTU/Hr, 6.30 KW, Technical Specifications

Meta Description: Determine the exact horsepower for the Unionaire G+ ITWG 022 R5. With 21,500 BTU/Hr and 6.30 KW cooling capacity, this unit is classified in the 2.5 HP to 3 HP range for professional HVAC applications.

Slug: unionaire-g-plus-itwg-022-r5-hp-rating

Tags: Unionaire, 2.5 HP, 3 HP, 21500 BTU, G+ ITWG 022 R5, HVAC Engineering, Air Conditioner HP, Mbsmgroup, Mbsm.pro, mbsmpro.com, mbsm

Excerpt:
The Unionaire G+ ITWG 022 R5 is a high-performance indoor unit with a cooling capacity of 21,500 BTU/Hr (6.30 KW). Technically classified within the 2.5 Horsepower (HP) category, it serves as a robust solution for medium-to-large spaces. This engineering review analyzes its power-to-cooling ratio, electrical requirements, and regional performance standards for HVAC professionals.

Mbsmpro.com, Unionaire, G+ ITWG 022 R5, 2.5 HP, 21,500 BTU/Hr, Professional Cooling Capacity Analysis

When evaluating the power of an air conditioning unit like the Unionaire G+ ITWG 022 R5, technicians and engineers often look for the “Horsepower” (HP) rating to determine suitability for specific room volumes. Based on the technical data plate indicating a cooling capacity of 21,500 BTU/Hr (6.30 KW), this unit is officially categorized as a 2.5 HP model.

The Engineering Logic: BTU to HP Conversion

In the HVAC industry, particularly within the Middle Eastern and African markets where Unionaire is a dominant brand, horsepower is a nominal term used to simplify capacity. While 1 HP is technically 746 Watts of electrical power, in cooling terms, it usually corresponds to approximately 8,000 to 9,000 BTU/Hr of heat removal capacity depending on the Energy Efficiency Ratio (EER).

Horsepower Classification Table

Nominal HP BTU/Hr Range KW Cooling Capacity Model Reference
1.5 HP 12,000 – 13,000 3.51 – 3.81 ITWG 012 / 013
2.25 HP 18,000 – 19,000 5.27 – 5.56 ITWG 018 / 019
2.5 HP 21,000 – 22,000 6.15 – 6.45 G+ ITWG 022 R5
3.0 HP 24,000 – 26,000 7.03 – 7.62 ITWG 024 / 025

Technical Value Comparison: G+ ITWG 022 R5 vs. Standard 3 HP Units

The G+ ITWG 022 R5 provides a unique middle ground. While many manufacturers jump from 18,000 BTU (2.25 HP) directly to 24,000 BTU (3 HP), this 21,500 BTU unit offers a specialized “high-ambient” solution. It provides more “muscle” than a standard 2.25 HP unit without the higher electrical draw of a full 3 HP system.

Metric Unionaire 2.25 HP Unionaire G+ 2.5 HP Competitor 3 HP
Cooling (BTU) 18,000 21,500 24,000
Cooling (KW) 5.27 6.30 7.03
Weight (Indoor) 11.0 Kg 12.5 Kg 14.5 Kg
Voltage 220-240V 220-240V 220-240V

Electrical and Mechanical Characteristics

The G+ ITWG 022 R5 is engineered for durability. The “R5” suffix typically indicates a specific revision of the refrigerant cycle or control board logic, optimized for the R410A or R22 gas types (refer to the outdoor unit label for gas type confirmation).

  • Cooling Power: 6.30 KW allows for rapid temperature pull-down in rooms up to 30 square meters.
  • Mass: At 12.5 Kg, the internal heat exchanger (evaporator) is dense, featuring high-grade copper tubing and hydrophilic aluminum fins to prevent “ice-up” during long operation cycles.
  • Protection: The IPX4 rating ensures that the internal electronics are shielded from moisture ingress, which is critical during the dehumidification process.

Installation Notice and Engineering Tips

  1. Circuit Breaker Selection: For a 2.5 HP (21,500 BTU) unit, a dedicated 20A or 25A C-Type circuit breaker is recommended to handle the inductive start-up current of the compressor.
  2. Piping Diameter: This capacity usually requires a 1/2″ (12.7mm) suction line and a 1/4″ (6.35mm) liquid line. Using undersized piping will significantly reduce the 6.30 KW cooling output.
  3. Placement: Due to the high airflow velocity of a 2.5 HP unit, avoid placing it directly facing seating areas to prevent “cold draft” discomfort.
  4. Vacuuming: Always perform a deep vacuum (below 500 microns) during installation to ensure the 21,500 BTU efficiency is met and to protect the compressor from non-condensables.

Professional Benefits of the 2.5 HP G+ Series

  • Balanced Load: Ideal for “L-shaped” living rooms where a 1.5 HP unit is too weak and a 3 HP unit cycles too frequently (short-cycling).
  • Egyptian Engineering: Built to withstand the T3 climate conditions (up to 52°C ambient temperatures).
  • Quiet Operation: Despite the high BTU output, the G+ series uses an oversized tangential fan to move air at lower RPMs, reducing decibel levels.
