Mbsm.pro, COMPRESSOR, EMBRACO, HERMETIC, FREEZE, ICE CREAM, NT2192GK, 1.2 HP, 1v2 HP , 220-240V, LBP, 1262 W, R404A/R507, CSR

Compressor Aspera NT2192GK


TECHNICAL DATA


Model

Displacement

Refrigerant Voltage

Evaporating
temperature range

Lubricant (Charge/Type)

Weight Max. Height
NT2192GK 22,4 cm3 R404A/R507 230V/50Hz -40°C~-10°C

POE 22 /450 ml

17,5 kg

234 mm

Cooling Capacity


Model

Evaporating Temp. / Cooling Capacity R404A/R507

Condensing Temp.

-40ºC

-35ºC -30ºC -25ºC -20ºC -15ºC -10ºC
NT2192GK 55 ºC 518 W 675 W 860 W 1074 W 1321 W
45 ºC 373 W 506 W 669 W 865 W 1100 W 1375 W 1693 W








Mbsm.pro, Compressor, Danfoss, 3/4 HP, ++BIG, SECOP, SC21G, HMBP, R134a, SC21G 8124, 8124 , R134A, 550W


Fluides frigorigènes: R134a, l’Utilisation de segment: Réfrigération LT;MT de Réfrigération
Poids brut 13.92 Kg
Poids Net 13.92 Kg
Huile POE
Amplis rotor bloqué TVH [A] 22.1
Applications HBP
LBP
MBP
Norme d’approbation CCC
CE en 60335-2-34 à l’Annexe AA
Auxiliaire de résistance de l’enroulement (enrouler) pour les compresseurs monophasés [Ohm] 12.9 Ohm
Quantité d’huile [cm3] 600 cm3
La capacité du condensateur À la 10 µF
La capacité du condensateur B 80 uF
Contrôle de la capacité Vitesse fixe
La charge de fluide frigorigène [kg] [Max] 1,3 kg
Couleur Noir
La coupure de courant TVH [A] 22.1
Code de Configuration Personne
Description SC21G
Description SC
Désignation Compresseur
Économiseur Pas
Format d’emballage Industrielle paquet
Fréquence [Hz] 50/60
Matériau du raccord de refoulement Acier plaqué Cu
Matériau du raccordement au process Acier plaqué Cu
N. º de phases (compresseur) Un
N. º de phases (ventilateur) Un
Le niveau d’énergie de l’application Compresseur universel
Numéro de modèle SC21G
De la charge d’huile [L] 600 L
Phase Un
Fluides frigorigènes R134a
La résistance de l’enroulement primaire pour compresseurs monophasés [Ohm] 3.5 Ohm
RLA 3.9 À
Exécuter condensateur de capacité 10 µF
Condensateur de démarrage capacité 80 µF
Balayé volume [cm3] Volonté 20,95 $ cm3
La technologie Alternative
La température de l’enroulement, le court terme [°C] [Max] 135 °C
La température de l’enroulement, stable [°C] [Max] 125 °C
Tension 60 Hz [V] [max.] 240 V
Tension, 50 Hz [V] 220 V
Tension, 50 Hz [V] [max.] 240 V
Tension, 60 Hz [V] 220 V
Type de moteur La RSE
Type de carte mère Universel
La Technique de la marque Compresseur de rechange
Unités d’emballage Quatre-vingts
L’utilisation de segment Réfrigération LT
Refroidissement MT
À haute valeur de la tension nominale à 50 Hz [V] 230 V
À haute valeur de la tension nominale à 60 Hz [V] 230 V
La valeur élevée de la gamme de tension à 50 hz [V] 254 V
La valeur élevée de la gamme de tension à 60 Hz [V] 254 V
La faible valeur de la tension nominale à 50 Hz [V] 208 V
La faible valeur de la tension nominale à 60 Hz [V] 220 V
La faible valeur de la plage de tension à 50 hz [V] 187 V
La valeur basse de la plage de tension à 60 Hz [V] 198 V
Vitesse de Rotation à 50 Hz [tr / min] 2900 tr / min
Vitesse de Rotation à 60 Hz [tr / min] 3500 tr / min
Le Volume de gaz libre [cm3] 1460 cm3

COMMENTAIRES: (0)




Mbsm.pro, COMPRESSOR, Tecumseh, 1/2 hp ++, 7/16 HP, CAE4456Y, CSIR, HMBP, ++Big, R134A, 1396 W, 1201 KCal, 4760 Btu, P.frigorifique 436 W -25

Compressor Tecumseh CAE4456Y CSIR, HMBP – R134a, 220-240V/1Ph/50Hz, Displacement: 16.2 cm³, Net weight: 12.7 Kg, Oil capacity: 350 cm³, Oil type: POE

Shipping Class Standard
Scope Of Application MBP/HBP
Lieferzeit Ca. 10-14 Tage
Type Of Construction Piston
Maker Tecumseh
Manufacturer No. CAE4456Y
Displacement In Cm3 162
Refrigerants R134a
Series CAE
Condensing Units Compressors Compressors
Suspense 220-240V
Weight In Kg 14.7
General features
Compressor Features
Brand Origin America
Electrical Voltage (V) / Number of Phases / Frequency (Hz) 220-240V/1~/50Hz
Refrigerant Type R134A
Compressor Type Hermetic Piston
Compressor Power (Hp) 1/2
Oil Amount (L) 0.45

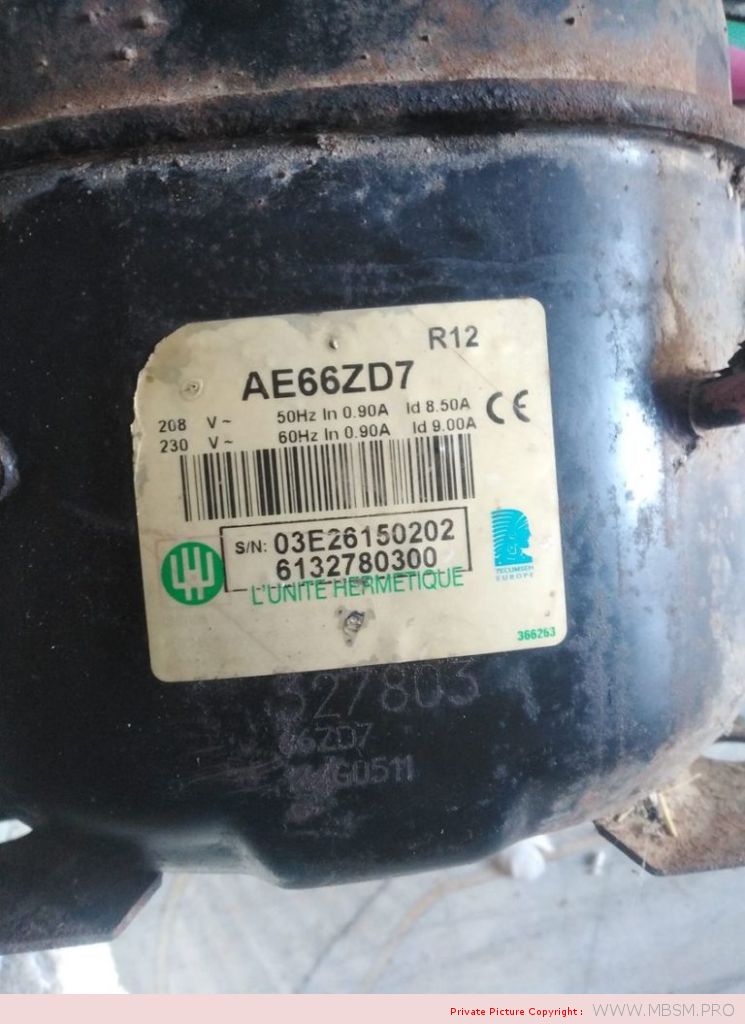

Mbsm.pro, Compressor, AE66ZD7, Tecumseh 1/6 HP, 220V, 450 BTU, R12, Hermetic

  • Model: AE66ZD7
  • Manufactured by: Tecumseh

CORRESPONDING MODELS OF COMPATTERS OF KNOWN FACTORIES



ELECTROLUX DANFOSS THE UNIT ROUGH
D 36 AS   1/12
D 40 AS   1/10
B 36   PTC 1/10
B 101   PTC 1/10
L 45 TO   1/8   TL3A AE8Z A7 A-B1085A
L 55 TO   1/6   TL5A AE66ZD7 A-B1111A
L 45 TO   1/6 HIGH
L 76 OF   1/5 3ΣΩΛ FR7,5A AE5ZF9F A-B1116A
L 76 BX   1/5 5ΣΩΛ FR7,5A ΟΙL AE5ZF9RH
L 76 TX   1/5 HIGH ΠΥΚΝ. MAINTENANCE FR7,5A-C CAE5ZF9 B1116B
L 99 BV   1/4 BAP. TYPE 5 PAGES FR11A AE241OD-RH BK1118A
L 88 OF   1/4 LOW 3ΣΩΛ FR10A AE4F11F B1118A
L 88 BV   1/4 LOW 5ΣΩΛ FR10A OIL AE4Z11RH
L 88 BW   1/4 LOW 50-60 K   AE4Z A1118
L 88 FW   1/4 LOW CONDENSER FR10A C CAE42F11 B2118B
L 88 TY   1/4 HIGH CONDENSER FR10B C CAE412F11 A-B6170A
P 12 FW   1/3 LOW ΠΥΚΝ. 3ΣΩΛ FR11A C CAE2410A E2121 A
P 12 BW   1/3 LOW 5ΣΩΛ FR11A, OIL AE141OA RH E3121 A
P 12 TY   1/3 ΠΥΚΝ 3ΣΩΛ ΣΥΝΤ SC12B   E6187E
P 14 FW   3/8 LOW ΠΥΚΝ.   CAE2412 E2130
P 14 TY   3/8 HIGH ΠΥΚΝ   CAE4440 E6187
P 16 FW   1/2 ΕΛΑΦΡ. TYP. ΠΥΚΝ. SC15A   T6213A
S 18 TY   1/2 MIDIUM R 12 SC18B CAJ4461A T6215A
S 15 FN   1/2 R 502   CAJ2428L T2168K
S 26 TY   3/4 MIDIUM R 12   CAJ4492 J6220A
S 19 A   3/4 R 22   AJ5510 T7223F
P 13 A PSC 3/4 R 22
S 34 TY   1HP HIGH R 12   CAJ4511A J6226A
S 22 A   1HP R22   AJ5512A J7225A
S 26 FK   1.1/4 R 502   CAJ2446L J2132K
S 24 A     10.500 BTU R 22   AJ5513A J7231E
S 26 A     12.500 BTU R 22   AJ5515A J7231E
S 30 A PSC   13.000 BTU R 22     J7238E
S 33 A     16.000 BTU R 22   AJ5518A J7240E
S 34 A     17.400 BTU R 22   AJ5519A



Compatibility of hermetic compressors for domestic refrigerators

Freon R600a
Table 3
Power, hp Product type and volume, l Compressor brand and model
single door refrigerator single door refrigerator freezer analog of Aspera analog Danfoss Electrolux
Dec 01 160 120 90   TLES4K HV44AH
TLS4K
Oct 01 200 160 120 BPM1058Y / 1072Y TLES5K HV57AH
TLS5K
Aug 01 220 240 200 BPE1084Y TLES7K HL70AH
TLES6K HL60AH
TLS6K HV67AH
TLS7K
01.jun 400 325 270 BPE1111Y TLS9K HL99AH
TLESS8K HL90AH
TLS8K HL80AH
NLE9K
TLS9K
May 1 500 410 350 NBM1116Y NLE13K HP14AH
NLE10K HP12AH
NL10K
NLE11K
NL11K
Apr 01 600 480 400 NBM1118Y NLE15K HP16AH
NL15K
01.Mar 1200 800 600     HP18AH
Analog selection table
Power, hp Product type and volume, l Compressor brand and model
single door refrigerator single door refrigerator Frost-to Electrolux Prescold Hermetic Unit similar to Matsushita LEC Bosch TIME
Dec 01 160 120 90 D36ASDS33AU L33AU AS14   FN24N45  V612 LK31,2
FN25N40
FN29N60
Oct 01 200 160 120 L40W L40AS L40AU AS12     LF14
12L264
Aug 01 220 240 200 L45AU L45AW AS8 D40AS L40AU FN43F67S FNE75WS5A S060LKAA S075LKAA 8L300 V792 LK39 LK45
01.jun 400 325 270 L55AT L55AU AS6    FN5188S FNE100WS5 6L377 V1040 LK55,2 LK55,4
AS66
May 1 500 410 350 L76BW L76AW L76AT AM55ZF AM5ZF L55GR L65AS L76AS L76AT FN66F11S FN73F13S FNE125WS5 D115 5L476 V1350
Apr 01 600 480 400 L88BW L88AV L88FW AM4C L88AS L88AVBV L88BS L88BW D116 5L476 V1450
Apr 01 800 600 500   QM43
01.Mar 1200 800 600 P12BW L88GR L99GV L99CV FN91F17S FN110F22S D119  4L690 3/4L766 3L831
P12FW D122
Freon R12
Table 2 (beginning)
Power, hp Product type and volume, l Compressor brand and model
single door refrigerator single door refrigerator freezer ZEM

Compressor

Rough

Embraco compressor Danfoss compressor Compressor L’Unite Hermetique Necchi
Dec 01 160 120 90     PW3,5K7 PW3K6 TL2,5A TL2,5B Z1320A
AE127
Oct 01 200 160 120   BP1058A PW3,5K6 PW3,5K7 TL3A  AZ1328A AEZ1332A AE10Z7 ESM3
TL3B
Aug 01 220 240 200 L45AV BP1084A PW4,5K9 EM40NP PW4,5K7 TL4A AZ1335A AEZ1336A AE8ZA7 ESM4
TL4B
01.jun 400 325 270 L55AV BP1111A PW5,5K9 PW5,5K11 EM55NP TL5A AZ1345A AZ1340A AEZ1343A AE6ZA7 AE66ZD7 ESM5
May 1 500 410 350 L76AV L76BV* BP1116B B3117A* PW7,5K14 FF7,5BK FF7,5BKW FF6BK FR7,5A NL6A FR7,5B AZ1355D AEZ1360A AE5ZF9 ESM7
Apr 01 600 480 400 L88AV L88BV * B1118B B3118B* B3119B PW9K18 PW11K22 FF8,5BK FF8, BKW FR8,5A NL7A FR8,5B AEZ1380A AE4ZF11 AEZ1480B ESM8
Apr 01 800 600 500       FR10A  ESM9
FR10B
01.Mar 1200 800 600   E1121A E3121A* FF108K SC12A AEZ1410D AE1410A ESM11



Mbsm.pro, Compressor, Embraco, Aspera, MA8DCV04, NT6220GK, Hermetic reciprocating compressor , R404a, MHBP, 17.4CC, 3/4Hp, ++big, 240V~50Hz

Data Sheet

Power supply 220/240 V-50 Hz-1 ph (230 V-60 Hz-1 ph)
Horsepower 3/4 hp
Displacement 14,50 cm3
Application MHBP ++
Cooling capacity at ASHRAE conditions, R404A/R507 2,12 kW
Cooling capacity at EN12900 MT conditions, R404A/R507 1,10 kW
Refrigerant R404A, R452A, R507A
Suction pipe 3/8″
Discharge pipe 1/4″
Weight 17,00 kg
Max height 220 mm
LRA 29,50 A
Recharge oil 450 cm3
Type of oil POE 22 ester
Other remarks Electrical components are included
Technology Fixed speed
Type of motor cooling Fan
Motor type CSIR
Motor protection type External



Mbsm.pro, PDF, File, Embraco, Catalogue, r134a, Embraco Condensing Units




Mbsm.pro, PDF, File, Cubigel Katalog, r134a, Huayi, Electrolux, ZEM




Mbsm.pro, Compressor, Cubigel, Huayi, Electrolux, ZEM, Freezer, ML45TB, HMBP, R404A, R507, 220 – 240V/1/50Hz, 1/5 HP, ++ Big, 1/4 Hp –, CSIR

Compressor ACC Cubigel Huayi Electrolux ZEM ML45TB, HMBP – R404A, R507, 220 – 240V/1/50Hz, 1/5 HP, discharge 4.5 cm3, motor type CSIR, oil type ISO VG46 ester, oil charge 300 cm3, 528 W at +5 / +55 °, input power, current 352 W, 2.04A, expansion device: capillar or valve, cooling: fan, weight 10.1 kg

Refrigerant: R507a R404A
Power range(W): 501 – 700 W
Performance range (C): +5 C to +55 C
Connecting size: 4,9 mm
Suction: 6,5 mm
Working area: HMBP
Design type: Hermetic
Model series: ML
Use with: Expansion/Capillary
Power range(HP): 0-2
Power supply: 230 V
Oil type: ISO VG 46 Ester
Engine type: CSIR
Article condition: New
Info: Oil filled
Shipping weight: 12,10 Kg
Dimensions ( length × width × height ): 23,10 × 16,20 × 18,60 cm
customs tariff number: 84143081
Cooling capacity condition: +5 / +55 C
Manufacturer: ACC Cubigel Huayi Electrolux ZEM
Model: ML45TB
Stroke volume (cm3): 4,5
Cooling capacity (W): 528
Power (HP): 0,25
Max. Starting current (A): 9,5
Max. Operating current (A): 2,04
Engine type: CSIR
COP: 1,49
Note: Fan cooling necessary
Oil quantity (l): 0,3
Compressor type: Piston
Power range: +5 / +55
Alternative: NEK6144GK
Pressure line (mm): 4,9
Suction line (mm): 6,5

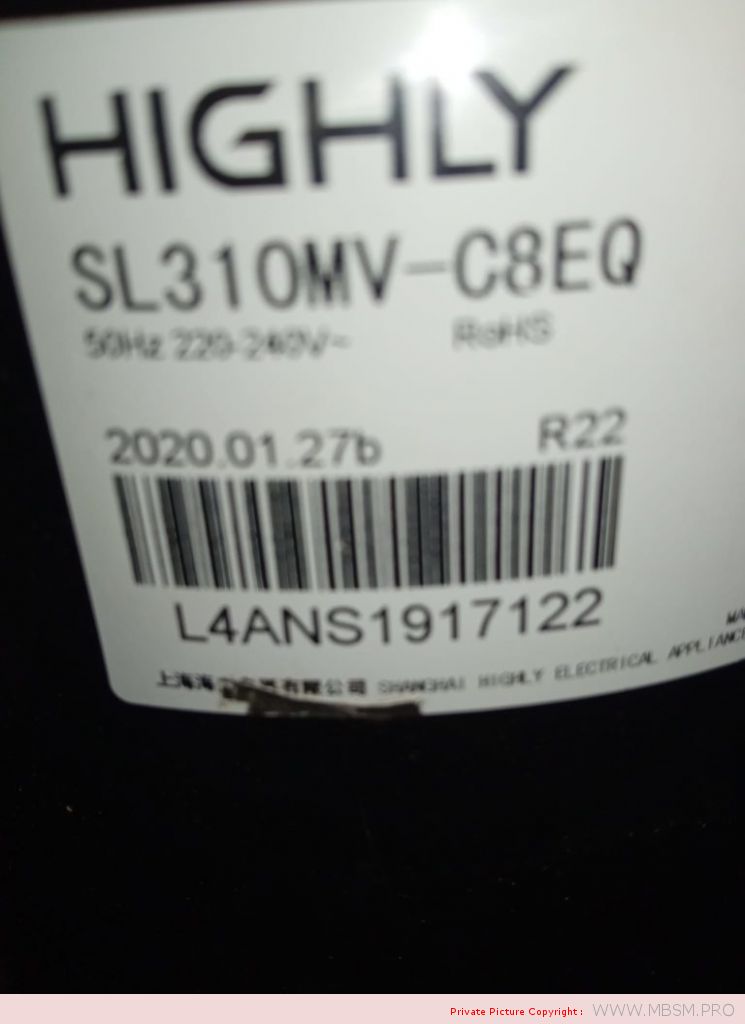

Mbsm.pro, Compressor, Haili, sl310MV, 5270 W, 17981 BTU, 220 V, 1PH, R22, 2.2 HP



HIGHLY R22 FIXED SPEED AIR CONDITIONING COMPRESSOR SL310MV

technical data sheet:

brand: HIGHLY air conditioning compressor

Model: SL310MV

Power supply: 1Φ, 220-240V, 50Hz

Cooling capacity: 5270(W)

Refrigerant: R22 refrigerant

displacement: 31 (cc/rev)

Energy efficiency ratio COP: 3.14 (W/W)

HIGHLY Haili SL310MV compressor is an R22 refrigerant fixed speed air conditioning refrigeration compressor produced by Shanghai Haili Electric Appliance Co., Ltd., power supply: 1Φ, 220-240V, 50Hz, displacement is 31 (cc/rev), cooling capacity is 5270 (W)/17981 (Btu/h), energy efficiency ratio COP is 3.14 (W/W)




Mbsm.pro, Compressor, Hitachi, High Quality, Rotary, Sh356mv-C7nu, Air Conditioner, 2.4 HP, 19283 BTU, R22, 220 V, 1 PH, 5655 w


Color: Black
Voltage: 220V 1p
Frequency: 50Hz
Horse Power: 2.8HP
Oil Charge: 1L
N.W.: 37kg
Product Description
 hitachi air conditioner compressor r22 refrigerant SH356MV-C7NU

Brand name Hitachi
Place of origin Japan
Model name SH356MV-C7NU
Application T3 Working Condition
Refrigerant R-22
Displacement 41.7ml/rev
Power 220-240v
Frequency 50Hz
Phase 1ph
Related capacity(w) 5655
BTU 19283
Description air conditioner compressor r22 refrigerant
Product Description

Model no Application Refrig-erant Displacem-ent Power supply Related capacity(w) HP BTU
SH286DG-C7HU T3 Working Condition R-22 28.6ml/rev 220V/60Hz/1PH 5895 2.5 20101
SH307MV-C7HU T3 Working Condition R-22 30.7ml/rev 220-240V/50Hz/1PH 5200 2 17732
SH307RV-C8LU T1 Working Condition R-22 30.7ml/rev 220-240V/50Hz/1PH 5200 2 17732
SH336DG-C8LU T3 Working Condition R-22 33.6ml/rev 220V/60Hz/1PH 5200 2 17732
SH336MV-C8LU T3 Working Condition R-22 33.6ml/rev 220-240V/50Hz/1PH 5655 2.3 19283
SH356DG-C8LU T3 Working Condition R-22 35.6ml/rev 220V/60Hz/1PH 5655 2.3 19283
SH356MV-C7NU T3 Working Condition R-22 35.6ml/rev 220-240V/50Hz/1PH 5655 2.3 19283
SH356MV-C8LU T3 Working Condition R-22 35.6ml/rev 220-240V/50Hz/1PH 6010 2.5 20494
SHV33YC1-E T3 Working Condition R-22 41.7ml/rev 220-240V/50Hz/1PH 6950 2.8 23699
SHV33YC6-G T1 Working Condition R-22 41.7ml/rev 220V/50Hz/1PH 7100 3 24211
SHV33YC6-S T1 Working Condition R-22 41.7ml/rev 220V/50Hz/1PH 7020 2.8 23938
SHV33YC6-U T1 Working Condition R-22 41.7ml/rev 220-240V/50Hz/1PH 7100 3 24211
SHV33ZC1-S T1 Working Condition R-22 40.0ml/rev 220V/50Hz/1PH 6770 2.7 23085
SHV33ZC1-U T1 Working Condition R-22 40.0ml/rev 220V/50Hz/1PH 6740 2.7 22983
SHV73YC1-E T3 Working Condition R-22 41.7ml/rev 208-230V/60Hz/1PH 8520 3.5 29053
SHV73YC1-U T1 Working Condition R-22 41.7ml/rev 208-230V/60Hz/1PH 8520 3.5 29053
SHW33TC4-E T3 Working Condition R-22 35.6ml/rev 220-240V/50Hz/1PH 6090 2.5 20766
SHW33TC4-S T1 Working Condition R-22 35.6ml/rev 220V/50Hz/1PH 6058 2.5 20657

Catalogue Hitachi DH serie Compressor

Type Model Refrigerant Colling Capacity Test Condition Motor Input Current COP Oil Charge
      BTU/H WATTS   WATTS RLA W/W L
STANDRAD TYPE 303DH-47C2 R22 29500 8650 380V 3~50Hz 2700 5 3.2 1.2
303DH-50C2 32220 9450 2900 5.4 3.2 1.2
353DH-56C2 35460 10400 3200 6.2 3.25 1.2
403DH-64C2 40240 11800 3600 6.8 3.25 1.2
453DH-72C2 46040 13500 4000 7.6 3.4 1.4
503DH-80C2 50800 14900 4400 8.1 3.4 1.4
503DH-83C2 52510 15400 4550 8.6 3.4 1.4
603DH-90C2 57290 16800 5100 9.5 3.3 1.4
603DH-95C2 60020 17600 5300 10 3.3 1.4
PARALLEL TYPE 303DH-47C2Y 29500 8650 2700 5 3.2 1.8
403DH-50C2Y 32220 9450 2900 5.4 3.2 1.8
353DH-56C2Y 35460 10400 3200 6.2 3.25 1.8
403DH-64C2Y 40240 11800 3600 6.8 3.25 1.8
453DH-72C2Y 46040 13500 4000 7.6 3.4 1.8
503DH-80C2Y 50800 14900 4400 8.1 3.4 1.8
503DH-83C2Y 52510 15400 4550 8.6 3.4 1.8
603DH-90C2Y 57290 16800 5100 9.5 3.3 1.8
603DH-95C2Y 60020 17600 5300 10 3.3 1.8

Hitachi series such as SD,SH are supplied.

Model name Power(w) HP Displacement Capacitance Cooling capacity (w) COP Capacitor μF / v Current A
SD074CV 415 0.55 0.74 220~240V/50Hz 1210 2.9 13 2
SD086CV 480 0.64 0.86 220~240V/50Hz 1410 2.94 15 2.3
SD091CV 520 0.69 0.91 220~240V/50Hz 1490 2.94 13 2.4
SD104CV 575 0.77 1.04 220~240V/50Hz 1740 3.03 15 2.75
SD122CV 690 0.92 1.22 220~240V/50Hz 2040 2.96 17 3.3
SD127CV 720 0.96 1.27 220~240V/50Hz 2050 2.92 17 3.5
SD134CV 750 1 1.34 220~240V/50Hz 2260 3.01 17 3.55
SD145CV 815 1.09 1.45 220~240V/50Hz 2480 3.04 20 3.9
SD156CV 870 1.16 1.56 220~240V/50Hz 2650 3.05 25
Model no Application Refrigerant Displacement  Power Supply Related capacity(w) BTU
SH286DG-C7HU T3 Working Condition R-22 28.6ml/rev 220V/60Hz/1PH 5895 20101
SH307MV-C7HU T3 Working Condition R-22 30.7ml/rev 220-240V/50Hz/1PH 5200 17732
SH307RV-C8LU T1 Working Condition R-22 30.7ml/rev 220-240V/50Hz/1PH 5200 17732
SH336DG-C8LU T3 Working Condition R-22 33.6ml/rev 220V/60Hz/1PH 5200 17732
SH336MV-C8LU T3 Working Condition R-22 33.6ml/rev 220-240V/50Hz/1PH 5655 19283
SH356DG-C8LU T3 Working Condition R-22 35.6ml/rev 220V/60Hz/1PH 5655 19283
SH356MV-C7NU T3 Working Condition R-22 35.6ml/rev 220-240V/50Hz/1PH 5655 19283
SH356MV-C8LU T3 Working Condition R-22 35.6ml/rev 220-240V/50Hz/1PH 6010 20494
SHV33YC1-E T3 Working Condition R-22 41.7ml/rev 220-240V/50Hz/1PH 6950 23699
SHV33YC6-G T1 Working Condition R-22 41.7ml/rev 220V/50Hz/1PH 7100 24211
SHV33YC6-S T1 Working Condition R-22 41.7ml/rev 220V/50Hz/1PH 7020 23938
SHV33YC6-U T1 Working Condition R-22 41.7ml/rev 220-240V/50Hz/1PH 7100 24211
SHV33ZC1-S T1 Working Condition R-22 40.0ml/rev 220V/50Hz/1PH 6770 23085
SHV33ZC1-U T1 Working Condition R-22 40.0ml/rev 220V/50Hz/1PH 6740 22983
SHV73YC1-E T3 Working Condition R-22 41.7ml/rev 208-230V/60Hz/1PH 8520 29053
SHV73YC1-U T1 Working Condition R-22 41.7ml/rev 208-230V/60Hz/1PH 8520 29053
SHW33TC4-E T3 Working Condition R-22 35.6ml/rev 220-240V/50Hz/1PH 6090 20766
SHW33TC4-S T1 Working Condition R-22 35.6ml/rev 220V/50Hz/1PH 6058 20657
Constant-Speed/India/R22 230V 50Hz
Series Model Displacement (cc/rev) Cooling capacity (w) Cooling capacity (btu/h) Cop Capacitor (Hf/v) Height (mm) Test condition
H SH286RY-C7PU1A 28.6 4900 16719 3.27 45/450 307.8 ASHRAE/T
SH295RY-C7PUA 29.5 5060 17265 3.24 35/450 293.4 ASHRAE/T
SH295RY-C7PU1A 29.5 5035 17179 3.25 45/450 307.8 ASHRAE/T
SH307RY-C8DUA 30.7 5250 17913 3.26 45/450 307.8 ASHRAE/T
SH370RY-C8LU 37 6400 21837 3.25 65/450 320.9 ASHRAE/T
SH380RY-C8DU 38 6555 22366 3.24 50/450 320.9 ASHRAE/T
SH417RY-C8DU 41.7 7160 24430 3.21 45/450 330.9 ASHRAE/T
SH280UY-C7HUA 28 4810 16412 16412 45/450 307.8 ASHRAE/T
SH286UY-C7PUA 28.6 4930 16821 3.36 45/450 307.8 ASHRAE/T
SH300UY-C7HUA 30 5100 17401 3.36 45/450 307.8 ASHRAE/T
SH370UY-C8LU 37 6400 21837 3.3 60/450 330.9 ASHRAE/T
Constant-Speed/India/R22/Tropical 230V 50Hz
Series Model Displacement (cc/rev) Cooling capacity (w) Cooling capacity (btu/h) Cop Capacitor (Hf/v) Height (mm) Test condition Test condition
H SH307MV*1 30.7 5250 17913 3.2 45/450 293.4 ASHRAE/T
SH336MV-1 33.6 5750 19619 3.18 55/450 307.8 ASHRAE/T
SH356MVM 35.6 6130 20916 3.11 50/450 307.8 ASHRAE/T
SH417MV-1 41.7 7170 24464 3.17 65/450 330.9 ASHRAE/T
Constant-Speed/R32 220V/240V 50Hz
Series Model Displacement (cc/rev) Cooling capacity (w) Cooling capacity (btu/h) Cop Capacitor (Hf/v) Height (mm) Test condition Test condition
H GSH190TV 19.0 4954 16903 3.00 40/450 293.5 ASHRAE/T
GSH232SV 23.2 5896 20117 2.91 60/400 298.5 ASHRAE/T
Constant-Speed/India/R41 OA 230V 50Hz
Series Model Displacement (cc/rev) Cooling capacity (w) Cooling capacity (btu/h) Cop Capacitor (Hf/v) Height (mm) Test condition Test condition
H ASH184TV 18.4 4440 15149 2.96 40/450 293.5 ASHRAE/T
ASH193TV 19.3 4575 15610 2.96 40/450 293.5 ASHRAE/T
ASH201RY 20.1 4845 16531 2.95 40/450 293.5 ASHRAE/T
ASH210RY 21.0 5120 17469 2.98 40/450 293.5 ASHRAE/T
ASH244RY 24.4 5770 19687 2.95 55/450 301.1 ASHRAE/T
Constant-Speed/R290 220V/240V 50Hz
Series Model Displacement (cc/rev) Cooling capacity (w) Cooling capacity (btu/h) Cop Capacitor (Hf/v) Height (mm) Test condition Test condition
H PSH307CV-C7HU 30.7 4566 15579 3.22 60/450 307.8 ASHRAE/T
PSH307HV-C8DU 30.7 4565 15576 3.45 45/450 307.8 ASHRAE/T
Constant-Speed/Middle East/R22 230V 60Hz
Series Model Displacement (cc/rev) Cooling capacity (w) Cooling capacity (btu/h) Cop Capacitor (Hf/v) Height (mm) Test condition Test condition
H SH264DG*2 26.4 5550 18937 3.2 40/450 288.4 ASHRAE/T
SH307DG*1 30.7 6580 22451 3.22 55/450 307.8 ASHRAE/T
SH325DG 32.5 6860 23406 3.22 55/450 307.8 ASHRAE/T
SH356DG-3 35.6 7450 25419 3.24 50/450 317.8 ASHRAE/T
