Tecumseh CAJ9480T R22 Hermetic Compressor: Complete Technical Guide for Professionals

The Tecumseh / L’Unité Hermetique CAJ9480T is a fully hermetic reciprocating compressor designed for commercial refrigeration systems operating with R22 and compatible retrofit refrigerants. Widely used in small cold rooms, display cabinets and compact condensing units, it runs on 220–240 V single‑phase, 50 Hz power and delivers 5/8 HP with around 1.97 kW of cooling capacity at EN12900 conditions.​

General description

This model belongs to the CAJ family, Tecumseh’s workhorse range for medium and high back‑pressure refrigeration applications such as positive‑temperature cold rooms and commercial coolers. It is a hermetic piston compressor using a CSR motor (capacitor start, capacitor run), giving high starting torque and stable operation on standard single‑phase networks.​

Manufactured in France under the L’Unité Hermetique brand, the CAJ9480T combines compact size, good efficiency and a robust mechanical design, which explains its popularity among installers and service companies like Mbsmgroup, Mbsm.pro and mbsmpro.com.​

Main technical specifications (with HP and W)

The table below consolidates key data from Tecumseh specification sheets and trusted distributors.​

Specification	CAJ9480T value (R22, 50 Hz)
Refrigerant	R22 (and some approved retrofits such as R438A on specific codes)​
Application range	Medium / high back pressure (commercial refrigeration)​
Nominal horsepower (HP)	5/8 HP (0.625 HP)​
Nominal cooling capacity (W)	≈ 1 968 W at EN12900: 220 V, 50 Hz, +5 °C evap / +50 °C cond​
Input electrical power (W)	≈ 780–800 W at the same EN12900 rating point​
Displacement	15.2 cm³/rev​
Supply voltage	220–240 V, 1‑phase, 50 Hz​
Voltage range	187–242 V (50 Hz)​
Rated load amps (RLA, 50 Hz)	≈ 4 A​
Locked rotor amps (LRA)	≈ 24 A​
Oil type / quantity	Synthetic alkylate or mineral, approx. 475–887 cm³ depending on version​
Net weight	≈ 19–22 kg​

The nameplate visible in your photo shows “R22 – LRA 24 – 203–220 V – 50 Hz – RLA 4.00”, matching these published values and confirming a single‑phase CAJ9480T produced in France.​

Typical applications and field use

Because of its capacity, voltage and starting characteristics, the CAJ9480T fits many everyday refrigeration jobs.​

• Small cold rooms for butchers, restaurants, bakeries and mini‑markets originally charged with R22.
• Vertical display cabinets, reach‑in fridges and refrigerated counters using factory‑built condensing units.
• Custom‑built condensing units and mini‑packs produced by specialists such as Mbsmgroup, Mbsm.pro and mbsmpro.com, especially where reliable 5/8 HP performance is required on 230 V single‑phase.​

Its CSR motor and high starting torque help the compressor start under tougher conditions, such as long pipe runs or marginal supply voltage.​

Installation and maintenance best practices

Correct installation and servicing are essential to protect this compressor and keep systems efficient.​

• Flush and evacuate the circuit carefully, and always install a new filter‑drier when replacing a failed R22 compressor.
• Use the start and run capacitors and potential relay recommended by Tecumseh (for example, 88 µF start and 15 µF run on the CAJ9480T‑FZ code) and follow the official wiring diagram.​
• Verify charge, suction superheat and condensing temperature so operation stays within Tecumseh’s performance envelope.​
• For R22 retrofit projects, respect manufacturer guidance on compatible replacement refrigerants and oil changes to avoid lubrication and overheating issues.​

Working with trusted suppliers such as Mbsmgroup and its online platforms helps ensure genuine Tecumseh parts, correct electrical components and updated technical information.

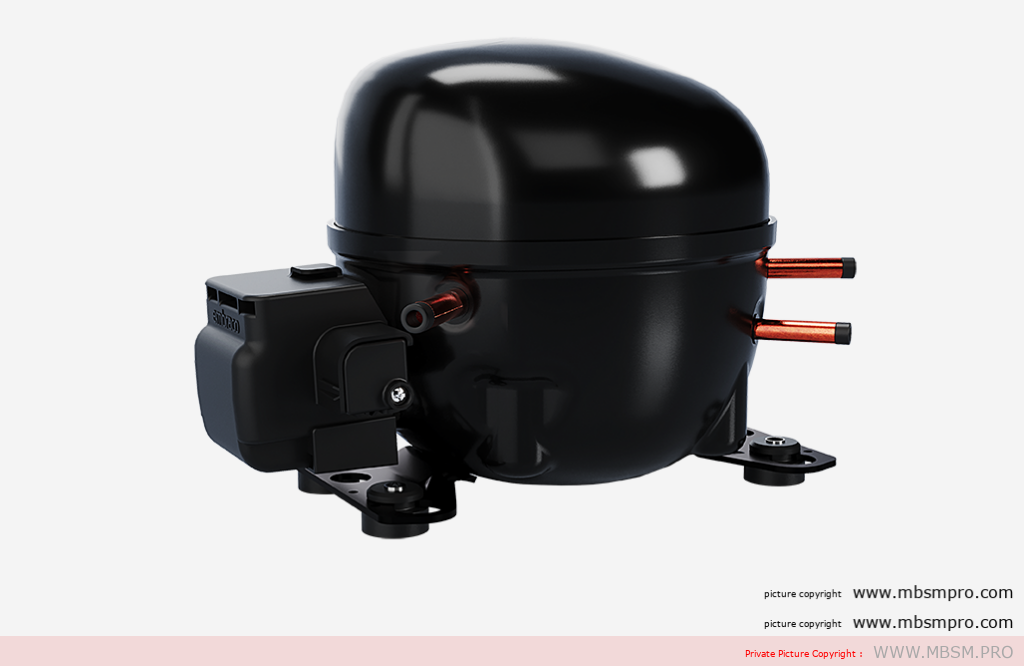

Inside the SECOP SCE Hermetic Compressor: A Complete Exploded View and Parts Identification Guide

For technicians, engineers, and procurement specialists in the commercial refrigeration industry, understanding the internal anatomy of a compressor is not just academic—it’s essential for efficient maintenance, accurate troubleshooting, and reliable sourcing of spare parts. The SECOP SCE series hermetic compressor is a cornerstone in many refrigeration systems, known for its durability and performance. This article provides a comprehensive, journalistic breakdown of its internal components using a detailed exploded view, serving as your definitive visual and technical guide.

Decoding the Exploded View: A Systematic Walkthrough

An exploded view diagram is more than just a parts list; it’s a roadmap to the machine’s soul. It shows how individual components interact within the sealed “hermetic” shell, where the motor and compressor are welded shut to protect against refrigerant and moisture. Let’s navigate the key assemblies revealed in the SCE compressor diagram.

1. The Core Compression Assembly

This is the heart of the compressor, where mechanical motion translates into refrigerant compression.

• Piston (11) & Cylinder (Part of Crankcase 15): The piston moves within the cylinder bore, creating the vacuum and pressure cycles.
• Crankshaft (8): Driven by the motor, its rotational motion is converted into the piston’s reciprocating motion via the connecting rod (9) and wrist pin (10).
• Valve System: This critical assembly manages refrigerant flow. The suction valve (17) opens to draw in low-pressure gas. The discharge valve (18), held by its stopper (19), opens to release high-pressure gas into the discharge muffler.

2. The Electrical & Drive Assembly

Nestled beneath the compressor, this assembly powers the entire system.

• Stator (27): The stationary part of the electric motor, containing copper windings, housed inside the stator case (28).
• Rotor (25): Pressed onto the crankshaft (8), it rotates within the stator’s magnetic field.
• Hermetic Terminal (31): The vital electrical pass-through that allows power cables to enter the sealed compressor housing without leaking refrigerant.

3. Structural & Ancillary Components

These parts provide support, balance, and necessary functionalities.

• Compressor Housing (30): The iconic welded steel shell that contains all components.
• Suspension Springs (29): Isolate vibrations, preventing noise and wear from transmitting to the refrigeration cabinet.
• Oil Pump (26): Often a centrifugal type on the crankshaft, it ensures critical lubrication reaches the upper bearing (7) and other moving parts.
• Counterweight (6): Balances the rotating assembly to minimize vibration, secured by a screw (4) and sometimes accompanied by a slinger (5).

Complete SECOP SCE Compressor Parts Reference Table

For quick reference and cross-referencing with part numbers, here is a complete table of the components identified in the exploded view:

Item No.	Part Name	Primary Function
01	Compressor Cover	Protects internal parts, forms suction chamber
02	Suction Connector	Inlet for low-pressure refrigerant gas
03	Discharge Connector	Outlet for high-pressure refrigerant gas
04	Counterweight Screw	Secures the counterweight to the crankshaft
05	Slinger	Assists in oil distribution
06	Counterweight	Balances rotating assembly to reduce vibration
07	Upper Bearing	Supports the top of the rotating crankshaft
08	Crankshaft	Converts motor rotation into piston movement
09	Connecting Rod	Links the crankshaft to the piston
10	Wrist Pin	Pivot point connecting piston and connecting rod
11	Piston	Compresses refrigerant within the cylinder
12	Internal Discharge Tube	Channels compressed gas to the muffler
13	Screw	Fastens various components (e.g., muffler)
14	Discharge Muffler Gasket	Seals the discharge muffler connection
15	Crankcase	Main body housing cylinders and crankshaft
16	Valve Plate Gasket	Seals between crankcase and valve plate
17	Suction Valve	One-way valve for refrigerant intake
18	Discharge Valve	One-way valve for refrigerant outlet
19	Discharge Valve Stopper	Limits discharge valve movement
21	Cylinder Head Gasket	Seals the cylinder head
22	Suction Muffler	Reduces noise from suction gas pulsation
23	Cylinder Head	Covers the cylinder, part of compression chamber
24	Cylinder Head Screw	Secures the cylinder head
25	Rotor	Rotating part of the electric motor
26	Oil Pump	Circulates oil for lubrication
27	Stator	Stationary electromagnetic part of the motor
28	Stator Case	Holds and positions the stator
29	Suspension Spring	Vibration isolation mounting
30	Compressor Housing	Main hermetic (sealed) outer shell
31	Hermetic Terminal	Electrical connection into sealed housing
32	Base Plate	Foundation for internal assembly mounts

Why This Knowledge Matters for Your Business

Whether you’re a technician diagnosing a faulty discharge valve or a sourcing manager looking for a genuine SECOP crankshaft, this visual guide empowers you with precision. Correct part identification:

• Reduces Downtime: Enables faster, accurate diagnosis.
• Ensures Compatibility: Guarantees replacement parts match the exact SCE model specifications.
• Promotes Effective Communication: Allows clear reference between teams, suppliers, and clients.

ZB38 5HP R404 MBP correspond à un compresseur scroll Copeland Emerson, modèle ZB38KQE ou ZB38KCE, puissance nominale 5 HP, conçu pour le fluide frigorigène R404A et destiné au service moyenne température (MBP = Medium Back Pressure).​

Caractéristiques typiques:

• Type: Scroll hermétique Copeland série ZB38 (Emerson).​
• Puissance: 5 HP, triphasé 380–400 V (suivant version TFD-551 / -558).​
• Fluide: optimisé pour R404A (souvent aussi compatible R507A, parfois R134a selon la plaque).​
• Application: réfrigération à température moyenne (MBP / MHBP), vitrines réfrigérées, chambres froides positives, etc.​
• Déplacement volumétrique: environ 14,4 m³/h; puissance frigorifique autour de 7–11 kW selon conditions (Te/Tc).​

Signification de ton code:

• ZB38 = série de compresseurs scroll réfrigération Copeland, taille « 38 ».​
• 5HP = puissance moteur nominale.​
• R404 = fluide R404A prévu pour ce modèle.​
• MBP = utilisation en température moyenne (évaporation typique -10 °C à +5 °C pour chambres froides positives, conservateurs…).​

Si tu précises les conditions de travail (Te, Tc, sous-refroidissement, surchauffe), il est possible d’estimer la capacité frigorifique exacte et vérifier si ce compresseur est adapté à ta chambre froide ou ton évaporateur actuel.

In commercial refrigeration, the compressor is more than just a component; it is the engine that decides whether a cold room runs smoothly or becomes a constant source of service calls. The ZB38 5HP R404A MBP scroll compressor is one of those models that technicians encounter again and again in supermarkets, butcheries, bakeries and restaurant cold rooms. Its popularity comes from a balance of capacity, efficiency and robustness that fits the core needs of medium-temperature systems.

What ZB38 5HP R404A MBP Really Means

When technicians talk about “ZB38 5HP R404A MBP”, they are compressing a lot of technical information into a short code.

• ZB38: Indicates a scroll refrigeration compressor series and displacement class, typically around 5 HP in the manufacturer’s lineup.
• 5HP: The nominal motor power, placing it in the range commonly used for medium-sized cold rooms and supermarket display lines.
• R404A: The main refrigerant for which the compressor is optimized, historically a standard in commercial refrigeration despite ongoing phase-down discussions in many markets.
• MBP (Medium Back Pressure): Specifies that the compressor is designed for medium-temperature applications such as positive-temperature cold rooms, fresh products, dairy and beverages, rather than deep-freeze low-temperature duties.

This decoding matters because each part of the designation tells the technician where the compressor can work safely, which refrigerant is acceptable and what kind of evaporating temperatures the system can handle without pushing the compressor beyond its envelope.

Typical Applications in the Field

A 5HP R404A MBP scroll compressor naturally positions itself in the heart of medium-sized commercial installations.

• Cold rooms for fresh meat, fruits and vegetables, where evaporating temperatures often range roughly between −10∘C−10∘C and +5∘C+5∘C, depending on the product and humidity control strategy.
• Supermarket wall cases and island cabinets for dairy, delicatessen and beverages, where multiple evaporators may be connected to a single condensing unit based on the ZB38 platform.
• Food-service equipment in hotels, central kitchens and bakeries, where reliability and quick recovery after door openings are more important than extreme low temperatures.

In these contexts, the ZB38 class compressor offers enough capacity to manage a significant thermal load while remaining compact, which is crucial when equipment must fit on rooftops, balconies or tight machine rooms in dense urban environments.

Why Scroll Technology Dominates This Segment

Scroll compressors like the ZB38 have progressively replaced many traditional reciprocating models in MBP applications.

• Fewer moving parts reduce mechanical noise, vibration and wear, which in practice often means fewer mechanical failures and smoother operation.
• The continuous compression process delivers stable mass flow, improving evaporator performance and temperature control inside cold rooms and cabinets.
• The compact, hermetic construction simplifies installation, reduces the risk of leaks at mechanical joints and helps manufacturers build more compact condensing units.

For technicians, scrolls are often easier to handle: electrical connections are straightforward, and the absence of complex valve mechanisms or external crankcase components shortens installation and troubleshooting time when compared with older piston designs.

Key Operating Parameters Technicians Monitor

Working with a 5HP R404A MBP compressor requires attention to several practical parameters, even if the data sheet is not in hand.

• Evaporating temperature: Usually in the medium range, technicians watch suction pressure to ensure it stays within the recommended envelope, avoiding both overloading and poor oil return.
• Condensing temperature: Condenser cleanliness, ambient temperature and fan control directly impact discharge pressure, compressor current and overall energy consumption.
• Superheat and subcooling: Correct expansion valve setting and a stable liquid line temperature help prevent liquid slugging at start-up and maintain the right mass flow through the evaporator.

In practice, a well-adjusted system keeps the compressor within its design envelope during the hottest days of summer, which is often where installations in Mediterranean climates are pushed to their limits.

Installation and Start-Up Best Practices

Even the most robust compressor can fail prematurely if basic installation guidelines are ignored.

• Cleanliness: Piping must be brazed with nitrogen purging and thoroughly evacuated to remove moisture and contaminants that can degrade oil and valves.
• Oil management: Proper piping design, especially at the suction line and oil traps on vertical risers, ensures oil returns reliably to the compressor shell.
• Electrical checks: Before energizing, technicians confirm supply voltage, phase sequence and proper overload protection, including verification of contactor and breaker sizing.

A disciplined start-up procedure—monitoring pressures, temperatures and compressor current over the first hour—usually reveals whether the system is healthy or if there are hidden issues like undersized condensers or incorrect charge.

Maintenance and Diagnostic Considerations

In daily practice, maintenance teams use a few key indicators to assess the health of a scroll compressor like the ZB38.

• Noise and vibration: Changes in sound signature can announce mechanical damage, liquid return or severe gas under-cooling at the compressor.
• Discharge line temperature: Excessive discharge temperature often points to high condensing pressure, low refrigerant charge or poor suction gas cooling.
• Oil color and level (if visible through an indicator): Darkened or acidic oil is a clear warning that the system has experienced overheating or contamination, and that deeper corrective action is required.

Regular cleaning of condensers, checking fan operation and verifying that defrost cycles are effective in evaporators can significantly extend compressor life by keeping operating conditions within design limits.

Where This Technology Is Heading

Although R404A has long been the standard for MBP commercial applications, environmental regulations are pushing the market toward lower-GWP alternatives and redesigned compressors.
Manufacturers are gradually adapting similar 5HP scroll platforms to new blends with different pressures and glide characteristics, while technicians increasingly need to be familiar with multiple refrigerants and their specific charge and oil requirements.
For users and contractors, this transition highlights the importance of good documentation, training and practical feedback from the field—an area where communities of technicians, independent platforms such as mbsmgroup.tn and projects like mbsm.pro, mbsmgroup and mbsmpro.com can play a useful role in sharing real-world experience and solutions.

Suggested exclusive images for this topic (you can create or photograph them yourself):

• A close-up of a 5HP scroll compressor label showing model code, refrigerant and electrical data.
• A medium-temperature cold room condensing unit with the compressor, condenser and control box visible on a rooftop or service balcony.
• A technician’s hand holding clamp meter and manifold gauges connected to a running MBP R404A condensing unit.
• A clean, well-lit cold room interior with product on shelves, showing air coolers on the ceiling and neat piping.
• A side-by-side photo of a scroll compressor and an older reciprocating unit on a workshop floor, demonstrating the difference in size and design.

Winter Company for Refrigeration offers all refrigeration accessories sourced from top international brands including blue. Located in 6th of October City, Industrial Zone 2, Hamada Street, the company welcomes visits to explore their wide range of products. They can be contacted via phone numbers 01060032262, 01022856319, and 0155 522 6348 for inquiries and support.

Winter specializes in supplying high-quality refrigeration compressors, cooling units, and complete refrigeration packages for industrial and commercial use. Their products meet international standards for reliability and energy efficiency. The company has extensive experience servicing refrigeration systems in Egypt, especially within industrial zones.

Customers can rely on Winter for both product supply and technical maintenance support, making it a prominent choice in refrigeration solutions in the region. For detailed product specifications or tailored solutions, direct contact or visits to the company’s location are recommended, ensuring personalized service and expert advice.

This company is part of a global network that provides industrial refrigeration solutions, including ammonia and CO2-based systems with a focus on environmental protection and efficient cooling technology.winter-kaeltetechnik+2​

In summary, Winter Company offers trusted refrigeration products and services ideal for various refrigeration needs in Egypt’s industrial sectors, backed by internationally certified products and expert technical support.
