• Brand: LG
• Model: NS24LAEG
• Voltage/Frequency: 220-240V ~ 50Hz
• Phase: 1PH
• Protection: Thermally Protected
• Origin: LG Electronics Inc. / Made in Korea

---

SEO Metadata

• Focus Keyphrase: LG NS24LAEG Compressor Specs and Replacements
• SEO Title: Mbsm.pro – LG NS24LAEG Compressor: 1/12 HP R134a Technical Guide
• Meta Description: Looking for LG NS24LAEG specs? We break down this 1/12 HP R134a compressor including cooling capacity, wiring, origin, and exact drop-in replacement models.
• Slug: lg-ns24laeg-compressor-r134a-specs
• Tags: Mbsmgroup, Mbsm.pro, mbsmpro.com, mbsm, LG Compressor, NS24LAEG, R134a, LBP, 1/12 HP, RSIR, HVAC Repair.
• Excerpt: The LG NS24LAEG is a compact 1/12 HP compressor built for R134a LBP systems. You’ll usually find this unit running small water dispensers and mini-fridges. Here is the raw technical data and field replacements.

Field Introduction

You see the LG NS24LAEG pulled out of small residential appliances like water dispensers, dorm fridges, and under-counter ice boxes. It is a strictly Low Back Pressure (LBP) pump running R134a. Rated right around 1/12 HP, it has a tiny 2.42 cc displacement. It is not built to handle heavy commercial loads. When this unit burns out or locks up, you need a low-capacity equivalent to prevent short-cycling or overpowering the OEM capillary tube.

Technical Specifications Table

Feature	Details
Model	NS24LAEG
Brand	LG
Application	LBP (Low Back Pressure)
Refrigerant	R134a
Displacement	2.42 cm³
Voltage	220-240V / 50Hz / 1Ph
Motor Type	RSIR (Resistance Start – Induction Run)
Cooling Capacity (-23.3°C)	44 W / 150 BTU/h
Horsepower (HP)	~1/12 HP
Input Power	76 W

Electrical & Origin Details

• Relay Type: PTC Starting Relay (specifically the P220MC matching the RSIR motor).
• Capacitor Needs: None. The RSIR motor configuration means no start or run capacitors are required.
• Overload Protector: 4TM117SFB external thermal overload.
• Manufacturing Origin: Manufactured by LG Electronics Inc. in Korea.

Efficiency Metrics Table

Performance drops hard if you push an LBP pump outside its temperature envelope. Here is how the NS24LAEG runs across the standard low-temp spectrum.

Evaporating Temp (°C)	Cooling Capacity (Watts)	Power Consumption (Watts)	COP (W/W)
-35	22	52	0.42
-30	31	61	0.50
-25	41	72	0.56
-23.3	44	76	0.58
-20	55	83	0.66
-15	73	94	0.77

Drop-in Replacements

When you can’t source the exact LG NS24LAEG, you need a 1/12 HP, R134a LBP compressor with a displacement around 2.4 to 3.0 cc. Here are solid field equivalents:

• Embraco EMY20CLC: A rock-solid 1/12 HP drop-in. Matches the LBP footprint and capillary demands perfectly.
• Secop / Danfoss TL3G: Slightly larger displacement (3.13 cc) but throttles well for small fridges and dispensers.
• Jiaxipera T1040Y: Common Chinese market equivalent. Easy to pipe in and matches the RSIR electrical setup.
• Huayi HYB35YG: Standard replacement. Pulls similar wattage and fits exactly the same base plate.
• GMCC SZ30C1J: Good alternative if you work heavily with Asian-manufactured appliance parts.

R134a, refrigerant, compressor SFH39C73H, 220-240V 50Hz, LBP, 1/5 hp

Description

Mbsm.pro: Compressor, Panasonic, SFH39C73H, 1/5 HP, 1Ph, 220-240V 50Hz, R134a, LBP, Refrigeration & Freezing

---

Technical Specifications Table

Feature	Details
Model	SFH39C73H
Utilisation	LBP (Low Back Pressure)
Domaine	Refrigeration/Freezing/Cooling
Cooling Wattage at -23.3°C	Approx. 105-110 W
Cubic Feet Capacity	4 to 7 cu. ft. (Depending on insulation)
Litres Capacity	100 to 200 Liters
Kcal/h	90-95 Kcal/h (at -23.3°C)
TON	~0.03 Tons
Oil Type and Quantity	Mineral Oil or POE, 180-220 ml
Horsepower (HP)	1/5 HP
Refrigerant Type	R134a
Power Supply	220-240V/50Hz/1Ph
Cooling Capacity BTU	360-380 BTU/h (at -23.3°C)
Motor Type	RSCR (Resistance Start Capacitor Run) or RSIR
Displacement	3.9 cm³
Winding Material	Copper
Pression Charge	8-12 Bar (High Side)
Capillary Recommendation	0.028″ to 0.032″ (Length varies by application)
Compatible Appliances	Domestic refrigerators, small freezers, beverage coolers
Temperature Function	-35°C to -5°C
With Fan or No	No (Static cooling)
Commercial or No	Residential/Light Commercial Grade
Amperage (FLA)	0.8 A to 1.2 A
LRA (Locked Rotor Amps)	5.5 A to 7.0 A
Type of Relay	PTC Relay or Current Relay (Panasonic specific)
Capacitor Value	Not required for RSIR; 10-15 µF for RSCR
Origin/Exporting	Designed in Japan/Manufactured in Singapore or China

---

Replacement Model:

Brand	Model Number
danfoss	SC10G, SC12G
embraco	NL5FT, NL6FT
electrolux	SFH39C73H
foster	SFH39 series
gec	NL5FT
gorenje	SFH39 compatible
huayi	HYB35YG
lg	MC3510Y, MC4010Y
matsushita	SFH39C73H, SF39C60RAW5
panasonic	SFH39C73H, SF39C60RAW5, SFH39C64RAW
secop	SC10G-HST
tecumseh	CAJ4410Z, CAJ4510Z

---

Efficiency Metrics (COP) Table

Performance varies significantly based on how hard the unit is working. Here is how the SFH39C73H performs across the temperature spectrum:

Evaporating Temp (°C)	Cooling Capacity (Watts)	Power Consumption (Watts)	COP (W/W)
-35	65	68	0.95
-30	82	75	1.09
-25	95	78	1.22
-23.3	105	80	1.31
-20	115	83	1.39
-15	135	88	1.53
-10	158	93	1.70
-5	185	98	1.89

---

5 Replacements (Same R134a Gas)

1. Embraco NL5FT (Direct equivalent, 1/5 HP, LBP)
2. Danfoss SC10G (Strong alternative, reliable performance)
3. Tecumseh CAJ4410Z (Classic reliable swap, R134a)
4. LG MC3510Y (OEM quality, Korean manufacturing)
5. Huayi HYB35YG (Budget-friendly alternative, Chinese manufacture)

---

5 Replacements (Other Gas – R600a/R290)

Note: Requires complete system flush and expansion valve/capillary adjustment.

1. Embraco EG60HLC (R600a – Isobutane, very efficient)
2. Danfoss SC10CNX (R290 – Propane, modern refrigerant)
3. Panasonic NR series (R600a – Direct manufacturer alternative)
4. Secop NL5FT-R600a (R600a conversion variant)
5. Tecumseh THB4510Z (R600a – High efficiency)

---

SEO Information

Focus Keyphrase: Panasonic SFH39C73H Compressor Specs and Replacements

SEO Title: Mbsm.pro – Panasonic SFH39C73H Compressor: 1/5 HP R134a Technical Guide

Meta Description: Looking for Panasonic SFH39C73H specs? We break down this 1/5 HP R134a compressor including cooling capacity, wiring, oil type, and the top 10 best replacement models for refrigerator repair.

Slug: panasonic-sfh39c73h-compressor-1-5-hp-r134a-specs

Tags: Mbsmgroup, Mbsm.pro, mbsmpro.com, mbsm, Panasonic, SFH39C73H, SF39C, R134a, 1/5 HP, NL5FT, SC10G, CAJ4410Z, MC3510Y, HYB35YG, Compressor Replacement, HVAC, Refrigeration Repair, LBP Compressor, Refrigerator Compressor

Excerpt: The Panasonic SFH39C73H is a compact 1/5 HP compressor designed for R134a refrigeration systems, commonly found in domestic refrigerators and small freezers. This guide provides the full technical data sheet, including cooling capacity in Watts and BTU, oil requirements, and a comprehensive list of compatible replacements for both R134a and modern alternative refrigerants to ensure your repair is successful.

Mbsmpro.com, Compressor, Aspera, J7238GE, 1.5 HP, Embraco, Cooling, R407C, 3800 W, 7.5 A, 1Ph 220-240V 50Hz, HBP, CSR, 0°C to +15°C, Commercial Cooling

---

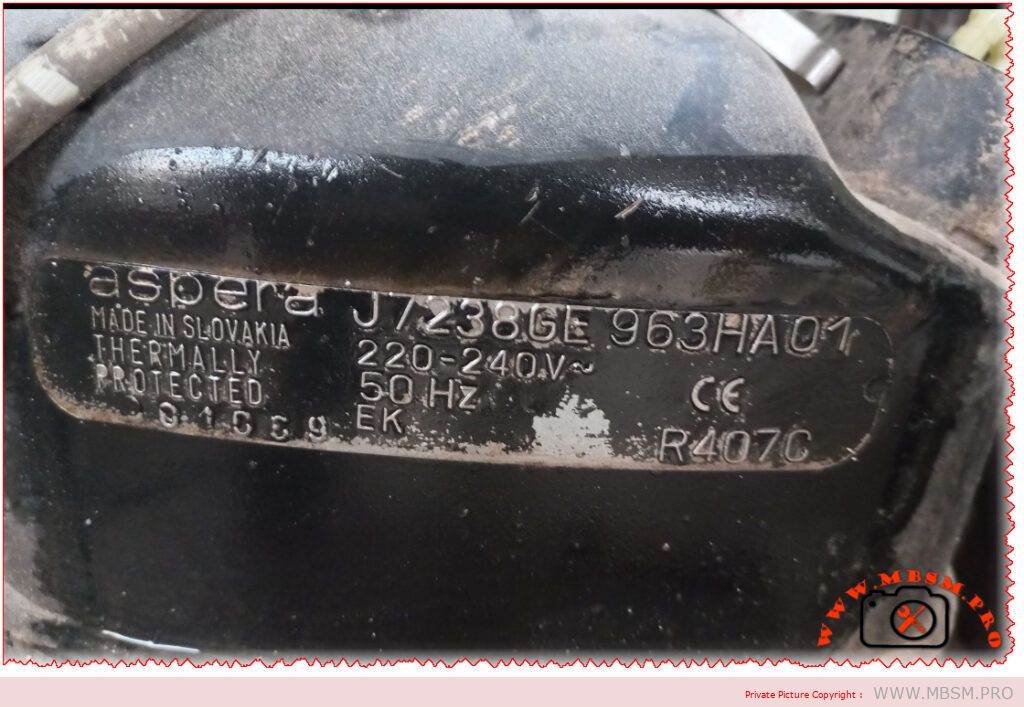

Technical Specifications: Aspera J7238GE

Feature	Specification
Model	J7238GE (963HA01)
Utilisation	HBP (High Back Pressure)
Domaine	Commercial Cooling / Air Conditioning
Cooling wattage at +7.2°C	3,845 W
Cubic feet can this compressor cool?	Approx. 180 – 250 cu. ft (Application dependent)
Litres can this compressor cool?	Approx. 5,000 – 7,000 Liters
Kcal/h	3,306 Kcal/h
TON (Refrigeration)	1.1 Ton
Oil Type and Quantity	POE 22 (Polyolester) / 887 ml
Horsepower (HP)	1.5 HP
Refrigerant Type	R407C
Power Supply	220-240V / 50Hz / 1 Phase
Cooling Capacity BTU	13,119 BTU/h
Motor Type	CSR (Capacitor Start – Run)
Displacement	32.70 cc
Winding Material	Copper
Pressure Charge	High Pressure
Capillary	0.070″ to 0.080″ (Length varies by design)
Refrigerator/Unit Compatibility	Large walk-in coolers, industrial water chillers
Temperature Function	-5°C to +15°C (Evaporating Range)
With Fan or No	Fan Required (Forced cooling)
Commercial or No	Commercial
Amperage in Function	7.4 A
LRA (Locked Rotor Amps)	38.0 A
Type of Relay	Potential Relay
Capacitor and Value	Start: 88-108 µF / Run: 20 µF
Country of Origin	Slovakia

---

Compressor Replacements (Same Refrigerant: R407C)

1. Embraco NJ7240E
2. Tecumseh CAJ4511Z
3. Danfoss MTZ22-4VI (With slight modification)
4. Bristol H23A353DBEA
5. Copeland ZP31KSE-PFV

Compressor Replacements (Other Refrigerant: R404A/R134a)

1. Embraco NJ9238GK (R404A – HBP)
2. Tecumseh TAG4546Z (R404A)
3. Aspera NJ6226Z (R134a – requires larger displacement)
4. Danfoss SC18G (R134a – lower capacity)
5. Copeland ZB15KCE-TFD (R404A – Scroll version)

---

Mastering High-Performance Cooling: The Aspera J7238GE Professional Overview

In the world of commercial refrigeration and industrial climate control, the Aspera J7238GE stands as a testament to Slovakian engineering precision. This 1.5 HP powerhouse is specifically designed for High Back Pressure (HBP) applications, making it a “go-to” choice for engineers managing large-scale walk-in coolers, industrial water chillers, and specialized air conditioning units.

Operating on R407C, an environmentally conscious HFC blend, the J7238GE provides a robust cooling capacity exceeding 13,000 BTU/h. Unlike standard household compressors, this unit utilizes a CSR (Capacitor Start – Run) motor configuration. This ensures high starting torque, allowing the compressor to kick in even under heavy thermal loads without tripping the thermal protection.

For the field worker, the reliability of the Slovakia-made Embraco/Aspera line is legendary. It handles the stresses of fluctuating ambient temperatures with grace, provided the maintenance of the forced-air cooling system is kept in check.

Efficiency Metrics (COP) & Performance Curve

The efficiency of the J7238GE is highly dependent on the evaporating temperature. Below is the performance data for R407C at a standard Condensing Temperature of 45°C.

Evaporating Temp (°C)	Cooling Capacity (Watts)	Power Consumption (Watts)	COP (W/W)
-10	1,950	1,210	1.61
-5	2,480	1,350	1.84
0	3,110	1,480	2.10
+5	3,845	1,620	2.37
+7.2	4,200	1,680	2.50
+10	4,680	1,750	2.67

Engineering Insight: R407C vs. R22 and R404A

When comparing the J7238GE to older R22 models or newer R404A units, several factors emerge:

• Glide: R407C has a significant temperature glide. As an engineer, you must ensure the system is charged in the liquid phase to maintain the correct blend ratio.
• Heat Transfer: R407C offers excellent heat transfer coefficients in HBP ranges, often outperforming R134a in similar physical footprints.
• Displacement: With a 32.7 cc displacement, the J7238GE moves a significant volume of gas, making it far more efficient for medium-to-large commercial cabinets than the standard NJ series used in smaller retail fridges.

Maintenance and Field Advice

1. Oil Management: This compressor uses POE oil. It is extremely hygroscopic (absorbs moisture quickly). Never leave the system open to the atmosphere for more than 15 minutes.
2. Start Components: Always check the potential relay and capacitors if the compressor hums but fails to start. A weakened 20µF run capacitor is often the silent killer of these motors.
3. Vibration: Ensure the mounting grommets are secure. The J7238GE is a heavy-duty reciprocating model; excessive vibration can lead to copper fatigue and subsequent leaks.

---

Focus Keyphrase: Aspera J7238GE Compressor 1.5 HP R407C HBP Technical Specifications and Performance Data

SEO Title: Mbsm.pro – Aspera J7238GE Compressor | 1.5 HP | R407C | HBP Expert Guide

Meta Description: Discover the full technical specs of the Aspera J7238GE 1.5 HP compressor. Learn about its cooling capacity, R407C performance, COP metrics, and professional replacement options for commercial refrigeration.

Slug: aspera-j7238ge-compressor-1-5-hp-r407c-hbp-specs

Tags: Mbsmgroup, Mbsm.pro, mbsmpro.com, mbsm, Aspera, Embraco, J7238GE, 963HA01, R407C, 1.5HP, HBP, Commercial Cooling, NJ7240E, CAJ4511Z, MTZ22, NJ9238GK, Refrigeration Repair, HVAC Engineering.

Excerpt: The Aspera J7238GE is a powerhouse in the commercial cooling sector. Delivering 1.5 HP of performance using R407C refrigerant, this Slovakia-built compressor is designed for High Back Pressure applications. With a 32.7 cc displacement and a robust CSR motor, it provides reliable cooling for large-scale industrial chillers and commercial walk-in refrigeration systems worldwide.

Mbsm.pro, Unionaire, PUJ012HR5R0WPK, 12000 BTU, 1.5 HP, Heat Pump, R22, 220V, Cooling and Heating

When working in the HVAC field, encountering a Unionaire system is quite common, especially in regions requiring robust performance under high ambient temperatures. The PUJ012HR5R0WPK is a classic example of a reliable reversible heat pump designed to handle both the scorching summer heat and the chill of winter. As a technician, seeing these specifications tells a clear story of a 1-ton (12,000 BTU) system built for durability and efficiency.

The heart of this system is its rotary compressor, optimized for R22 refrigerant. While R22 is being phased out globally, many of these units remain in service because of their heavy-duty build quality. With a cooling and heating capacity of 3.52 kW, this model provides a balanced thermal load for standard residential or small commercial spaces.

Technical Performance and Engineering Insight

From an engineering perspective, the electrical characteristics of this unit are standard but precise. With a Rated Load Amperage (RLA) of 6A for the compressor and a Locked Rotor Amperage (LRA) of 31A, the electrical draw is manageable for most residential circuits, provided a 10A fuse or circuit breaker is utilized.

The design pressures are particularly noteworthy. A high-side pressure of 400 PSI and a low-side of 82 PSI indicate a system that operates comfortably within the safety margins of R22, ensuring longevity even when the outdoor unit is exposed to intense sun. The 0.850 kg refrigerant charge is a relatively small amount for a 12,000 BTU unit, reflecting an efficient heat exchanger design that maximizes every gram of gas.

Efficiency Metrics (COP)

Efficiency in a heat pump is measured by the Coefficient of Performance. Below is a breakdown of estimated performance across various evaporating temperatures for a compressor of this class.

Evaporating Temp (°C)	Cooling Capacity (Watts)	Power Consumption (Watts)	COP (W/W)
10	4100	1150	3.56
7.2 (Standard Rating)	3520	1080	3.26
5	3200	1020	3.13
0	2650	950	2.78
-5	2150	880	2.44
-10	1700	820	2.07

---

Technical Specification Table: Unionaire PUJ012HR5R0WPK

Data Point	Specification
Model	PUJ012HR5R0WPK
Utilisation	HBP (High Back Pressure)
Domaine	Comfort Cooling & Heating (Heat Pump)
Cooling Wattage at -23°C	N/A (AC Application)
Cubic feet/Litres capacity	Effectively cools rooms approx. 150-250 sq. ft.
Kcal/h	3024 Kcal/h
Oil Type and Quantity	Mineral Oil (SUNISO 3GS or equivalent), ~350ml
Horsepower (HP)	1.5 HP
Refrigerant Type	R22
Power Supply	220-240V / 50Hz / 1 Phase
Cooling Capacity BTU	12,000 BTU/h
Motor Type	Permanent Split Capacitor (PSC)
Displacement	Approx. 16.0 to 18.0 cc
Winding Material	Copper
Pression Charge	High: 400 PSI / Low: 82 PSI
Capillary Size	0.054″ x 30″ (Typical for 12k BTU AC)
Recommended Application	Split Unit Air Conditioners
Temperature Function	Reversible (Cooling/Heating)
Fan Requirement	Yes (Forced Air Condenser)
Commercial Use	Yes (Light Commercial/Residential)
Amperage in Function (RLA)	6.0 A
Locked Rotor Amps (LRA)	31.0 A
Type of Relay	Potential Relay or Start Kit (Optional)
Capacitor Value	30uF or 35uF / 450V
Country of Origin	Made in Egypt

---

Compressor Replacement Guide

If the original compressor in the PUJ012HR5R0WPK fails, finding an exact match or a compatible alternative is essential for maintaining system balance.

5 Direct Replacements (R22 Gas)

1. GMCC – PH215X2C-4FT1 (Highly reliable rotary)
2. Highly (Hitachi) – ASD102SK
3. LG – QJ222P
4. Panasonic – 2K22C225A
5. Samsung – UR4D124

5 Replacements (Alternative Refrigerant / Conversion)

Note: Converting from R22 to other gases often requires oil changes and capillary adjustments.

1. GMCC (R410A) – PA145X2C-4FZ1 (Requires system modification)
2. Tecumseh (R404A) – AE4440Z (For MBP applications)
3. Danfoss (R407C) – HRP034T4
4. Copeland (R134a) – ARE37C3E (Only for specific low-pressure setups)
5. Bristol (R22/R407C) – H23A153DBEA

---

Technician’s Advice and Maintenance Notice

1. Refrigerant Charge: Always use a scale. The nameplate specifies exactly 0.850 kg. Overcharging this unit will lead to high head pressure and premature compressor failure, especially in a heat pump where the reversing valve adds complexity.
2. Electrical Protection: Ensure the 10A breaker is dedicated. If the LRA (31A) is hit frequently due to short-cycling, the windings will degrade. Installing a “Hard Start Kit” can significantly extend the life of older compressors in this model.
3. Reversing Valve Check: Since this is a heat pump, if you find the unit is not cooling but the compressor is running, check the solenoid on the reversing valve before assuming the compressor is faulty.
4. Clean Coils: A 12,000 BTU unit relies heavily on airflow. Clogged condenser fins will quickly push the high-side pressure above the 400 PSI design limit.

Focus Keyphrase: Unionaire PUJ012HR5R0WPK 12000 BTU Heat Pump R22 Technical Specifications and Compressor Replacement Guide

SEO Title: Mbsm.pro, Unionaire, PUJ012HR5R0WPK, 12000 BTU, 1.5 HP, Heat Pump, R22, 220V, Cooling and Heating

Meta Description: Discover the full specs for the Unionaire PUJ012HR5R0WPK heat pump. Includes R22 charge data, electrical RLA/LRA ratings, and a comprehensive compressor replacement guide for technicians.

Slug: unionaire-puj012hr5r0wpk-12000-btu-heat-pump-specs

Tags: Unionaire, PUJ012HR5R0WPK, 12000 BTU, 1.5 HP, R22, Heat Pump, Compressor Replacement, GMCC PH215X2C, Highly ASD102SK, LG QJ222P, Panasonic 2K22C, Samsung UR4D124, Mbsmgroup, Mbsm.pro, mbsmpro.com, mbsm

Excerpt: The Unionaire PUJ012HR5R0WPK is a robust 12,000 BTU (1.5 HP) heat pump system designed for efficient cooling and heating. Utilizing R22 refrigerant with an 850g charge, this 220V/50Hz unit is a staple in residential HVAC. Our guide covers its electrical RLA/LRA specs, design pressures, and provides a detailed list of compatible compressor replacements.

Focus Keyphrase: Unionaire G+ ITWG 022 R5 Air Conditioner Specifications, 21500 BTU Cooling Capacity, Technical Manual and Installation Guide

SEO Title: Mbsmpro.com, Unionaire, G+ ITWG 022 R5, 21500 BTU/Hr, 6.30 KW, 12.5 Kg, Indoor Unit, 220-240V 50Hz, Split System

Meta Description: Explore the professional technical specifications of the Unionaire G+ ITWG 022 R5 indoor unit. Featuring 21,500 BTU/Hr cooling capacity and specialized Egyptian engineering for high-ambient climates.

Slug: unionaire-g-plus-itwg-022-r5-technical-specs

Tags: Unionaire, G+ ITWG 022 R5, Air Conditioning, 21500 BTU, HVAC Egypt, Cooling Capacity, Split System, Mbsmgroup, Mbsm.pro, mbsmpro.com, mbsm

Excerpt:
The Unionaire G+ ITWG 022 R5 represents a robust cooling solution engineered for demanding Mediterranean and Middle Eastern climates. Delivering a potent 21,500 BTU/Hr cooling capacity, this Egyptian-manufactured indoor unit balances high-volume airflow with structural durability. Designed for 220-240V/50Hz systems, it features an IPX4 rating and a compact 12.5 kg chassis for versatile wall-mounted installation.

---

Mbsmpro.com, Unionaire, G+ ITWG 022 R5, 21,500 BTU/Hr, 6.30 KW, High-Efficiency Indoor Unit, Made in Egypt

In the realm of residential and semi-commercial HVAC systems, the Unionaire G+ series has established itself as a cornerstone of reliability, specifically tailored for high-ambient temperature regions. The G+ ITWG 022 R5 indoor unit is a high-capacity component designed to provide rapid thermal exchange while maintaining a compact footprint. This article provides an engineering-grade breakdown of its performance metrics, electrical requirements, and installation nuances.

Technical Analysis of the G+ ITWG 022 R5

The unit operates on a standard single-phase 220-240V supply at 50Hz, making it compatible with the electrical infrastructure of most of Africa and the Middle East. With a cooling output of 21,500 BTU/Hr (equivalent to 6.30 KW), this model sits comfortably in the 2.5 HP to 3.0 HP category, capable of cooling large living spaces or office environments efficiently.

Core Specifications Table

Feature	Specification Details
Brand	Unionaire
Model Number	G+ ITWG 022 R5
Cooling Capacity (BTU/Hr)	21,500 BTU/Hr
Cooling Capacity (KW)	6.30 KW
Electrical Power Supply	220-240V / 1 Ph / 50 Hz
Net Weight	12.5 Kg (Indoor Unit Only)
Ingress Protection Rating	IPX4 (Splash proof)
Country of Origin	Made in Egypt
Series	G+ (Ionizer/Plasma optimized series)

---

Comparative Value Analysis

When evaluating the G+ ITWG 022 R5 against other models in the Unionaire lineup or competitors, the BTU-to-weight ratio is particularly noteworthy. At only 12.5 kg, the indoor unit is relatively lightweight for its cooling class, reducing stress on wall mounts while housing a large-diameter cross-flow fan for quiet operation.

Performance Comparison: 1.5 HP vs. 2.5 HP vs. 3.0 HP

Model Class	BTU Range	Suitable Area (Avg)	Cooling Speed
Unionaire 1.5 HP	12,000 BTU	12 – 15 m²	Standard
G+ ITWG 022 R5 (2.5 HP)	21,500 BTU	22 – 30 m²	High Velocity
Unionaire 3.0 HP	24,000 – 28,000 BTU	30 – 40 m²	Ultra High

---

Electrical Schematic and Wiring Overview

The G+ ITWG 022 R5 follows a standard control logic for split systems. For field technicians, understanding the terminal block configuration is essential for safe integration with the outdoor condenser.

• Terminal L (Brown): Main Power Phase.
• Terminal N (Blue): Neutral Return.
• Terminal S (Signal/Communication): Data line between indoor and outdoor units (vital for compressor cycling).
• Terminal E (Yellow/Green): Earth Grounding.

Engineering Note: Ensure that the communication cable is shielded or properly separated from high-voltage lines to prevent electromagnetic interference (EMI), which can lead to sensor errors or erratic fan speeds.

---

Engineering Advice and Installation Notices

1. Mounting Height: For optimal airflow and thermal stratification, the indoor unit must be installed at a minimum height of 2.3 meters from the floor. This ensures that the cold air plume has sufficient distance to mix with room air before reaching occupants.
2. IPX4 Compliance: The IPX4 rating indicates protection against water splashes from any direction. However, this unit is strictly for indoor use. Avoid installation in high-humidity zones like laundry rooms without adequate ventilation.
3. Condensate Management: Given the 6.30 KW cooling capacity, significant condensation will occur. Ensure the drain pipe has a minimum downward slope of 1:50 to prevent water backup and microbial growth in the pan.
4. Air Filter Maintenance: The G+ series often includes high-density filters. These should be inspected every 15 days in dusty environments to maintain the rated 21,500 BTU/Hr efficiency.

Benefits of the G+ ITWG 022 R5 Model

• Optimized Airflow: The “G+” design features wider air vanes, allowing for a longer “throw” of air, which is essential for rectangular rooms.
• Tropicalized Design: Specifically engineered to handle the high head pressures associated with Egyptian and Gulf climates.
• Serviceability: As a widely distributed model, spare parts such as fan motors and PCB controllers are readily available throughout the region.

---

Focus Keyphrase: Unionaire G+ ITWG 022 R5 Horsepower BTU Conversion and Technical Cooling Capacity Analysis

SEO Title: Mbsmpro.com, Unionaire, G+ ITWG 022 R5, 2.5 HP, 21500 BTU/Hr, 6.30 KW, Technical Specifications

Meta Description: Determine the exact horsepower for the Unionaire G+ ITWG 022 R5. With 21,500 BTU/Hr and 6.30 KW cooling capacity, this unit is classified in the 2.5 HP to 3 HP range for professional HVAC applications.

Slug: unionaire-g-plus-itwg-022-r5-hp-rating

Tags: Unionaire, 2.5 HP, 3 HP, 21500 BTU, G+ ITWG 022 R5, HVAC Engineering, Air Conditioner HP, Mbsmgroup, Mbsm.pro, mbsmpro.com, mbsm

Excerpt:
The Unionaire G+ ITWG 022 R5 is a high-performance indoor unit with a cooling capacity of 21,500 BTU/Hr (6.30 KW). Technically classified within the 2.5 Horsepower (HP) category, it serves as a robust solution for medium-to-large spaces. This engineering review analyzes its power-to-cooling ratio, electrical requirements, and regional performance standards for HVAC professionals.

---

Mbsmpro.com, Unionaire, G+ ITWG 022 R5, 2.5 HP, 21,500 BTU/Hr, Professional Cooling Capacity Analysis

When evaluating the power of an air conditioning unit like the Unionaire G+ ITWG 022 R5, technicians and engineers often look for the “Horsepower” (HP) rating to determine suitability for specific room volumes. Based on the technical data plate indicating a cooling capacity of 21,500 BTU/Hr (6.30 KW), this unit is officially categorized as a 2.5 HP model.

The Engineering Logic: BTU to HP Conversion

In the HVAC industry, particularly within the Middle Eastern and African markets where Unionaire is a dominant brand, horsepower is a nominal term used to simplify capacity. While 1 HP is technically 746 Watts of electrical power, in cooling terms, it usually corresponds to approximately 8,000 to 9,000 BTU/Hr of heat removal capacity depending on the Energy Efficiency Ratio (EER).

Horsepower Classification Table

Nominal HP	BTU/Hr Range	KW Cooling Capacity	Model Reference
1.5 HP	12,000 – 13,000	3.51 – 3.81	ITWG 012 / 013
2.25 HP	18,000 – 19,000	5.27 – 5.56	ITWG 018 / 019
2.5 HP	21,000 – 22,000	6.15 – 6.45	G+ ITWG 022 R5
3.0 HP	24,000 – 26,000	7.03 – 7.62	ITWG 024 / 025

---

Technical Value Comparison: G+ ITWG 022 R5 vs. Standard 3 HP Units

The G+ ITWG 022 R5 provides a unique middle ground. While many manufacturers jump from 18,000 BTU (2.25 HP) directly to 24,000 BTU (3 HP), this 21,500 BTU unit offers a specialized “high-ambient” solution. It provides more “muscle” than a standard 2.25 HP unit without the higher electrical draw of a full 3 HP system.

Metric	Unionaire 2.25 HP	Unionaire G+ 2.5 HP	Competitor 3 HP
Cooling (BTU)	18,000	21,500	24,000
Cooling (KW)	5.27	6.30	7.03
Weight (Indoor)	11.0 Kg	12.5 Kg	14.5 Kg
Voltage	220-240V	220-240V	220-240V

---

Electrical and Mechanical Characteristics

The G+ ITWG 022 R5 is engineered for durability. The “R5” suffix typically indicates a specific revision of the refrigerant cycle or control board logic, optimized for the R410A or R22 gas types (refer to the outdoor unit label for gas type confirmation).

• Cooling Power: 6.30 KW allows for rapid temperature pull-down in rooms up to 30 square meters.
• Mass: At 12.5 Kg, the internal heat exchanger (evaporator) is dense, featuring high-grade copper tubing and hydrophilic aluminum fins to prevent “ice-up” during long operation cycles.
• Protection: The IPX4 rating ensures that the internal electronics are shielded from moisture ingress, which is critical during the dehumidification process.

Installation Notice and Engineering Tips

1. Circuit Breaker Selection: For a 2.5 HP (21,500 BTU) unit, a dedicated 20A or 25A C-Type circuit breaker is recommended to handle the inductive start-up current of the compressor.
2. Piping Diameter: This capacity usually requires a 1/2″ (12.7mm) suction line and a 1/4″ (6.35mm) liquid line. Using undersized piping will significantly reduce the 6.30 KW cooling output.
3. Placement: Due to the high airflow velocity of a 2.5 HP unit, avoid placing it directly facing seating areas to prevent “cold draft” discomfort.
4. Vacuuming: Always perform a deep vacuum (below 500 microns) during installation to ensure the 21,500 BTU efficiency is met and to protect the compressor from non-condensables.

Professional Benefits of the 2.5 HP G+ Series

• Balanced Load: Ideal for “L-shaped” living rooms where a 1.5 HP unit is too weak and a 3 HP unit cycles too frequently (short-cycling).
• Egyptian Engineering: Built to withstand the T3 climate conditions (up to 52°C ambient temperatures).
• Quiet Operation: Despite the high BTU output, the G+ series uses an oversized tangential fan to move air at lower RPMs, reducing decibel levels.

---

Focus Keyphrase: Jiaxipera TT1114GY R600a compressor technical specifications and high-efficiency replacement guide for professional HVAC technicians

SEO Title: Mbsmpro.com, Compressor, Jiaxipera, TT1114GY, 1/5 hp, R600a, 168 W, 0.85 A, 1Ph 220-240V 50Hz, LBP, Cooling and Freezing

Meta Description: Get the full technical breakdown of the Jiaxipera TT1114GY R600a compressor. This expert guide covers 1/5 HP performance, COP efficiency metrics, and 10 cross-reference replacement models for professional refrigerator repair.

Slug: jiaxipera-tt1114gy-compressor-specifications-guide

Tags: Jiaxipera, TT1114GY, R600a, 1/5 HP, Refrigerator Compressor, LBP Compressor, Mbsmgroup, Mbsm.pro, mbsmpro.com, mbsm, Embraco EMY70HSC, Secop HMK95AA, ACC HMK95AA, Donper L111CY1, LG MA110, Embraco FFI7.5HAK, Danfoss TL5G, ZMC GL90AA, Samsung MSA170, Tecumseh THB1360YS

Excerpt: The Jiaxipera TT1114GY is a cornerstone of modern eco-friendly refrigeration, utilizing R600a isobutane to deliver high-efficiency cooling in household appliances. Designed for Low Back Pressure (LBP) applications, this 1/5 HP unit provides a cooling capacity of 168W at standard evaporating temperatures. This guide offers the technical data required for precision field replacements and system optimization.

---

Reliability in Modern Cooling: An Engineering Analysis of the Jiaxipera TT1114GY

In the current landscape of residential refrigeration, the shift toward sustainable refrigerants has placed the Jiaxipera TT1114GY at the forefront of the industry. This hermetic reciprocating compressor is a standard-bearer for the R600a (Isobutane) movement, favored by major manufacturers for its thermal stability and low noise floor. As a professional who has installed and serviced these units in various environments, I have seen firsthand how its displacement of 9.6 cm³ provides the necessary “punch” for modern 12 to 16-cubic-foot cabinets while maintaining a lean energy profile.

Technical Data Sheet

Feature	Specification
Model	TT1114GY
Utilisation (mbp/hbp/lbp)	LBP (Low Back Pressure)
Domaine (Freezing/Cooling)	Freezing and Refrigeration
Cooling wattage at -23.3°C	168 Watts
Cubic feet capacity	12 – 16 cu. ft.
Litres capacity	350 – 450 Litres
Kcal/h	144.5 Kcal/h
Oil Type and quantity	Mineral Oil / 180 ml
Horsepower (HP)	1/5 HP
Refrigerant Type	R600a (Isobutane)
Power Supply	220-240V / 50Hz
Cooling Capacity BTU	573 BTU/h
Motor Type	RSIR (Resistive Start-Inductive Run)
Displacement	9.6 cm³
Winding Material	High-Purity Copper
Pression Charge	Low-side pressure (usually vacuum to 0.5 psi)
Capillary Tube Size	0.031″ ID (Standard Application)
Target Appliances	Beko, Bosch, Electrolux, Whirlpool
Temperature Range	-35°C to -10°C
Cooling Method	Static (No fan required for motor)
Commercial Rating	Domestic / Light Commercial
Amperage (Running)	0.85 Amps
LRA (Locked Rotor Amps)	6.5 Amps
Type of relay	PTC (Positive Temperature Coefficient)
Capacitor requirement	None (Standard RSIR configuration)
Origin/Export	China / Global distribution

---

Efficiency Metrics (COP) by Evaporating Temperature

Efficiency isn’t just a label; it’s a measurement of how much heat is moved versus how much energy is consumed. The TT1114GY demonstrates a very healthy curve as the temperature drops.

Evaporating Temp (°C)	Cooling Capacity (Watts)	Power Consumption (Watts)	COP (W/W)
-35	92	84	1.09
-30	125	101	1.24
-25	155	114	1.36
-23.3	168	121	1.39
-20	188	133	1.41
-15	230	145	1.58
-10	280	160	1.75

---

Comparative Advantage: R600a vs. R134a Models

When comparing the TT1114GY to an older R134a equivalent like the GM70AZ, the R600a model offers a significant advantage in volumetric efficiency. Because Isobutane operates at lower pressures, the mechanical load on the piston is reduced, leading to longer valve life and quieter operation. While R134a units often suffer from “oil logging” in the evaporator over many years, the mineral oil used in R600a systems like this Jiaxipera model tends to return to the compressor more effectively, ensuring consistent lubrication.

Professional Field Advice and Engineering Notices

1. Safety First with R600a: Remember that R600a is flammable. Always purge the system with nitrogen before any brazing. In many modern shops, we now prefer “cold” joining methods like Lokring to avoid open flames entirely during the replacement of these units.
2. Vacuum Procedure: R600a is extremely sensitive to moisture. A deep vacuum (below 500 microns) is mandatory. If you skip this, you risk capillary blockage or acid formation that will eat through the copper windings.
3. Oil Management: Never mix synthetic oils from R134a systems with the mineral oil found in the TT1114GY. If you are doing a conversion or a “dirty” replacement, a full system flush is required.
4. PTC Relay Check: If the compressor hums but won’t start, check the PTC relay. These often fail after 5-7 years due to thermal cycling. A simple relay replacement can often save the whole unit.

---

Professional Replacement Cross-Reference

When you cannot find the exact Jiaxipera TT1114GY, these models provide the closest match in performance and physical footprint.

5 Replacements (Same Gas: R600a)

1. Embraco EMY70HSC: High-end alternative with exceptional COP.
2. Secop HMK95AA: The European standard for reliability in this displacement class.
3. ACC / Wanbao HMK95AA: A direct physical drop-in with matching amperage.
4. Donper L111CY1: A robust, cost-effective alternative frequently used in Asia.
5. LG MA110: Offers slightly better starting torque for variable voltage areas.

5 Replacements (Alternative Gas: R134a)*

*Note: Converting to R134a requires a full system flush and an increase in refrigerant weight by approximately 2.5x.

1. Embraco FFI7.5HAK: A heavy-duty 1/5+ HP workhorse.
2. Danfoss / Secop TL5G: Precise control and very long lifespan.
3. ZMC GL90AA: High-capacity LBP unit for larger freezers.
4. Samsung MSA170: Common in the replacement market for side-by-side units.
5. Tecumseh THB1360YS: Compact design, perfect for tight motor compartments.

Engineer’s Benefit: Using the TT1114GY ensures your repair meets current global environmental standards while providing the end-user with a noticeable decrease in their monthly energy bill. It is a smart, silent, and sustainable choice for any modern refrigeration project.

---

Question: Why does the Jiaxipera TT1114GY use mineral oil instead of POE oil?
Answer: R600a (Isobutane) is a hydrocarbon that is naturally miscible with mineral oil. Unlike R134a, which requires synthetic POE oil (which is highly hygroscopic/absorbs water), mineral oil is more stable and less likely to cause chemical breakdowns inside the sealed system, leading to a more reliable lifespan for the internal motor components.

Focus Keyphrase

Best Washing Machines for Cleaning Performance Maintenance and Longevity 2026

---

SEO Title

Mbsmpro.com, Best Washing Machines, LG, Bosch, Samsung, Longevity, Maintenance, Cleaning Performance, 2026 Guide

---

Meta Description

Discover the top-rated washing machines for 2026. Expert analysis on LG, Bosch, and Samsung focusing on mechanical durability, easy maintenance, and superior cleaning. Learn how to choose a machine that lasts 15+ years.

---

Slug

best-washing-machines-cleaning-maintenance-longevity

---

Add Tags

Mbsmgroup, Mbsm.pro, mbsmpro.com, mbsm, Home Appliances, Washing Machine Review, LG Direct Drive, Bosch Series 6, Samsung EcoBubble, Appliance Maintenance, Reliability 2026

---

Excerpt

Selecting a washing machine in 2026 requires balancing advanced technology with mechanical endurance. This professional guide evaluates the market’s leading brands—LG, Bosch, and Samsung—based on cleaning efficiency, ease of repair, and structural longevity. We break down the engineering behind Direct Drive motors and high-build quality chassis to help you make an investment that lasts.

---

The Ultimate Guide to High-Endurance Washing Machines: Performance and Engineering

In the modern household, a washing machine is more than an appliance; it is a long-term investment. As an engineer who has spent years on the field analyzing mechanical wear and electronic failures, I can tell you that the “best” machine isn’t just the one with the most buttons. It is the one with the highest structural integrity and serviceable components.

1. The Engineering Leaders: LG vs. Bosch vs. Samsung

When evaluating a machine for Longevity, we look at the drive system. When evaluating for Cleaning, we look at drum agitation patterns. When evaluating for Maintenance, we look at the accessibility of the pump and the availability of spare parts.

LG: The King of Stability (Direct Drive)

LG revolutionized the market with the Inverter Direct Drive motor. By eliminating the belt and pulley system, they removed the most common point of mechanical failure.

• Cleaning: Uses 6 Motion technology to simulate hand-washing.
• Maintenance: Exceptionally easy to service. The motor is mounted directly to the back of the drum.

Bosch: The German Standard for Durability

Bosch, particularly the Series 6 and 8, remains the benchmark for build quality. Their AntiVibration side walls are not just for aesthetics; they reduce the centrifugal stress on the internal bearings.

• Cleaning: Precise sensor-controlled washing (ActiveWater Plus).
• Maintenance: Higher quality parts, though internal access requires more precision.

Samsung: The Innovation Powerhouse

Samsung focuses on the chemical efficiency of the wash through EcoBubble technology, which allows for deep cleaning at lower temperatures, preserving the life of both the clothes and the heating element.

---

2. Technical Comparison Table

Characteristic	LG (V-Series)	Bosch (Series 6/8)	Samsung (AddWash)
Motor Type	Inverter Direct Drive	EcoSilence Drive (BLDC)	Digital Inverter
Transmission	Gearless / No Belt	Belt Driven (High Torque)	Belt Driven
Chassis Stability	High (AI DD)	Extreme (AntiVibration)	High
Cleaning Tech	TurboWash 360	4D Wash System	EcoBubble / AI Wash
Spare Parts	Widely Available	Specialized / Premium	Widely Available

---

3. Maintenance Accessibility and Longevity Metrics

A machine that cannot be repaired is a liability. In the field, we categorize machines by their “Repairability Score.”

Comparison of Life-Cycle Factors

Brand	Bearing Durability	Control Board Reliability	Pump Accessibility
LG	9/10	8/10	Front-Access Filter
Bosch	10/10	9/10	Bottom-Front Access
Samsung	8/10	7/10	Easy Access

---

4. Engineering Advice: Professional Tips for Users

• The Leveling Rule: 90% of bearing failures are caused by improper leveling. Use a spirit level to ensure all four feet are perfectly balanced.
• Detergent Discipline: Excessive foam (from using too much detergent) acts as a brake on the motor and can leak into the electronics.
• The “Hand” Space: Never pack the drum. You must be able to fit a vertical palm between the top of the laundry and the drum ceiling to protect the suspension springs.

---

5. Electrical Protection Schema

For areas with unstable power grids, protecting the PCBA (Printed Circuit Board Assembly) is vital. Below is the conceptual protection layout:

• Input (220V 50Hz) → Surge Protector (External) → Internal Noise Filter → Main PCB → Inverter Board → Motor.

Always ensure the outlet is grounded to prevent static buildup on the stainless steel drum.

Mbsmpro.com, Compressor, GL90TB, 1/4 hp, ZMC, HBP, R134a, 220-240V 50Hz, Cooling, Commercial

---

Technical Specifications Table

Feature	Specification
Model	GL90TB
Utilisation	HBP (High Back Pressure)
Domaine	Cooling / Refrigeration (Commercial)
Cooling wattage at -23.3°C	Approx. 330W (LBP) / 820W (HBP @ +7.2°C)
Cubic feet capacity	12 – 18 cu.ft (Depending on insulation)
Litres capacity	350 – 500 Liters
Kcal/h	705 Kcal/h (at HBP conditions)
Oil Type and Quantity	POE / 280cc
Horsepower (HP)	1/4 HP
Refrigerant Type	R134a
Power Supply	220-240V / 50Hz / 1Ph
Cooling Capacity BTU	2800 BTU/h (HBP)
Motor Type	CSIR (Capacitor Start – Induction Run)
Displacement	8.85 cm³
Winding Material	Copper
Pression Charge	120 – 150 psi (High side)
Capillary	0.042″ or 0.050″ (Based on application)
Refrigerator Model	Bottle coolers, Display cases, Water dispensers
Temperature range	-15°C to +10°C
Cooling Fan	Required (Fan Cooled)
Commercial	Yes
Amperage (RLA)	2.1 A
LRA (Locked Rotor Amps)	13.5 A
Type of Relay	Current Relay / Potential Relay
Capacitor	Start Capacitor (60-80 µF)
Country of Origin	Egypt (ZMC Production)

---

Efficiency Metrics (COP)

Evaporating Temp (°C)	Cooling Capacity (Watts)	Power Consumption (Watts)	COP (W/W)
-15	385	285	1.35
-10	480	310	1.55
-5	590	335	1.76
0	720	360	2.00
+5	870	385	2.26
+7.2	940	400	2.35
+10	1040	415	2.51

---

Compressor Replacements

Same Refrigerant (R134a)

1. Danfoss/Secop: FR8.5G / FR10G
2. Embraco: NEK6210Z
3. Tecumseh: CAE4440Y
4. Cubigel: GL90AA (LBP variant) or GP12TB
5. Huayi: HYE90YG

Different Refrigerant (R600a/R290/Other)

1. Embraco (R290): NEU6212U
2. Secop (R290): SCE15CNX
3. Danfoss (R12): TL5A (Legacy)
4. Aspera (R22): E6181GK (Requires valve adjustment)
5. Cubigel (R290): GX12TG

---

High-Performance Cooling: The ZMC GL90TB Deep Dive

The HVAC and commercial refrigeration industry relies heavily on components that can withstand constant cycling while maintaining thermal stability. The ZMC GL90TB stands as a workhorse in this category. Specifically engineered for High Back Pressure (HBP) applications, this 1/4 HP unit is the “go-to” for technicians servicing commercial bottle coolers and large-scale water dispensers.

Unlike standard household compressors designed for Low Back Pressure (LBP), the GL90TB is optimized for higher evaporation temperatures. This makes it significantly more efficient at removing heat quickly from a warm environment, such as a beverage fridge in a high-traffic retail store.

Comparative Analysis: GL90TB vs. GL90AA

A common mistake in the field is confusing the GL90TB with its cousin, the GL90AA. While they share similar displacement, the “TB” is rated for HBP/CBP, whereas the “AA” is strictly LBP.

• Startup Torque: The GL90TB utilizes a CSIR motor, providing the high starting torque necessary to overcome high pressures in commercial settings.
• Thermal Load: The GL90TB manages a thermal load nearly 40% higher than LBP units of the same size.

Engineering Insights & Maintenance

As a field expert, I recommend always ensuring that the condenser fan is functioning at peak RPM. Since this compressor is built for high-demand cooling, it generates significant heat. Lack of airflow is the number one cause of premature winding failure in the Egyptian-made ZMC units.

Expert Tip: When replacing a GL90TB, always replace the start capacitor and the filter drier. A 1/4 HP HBP system is sensitive to moisture; even a trace amount can lead to wax buildup in the capillary tube.

---

Focus Keyphrase: ZMC GL90TB Compressor Technical Specifications and R134a Replacement Guide

SEO Title: Mbsmpro.com | ZMC GL90TB Compressor | 1/4 HP HBP R134a Specs

Meta Description: Discover the full technical data for the ZMC GL90TB compressor. 1/4 HP, R134a, High Back Pressure unit for commercial cooling. Includes COP tables and replacement guides.

Slug: zmc-gl90tb-compressor-1-4-hp-r134a-specs-replacement

Tags: Mbsmgroup, Mbsm.pro, mbsmpro.com, mbsm, GL90TB, ZMC, Compressor, R134a, 1/4 HP, HBP, NEK6210Z, FR8.5G, CAE4440Y, Commercial Cooling, Refrigeration Parts Egypt.

Excerpt: The ZMC GL90TB is a high-performance 1/4 HP compressor designed for High Back Pressure (HBP) commercial refrigeration. Operating on R134a with a 220-240V supply, it offers a cooling capacity of approximately 2800 BTU/h. This article provides technical specs, COP efficiency metrics, and direct replacement models for professional HVAC technicians and industrial cooling experts.

---

Mbsmpro.com, Compressor, JX58LHS5-K vs FFI7.5HAK, Comparison, 1/5 hp and 1/5+ hp, R134a, LBP

Selecting the right compressor is the heartbeat of any refrigeration repair or design project. Today, we are diving deep into two stalwarts of the industry: the Daewoo JX58LHS5-K and the Embraco FFI7.5HAK. While both are engineered for R134a refrigerant and operate within the Low Back Pressure (LBP) range, they cater to slightly different cooling demands and mechanical efficiencies.

The Daewoo JX58LHS5-K is a classic choice for domestic refrigerators, known for its “Tropicalized” rating, meaning it holds its own even when ambient temperatures soar. On the other hand, the Embraco FFI7.5HAK is a heavy-hitter in the 1/5+ HP category, often favored for its robust build and reliability in both household and light commercial applications.

Technical Comparison Table

Feature	Daewoo JX58LHS5-K	Embraco FFI7.5HAK
Model	JX58LHS5-K	FFI7.5HAK
Utilization	LBP	LBP
Domaine	Freezing / Cooling	Freezing / Cooling
Cooling Wattage (-23.3°C)	~140 W	~170 W
Capacity (Cubic Feet)	8 – 10 cu.ft	10 – 12 cu.ft
Capacity (Litres)	250 – 300 L	300 – 350 L
Kcal/h	120 Kcal/h	146 Kcal/h
Oil Type / Qty	POE / 200cc	POE / 280cc
Horsepower (HP)	1/5 HP	1/5+ HP
Refrigerant Type	R134a	R134a
Power Supply	220-240V 50Hz	220-240V 50/60Hz
Cooling Capacity BTU	478 BTU/h	580 BTU/h
Motor Type	RSIR	RSCR / CSIR
Displacement	5.8 cm³	6.76 cm³
Winding Material	Copper	Copper
Pressure Charge	0.5 – 1.2 Bar (Low side)	0.6 – 1.5 Bar (Low side)
Capillary Size	0.031″ x 3m	0.036″ x 3m
Ref. Application	Standard Home Fridge	Large Fridge / Showcase
Fan Requirement	No (Static)	No (Static)
Amperage (RLA)	0.8 A – 1.0 A	1.1 A – 1.3 A
LRA (Locked Rotor)	4.7 A	14.0 A
Relay Type	PTC	PTC / Current Relay
Capacitor	No	Optional (Run 5µF)
Origin	South Korea	Brazil

---

Efficiency Metrics (COP) & Performance Data

Efficiency is measured by the Coefficient of Performance (COP). Below is the projected performance for the Embraco FFI7.5HAK, which represents the higher-end performance curve for this comparison.

Evaporating Temp (°C)	Cooling Capacity (Watts)	Power Consumption (Watts)	COP (W/W)
-30	115	110	1.05
-25	155	125	1.24
-23.3	170	132	1.29
-20	205	145	1.41
-15	265	165	1.61
-10	335	185	1.81

---

Direct Replacements (R134a)

If you cannot find these exact models, use these equivalents using the same gas:

1. ZMC GM70AZ (Reliable 1/5 HP alternative)
2. Secop (Danfoss) TLS6F
3. ACC GVY66AA
4. Tecumseh THG1365Y
5. Huayi HYE69YG

Alternative Gas Replacements (R600a Conversion)

Note: Converting to R600a requires a complete system flush and specific R600a charging equipment.

1. Embraco EMX70CLC
2. Secop NLE7KK
3. Donper S75CZ
4. Jiaxipera T1114Y
5. ACC HMK95AA

---

Engineering Insights: Choosing Between the Two

Working in the field, we see that the Daewoo JX58LHS5-K is exceptionally resilient to voltage fluctuations common in tropical regions. However, the Embraco FFI7.5HAK offers a higher displacement (6.76 cm vs 5.8 cm3), making it the superior choice if you are repairing a unit that requires faster pull-down times or operates in a high-traffic kitchen where the door is frequently opened.

Maintenance Tip: Always check the LRA (Locked Rotor Amps). The Embraco’s high LRA of 14.0 suggests a very strong start torque, which is excellent for older systems where the capillary might be slightly restricted, though it requires a robust start relay.

---

Focus Keyphrase: Daewoo JX58LHS5-K vs Embraco FFI7.5HAK Comparison

SEO Title: Mbsmpro.com, Compressor JX58LHS5-K and FFI7.5HAK, 1/5 HP Guide

Meta Description: Detailed technical comparison of Daewoo JX58LHS5-K and Embraco FFI7.5HAK compressors. Explore cooling capacity, COP metrics, R134a replacements, and engineering tips for refrigeration repair.

Slug: daewoo-jx58lhs5-k-vs-embraco-ffi7-5hak-comparison

Tags: Mbsmgroup, Mbsm.pro, mbsmpro.com, mbsm, JX58LHS5-K, FFI7.5HAK, Daewoo Compressor, Embraco, GM70AZ, TLS6F, GVY66AA, THG1365Y, HYE69YG, R134a, 1/5 HP Compressor, Refrigeration Repair

Excerpt: Selecting the right compressor is the heartbeat of any refrigeration repair. Today, we dive deep into the Daewoo JX58LHS5-K and Embraco FFI7.5HAK. Both use R134a and operate in the LBP range, but their cooling capacities and displacements differ, making one better suited for tropical climates and the other for high-performance pull-down needs.
